CPU

CPU Model

Realtek RTD1619B

CPU Quantity

1

CPU Cores

4

CPU Threads

4

CPU Architecture

64-bit

CPU Frequency

1.7 GHz

Hardware Encryption Engine

✓

Memory

System Memory

1 GB DDR4 non-ECC

Notes

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.

Storage

Drive Bays

2

Drive Type (See all supported drives)

3.5" SATA HDD
2.5" SATA SSD (with optional 2.5" Disk Holder)

Hot Swappable Drive*

-

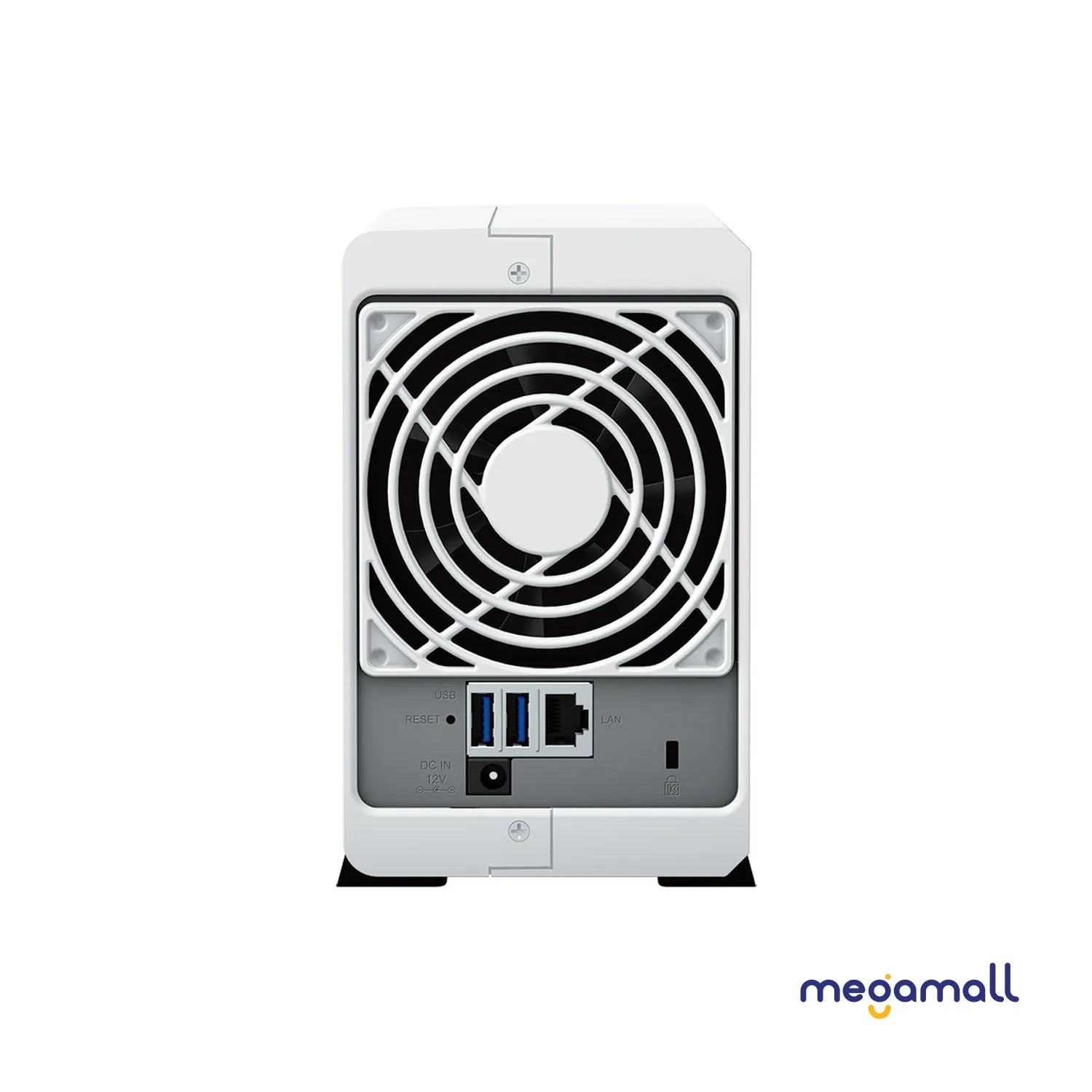

External Ports

RJ-45 1GbE LAN Port

1

USB 3.2 Gen 1 Port

2

Notes

MTU value of 1GbE LAN port has a limit of 1500.

Appearance

Size (Height x Width x Depth)

165 mm x 100 mm x 225.5 mm

Weight

0.88 kg

Others

System Fan

92 mm x 92 mm x 1 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode

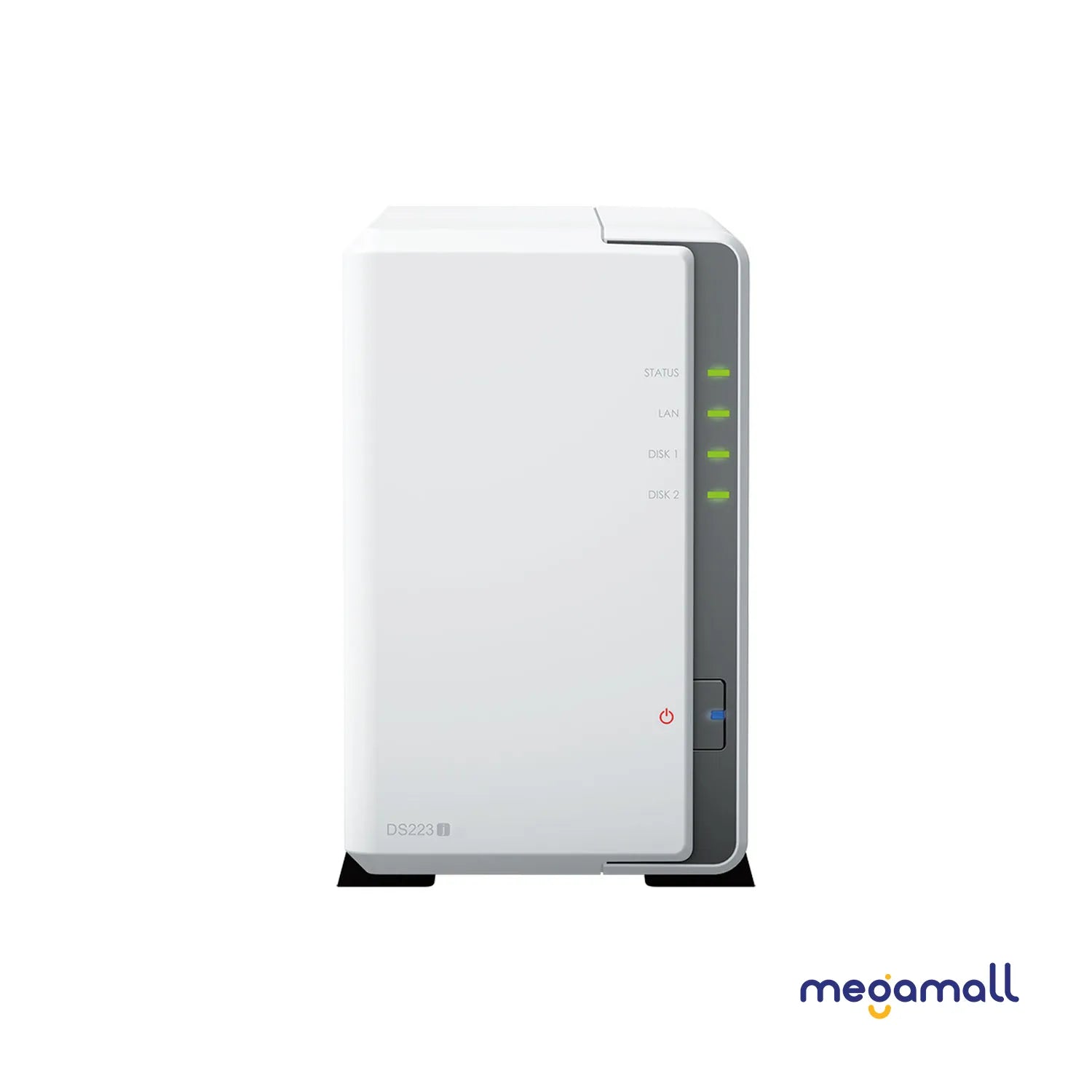

Brightness Adjustable Front LED Indicators

✓

Power Recovery

✓

Noise Level*

18.2 dB(A)

Scheduled Power On / Off

✓

Wake on LAN / WAN

✓

Power Supply Unit / Adapter

60 watts

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

16.31 watts (Access)
4 watts (HDD Hibernation)

British Thermal Unit

55.62 BTU/hr (Access)
13.64 BTU/hr (HDD Hibernation)

Notes

For more information on how power consumption is measured, refer to this article.
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Operating Humidity

8% to 80% RH

Storage Humidity

5% to 95% RH

Certification

FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
BIS

Warranty

2-year hardware warranty

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions. (Learn more)

Environment

Environment

RoHS Compliant

Packaging Content

Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1

Optional Accessories

Plus Series 3.5" SATA HDD: HAT3300 Series
