Description
The new MikroTik flagship with the power of a whole fleet. Unleash the power of 100 Gigabit networking with L3 Hardware Offloading! This router can be a handy drop-in upgrade for existing CCR1072 setups.

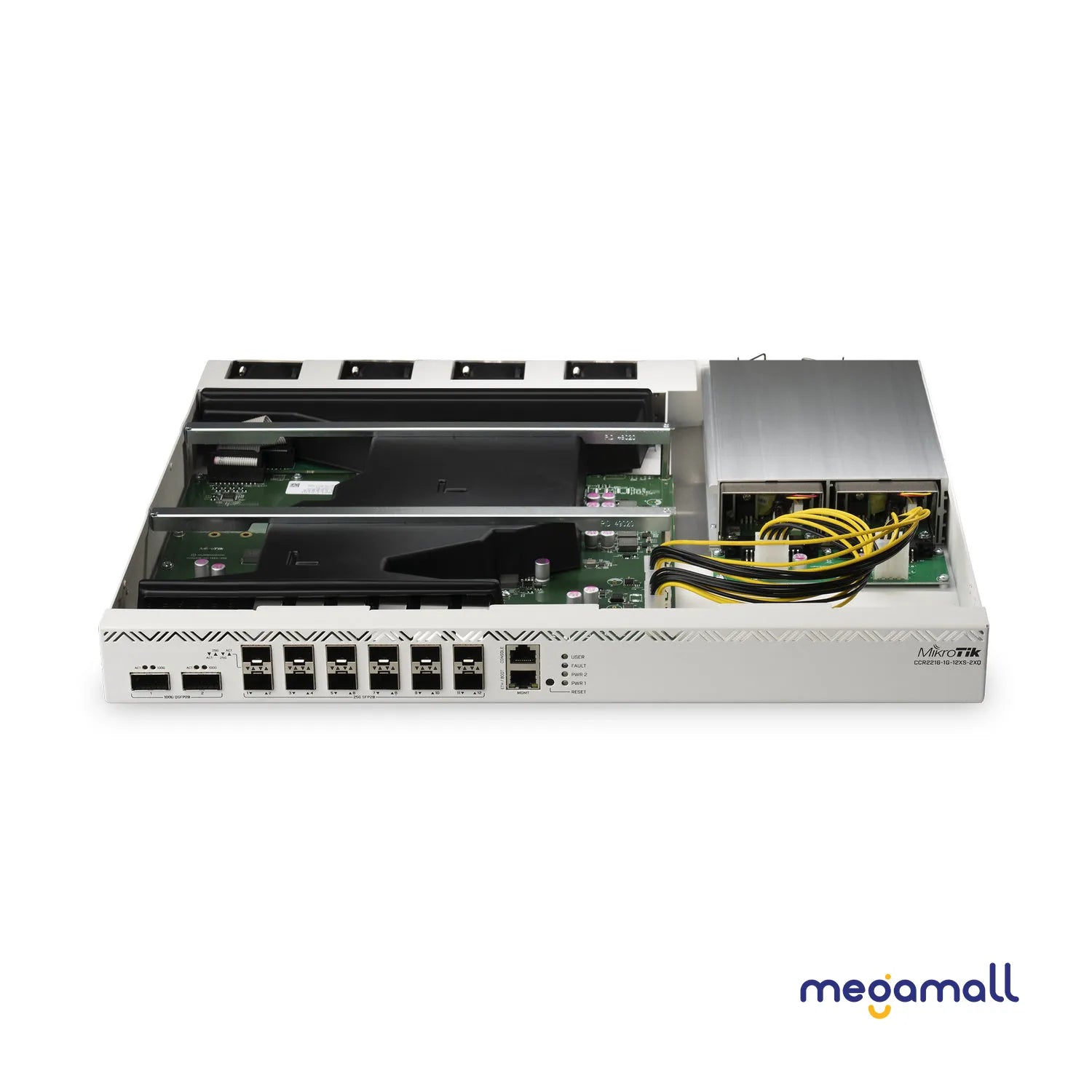

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.

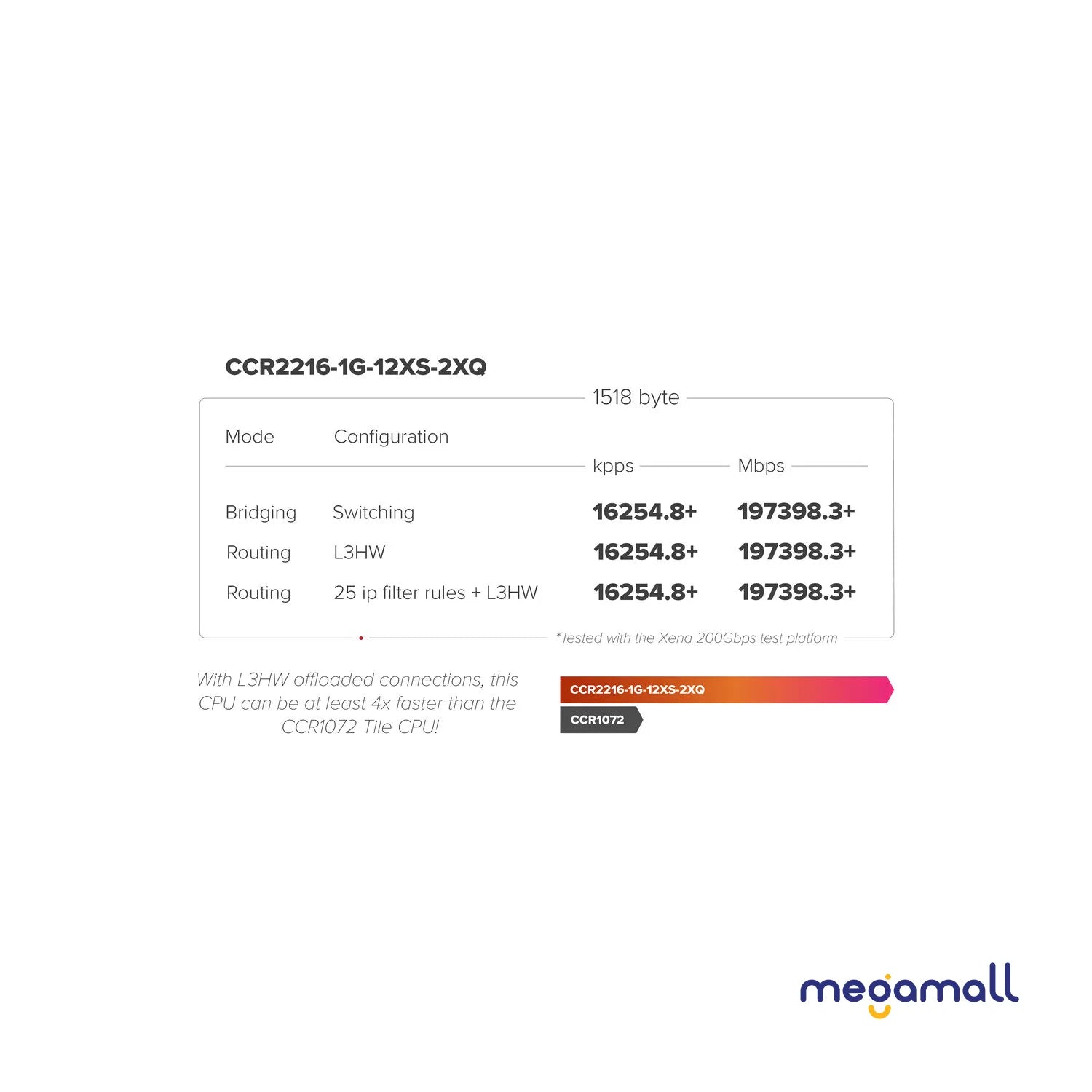

But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

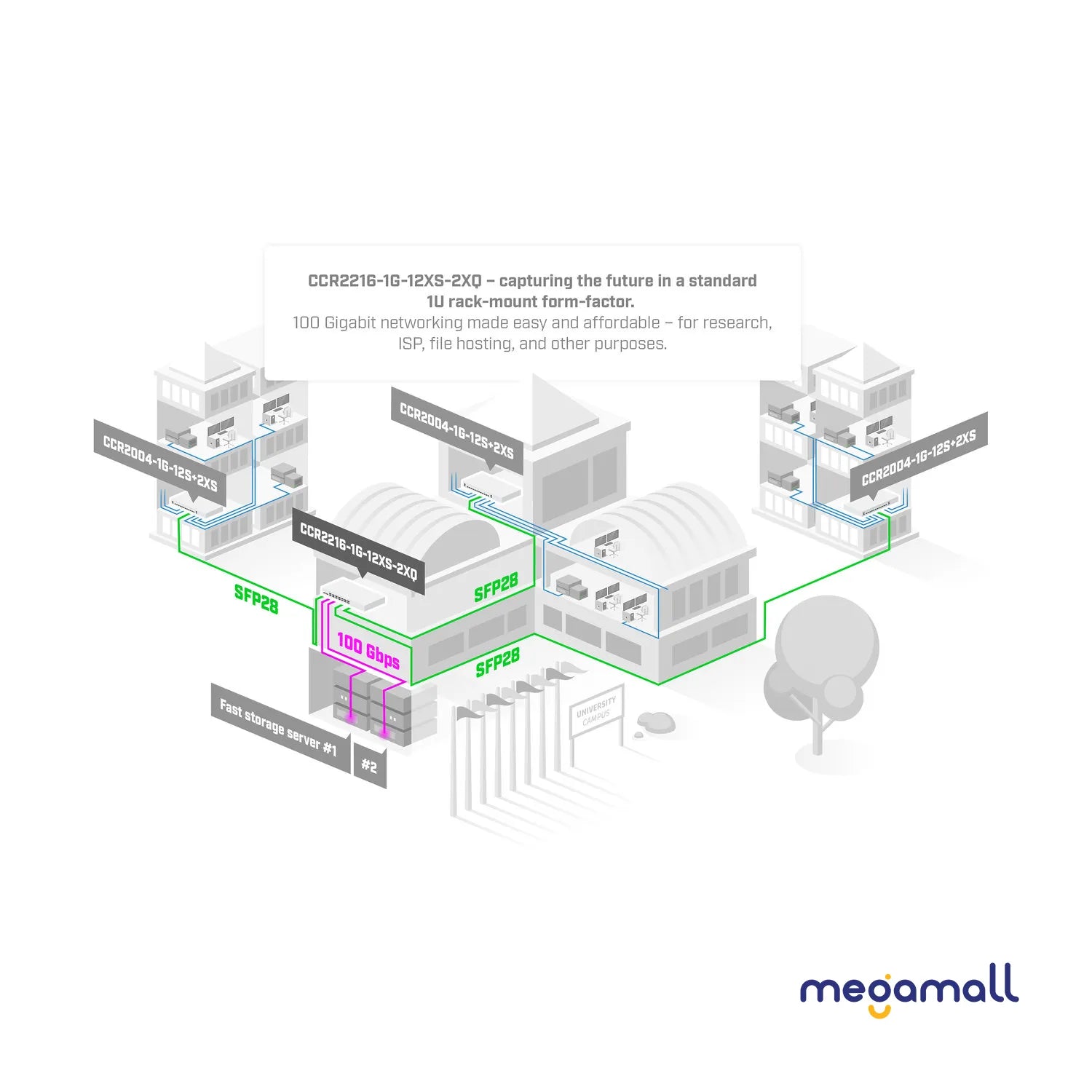

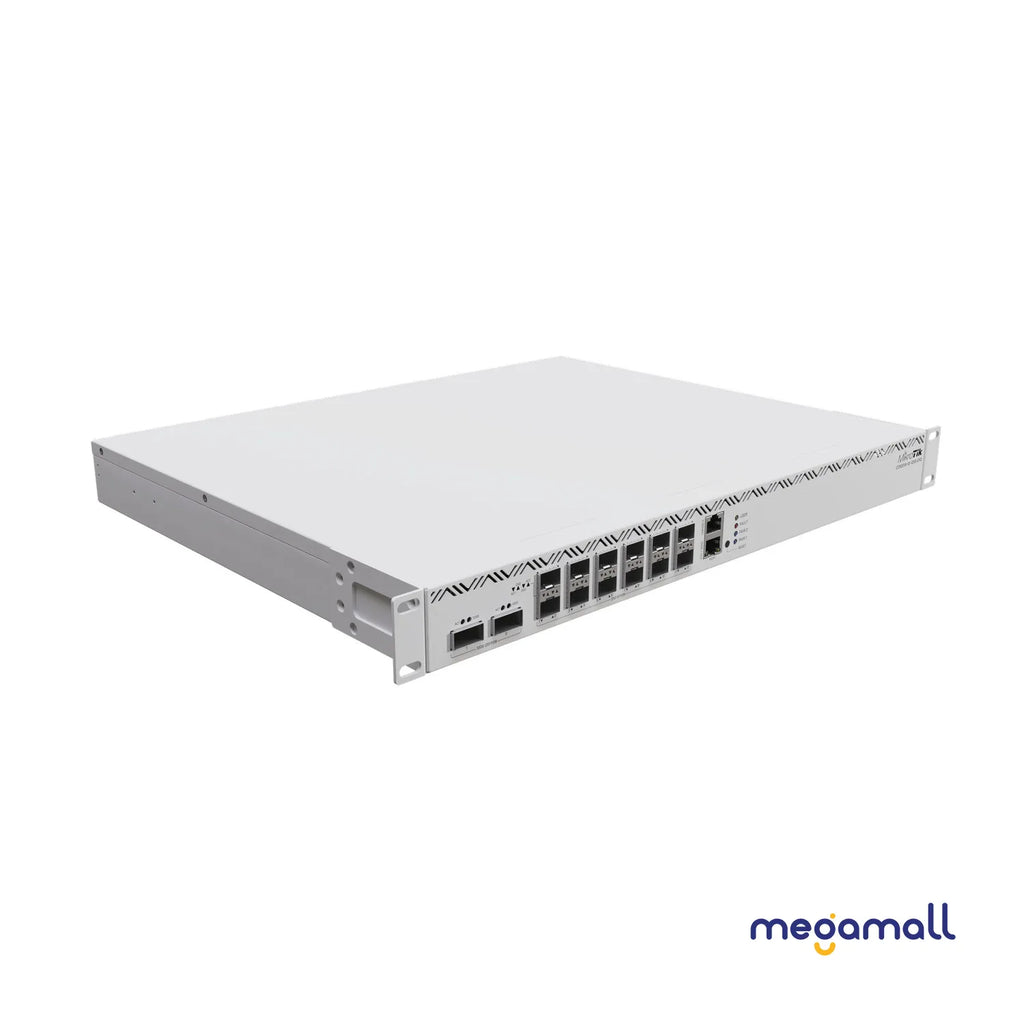

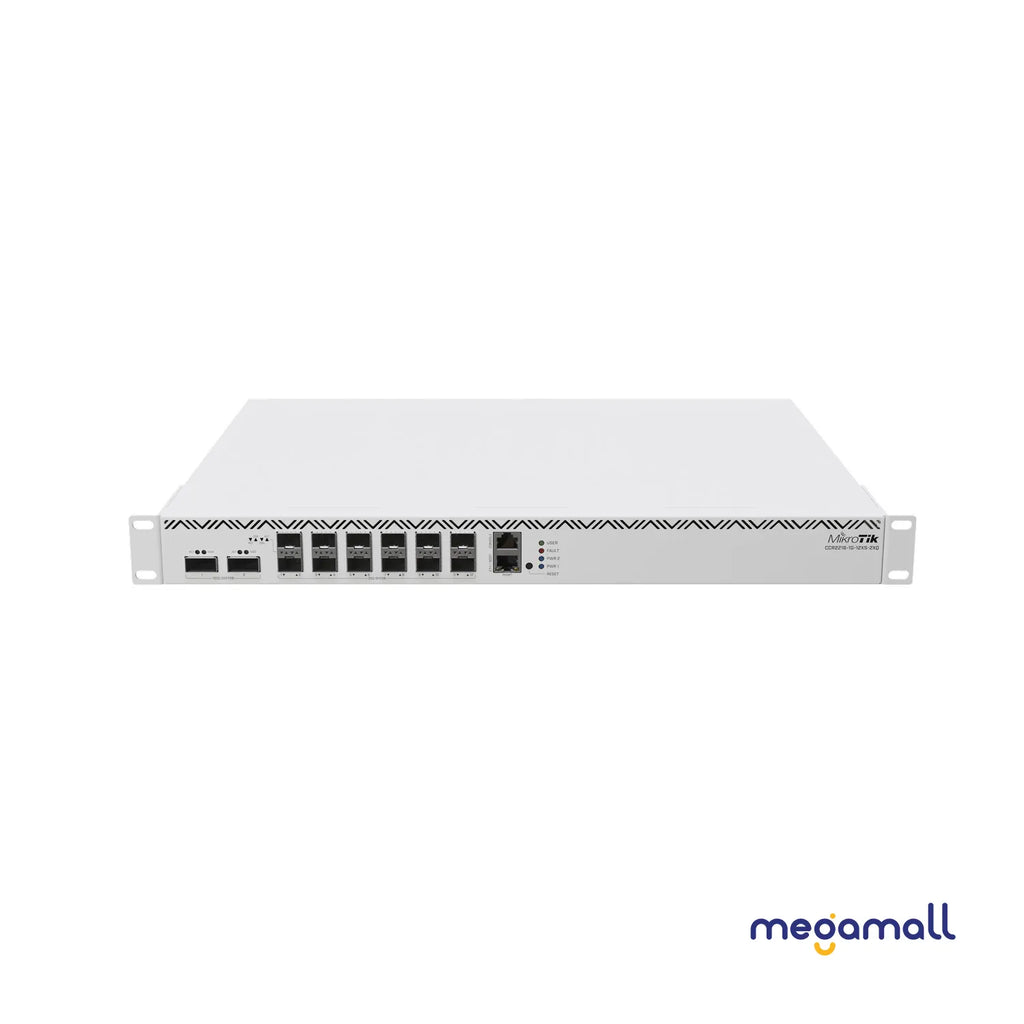

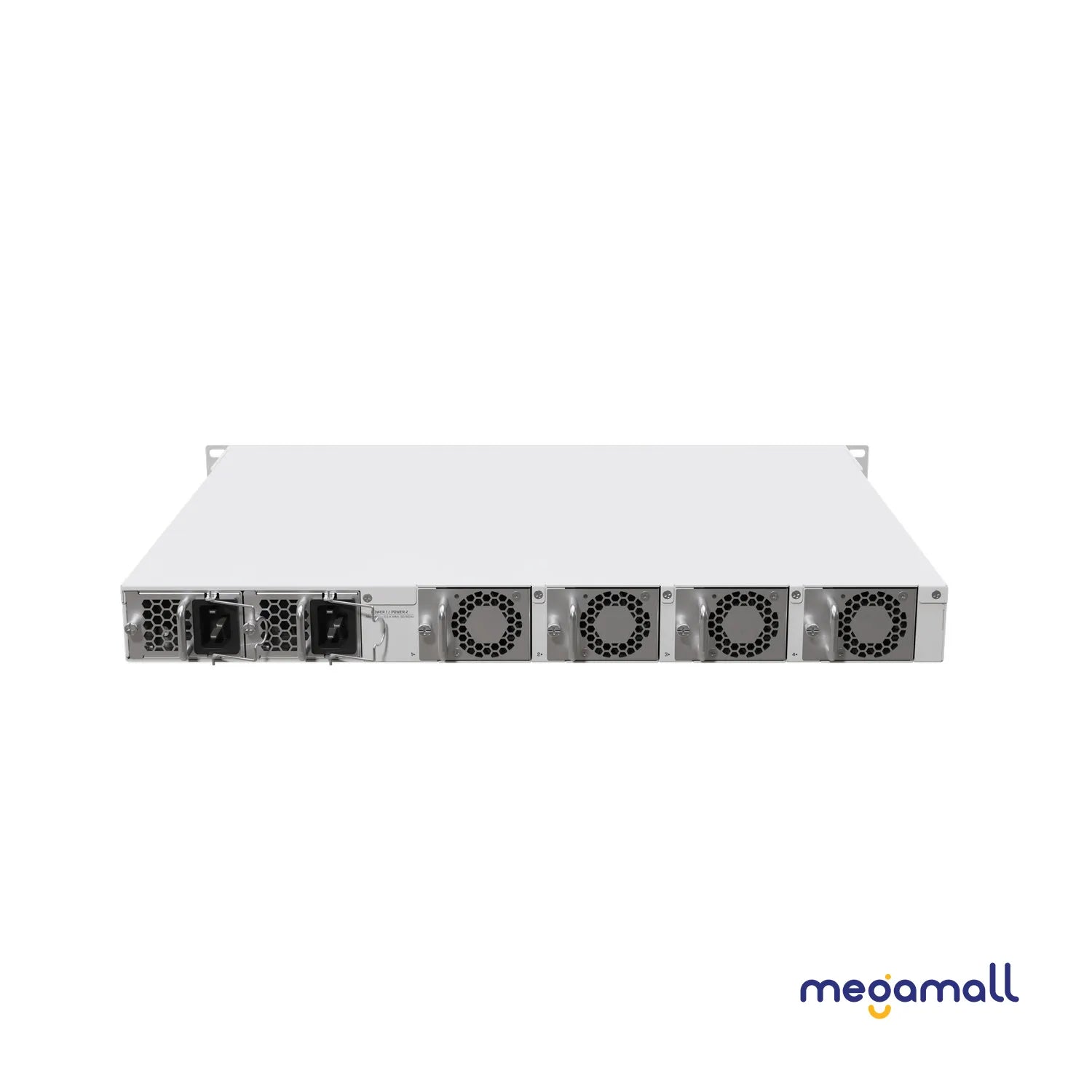

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!
|
Specifications |
|
|
Product code |
CCR2216-1G-12XS-2XQ |
|
Architecture |
ARM 64bit |
|
CPU |
AL73400 |
|
CPU core count |
16 |
|
CPU nominal frequency |
2000 MHz |
|
Switch chip model |
98DX8525 |
|
Dimensions |
443 x 367 x 44 mm |
|
RouterOS license |
6 |
|
Operating System |
|
|
Size of RAM |
16 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 60°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Number of PSU slots |
2 |
|
Frequency (Hz) |
50-60 |
|
Max power consumption |
128 W |
|
Max power consumption without attachments |
80 W |
|
Cooling type |
4 fans |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
1 |
|
Fiber |
|
|
Number of 25G SFP28 ports |
12 |
|
Number of 100G QSFP28 ports |
2 |
|
Peripherals |
|
|
Serial console port |
RJ45 |
|
Number of M.2 slots |
2 |
|
Other |
|
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |
|
Warranty |
|
|
Warranty |
1 Year |
