Description
Smart Switch, 5x SFP cages, 1x Combo port (SFP or Gigabit Ethernet), 400MHz CPU, 128MB RAM, desktop case, RouterOS L5.

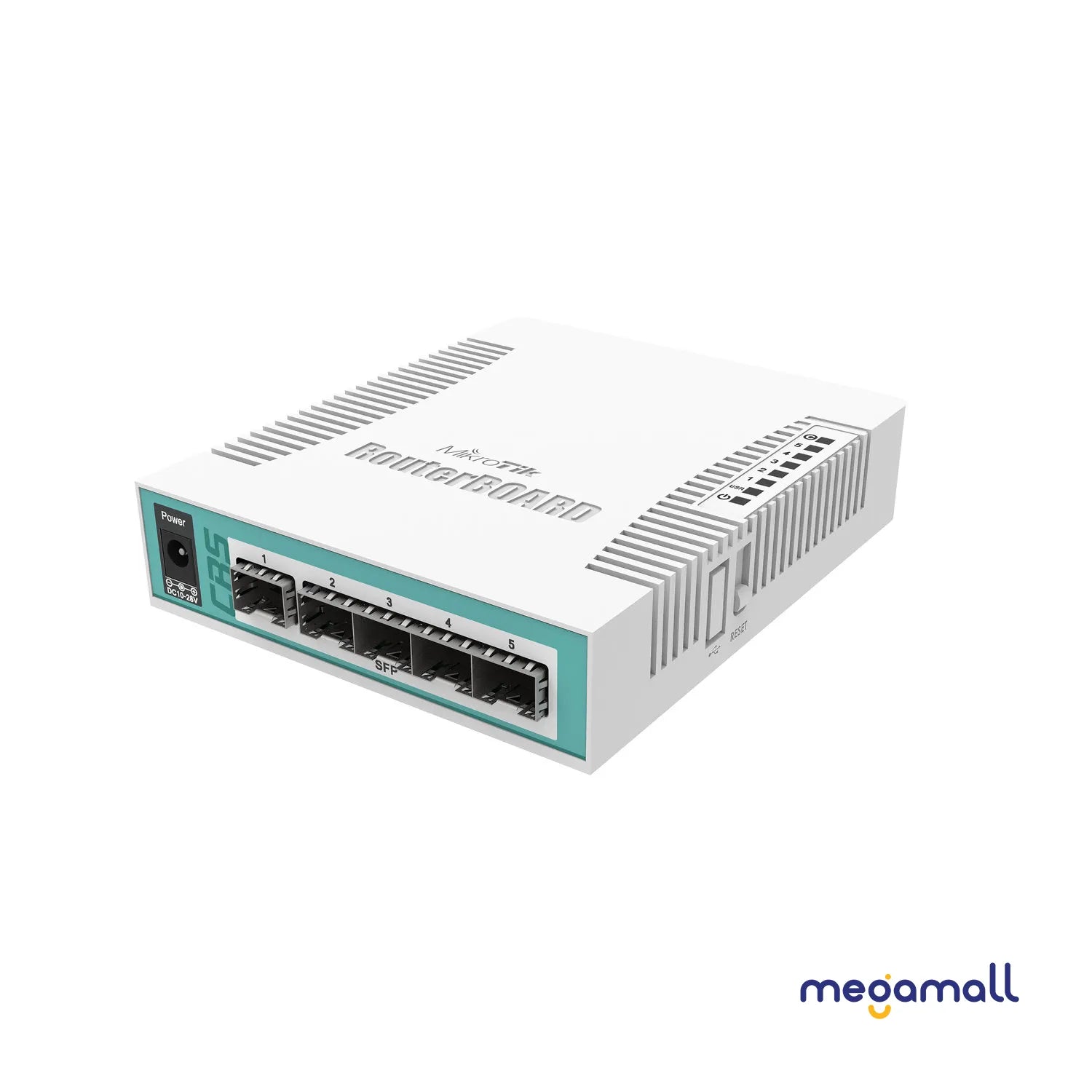

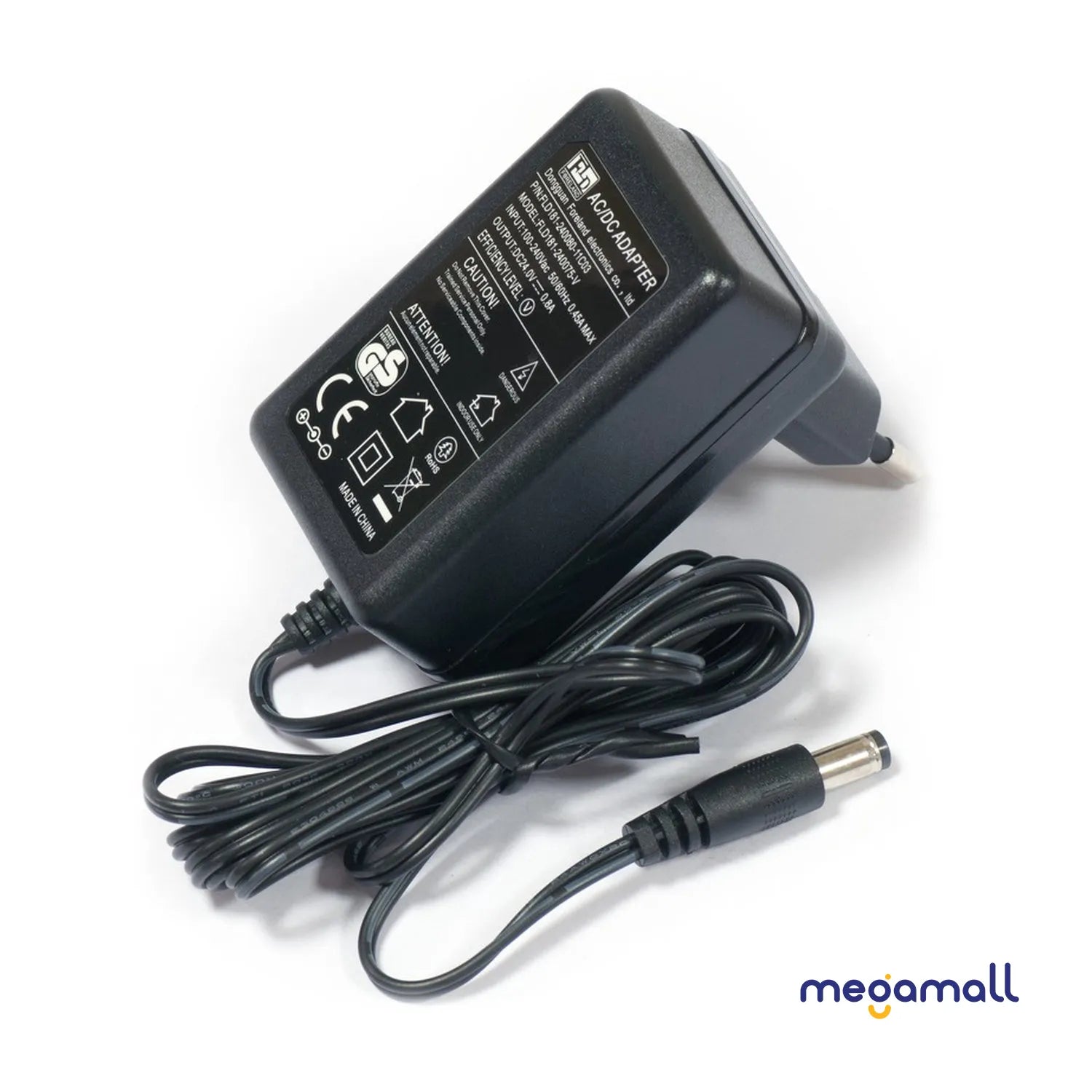

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
At $59 this product provides a market-leading solution for connecting up to six SFP devices.
|
Specifications |
|
|
Product code |
CRS106-1C-5S |
|
Architecture |
MIPSBE |
|
CPU |
QCA8511 |
|
CPU core count |
1 |
|
CPU nominal frequency |
400 MHz |
|
Switch chip model |
QCA8511 |
|
Dimensions |
114 x 137 x 29mm |
|
RouterOS license |
5 |
|
Operating System |
|
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 100'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 70°C |
|
Powering |
|
|
Number of DC inputs |
2 (PoE-IN, DC jack) |
|
DC jack input Voltage |
11-30 V |
|
Max power consumption |
11 W |
|
PoE in |
Passive PoE |
|
Cooling type |
Passive |
|
PoE in input Voltage |
11-30 V |
|
Ethernet |
|
|
Ethernet Combo ports |
1 |
|
Fiber |
|
|
SFP ports |
5 |
|
Peripherals |
|
|
Serial console port |
RJ45 |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
|
Warranty |
|
|
Warranty |
1 Year |
