Description
8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5.
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

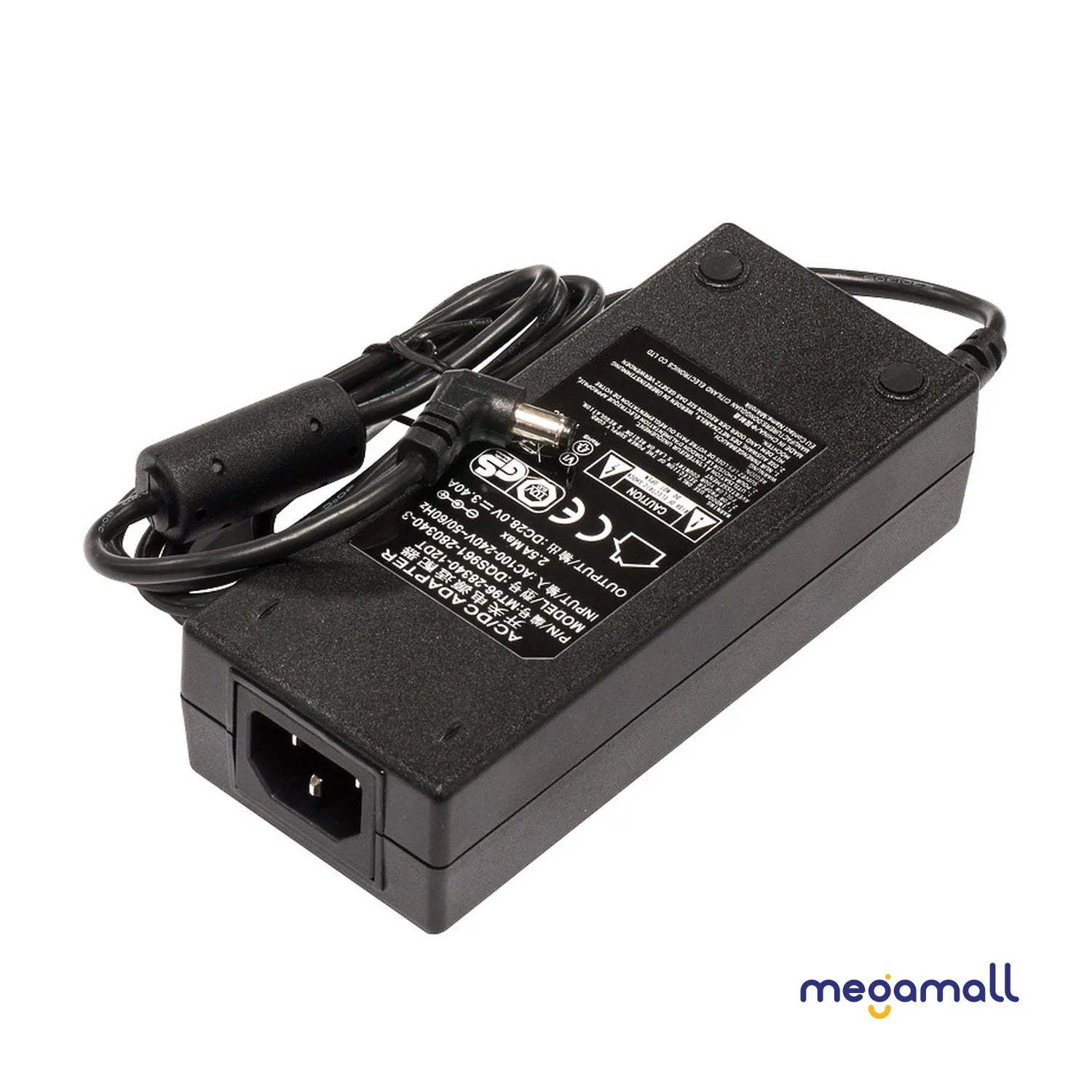

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins.
|
Specifications |
|
|
Product code |
CRS112-8P-4S-IN |
|
Architecture |
MIPSBE |
|
CPU |
QCA8511 |
|
CPU core count |
1 |
|
CPU nominal frequency |
400 MHz |
|
Switch chip model |
QCA8511 |
|
Dimensions |
200 x 142 x 44 mm |
|
RouterOS license |
5 |
|
Operating System |
|
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 60°C |
|
Powering |
|
|
Number of DC inputs |
2 (DC jack) |
|
DC jack input Voltage |
18-28 V / 48-57 V |
|
Max power consumption |
160 W |
|
Max power consumption without attachments |
10 W |
|
Cooling type |
Passive |
|
PoE-out |
|
|
PoE-out ports |
Ether1-Ether8 |
|
PoE out |
802.3af/at |
|
Max out per port output (input 18-30 V) |
1:00 AM |
|
Max out per port output (input 30-57 V) |
450 mA |
|
Max total out (A) |
2.8A (18V-28V) & 1.4A (48V-57V) A |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
8 |
|
Number of 1G Ethernet ports with PoE-out |
8 |
|
Fiber |
|
|
SFP ports |
4 |
|
Peripherals |
|
|
Serial console port |
RJ45 |
|
Other |
|
|
PCB temperature monitor |
Yes |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
|
Warranty |
|
|
Warranty |
1 Year |
