Description
Our fastest switch for the most demanding setups.
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

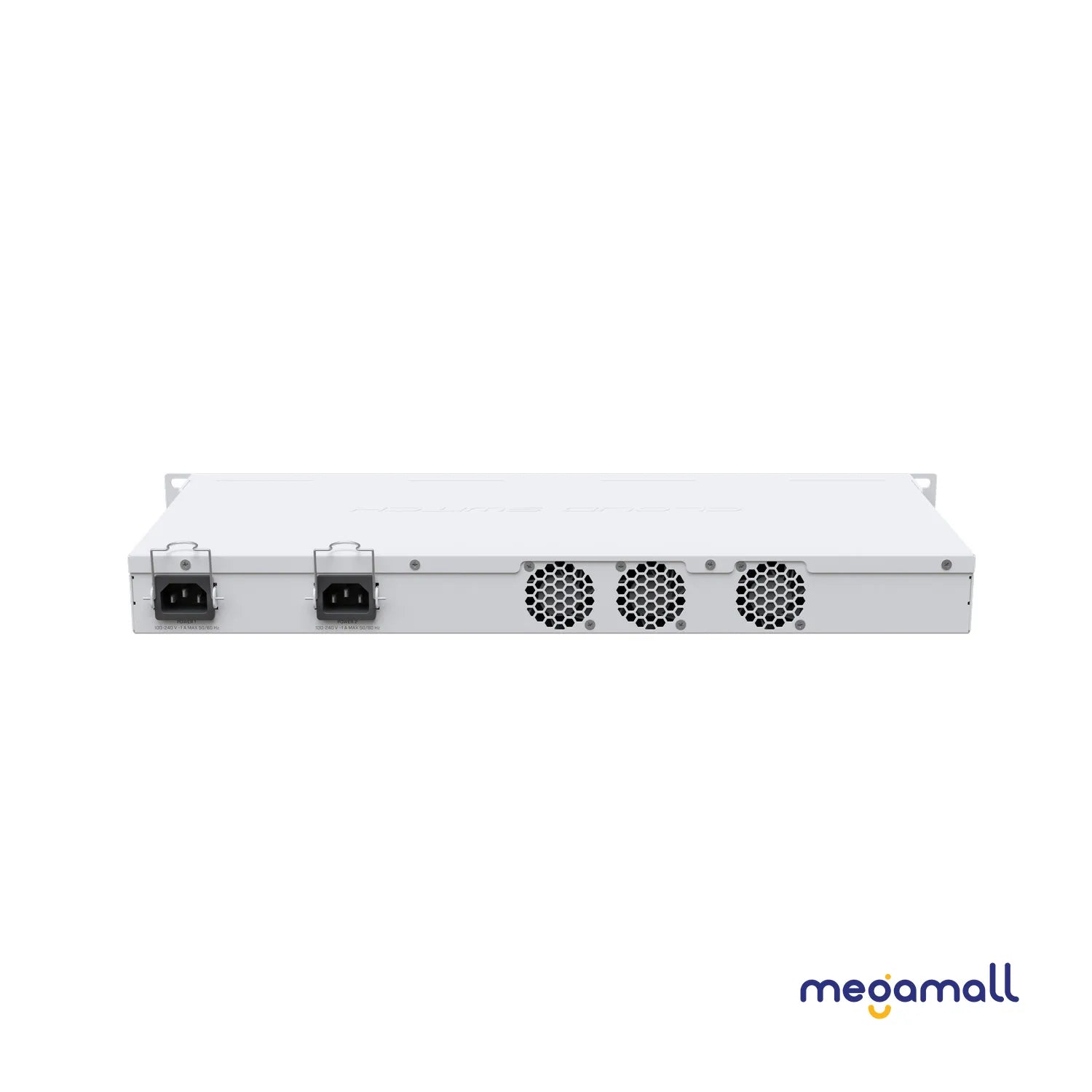

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.
|
Specifications |
|
|
Product code |
CRS326-24S+2Q+RM |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Switch chip model |
98DX8332 |
|
Dimensions |
443 x 200 x 44 mm |
|
RouterOS license |
5 |
|
Operating System |
|
|
Size of RAM |
128 MB |
|
Storage size |
32 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 60°C |
|
Powering |
|
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Number of PSU slots |
2 |
|
Frequency (Hz) |
50-60 |
|
Max power consumption |
69 W |
|
Max power consumption without attachments |
42 W |
|
Cooling type |
3 fans |
|
Ethernet |
|
|
10/100 Ethernet ports |
1 |
|
Fiber |
|
|
SFP+ ports |
24 |
|
Number of 40G QSFP+ ports |
2 |
|
Peripherals |
|
|
Serial console port |
RJ45 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
|
Warranty |
|
|
Warranty |
1 Year |
