Description
An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.

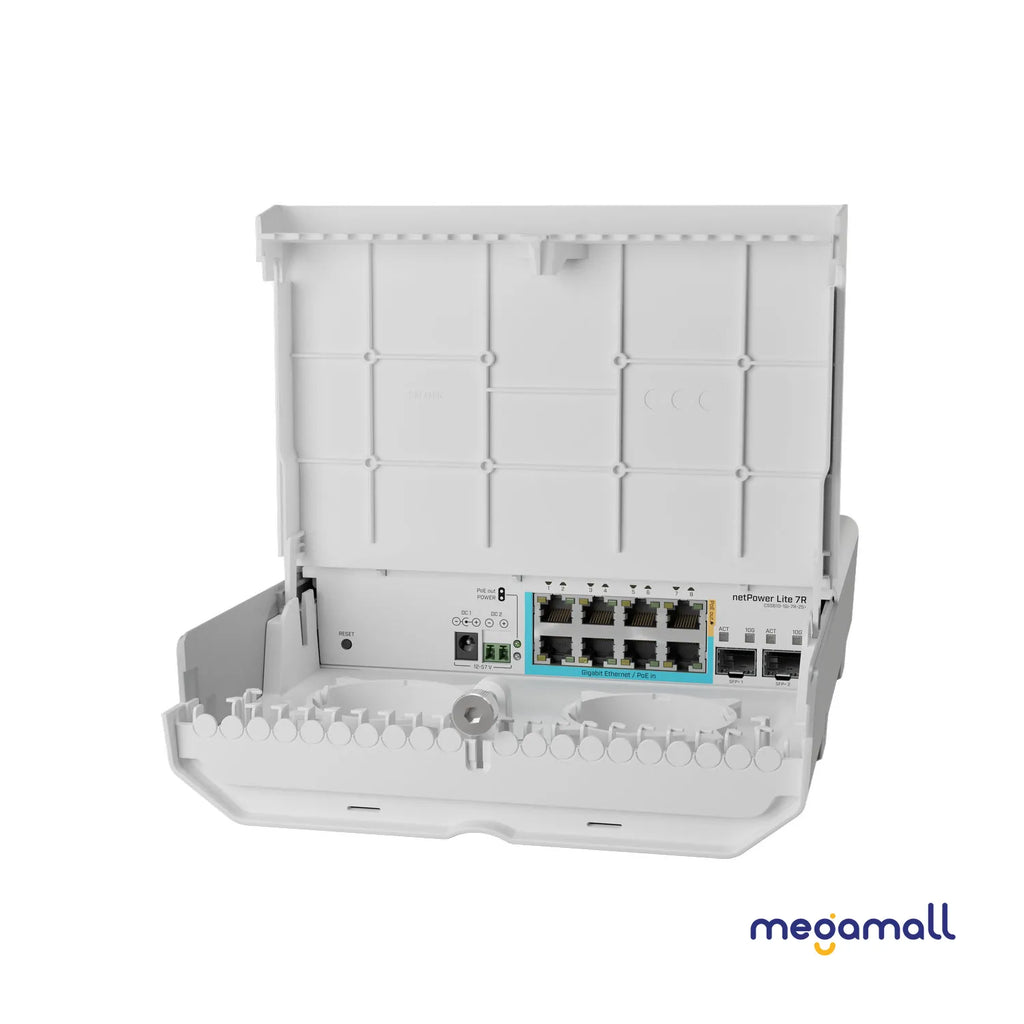

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

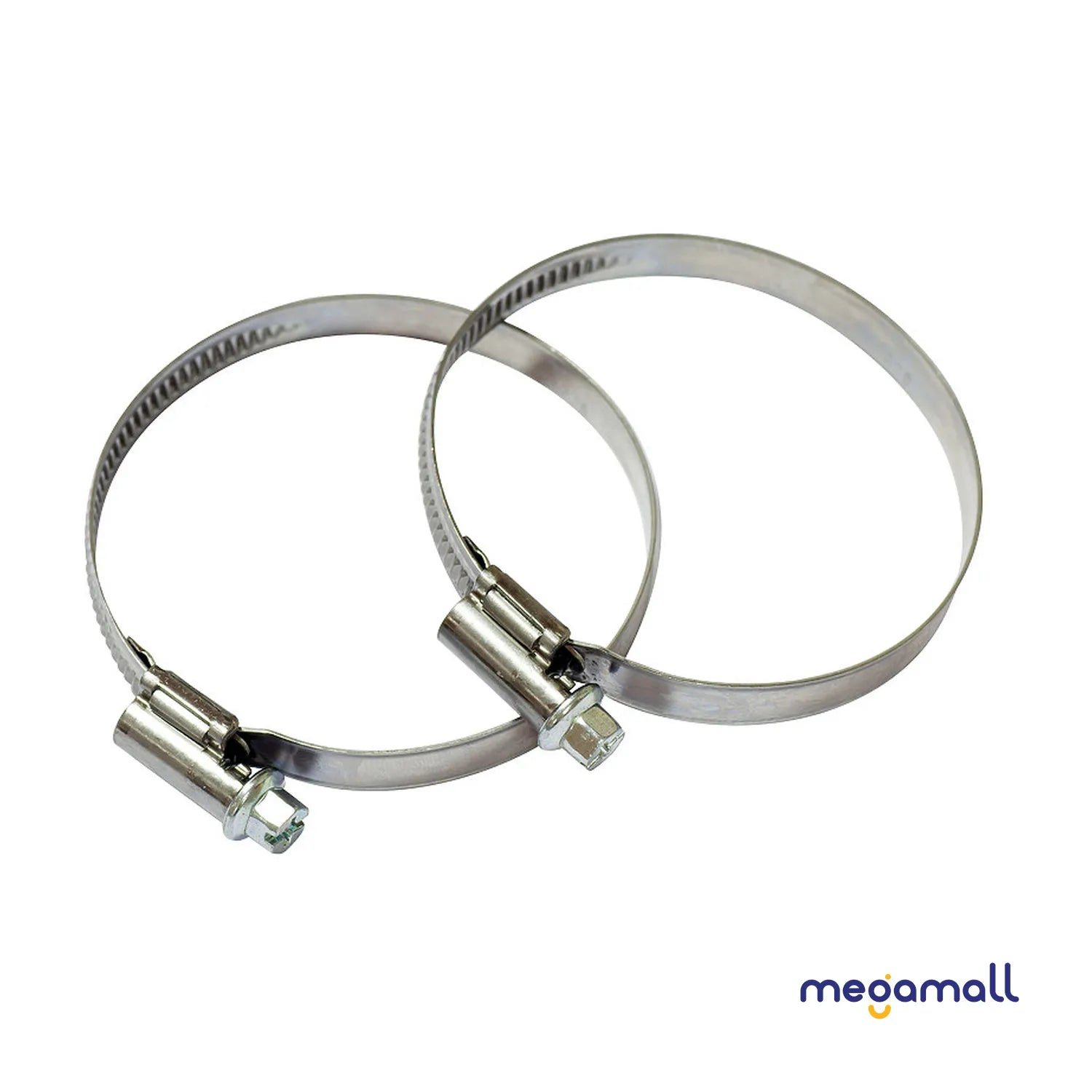

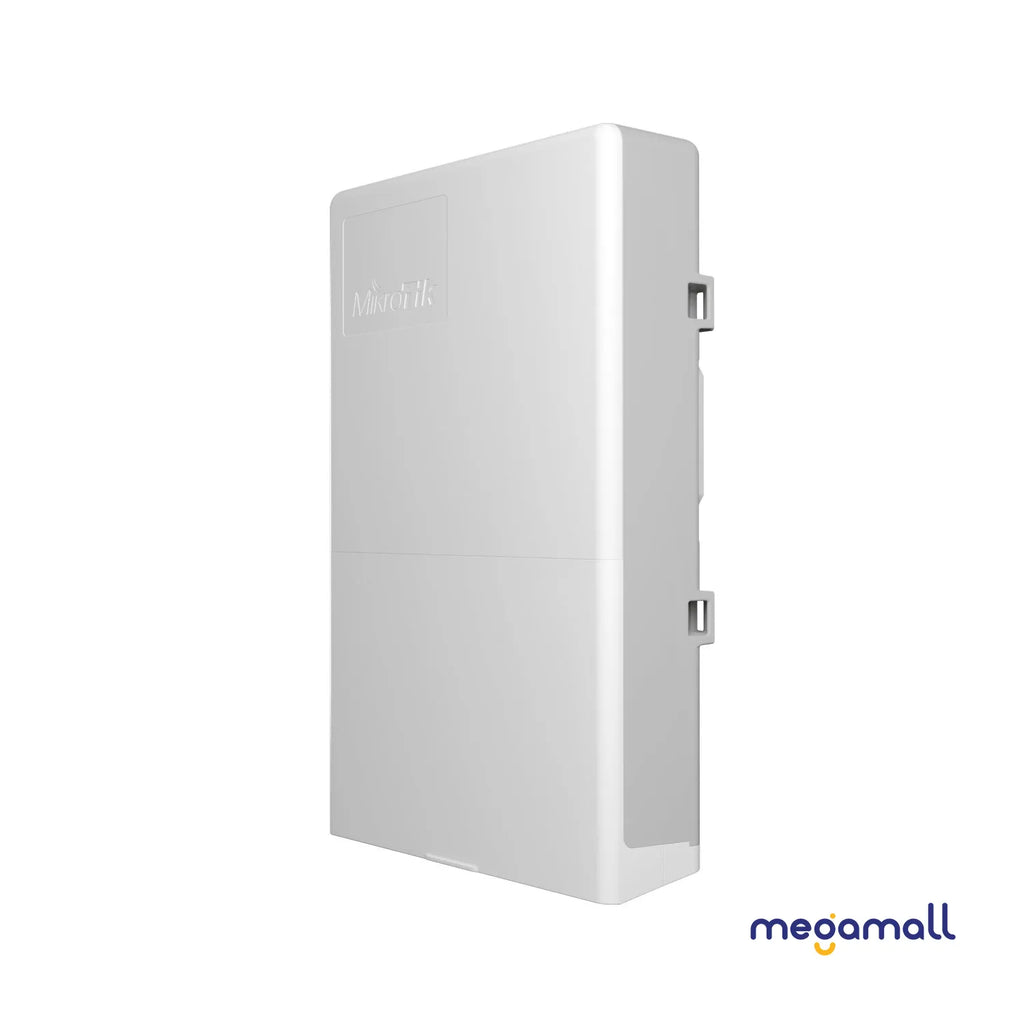

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
The power supply is NOT included with the product- must be purchased separately.
|
Specifications |
|
|
Product code |
CSS610-1Gi-7R-2S+OUT |
|
Switch chip model |
88E6193X |
|
Dimensions |
304 x 212 x 71 mm |
|
Operating System |
SwitchOS Lite |
|
Storage size |
64 KB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
|
Number of DC inputs |
3 (PoE-IN, DC jack, 2-pin terminal) |
|
DC jack input Voltage |
12-57 V |
|
2-pin terminal input Voltage |
12-57 V |
|
Max power consumption |
29 W |
|
Max power consumption without attachments |
7 W |
|
PoE in |
Passive PoE |
|
Cooling type |
Passive |
|
PoE in input Voltage |
12-57 V |
|
PoE-out |
|
|
PoE-out ports |
Ether8 |
|
PoE out |
Passive PoE |
|
Max out per port output (input 18-30 V) |
600 mA |
|
Max out per port output (input 30-57 V) |
450 mA |
|
Max total out (A) |
600 mA |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
8 |
|
Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
|
Number of 1G Ethernet ports with PoE-out |
1 |
|
Fiber |
|
|
SFP+ ports |
2 |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP54 |
|
Warranty |
|
|
Warranty |
1 Year |
