Description
asy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms Includes dust filter and conformance-coated boards for harsh environments, and 3 internal 7Ah modular battery strings
- Easy UPS 3S is easy to install and start up
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments.
|
Overview |
|
|
Presentation |

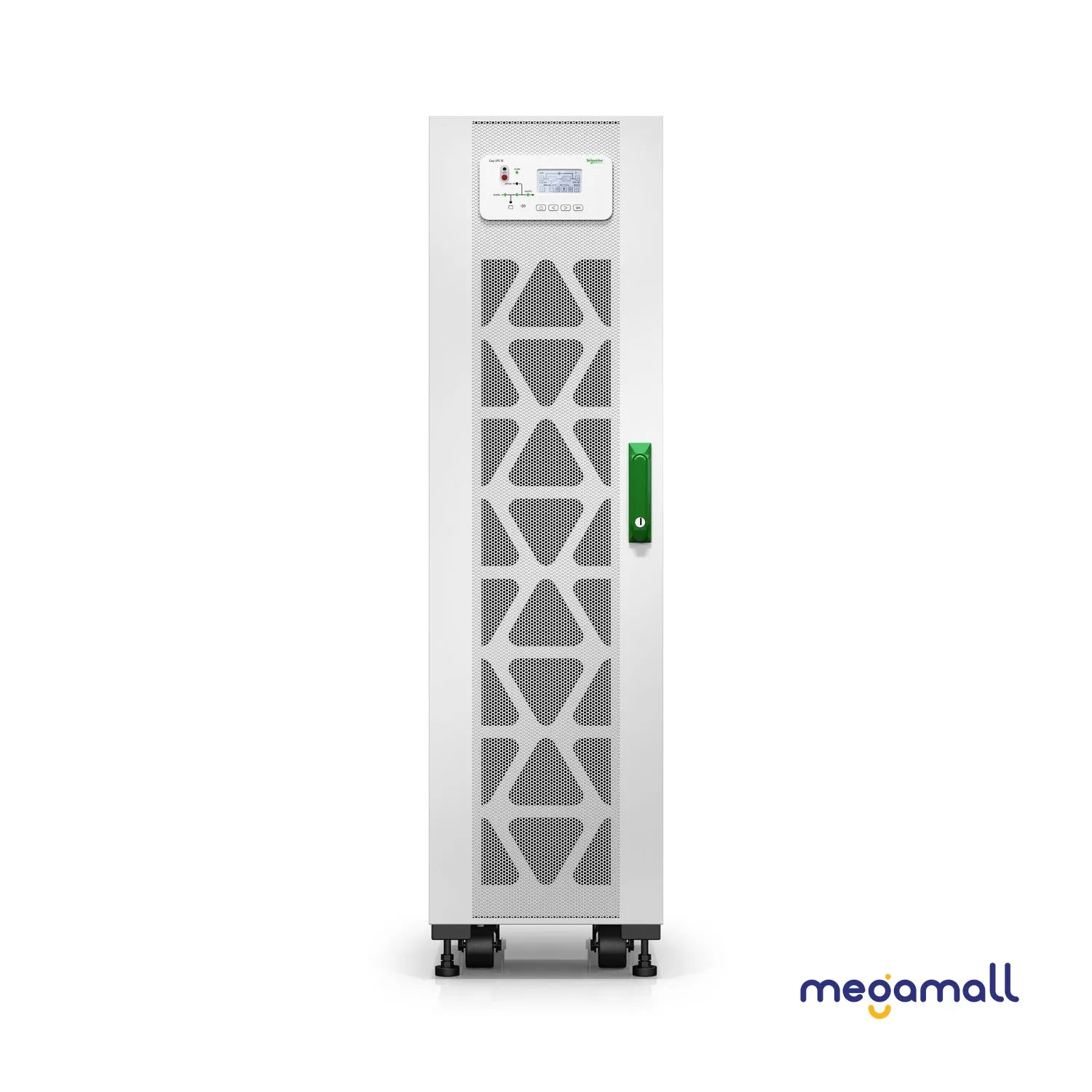

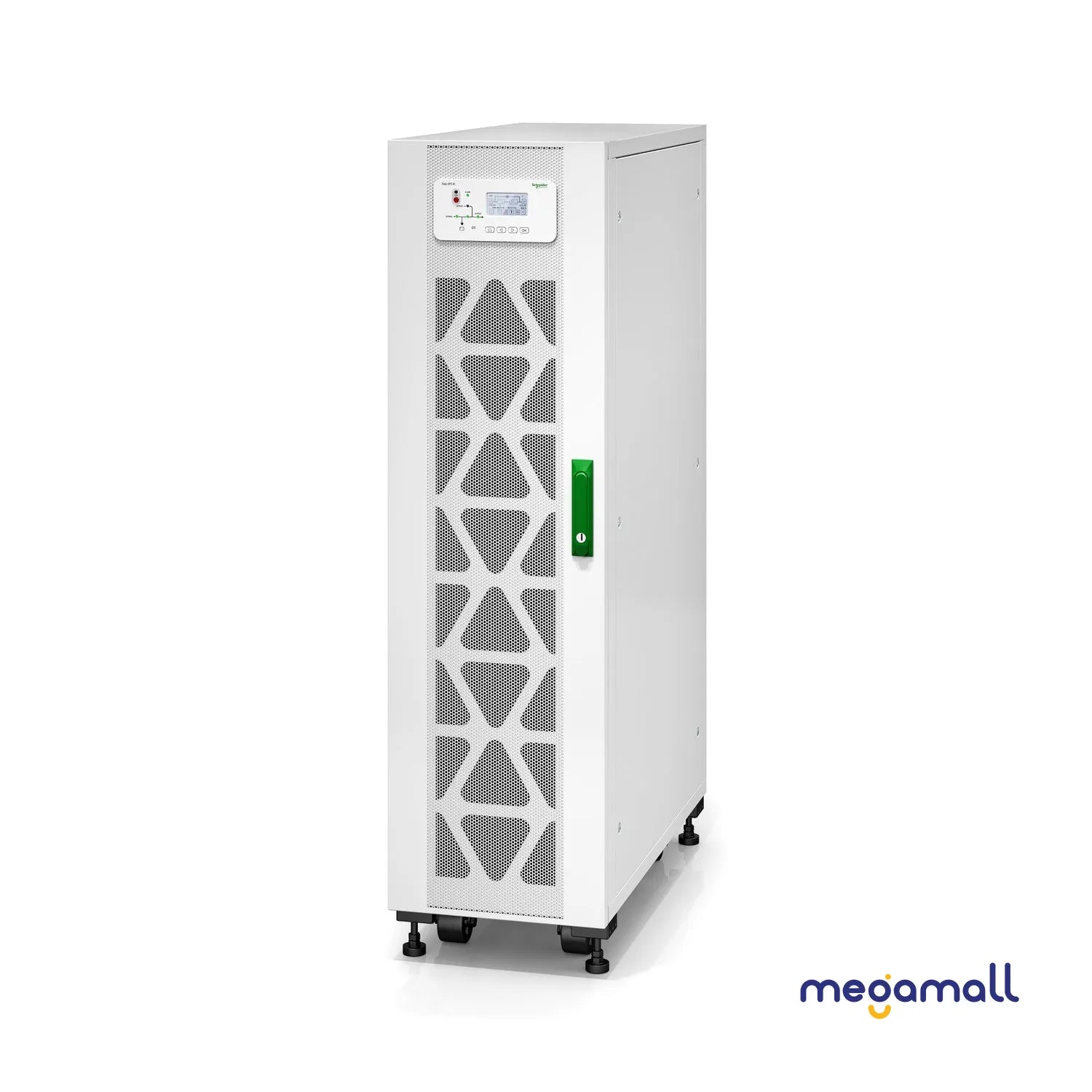

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 3 internal 7Ah modular battery strings. |
|
Main |
|
|
Main Input Voltage |
400 V AC 3 phases |
|
Input voltage |
380 V |
|
Maximum input current |
37 A |
|
Input harmonic distortion |
Less than 3 % for full load |
|
Load power factor |
0.9 leading to 0.9 lagging |
|
Cos phi |
0.99 |
|
Input voltage limits |
304...477 V |
|
Network frequency |
45...65 Hz |
|
Output voltage |
400 V AC 3 phases |
|
Output voltage |
380 V |
|
Rated power in W |
20 kW |
|
rated power in VA |
20 kVA |
|
Harmonic distortion |
Less than 3 % |
|
Maximum configurable power in VA |
20 kVA |
|
Maximum configurable power in W |
20 kW |
|
Output harmonic distortion |
< 3% linear load |
|
Output voltage tolerance |
+/- 1.5 % |
|
UPS type |
Double conversion online |
|
Output frequency |
50 Hz sync to mains |
|
Complementary |
|
|
Additional information |
UPS weight does not include battery weight. |
|
Maximum short-circuit current |
10 kA |
|
Battery type |
Lead-acid internal |
|
UPS connectivity |
Optional network management card 3 |
|
Colour |
White (RAL 9003) |
|
Height |
140 cm |
|
Width |
38 cm |
|
Depth |
92.8 cm |
|
Net weight |
446 kg |
|
USB compatible |
Yes |
|
Provided equipment |
Dust filter |
|
Range of product |
Easy UPS 3S |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…40 °C |
|
Storage altitude |
0…15240 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
60 dBA |
|
Heat dissipation |
900 W |
|
Operating altitude |
0...3333 ft |
|
Batteries & Runtime |
|
|
Battery type |
VRLA |
|
Battery voltage |
240 V |
|
Number of battery filled slots |
3 |
|
Number of battery free slots |
0 |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
164 cm |
|
Package 1 Width |
101.4 cm |
|
Package 1 Length |
56.3 cm |
|
Package 1 Weight |
494 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
12 |
