| 2.4 GHz: Up to 574 Mbps |
| Interface |

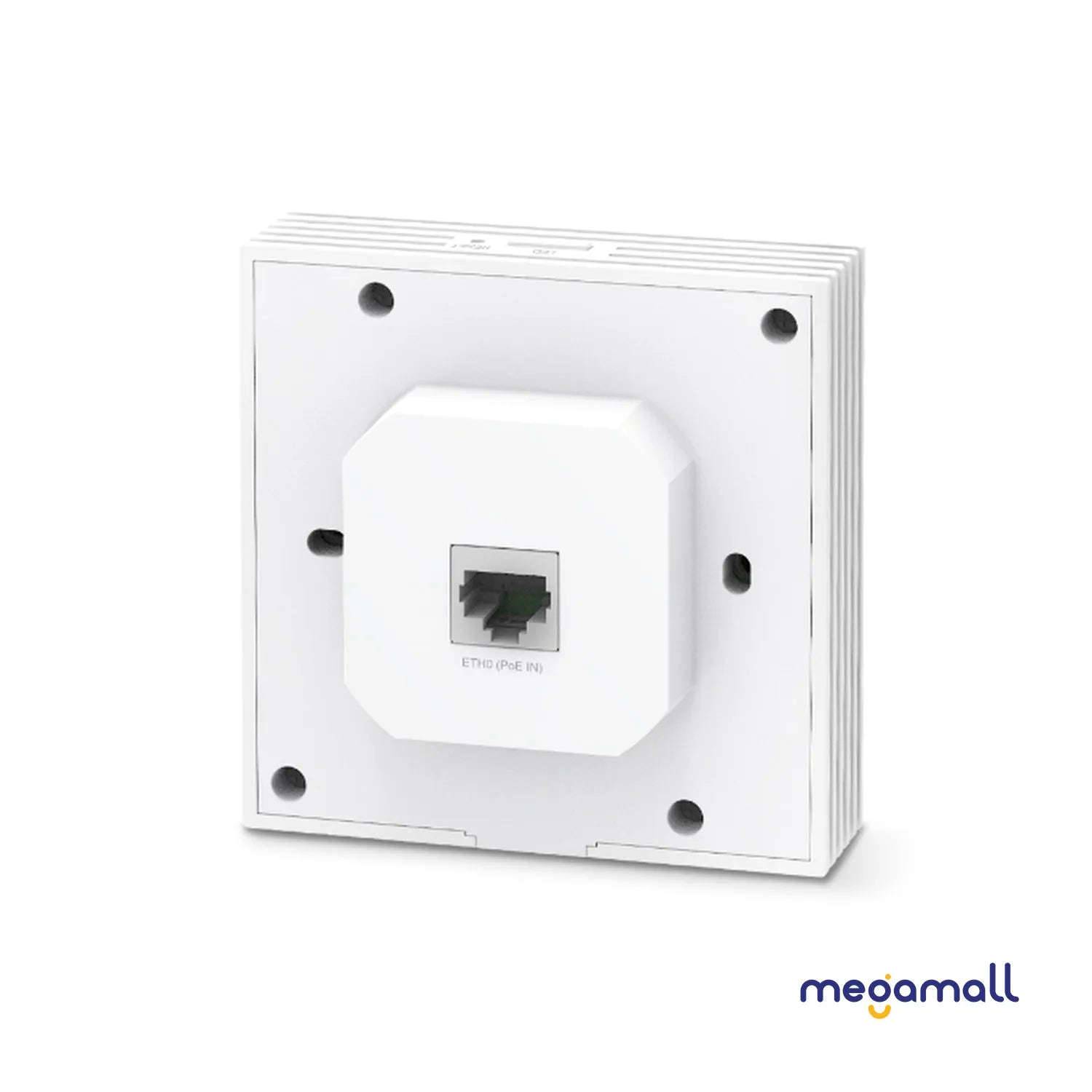

• Uplink: 1× 10/100/1000 Mbps Ethernet Port |
| • Downlink: 1× 10/100/1000 Mbps Ethernet Port |
|
| Physical Security Lock |
No |
| Button |
Reset, LED |

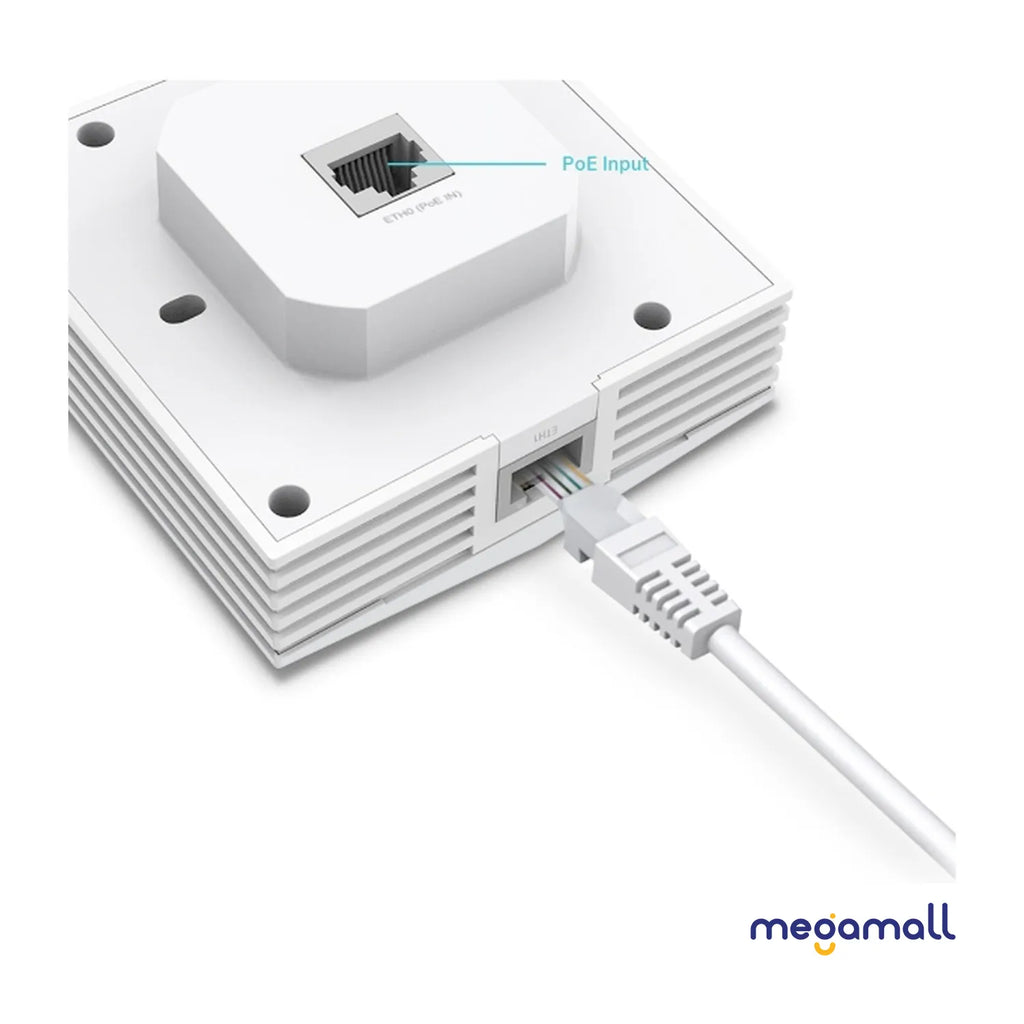

| Power Supply |
802.3af/at PoE |
| Max. Power Consumption |
EU: 11.5 W |

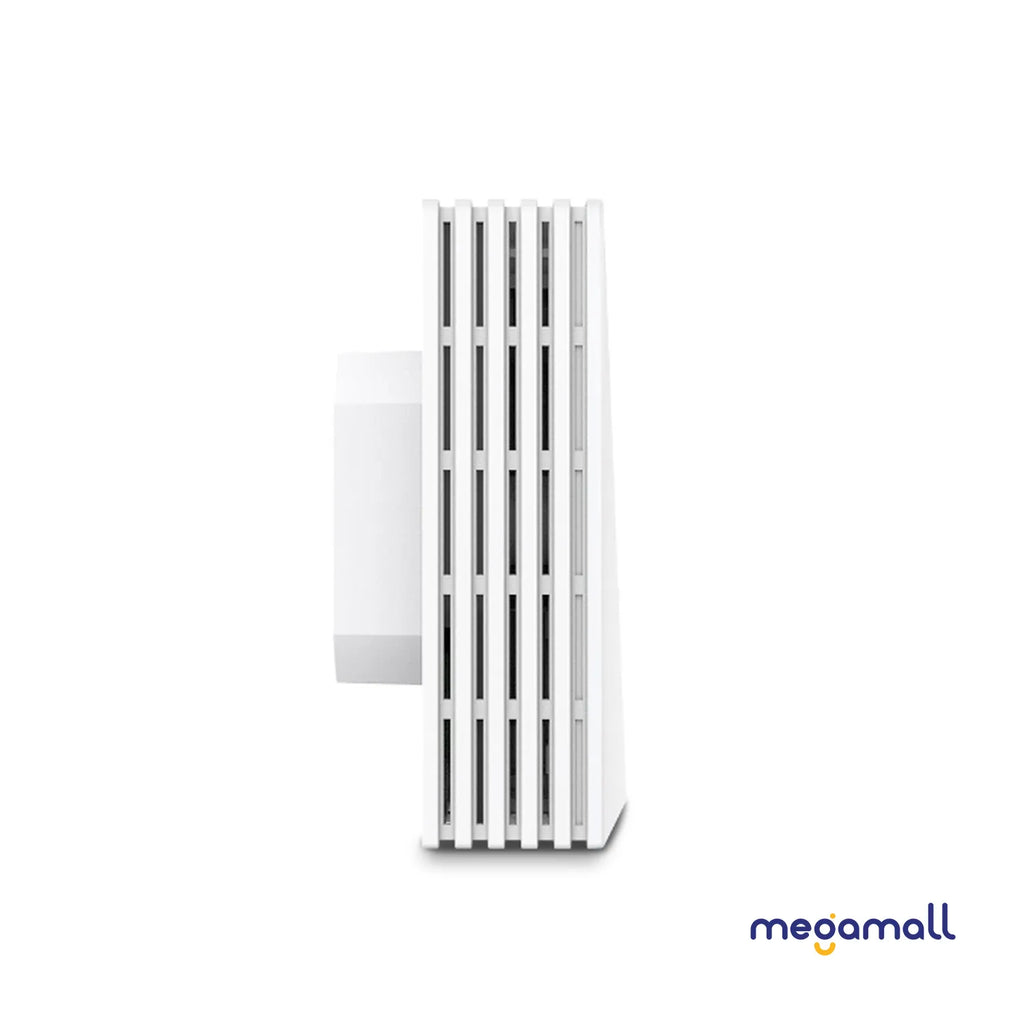

| Dimensions ( W x D x H ) |
86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in) |
| Antenna |
2 Dual-Band Antennas |
| • 2.4 GHz: 2× 3 dBi |
|
| • 5 GHz: 2× 5 dBi |
|

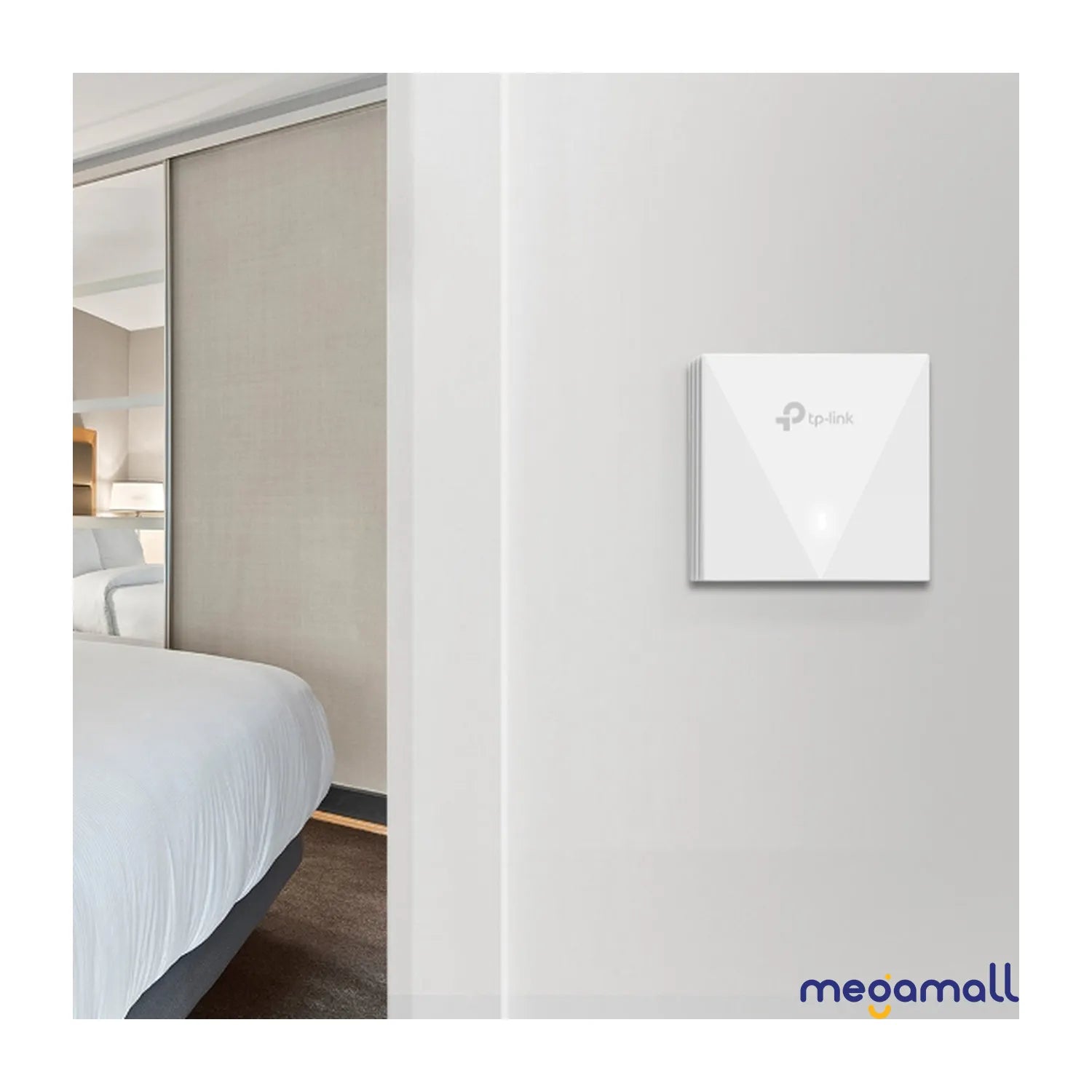

| Mounting |
Wall Plate Mounting (Kits included) |
| WIRELESS FEATURES |
| Coverage |
40?(450ft²)*** |
| Concurrent Clients |
100+** |
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz and 5 GHz |

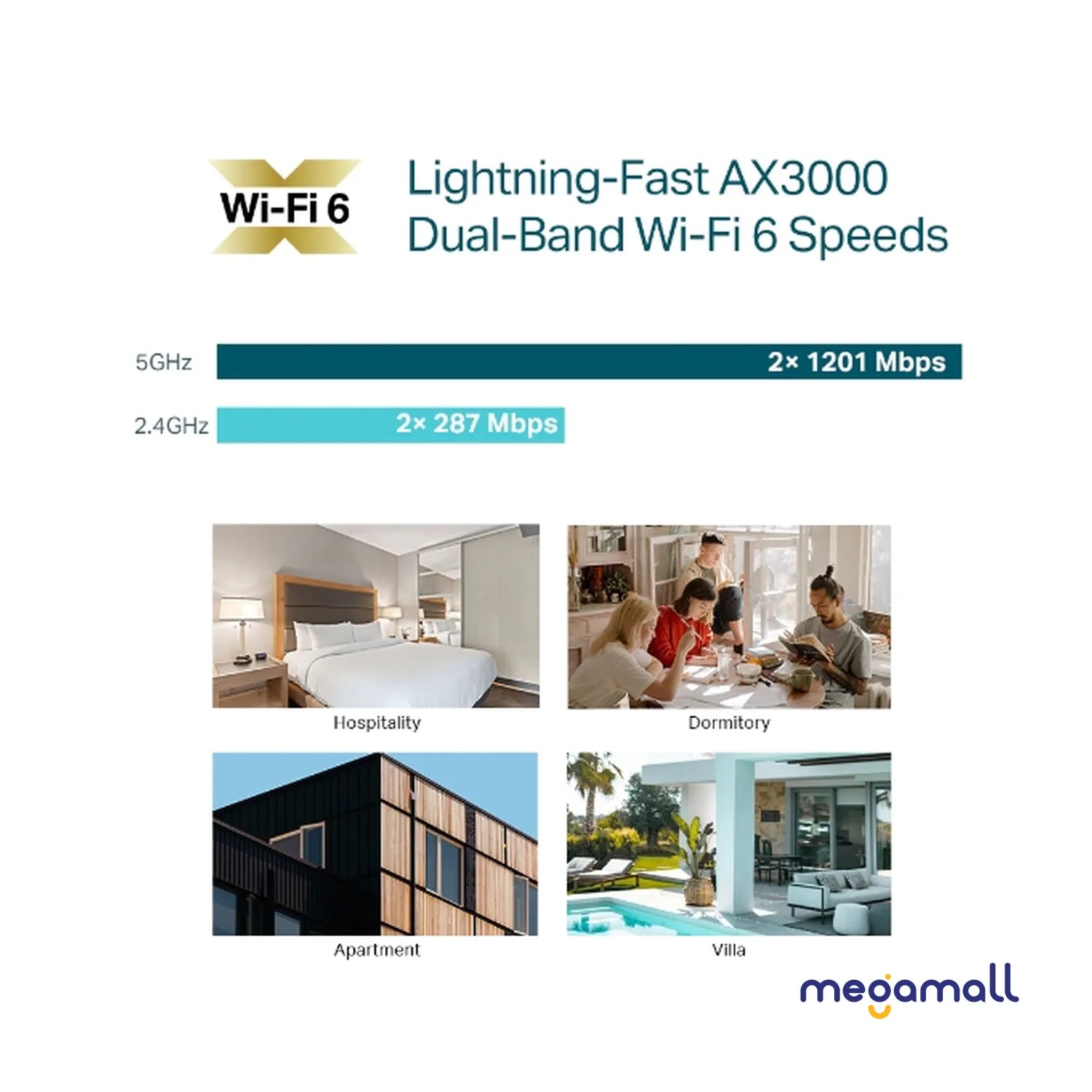

| Signal Rate |
• 5 GHz: Up to 2402 Mbps |
|
2.4 GHz: Up to 574 Mbps |
| Wireless Functions |
• 16 SSIDs (Up to 8 SSIDs on each band) |
| • Enable/Disable Wireless Radio |
| • Automatic Channel Assignment |
| • Transmit Power Control (Adjust Transmit Power on dBm) |
| • QoS(WMM) |
| • Seamless Roaming§ |
| • Beamforming |
| • Rate Limit |
| • Load Balance |
| • Airtime Fairness |
| • Band Steering |
| • Reboot Schedule |
| • Wireless Schedule |
| • RADIUS Accounting |
| • MAC Authentication |
| • Wireless Statistics |
| • Static IP/Dynamic IP |
| Wireless Security |
• Captive Portal Authentication§ |
| • Access Control |
| • Wireless Mac Address Filtering |
| • Wireless Isolation Between Clients |
| • VLAN |
| • Rogue AP Detection |
| • 802.1X Support |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
• CE: |
| <20 dBm (2.4GHz, EIRP) |
| <22 dBm (5GHz band1 & 2, EIRP) |
| <22 dBm (5GHz band3, EIRP) |
| Management Features |
| Omada App |
Yes |

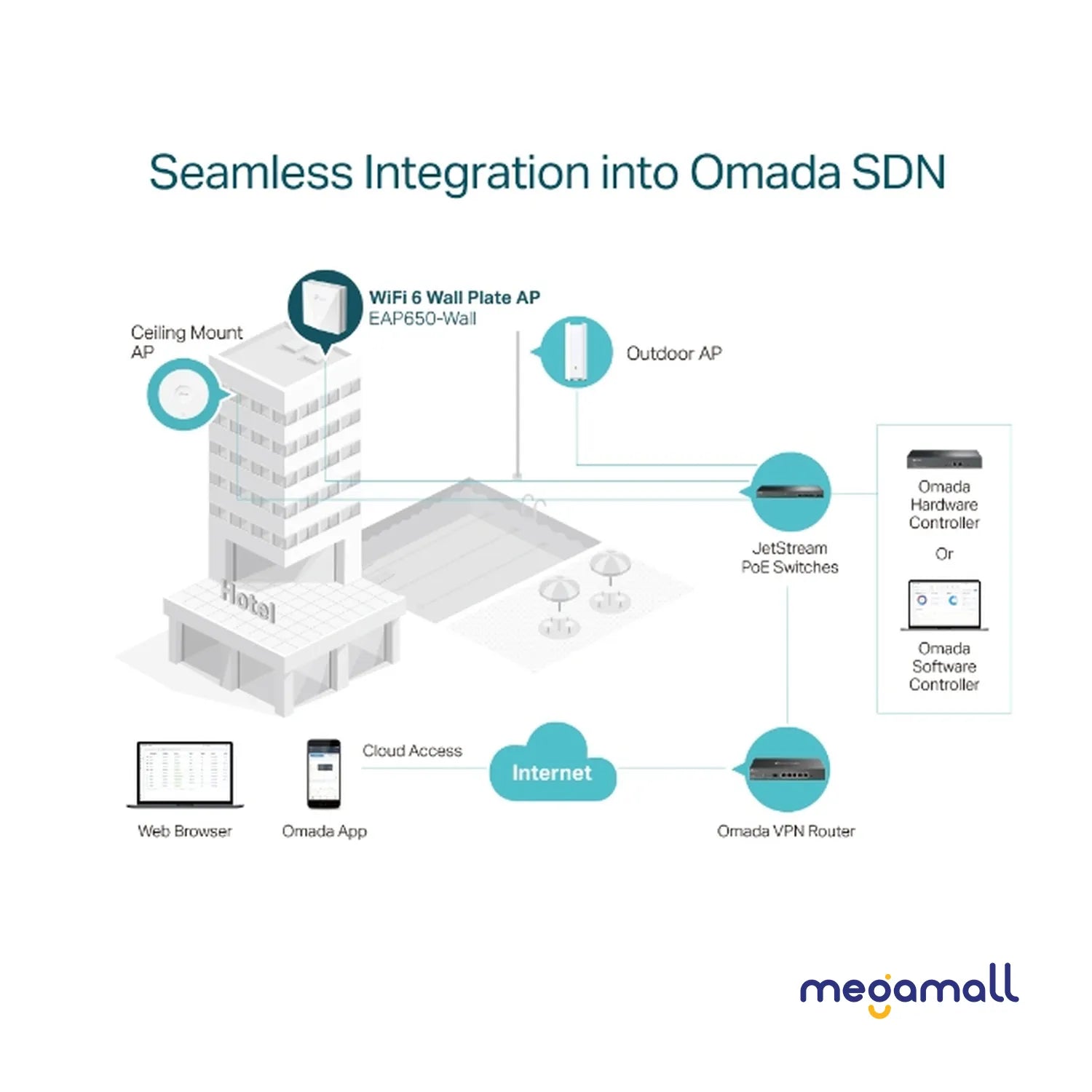

| Centralized Management |
• Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) |
| • Omada Software Controller |
| • Omada Cloud-Based Controller |
| Cloud Access |
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS |
| Certification |
CE, RoHS |
| Package Content |
• AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall |
| • Installation Guide |
| • Mounting Kits |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment |
• Operating Temperature: 0–40 ? (32–104 ?) |
| • Storage Temperature: -40–70 ? (-40–158 ?) |
| • Operating Humidity: 10–90% RH non-condensing |
| • Storage Humidity: 5–90% RH non-condensing |
