Description

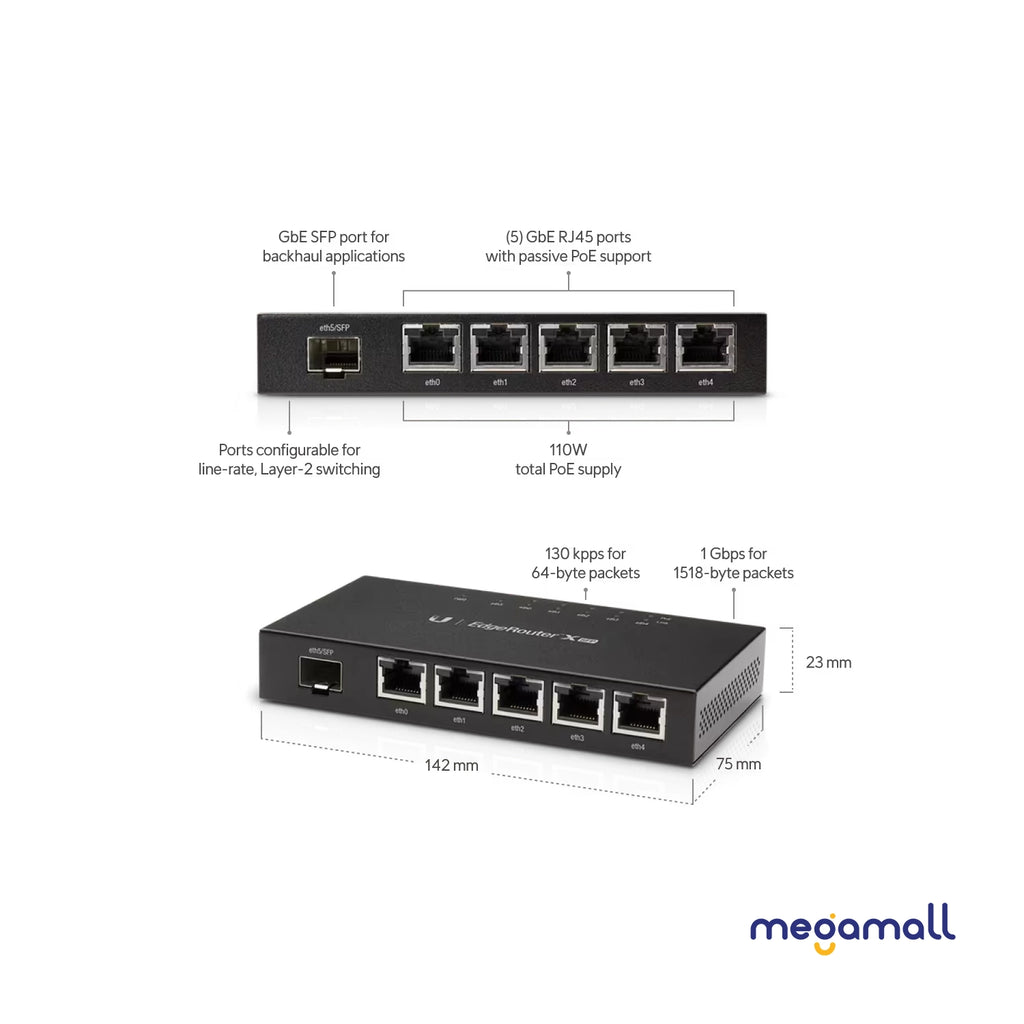

Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.
|
Mechanical |
|
|
Dimensions |
142 x 75 x 23 mm (5.6 x 3 x 0.9") |
|
Weight |
215 g (7.6 oz) |
|
Hardware |
|
|
System memory |
256 MB DDR3 RAM |
|
Code storage |
256 MB NAND |
|
Networking interface |
(5) GbE RJ45 ports |
|
(1) 1G SFP port |
|
|
PoE interface |
(5) 24V Passive PoE 2-pair (Pins 4, 5+; 7, 8-) |
|
Power method |
24V DC, 2.5A power adapter |
|
Power supply |
External AC/DC adapter (Included) |
|
Supported voltage range |
9–26V DC |
|
Max. power consumption |
5W (Excludes PoE output) |
|
Total PoE available |
50W |
|
Voltage range PoE mode |
22-24V DC |
|
Max. PoE wattage per port |
12W |
|
ESD/EMP protection |
Air/contact: ± 24kV |
|
LEDs |
System: Status |
|
Ethernet ports: PoE, link/activity |
|
|
Button |
Factory reset |
|
Mounting |
Wall mount |
|
Ambient operating temperature |
-10 to 45° C (14 to 113° F) |
|
Ambient operating humidity |
10 to 90% noncondensing |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
Yes |
