Description

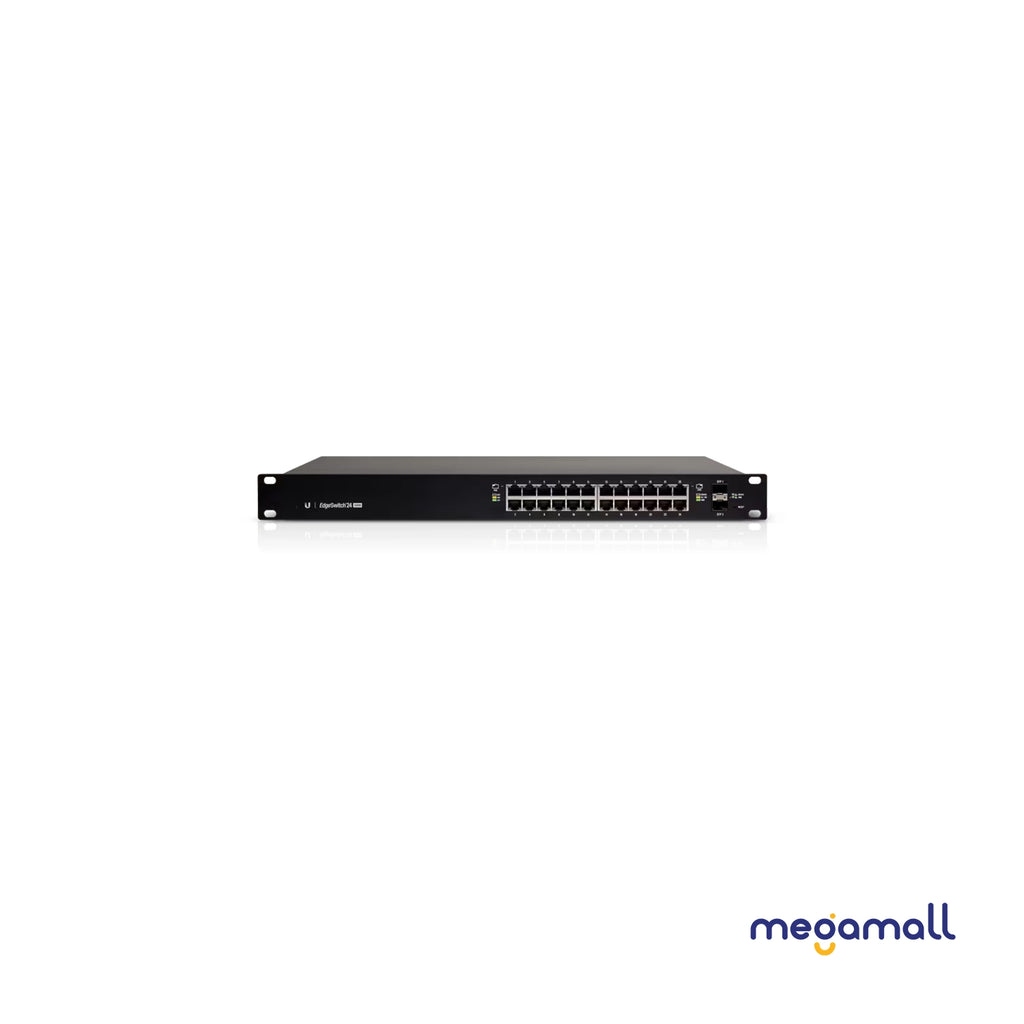

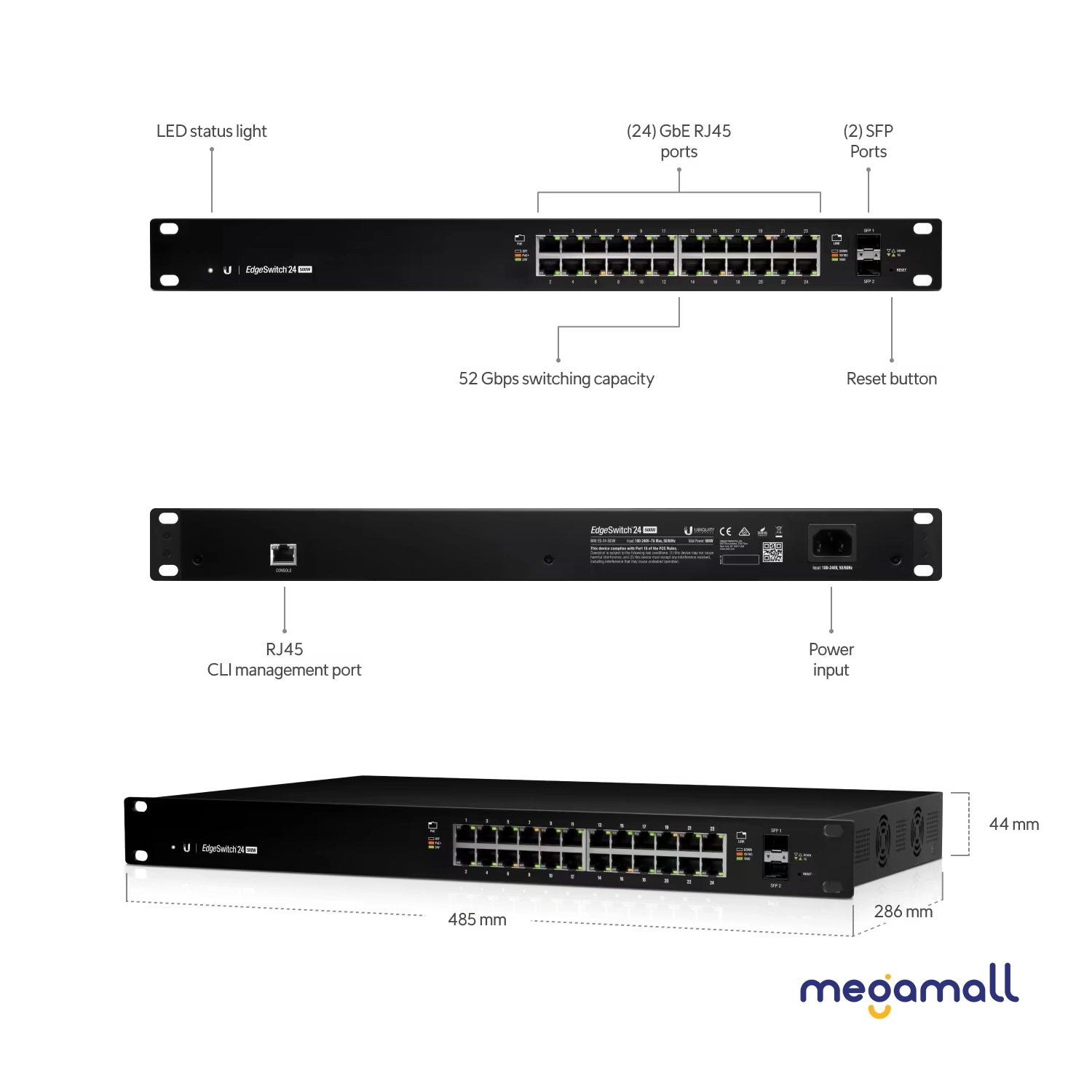

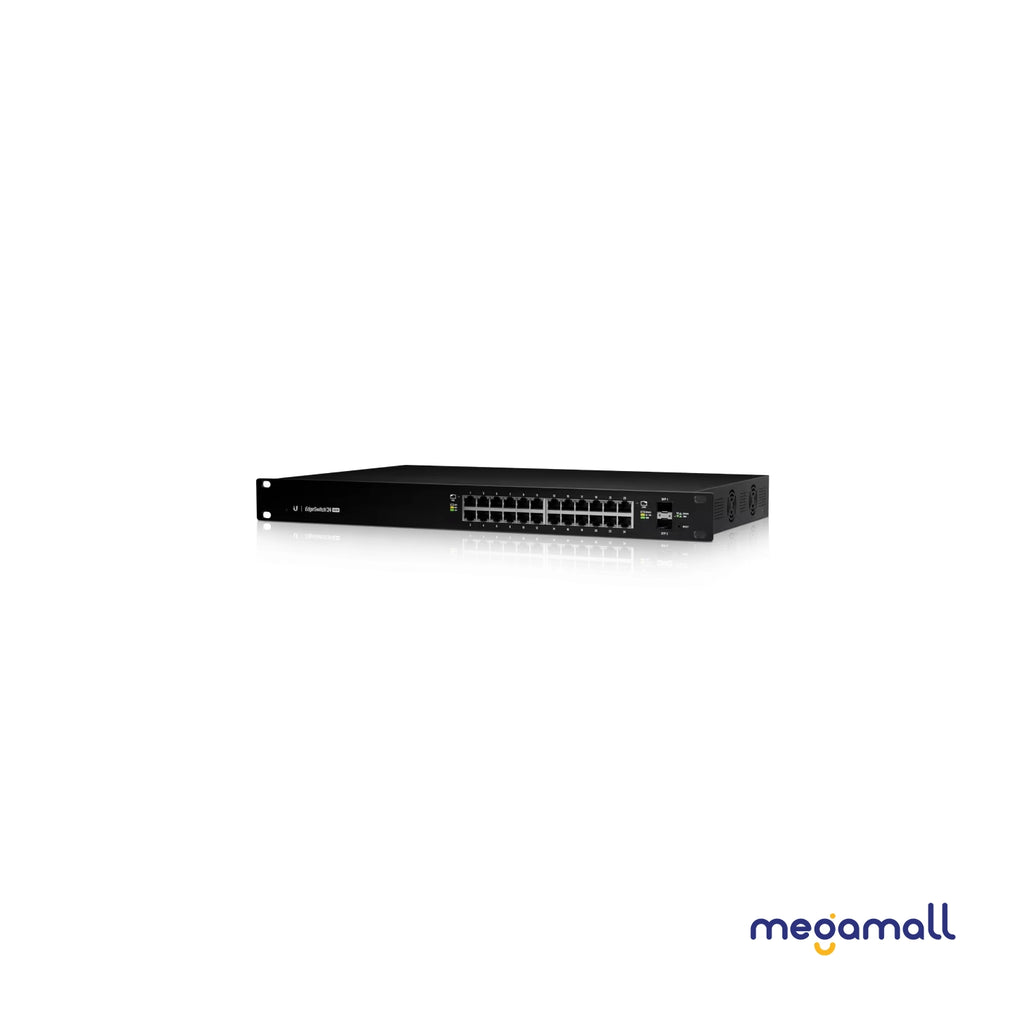

Layer 2/3, PoE+ switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 500W power supply.
|
Mechanical |
|
|
Dimensions |
485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2") |
|
Weight |
4.8 kg (10.6 lb) |
|
Hardware |
|
|
Networking interface |
(24) 10/100/1000 Mbps RJ45 Ethernet ports |
|
(2) 1 Gbps SFP ports |
|
|
Management interface |
(1) RJ45 serial port, Ethernet In/Out-Band |
|
Total non-blocking throughput |
26 Gbps |
|
Switching capacity |
52 Gbps |
|
Forwarding rate |
38.69 Mpps |
|
Power method |
100-240V AC, 50-60 Hz, universal input |
|
Power supply |
AC/DC, internal, 500W |
|
Max. power consumption |
Includes PoE output: 500W |
|
Excludes PoE output: 30W |
|
|
LEDs |
RJ45 ports: PoE, speed/link/activity |
|
SFP ports: speed/link/activity |
|
|
Rackmount |
Yes, 1U High |
|
ESD/EMP protection |
Air/contact: ±24 kV |
|
Shock and vibration |
ETSI300-019-1.4 Standard |
|
Ambient operating temperature |
-5 to 40° C (23 to 104° F) |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
Yes |
|
PoE Per Port |
|
|
PoE interface |
PoE/PoE+ (Pins 1, 2+; 3, 6-) |
|
24V DC passive PoE (Pins 4, 5+; 7, 8-) |
|
|
Max. PoE+ wattage per port by PSE |
34.2W |
|
Voltage range PoE+ mode |
50–57V |
|
Max. passive PoE wattage per port |
17W |
|
24V passive PoE voltage range |
20-27V |
