Description
Overview
This RJ45 connector is to be installed in flat or angled (1U 24 and 48 slots) patch panels. Front-panel and fast-snap accessibility of each individual connector provide ease and reliability for tool-less installation and maintenance.
Features

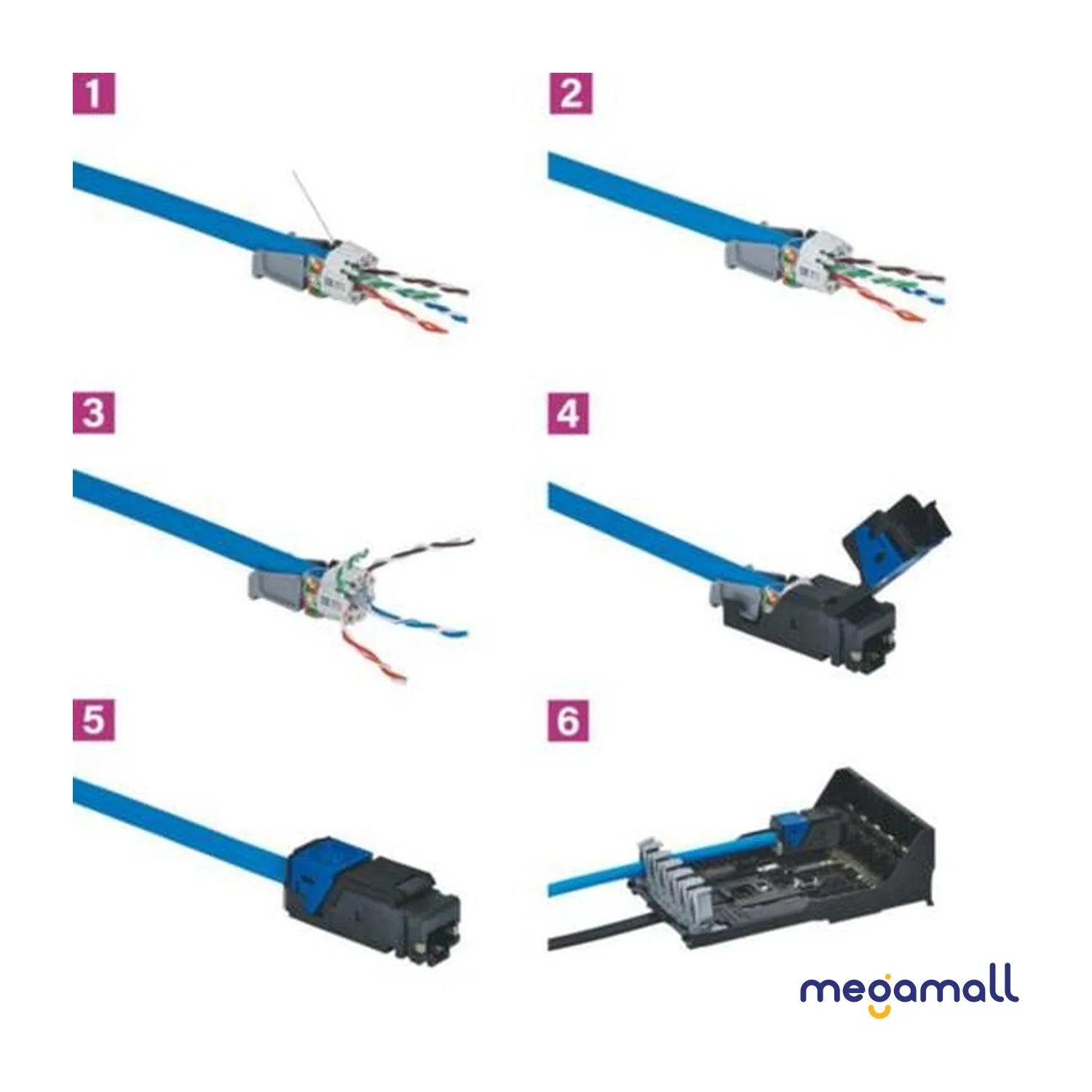

- Quick-connect connection (no tools required)
- T568A and B marking with colour codes
- To be installed in cassettes for flat panels or directly in an angled panel or a zone distribution box to be equipped
- Supplied with coloured labels
- Set of 6 Cat. 6A RJ 45 connectors for flat and angled STP panels
|
Model |
Bus (jack) |
|
Type of connector |
RJ45 8(8) |
|
Screened |
Yes |
|
Category |
6A (IEC) |
|
Connection type |
Insulation displacement connector |
|
Special tool necessary |
No |
|
Suitable for round cable |
Yes |
|
Suitable for flat cable |
No |
|
Suitable for litz wire conductor |
Yes |
|
Suitable for solid conductors |
Yes |
|
Colour |
Silver |
|
Min. AWG-size |
Other |
|
Max. AWG-size |
22 |
|
Width |
17.5 mm |
|
Height |
20.5 mm |
|
Depth |
48.1 mm |
|
Built-in depth |
0 mm |
|
Degree of protection (IP) |
Not applicable |
|
Operating / setting temperature (Min-Max) |
-40-70 °C |
|
Terminal marking indication |
Yes |
|
RAL-number |
0 |
|
Antimicrobial treatment |
No |
|
Label space/information surface |
No |
|
Mounting method |
Other |
|
Tube diameter for wall mounted product (Min-Max) |
0-0 mm |
|
Entry membrane gland type |
Not applicable |
