Description

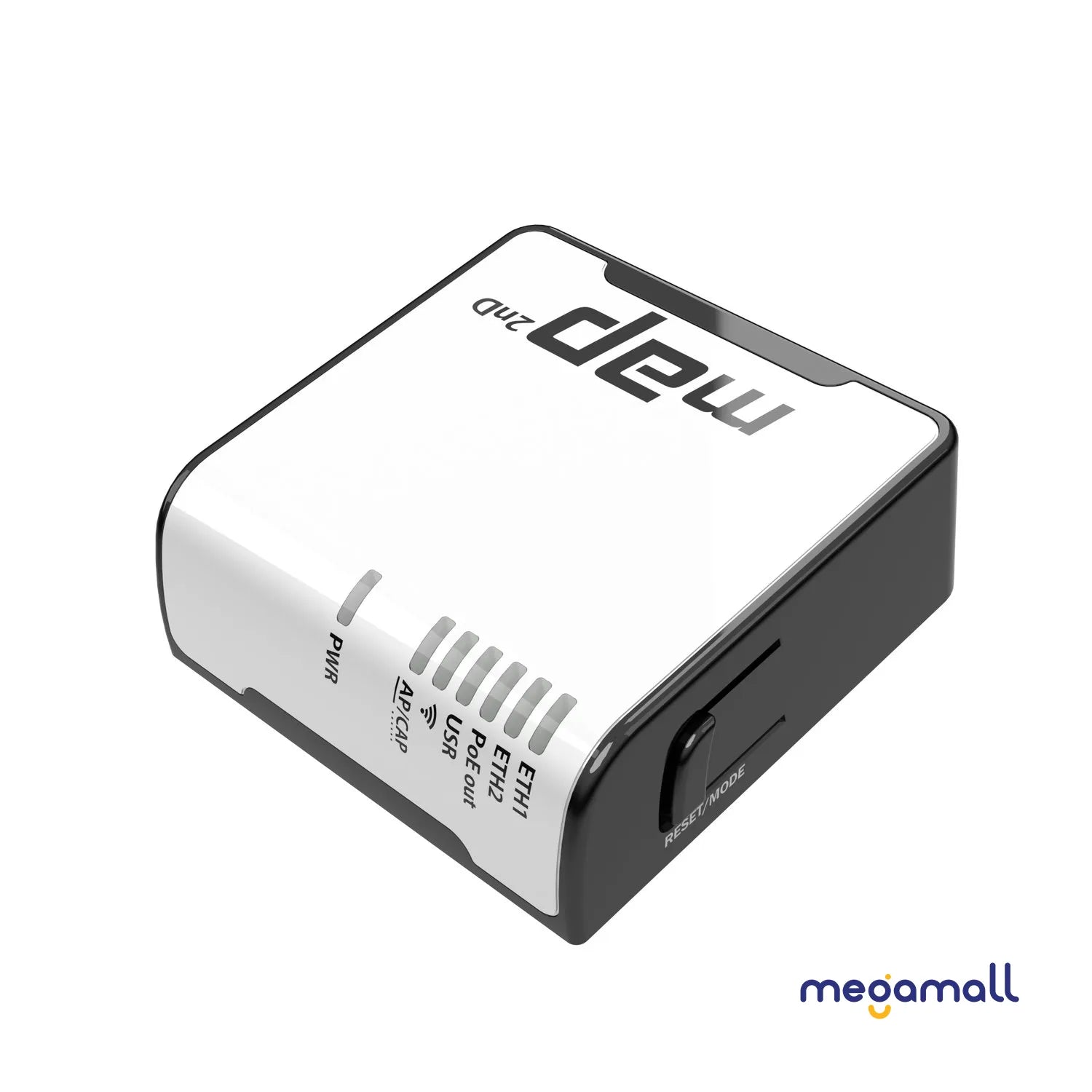

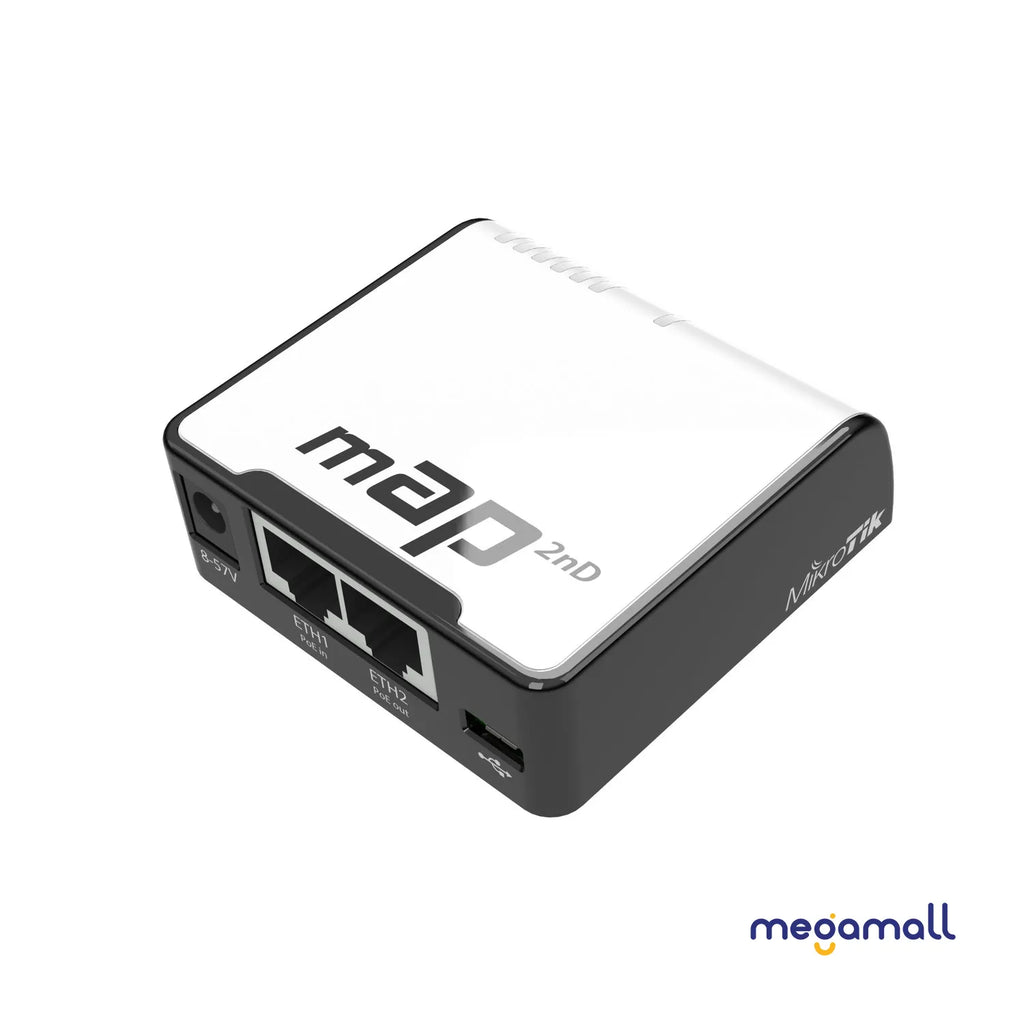

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
|
Specifications |
||
|
Product code |
RBmAP2nD |
|
|
Architecture |
MIPSBE |
|
|
CPU |
QCA9531 |
|
|
CPU core count |
1 |
|
|
CPU nominal frequency |
650 MHz |
|
|
Switch chip model |
QCA9531-BL3A-R |
|
|
Dimensions |
68x68x19mm |
|
|
RouterOS license |
4 |
|
|
Operating System |
||
|
Size of RAM |
64 MB |
|
|
Storage size |
16 MB |
|
|
Storage type |
FLASH |
|
|
MTBF |
Approximately 100'000 hours at 25C |
|
|
Tested ambient temperature |
-20°C to 70°C |
|
|
Wireless capabilities |
||
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
|
Wireless 2.4 GHz number of chains |
2 |
|
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
|
Antenna gain dBi for 2.4 GHz |
1.2 |
|
|
Wireless 2.4 GHz chip model |
QCA9531 |
|
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
|
Ethernet |
||
|
10/100 Ethernet ports |
2 |
|
|
Peripherals |
||
|
Number of USB ports |
1 |
|
|
USB Power Reset |
Yes |
|
|
USB slot type |
microUSB type AB |
|
|
Max USB current (A) |
1 |
|
|
Powering |
||
|
MicroUSB input Voltage |
5 V |
|
|
Number of DC inputs |
3 (MicroUSB, DC jack, PoE-IN) |
|
|
DC jack input Voltage |
8-57 V |
|
|
Max power consumption |
5 W |
|
|
PoE in |
802.3af/at |
|
|
Cooling type |
Passive |
|
|
PoE in input Voltage |
12-57 V |
|
|
PoE-out |
||
|
PoE-out ports |
Ether2 |
|
|
PoE out |
Passive PoE |
|
|
Max out per port output (input 18-30 V) |
0.5 A |
|
|
Max total out (A) |
0.5 A |
|
|
Certification & Approvals |
||
|
Certification |
FCC, IC |
|
|
Other |
||
|
PCB temperature monitor |
Yes |
|
|
Voltage Monitor |
Yes |
|
|
Wireless specifications |
||
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
1MBit/s |
22 |
-96 |
|
11MBit/s |
22 |
-89 |
|
6MBit/s |
20 |
-93 |
|
54MBit/s |
18 |
-74 |
|
MCS0 |
20 |
-93 |
|
MCS7 |
16 |
-71 |
|
Warranty |
||
|
Warranty |
1 Year |
|
