Description
Description

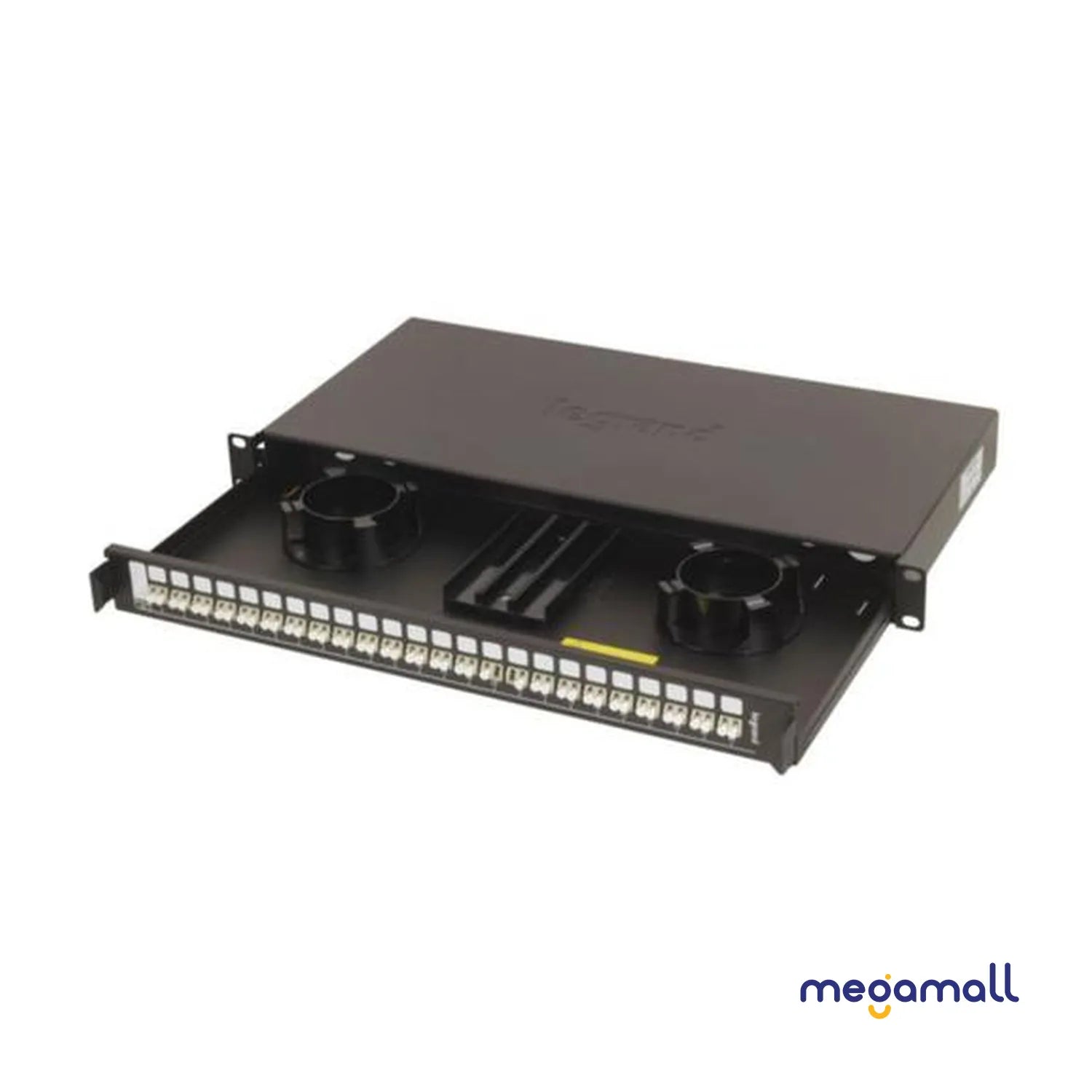

Metal 19 inches pre-equipped fibre optic drawers with 4 cable entries, supplied with screw fixing kit, 2 cable glands (diameter 13.5 and 16mm), coiling system and splicing cassette.
Product charateristics
- Maximum capacity : 24 LC multimode connectors for 48 fibres
- Sliding : end stop at a 30° angle for easier wiring.
- Panel and optic port marking on dedicated marking areas
- Height 1U, depth 220mm
- Color black
Recommendation / Restriction
- Up to 48 fibres. Suitable for a large number of active devices. Recommended in the generic standards ISO/IEC 11801 and EN 50173.
|
Suitable for number of couplings/adaptors |
48 |
|
Suitable for number of module inserts |
24 |
|
With number of couplings/adaptors |
2 |
|
With front plate |
No |
|
With housing |
No |
|
With pigtails |
No |
|
Fibre type |
Multi mode 62.5/125 |
|
Fibre class |
OM4 |
|
APC-version |
No |
|
Type of connector external |
LC-Duplex |
|
Type of connector interior |
LC-Duplex |
|
Colour |
Beige |
|
Mounting method |
482.6 mm (19 inch) mounting |
|
Number of height units |
1 |
|
Height |
43.6 mm |
|
Width |
482.6 mm |
|
Depth |
238.6 mm |
