Specifications

Model

POE-24-30W-G-WH

Dimensions

94 _ 60 _ 33mm (3.70 x 2.36 x 1.30")

Weight

156 g (5.5 oz)

Output Voltage

25VDC @ 1.25A

LAN Activity Indicator

No

Gigabit LAN Port

Yes

Remote Reset Capability

No

Reset Button

No

Rated Voltage

100-240VAC @ 50/60Hz

Input Current

0.6A @ 120VAC, 0.4A @ 240VAC

Inrush Current

<60A Peak @ 120VAC, <120A Peak @ 230VAC

Efficiency

83+%

Output Ripple

1% Max.

Switching Frequency

65kHz

Line Regulation

≤ 3%

Load Regulation

≤ 5%

2-Pair Powering

Pins 4, 5 (+) and Pins 7, 8 (-)

4-Pair Powering

-

Operating Temperature

0 to 40° C (32 to 104° F)

Storage Temperature

-30 to 70° C (-22 to 158° F)

Operating Humidity

35 to 95% Noncondensing

AC Connector

IEC-320 C6

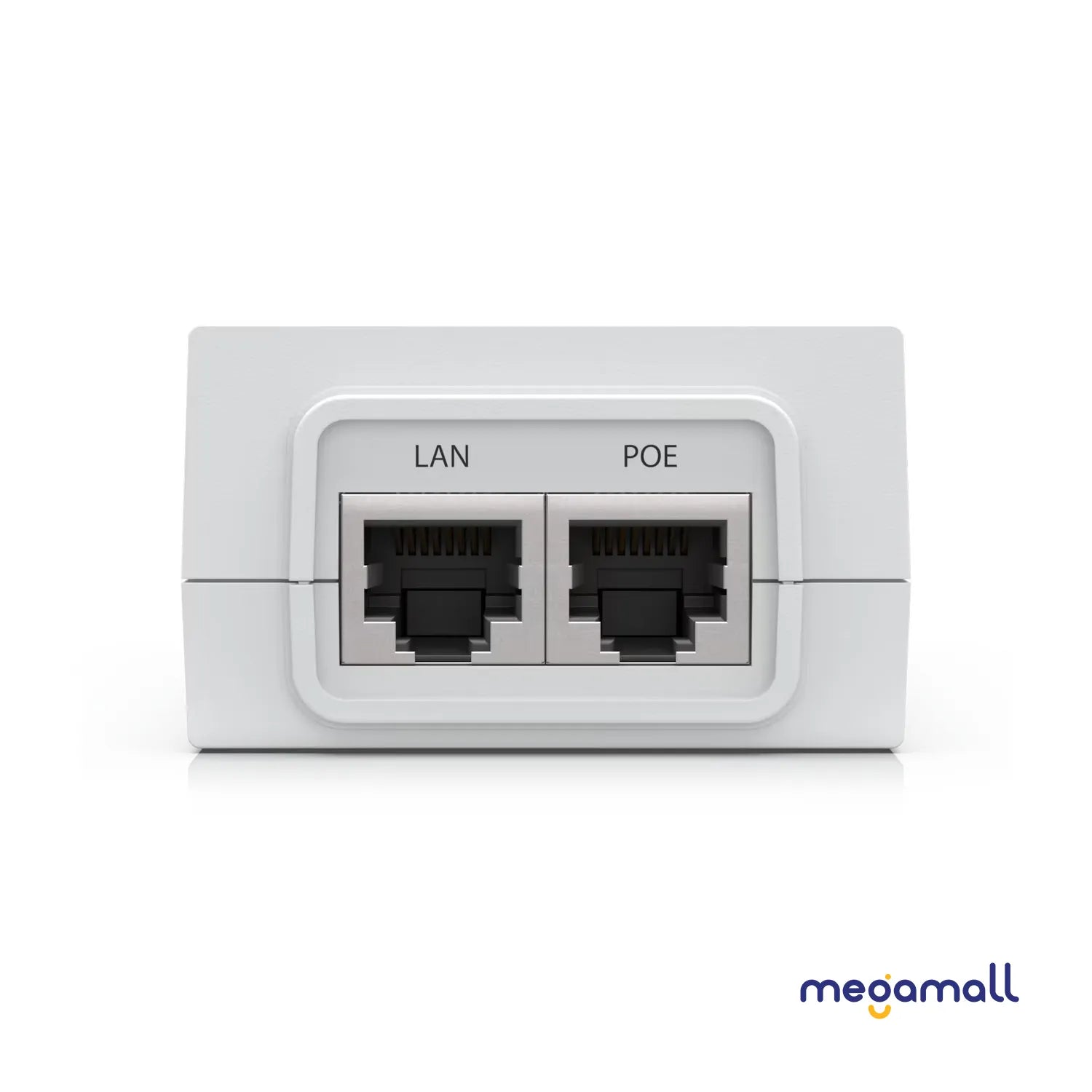

Data IN / PoE

RJ45 Shielded Socket

Surge Protection

Difference and Common Mode

Clamping Protection

11V Data, 60V Power

Max. Surge Discharge

1500A (8/20 _s) Power

Peak Pulse Current

36A (10/1000 _s) Data

Shunt Capacitance

<5 pF data

Response Time

<1 ns

Certifications

CE, FCC, IC, UL

NDAA Compliant

Yes
