Description

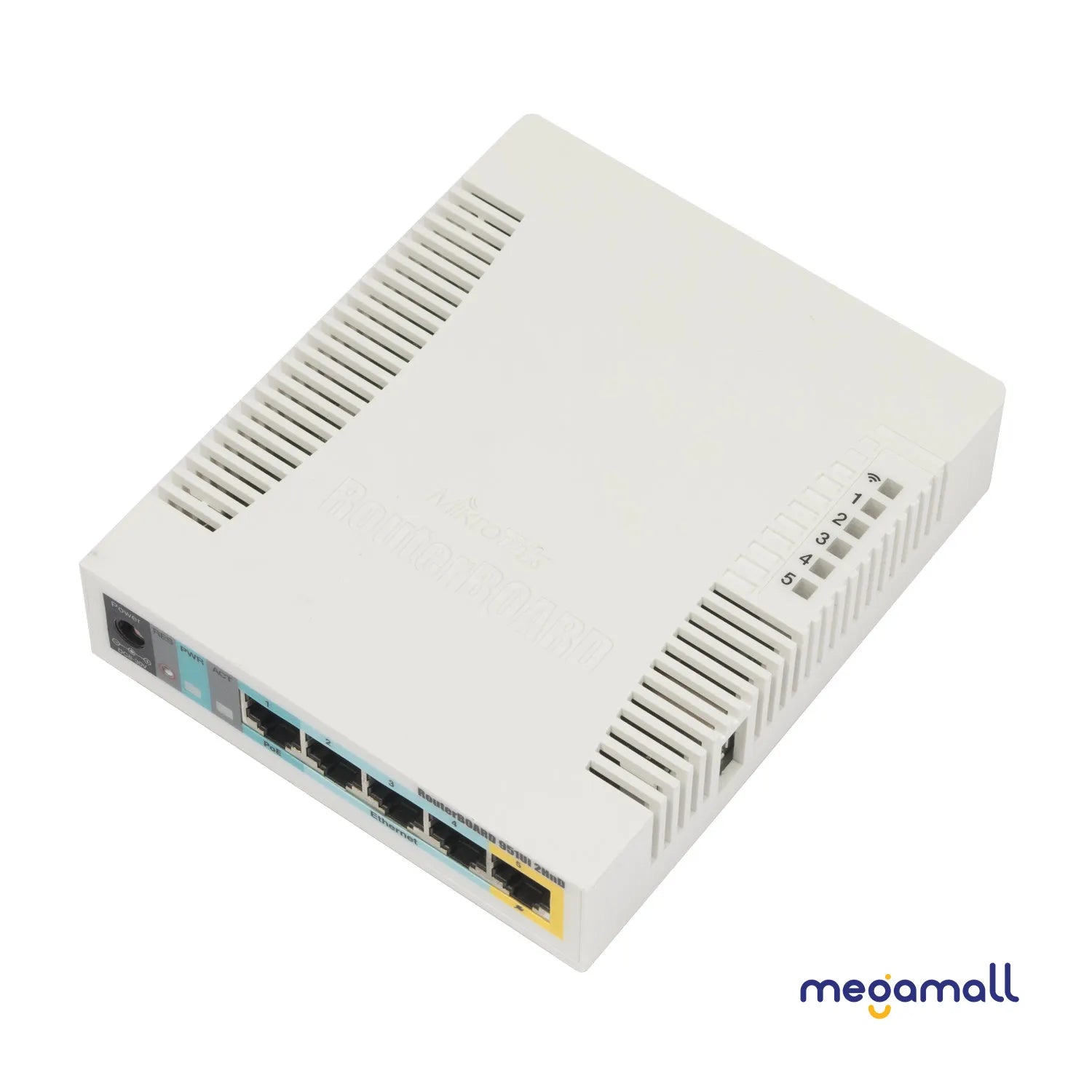

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

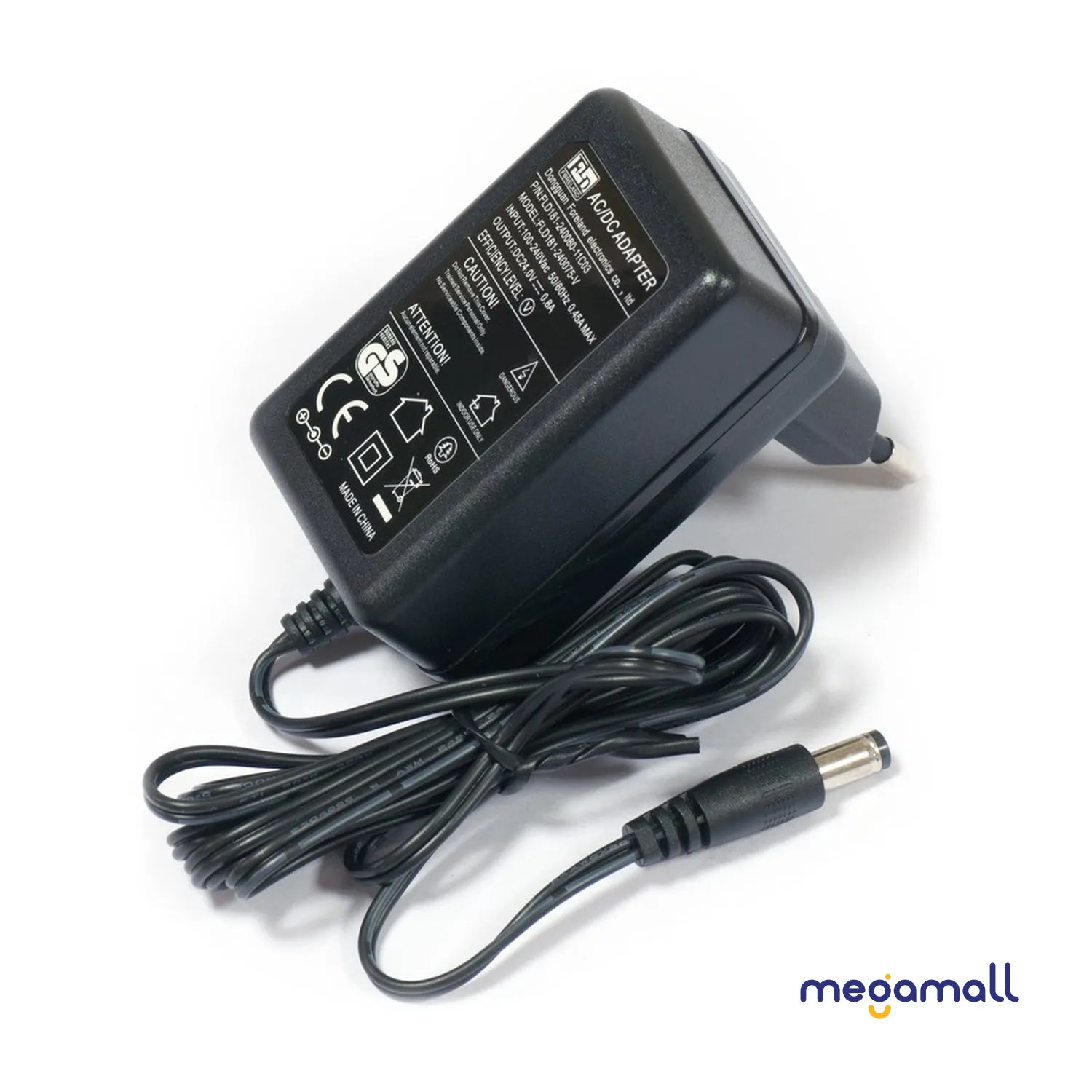

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
|
Specifications |
||
|
Product code |
RB951Ui-2HnD |
|
|
Architecture |
MIPSBE |
|
|
CPU |
AR9344 |
|
|
CPU core count |
1 |
|
|
CPU nominal frequency |
600 MHz |
|
|
Dimensions |
113x138x29mm |
|
|
RouterOS license |
4 |
|
|
Operating System |
||
|
Size of RAM |
128 MB |
|
|
Storage size |
128 MB |
|
|
Storage type |
NAND |
|
|
MTBF |
Approximately 100'000 hours at 25C |
|
|
Tested ambient temperature |
-20C +60C |
|
|
Wireless capabilities |
||
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
|
Wireless 2.4 GHz number of chains |
2 |
|
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
|
Wireless 2.4 GHz chip model |
AR9344 |
|
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
|
Ethernet |
||
|
10/100 Ethernet ports |
5 |
|
|
Peripherals |
||
|
Number of USB ports |
1 |
|
|
USB Power Reset |
Yes |
|
|
USB slot type |
USB type A |
|
|
Max USB current (A) |
1 |
|
|
Powering |
||
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
|
DC jack input Voltage |
8-30 V |
|
|
Max power consumption |
24 W |
|
|
Max power consumption without attachments |
7 W |
|
|
PoE in |
Passive PoE |
|
|
Cooling type |
Passive |
|
|
PoE in input Voltage |
8-30 V |
|
|
PoE-out |
||
|
PoE-out ports |
Ether5 |
|
|
PoE out |
Passive PoE |
|
|
Max out per port output (input 18-30 V) |
500 mA |
|
|
Max total out (A) |
500 mA |
|
|
Certification & Approvals |
||
|
Certification |
CE, FCC, IC, EAC, ROHS |
|
|
IP |
IP20 |
|
|
Other |
||
|
Beeper |
Yes |
|
|
Wireless specifications |
||
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
6MBit/s |
30 |
-96 |
|
54MBit/s |
25 |
-80 |
|
MCS0 |
30 |
-96 |
|
MCS7 |
23 |
-78 |
|
Warranty |
||
|
Warranty |
1 Year |
|
