Description
Small size powerful OEM board with one Gigabit LAN and one miniPCIe slot.

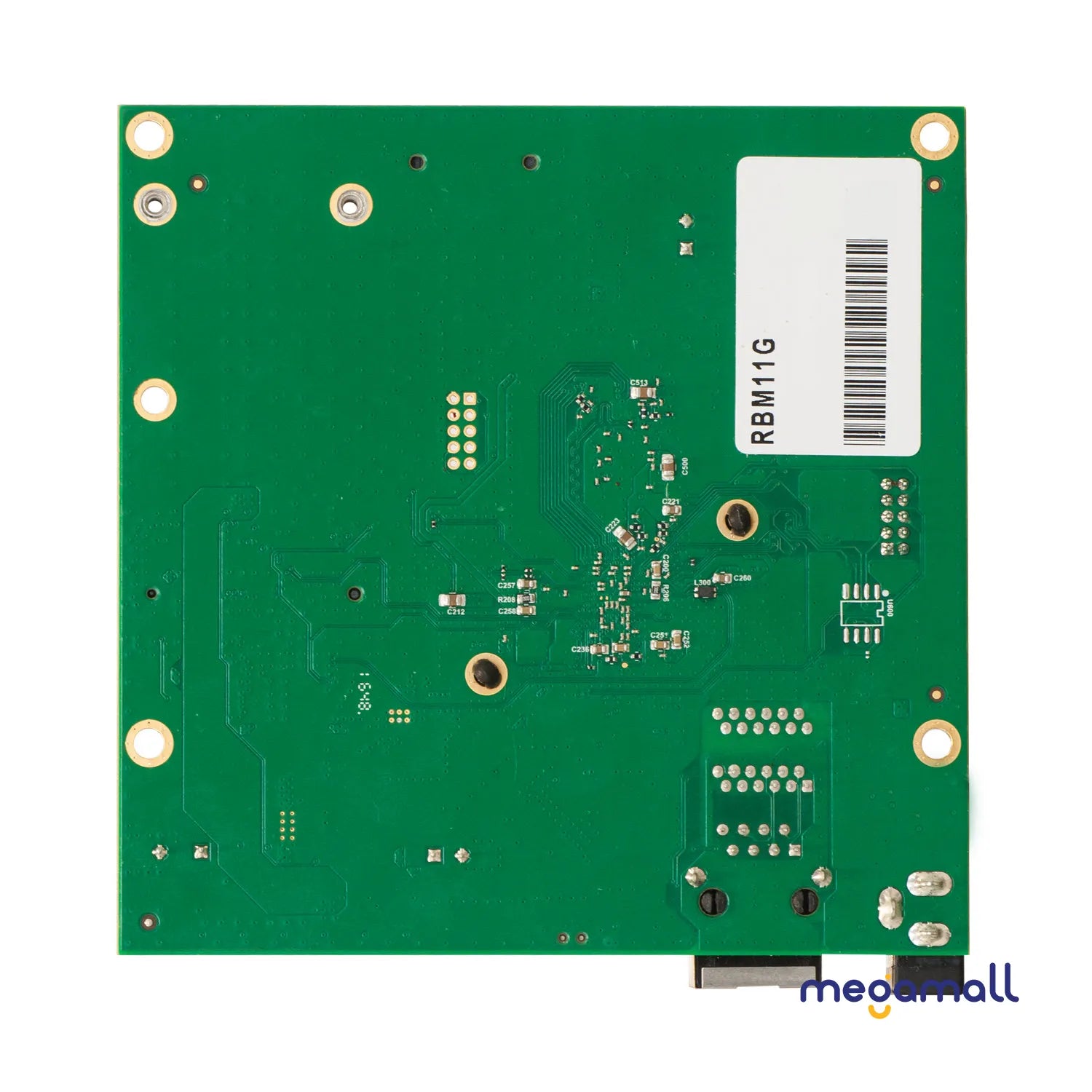

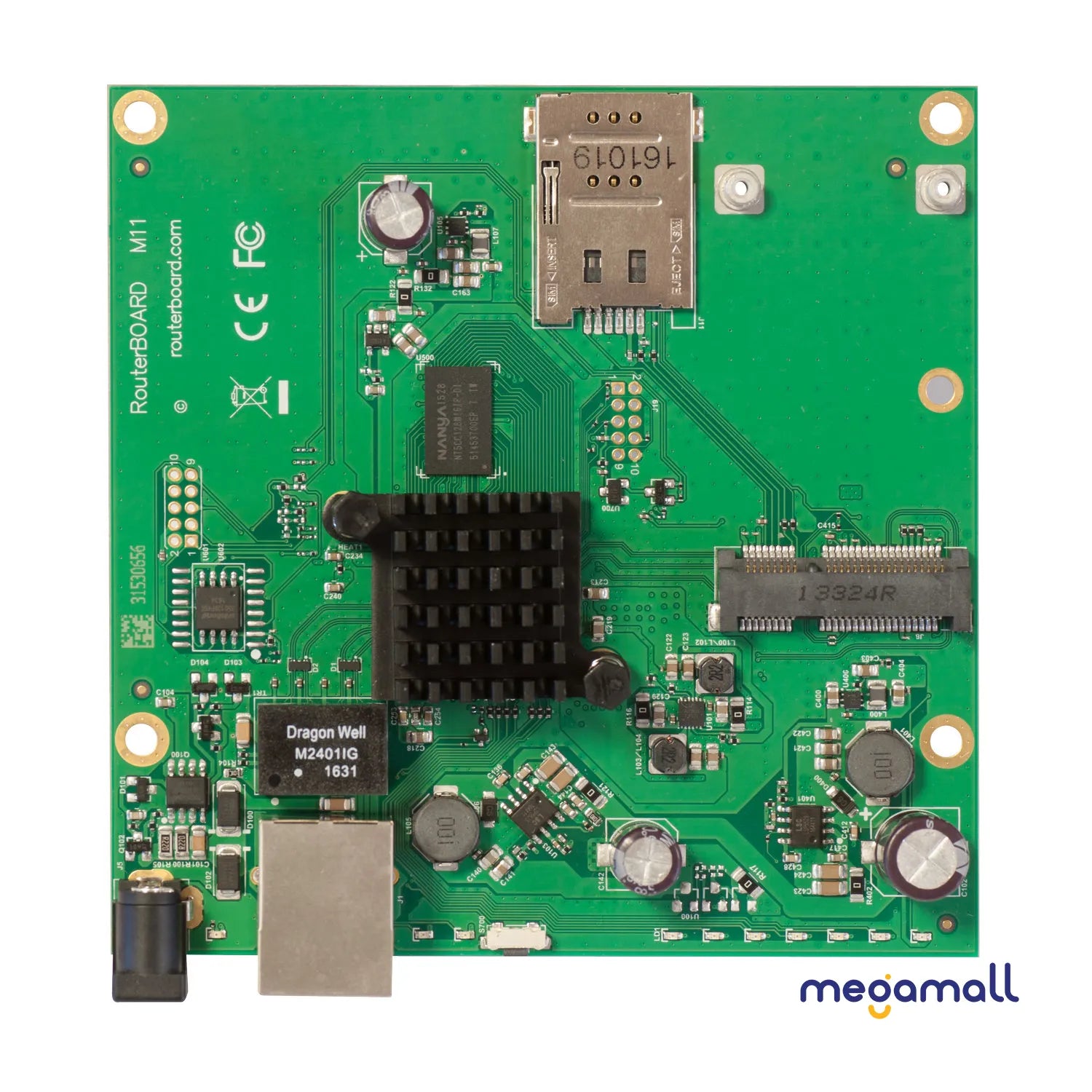

The RBM11G is a fully featured RouterBOARD device perfect for using with your own enclosure or building a custom solution. It uses the same square PCB and mounting holes as it’s predecessors, you can simply swap out the older models with the brand new RBM11G.
The M11 features a new MediaTek dual core CPU running at 880MHz, a miniPCIe slot for using with a WiFi module of your choice, or with a 3G/ LTE modem (SIM slot provided). The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
|
Specifications |
|
|
Product code |
RBM11G |
|
Architecture |
MMIPS |
|
CPU |
MT7621A |
|
CPU core count |
2 |
|
CPU nominal frequency |
880 MHz |
|
CPU Threads count |
4 |
|
Dimensions |
105 x 110 mm |
|
RouterOS license |
4 |
|
Operating System |
|
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 100'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
|
Number of DC inputs |
2 (PoE-IN, DC jack) |
|
DC jack input Voltage |
10-30 V |
|
Max power consumption |
11 W |
|
PoE in |
Passive PoE |
|
Cooling type |
Passive |
|
PoE in input Voltage |
10-30 V |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
1 |
|
Peripherals |
|
|
Number of SIM slots |
1 Modem (Mini SIM) |
|
MiniPCI-e slots |
1 |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
Warranty |
|
|
Warranty |
1 Year |
