Description
Powerful OEM board with three Gigabit LAN and two miniPCIe slots

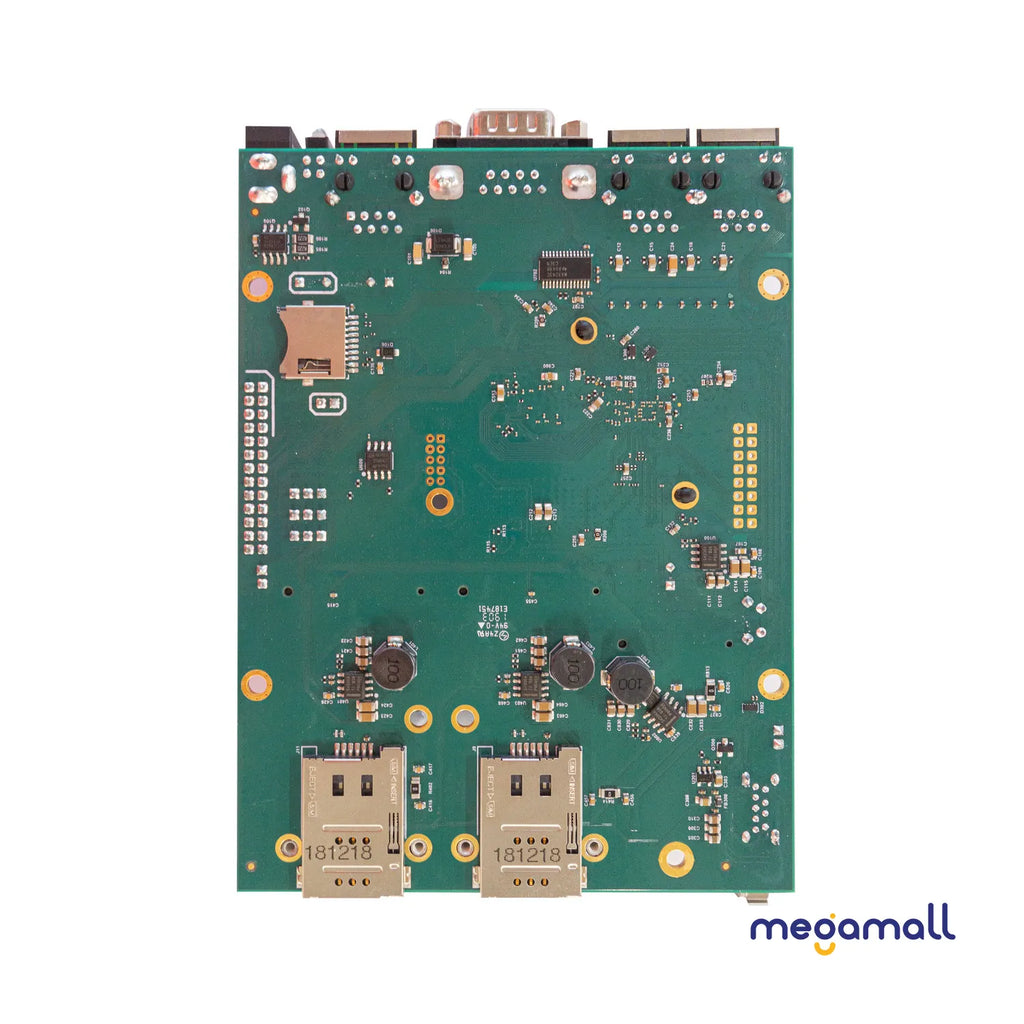

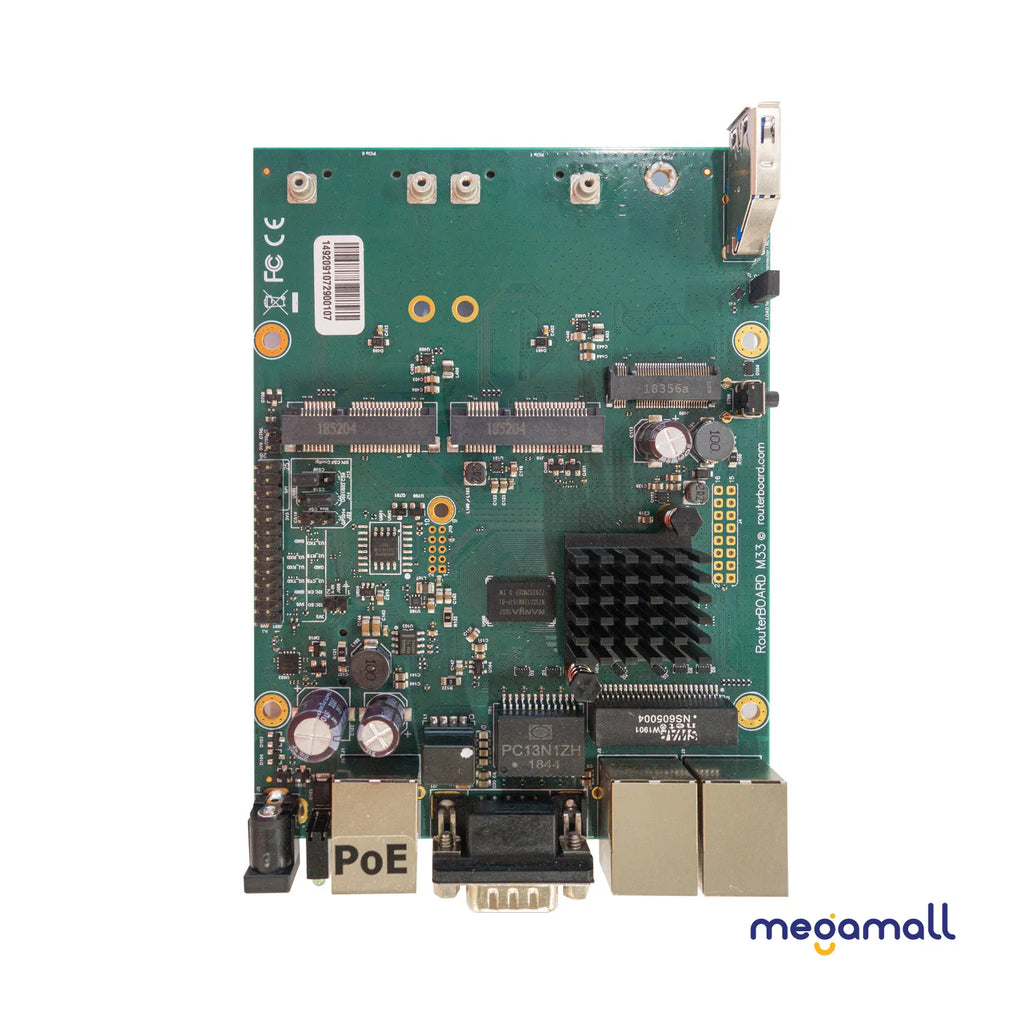

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).
The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:
• Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)
• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.
The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
|
Specifications |
|
|
Product code |
RBM33G |
|
Architecture |
MMIPS |
|
CPU |
MT7621A |
|
CPU core count |
2 |
|
CPU nominal frequency |
880 MHz |
|
CPU Threads count |
4 |
|
Switch chip model |
MT7621A |
|
RouterOS license |
4 |
|
Operating System |
|
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 100'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
11-28 V |
|
Max power consumption |
24 W |
|
Max power consumption without attachments |
5 W |
|
PoE in |
Passive PoE |
|
Cooling type |
Passive |
|
PoE in input Voltage |
11-28 V |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
3 |
|
Peripherals |
|
|
Number of SIM slots |
2 Modem (Mini SIM) |
|
M.2 slots |
1 |
|
MiniPCI-e slots |
2 |
|
Serial console port |
RS232 + GPIO header |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB 3.0 type A |
|
Max USB current (A) |
1 |
|
Number of M.2 slots |
1 |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
Warranty |
|
|
Warranty |
1 Year |
