Description

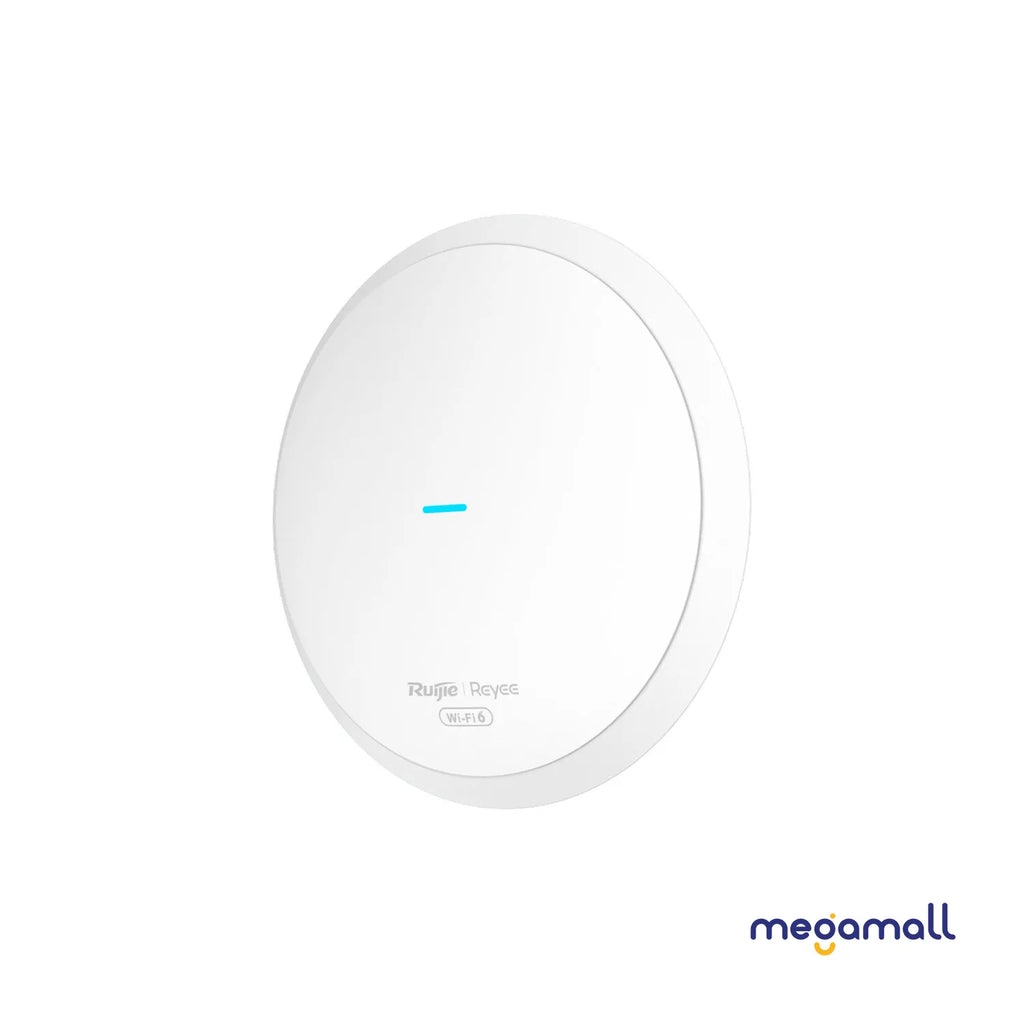

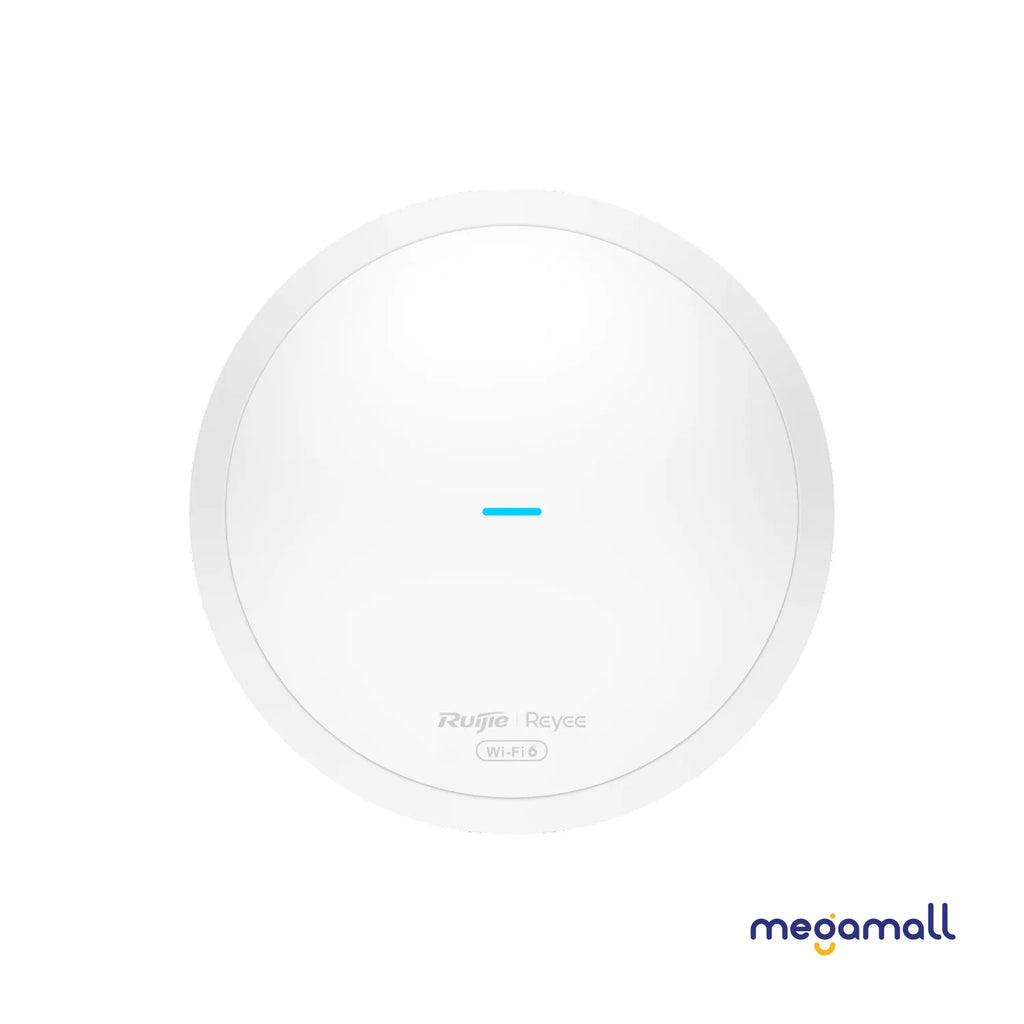

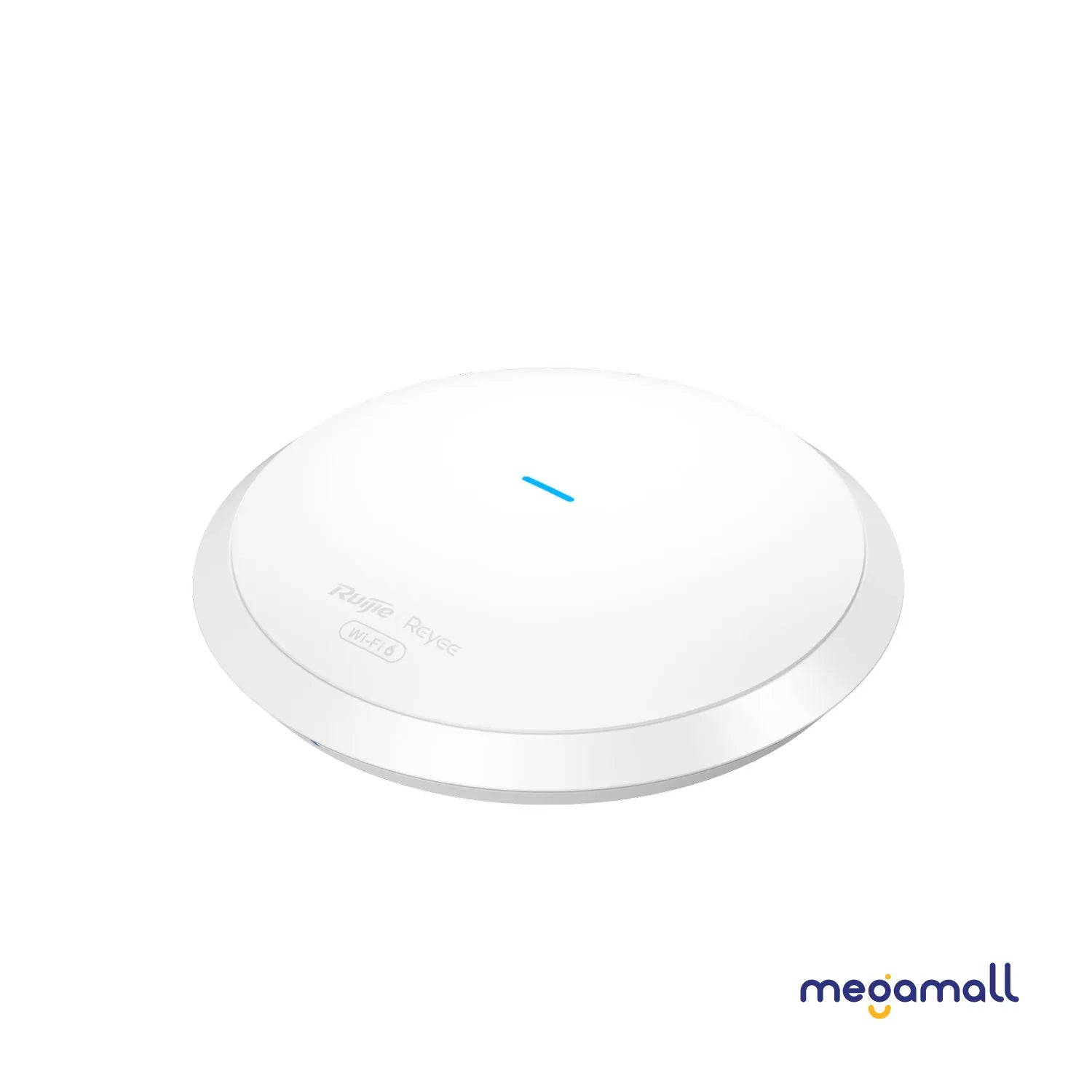

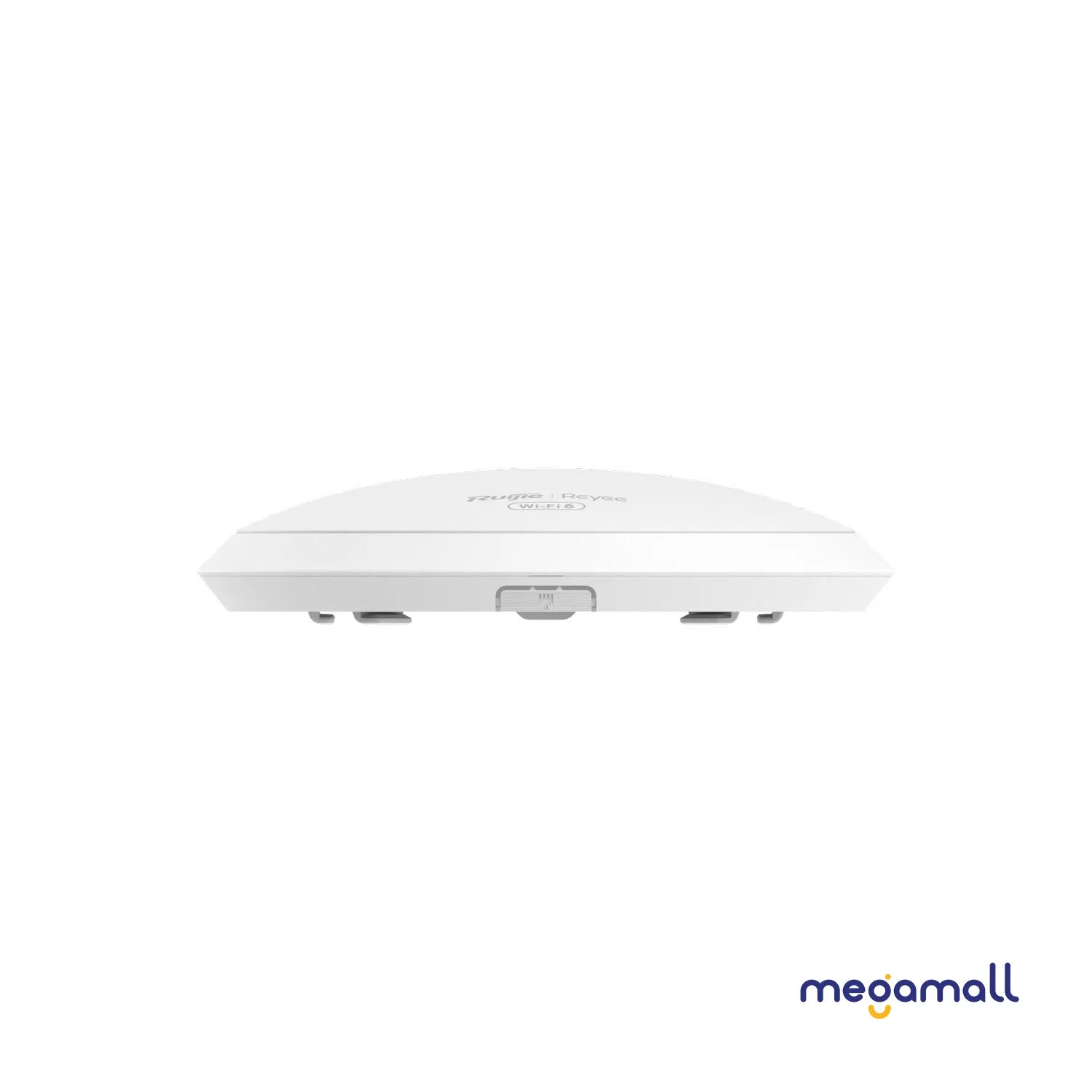

- Gigabit wireless ceiling-mount AP with dual-radio performance
- Support for Reyee Mesh and AI Wireless Optimization (WIO)
- Easy installation, compact size
- New circular aesthetics, more in line with the hotel decoration style
- Powerful AP standalone portal via Ruijie Cloud
|
Product Type |
|
|
Product Type |
Ceiling AP |
|
Wi-Fi Radio |
|
|
Radio design |
Dual-radio |
|
Maximum wireless data rate |
1774 Mbps |
|
6 GHz wireless data rate |
No |
|
5 GHz wireless data rate |
1201 Mbps |
|
2.4 GHz wireless data rate |
573 Mbps |
|
Antenna |
|
|
Antenna |
2.4 GHz: 2 built-in omnidirectional antennas |
|
Dimensions and Weight |
|
|

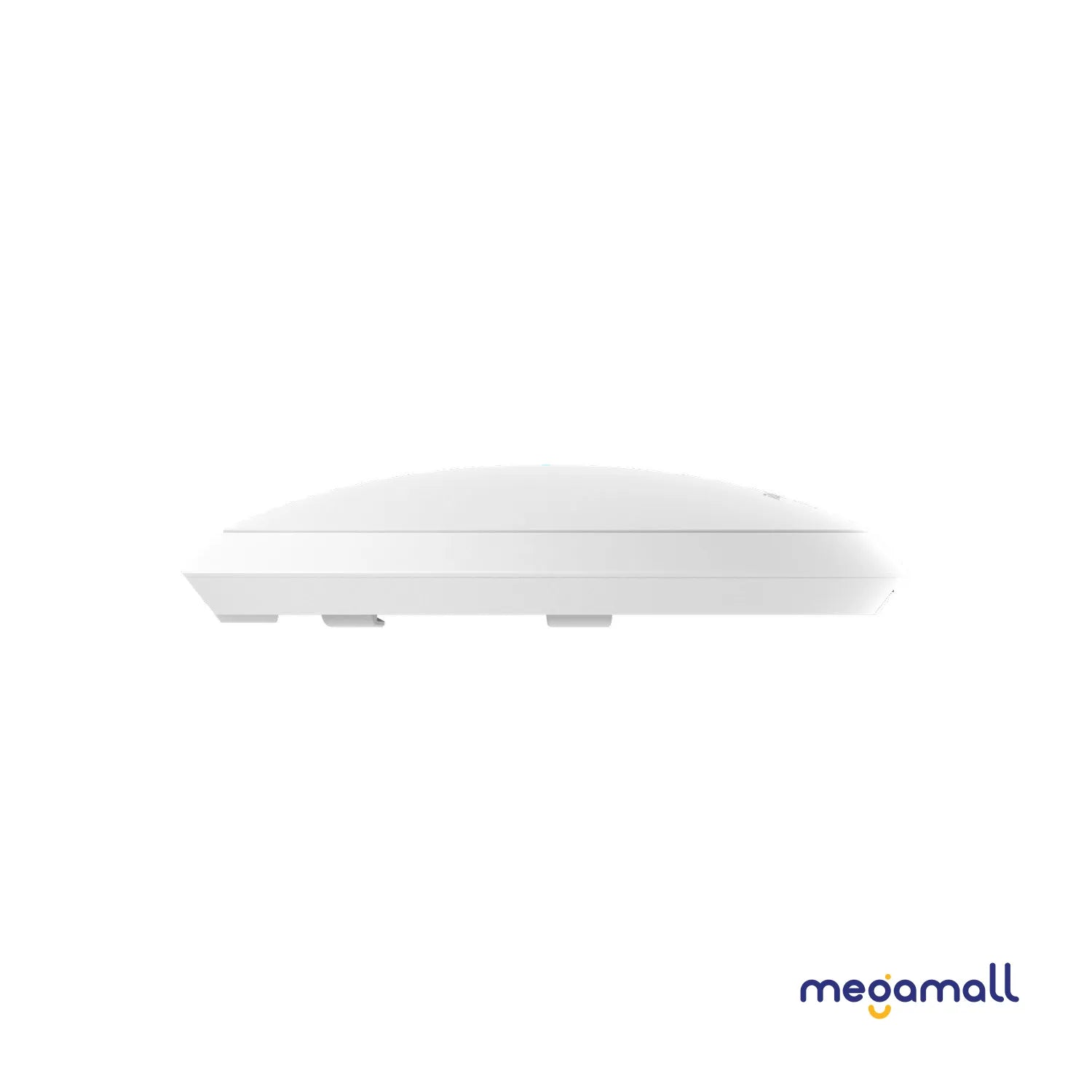

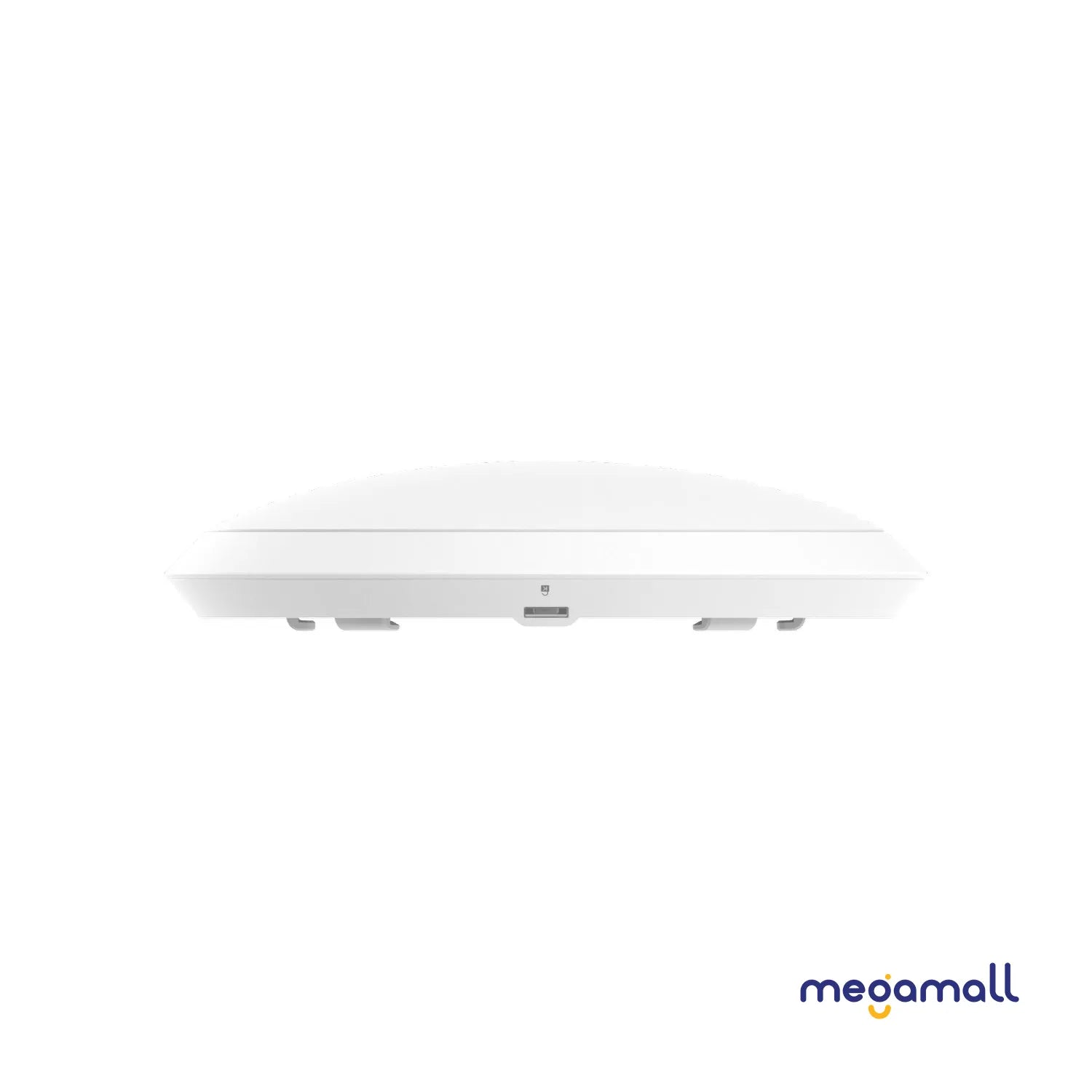

Product dimensions (diameter x height) |
Ø175mm x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket) |
|
Color |
White |
|
Weight |
≤ 0.4 kg (0.88 lbs) (without packaging materials) |
|

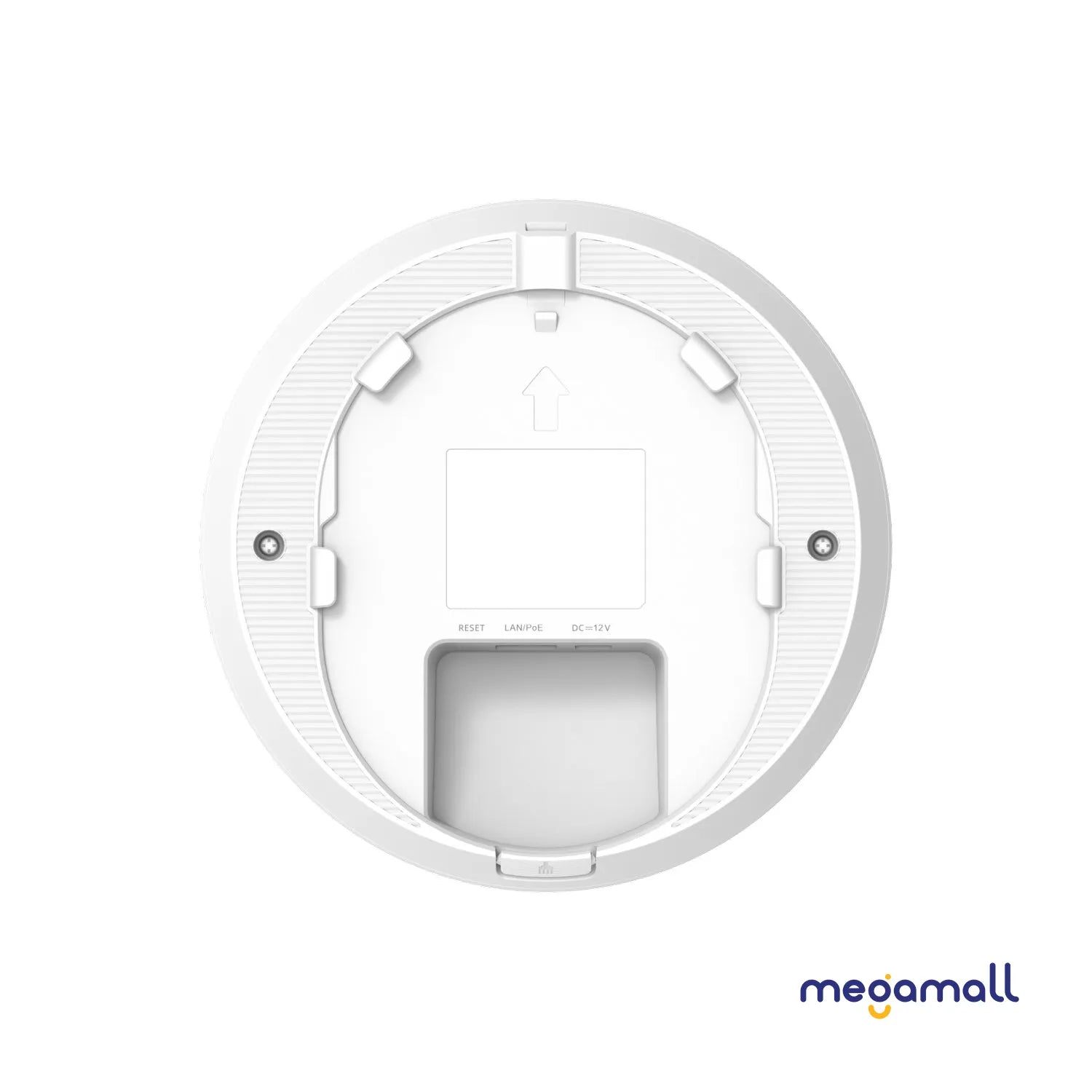

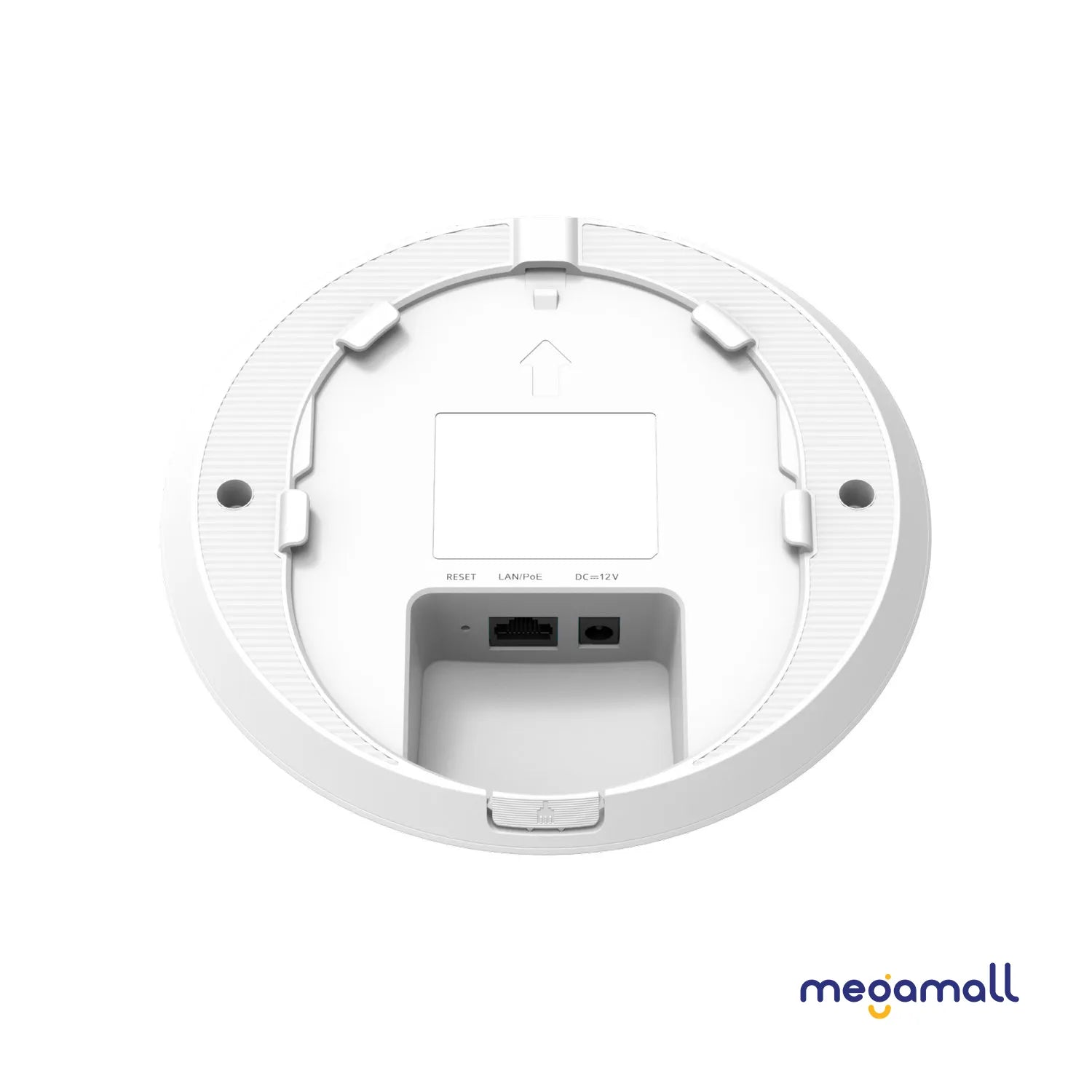

Port Specifications |
|
|
Number of 10/100/1000BASE-T ports |
1 |
|
Power Supply and Consumption |
|
|
Power supply |
● DC power adapter |
|
Local power supply |
Yes, one DC power connector (12 V, 1.5 A) |
|
Dimensions of the DC connector |
Outer diameter: 5.5 mm (0.22 in.) |
|
PoE budget |
No |
|
Maximum power consumption |
12.95 W |
|
Environment and Reliability |
|
|
Operating temperature |
0°C to 40°C (32°F to 104°F) |
|

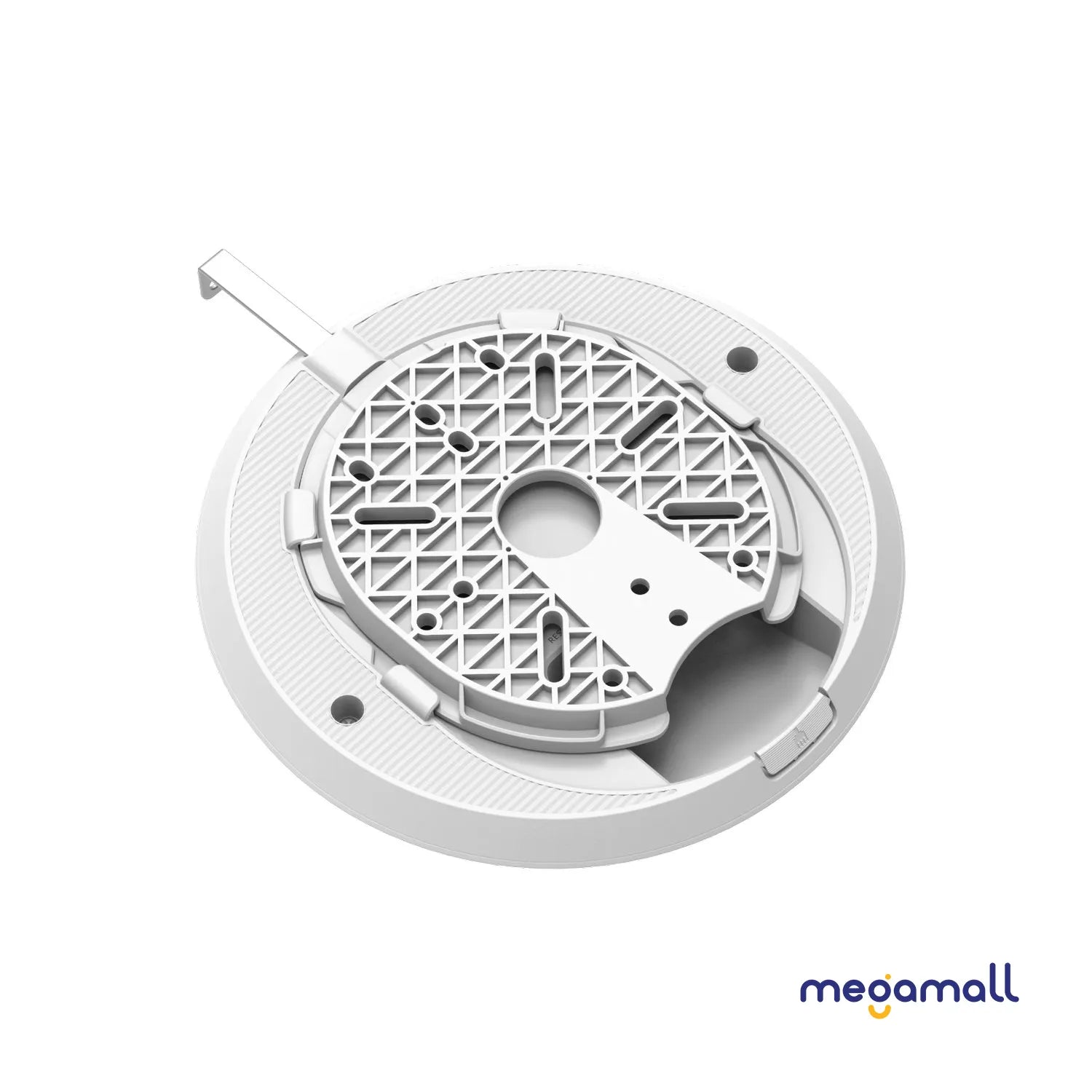

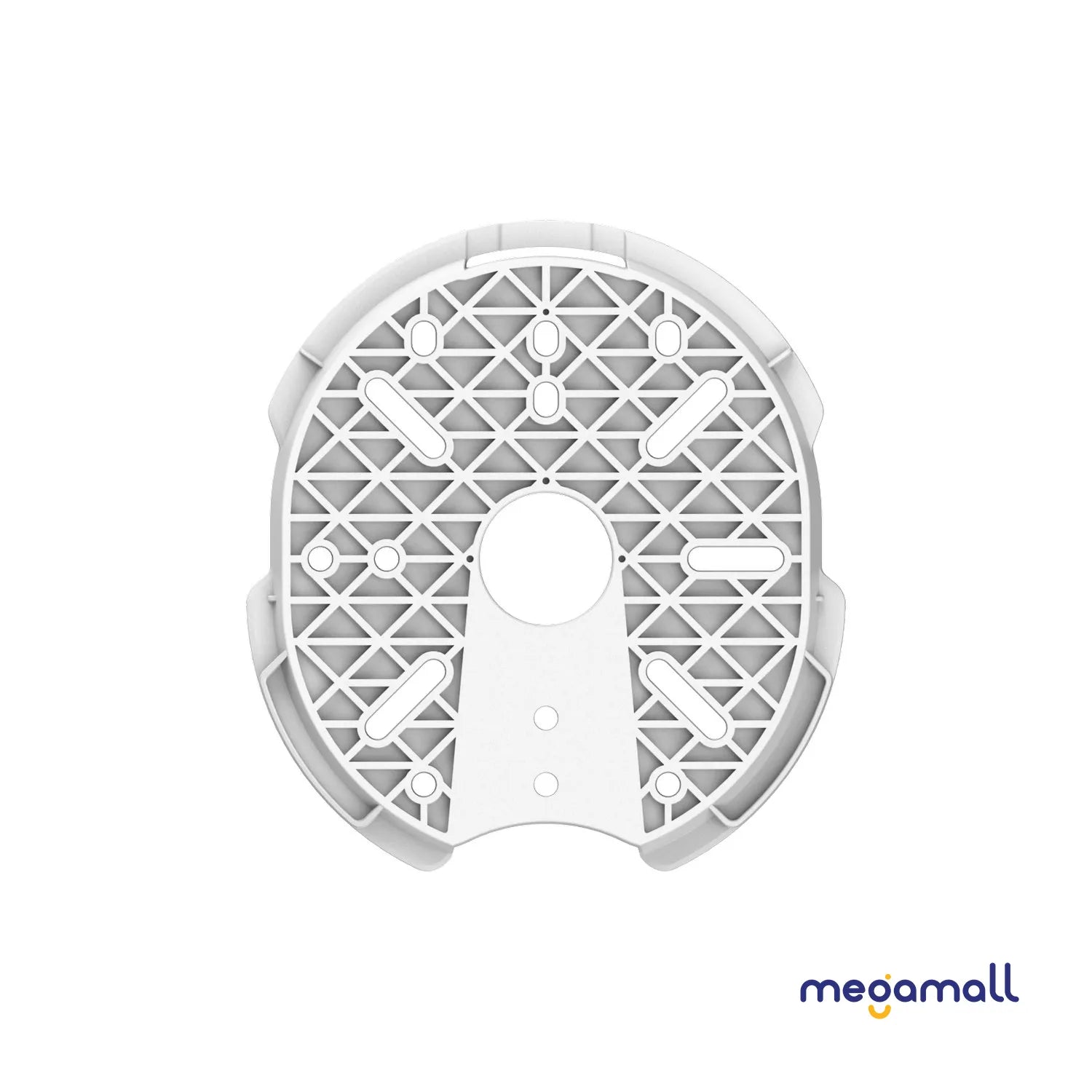

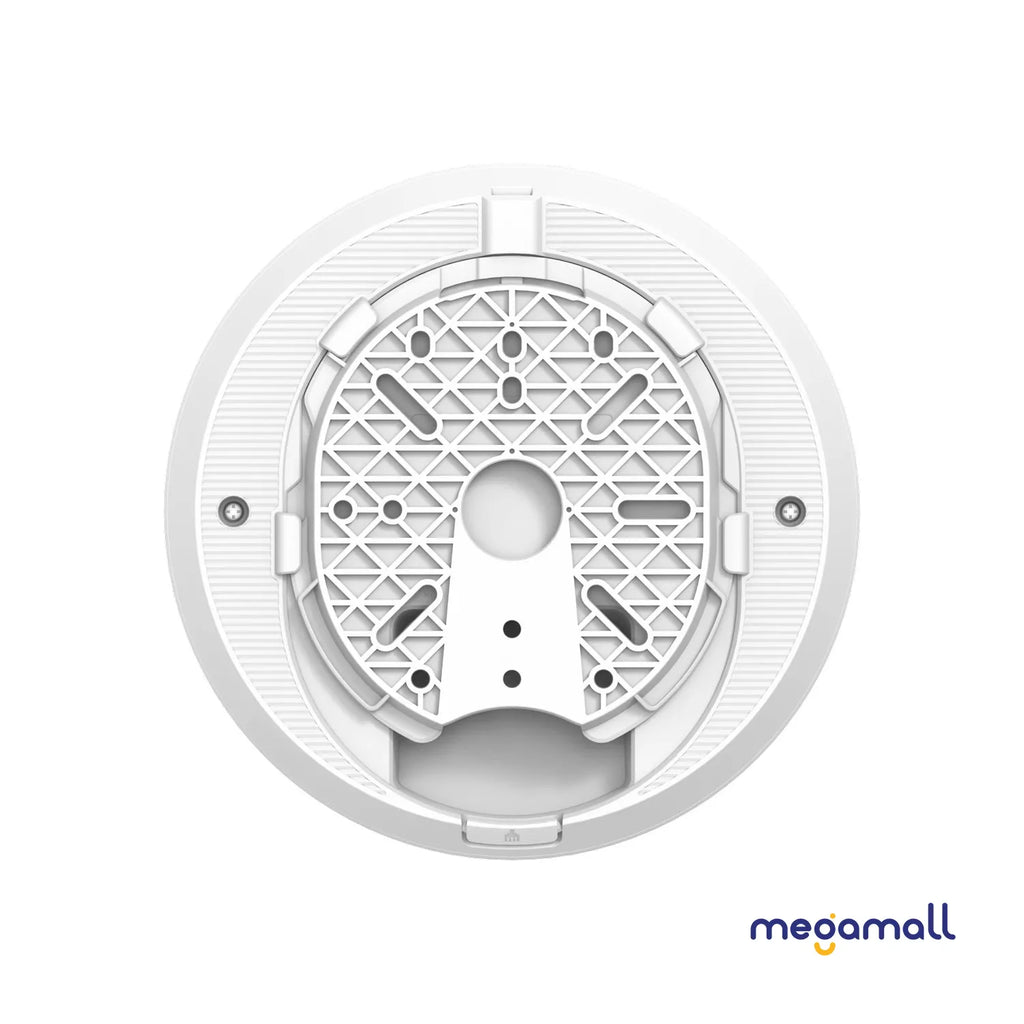

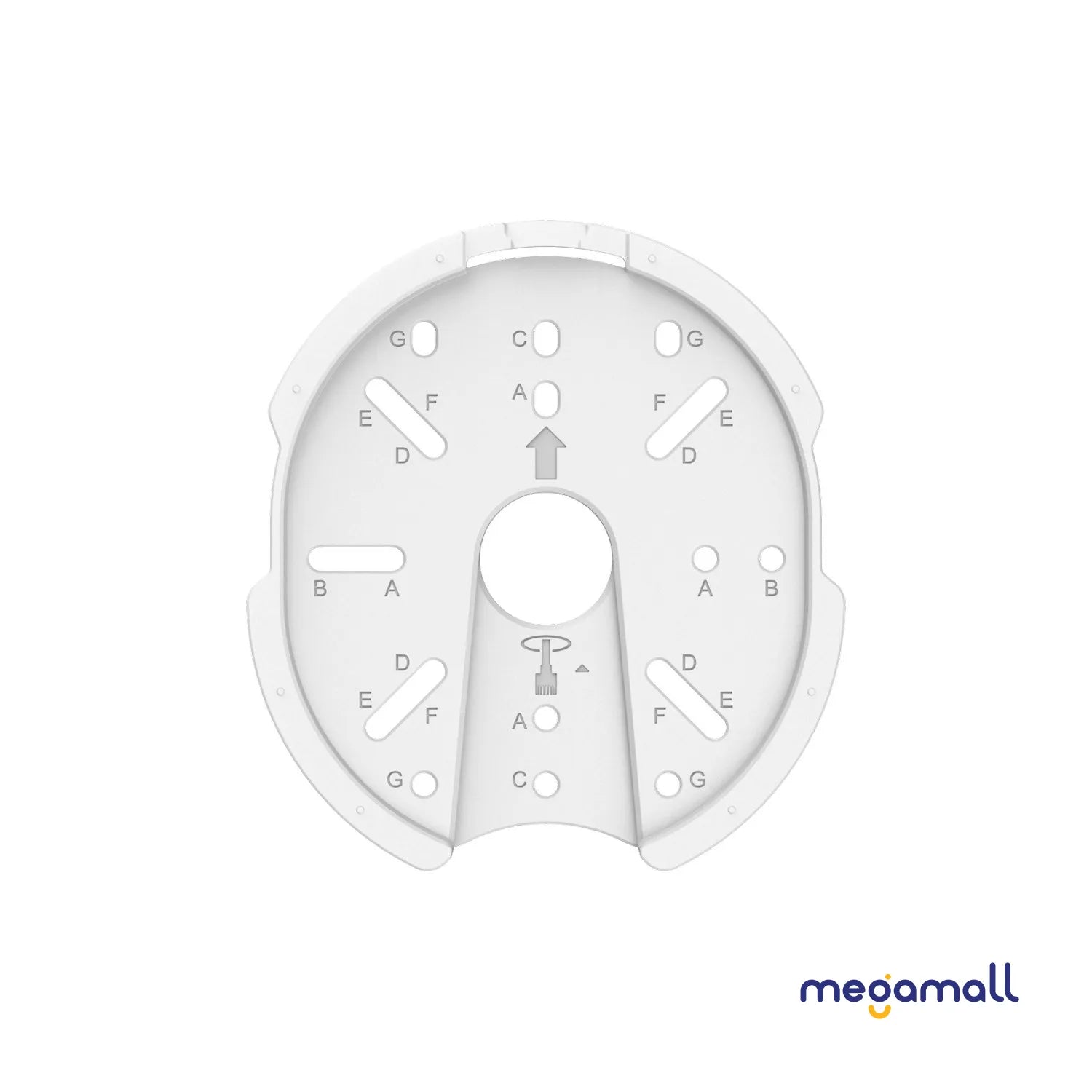

Mounting options |
Ceiling/Wall |
|
IP rating |
IP41 |
|
WLAN |
|
|
Maximum number of associated wireless clients |
64 (2.4 GHz) |
|
Maximum number of devices that can be managed |
300 |
|
IP Service |
|
|
IPv6 |
Yes |
|
Warranty Information |
|
|
Warranty |
1 Year(s) |
|
