Description

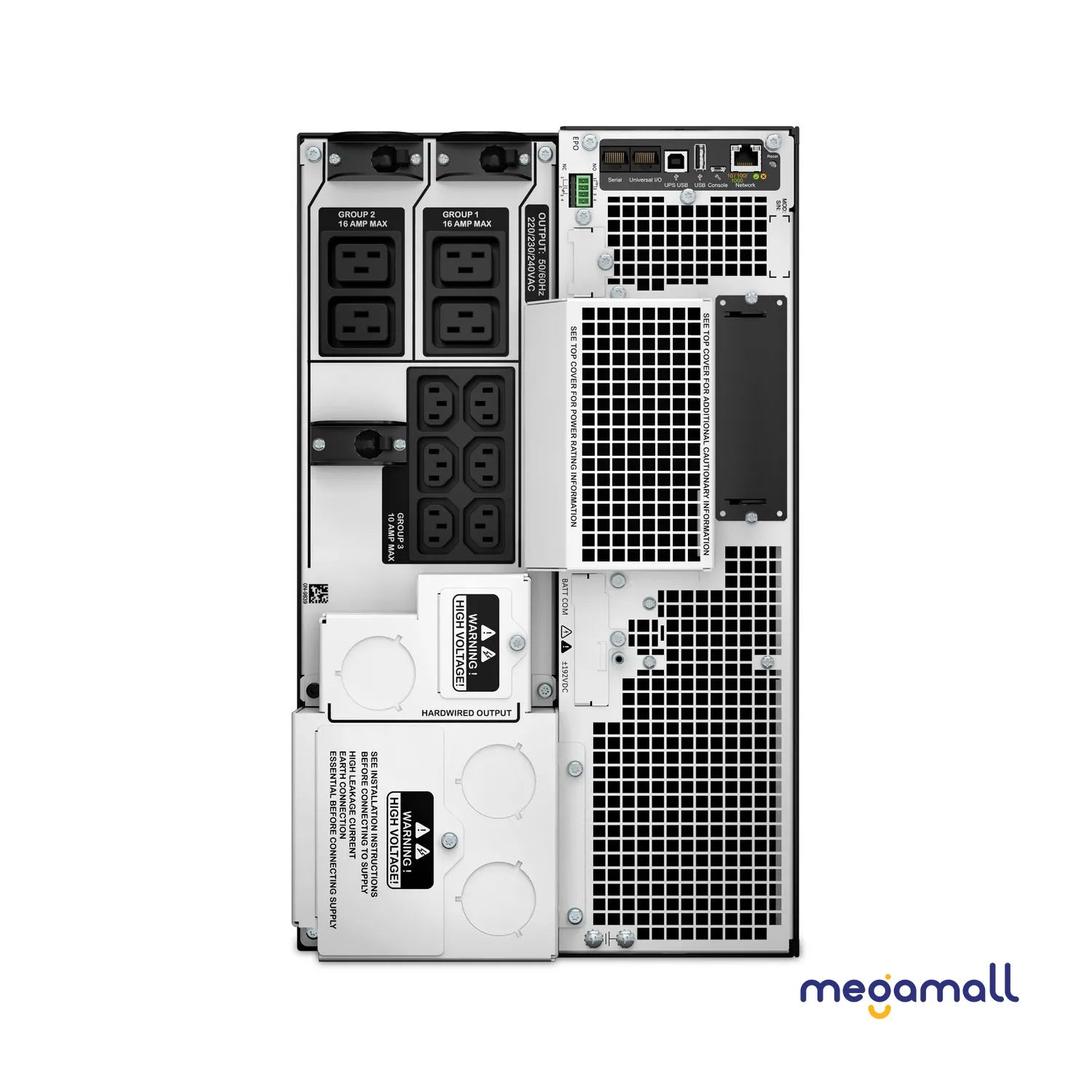

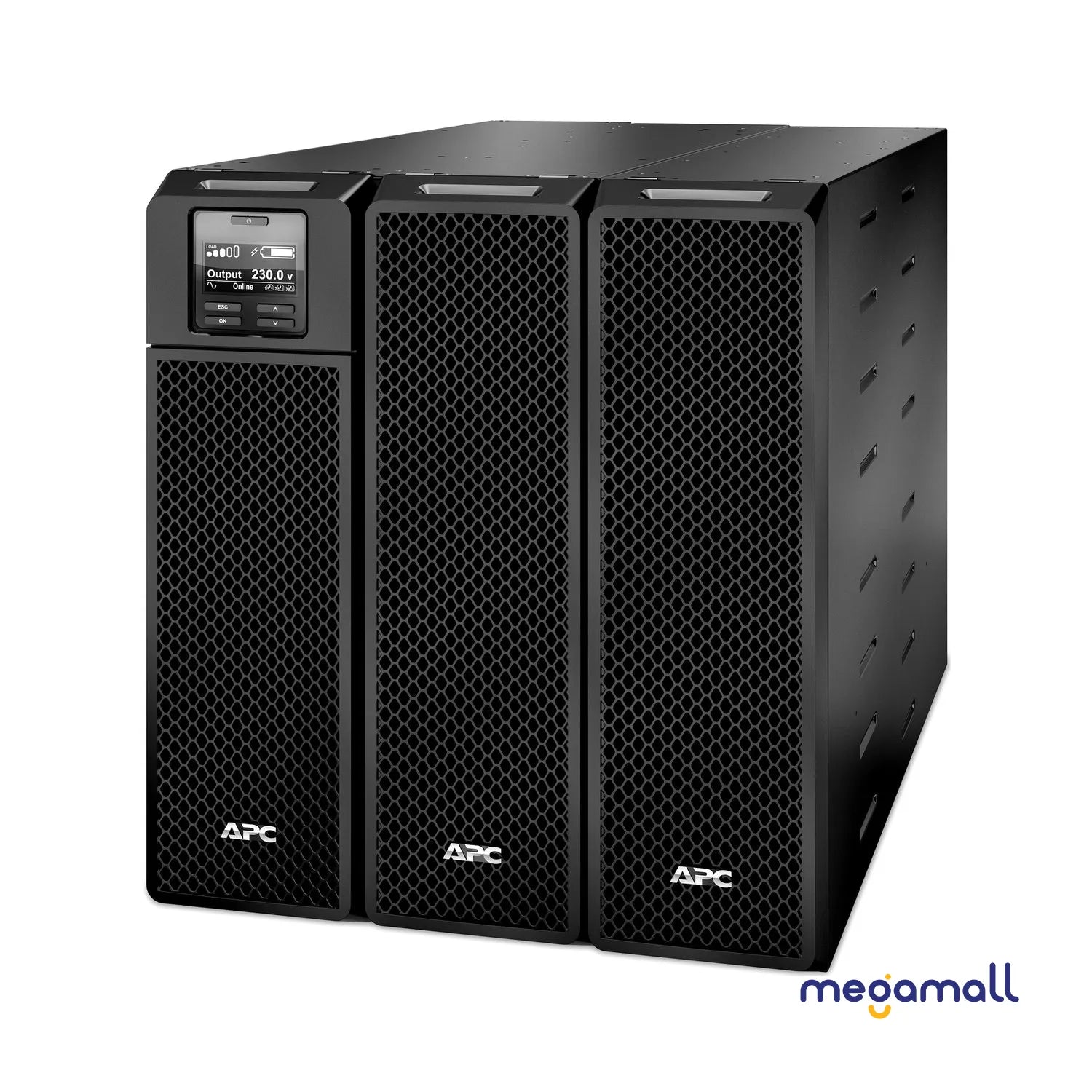

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- 10kVA/10kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
- Add up to 10 external battery packs (SRT192BP2) for extended runtime
|
Overview |
|
|
Presentation |
High density, double-conversion on-line power protection with scalable runtime. |
|
Main |
|
|
Run time for load 10000 W Min-max: 1000-10000 W |
3min 45s |
|
Max. Capacity Used |
1 |
|
Main Input Voltage |
230 V AC 1 phase |
|
Other Input Voltages |
220 V |
|
Efficiency at full load |
100...275 V adjustable (half load) |
|
Number of input connectors |
1 Hard Wire 3-wire (1PH+N+G) |
|
Input Frequency |
40 - 70 Hz auto-sensing |
|
Output voltage |
230 V 1 phase |
|
Other Output Voltages |
220 V |
|
Rated power in W |
10000 W |
|
rated power in VA |
10000 VA |
|
output connection type |
6 IEC 60320 C13 |
|
Output connector type |
Hard Wire 3-wire (H N + E) for 1 zone(s) |
|
Bypass type |
Internal Bypass (Automatic and Manual) |
|
Crest factor |
0.125694444 |
|
Harmonic distortion |
Less than 2% |
|
Maximum configurable power in VA |
10000 VA |
|
Max Configurable Power (Watts) |
10000 W |
|
Topology |
On-Line |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Complementary |
|
|
Battery Size |
Lead-acid internal included |
|
Emergency Power Off (EPO) |
Yes |
|
Free slots |
1 |
|
Pre-Installed SmartSlot™ Cards |
Network management card 3 with environmental monitoring |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
UPS connectivity |
Serial port |
|
Surge energy rating |
480 J |
|
color |
Black |
|
Height |
17.008 in (432 mm) |
|
Width |
10.4 in (263 mm) |
|
Depth |
28.1 in (715 mm) |
|
Net Weight |
246.52 lb(US) (111.82 kg) |
|
Mounting Location |
Front |
|
Mounting preference |
No preference |
|
Mounting Mode |
Rack-mounted with kit |
|
Two post mountable |
0 |
|
USB compatible |
Yes |
|
Mounting mode |
Tower with included kit |
|
Provided equipment |
CD with software |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Additional specification |
High density |
|
Redundant |
No |
|
Range of Product |
Smart-UPS On-Line |
|
Product or Component Type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product Certifications |
CE |
|
Marking |
CE Mark |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage altitude |
0…50000 ft (0…15240 m) |
|
IP degree of protection |
IP20 |
|
Relative Humidity |
0…95 % |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
55 dBA |
|
Heat dissipation |
1947 Btu/h |
|
Operating altitude |
0...10000 ft |
|
Batteries & Runtime |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Battery Type |
Lead-Acid battery |
|
Battery Voltage |
+/-192 V (split battery referenced to neutral) |
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Typical recharge time |
1.5 h |
|
RBC Quantity |
2 |
|
Battery Life |
3…5 year(s) |
|
Battery Charge Power (Watts) |
876 W rated |
|
Ordering and shipping details |
|
|
GTIN |
7.31304E+11 |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Nbr. of units in pkg. |
1 |
|
Package 1 Height |
18.150 in (46.100 cm) |
|
Package 1 Width |
39.370 in (100.000 cm) |
|
Package 1 Length |
23.622 in (60.000 cm) |
|
Package weight(Lbs) |
279.590 lb(US) (126.820 kg) |
|
Contractual warranty |
|
|
Warranty (in months) |
24 Battery|36 UPS |
