Description

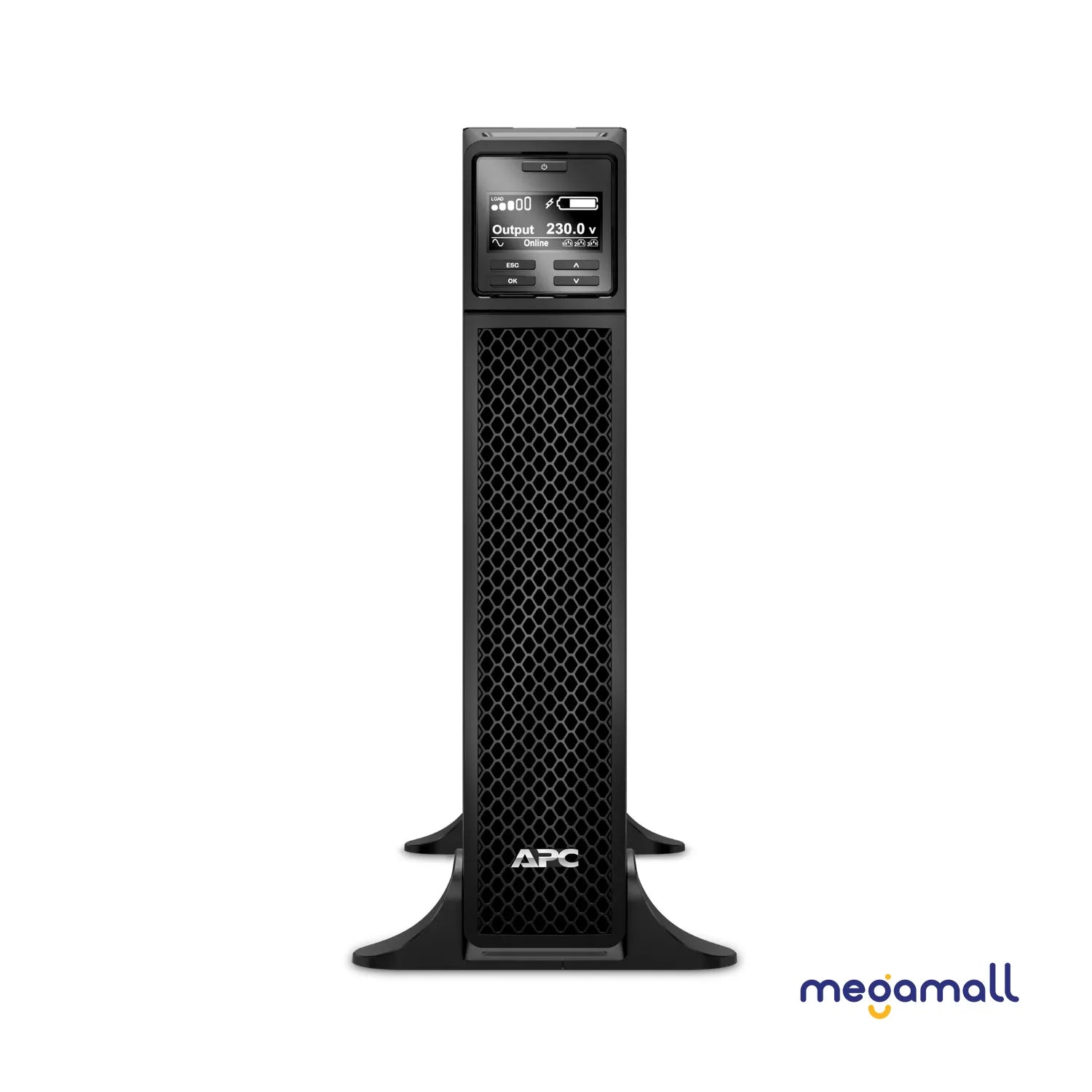

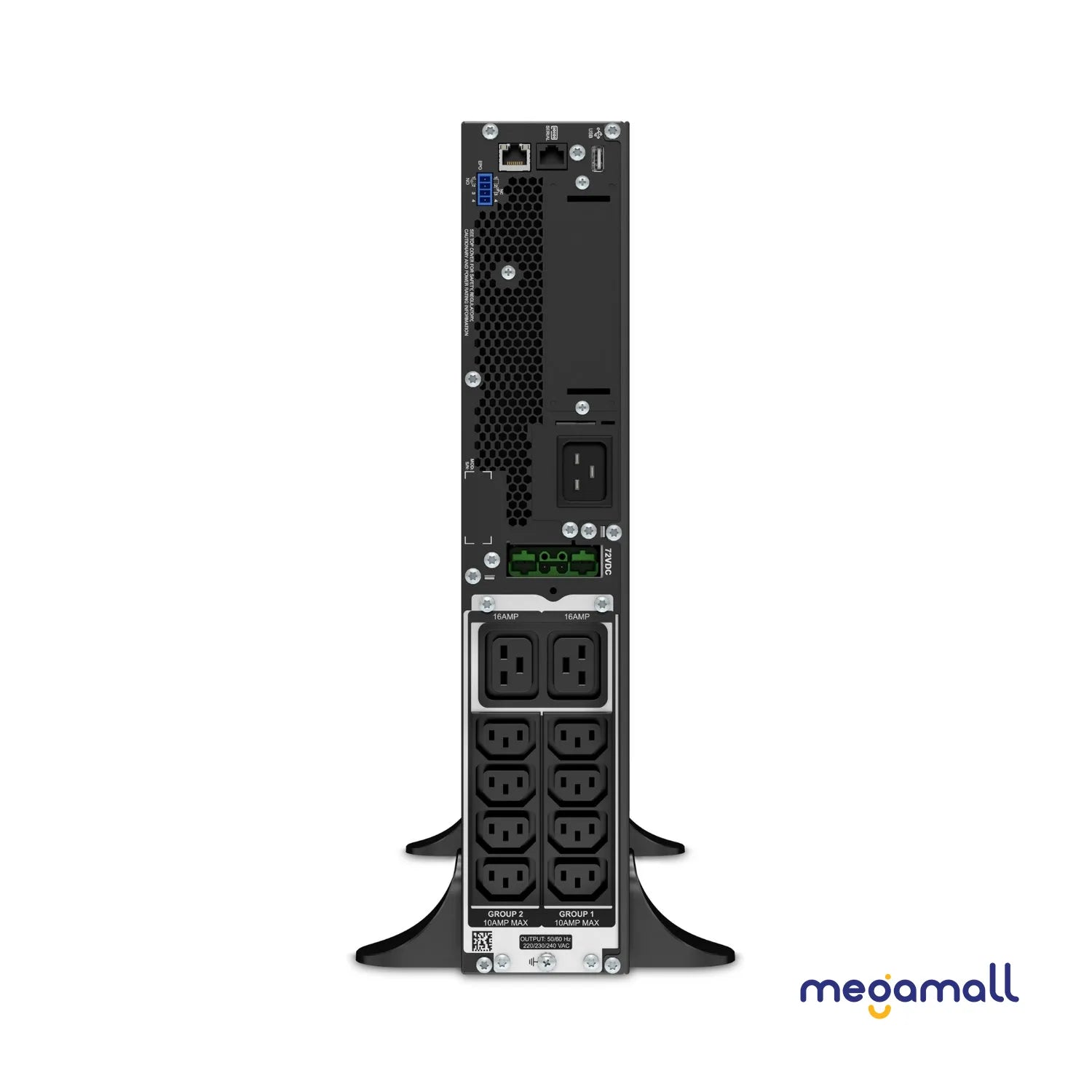

This APC Smart-UPS SRT2200XLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- 2200VA/1980W double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT72BP) for extended runtime
|
Overview |
|
|
Presentation |
High density, double-conversion on-line power protection with scalable runtime. |
|
Main |
|
|
Run time for load 1980 W Min-max: 198-1980 W |
3min 53s |
|
Max. Capacity Used |
1 |
|
Main Input Voltage |
230 V AC 1 phase |
|
Input voltage |
220 V |
|
Input Connection Type |
BS1363A British |
|
Input voltage limits |
100...275 V adjustable (half load) |
|
Network frequency |
40...70 Hz auto-sensing |
|
Output voltage |
230 V AC 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
1980 W |
|
rated power in VA |
2200 VA |
|
Output connection type |
8 IEC 60320 C13 |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
0.125694444 |
|
Harmonic distortion |
Less than 2 % |
|
Maximum configurable power in VA |
2200 VA |
|
Maximum configurable power in W |
1980 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Complementary |
|
|
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Battery type |
Lead-acid internal included |
|
Emergency power off |
Yes |
|
Free slots |
1 |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
USB port |
Surge energy rate |
|
340 J |
Cable length |
|
2.4 m |
Number of cables |
|
1 |
Colour |
|
Black |
Height |
|
432 mm |
Width |
|
85 mm |
Depth |
|
584 mm |
Net weight |
|
25 kg |
Mounting location |
|
Front |
Mounting preference |
|
Lower |
Mounting mode |
|
Rack-mounted with kit |
Two post mountable |
|
0 |
USB compatible |
|
Yes |
Mounting position |
|
Vertical |
Mounting mode |
|
Rack-mounted with included kit |
Provided equipment |
|
Number of power module |
1400 |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Additional specification |
High density |
|
Redundant |
No |
|
Range of product |
Smart-UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Marking |
CE Mark |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…45 °C |
|
Storage altitude |
0…15240 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
55 dBA |
|
Heat dissipation |
703 Btu/h |
|
Operating altitude |
0...10000 ft |
|
Batteries & Runtime |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Battery type |
Lead-acid battery |
|
Battery voltage |
72 V |
|
Extended runtime |
1 |
|
Number of battery filled slots |
1 |
|
Number of battery free slots |
0 |
|
Battery recharge time |
3 h |
|
Number of battery replacement quantity |
1 |
|
Battery life |
3…5 year(s) |
|
Replacement battery |
APCRBC141 |
|
Battery charger power |
122 W rated |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
24.6 cm |
|
Package 1 Width |
59.9 cm |
|
Package 1 Length |
81 cm |
|
Package 1 Weight |
30.840 kg |
|
Unit Type of Package 2 |
P12 |
|
Number of Units in Package 2 |
2 |
|
Package 2 Height |
55.000 cm |
|
Package 2 Width |
80.000 cm |
|
Package 2 Length |
120.000 cm |
|
Package 2 Weight |
74.000 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
24 Battery|36 UPS |
