Description

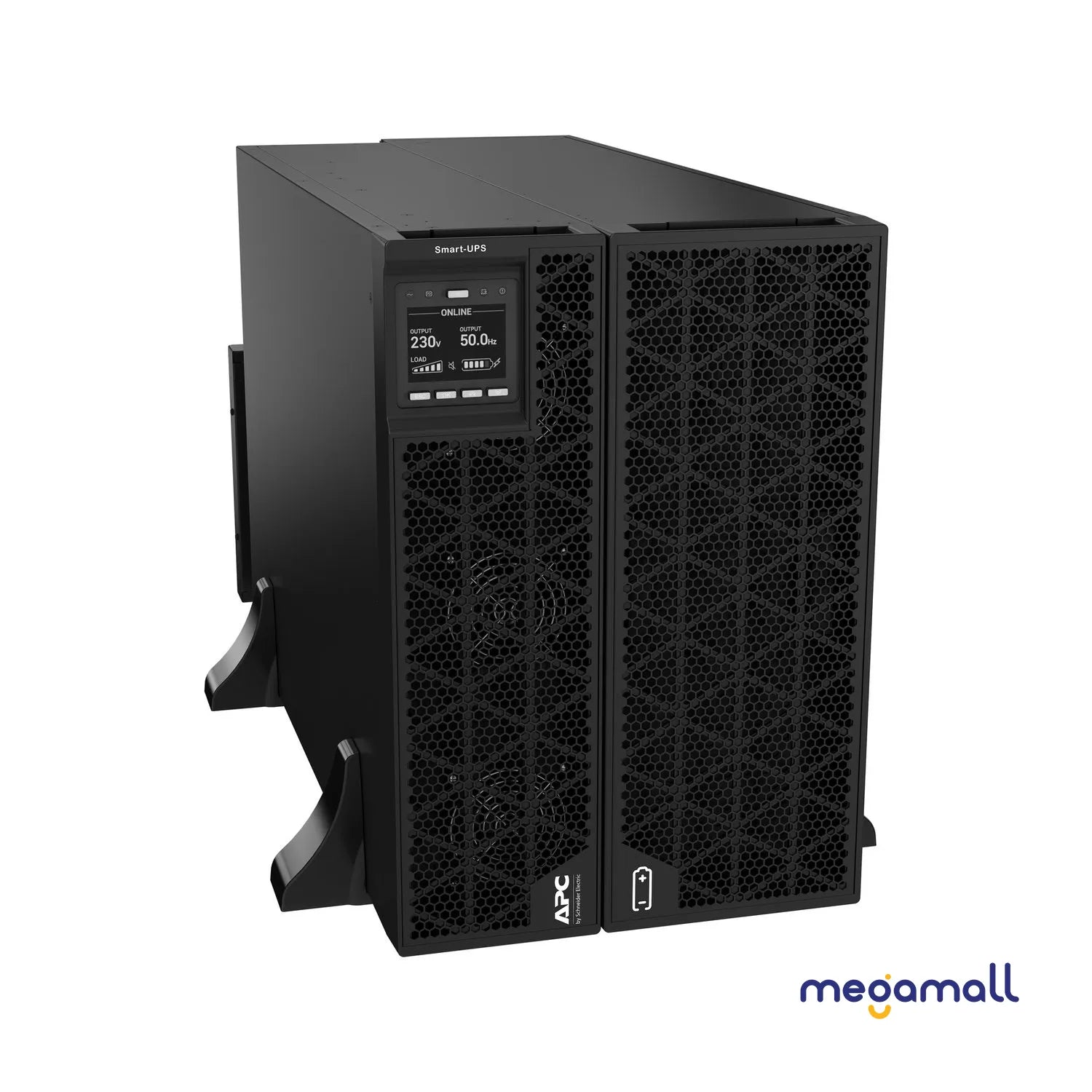

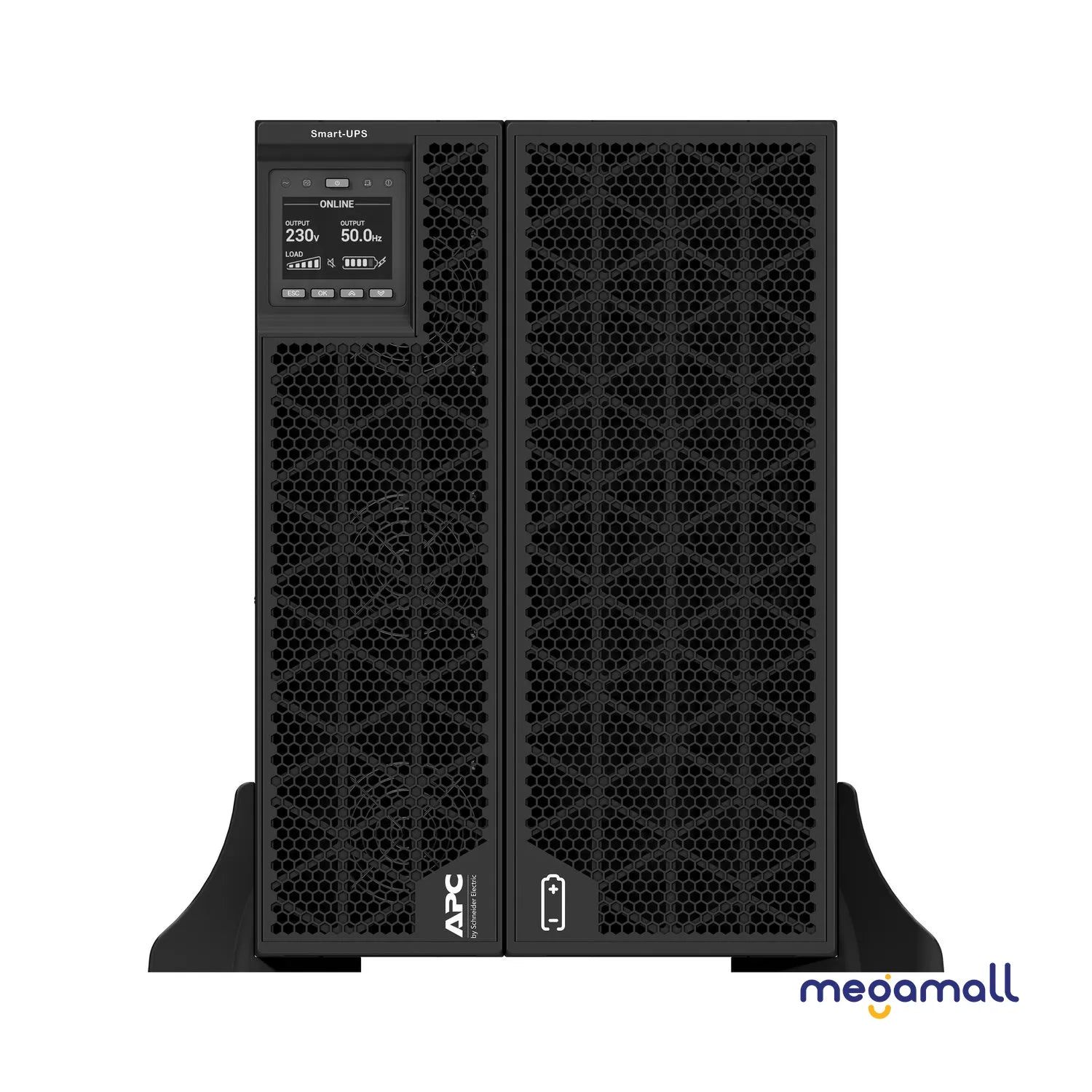

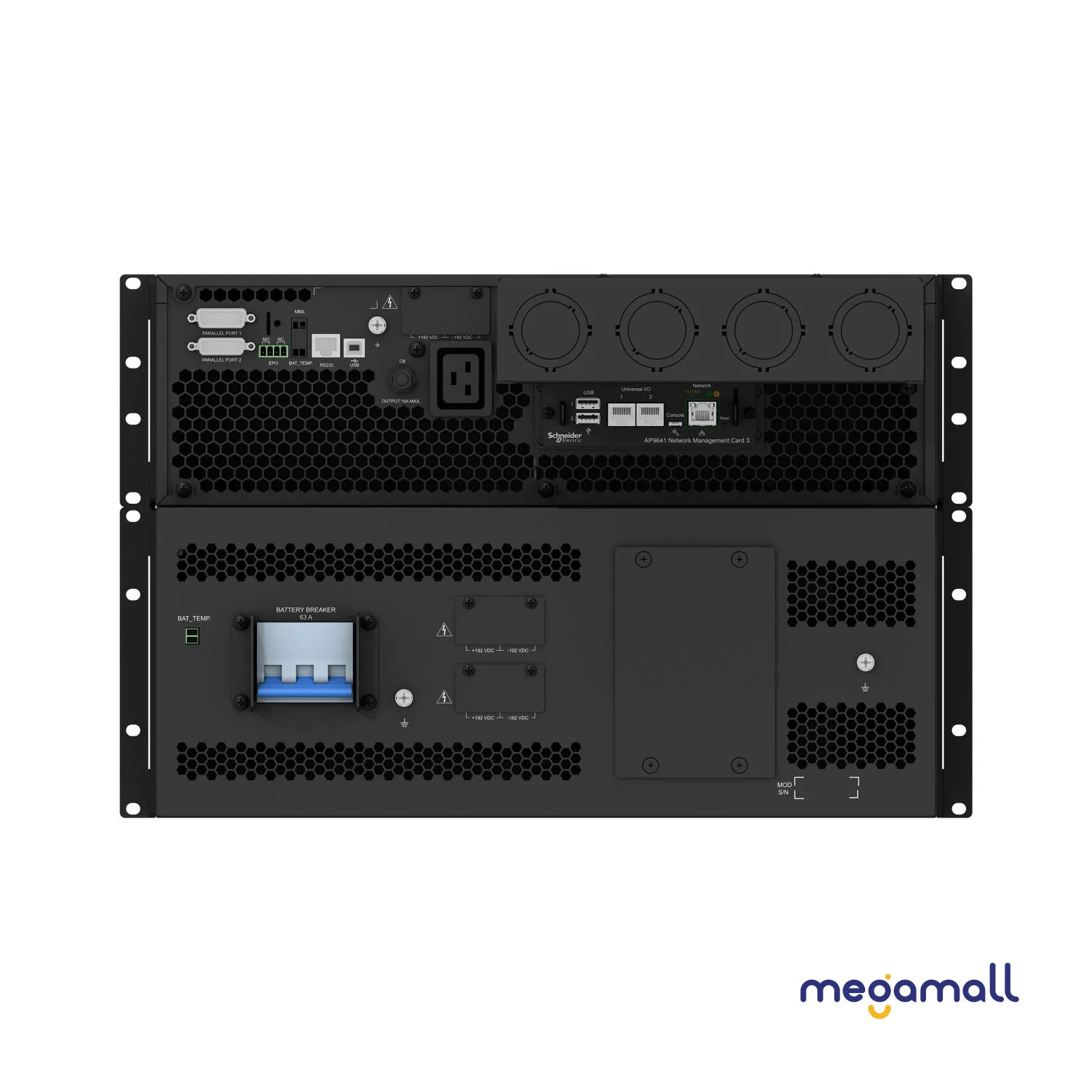

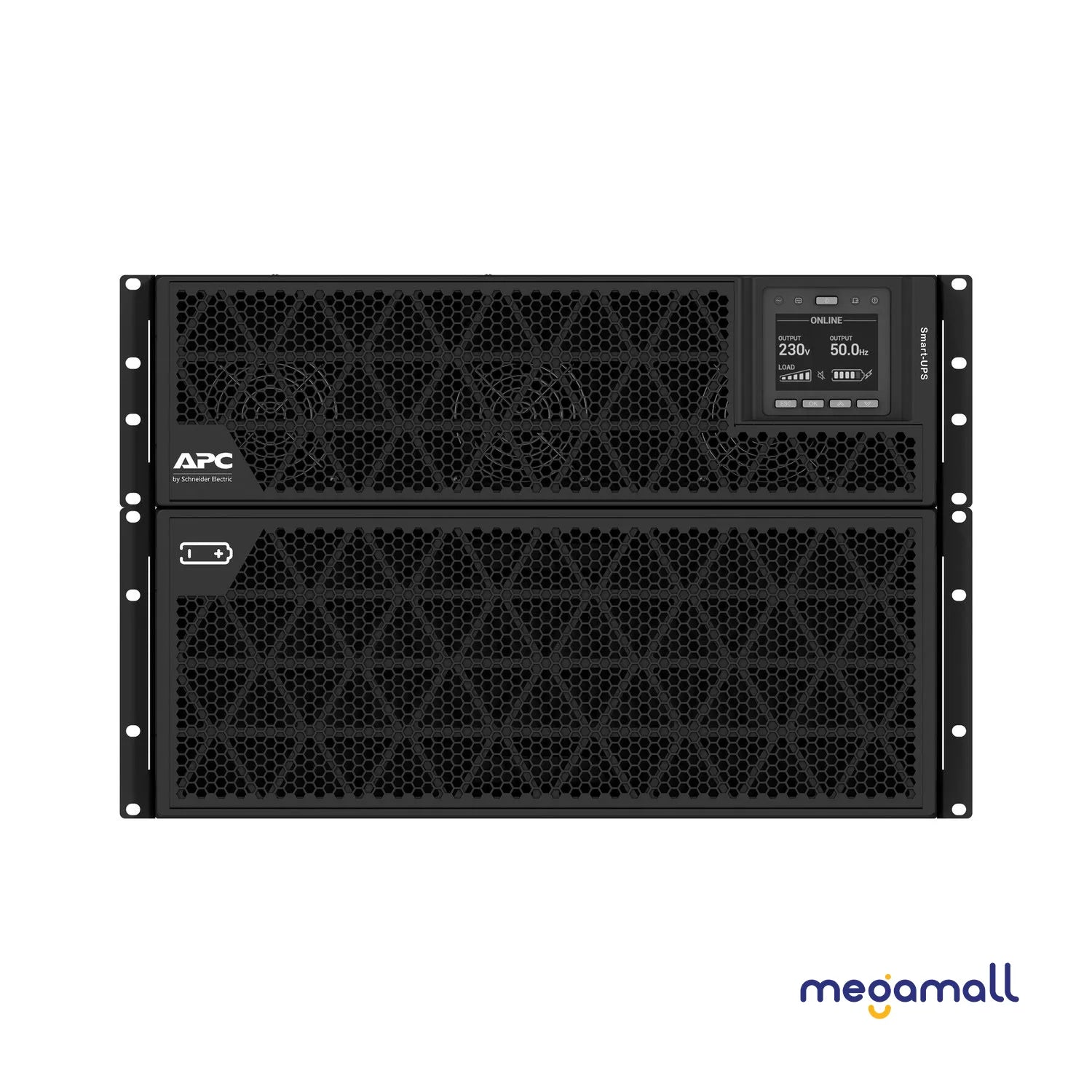

This APC Smart-UPS SRTG15KXLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS is compatible with SRTGRK1 rail kit sold separately.
- 15kVA/15kW double-conversion on-line pure sine wave rack/tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 4 external battery packs (SRTG192XLBP2) for extended runtime
|
Main |
|
|
Run time for load 15000 W Min-max: 1500-15000 W |
5min 34s |
|
Max. Capacity Used |
1 |
|
Main Input Voltage |
230 V AC 1 phase |
|
Input voltage |
380...415 V |
|
Maximum input current |
66 A |
|
Input harmonic distortion |
Less than 5 % for full load |
|
Load power factor |
From 0.9 leading to 1 lagging |
|
Switching current capacity |
100 A |
|
Input voltage limits |
160...285 V full load |
|
Number of input connectors |
1 hard wire 5 wire (3P + N + E) |
|
Network frequency |
40...70 Hz auto-sensing |
|
Output voltage |
230 V AC 1 phase |
|
Output voltage |
230 V |
|
Rated power in W |
15000 W |
|
rated power in VA |
15000 VA |
|
Output connection type |
1 IEC 60320 C19 |
|
Output connector type |
Hard wire 5-wire (3P + N + E) for 1 zone(s) |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
0.125694444 |
|
Harmonic distortion |
Less than 2 % |
|
Maximum configurable power in VA |
15000 VA |
|
Maximum configurable power in W |
15000 W |
|
Output overload operation |
60 seconds at 125% and 30 seconds at 150% |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Efficiency |
0.945 |
|
Output frequency |
50/60 Hz +/- 4 Hz sync to mains |
|
Complementary |
|
|
Additional information |
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
|
Battery type |
Lead-acid external included |
|
Emergency power off |
Yes |
|
Free slots |
0 |
|
Preinstalled device |
Network management card 3 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
600 J |
|
Noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|
Number of rack unit |
7U |
|
Colour |
Black (RAL 9005) |
|
Height |
306 mm |
|
Width |
440 mm |
|
Depth |
835 mm |
|
Net weight |
142.5 kg |
|
Mounting location |
Front |
|
Mounting preference |
Lower |
|
Mounting mode |
Rack-mounted |
|
Two post mountable |
0 |
|
USB compatible |
Yes |
|
Mounting position |
Horizontal |
|
Mounting mode |
Rack-mounted with kit sold separately |
|
Provided equipment |
1 x USB cable |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Redundant |
No |
|
Range of product |
Smart-UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…45 °C |
|
Storage altitude |
0…15000 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
58 dBA |
|
Heat dissipation |
2866 Btu/h |
|
Operating altitude |
0...3000 m |
|
Batteries & Runtime |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Battery type |
Lead-acid battery |
|
Battery voltage |
+/- 192 V |
|
Extended runtime |
1 |
|
Number of battery filled slots |
0 |
|
Number of battery free slots |
0 |
|
Battery recharge time |
4 h |
|
Number of battery replacement quantity |
2 |
|
Battery life |
3…5 year(s) |
|
Replacement battery |
APCRBC172 |
|
Battery charger power |
2160 W rated |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
53.5 cm |
|
Package 1 Width |
79.0 cm |
|
Package 1 Length |
59.0 cm |
|
Package 1 Weight |
157.2 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
12 |
