Description

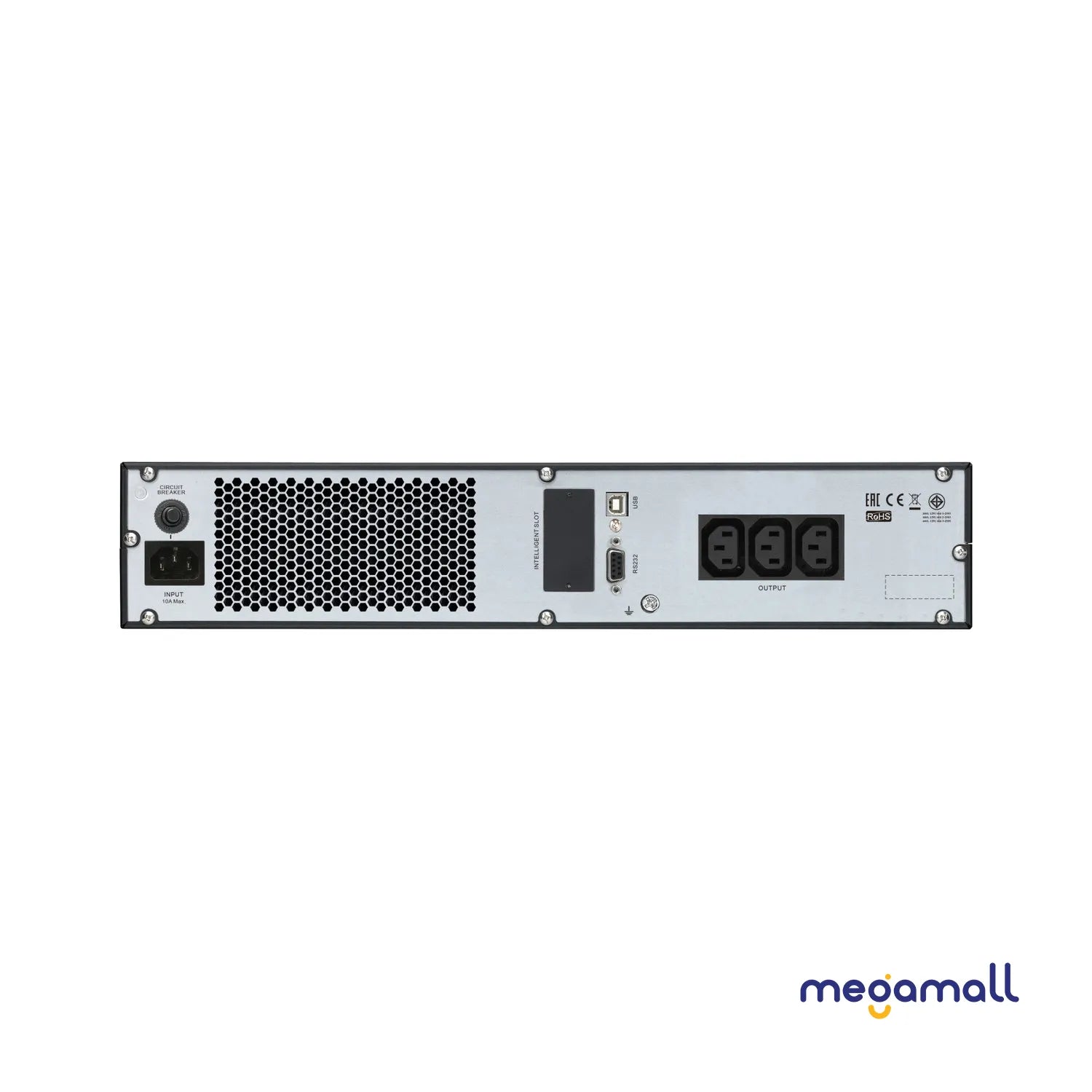

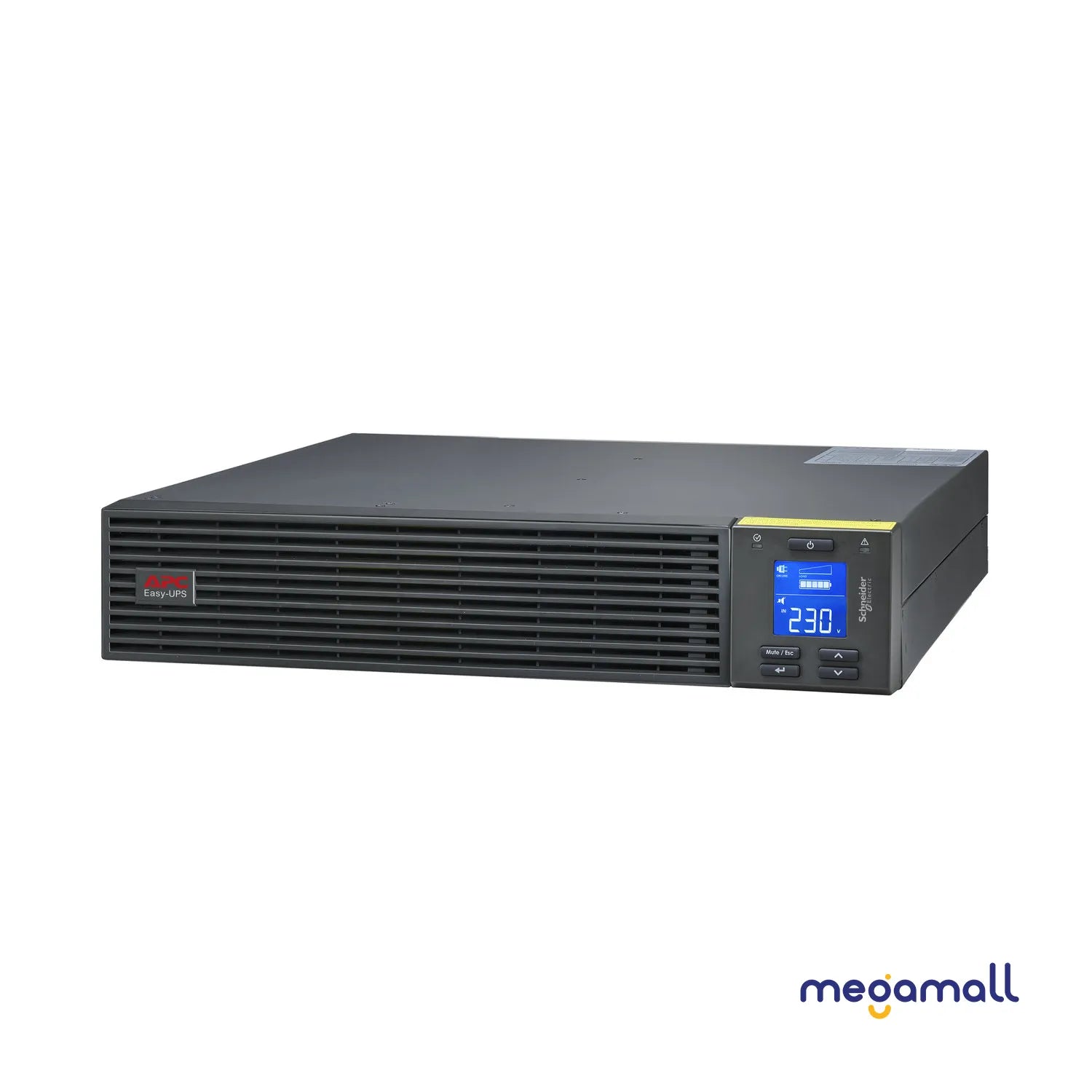

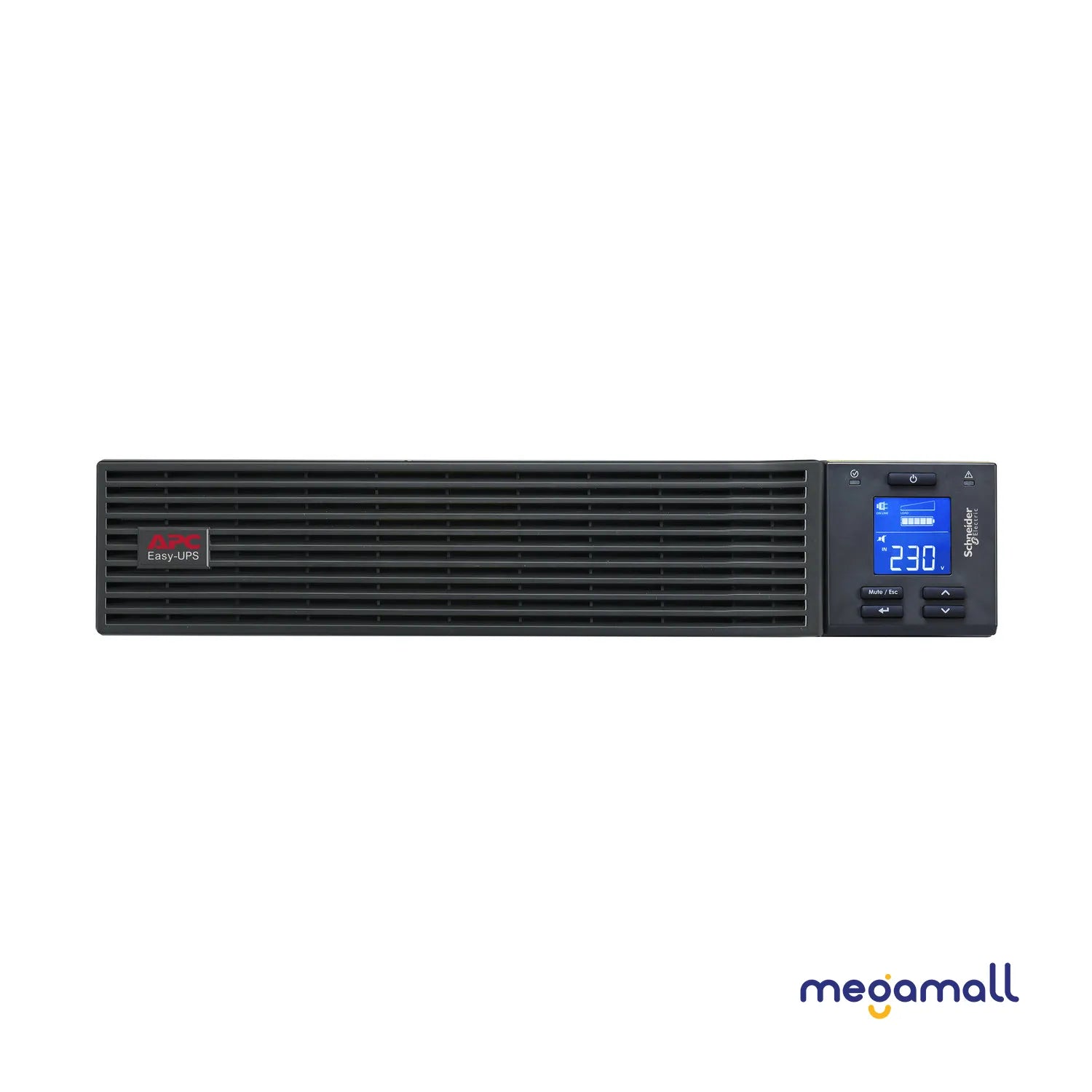

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV200. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
- 1000VA/800W double-conversion on-line pure sine wave 2U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Prolonged battery life with intelligent temperature-compensated charging
- Easy-to-read LCD interface for detailed and accurate information on UPS status.
|
Main |
|
|
Run time for load 800W |
3min 49s |
|
Max. Capacity Used |
100% |
|
Main Input Voltage |
230 V AC 1 phase |
|
Input voltage |
220 V |
|
Input Connection Type |
IEC 60320 C14 |
|
Input voltage limits |
110...285 V half load |
|
Network frequency |
40...70 Hz auto sensing |
|
Output voltage |
230 V AC 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
800 W |
|
rated power in VA |
1000 VA |
|
Output connection type |
3 IEC 60320 C13 |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
3:01 |
|
Harmonic distortion |
3% |
|
Maximum configurable power in VA |
1000 VA |
|
Maximum configurable power in W |
800 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Efficiency |
88 % (full load) |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Replacement battery |
APCRBCV203 |
|
Graphs |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Complementary |
|
|
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Battery type |
Lead-acid internal included |
|
Control panel |
Multifunction LCD status and control console |
|
Free slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
600 J |
|
Cable length |
1.50 m |
|
Number of cables |
1 |
|
Colour |
Black (RAL 7010) |
|
Height |
223 mm |
|
Width |
145 mm |
|
Depth |
288 mm |
|
Net weight |
9.3 kg |
|
Mounting location |
Front |
|
Mounting support |
Floor |
|
Mounting preference |
No preference |
|
Mounting mode |
Not rack-mountable |
|
USB compatible |
Yes |
|
Mounting position |
Vertical |
|
Mounting mode |
Tower |
|
Max runtime |
4 min |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Redundant |
No |
|
Range of product |
Easy UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-20…50 °C |
|
Storage altitude |
0…15000 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
50 dBA |
|
Heat dissipation |
372 Btu/h |
|
Operating altitude |
0...3000 m |
|
Batteries & Runtime |
|
|
Battery type |
Lead-acid battery |
|
Battery voltage |
24 V |
|
Extended runtime |
0 |
|
Number of battery filled slots |
1 |
|
Number of battery free slots |
0 |
|
Battery recharge time |
4 h |
|
Battery life |
3…5 year(s) |
|
Battery charger power |
30 W rated |
|
Battery power in VAH |
152 VAh runtime |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
33 cm |
|
Package 1 Width |
23.5 cm |
|
Package 1 Length |
36.5 cm |
|
Package 1 Weight |
10.6 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
24 |
