Description

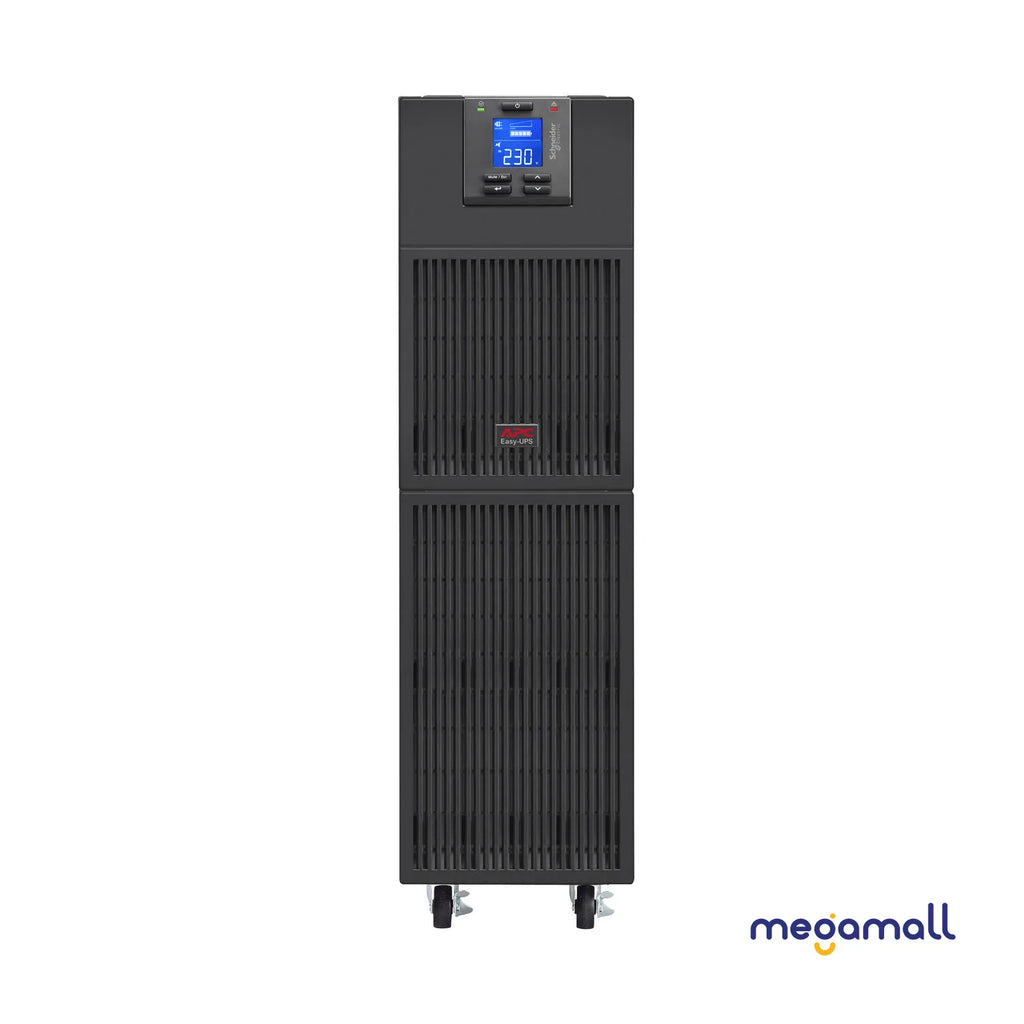

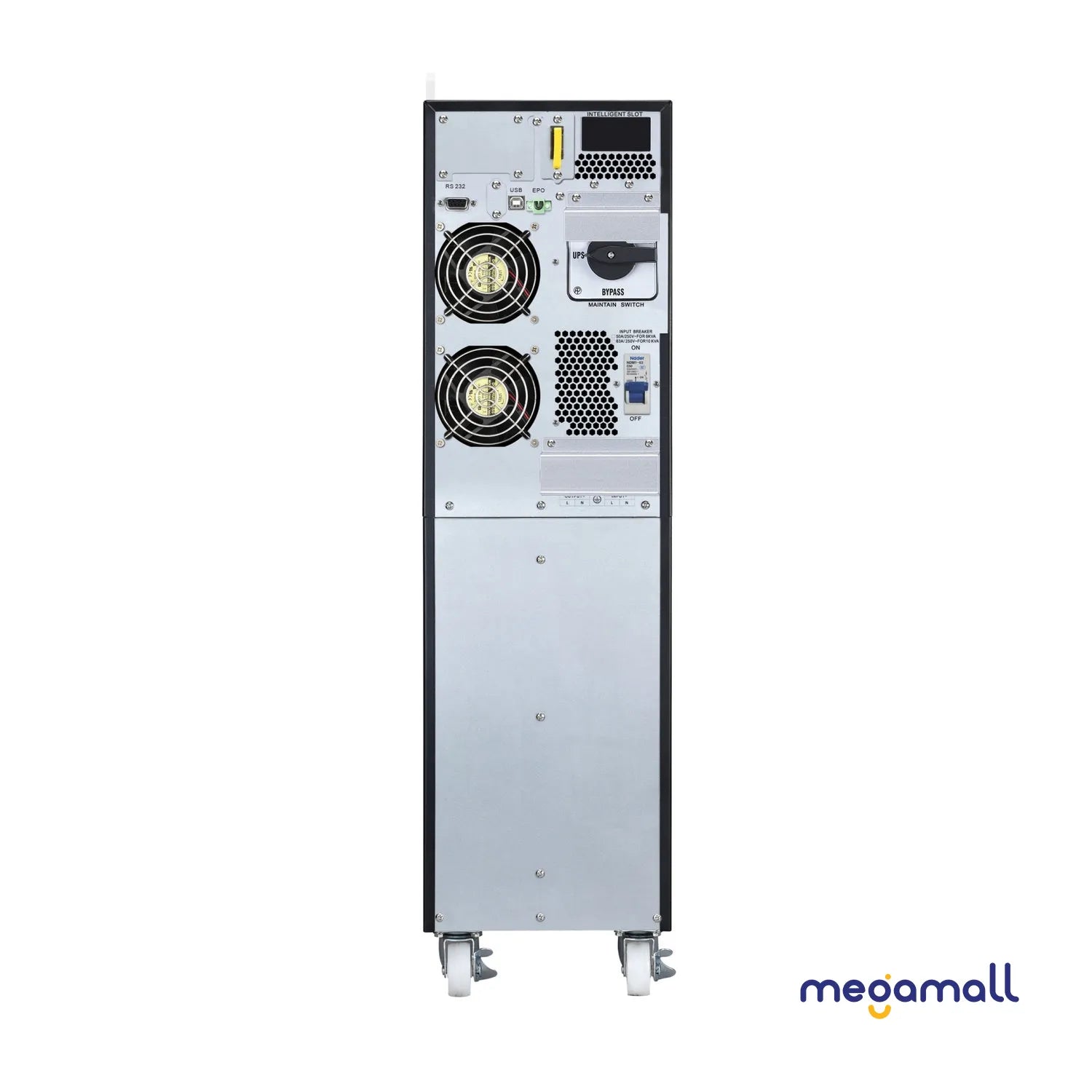

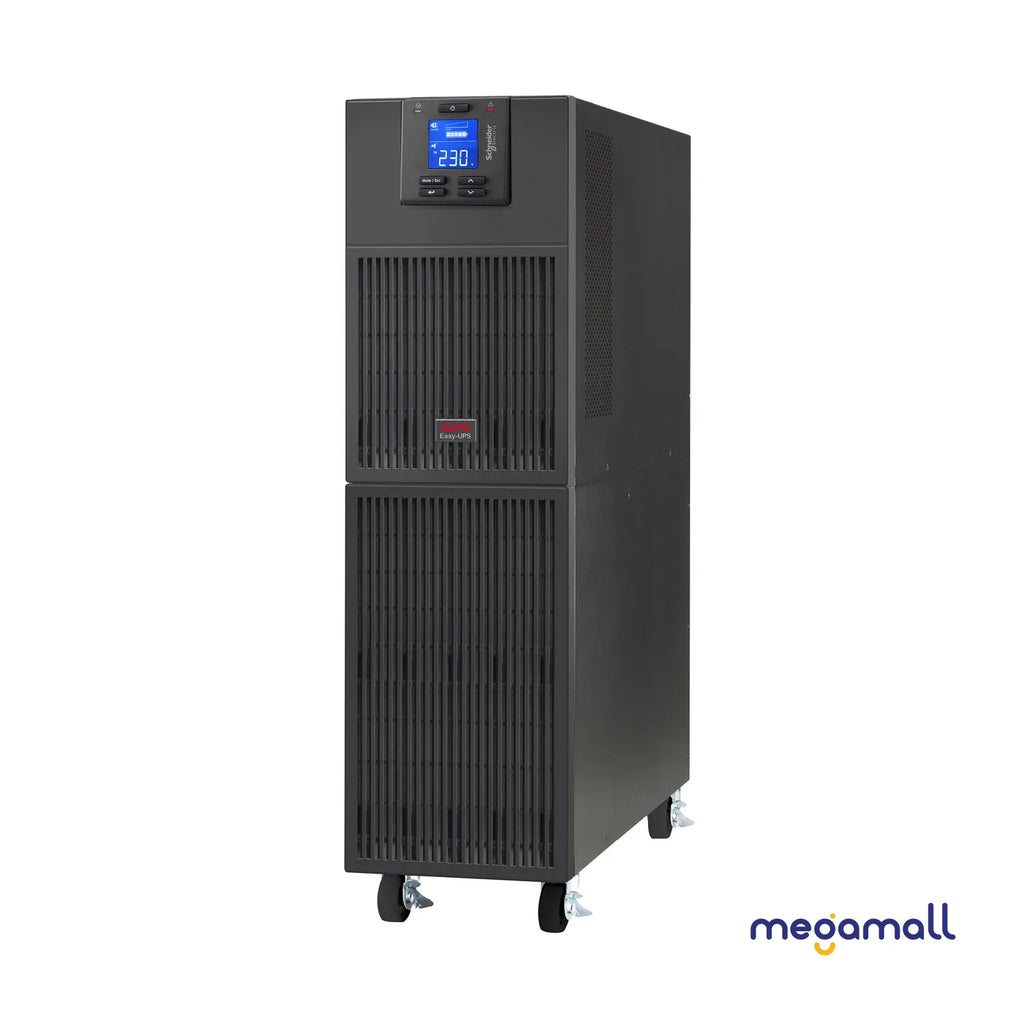

- 6kVA/6kW double-conversion on-line pure sine wave tower UPS
- High operating efficiency in energy-saving ECO mode
- Prolonged battery life with intelligent temperature-compensated charging
|
Overview |
|
|
Presentation |
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|
Lead time |
Usually in Stock |
|
Main |
|
|
Run time for load 6000 W Min-Max: 600-6000 W |
Depth |
|
W |
Min-max: 600-6000 W |
|
4min 1s |
Max. Capacity Used |
|
100% |
Main Input Voltage |
|
230 V AC 1 phase |
Input voltage |
|
Input voltage limits |
110...300 V 60 % load |
|
Number of input connectors |
1 hard wire 3-wire (1P + N + E) |
|
Network frequency |
40...70 Hz auto sensing |
|
Output voltage |
230 V AC 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
6000 W |
|
rated power in VA |
6000 VA |
|
Output connector type |
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
3:01 |
|
Harmonic distortion |
1% |
|
Maximum configurable power in VA |
6000 VA |
|
Maximum configurable power in W |
6000 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Efficiency |
94 % (full load) |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Graphs |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Complementary |
|
|
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Battery type |
Lead-acid internal included |
|
Control panel |
Multifunction LCD status and control console |
|
Emergency power off |
Yes |
|
Free slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
600 J |
|
Colour |
Black (RAL 7010) |
|
Height |
685 mm |
|
Width |
190 mm |
|
Depth |
374 mm |
|
Net weight |
54 kg |
|
Mounting location |
Front |
|
Mounting preference |
No preference |
|
Mounting mode |
Not rack-mountable |
|
USB compatible |
Yes |
|
Mounting position |
Vertical |
|
Mounting mode |
Tower |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Redundant |
No |
|
Range of product |
Easy UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…60 °C |
|
Storage altitude |
0…15000 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
55 dBA |
|
Heat dissipation |
1172 Btu/h |
|
Operating altitude |
0...3000 m |
|
Batteries & Runtime |
|
|
Battery type |
Lead-acid battery |
|
Battery voltage |
192 V |
|
Extended runtime |
0 |
|
Number of battery filled slots |
0 |
|
Number of battery free slots |
0 |
|
Battery recharge time |
4 h |
|
Battery life |
3…5 year(s) |
|
Battery charger power |
235 W rated |
|
Battery power in VAH |
1124 VAh runtime |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
91.000 cm |
|
Package 1 Width |
29.000 cm |
|
Package 1 Length |
49.500 cm |
|
Package 1 Weight |
65.862 kg |
|
Unit Type of Package 2 |
PAM |
|
Number of Units in Package 2 |
8 |
|
Package 2 Height |
110.000 cm |
|
Package 2 Width |
100.000 cm |
|
Package 2 Length |
120.000 cm |
|
Package 2 Weight |
526.896 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
24 |
