Description

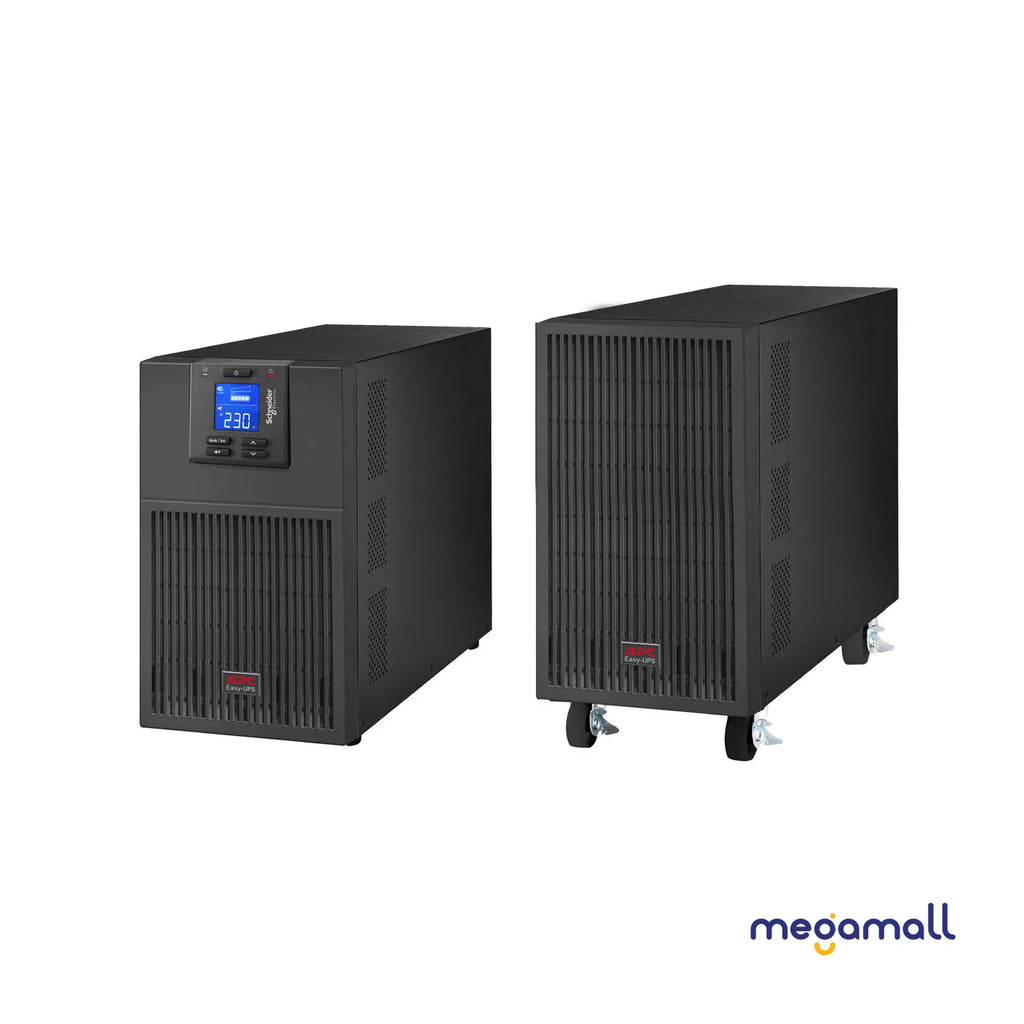

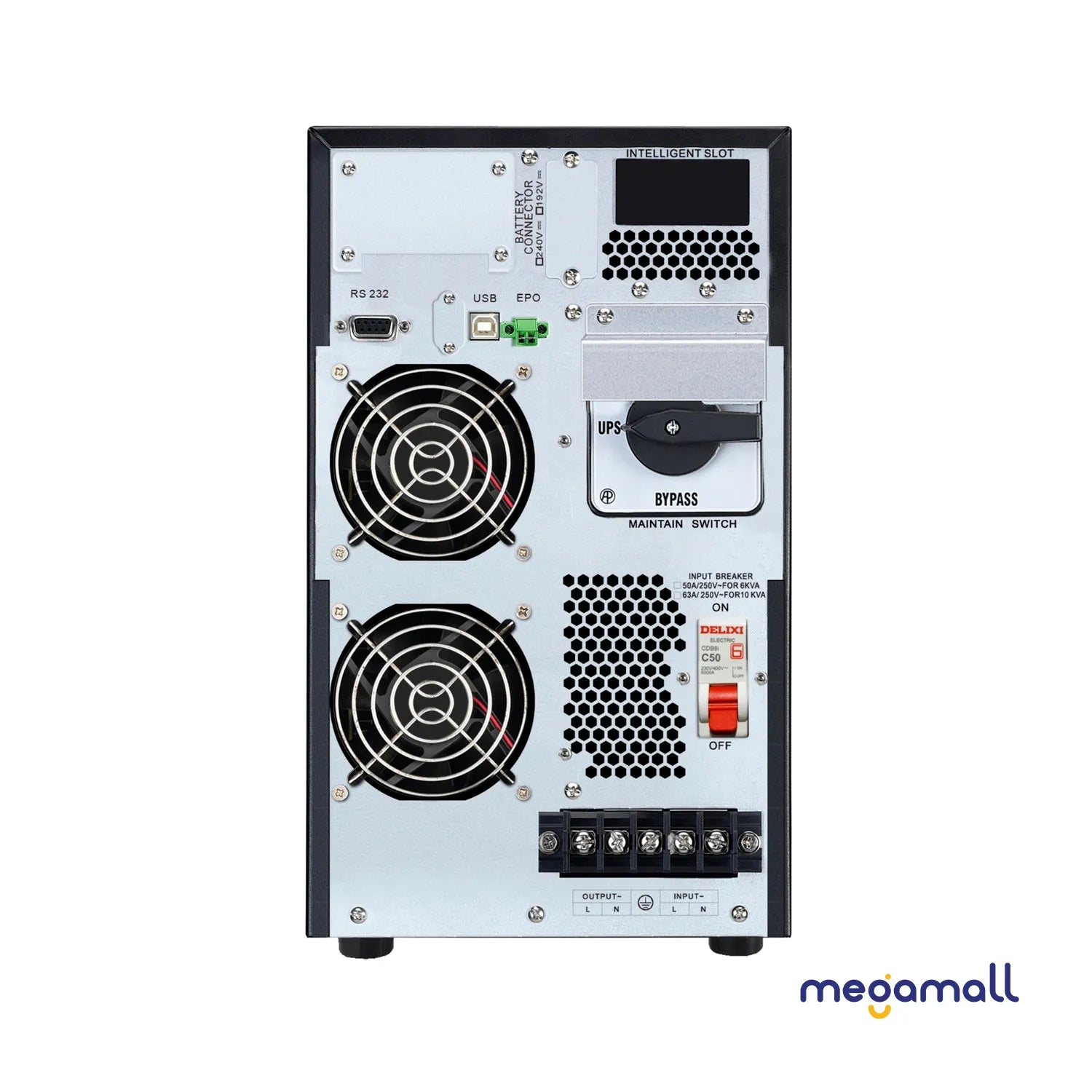

This APC Single phase Easy UPS SRV6KIL is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
- 6kVA/6kW double-conversion on-line pure sine wave tower UPS
- High operating efficiency in energy-saving ECO mode

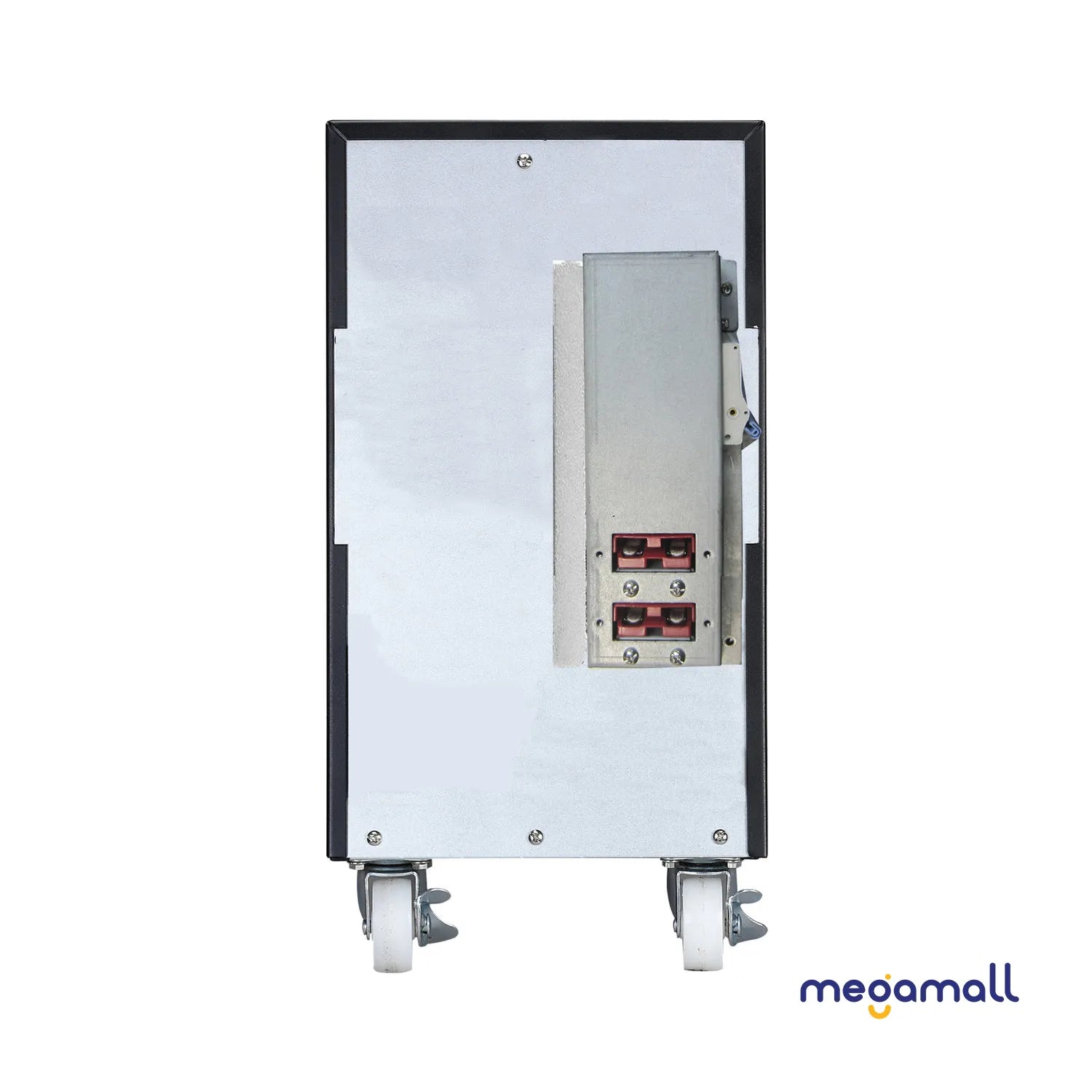

- Add up to 4 external battery packs (SRV240BP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
|
Overview |
|
|
Presentation |
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|
Main |
|
|
Run time for load 6000 W Min-Max: 600-6000 W |
6min 49s |
|
Max. Capacity Used |
100% |
|
Main Input Voltage |
230 V AC 1 phase |
|
Input voltage |
220 V |
|
Input voltage limits |
110...300 V 60 % load |
|
Number of input connectors |
1 hard wire 3-wire (1P + N + E) |
|
Network frequency |
40...70 Hz auto sensing |
|
Output voltage |
230 V AC 1 phase |
|
Output voltage |
220 V |
|
Rated power in W |
6000 W |
|
rated power in VA |
6000 VA |
|
Output connector type |
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
|
Bypass type |
Internal bypass (automatic and manual) |
|
Crest factor |
3:01 |
|
Harmonic distortion |
1% |
|
Maximum configurable power in VA |
6000 VA |
|
Maximum configurable power in W |
6000 W |
|
UPS type |
On-Line |
|
Wave type |
Sine wave |
|
Efficiency |
94 % (full load) |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Graphs |
|
|
Run Time |
View Runtime Graph |
|
Efficiency |
View Efficiency Graph |
|
Complementary |
|
|
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Battery type |
Lead-acid external included |
|
Control panel |
Multifunction LCD status and control console |
|
Emergency power off |
Yes |
|
Free slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
UPS connectivity |
Serial port |
|
Surge energy rate |
600 J |
|
Colour |
Black (RAL 7010) |
|
Height |
368 mm |
|
Width |
380 mm |
|
Depth |
485 mm |
|
Net weight |
73 kg |
|
Mounting location |
Front |
|
Mounting preference |
No preference |
|
Mounting mode |
Not rack-mountable |
|
USB compatible |
Yes |
|
Mounting position |
Vertical |
|
Mounting mode |
Tower |
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Redundant |
No |
|
Range of product |
Easy UPS On-Line |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Environment |
|
|
Product certifications |
CE |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…60 °C |
|
Storage altitude |
0…15000 m |
|
IP degree of protection |
IP20 |
|
Relative humidity |
0…95 % non-condensing |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Acoustic level |
55 dBA |
|
Heat dissipation |
1172 Btu/h |
|
Operating altitude |
0...3000 m |
|
Batteries & Runtime |
|
|
Battery type |
Lead-acid battery |
|
Battery voltage |
240 V |
|
Extended runtime |
1 |
|
Number of battery filled slots |
0 |
|
Number of battery free slots |
0 |
|
Battery recharge time |
5 h |
|
Battery life |
3…5 year(s) |
|
Battery charger power |
1170 W rated |
|
Battery power in VAH |
1512 VAh runtime |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
46 cm |
|
Package 1 Width |
57 cm |
|
Package 1 Length |
58 cm |
|
Package 1 Weight |
79 kg |
|
Contractual warranty |
|
|
Warranty (in months) |
24 |
