Description

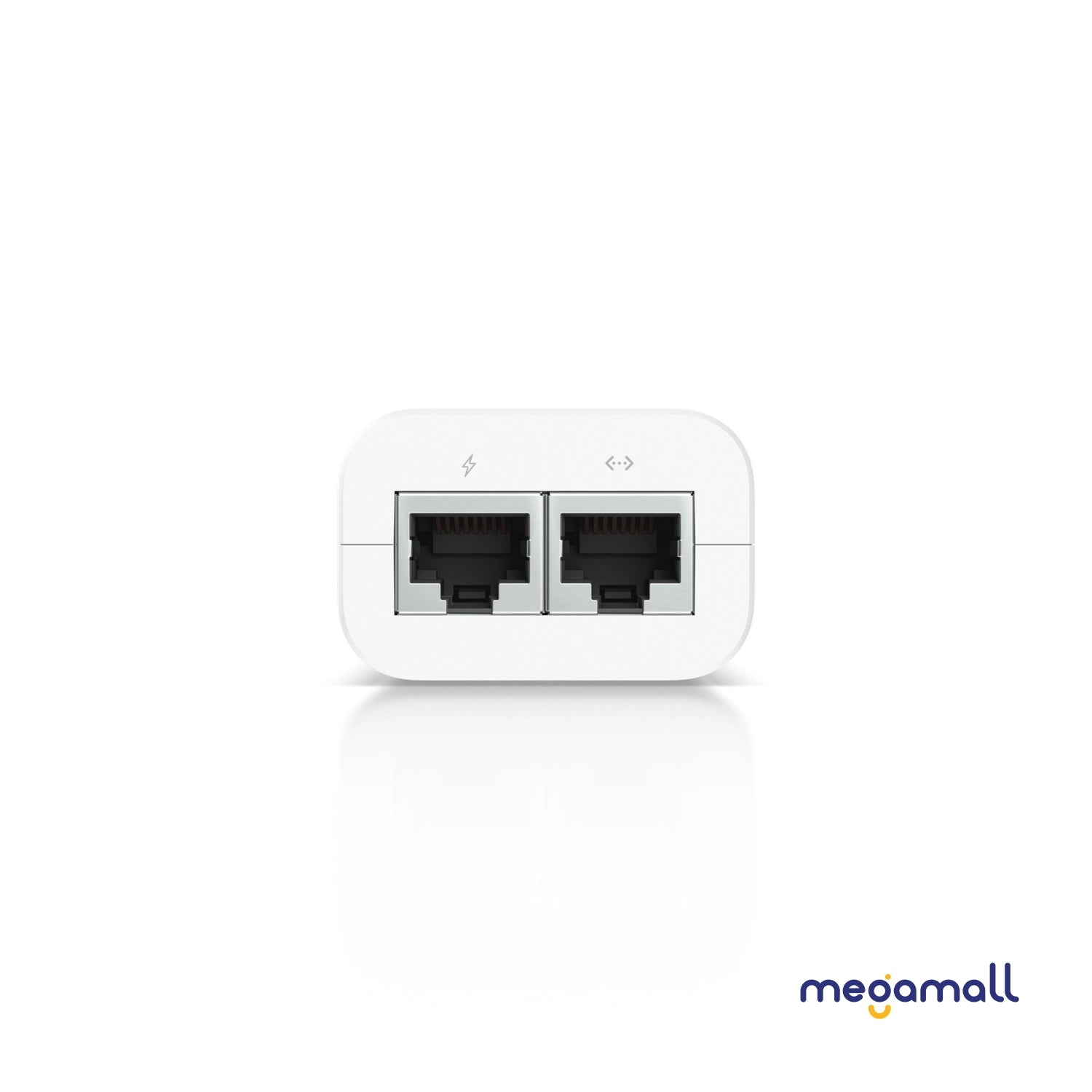

An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 15W of PoE
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE output

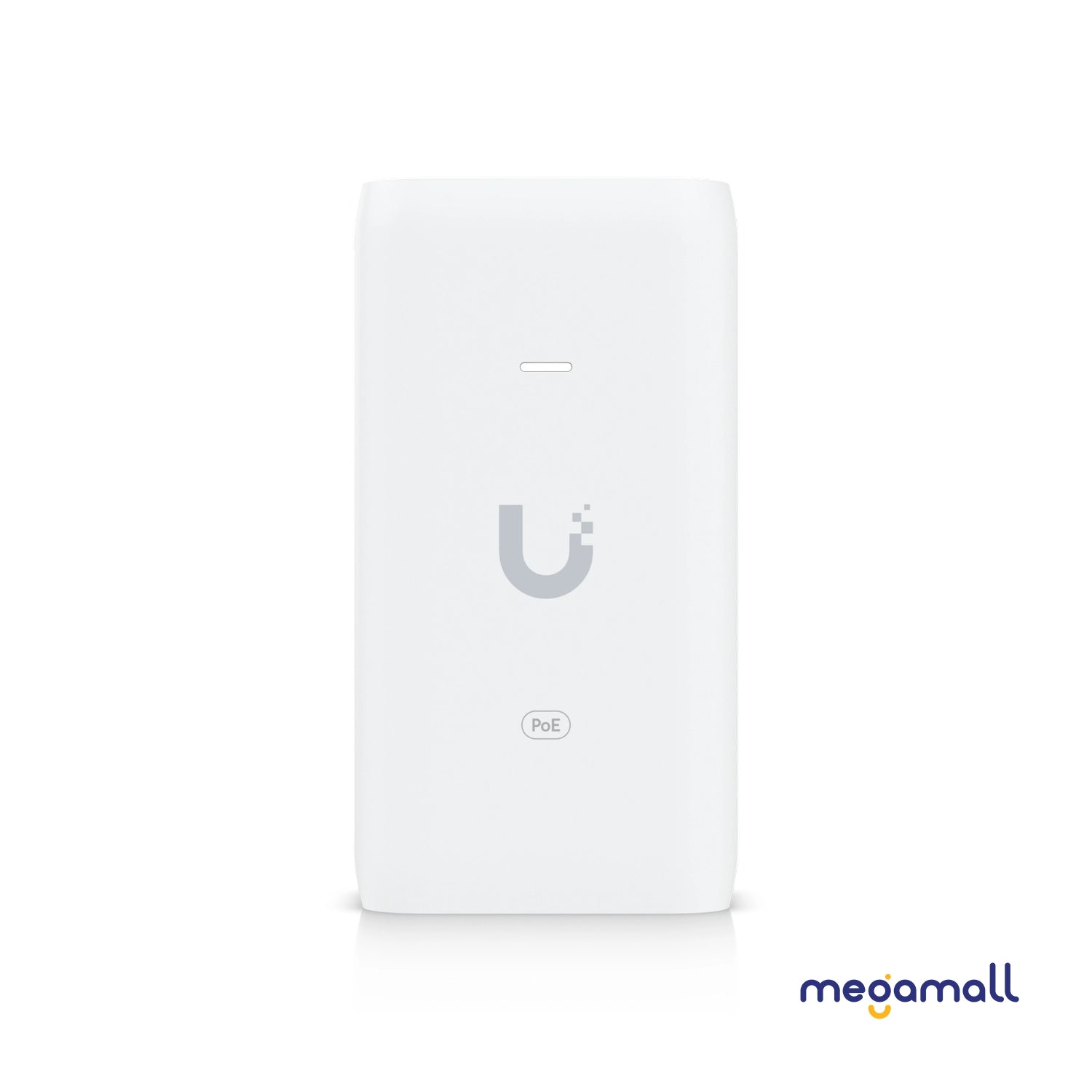

LED indicator for status monitoring
- UK-Ultra
- U6-PLUS
- U6-IW
- U6-Mesh
- U6-Pro
- U6-Lite
- UAP-AC-IW
- UVC-G5-Dome-Ultra
- UVC-G5-Turret-Ultra
- UVC-G5-Pro
- UVC-G5-Flex
- UVC-G5-Bullet
- UVC-G5-Dome
- UVC-AI-Pro
- UVC-AI-DSLR
- UVC-AI-360
- UVC-AI-Theta-Pro
- UVC-AI-Theta
- UVC-AI-Theta-Hub
- UVC-G4 Doorbell Pro PoE Kit
- UVC-G4-DOME
- UVC-G4-Bullet
- UVC-G4-Pro
- UVC-G3-FLEX
|
Overview |
|
|
Dimensions |
86 x 46 x 33 mm (3.4 x 1.8 x 1.3") |
|
Weight |
100 g (3.5 oz) |
|
Output Voltage |
48V DC @ 0.32A |
|
Rated Voltage |
100—240V AC @ 50/60Hz |
|
Gigabit LAN Port |
✓ |
|
2-pair Powering |
Pins 4, 5 (+) and 7, 8 (-) |
|

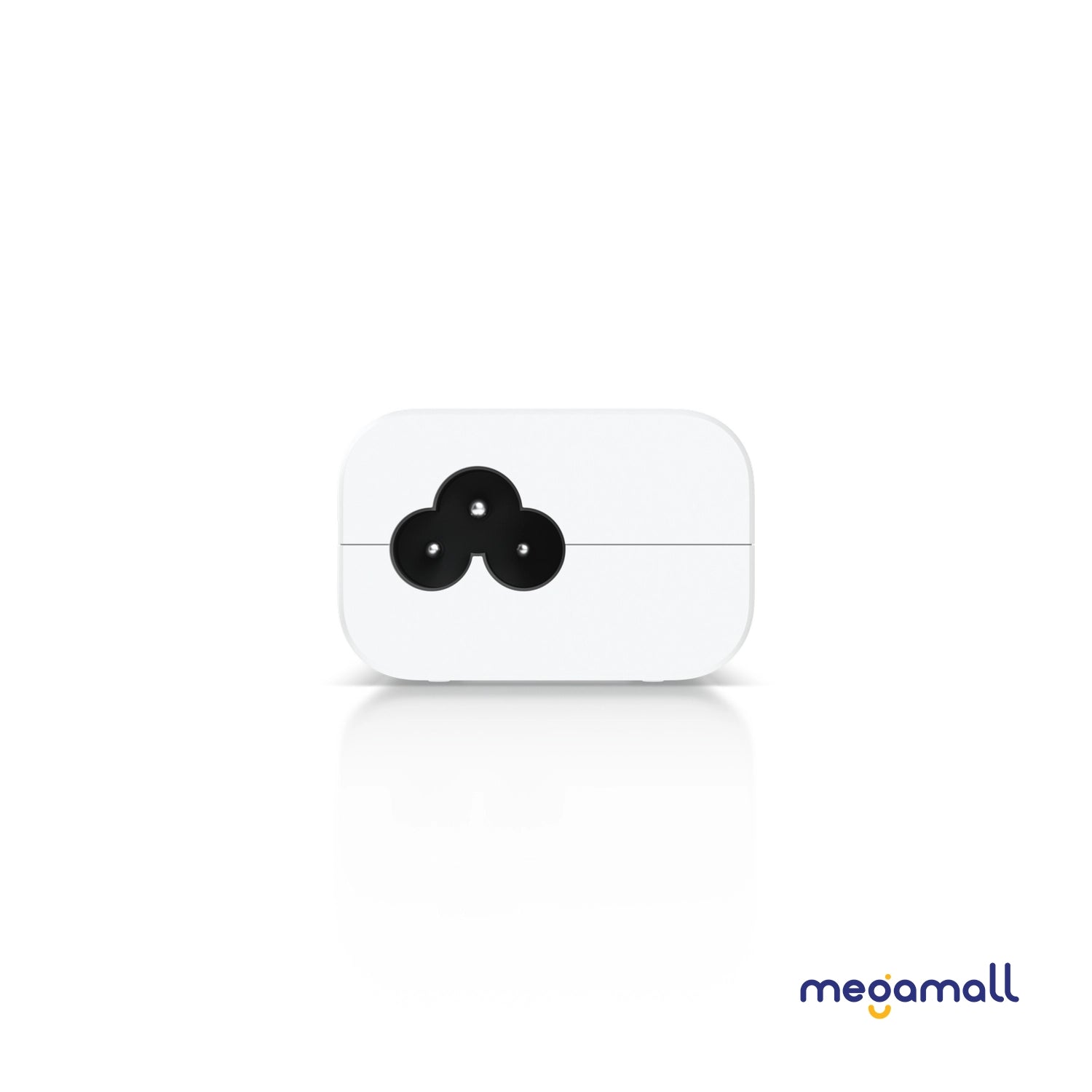

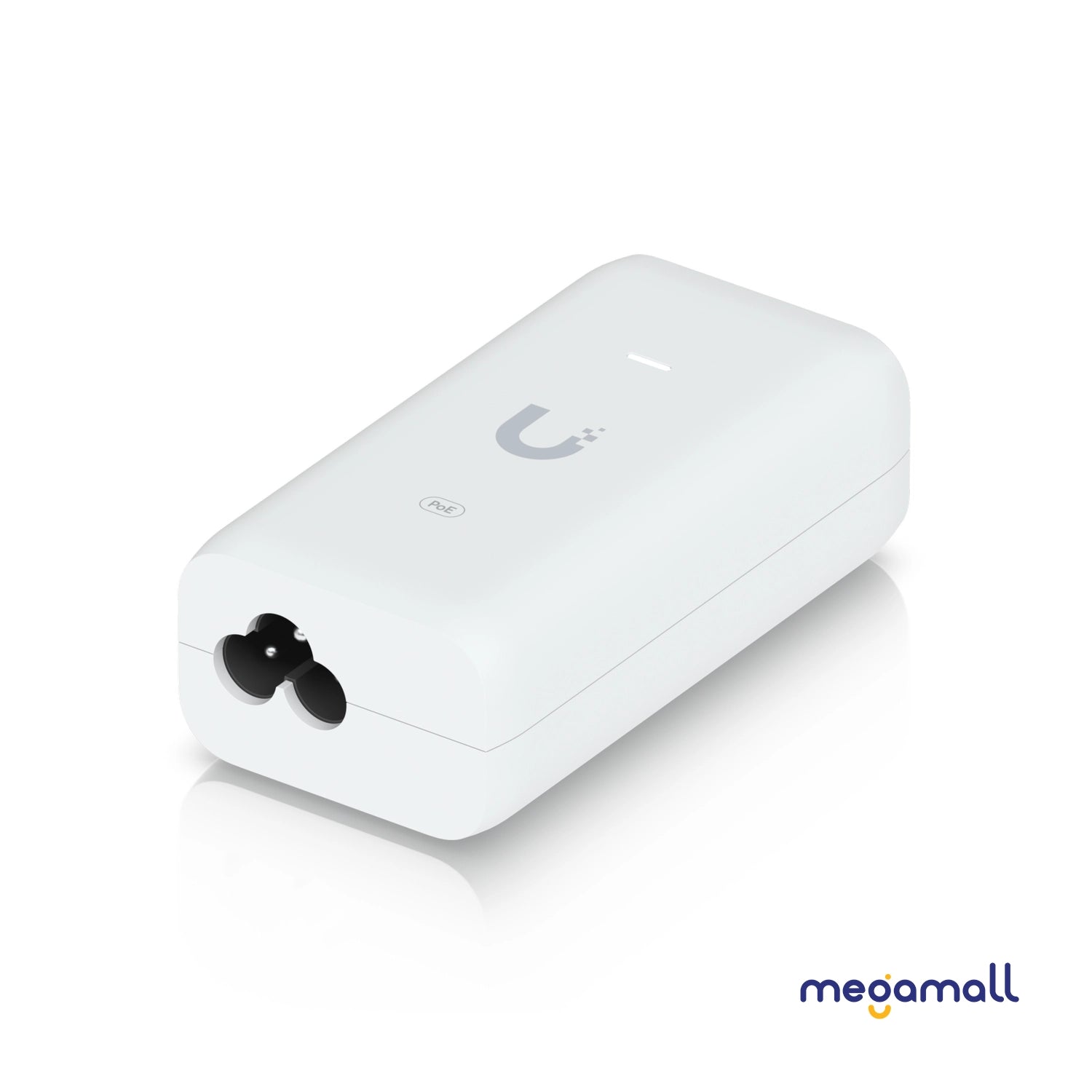

AC Connector |
IEC-320 C6 |
|
Clamping Protection |
11V Data, 60V Power |
|

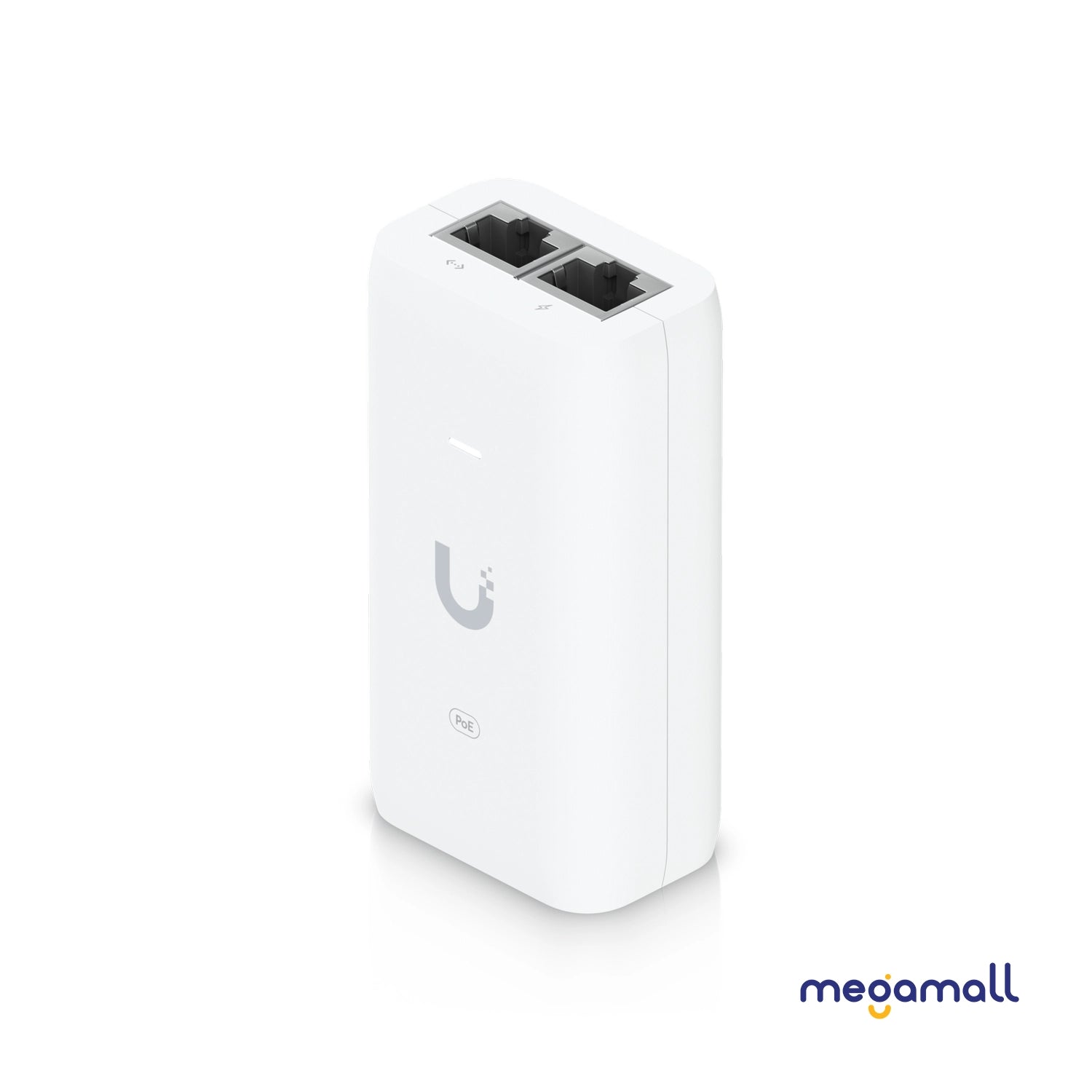

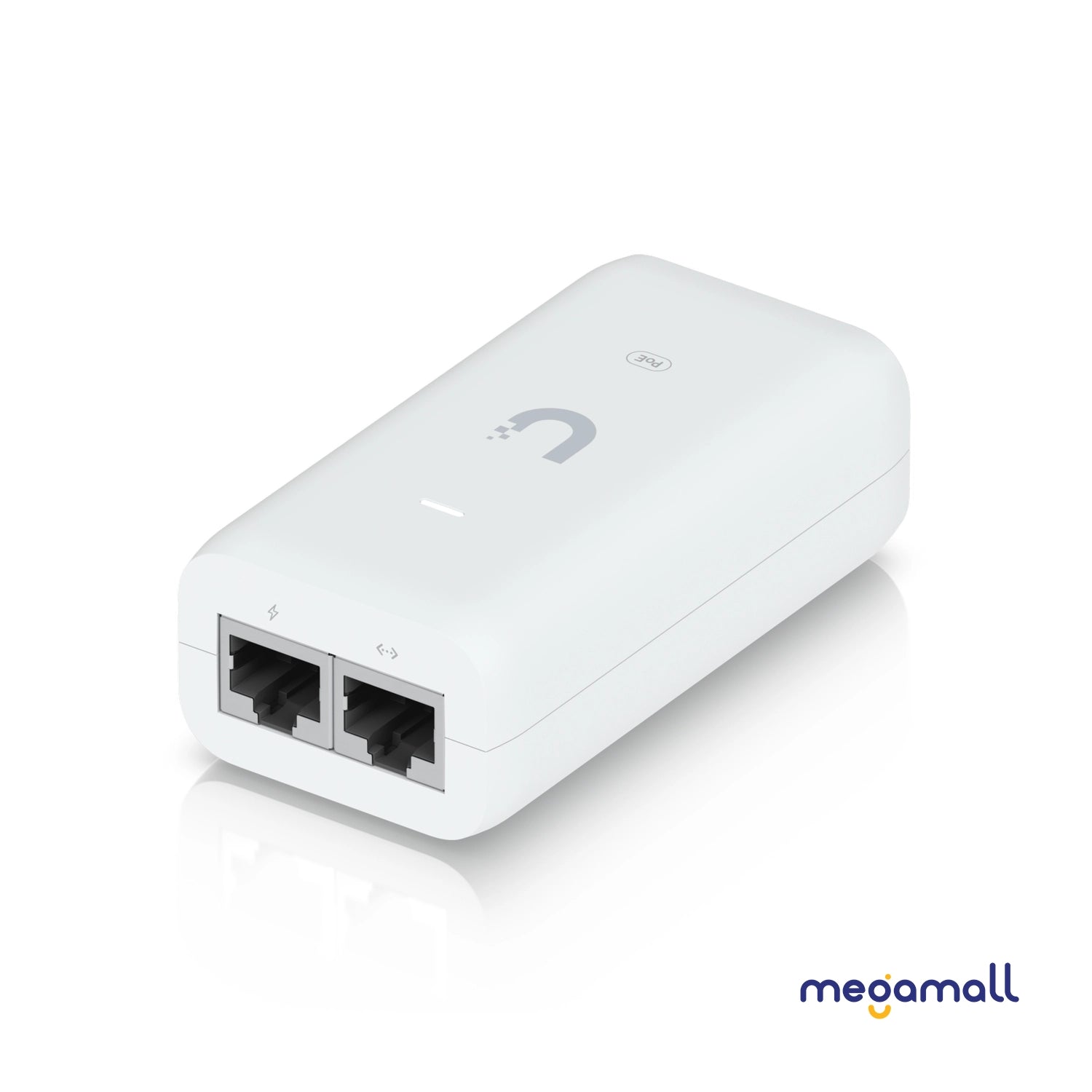

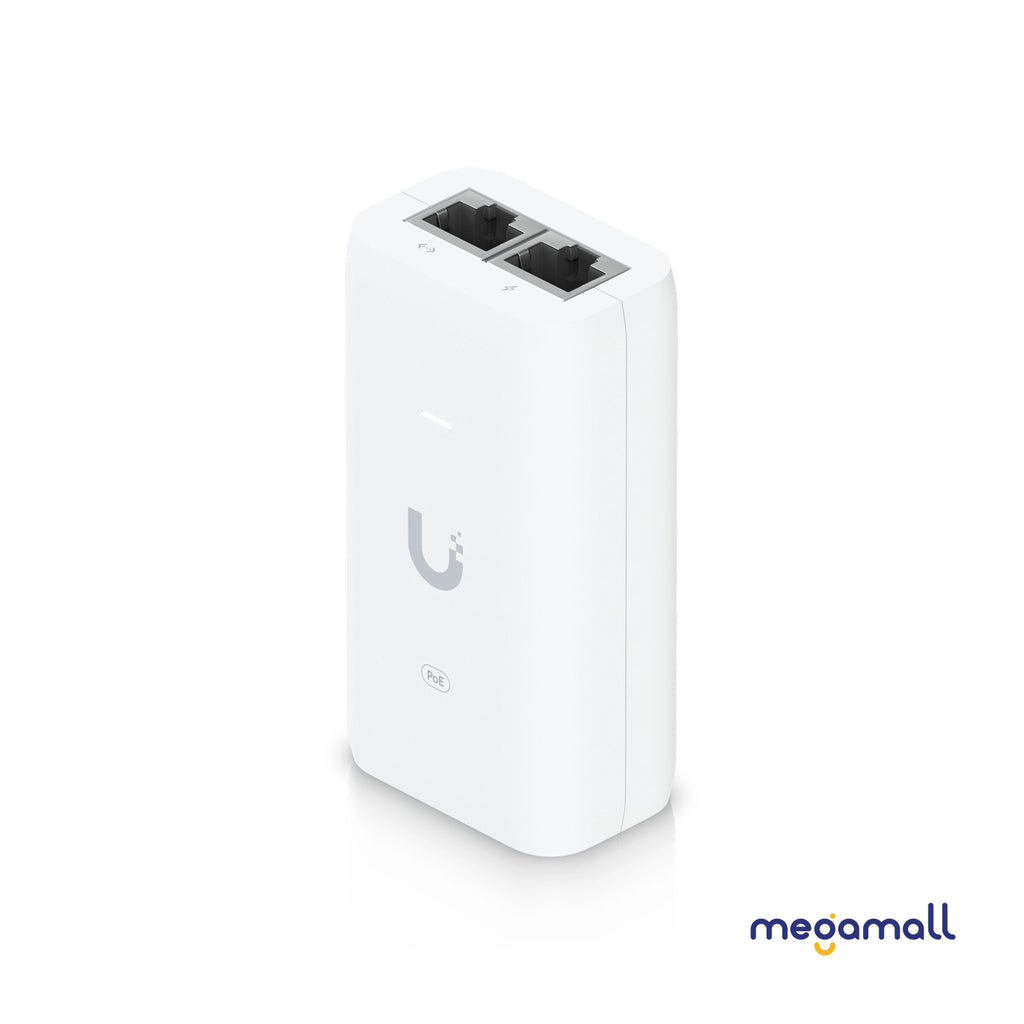

Data In / PoE |
RJ45 Shielded Socket |
|
Input Current |
500mA Max. |
|
Inrush Current |
<100A peak at 25°C |
|
Efficiency |
84.25+% |
|
Switching Frequency |
65 kHz |
|
Output Ripple |
200mV pp |
|
Line Regulation |
≤ 3% |
|
Load Regulation |
≤ 5% |
|
Max. Surge Discharge |
1500A (8/20 μs) power |
|
Peak Pulse Current |
36A (10/1000 μs) data |
|
Response Time |
<1 ns |
|
Shunt Capacitance |
<5 pF data |
|
Surge Protection |
Difference and common mode |
|
Ambient Storage Temperature |
-30 to 70°C (-22 to 158° F) |
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
Ambient Operating Humidity |
10 to 95% noncondensing |
|
NDAA Compliant |
✓ |
|

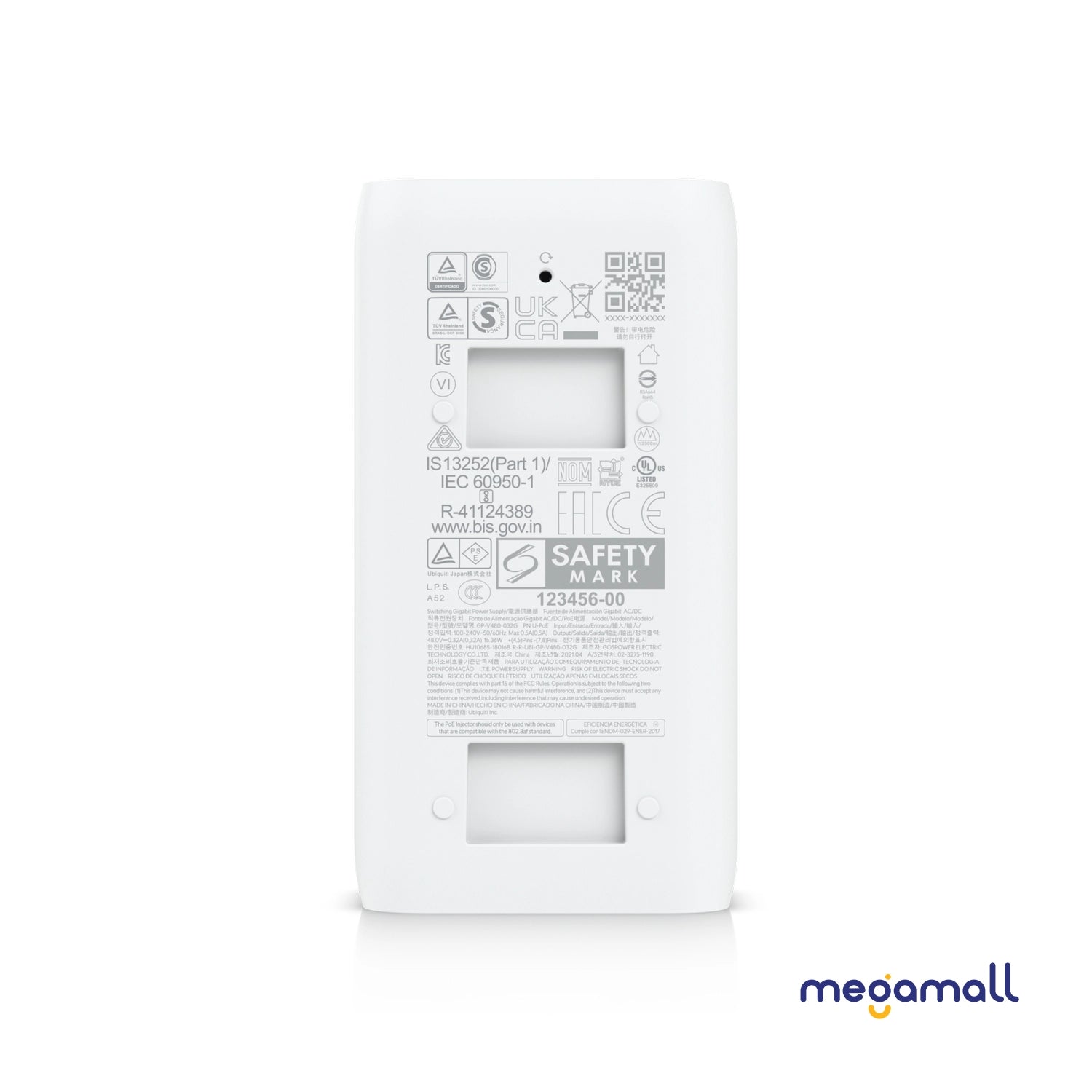

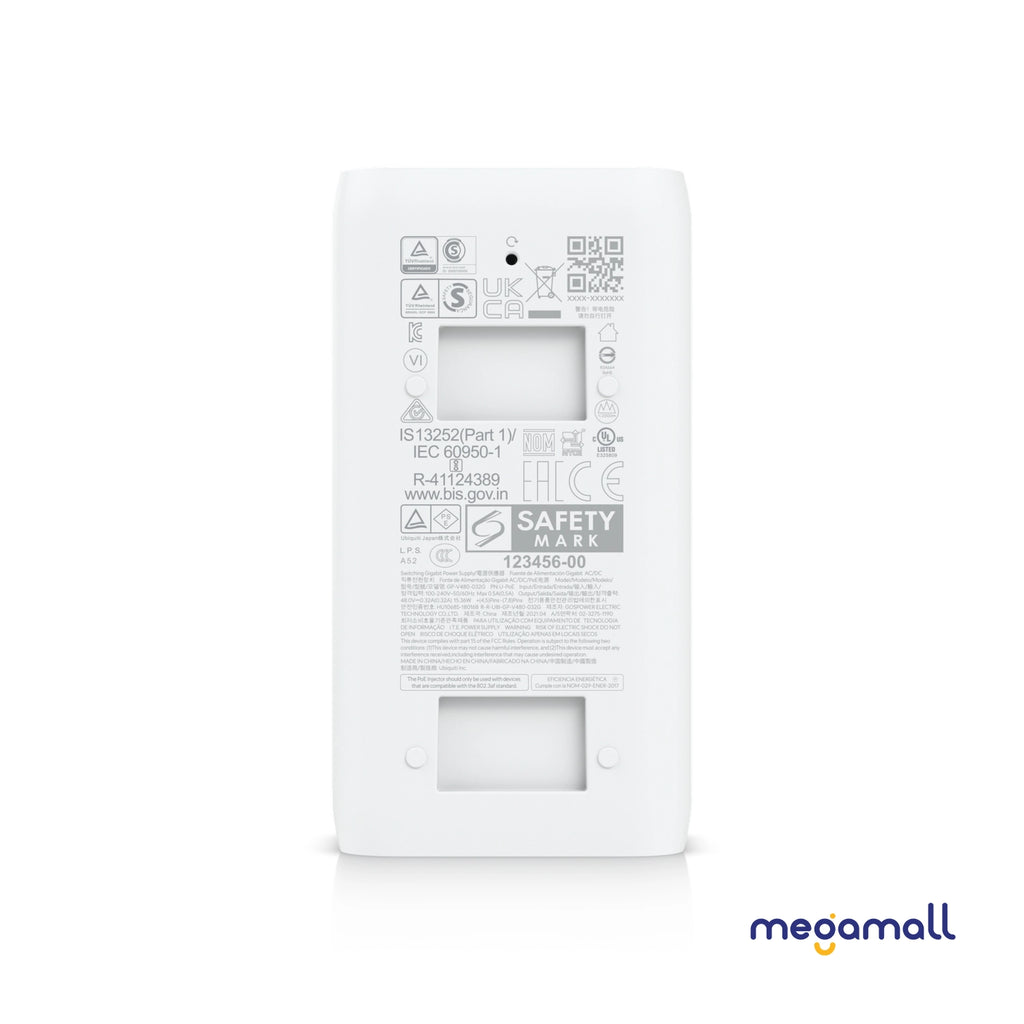

Certifications |
CE, FCC, IC, UL, CCC |
