Description

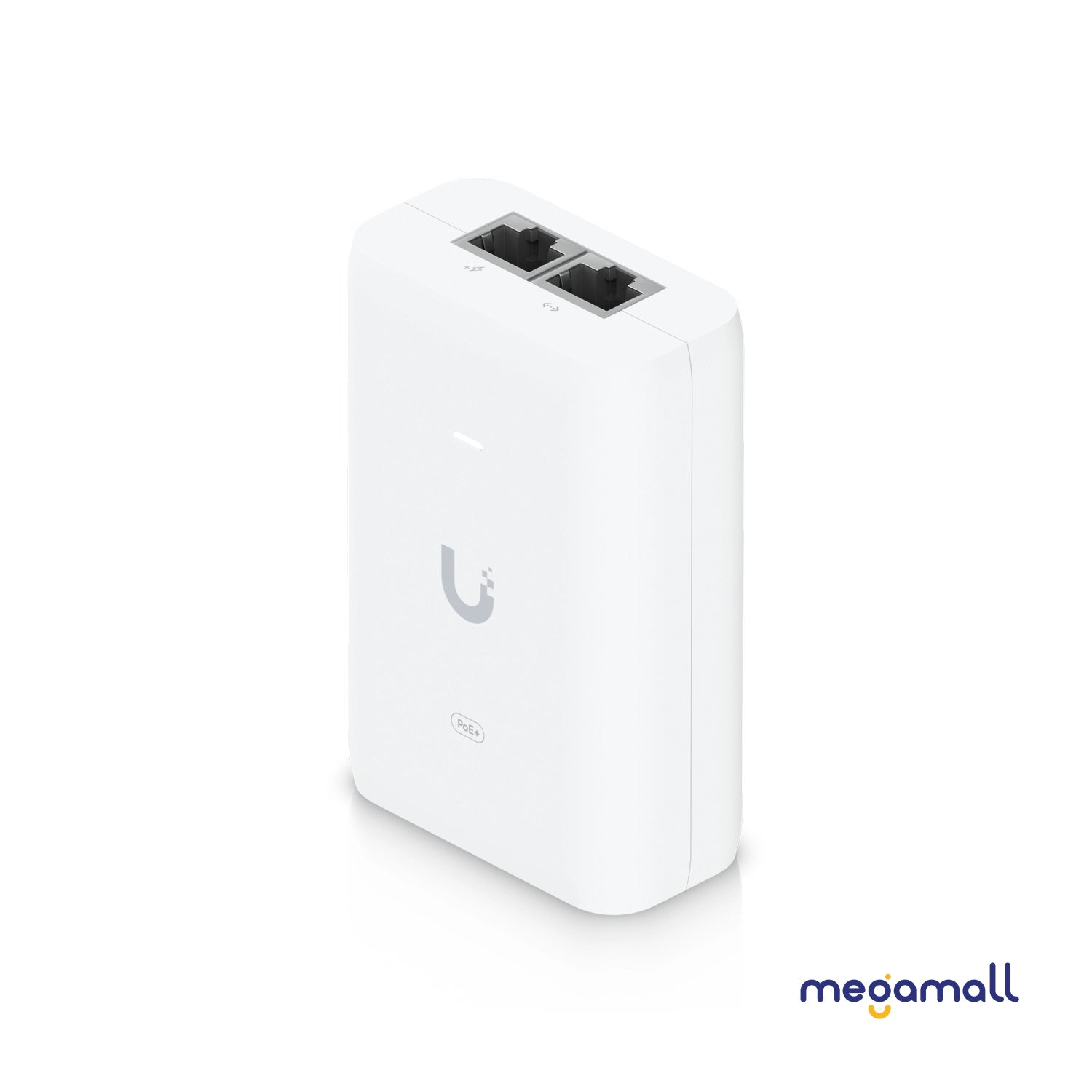

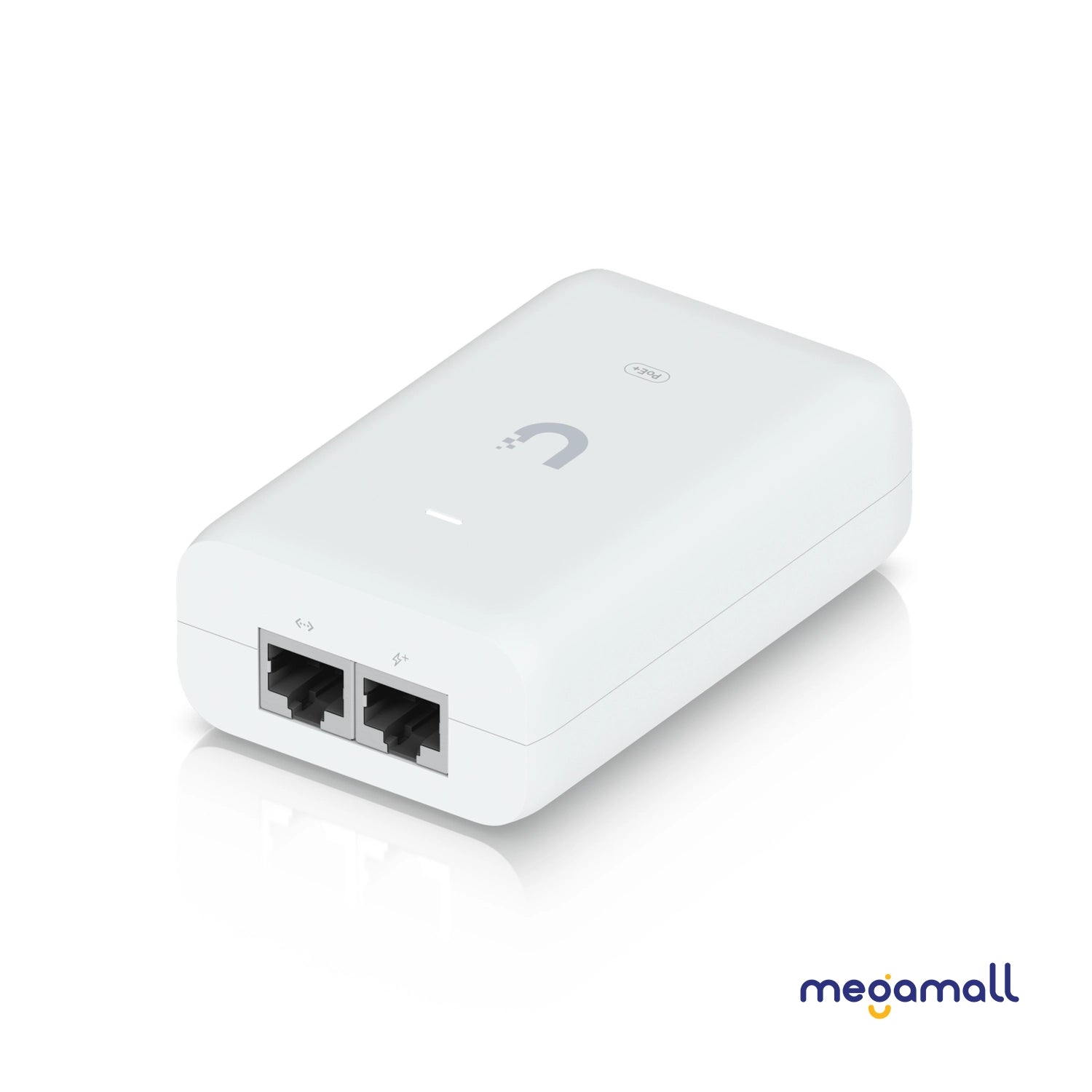

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output

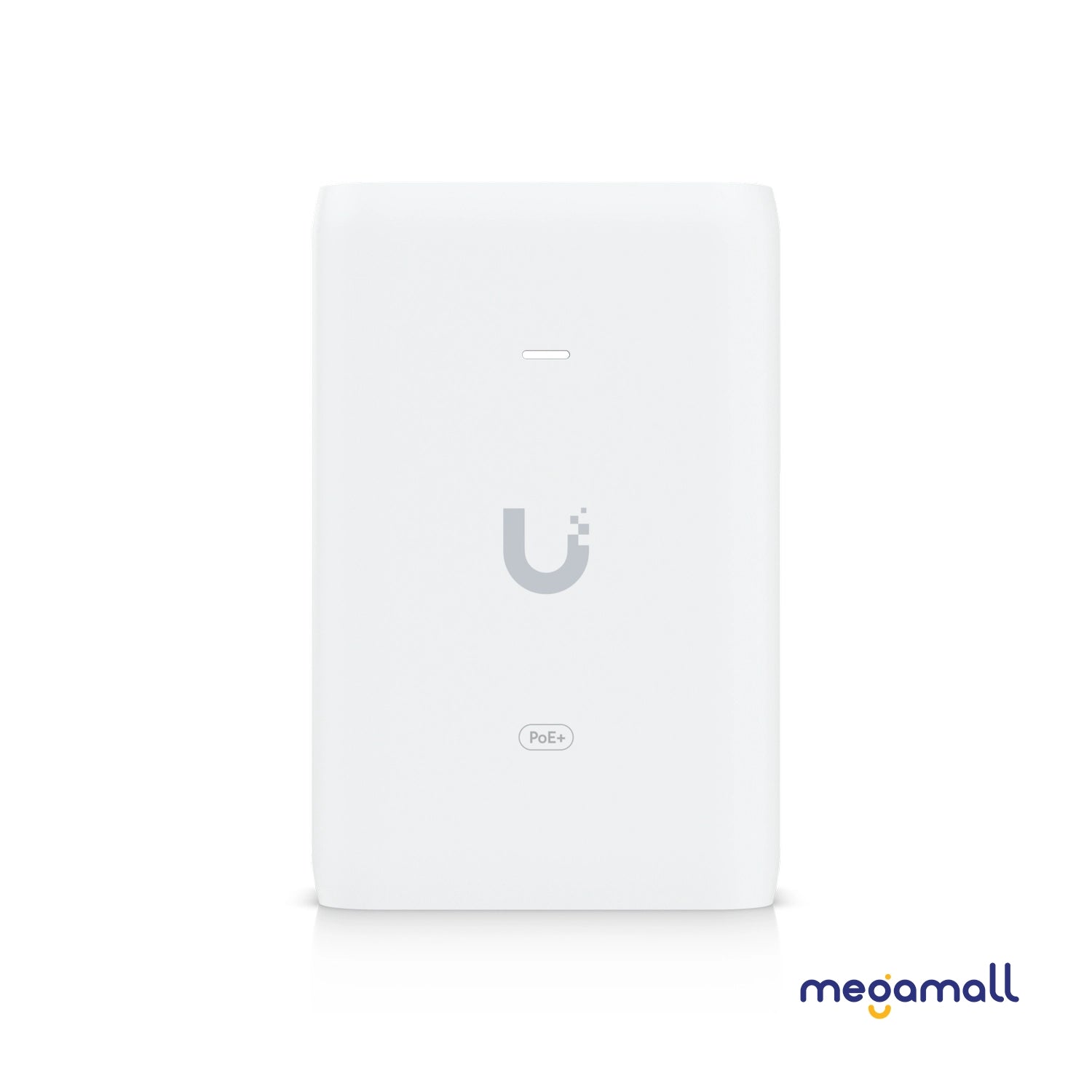

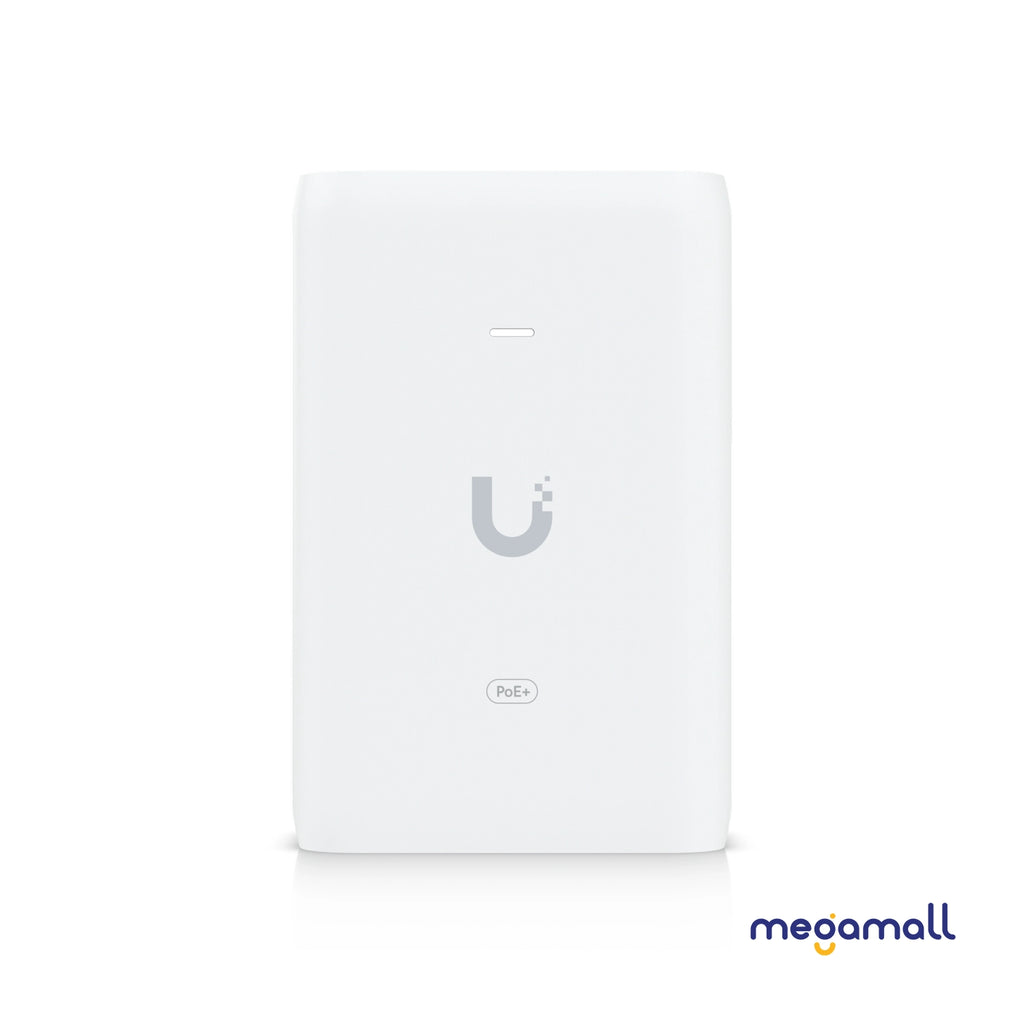

LED indicator for status monitoring
- U6-LR
- UVC-G5-PTZ
- U6-IW
- UVC-AI-DSLR
- UVC-AI-Pro
- UDB-Pro
- UTP-G3-Touch-Wall
- UA-Ultra
|
Overview |
|
|
Dimensions |
93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
|
Weight |
156 g (5.5 oz) |
|
Output Voltage |
48V DC @ 0.65A |
|
Rated Voltage |
100—240V AC @ 50/60Hz |
|
Gigabit LAN Port |
✓ |
|
2-pair Powering |
Pins 4, 5 (+) and 7, 8 (-) |
|

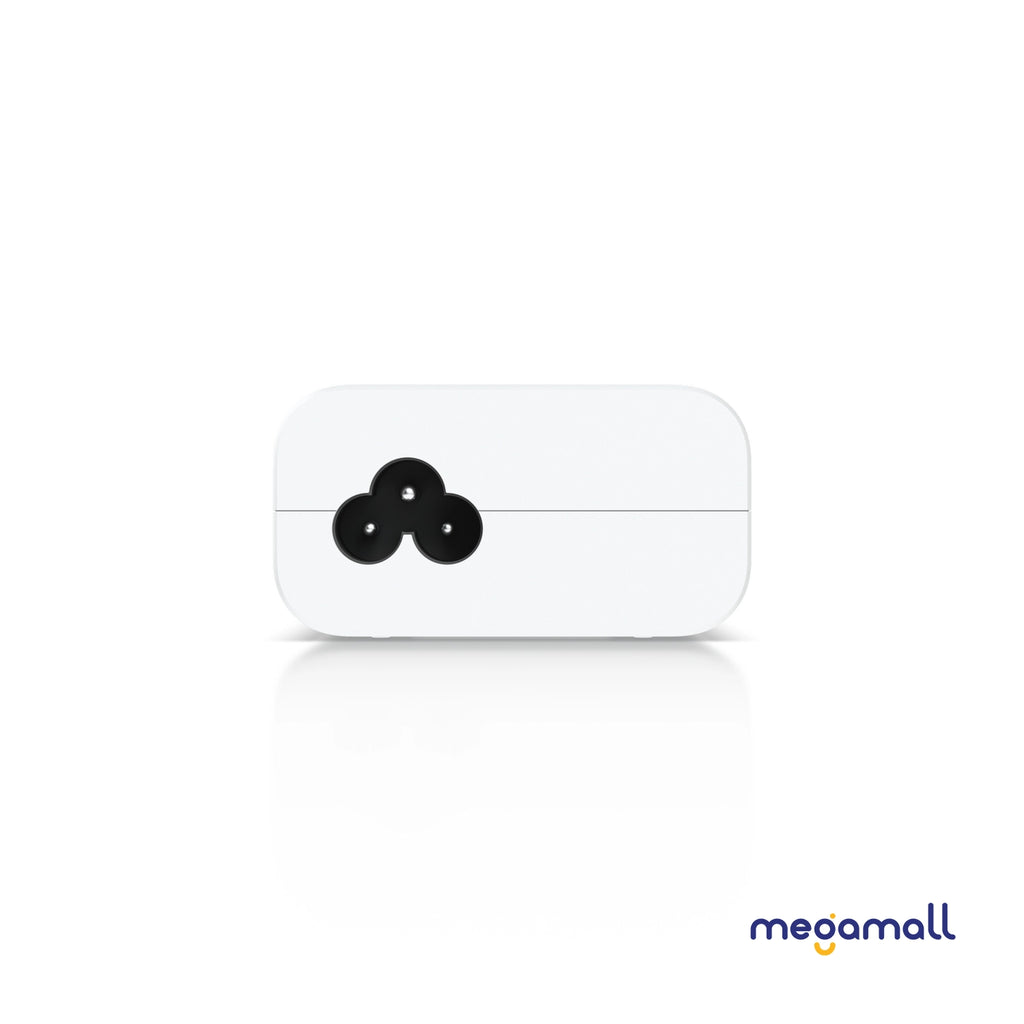

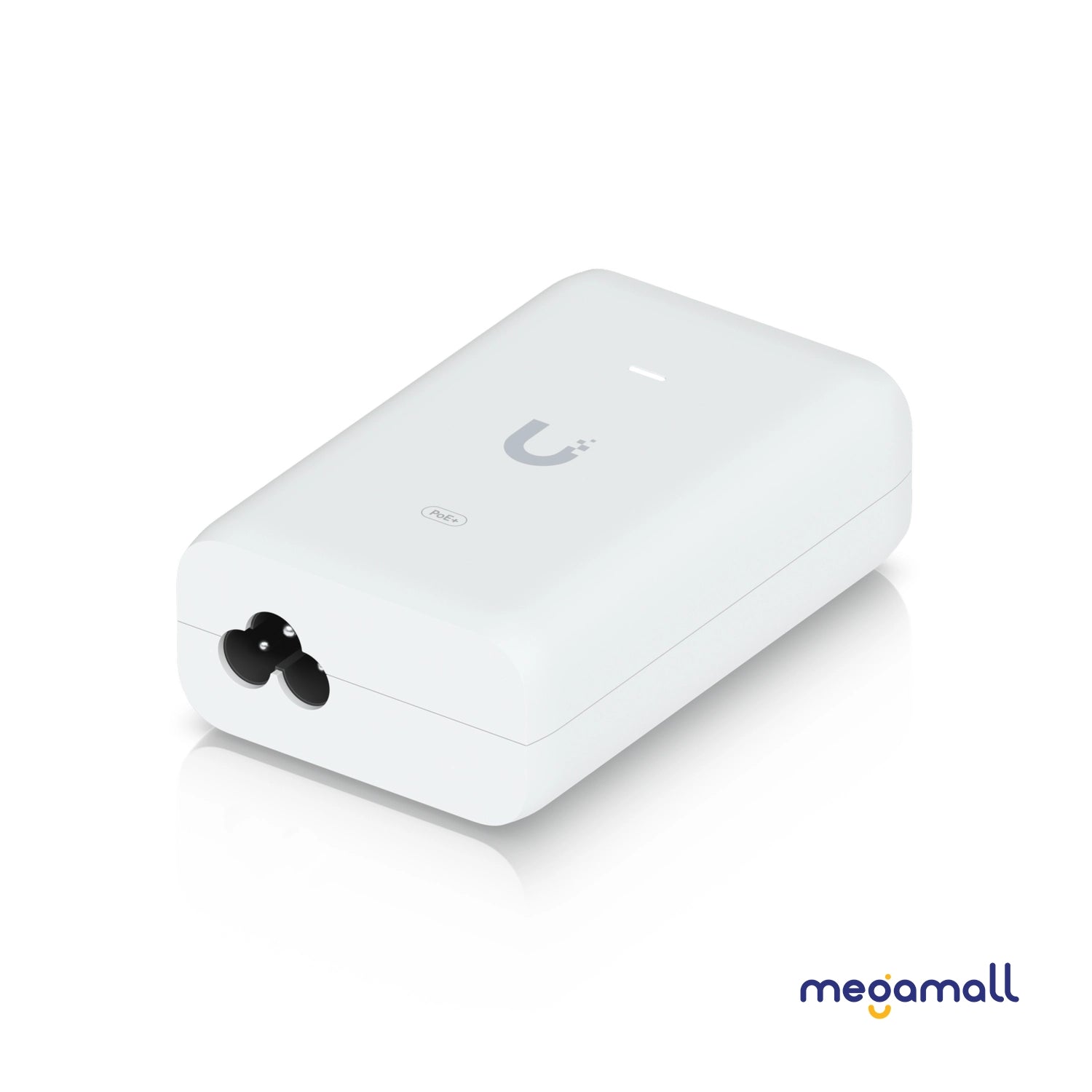

AC Connector |
IEC-320 C6 |
|
Clamping Protection |
11V Data, 60V power |
|

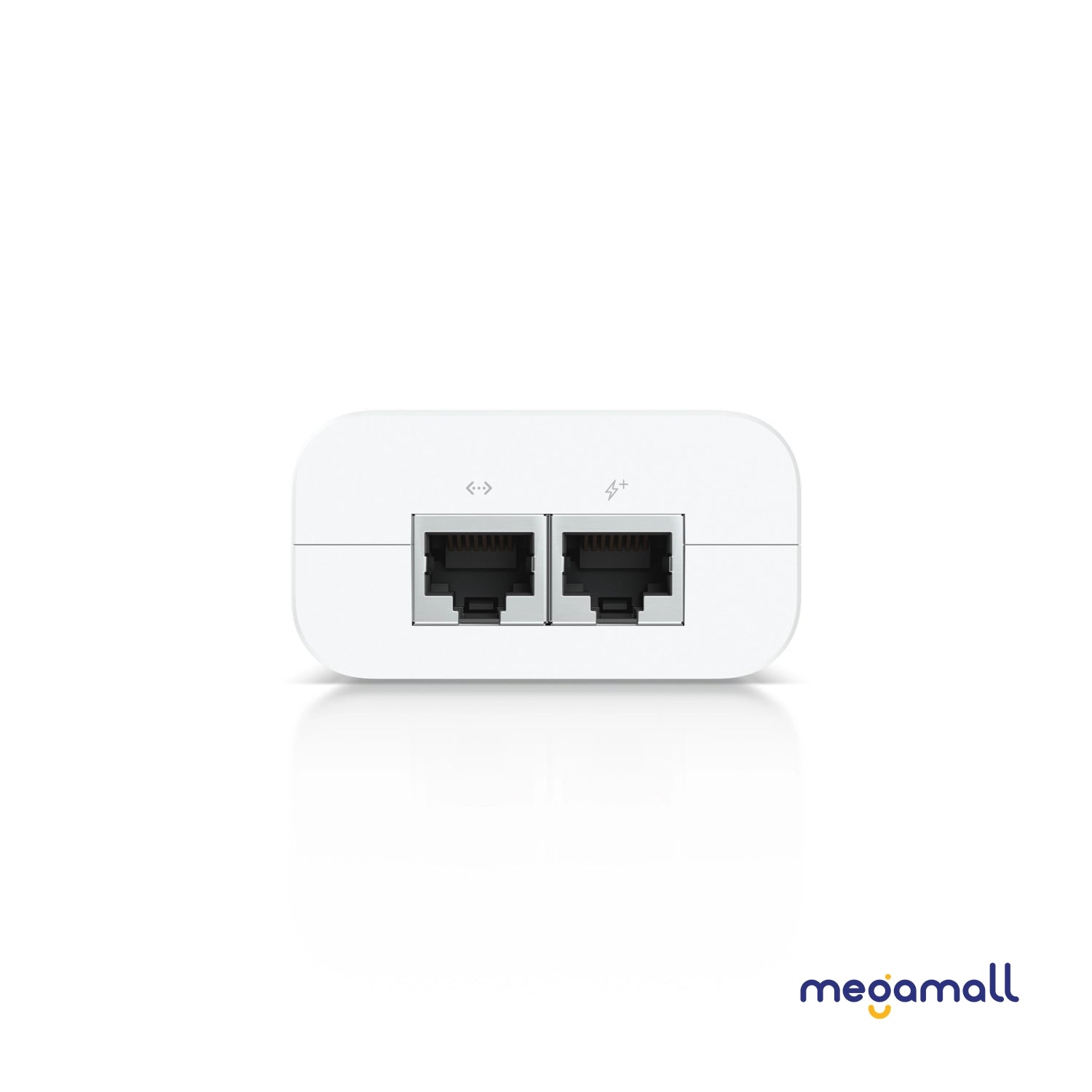

Data In / PoE |
RJ45 Shielded Socket |
|
Input Current |
0.75A Max. |
|
Inrush Current |
<100A peak at 26°C |
|
Efficiency |
0.87 |
|
Switching Frequency |
70 kHz Max. |
|
Output Ripple |
1% Max. |
|
Line Regulation |
≤ 3% |
|
Load Regulation |
≤ 5% |
|
Max. Surge Discharge |
1500A (8/20 μs) power |
|
Peak Pulse Current |
36A (10/1000 μs) data |
|
Response Time |
<1 ns |
|
Shunt Capacitance |
<5 pF data |
|
Surge Protection |
Difference and common mode |
|
Ambient Storage Temperature |
-30 to 70°C (-22 to 158° F) |
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
Ambient Operating Humidity |
10 to 95% noncondensing |
|
NDAA Compliant |
✓ |
|

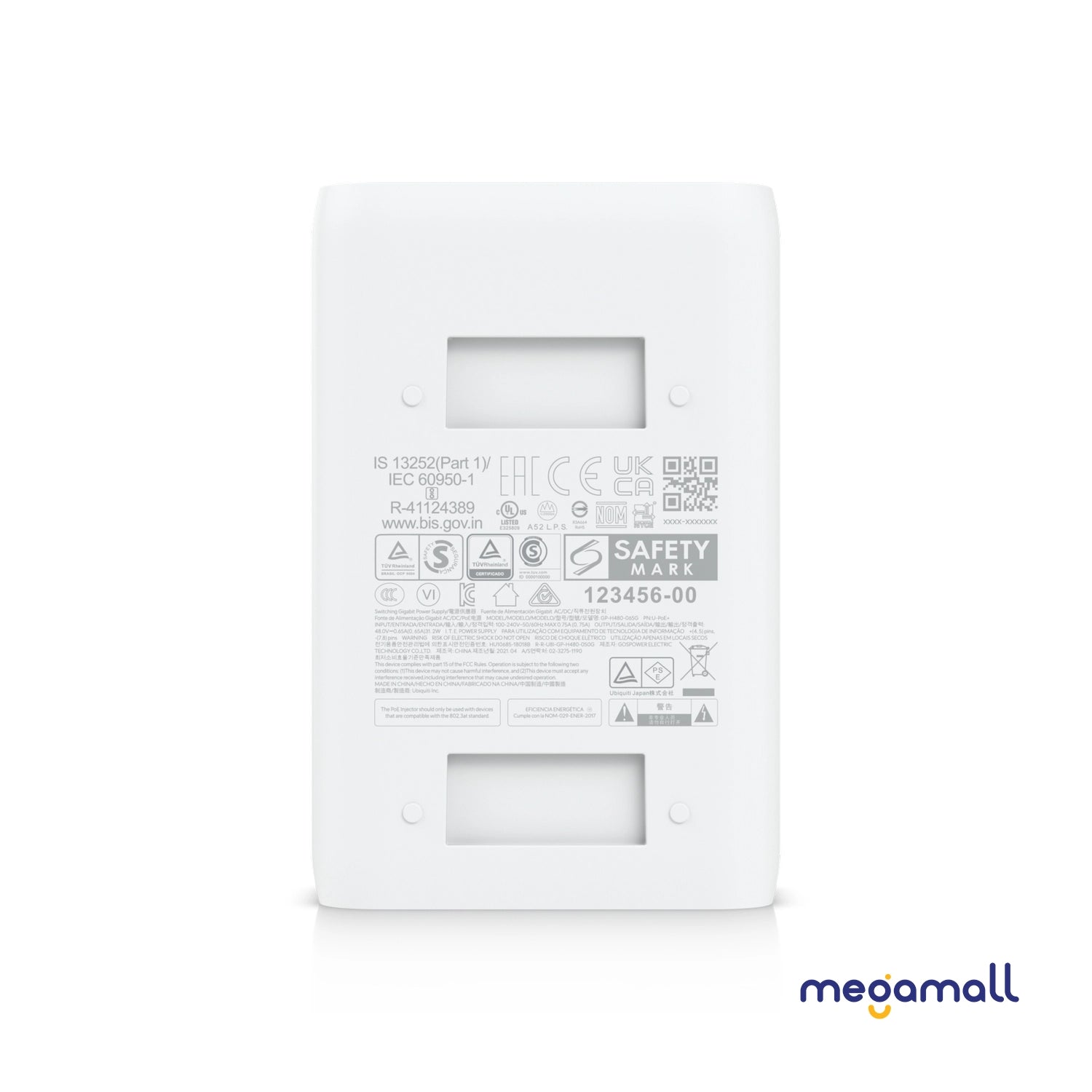

Certifications |
CE, FCC, IC, UL, CCC |
