Description

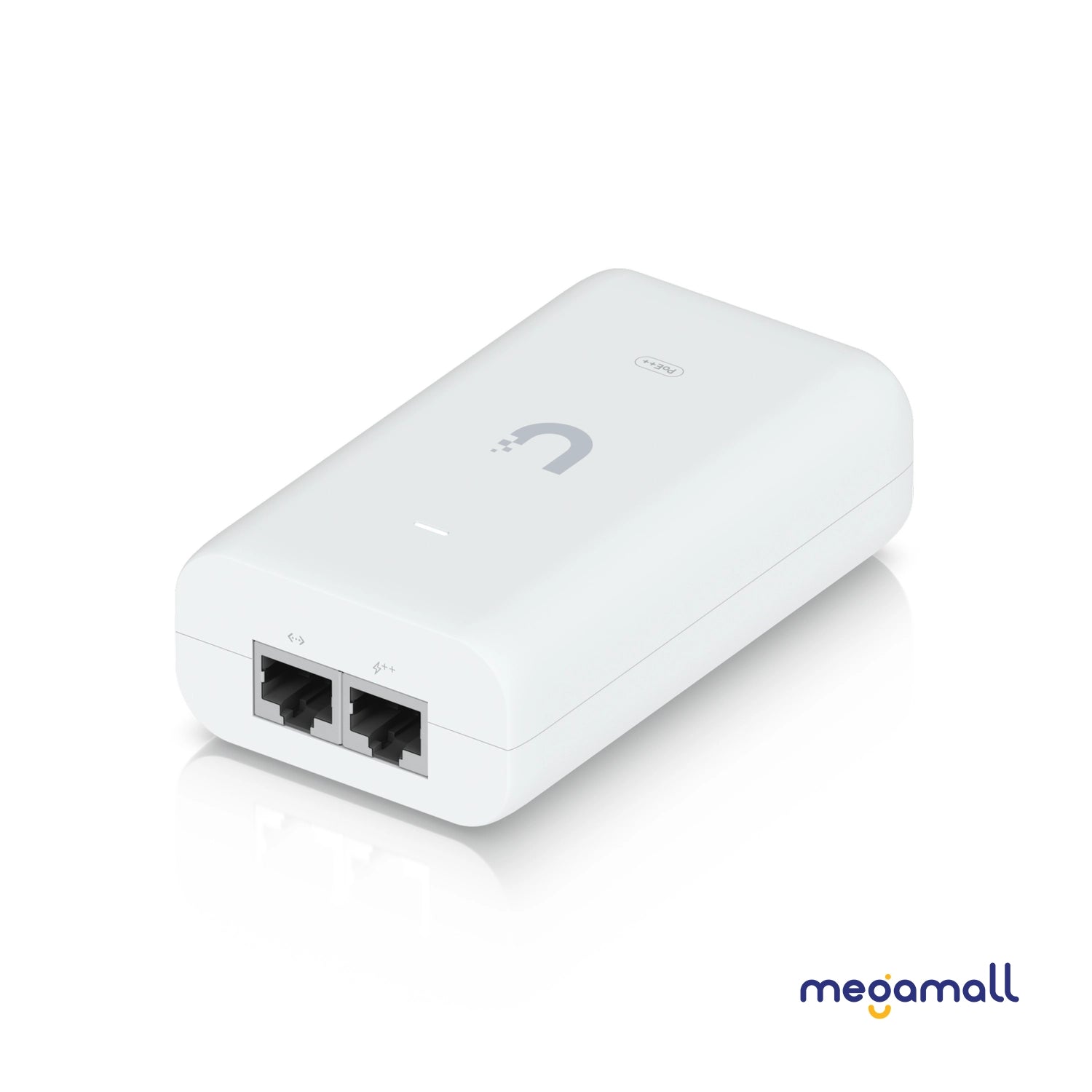

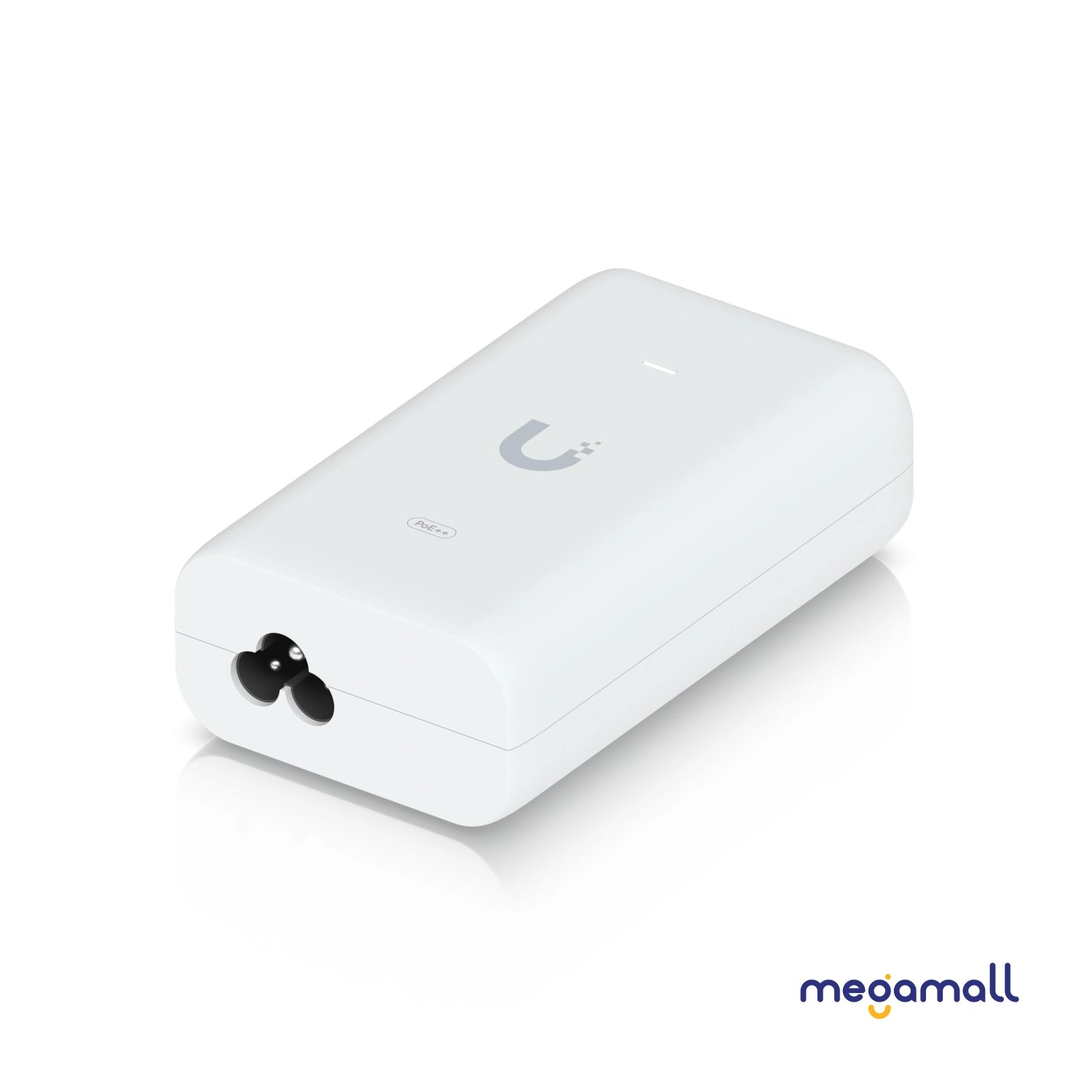

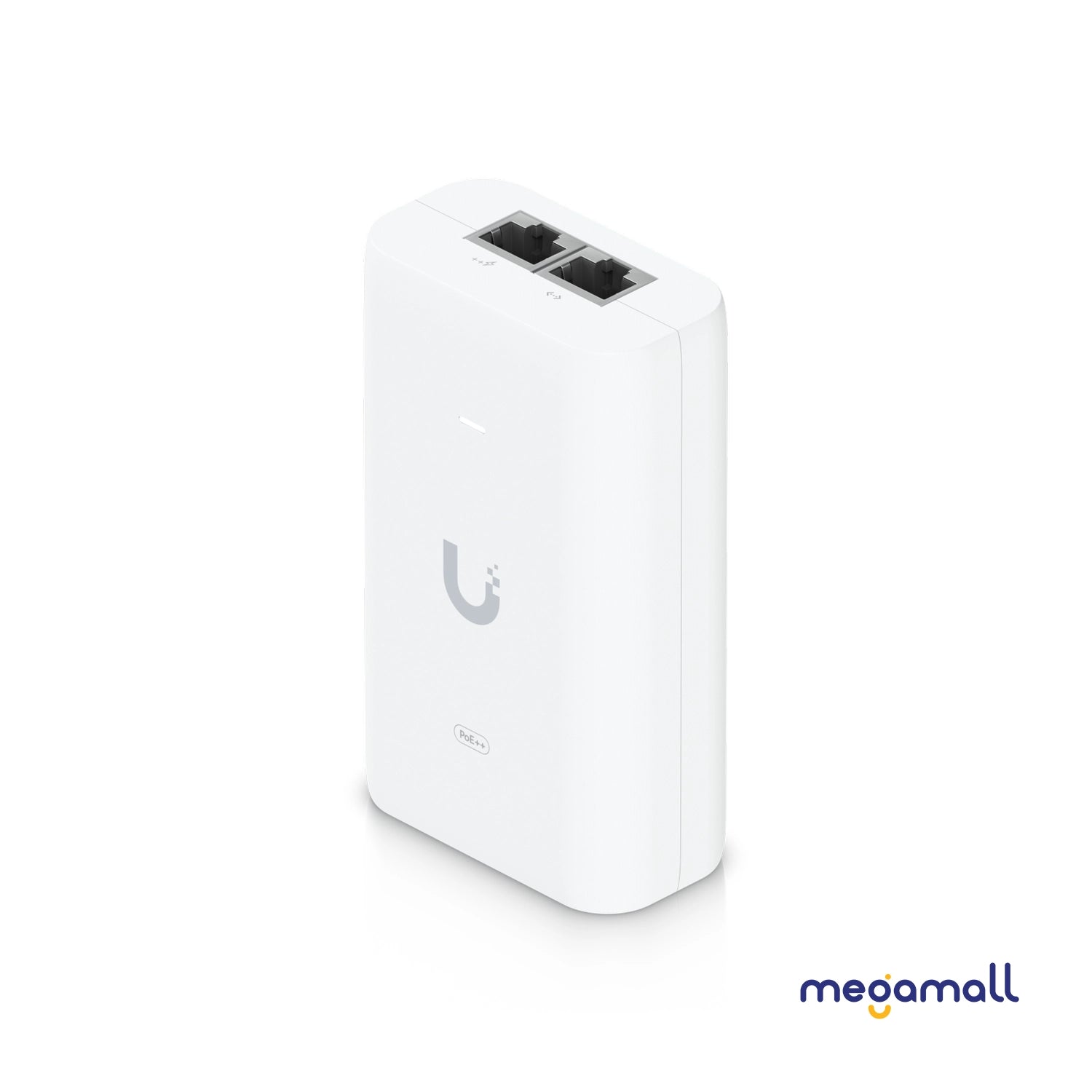

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection

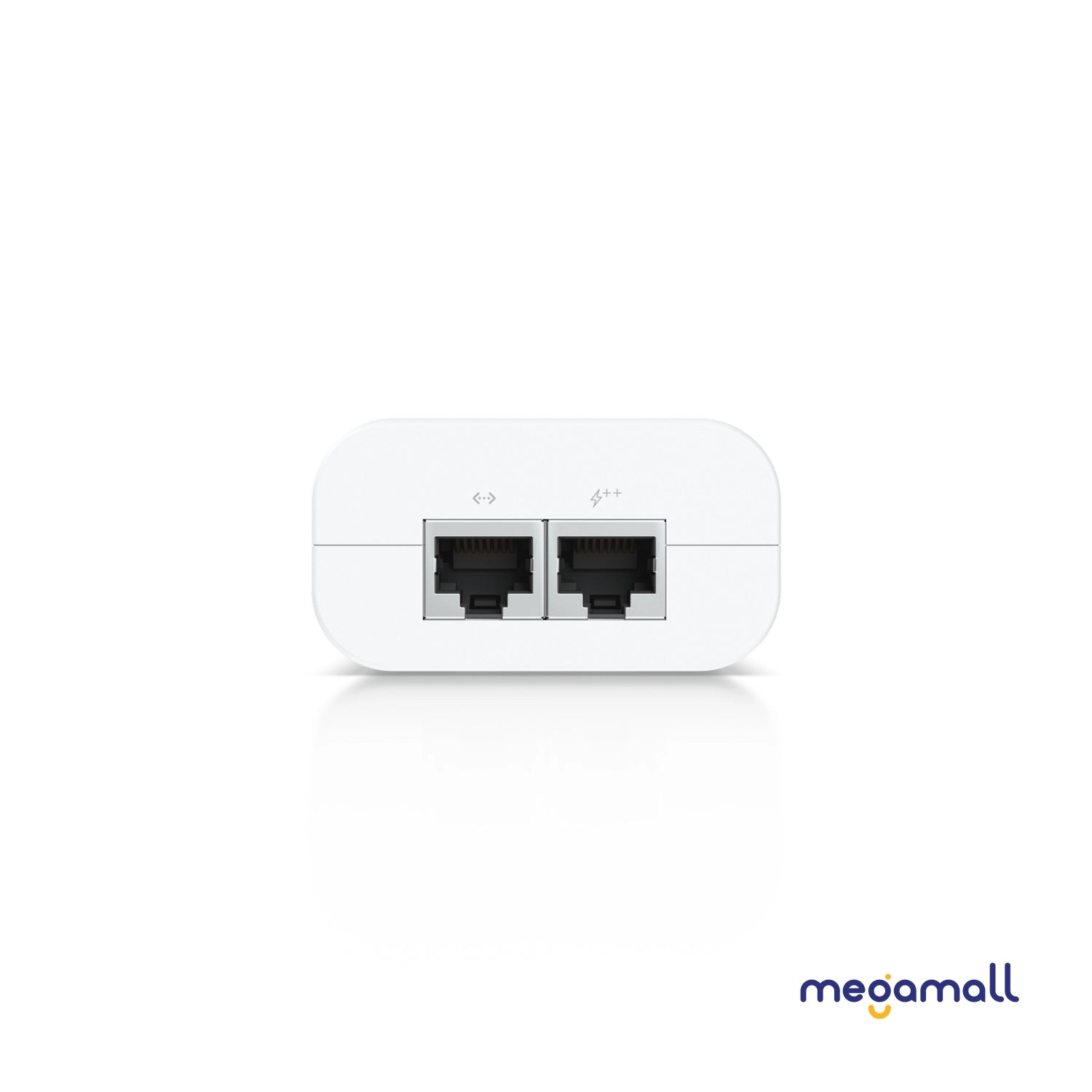

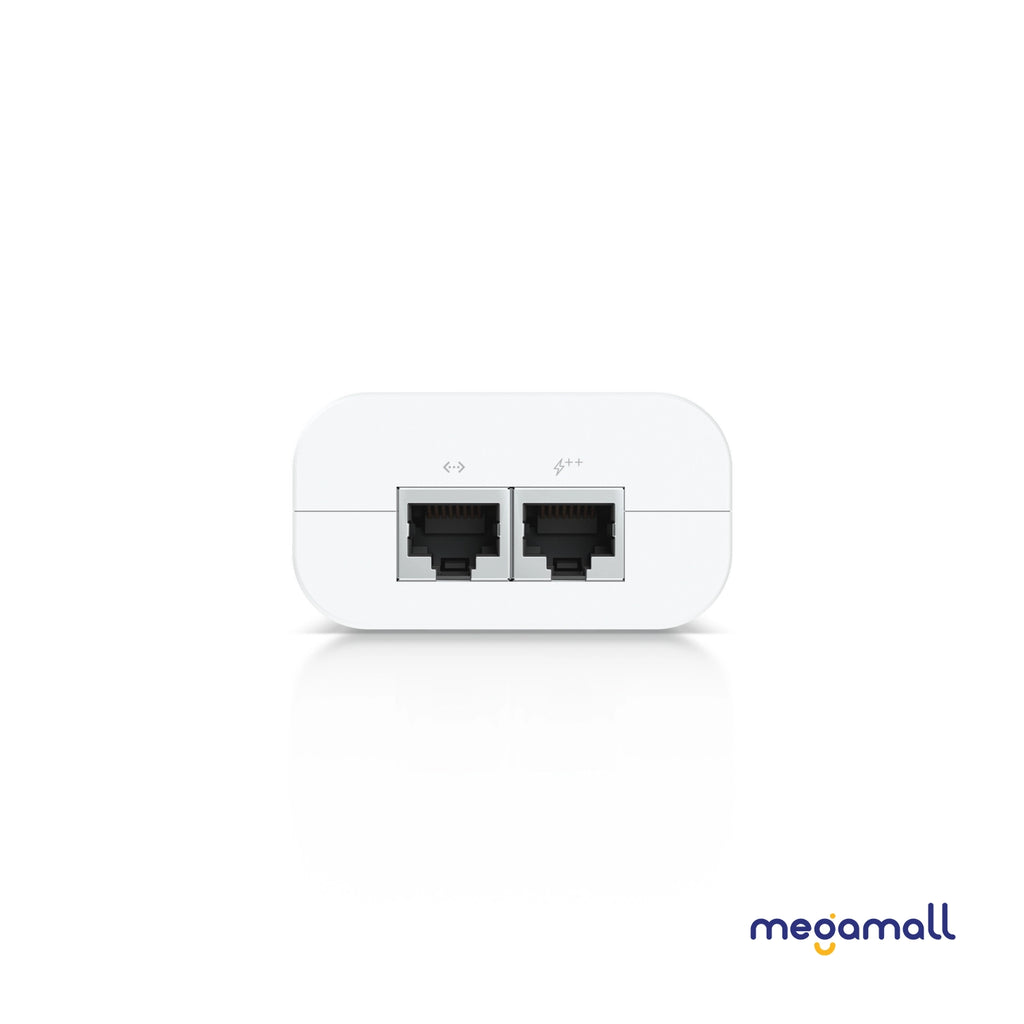

Contains RJ45 data input, AC cable with earth ground, and PoE++ output

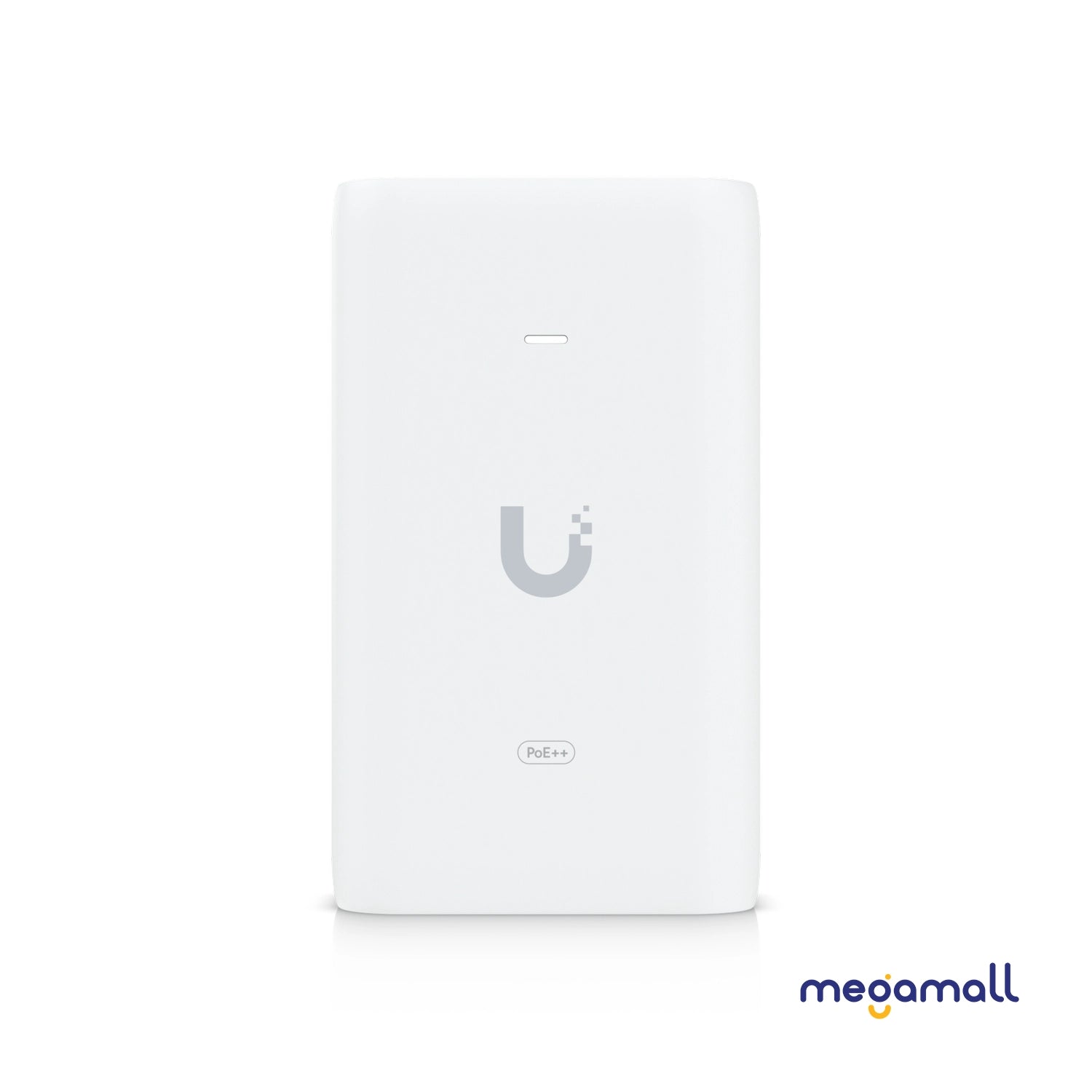

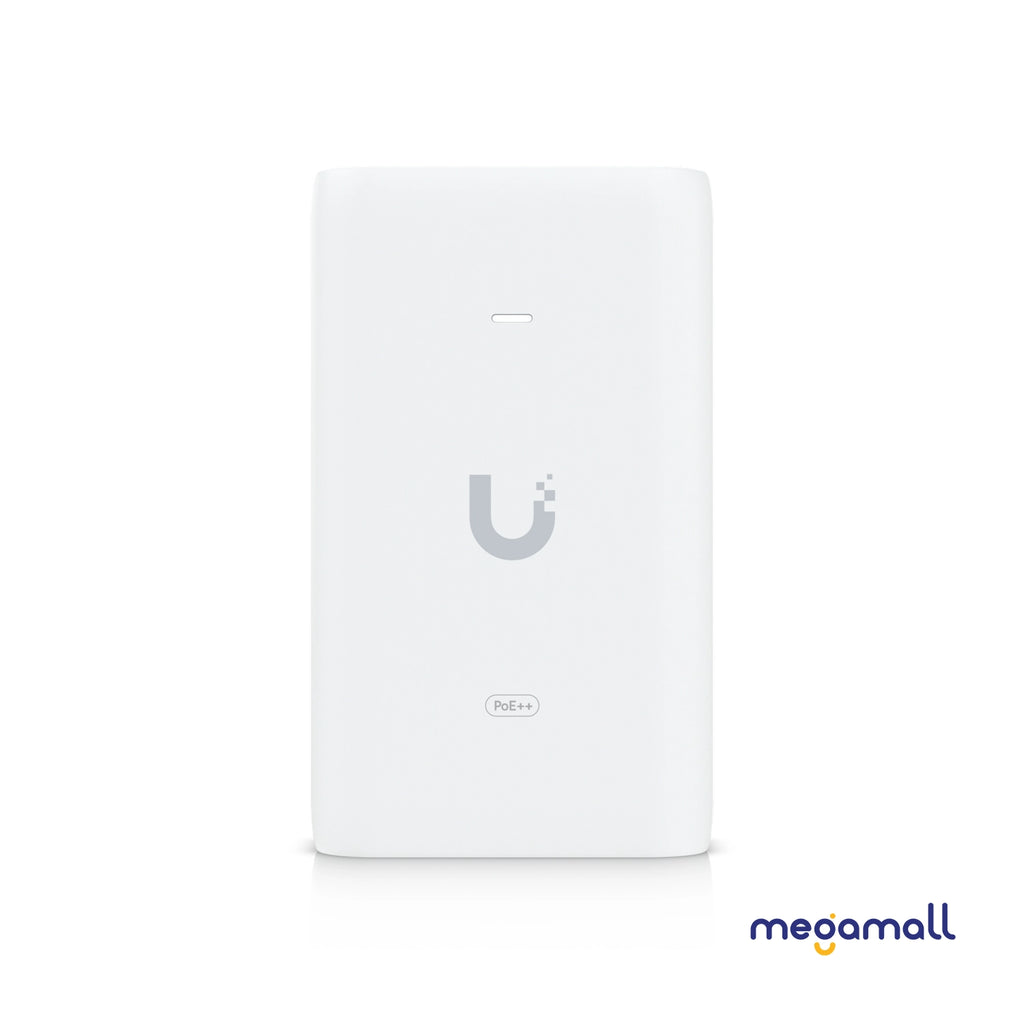

LED indicator for status monitoring
- UA-G2-SK-Pro
- UA-Hub-Door
- UA-G2-SK
- UC-Display
- UA-SK-Elevator
|
Overview |
|
|
Dimensions |
106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
|
Weight |
210 g (7.4 oz) |
|
Output Voltage |
48V DC at 1.25A |
|
Rated Voltage |
100—240V AC at 50/60Hz |
|
Gigabit LAN Port |
✓ |
|
4-pair Powering |
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
|

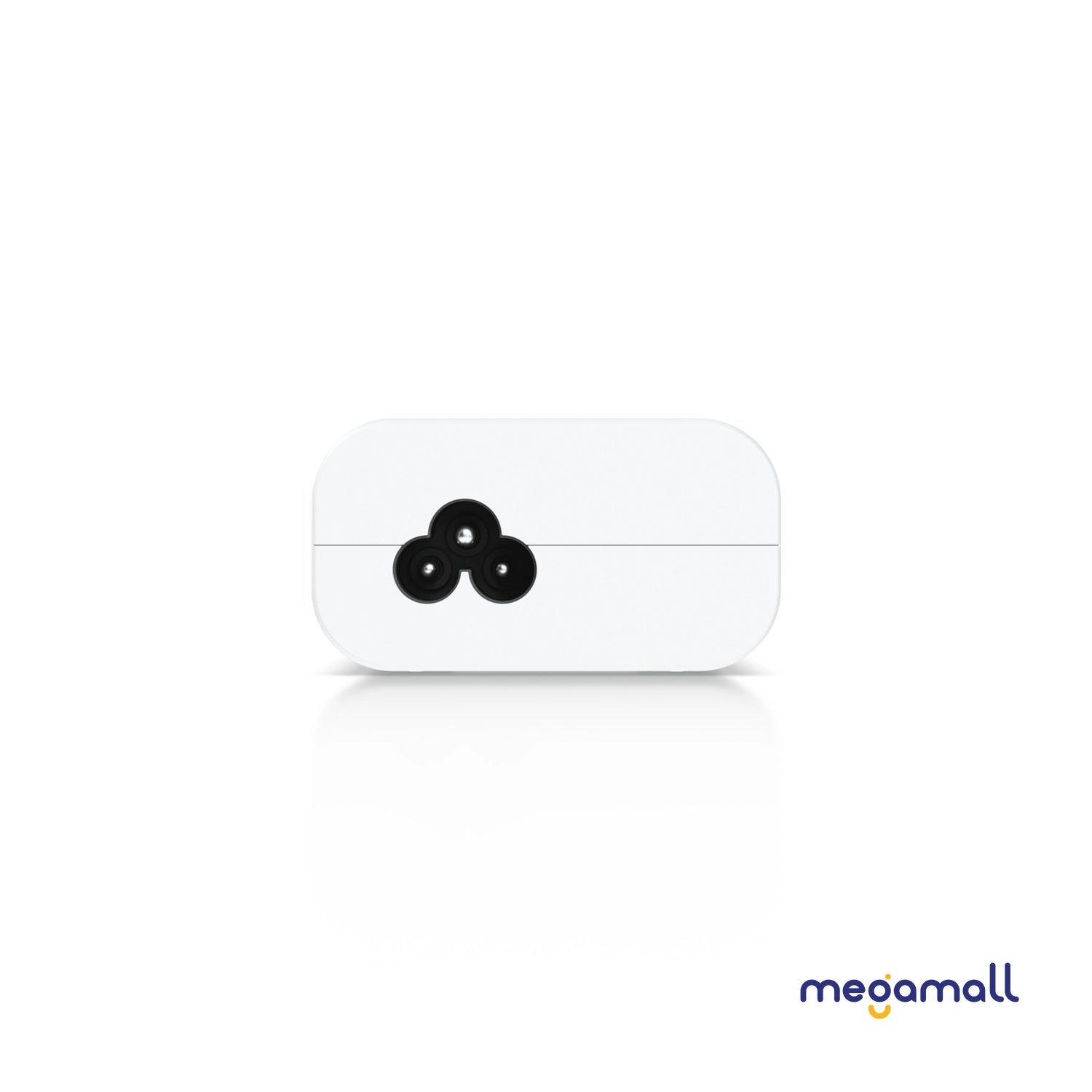

AC Connector |
IEC-320 C6 |
|
Clamping Protection |
11V Data, 60V power |
|
Data In / PoE |
RJ45 Shielded Socket |
|
Input Current |
1.3A @ 120V AC |
|
Inrush Current |
<100A peak @ 120V AC <200A peak @ 230V AC |
|
Efficiency |
85+% |
|
Switching Frequency |
65 kHz |
|
Output Ripple |
1% Max. |
|
Line Regulation |
≤ 1% |
|
Load Regulation |
≤ 3% |
|
Max. PoE+ Wattage per Port by PSE |
60W |
|
Max. Surge Discharge |
1500A (8/20 μs) power |
|
Peak Pulse Current |
36A (10/1000 μs) data |
|
Power Method |
Universal AC input, 100—240V AC, 50/60 Hz |
|
Power Supply |
AC/DC |
|
Response Time |
<1 ns |
|
Shunt Capacitance |
<5 pF data |
|
Supported Voltage Range |
100—240V AC |
|
Surge Protection |
Difference and common mode |
|
Ambient Storage Temperature |
-30 to 70°C (-22 to 158° F) |
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
Ambient Operating Humidity |
10 to 95% noncondensing |
|
NDAA Compliant |
✓ |
|

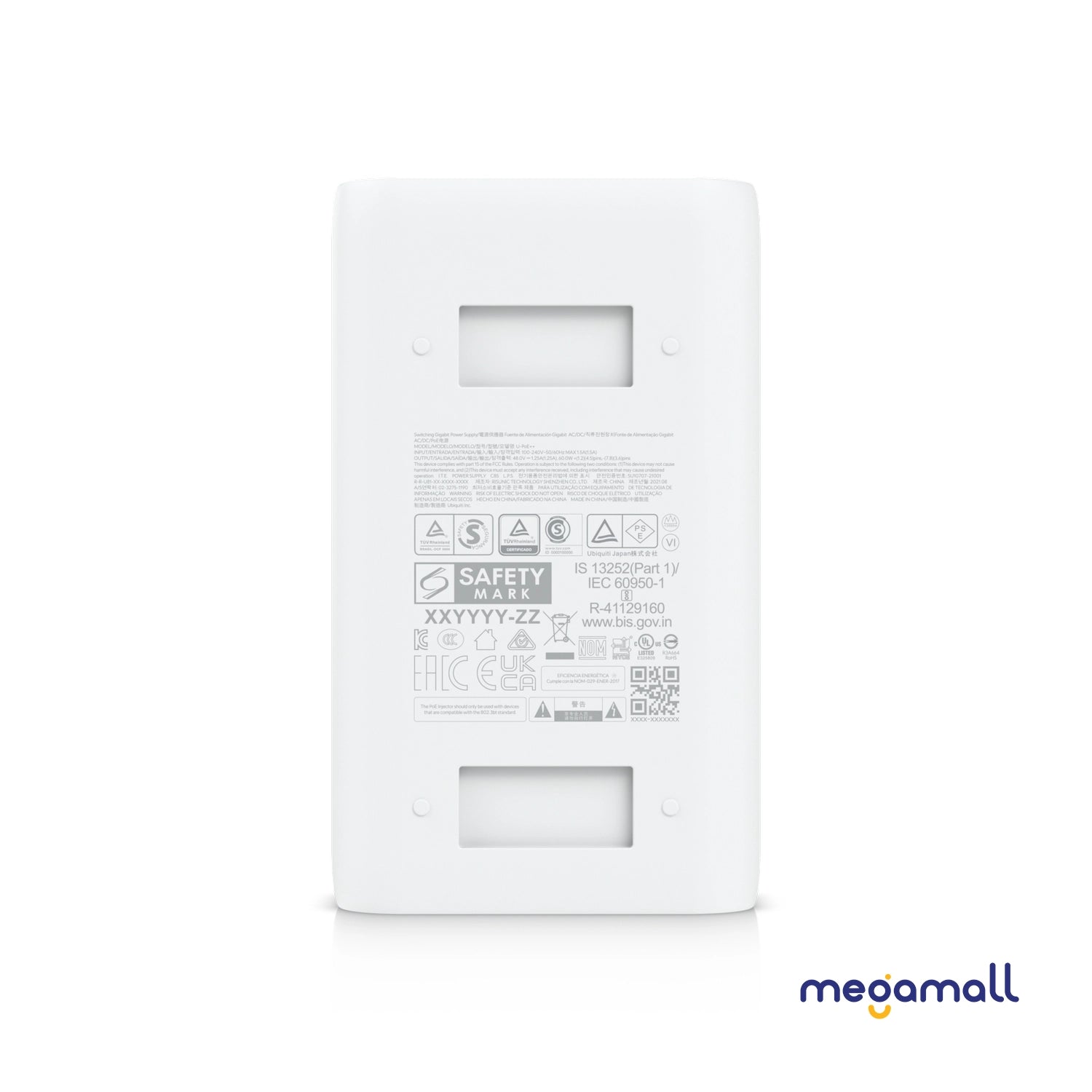

Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
