Description

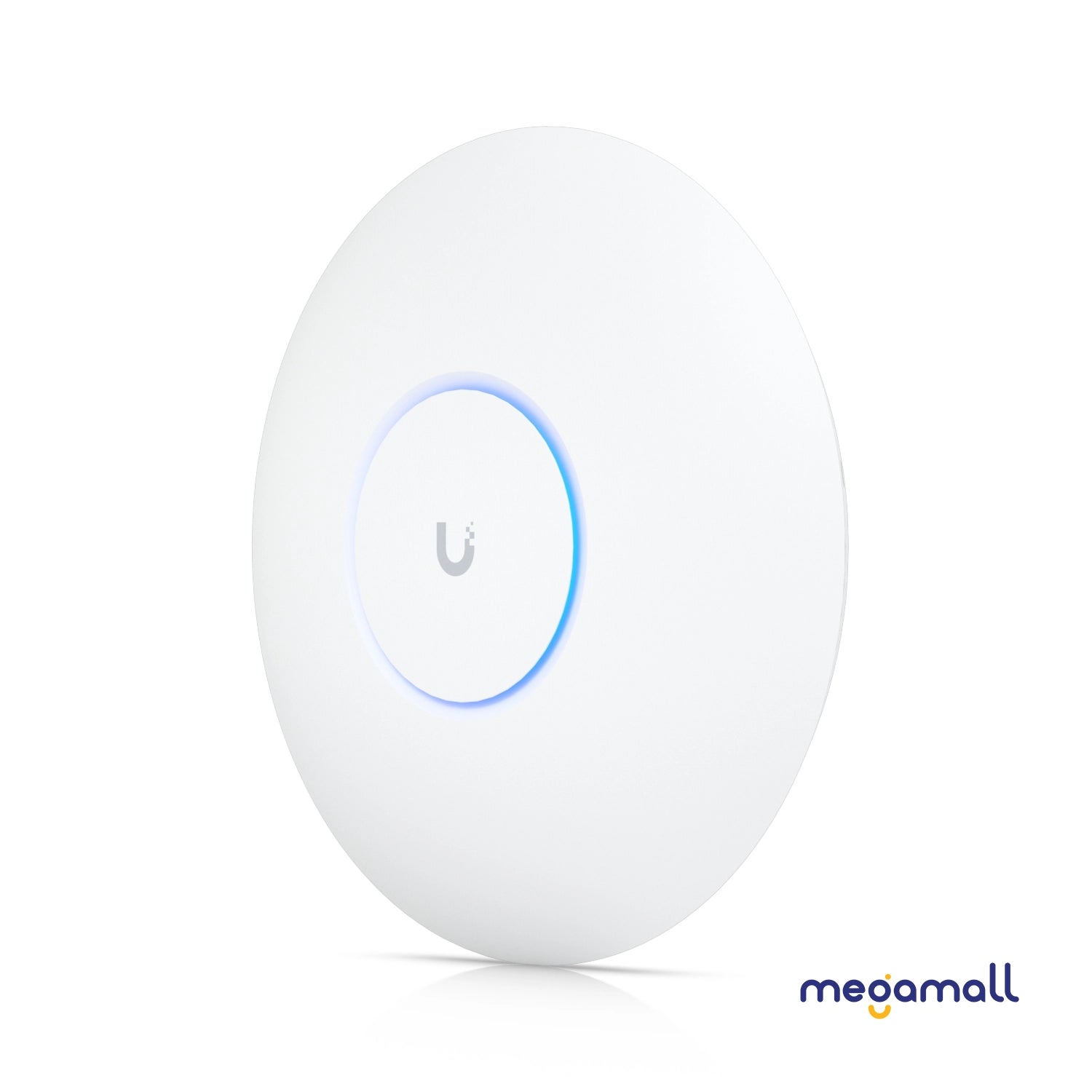

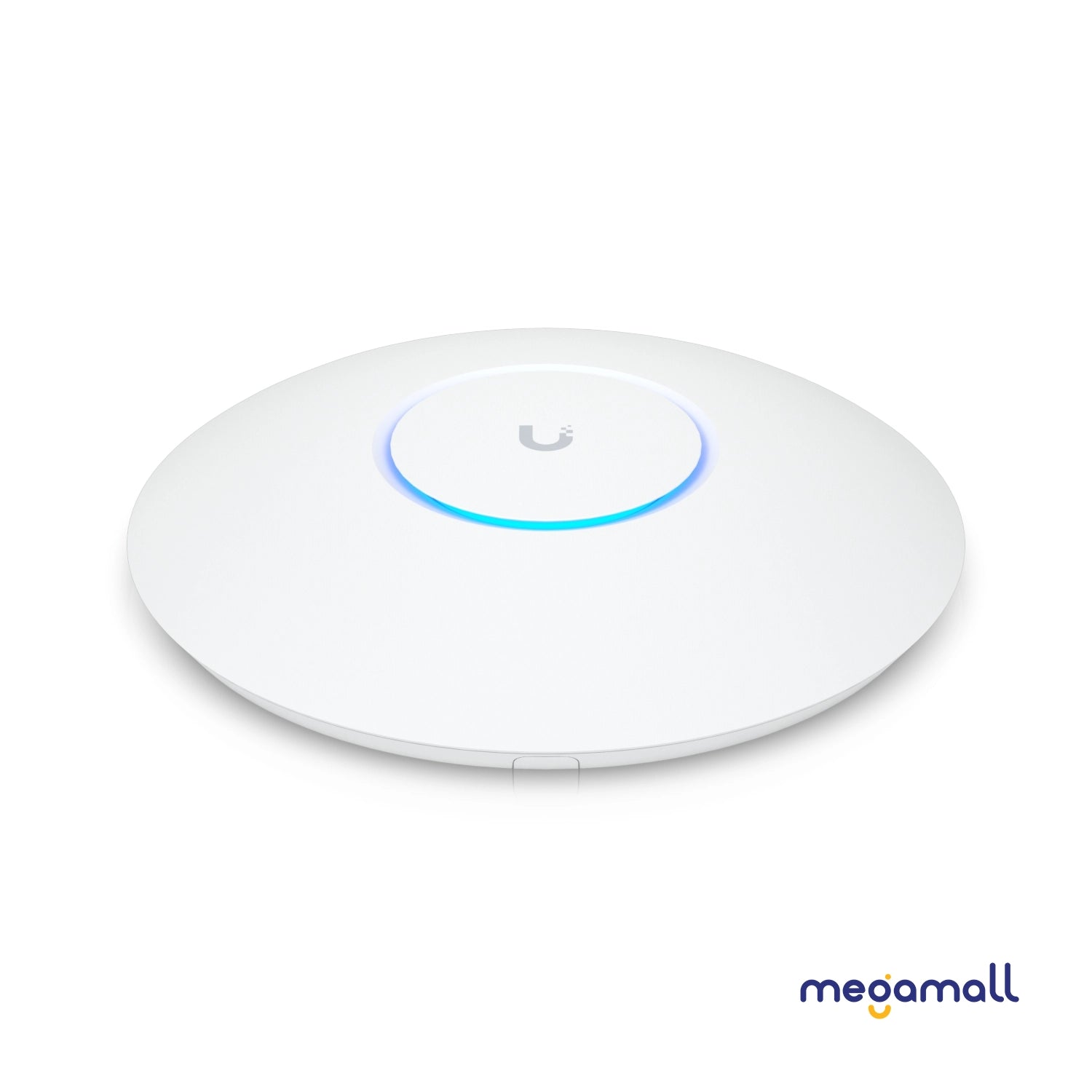

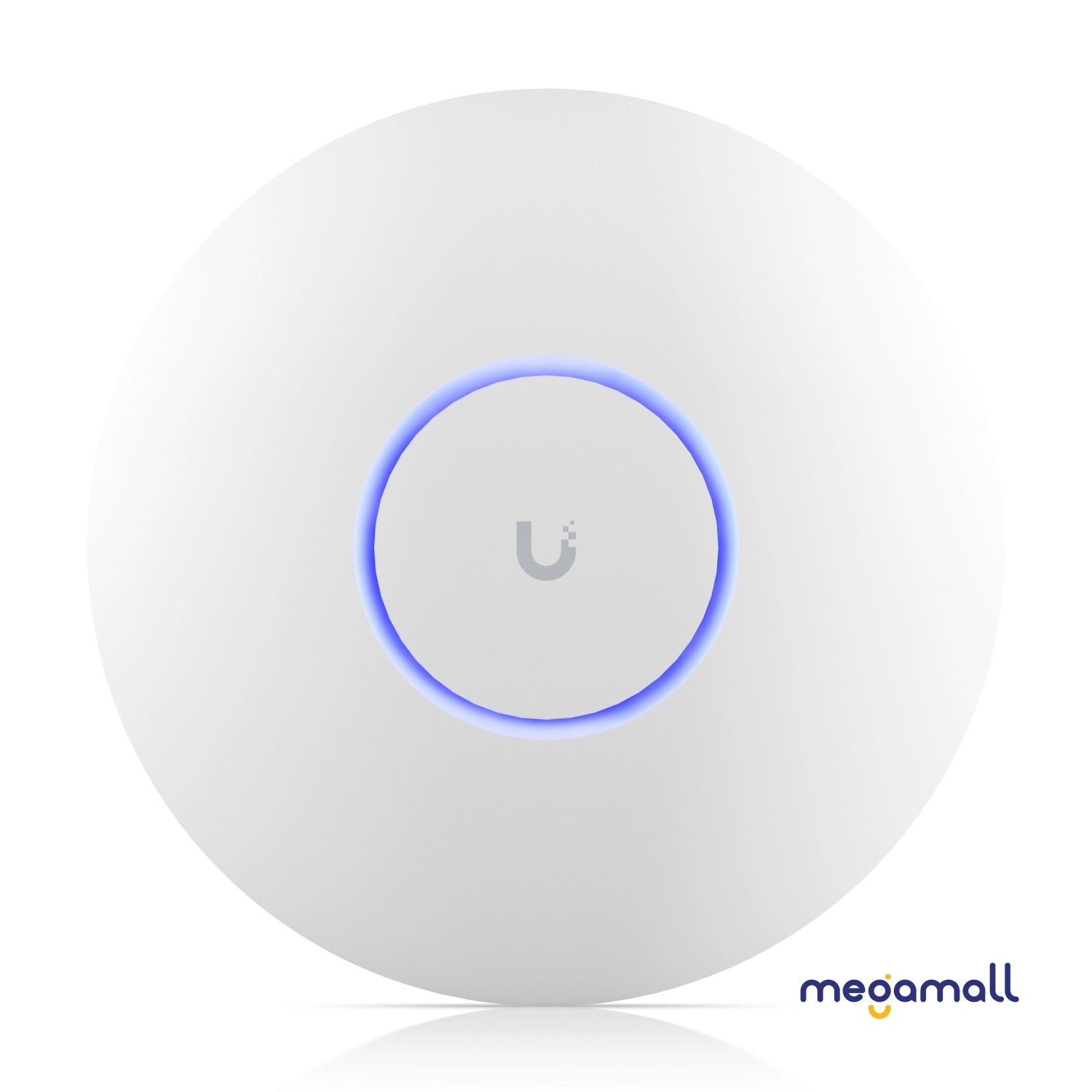

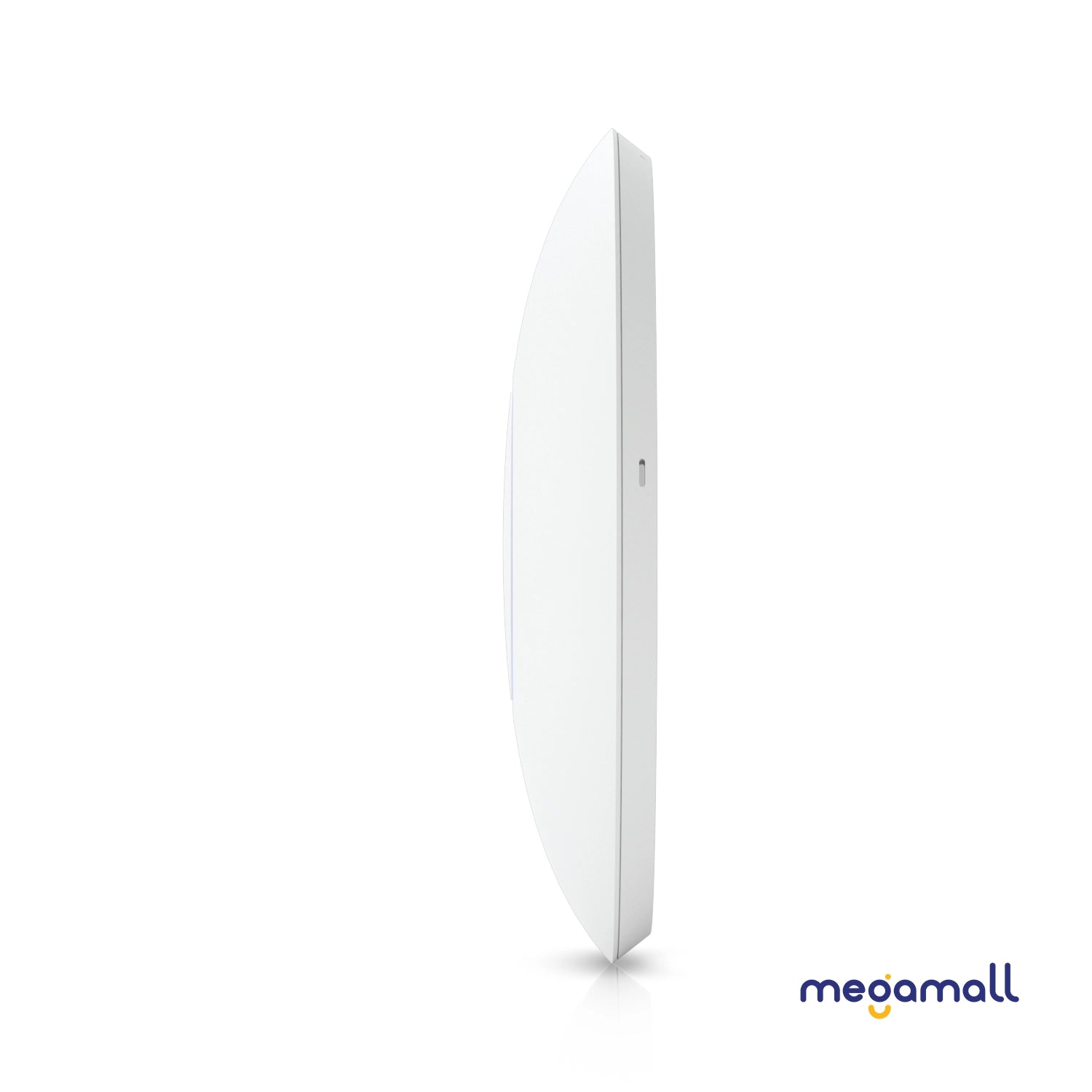

Ceiling-mounted WiFi 6 AP with 6 spatial streams designed for large offices.
|
Overview |
||
|
Dimensions |
Ø197 x 35 mm (Ø7.8 x 1.4") |
|
|
WiFi Standard |
WiFi 6 |
|
|
Spatial Streams |
6 |
|
|
Coverage Area |
140 m² (1,500 ft²) |
|
|
Max. Client Count |
350+ |
|
|
Uplink |
GbE |
|
|

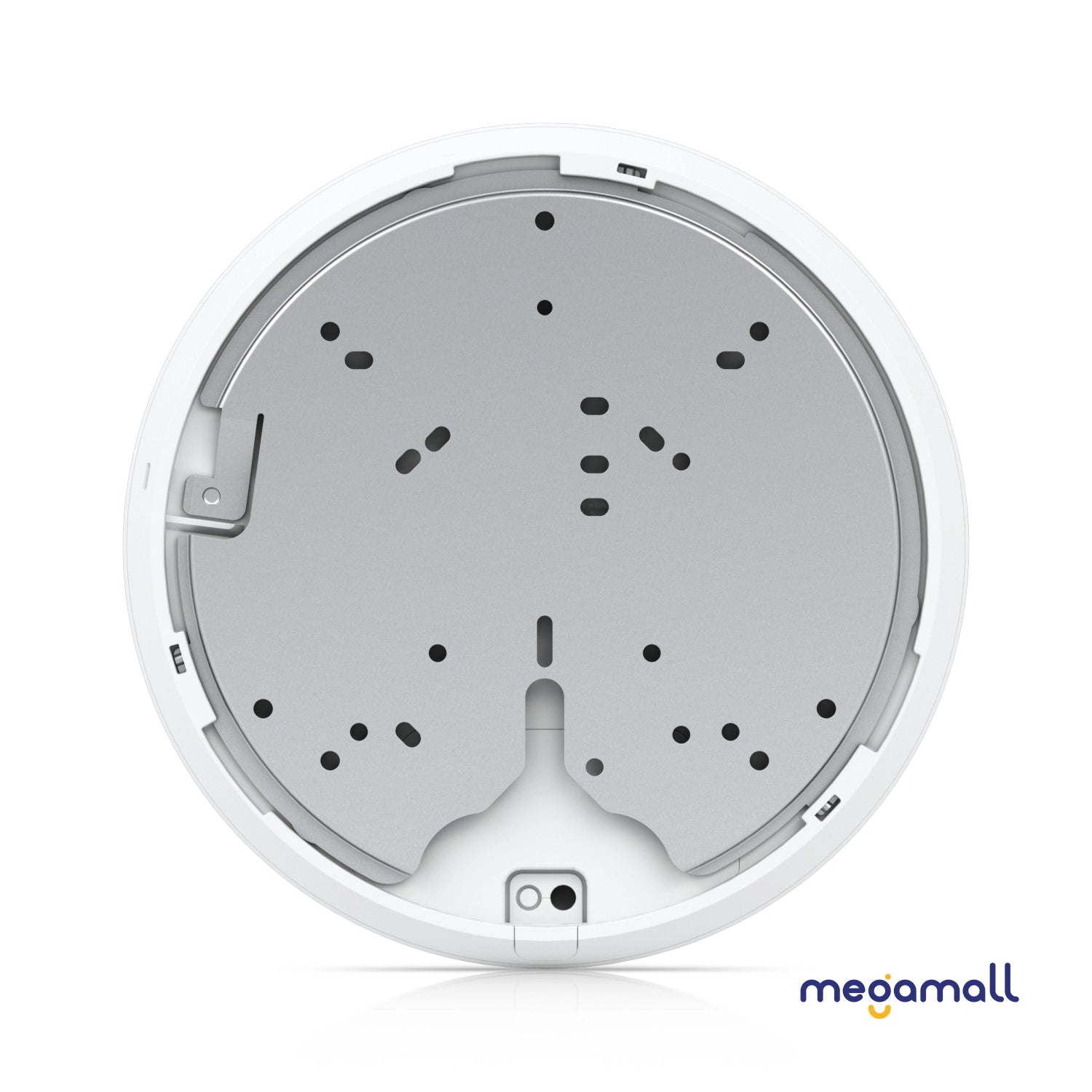

Mounting |
Ceiling, Wall (Pro Mount Included) |
|
|
Weatherproofing |
IP54 |
|
|
Power Method |
PoE |
|
|
Performance |
||
|
MIMO |
||
|
5 GHz |
4 x 4 (DL/UL MU-MIMO) |
|
|
2.4 GHz |
2 x 2 (UL MU-MIMO) |
|
|
Max. Data Rate |
||
|
5 GHz |
4.8 Gbps (BW160) |
|
|
2.4 GHz |
573.5 Mbps (BW40) |
|
|
Antenna Gain |
||
|
5 GHz |
6 dBi |
|
|
2.4 GHz |
4 dBi |
|
|
Max. TX Power |
||
|
5 GHz |
26 dBm |
|
|
2.4 GHz |
22 dBm |
|
|
Max. BSSIDs |
8 per Radio |
|
|
Supported Data Rates |
||
|
802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
|
|
802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
|
|
802.11n |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
|
|
Features |
||
|
Wireless Meshing |
✓ |
|
|
Band Steering |
✓ |
|
|
802.11v BSS Transition Management |
✓ |
|
|
802.11r Fast Roaming |
✓ |
|
|
802.11k Radio Resource Management (RRM) |
✓ |
|
|
Advanced Radio Management |
✓ |
|
|
Passpoint (Hotspot 2.0) |
✓ |
|
|
Captive Hotspot Portal |
||
|
Custom Branding Landing Page |
✓ |
|
|
Voucher Authentication |
✓ |
|
|
Payment-Based Authentication |
✓ |
|
|
External Portal Server Support |
✓ |
|
|
Password Authentication |
✓ |
|
|
Guest Network Isolation |
✓ |
|
|
Private Pre-Shared Key (PPSK) |
✓ |
|
|
WiFi Speed Limiting |
✓ |
|
|
Client Device Isolation |
✓ |
|
|
WiFi Schedules |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Dynamic RADIUS-assigned VLAN |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
13W |
|
|
Supported Voltage Range |
44—57V DC |
|
|
Networking Interface |

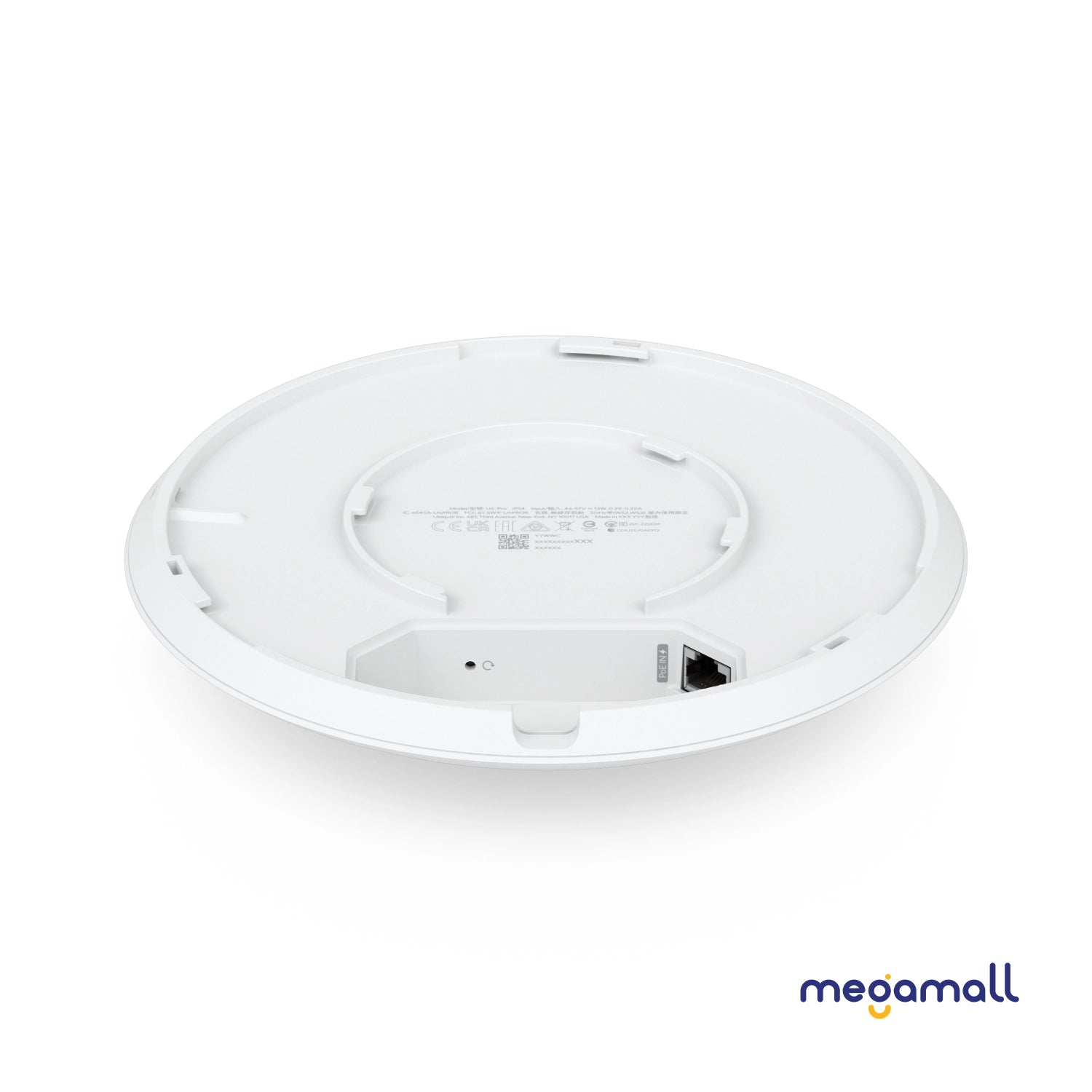

(1) GbE RJ45 port |
|
|
Weight |
Device: 580 g (1.3 lb) With mount: 720 g (1.6 lb) |
|
|
Management |
Ethernet Bluetooth |
|
|
Enclosure Material |
Polycarbonate |
|
|
Mount Material |
Stainless steel (SUS304) |
|
|
LEDs |
||
|
System |
White/Blue |
|
|
Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel, SRRC |
|
|
Operating Frequency |
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz |
|
|
Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 6.0.45 and later |
|
