Description

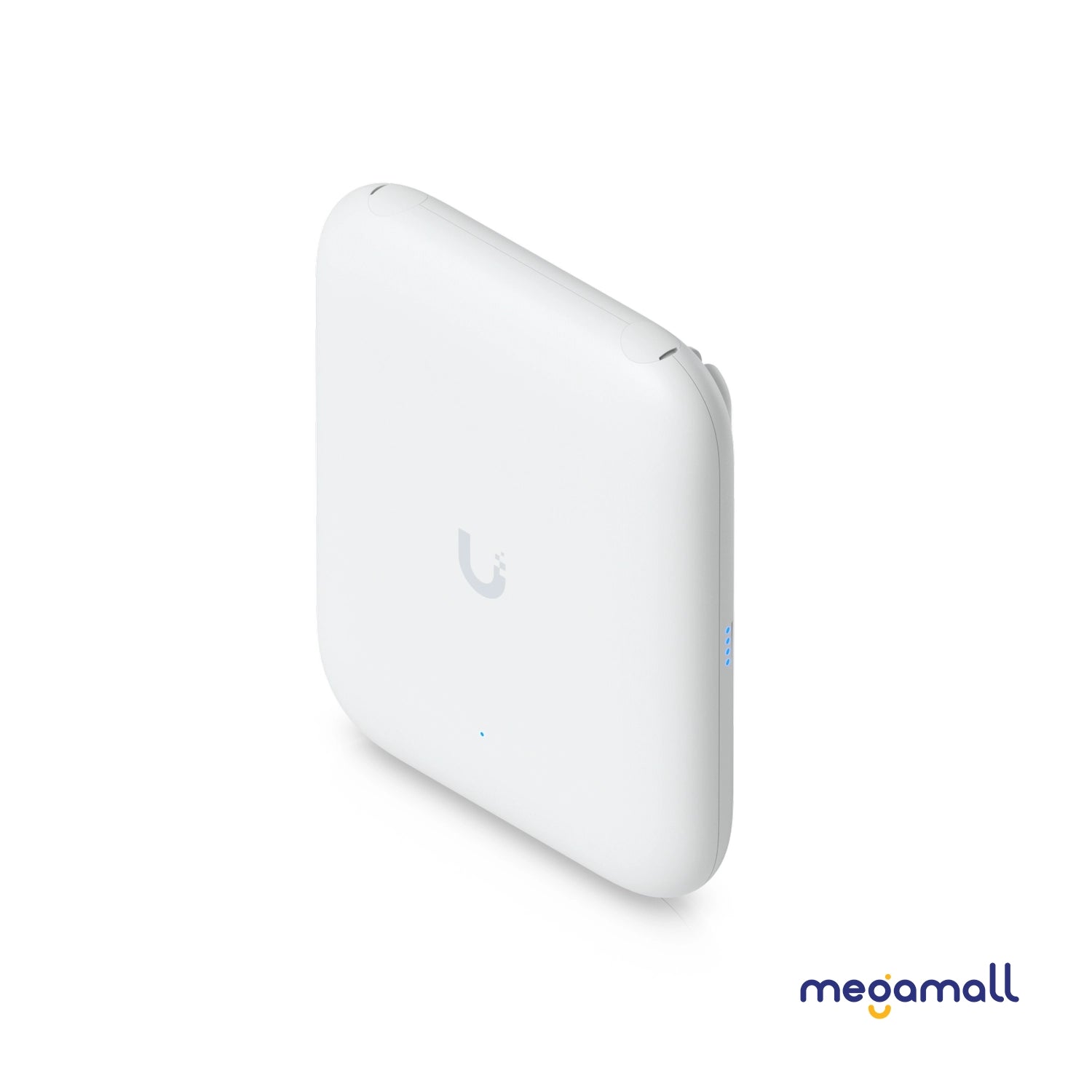

All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
Note. The latest Network EA version 9.2.79 should be used for the best 6 GHz AFC setup experience. 6 GHz operation is supported in these countries. Long-range 6 GHz performance with AFC available in FCC/IC region only.
|
Overview |
||
|
Dimensions |
Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
|
|
WiFi Standard |
WiFi 7 |
|
|
Spatial Streams |
6 |
|
|
Coverage Area |
465 m² (5,000 ft²) |
|
|
Max. Client Count |
300+ |
|
|
Uplink |
2.5 GbE |
|
|

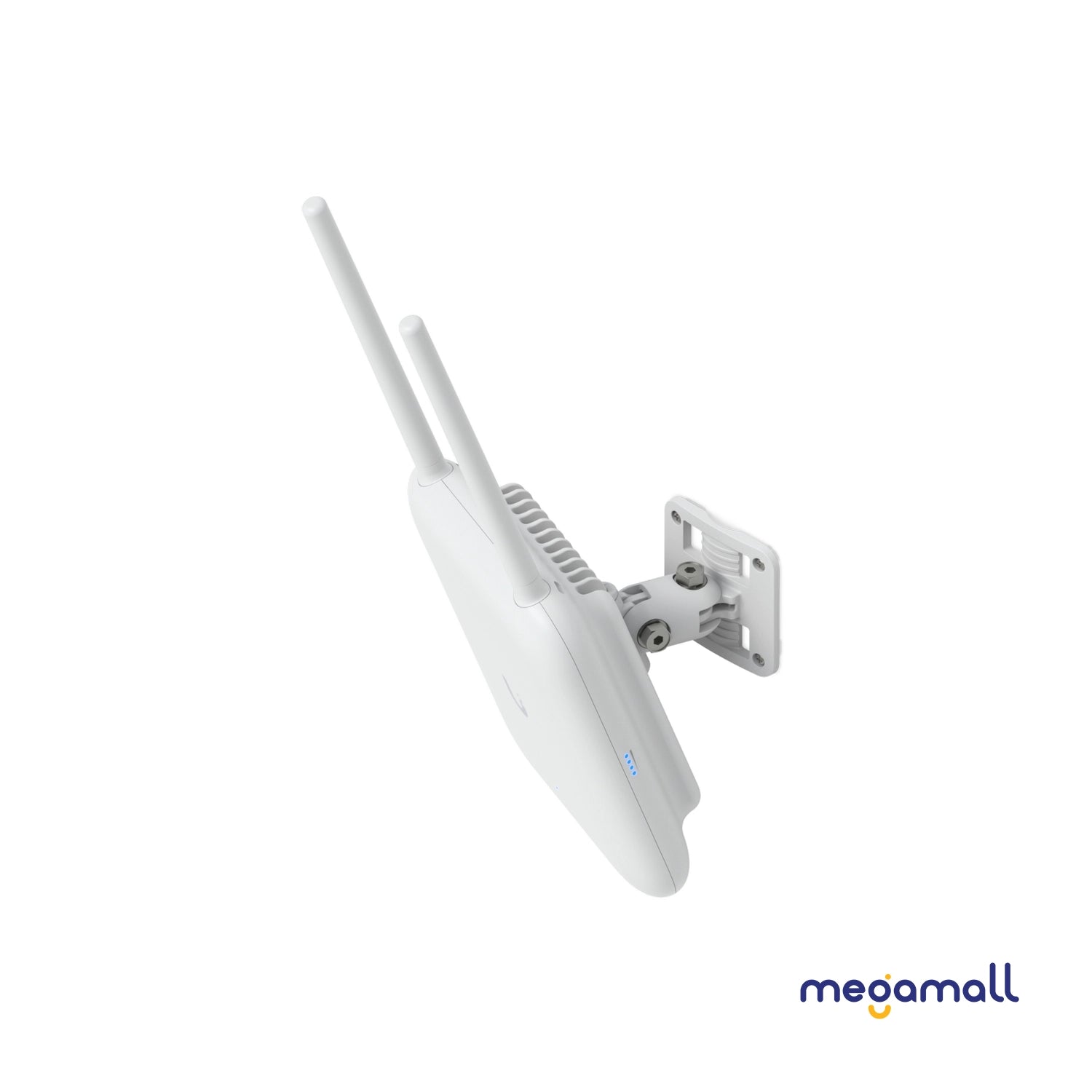

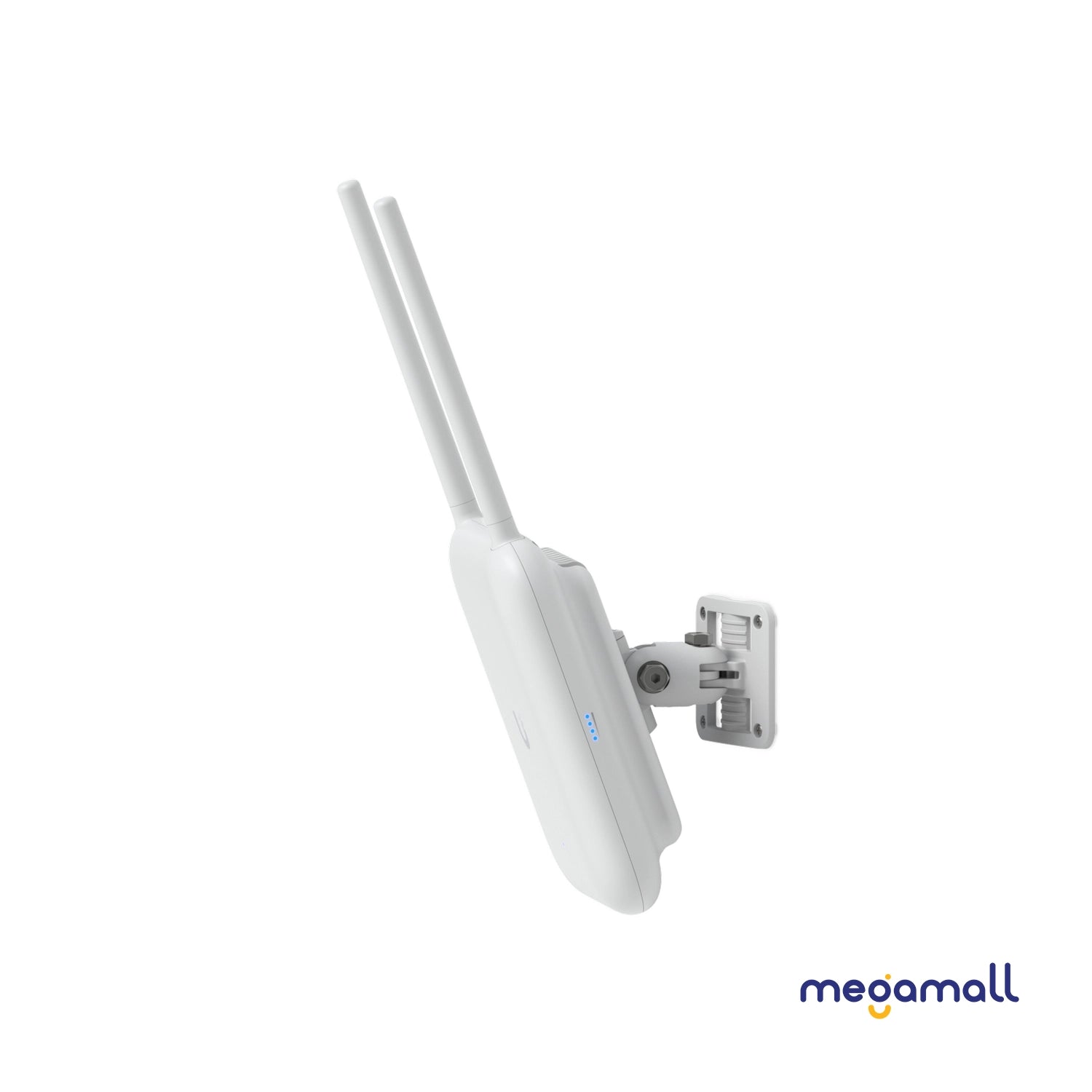

Mounting |
Wall, Pole (Mounts Included) |
|
|
Weatherproofing |

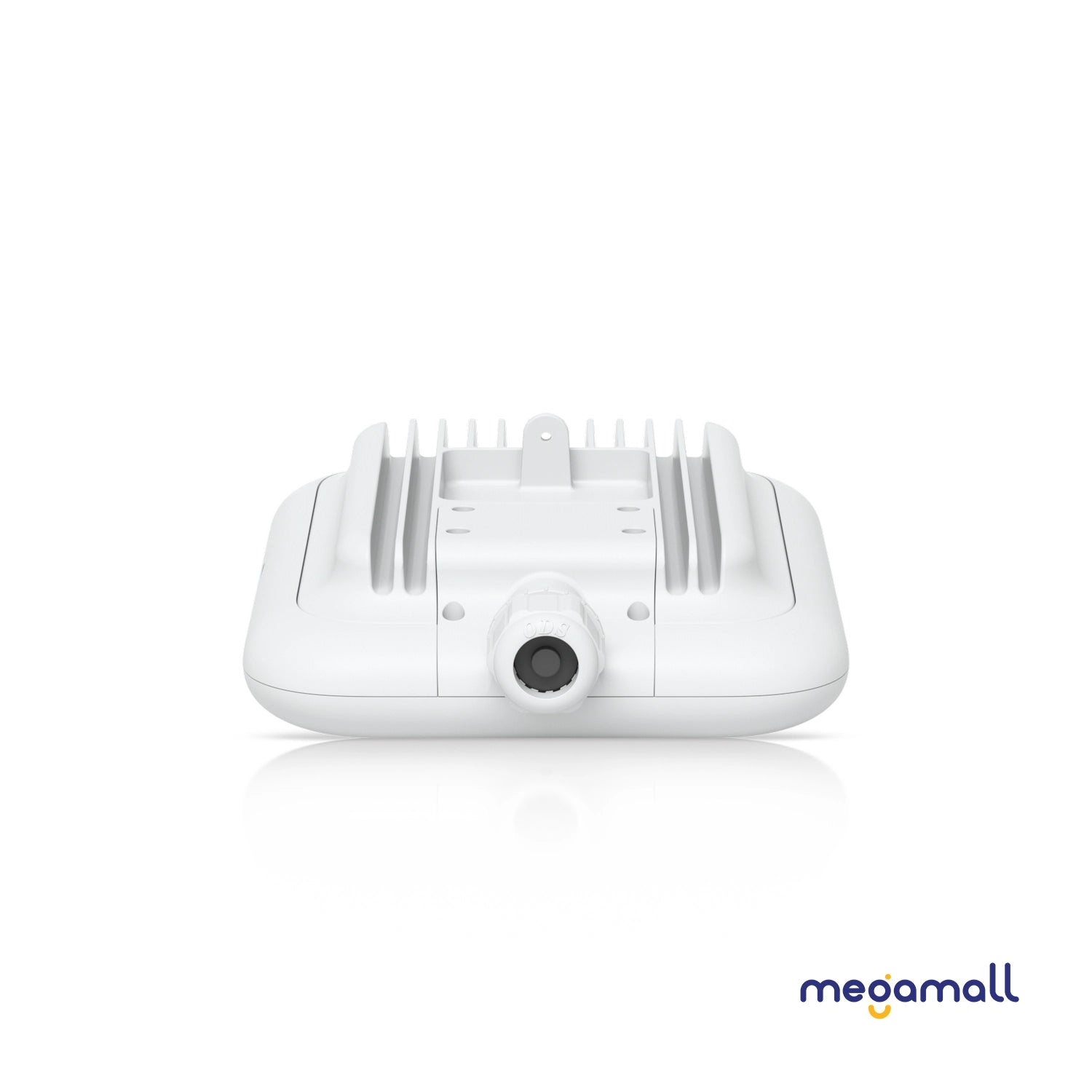

IPX6 IP67 (With cable-gland door kit) |
|
|
Power Method |
PoE+ |
|
|
Performance |
||
|
MIMO |
||
|
6 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
5 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
Max. Data Rate |
||
|
6 GHz |
5.8 Gbps (BW320) |
|
|
5 GHz |
4.3 Gbps (BW240) |
|
|
2.4 GHz |
688 Mbps (BW40) |
|
|
Antenna Gain |
||
|
6 GHz |
Directional internal: 10 dBi, 90° x 45° |
|
|
5 GHz |

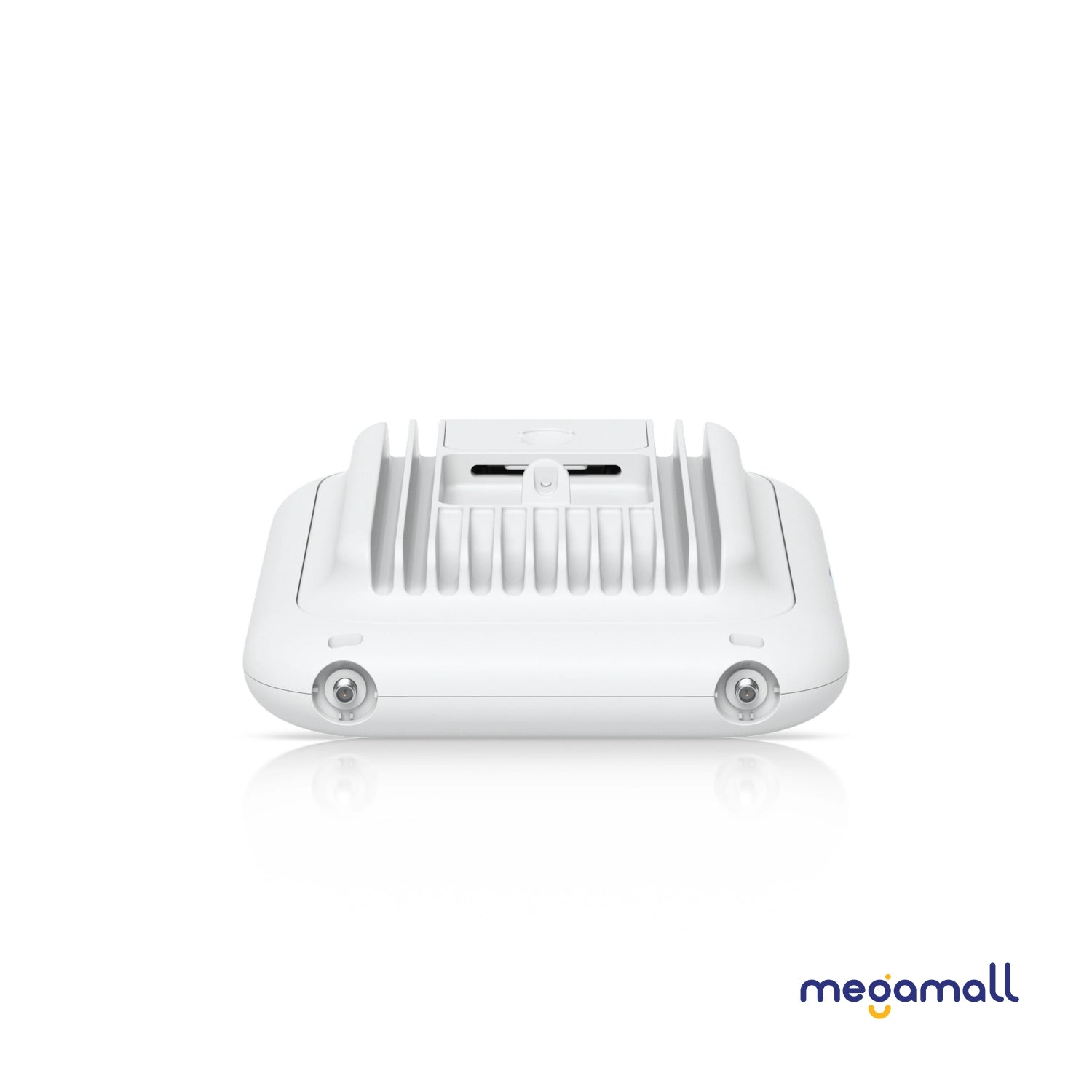

Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15° |
|
|
2.4 GHz |
Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15° |
|
|
Max. TX Power |
||
|
6 GHz |
26 dBm |
|
|
5 GHz |
26 dBm |
|
|
2.4 GHz |
23 dBm |
|
|
Max. BSSIDs |
8 per Radio |
|
|
Supported Data Rates |
||
|
802.11be (WiFi 7) |
7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
|
|
802.11ax (WiFi 6/6E) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
|
|
802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
Features |
||
|
Wireless Meshing |
✓ |
|
|
Band Steering |
✓ |
|
|
802.11v BSS Transition Management |
✓ |
|
|
802.11r Fast Roaming |
✓ |
|
|
802.11k Radio Resource Management (RRM) |
✓ |
|
|
Advanced Radio Management |
✓ |
|
|
Passpoint (Hotspot 2.0) |
✓ |
|
|
Captive Hotspot Portal |
||
|
Custom Branding Landing Page |
✓ |
|
|
Voucher Authentication |
✓ |
|
|
Payment-Based Authentication |
✓ |
|
|
External Portal Server Support |
✓ |
|
|
Password Authentication |
✓ |
|
|
Guest Network Isolation |
✓ |
|
|
Private Pre-Shared Key (PPSK) |
✓ |
|
|
WiFi Speed Limiting |
✓ |
|
|
Client Device Isolation |
✓ |
|
|
WiFi Schedules |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Dynamic RADIUS-assigned VLAN |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
21W |
|
|
Supported Voltage Range |
42.5—57V DC |
|
|
Networking Interface |

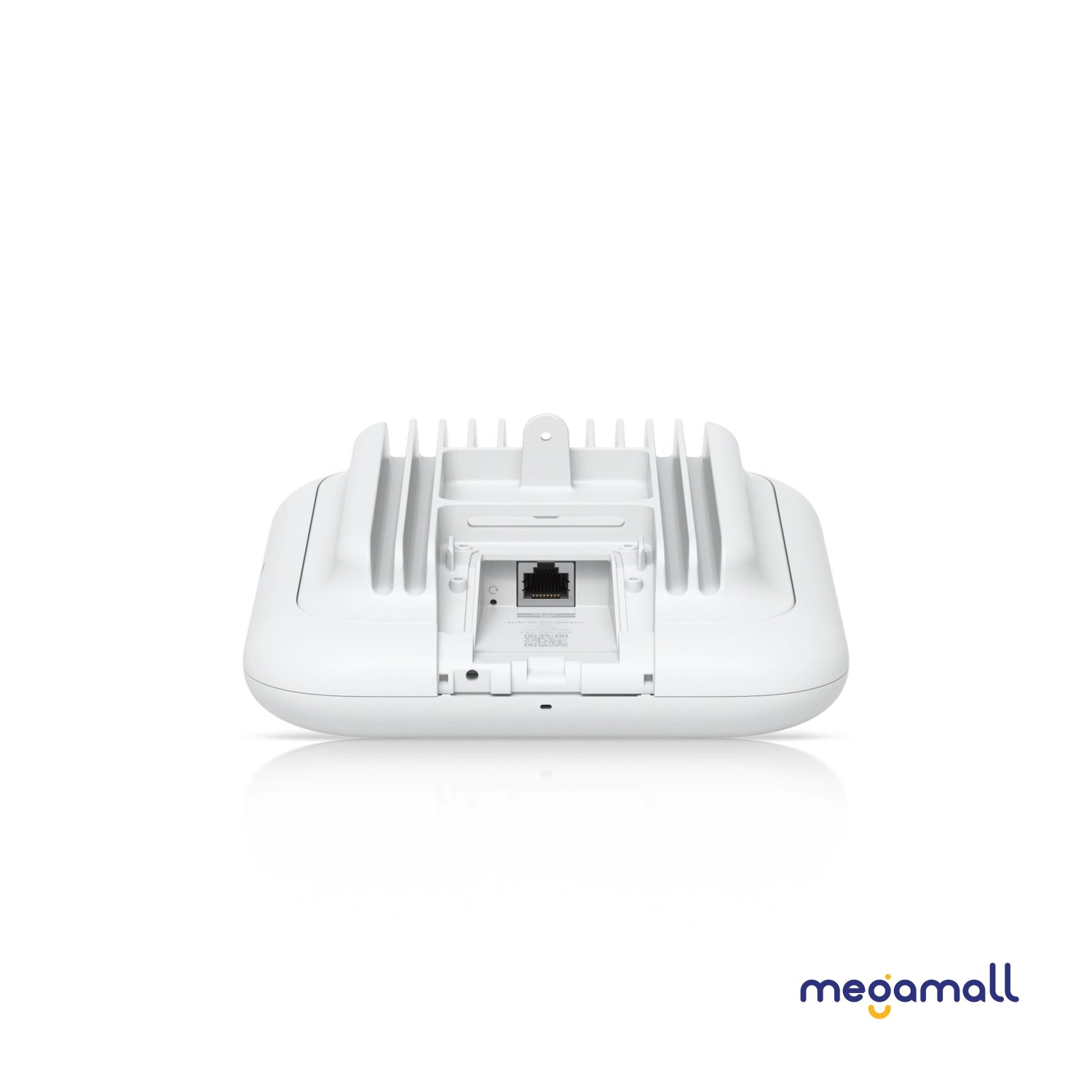

(1) 1/2.5 GbE RJ45 port |
|
|
Weight |
Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
|
|
Wind Loading |
74.6 N at 200 km/h (16.8 lbf at 125 mph) |
|
|

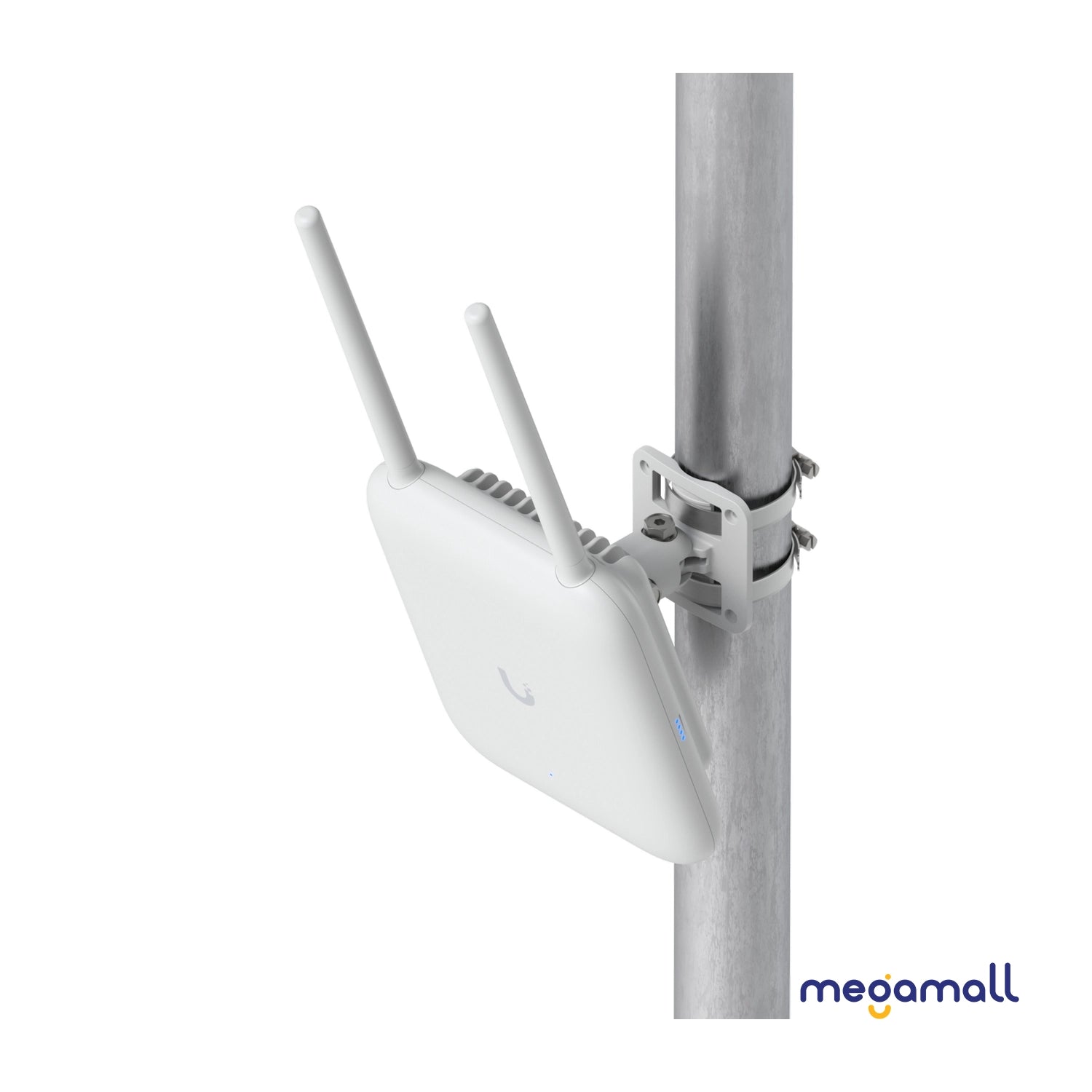

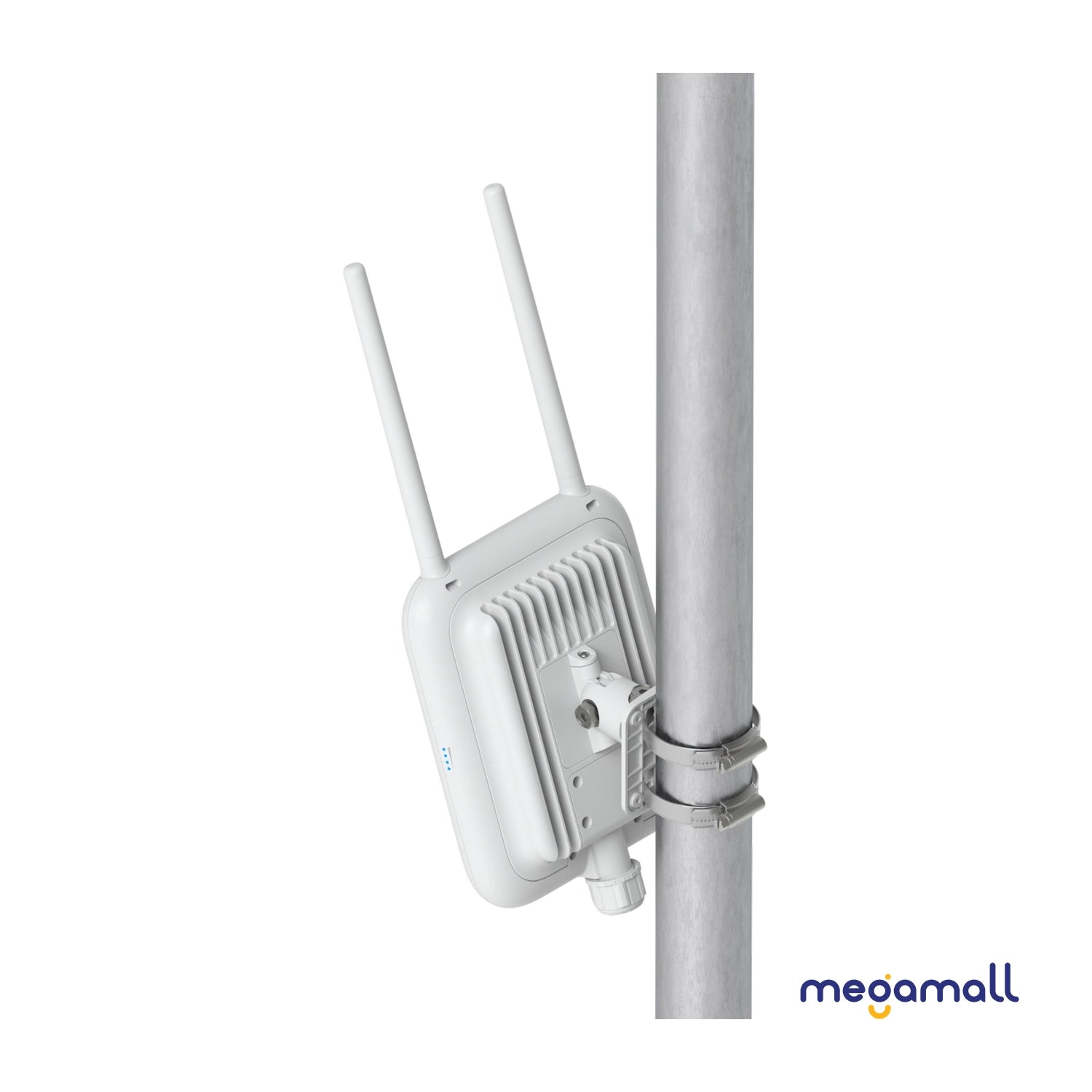

Pole Mount Diameter |
1–2.5" (25–63.5 mm) |
|
|
Management |
Ethernet |
|
|
Enclosure Material |
UV-stabilized polycarbonate, aluminum alloy |
|
|
Mount Material |
UV-stabilized polycarbonate |
|
|
LEDs |
||
|
System |

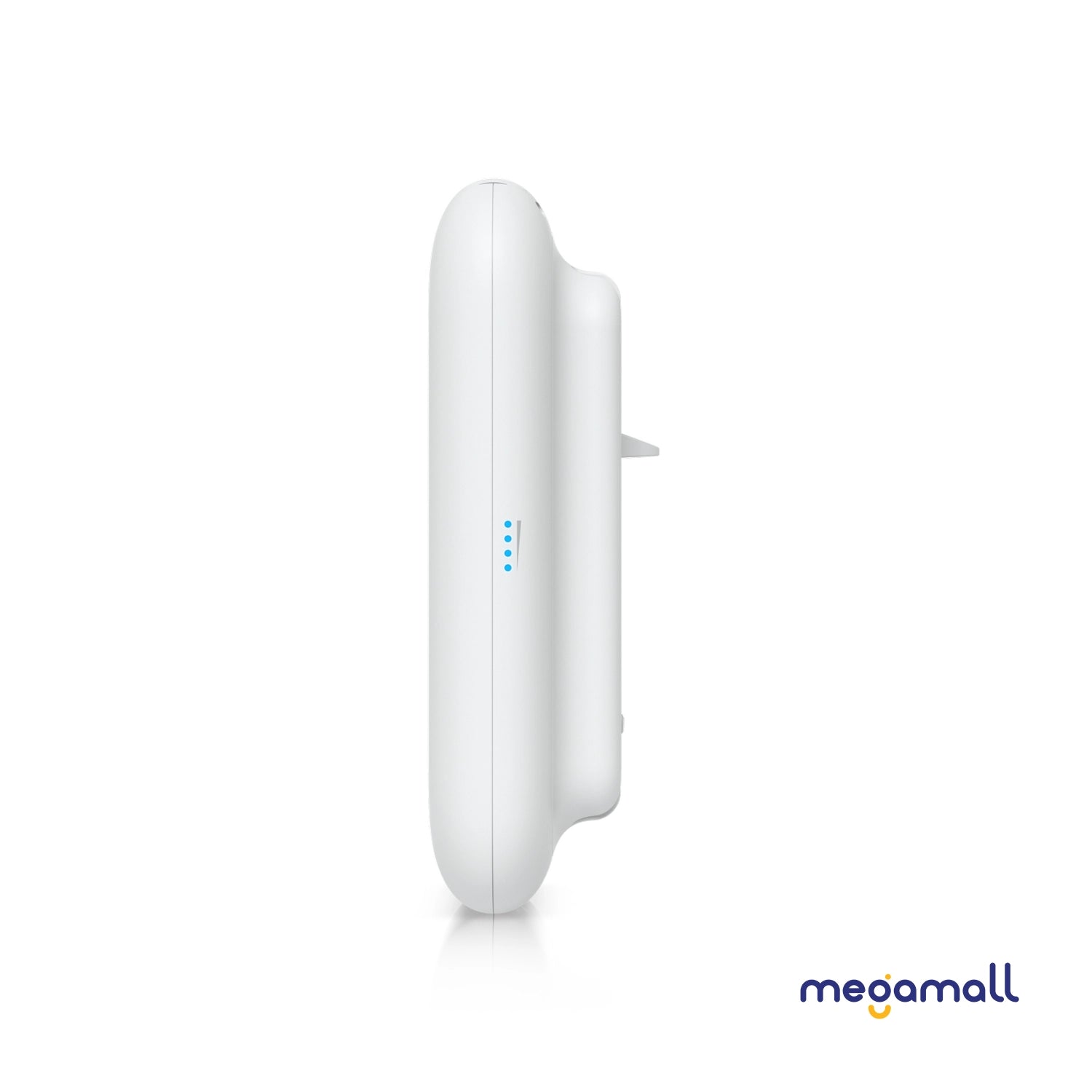

(1) Power: White/Blue (4) Mesh signal: Blue |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
FCC, IC |
|
|
Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 9.0.114 and later |
|
|
Mobile App |
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
|
