Description

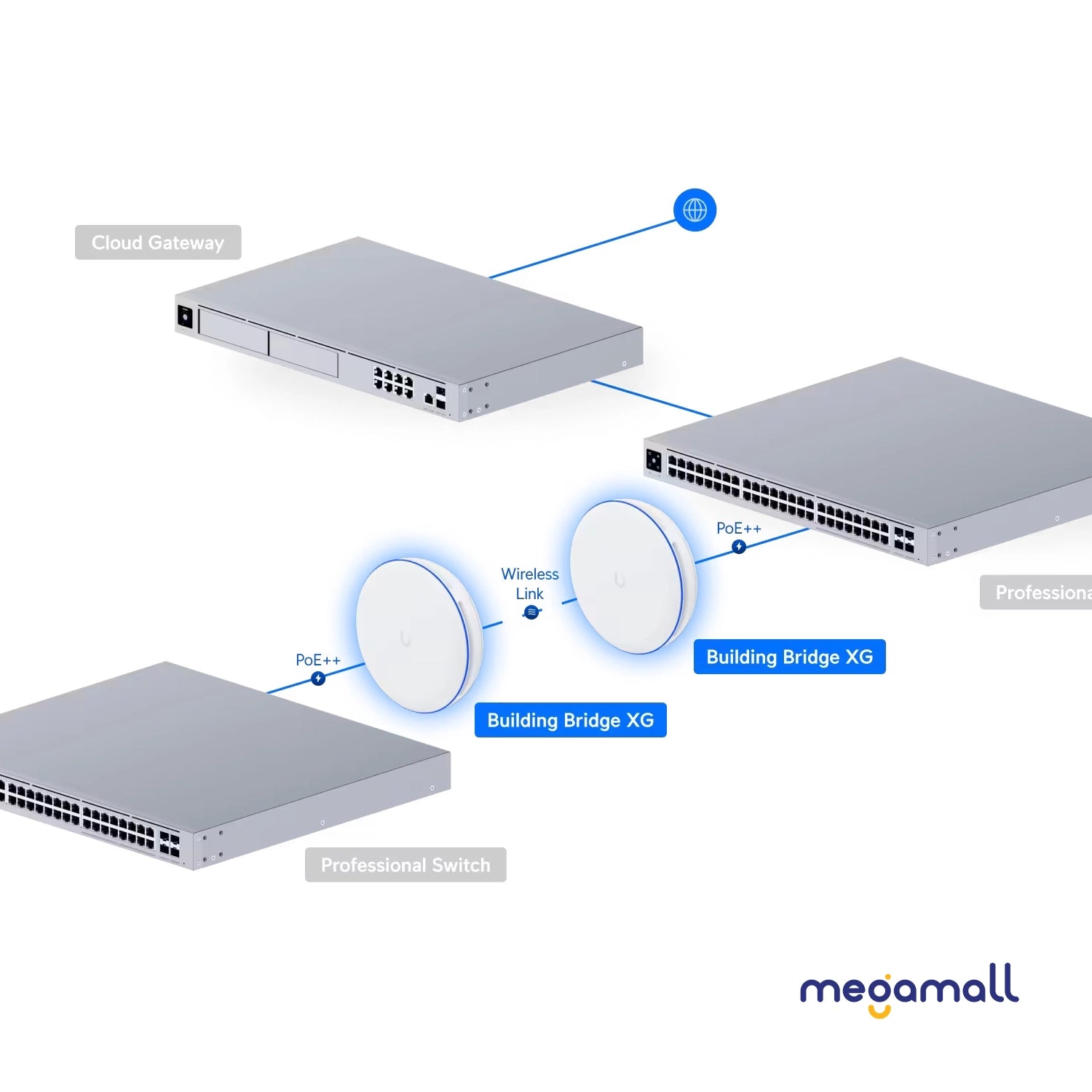

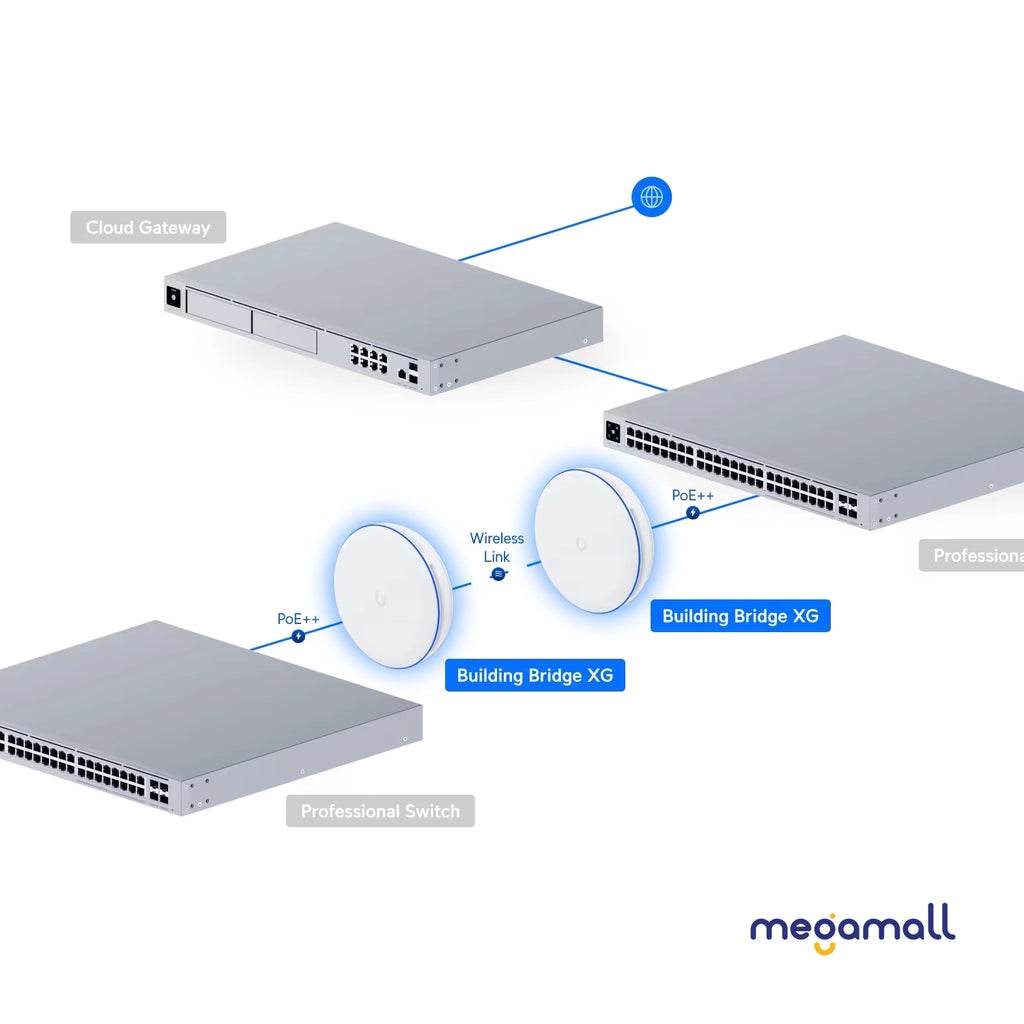

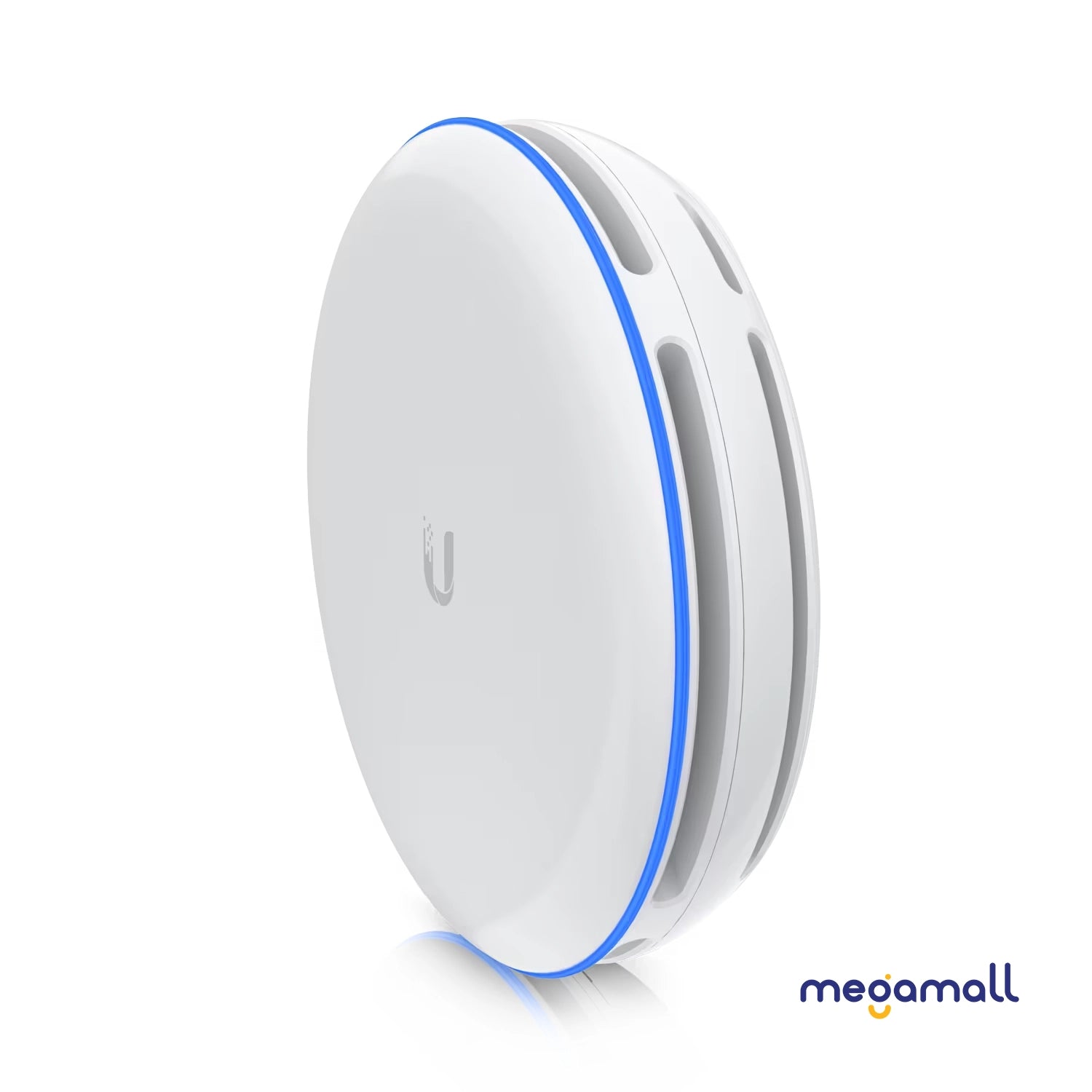

A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.
Note: Building Bridge is paired out of the box. Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Includes (2) PoE power adapters.
|
Overview |
||
|

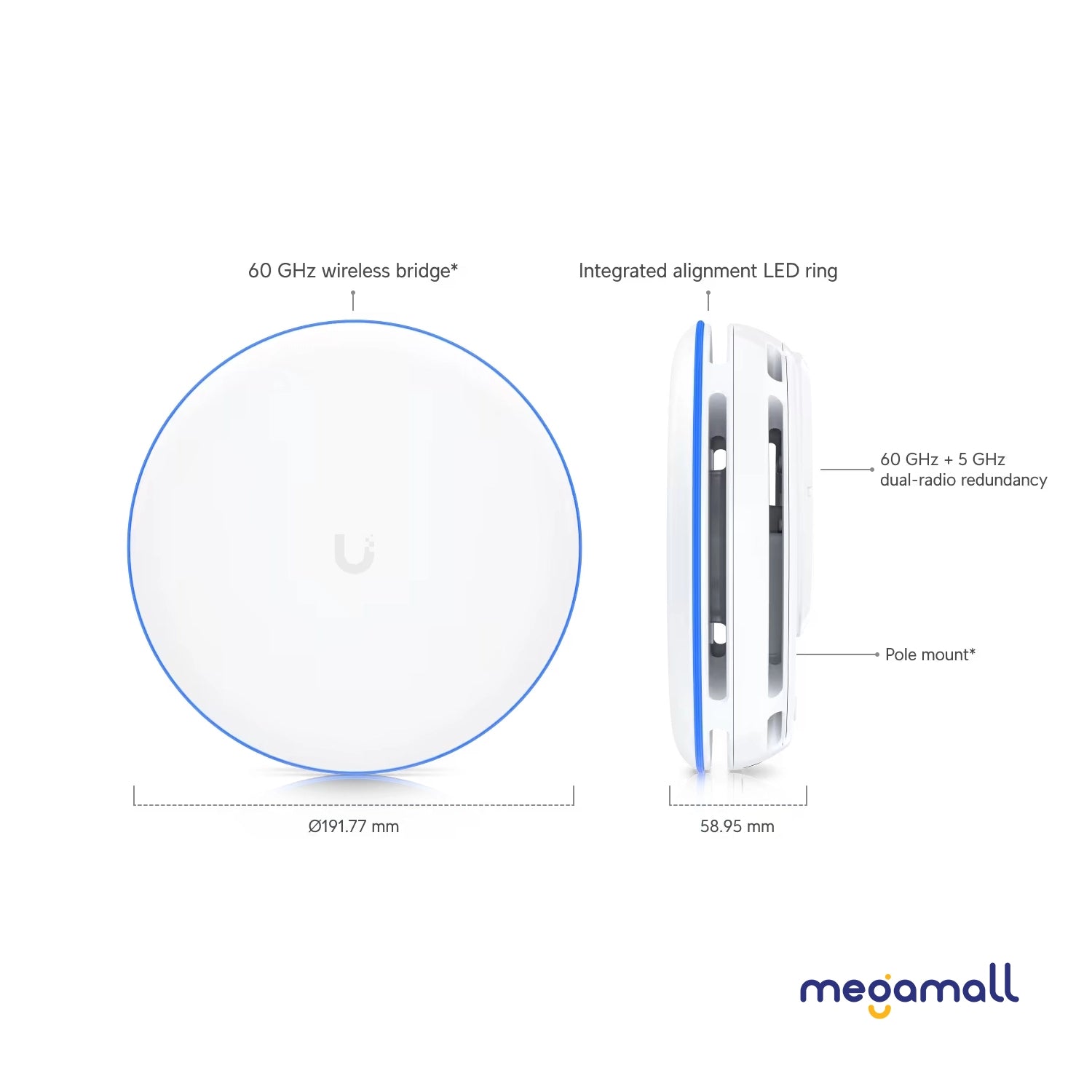

Dimensions |
Ø191.8 x 59 mm (Ø7.6 x 2.3") |
|
|
WiFi Standard |
WiFi 5 |
|
|
Spatial Streams |
2 |
|
|
Coverage Area |
500 m (1,640 ft) |
|
|
Mounting Locations |
Wall, pole |
|
|
Weatherproofing |
IPX6 |
|
|
Power Method |
PoE++ Passive PoE |
|
|
Performance |
||
|
MIMO |
||
|
5 GHz |
2 x 2 (DL MU-MIMO) |
|
|
Max. Data Rate |
||
|
60 GHz |
6 Gbps |
|
|
5 GHz |
866.6 Mbps (BW80) |
|
|
Antenna Gain |
||
|
60 GHz |
21 dBi |
|
|
5 GHz |
14 dBi |
|
|
2.4 GHz |
2 dBi (BLE) |
|
|
Max. TX Power |
||
|
60 GHz |
16 dBm |
|
|
5 GHz |
23 dBm |
|
|
Supported Data Rates |
||
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
802.11ac (WiFi 5) |
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
|
|
Wireless Security |
WPA2 AES |
|
|
Hardware |
||
|
Max. Power Consumption |
||
|
29W |
||
|
Includes PoE Adapter |
✓ |
|
|
Supported Voltage Range |
48V DC ± 10% |
|
|

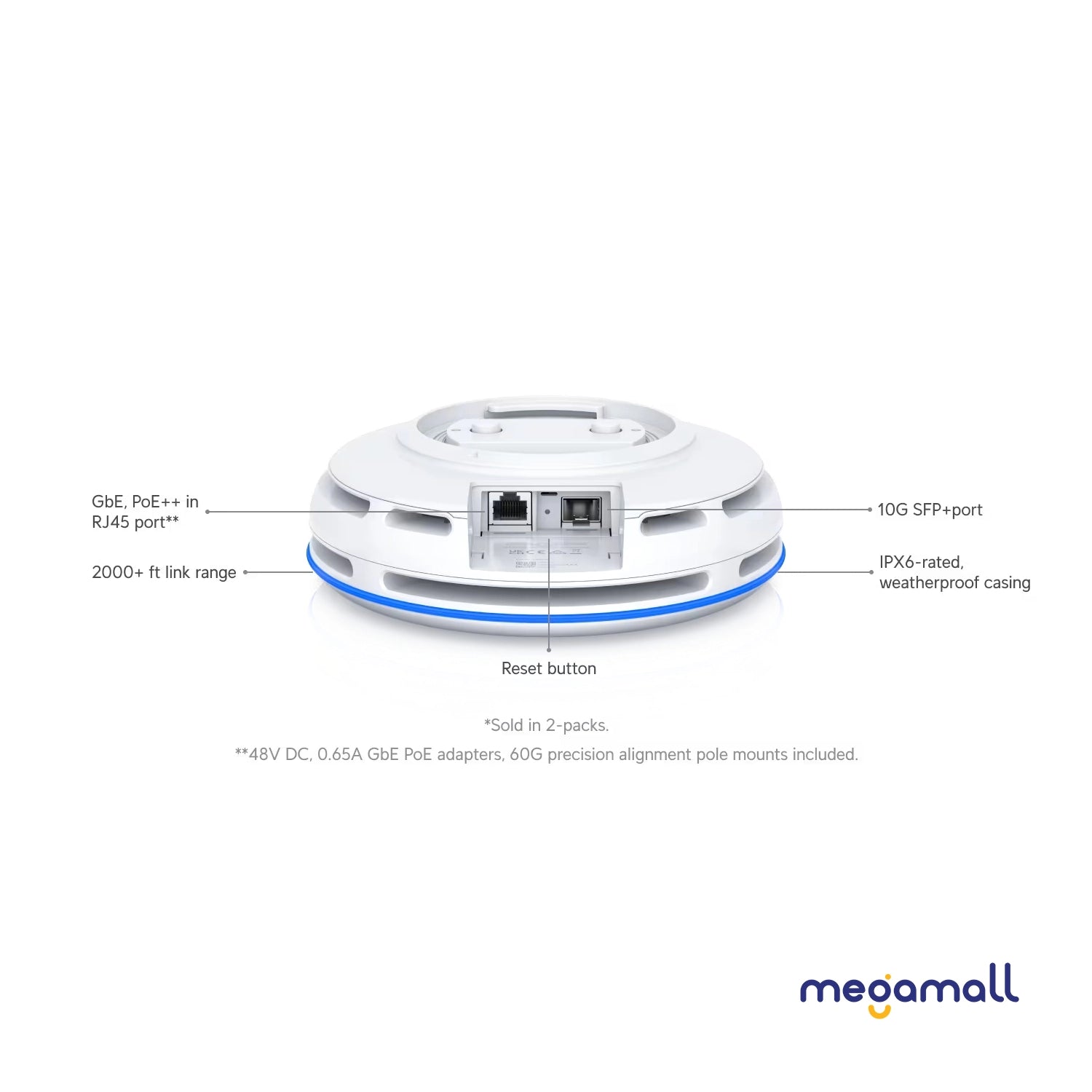

Networking Interface |

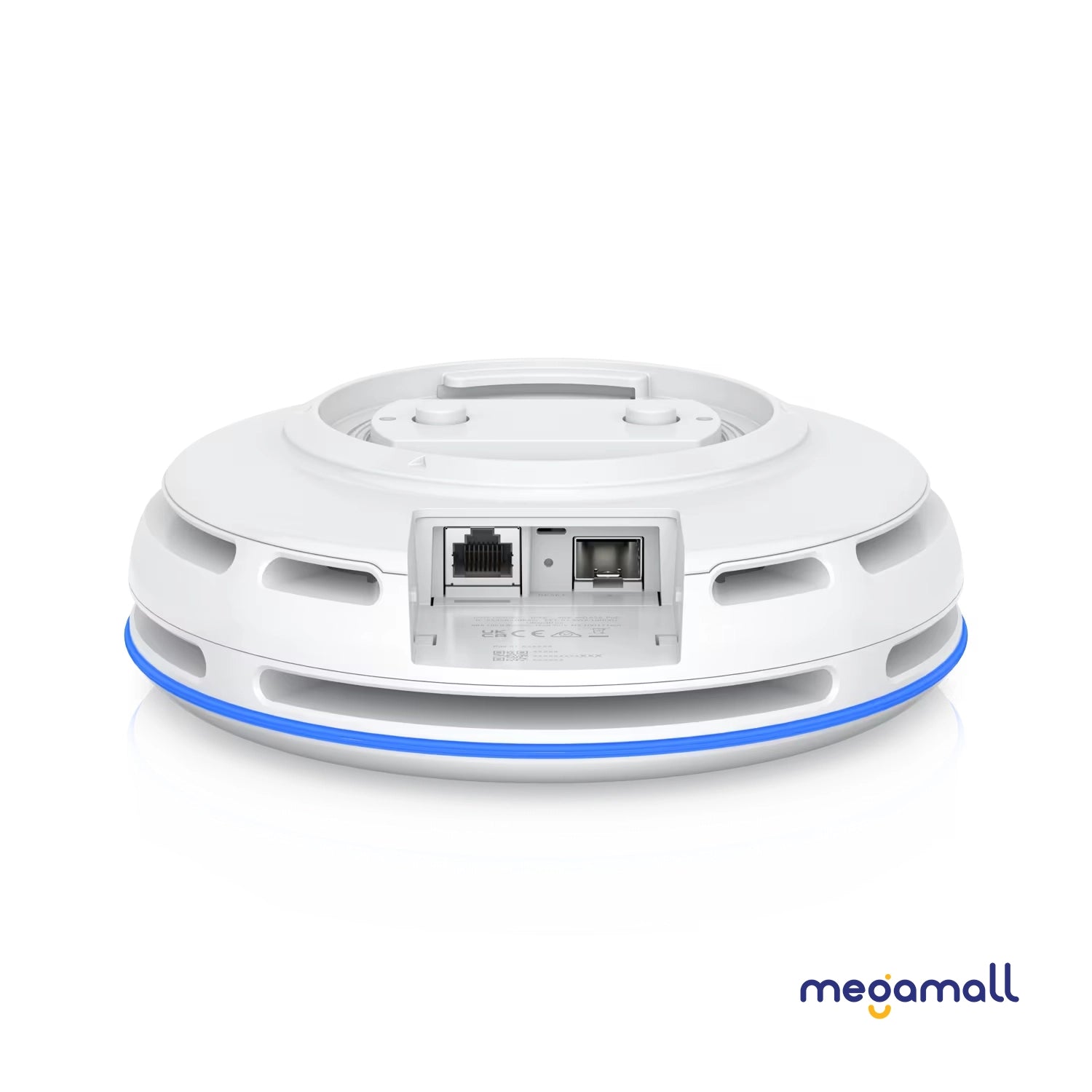

(1) GbE RJ45 port (1) 1/10G SFP+ port |
|
|
Weight |
Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
|
|
Operating Modes |
PtP |
|
|
Wind Loading |
56 N at 200 km/h (12.6 lbf at 125 mph) |
|
|

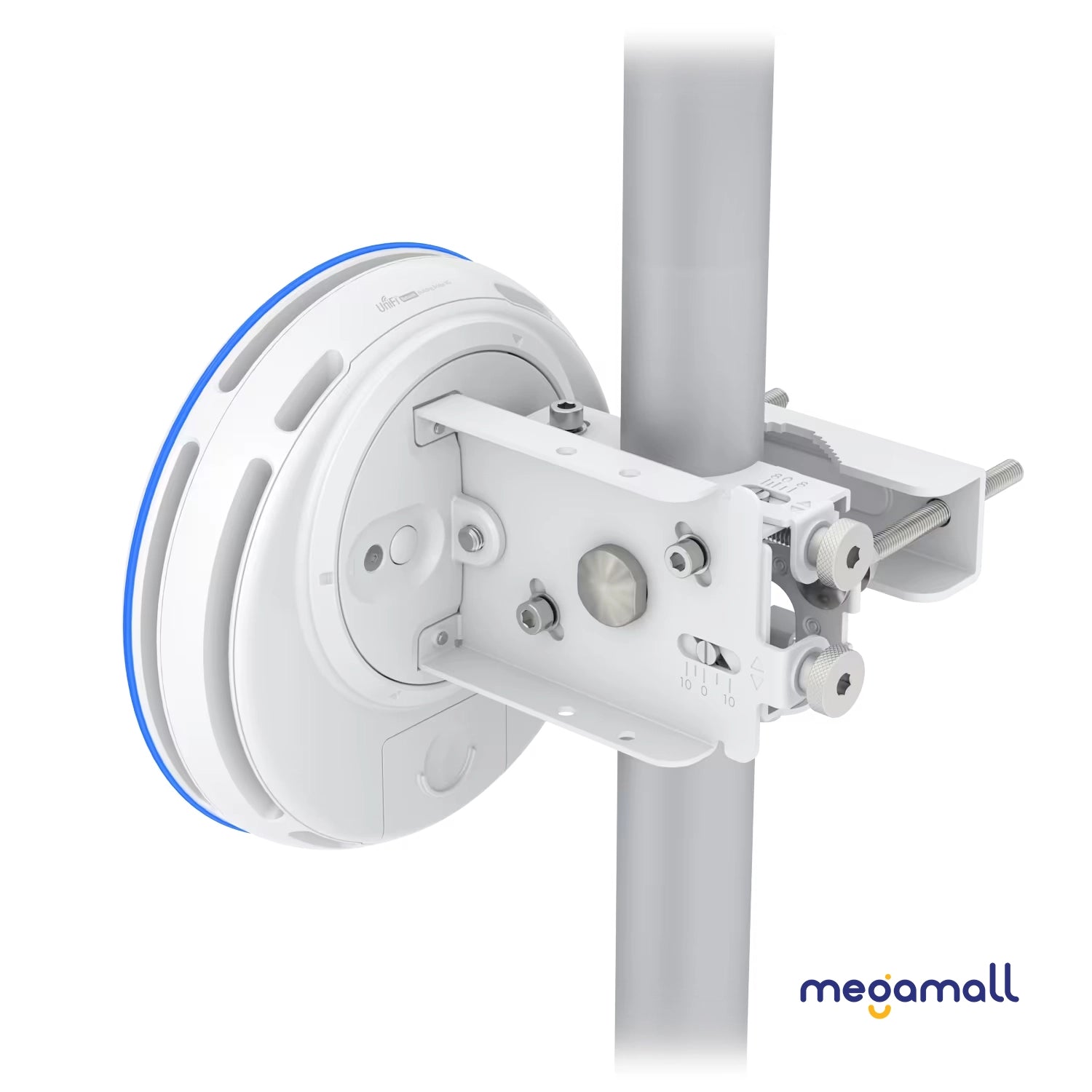

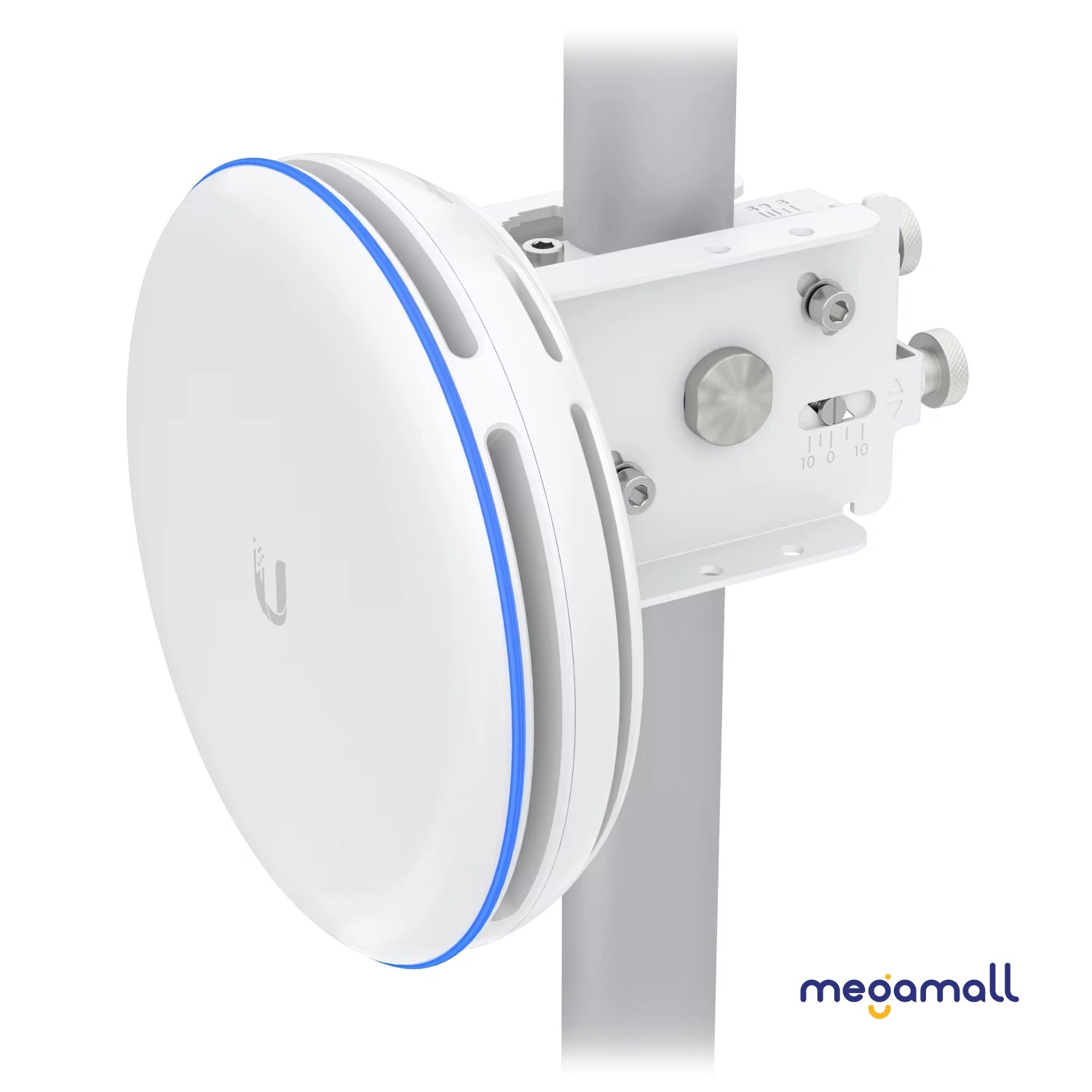

Pole Mount Diameter |
1–2.5" (25–63.5 mm) |
|
|
Management |
Ethernet Bluetooth |
|
|
Channel Bandwidth |
Main radio (60 GHz) : 2,160/4,320 (MHz) Backup radio (5 GHz) : HT 20/40, VHT 20/40/80 (MHz) |
|
|
Enclosure Material |
Aluminum alloy, UV-resistant polycarbonate |
|
|
Mount Material |
Stainless steel |
|
|
Button |
(1) Factory-reset |
|
|
LEDs |
||
|
System |
R/G/B |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, terragraph |
|
|
Operating Frequency |
Main radio (60GHz): 57 - 66 GHz Backup radio (5GHz): US/CA U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide 5150 - 5725 MHz |
|
|
Bluetooth (MHz) |
Worldwide: 2,400 - 2,483.5 |
|
|
Ambient Operating Temperature |
-40 to 55° C (-40 to 131° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
