Description
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.
|
Overview |
||
|
Dimensions |
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
|
|
UniFi Application Suite |
||
|
Network |
✓ |
|
|
Protect |
✓ |
|
|
Access |
✓ |
|
|
Talk |
✓ |
|
|
Connect |
✓ |
|
|
Managed UniFi Devices |
30+ |
|
|
Managed Cameras |
(15) HD (8) 2K (5) 4K |
|
|
Simultaneous Users Connected |
300+ |
|
|
Max. WAN Port Count |
4 |
|
|
Default WAN Ports |
(1) 2.5 GbE RJ45 |
|
|

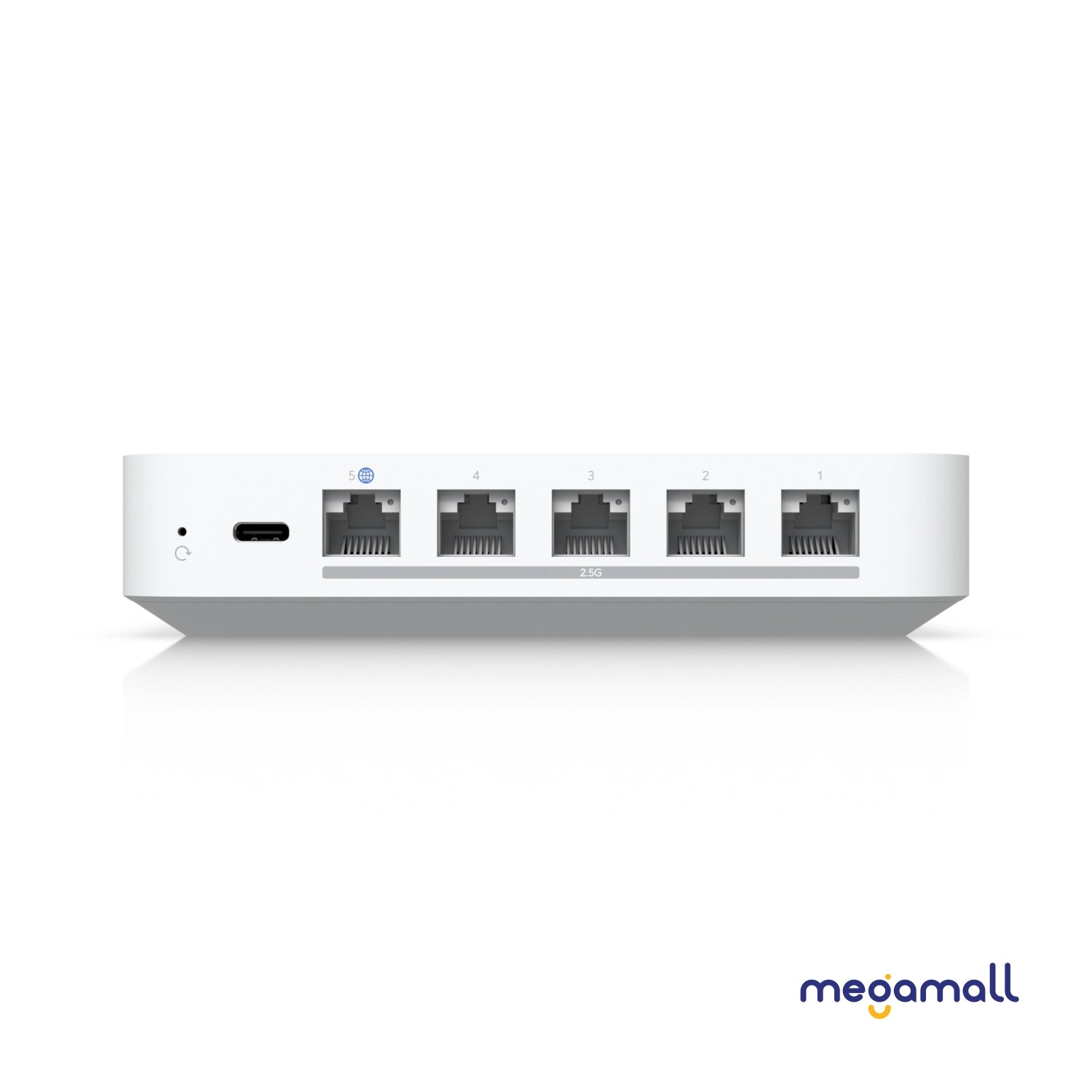

Port Layout |
2.5 GbE RJ45 |
|
|
5 (2.5G/1G/100M/10M) |
IDS/IPS Throughput |
|
|
2.3 Gbps |
Form Factor |
|
|
Compact desktop |
||
|
Security |
||
|
Stateful Firewall |
✓ |
|
|
Application-Aware Layer 7 Firewall |
✓ |
|
|
DPI & Traffic Identification |
✓ |
|
|
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
✓ |
|
|
Content Filtering |
✓ |
|
|
Intrusion Prevention (IPS/IDS) |
✓ |
|
|
Ad Blocking |
✓ |
|
|
IDS/IPS Signatures |
55,000+ with CyberSecure |
|
|
VLAN/Subnet-based Traffic Segmentation |
✓ |
|
|
VPN & SD-WAN |
||
|
License-Free SD-WAN |
✓ |
|
|
Site-to-Site VPN |
||
|
Site Magic |
✓ |
|
|
IPsec |
✓ |
|
|
OpenVPN |
✓ |
|
|
VPN Server |
||
|
Identity Endpoint One-Click VPN |
✓ |
|
|
Teleport Zero-Configuration VPN |
✓ |
|
|
WireGuard |
✓ |
|
|
OpenVPN |
✓ |
|
|
L2TP |
✓ |
|
|
VPN Client |
||
|
OpenVPN |
✓ |
|
|
WireGuard |
✓ |
|
|
Networking |
||
|
Multi-WAN Load Balancing |
✓ |
|
|
Dynamic Routing |
||
|
OSPF |
✓ |
|
|
Advanced QoS |
✓ |
|
|
Multicast DNS (mDNS) |
✓ |
|
|
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
✓ |
|
|
Integrated RADIUS Server |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Additional Internet Failover with UniFi LTE Backup |
✓ |
|
|
Internet Quality and Outage Reporting |
✓ |
|
|
MAC Address Table Size |
2000 |
|
|
Policy-based WAN and VPN Routing |
✓ |
|
|
Customizable DHCP Server |
✓ |
|
|
IPv6 ISP Support |
✓ |
|
|
IGMP Proxy |
✓ |
|
|
Hardware |
||
|

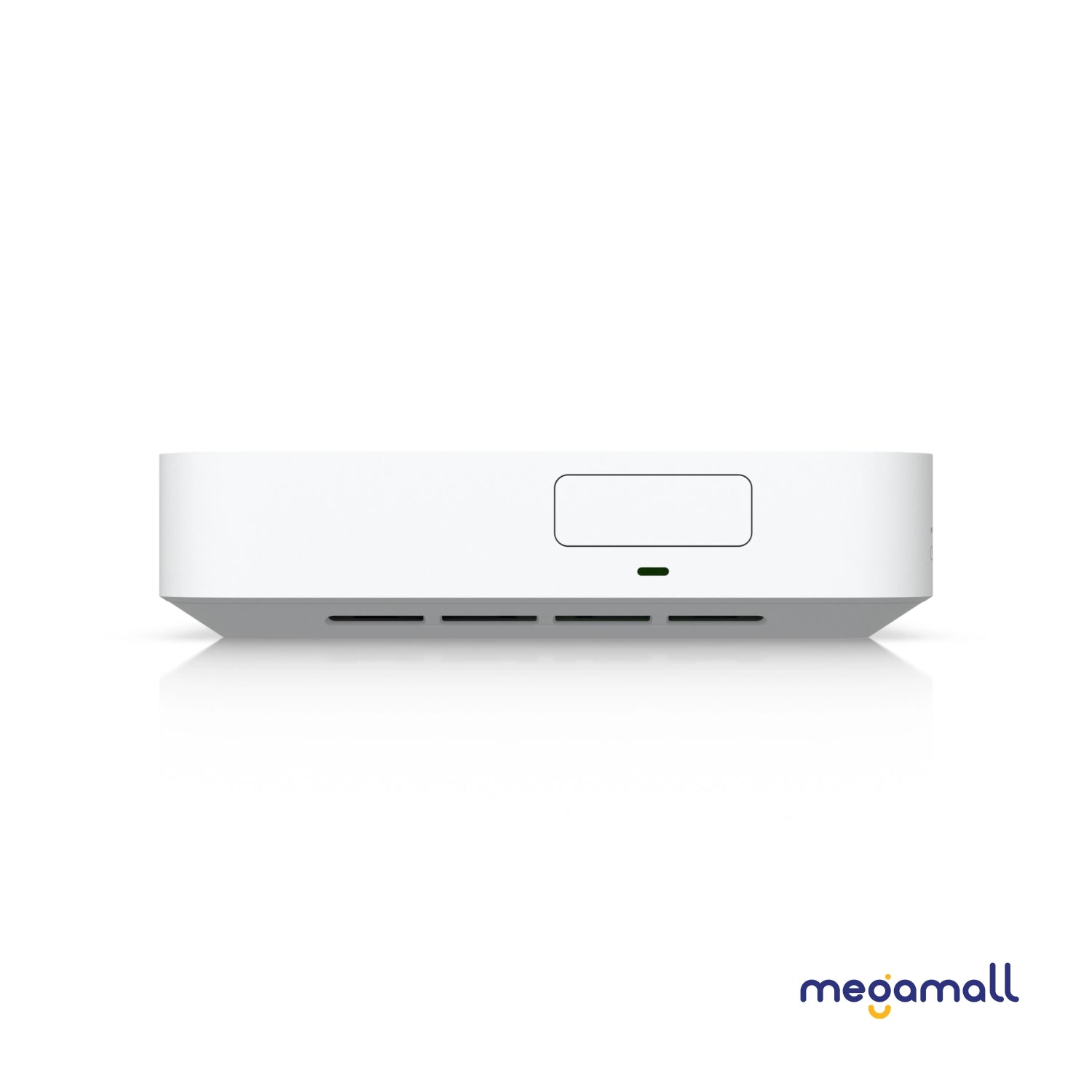

NVR Storage |
Selectable NVMe SSD up to 2 TB |
|
|
Max. Power Consumption |
16.1W |
|
|
Power Method |
USB type C (5V DC/5A) |
|
|
Power Supply |
USB type C (5V DC/5A) (Adapter included) |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
|
|
System Memory |
3 GB |
|
|
Weight |
Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb) |
|
|
Enclosure Material |
Polycarbonate |
|
|

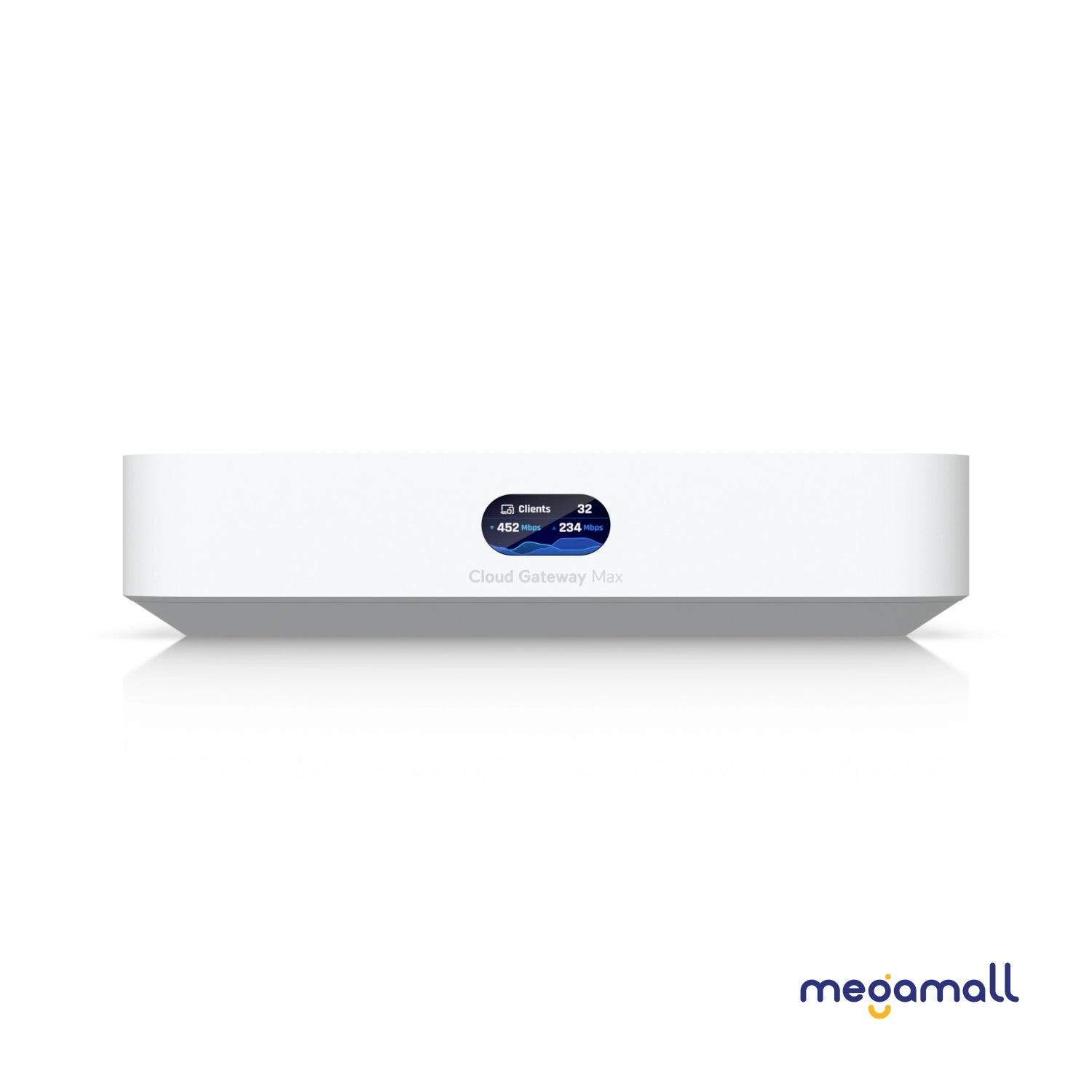

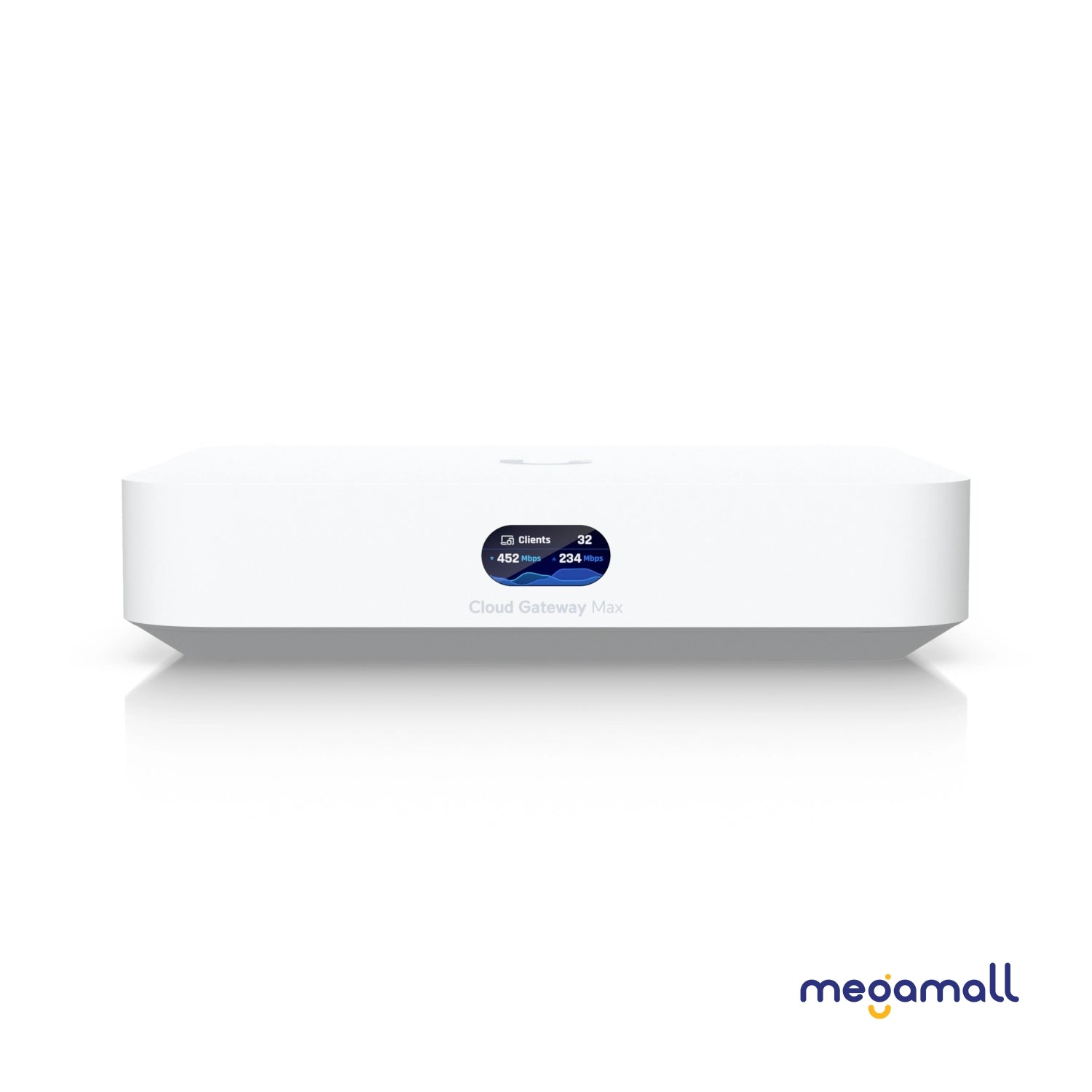

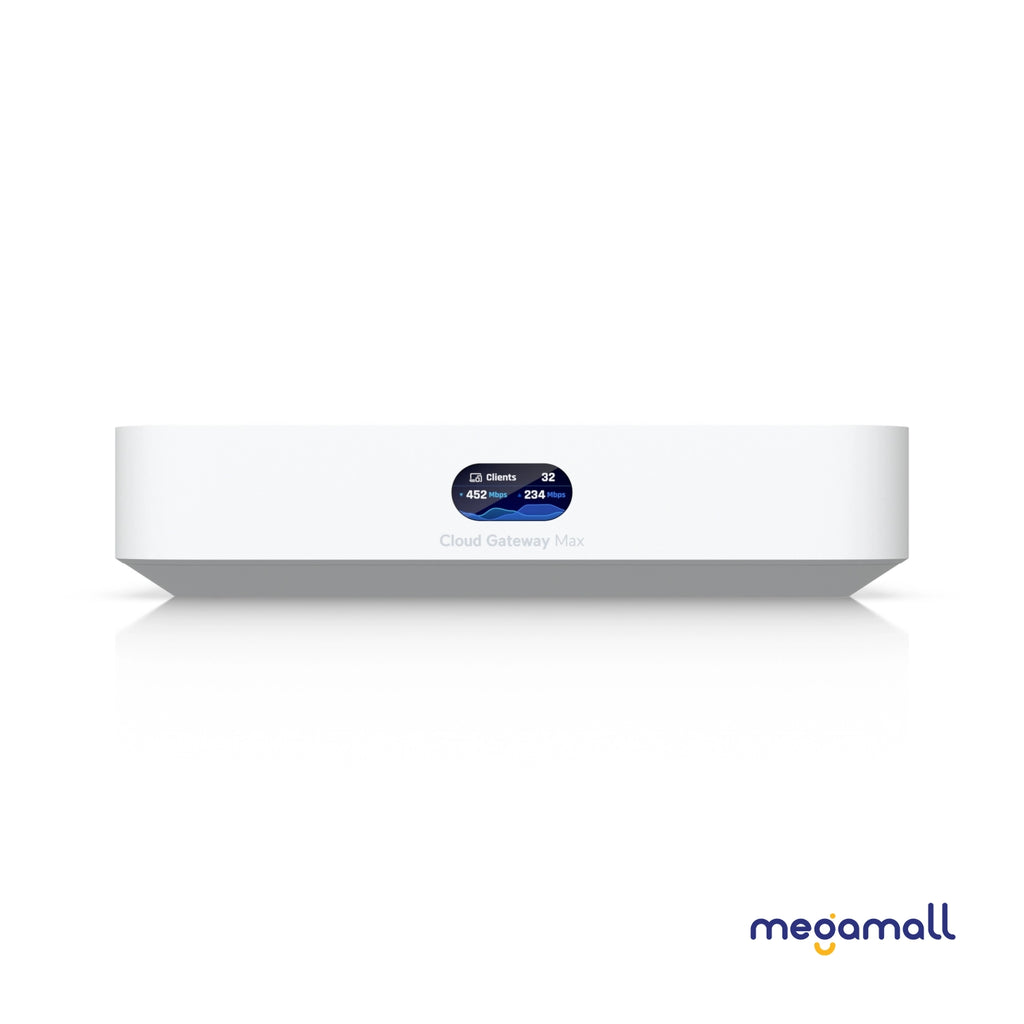

LCM Display |
0.96" status display |
|
|
Management |
Ethernet Bluetooth |
|
|
LEDs |
||
|
Ethernet |
✓ |
|
|
Button |
(1) Factory-reset |
|
|
ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
|
|
Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel, SRRC |
|
|
Software |
||
|
Application Requirements |
Mobile App |
|
