Description

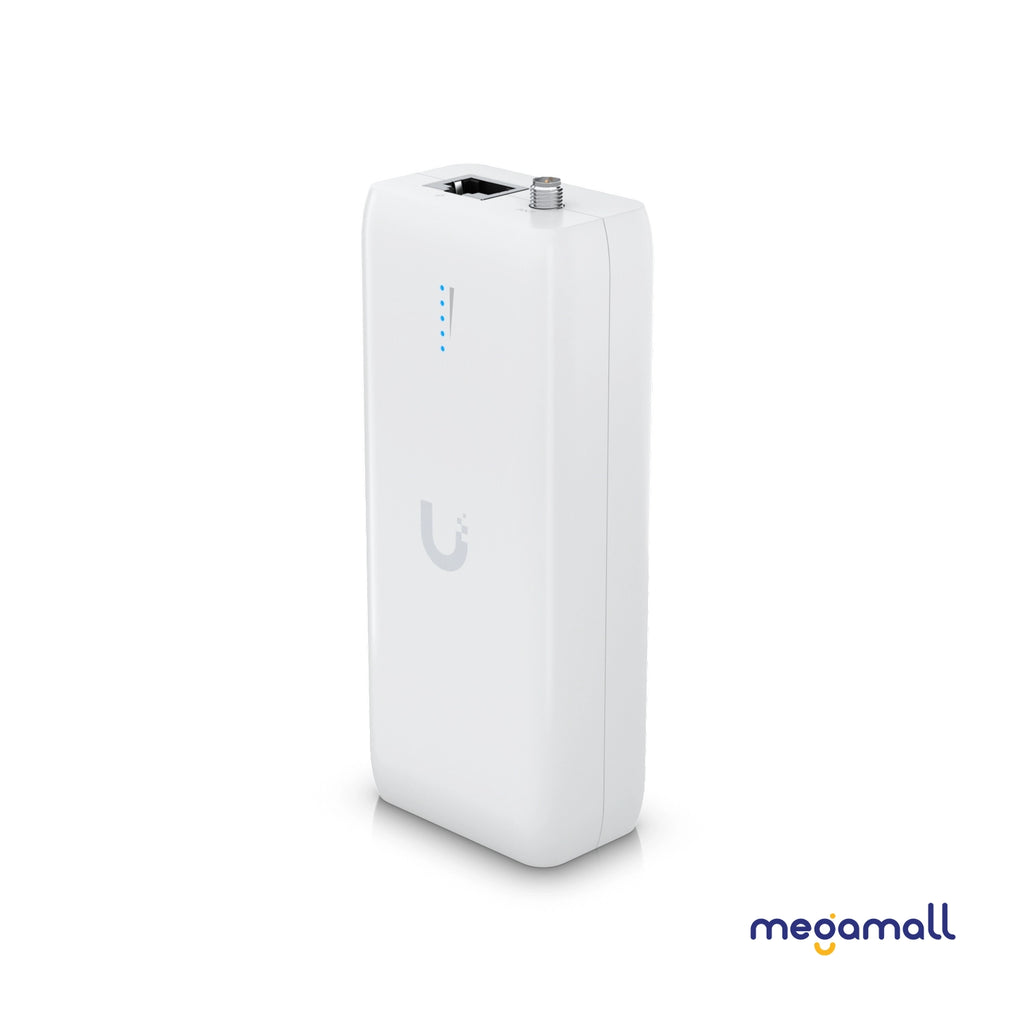

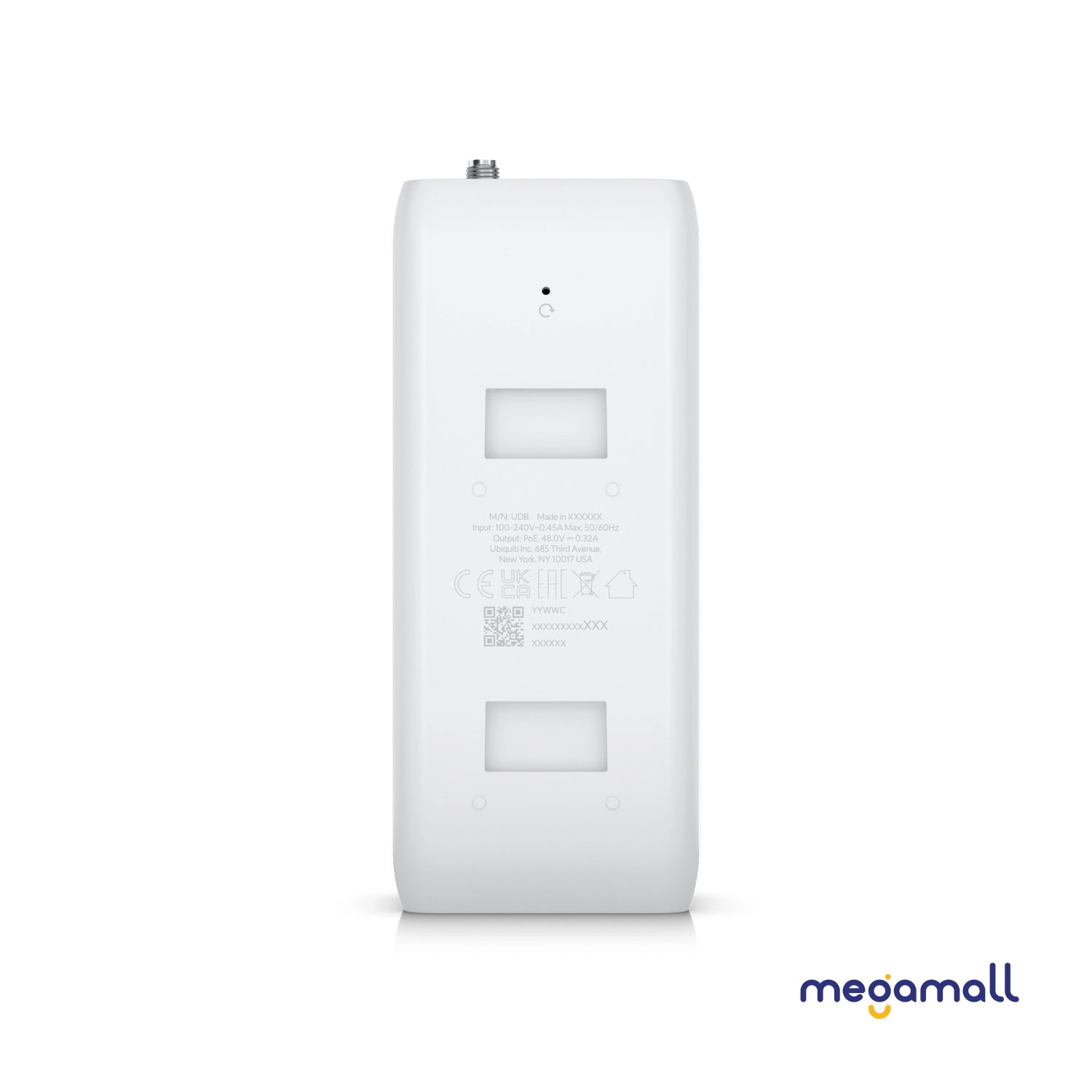

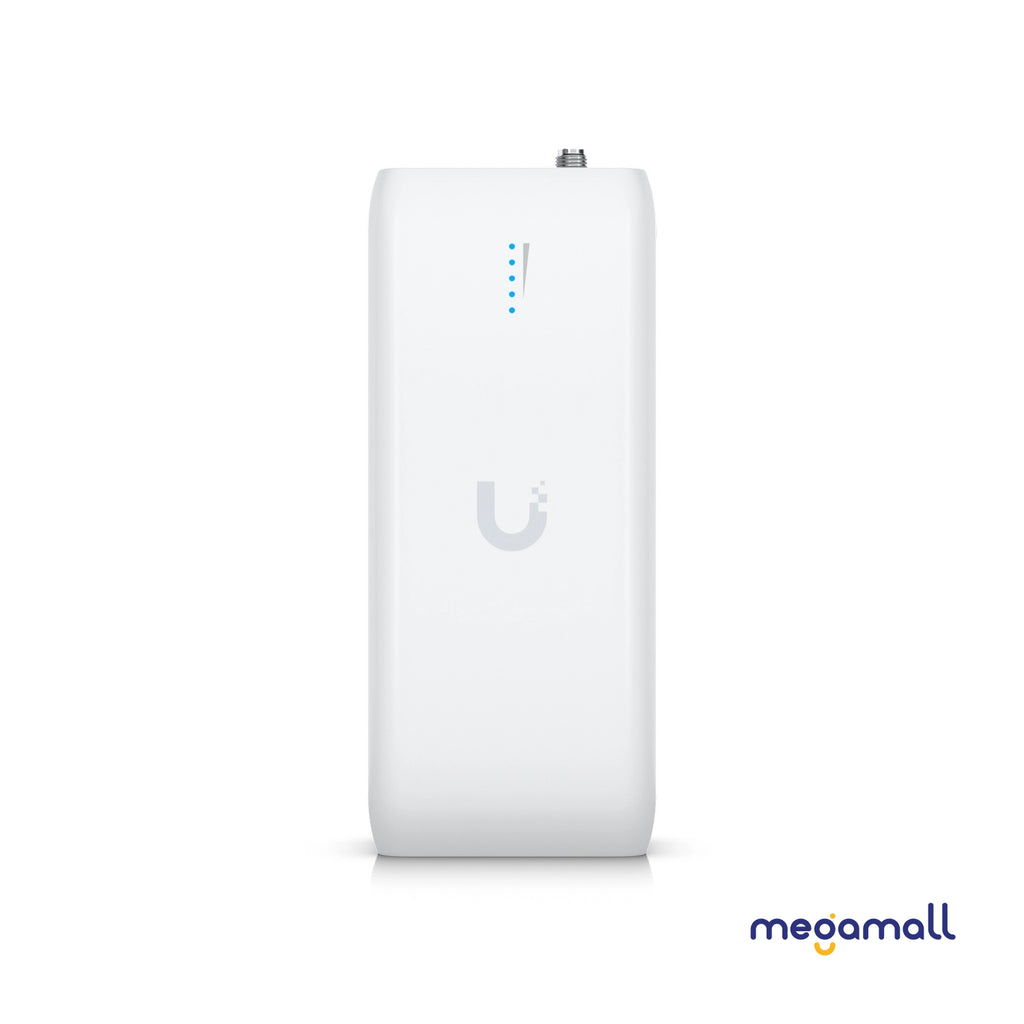

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Note. UniFi Consoles and APs must have the latest software updates installed.
|
Overview |
||
|
Dimensions |
130 x 55 x 34 mm (5.1 x 2.2 x 1.3") |
|
|
WiFi Standard |
WiFi 5 |
|
|
Spatial Streams |
2 |
|
|
Mounting Locations |
Wall, table |
|
|

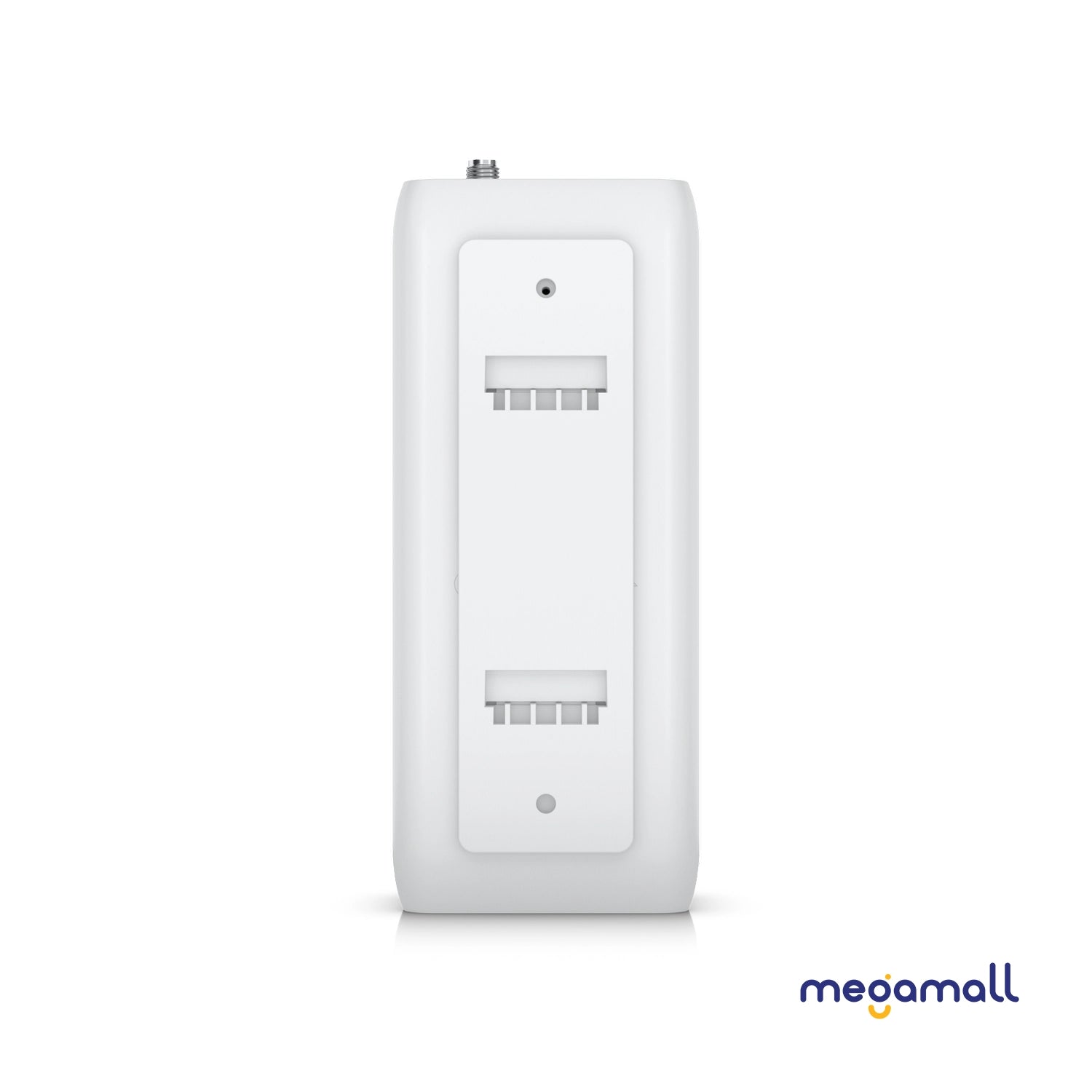

Mounting |
Wall (Included) |
|
|

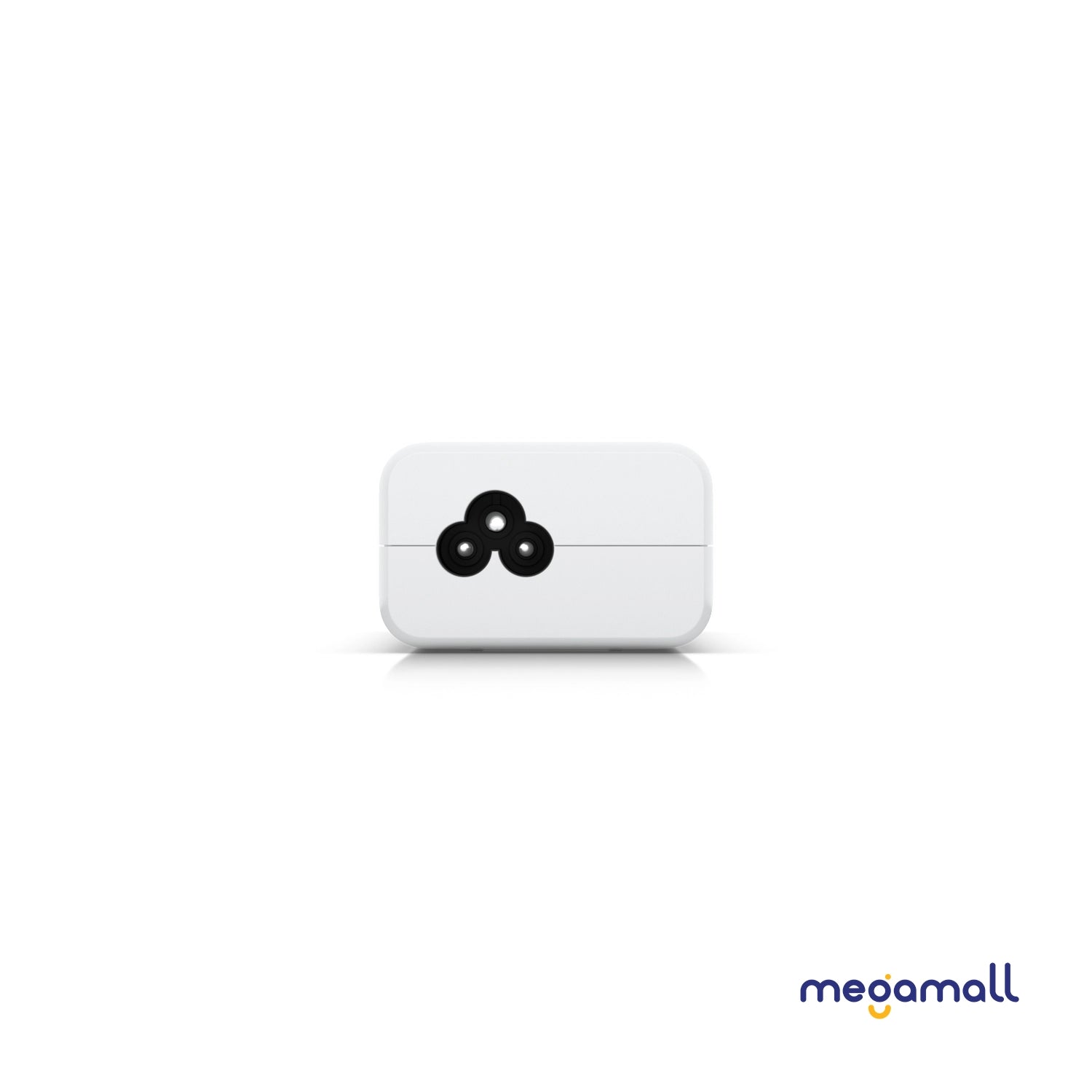

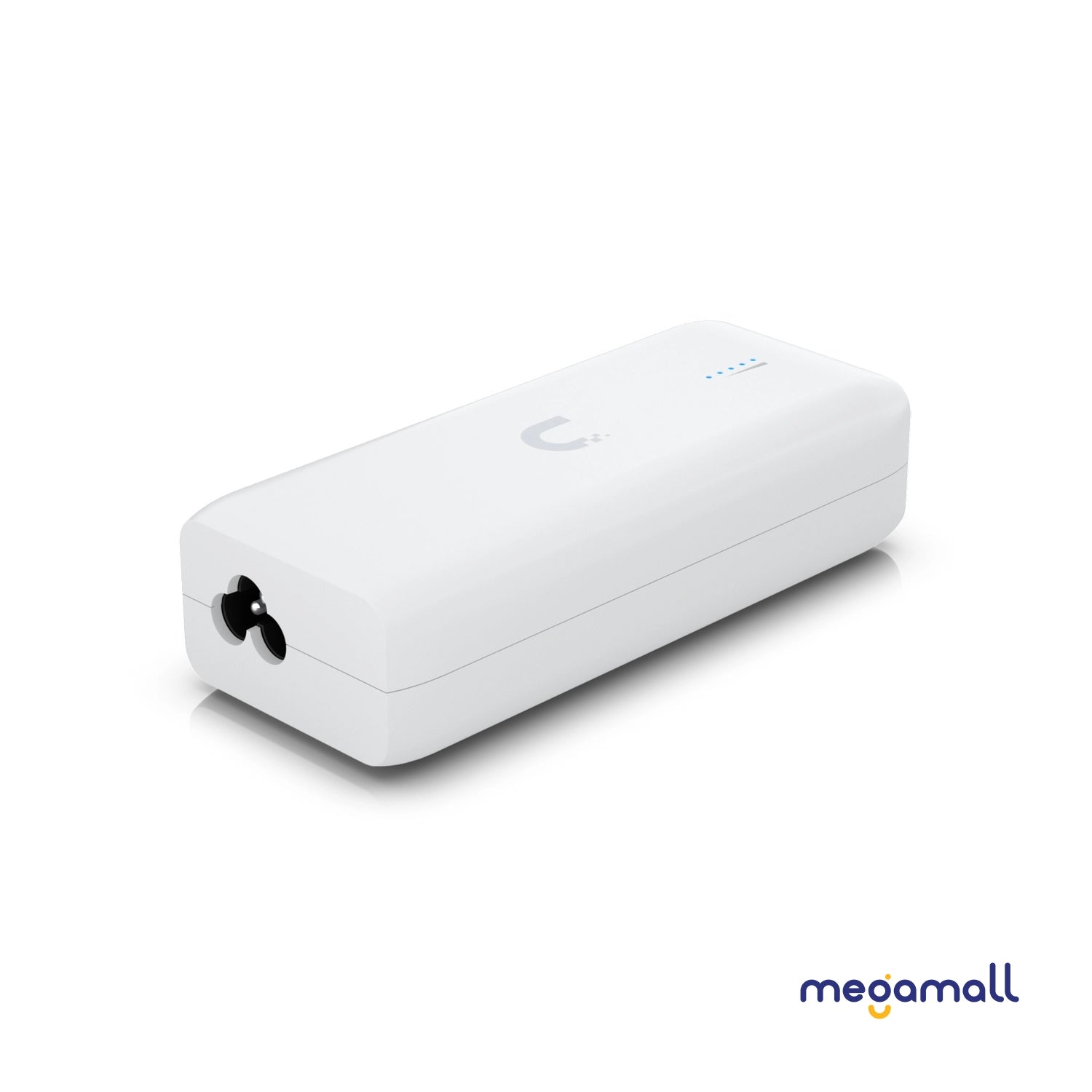

Power Method |
100—240V AC, 0.45A Max., 50/60 Hz |
|
|
Performance |
||
|
MIMO |
||
|
5 GHz |
2 x 2 |
|
|
Max. Data Rate |
||
|
5 GHz |
866.7 Mbps (BW80) |
|
|
Antenna Gain |
||
|
5 GHz |
Internal: 5 dBi External omni: 4 dBi, 360° x 30° |
|
|
Max. TX Power |
||
|
5 GHz |
21 dBm |
|
|
Supported Data Rates |
||
|
802.11ac (WiFi 5) |
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
Wireless Security |
WPA2 AES |
|
|
Hardware |
||
|
Max. Power Consumption |
25W (AC input) 10W (Excluding PoE output) |
|
|
Supported Voltage Range |
100—240V AC |
|
|

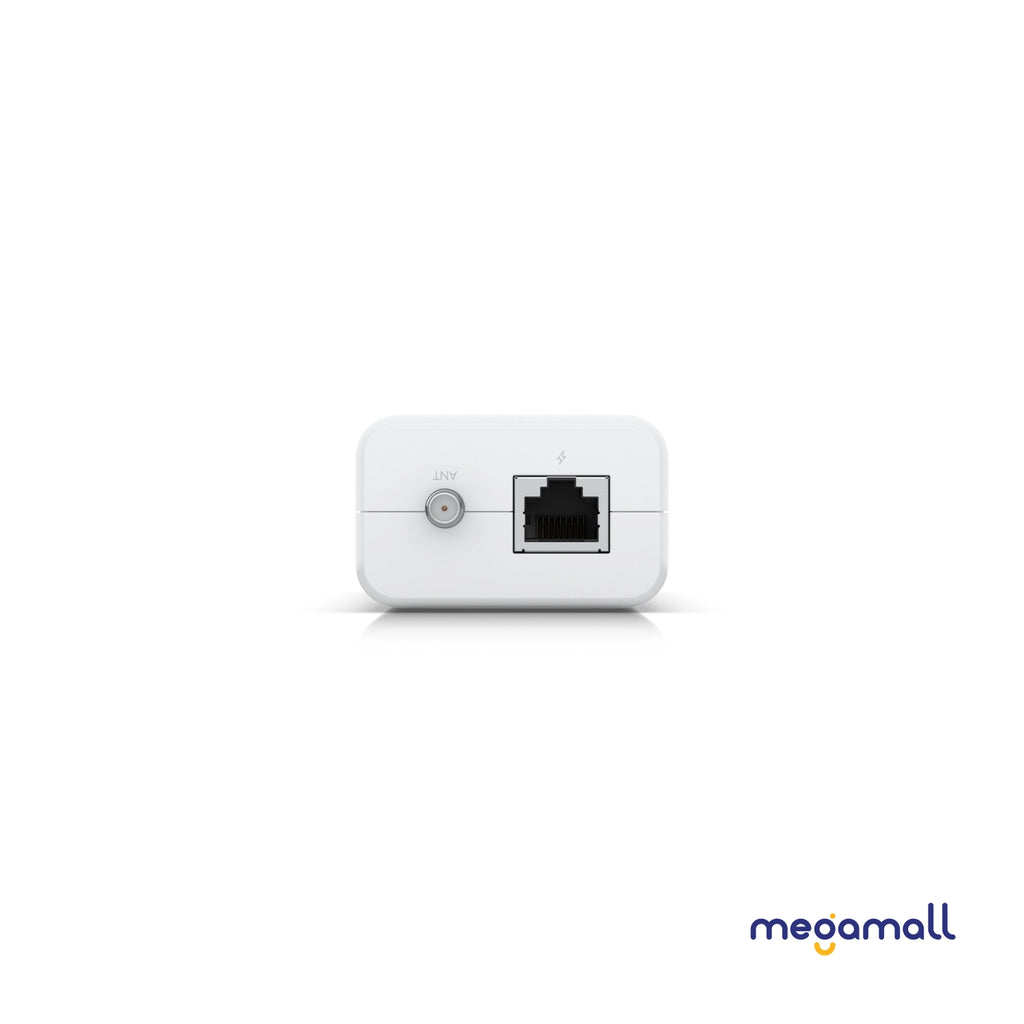

Networking Interface |

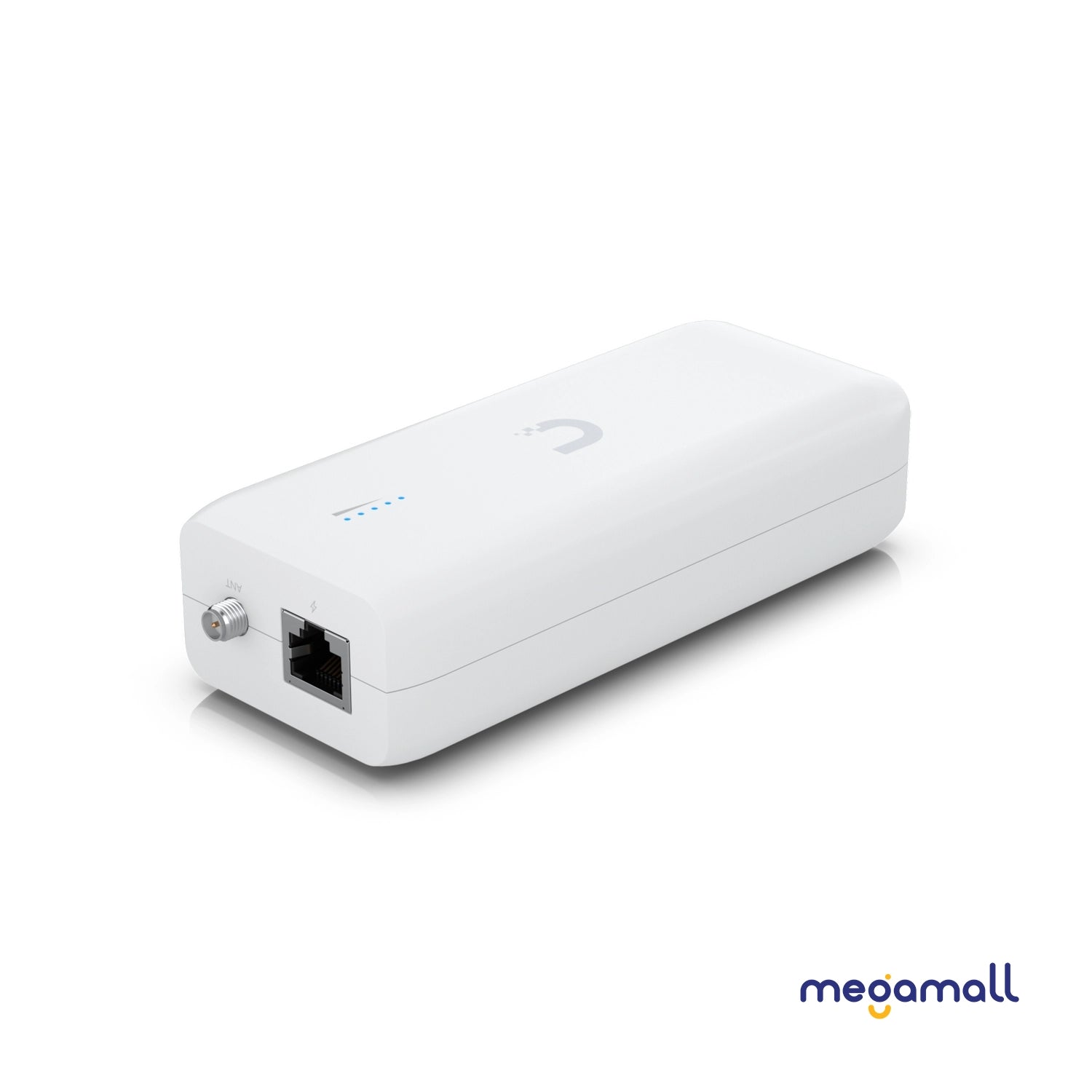

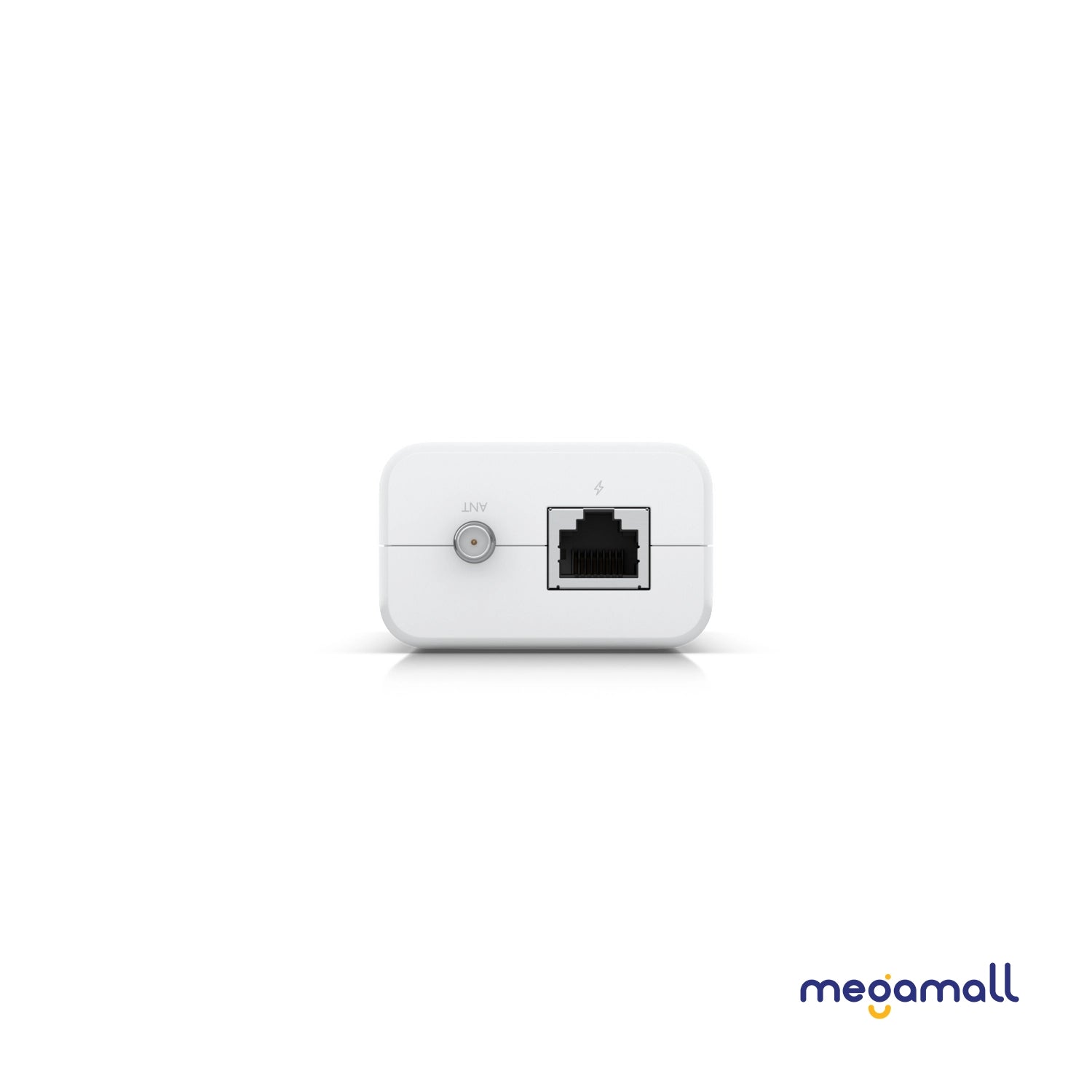

(1) GbE RJ45 port |
|
|
Antennas |
(1) Internal antenna (1) RP-SMA connector for external omni-antenna |
|
|
Management |
WiFi |
|
|
Channel Bandwidth |
20/40/80 (MHz) |
|
|
Weight |
200 g (7.1 oz) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Mount Material |
Polycarbonate |
|
|
Button |
(1) Factory-reset |
|
|
LEDs |
||
|
System |
(4) Blue: signal (1) White/blue: indicator |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
|
Operating Frequency |
US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz |
|
|
Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
