Description
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
PoE adapter included. PoE+ input required for PoE passthrough.
|
Overview |
||
|
Dimensions |
Ø189.5 x 64.3 mm (Ø7.4 x 2.5") |
|
|
WiFi Standard |
WiFi 5 |
|
|
Spatial Streams |
2 |
|
|
Coverage Area |
5 km (3.1 mi) |
|
|

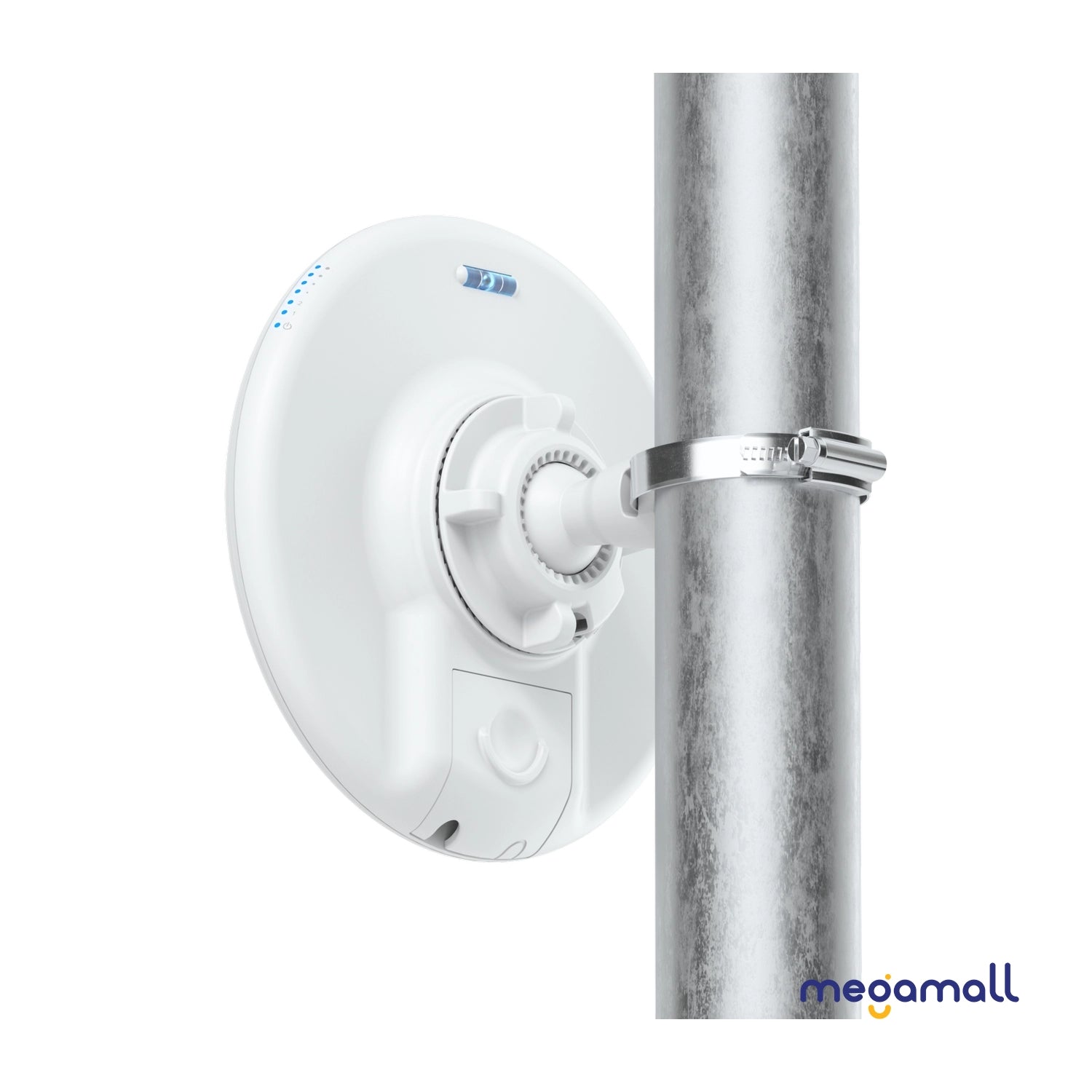

Mounting Locations |
Wall, pole |
|
|

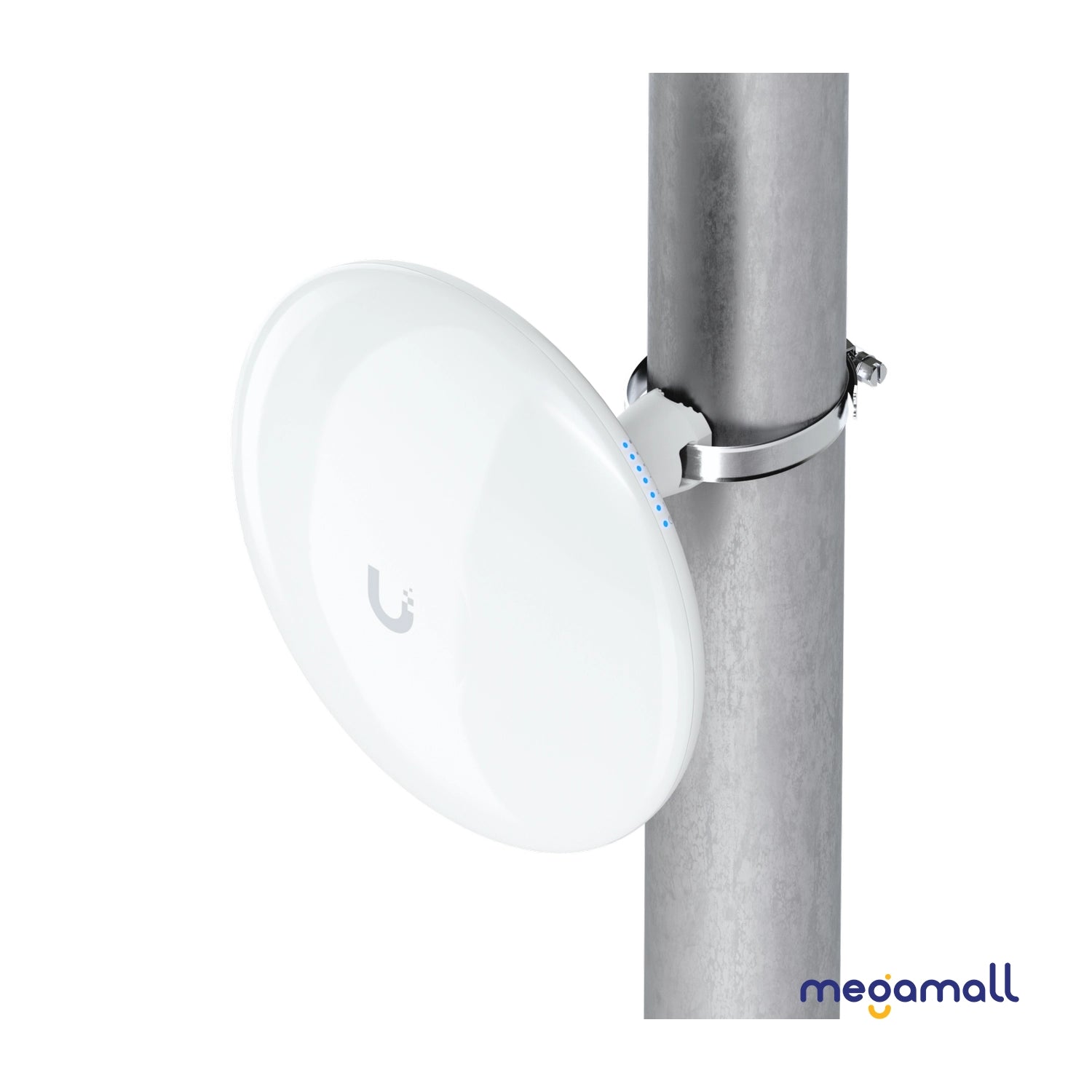

Mounting |
Pole (Included) |
|
|
Weatherproofing |
IPX6 |
|
|
Power Method |
PoE PoE+ (Required for PoE output) |
|
|
Power Supply |
48V, 0.32A PoE adapter (Included) |
|
|
Performance |
||
|
MIMO |
||
|
5 GHz |
2 x 2 |
|
|
Max. Data Rate |
||
|
5 GHz |
867 Mbps (BW80) |
|
|
Antenna Gain |
||
|
5 GHz |
19 dBi |
|
|
Max. TX Power |
||
|
5 GHz |
25 dBm |
|
|
Max. Conducted TX Power |
25 dBm (Combined) |
|
|
Supported Data Rates |
||
|
802.11ac (WiFi 5) |
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
Wireless Security |
WPA2 AES |
|
|
Hardware |
||
|
Max. Power Consumption |
9W |
|
|
Supported Voltage Range |
42.5—57V DC |
|
|

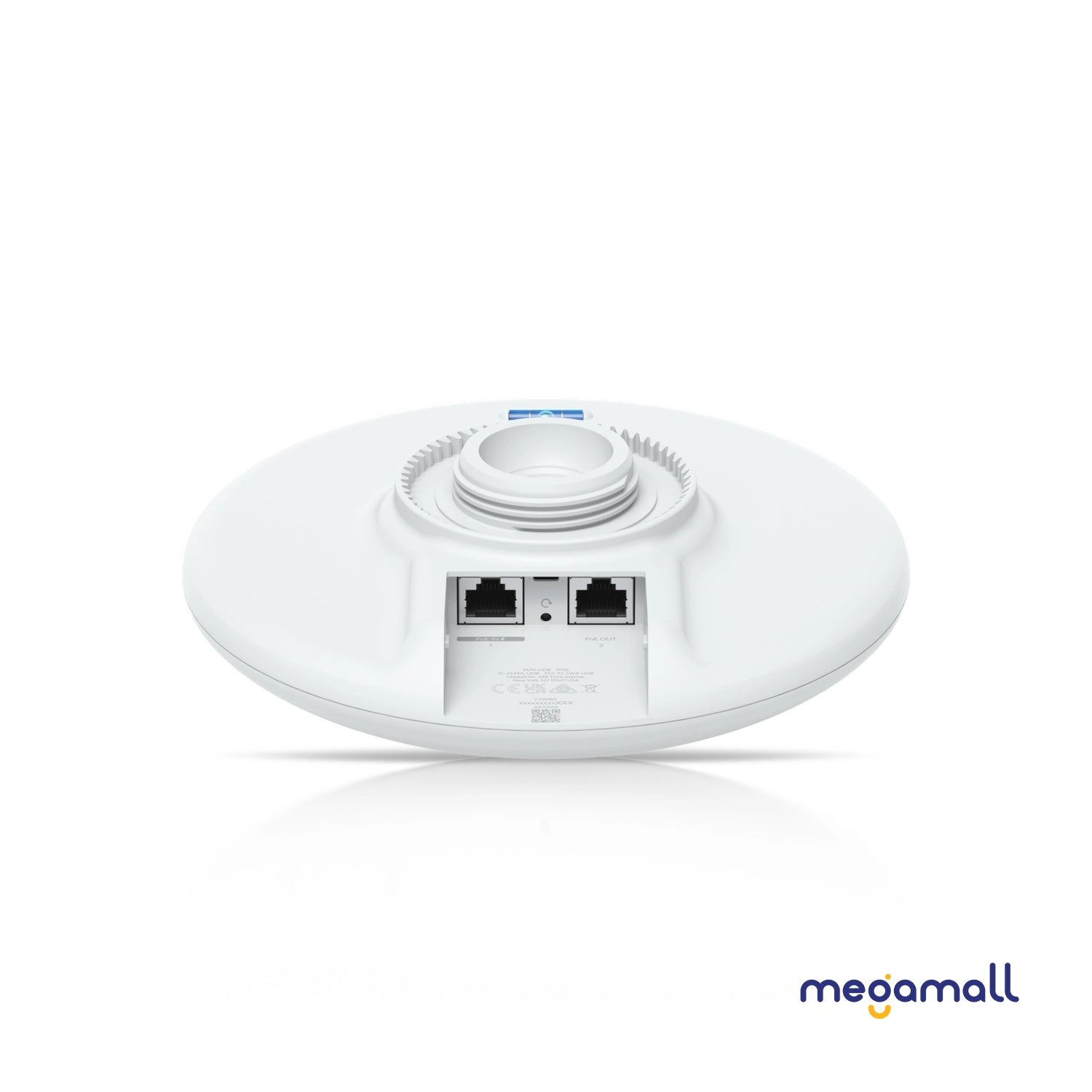

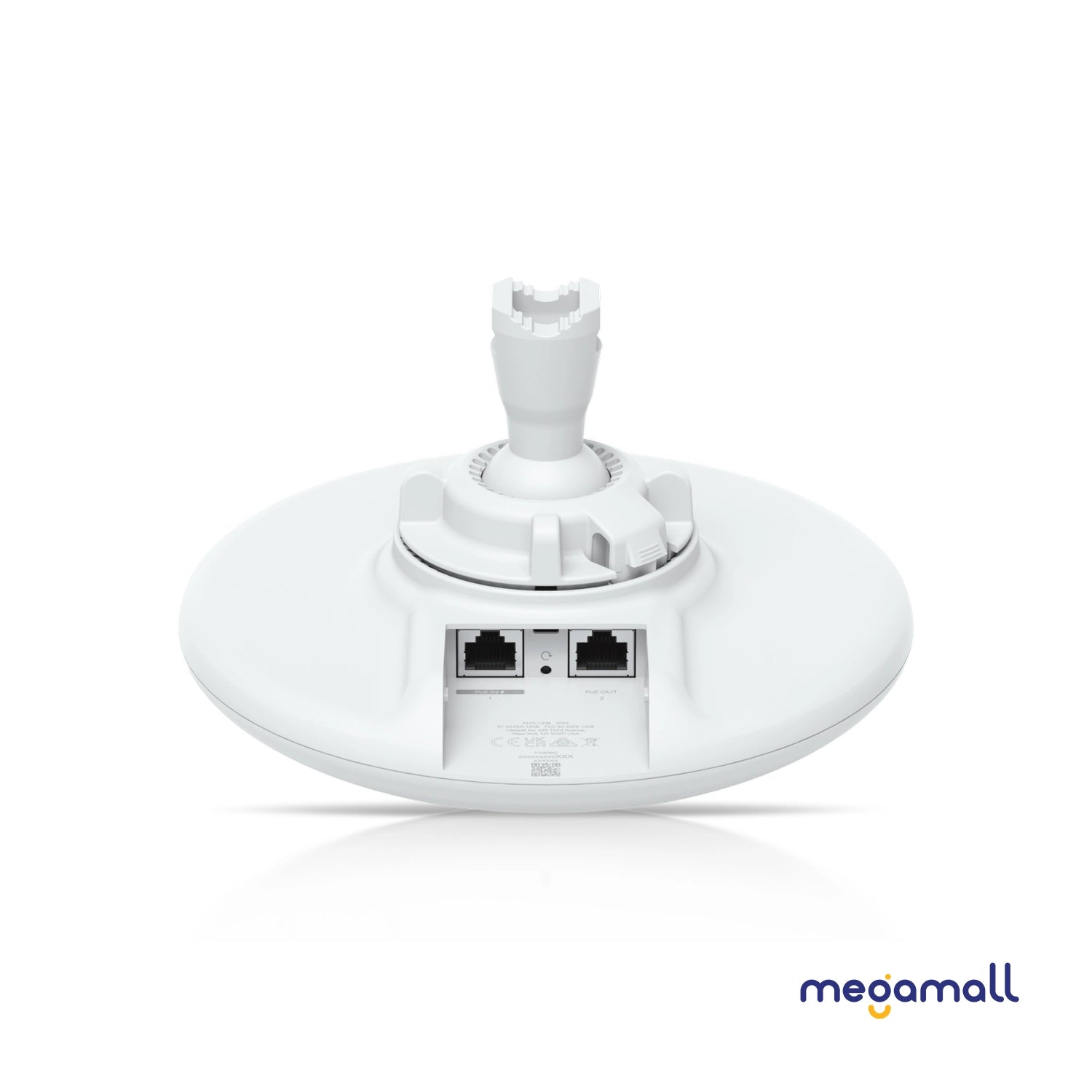

Networking Interface |
(2) GbE RJ45 ports |
|
|
Antennas |
Internal |
|
|
Management |
(1) PoE in (PoE output not used) (1) Passive PoE output |
|
|
Channel Bandwidth |
20/40/80 (MHz) |
|
|
Wind Loading |
69 N at 200 km/h (15.5 lbf at 125 mph) |
|
|
Weight |
Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb) |
|
|
Enclosure Material |
UV-resistant polycarbonate |
|
|
Mount Material |
UV-stabilized polycarbonate, stainless steel |
|
|
Pole Mount Diameter |
0.8–2.1" (20–53.1 mm) |
|
|
Button |
(1) Factory-reset |
|
|
LEDs |
||
|
System |
Power, Ethernet, (4) signal strength |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
|
Operating Frequency |
US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz |
|
|
Ambient Operating Temperature |
-40 to 60° C (-40 to 140° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
