Description

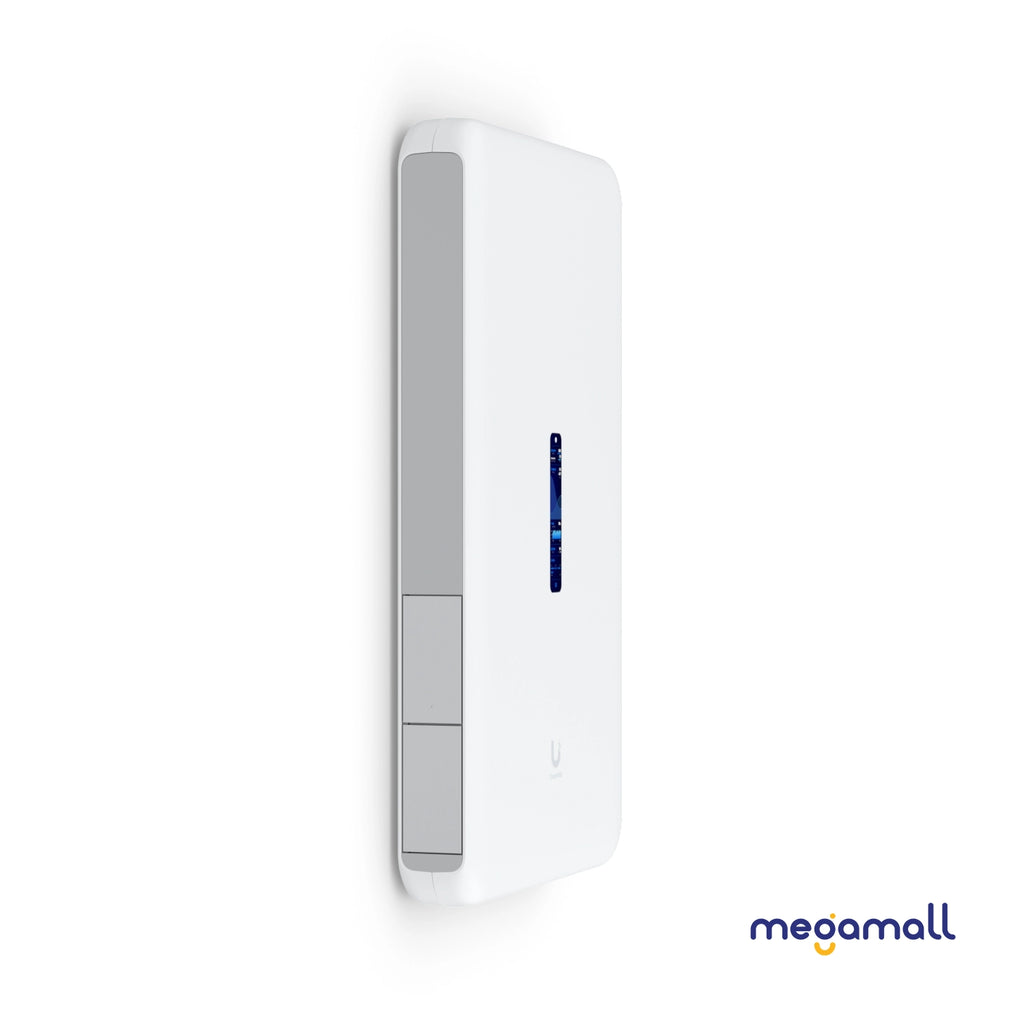

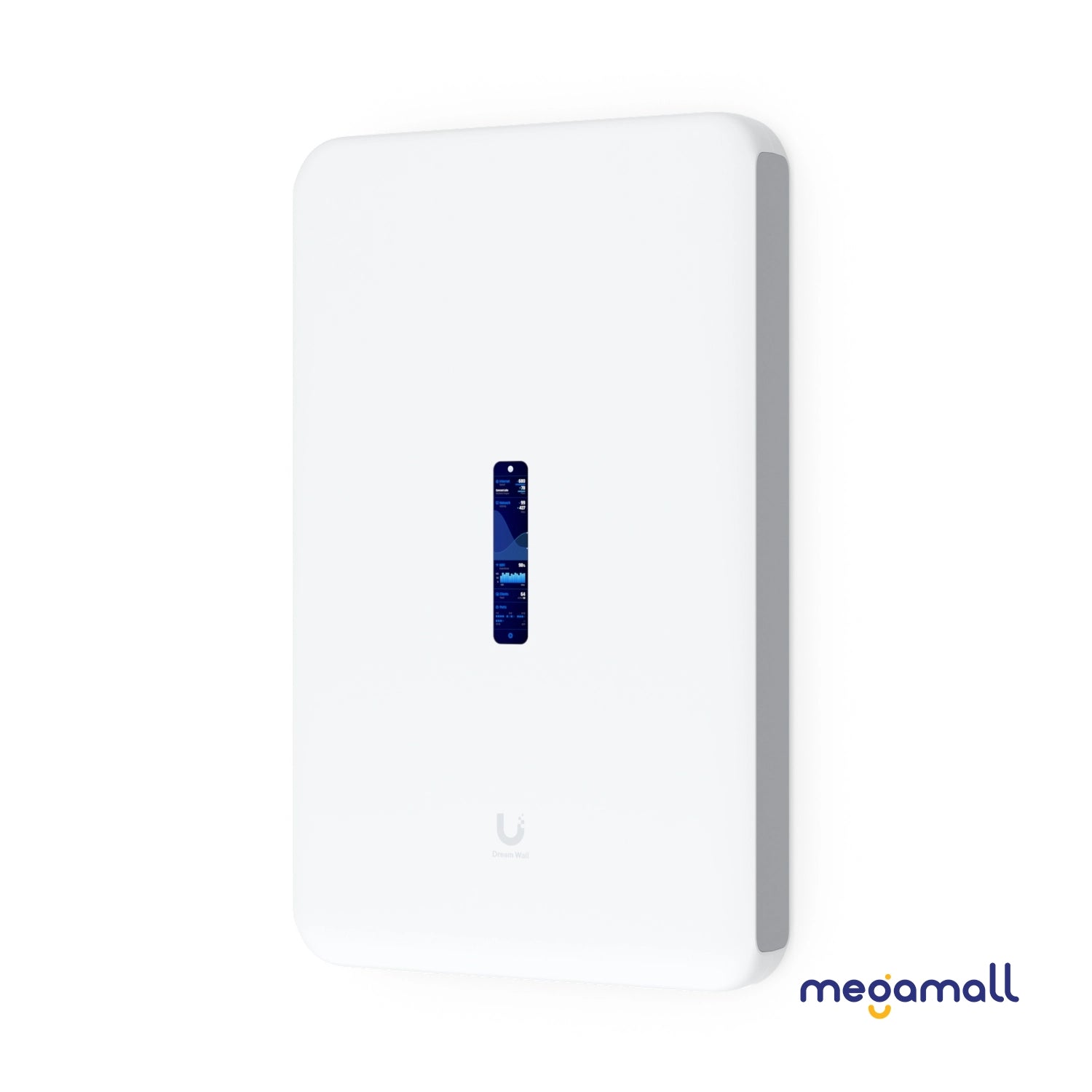

Wall-mounted 10G Cloud Gateway with integrated WiFi 6, high-power PoE switching, and full UniFi application support.
|
Overview |
||
|
Dimensions |
549 x 342 x 62 mm (21.6 x 13.5 x 2.4") |
|
|
UniFi Application Suite |
||
|
Network |
✓ |
|
|
Protect |
✓ |
|
|
Access |
✓ |
|
|
Talk |
✓ |
|
|
Connect |
✓ |
|
|
Managed UniFi Devices |
100+ |
|
|
Managed Cameras |
(12) HD (7) 2K (4) 4K |
|
|
Simultaneous Users Connected |
300+ |
|
|
Max. WAN Port Count |
8 |
|
|
Default WAN Ports |
(1) 2.5 GbE RJ45 (1) 10G SFP+ |
|
|

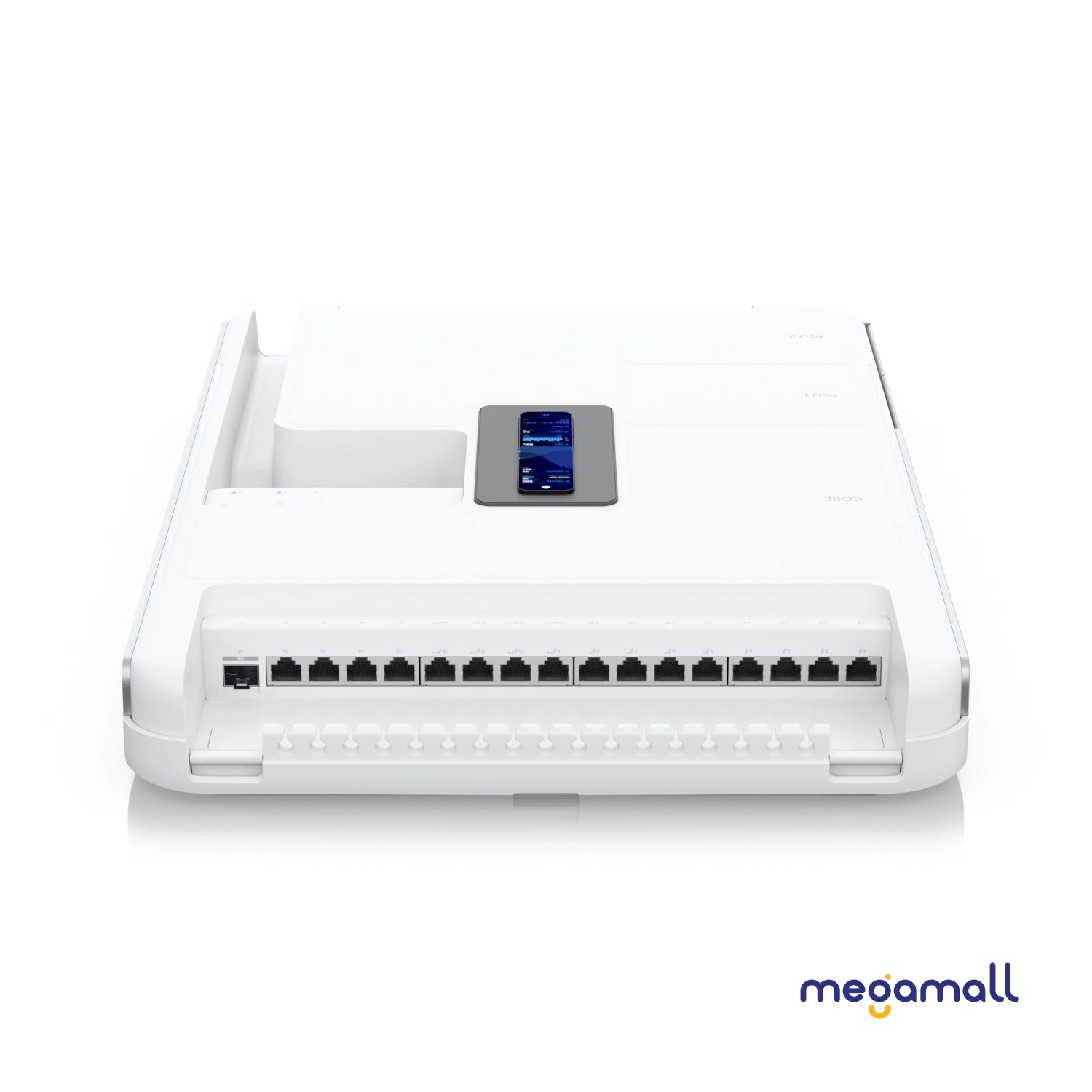

Port Layout |
||
|
1 GbE RJ45 |
17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M) |
|
|
2.5 GbE RJ45 |
1 (2.5G/1G/100M) |
|
|
10G SFP+ |
2 (10G/1G) |
|
|
IDS/IPS Throughput |
3.5 Gbps |
|
|
Form Factor |
Wall-mounted |
|
|
Redundancy |
(2) Hot-Swappable PSUs |
|
|
Coverage Area |
140 m² (1,500 ft²) |
|
|
Security |
||
|
Stateful Firewall |
✓ |
|
|
Application-Aware Layer 7 Firewall |
✓ |
|
|
DPI & Traffic Identification |
✓ |
|
|
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
✓ |
|
|
Content Filtering |
✓ |
|
|
Intrusion Prevention (IPS/IDS) |
✓ |
|
|
Ad Blocking |
✓ |
|
|
IDS/IPS Signatures |
55,000+ with CyberSecure |
|
|
VLAN/Subnet-based Traffic Segmentation |
✓ |
|
|
VPN & SD-WAN |
||
|
License-Free SD-WAN |
✓ |
|
|
Site-to-Site VPN |
||
|
Site Magic |
✓ |
|
|
IPsec |
✓ |
|
|
OpenVPN |
✓ |
|
|
VPN Server |
||
|
Identity Endpoint One-Click VPN |
✓ |
|
|
Teleport Zero-Configuration VPN |
✓ |
|
|
WireGuard |
✓ |
|
|
OpenVPN |
✓ |
|
|
L2TP |
✓ |
|
|
VPN Client |
||
|
OpenVPN |
✓ |
|
|
WireGuard |
✓ |
|
|
Networking |
||
|
Multi-WAN Load Balancing |
✓ |
|
|
Dynamic Routing |
||
|
OSPF |
✓ |
|
|
BGP |
✓ |
|
|
Advanced QoS |
✓ |
|
|
Multicast DNS (mDNS) |
✓ |
|
|
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
✓ |
|
|
Integrated RADIUS Server |
✓ |
|
|
RADIUS over TLS (RadSec) |
✓ |
|
|
Additional Internet Failover with UniFi LTE Backup |
✓ |
|
|
Internet Quality and Outage Reporting |
✓ |
|
|
MAC Address Table Size |
8000 |
|
|
Policy-based WAN and VPN Routing |
✓ |
|
|
Customizable DHCP Server |
✓ |
|
|
IPv6 ISP Support |
✓ |
|
|
IGMP Proxy |
✓ |
|
|
Integrated WiFi |
||
|
WiFi Standard |
802.11a/b/g/n/ac/ax (WiFi 6) |
|
|
Throughput |
||
|
5 GHz |
2.4 Gbps |
|
|
2.4 GHz |
300 Mbps |
|
|
MIMO |
||
|
5 GHz |
4 x 4 (DL/UL MU-MIMO) |
|
|
2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
|
|
Antenna Gain |
||
|
5 GHz |
6 dBi |
|
|
2.4 GHz |
5.9 dBi |
|
|
Max. TX Power |
||
|
5 GHz |
26 dBm |
|
|
2.4 GHz |
23 dBm |
|
|
Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
|
|
Max. BSSIDs |
8 per Radio |
|
|
Supported Data Rates |
||
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
|
802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
|
|
802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
|
|
Hardware |
||
|
NVR Storage |
Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings |
|
|
Expansion Slot |
MicroSD Card |
|
|
PoE Budget |
420W |
|
|
Max. PoE Wattage per Port by PSE |
||
|
PoE |
15.4W |
|
|
PoE+ |
30W |
|
|
PoE++ |
60W |
|
|
Voltage Range PoE Mode |
PoE: 44-57V PoE+/PoE++: 50-57V |
|
|
Max. Power Consumption |
532W (Including PoE Output) |
|
|
Power Method |
Universal AC input 100—240V AC, 7A Max., 50/60Hz |
|
|
Power Supply |
(2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Processor |
Quad-core ARM® Cortex®-A57 at 1.7 GHz |
|
|
System Memory |
4 GB |
|
|
On-board Storage |
16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card |
|
|
Weight |
8.6 kg (19 lb) |
|
|
Enclosure Material |
Polycarbonate, galvanized steel, aluminum alloy |
|
|
Mount Material |
Stainless steel |
|
|
LCM Display |
4.7" touchscreen |
|
|
Management |
Ethernet Bluetooth |
|
|
LEDs |
||
|
Ethernet |
✓ |
|
|
SFP+ |
✓ |
|
|
Button |
(1) Factory-reset |
|
|
ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
|
|
Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
VLAN |
802.1Q |
|
|
Guest Traffic Isolation |
✓ |
|
