Description

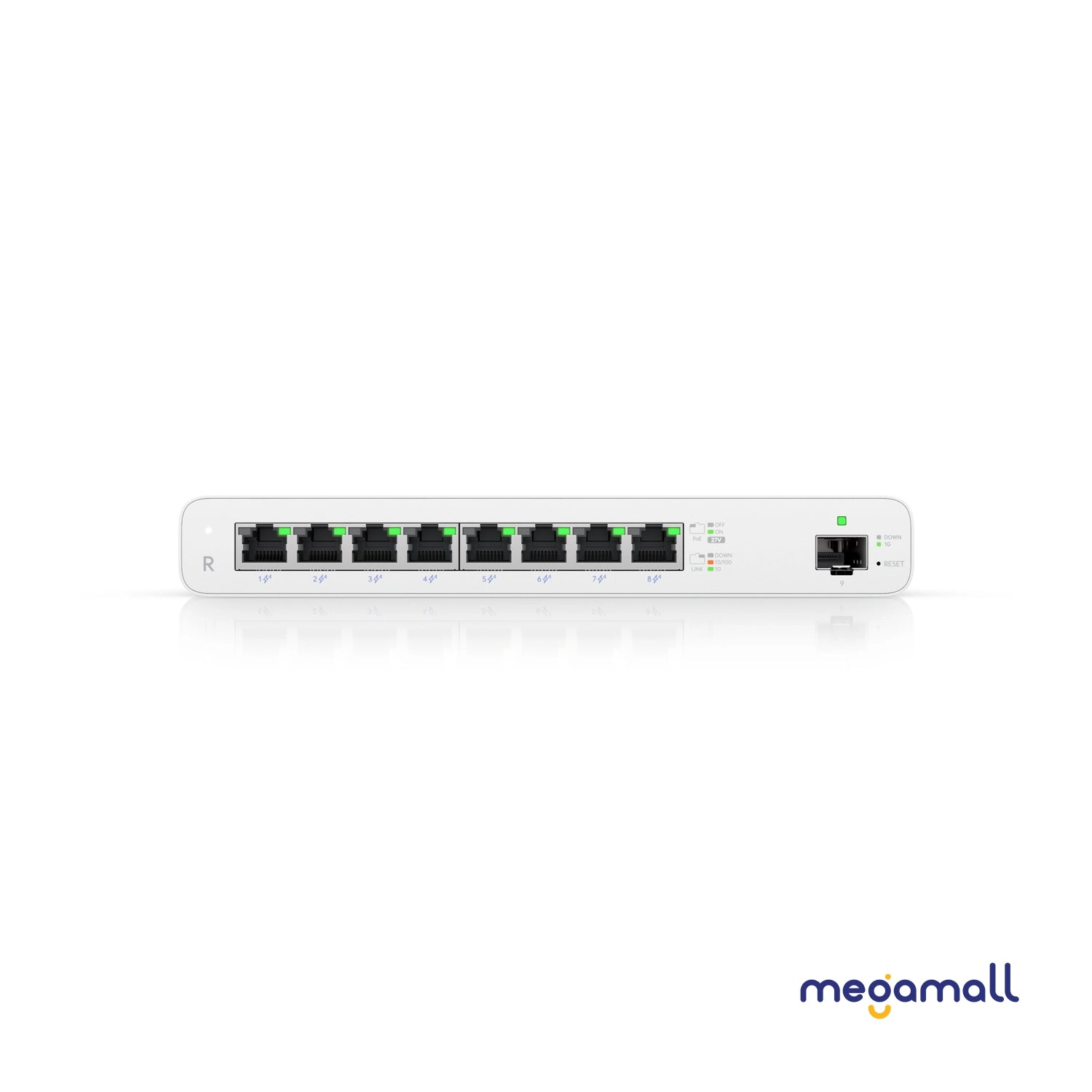

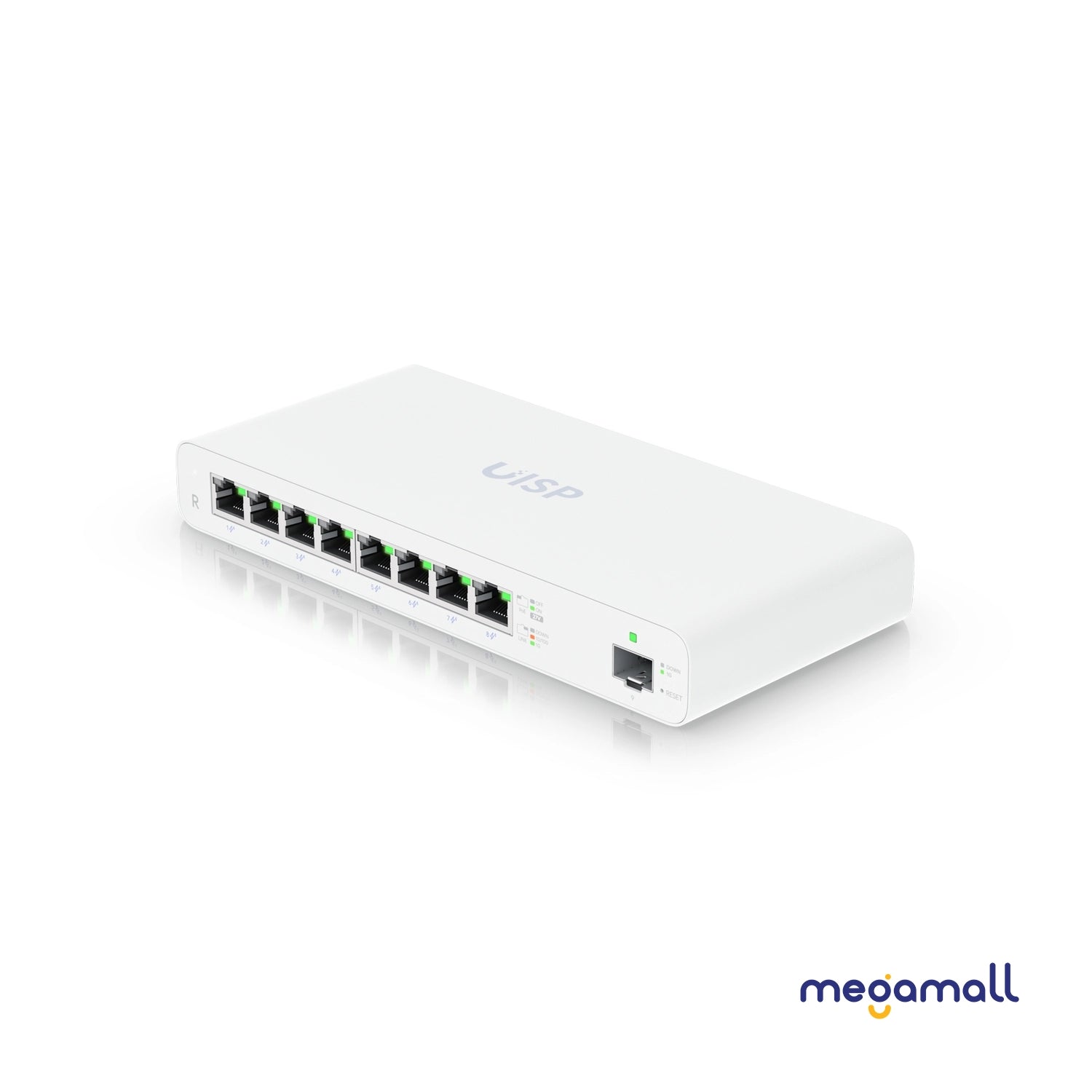

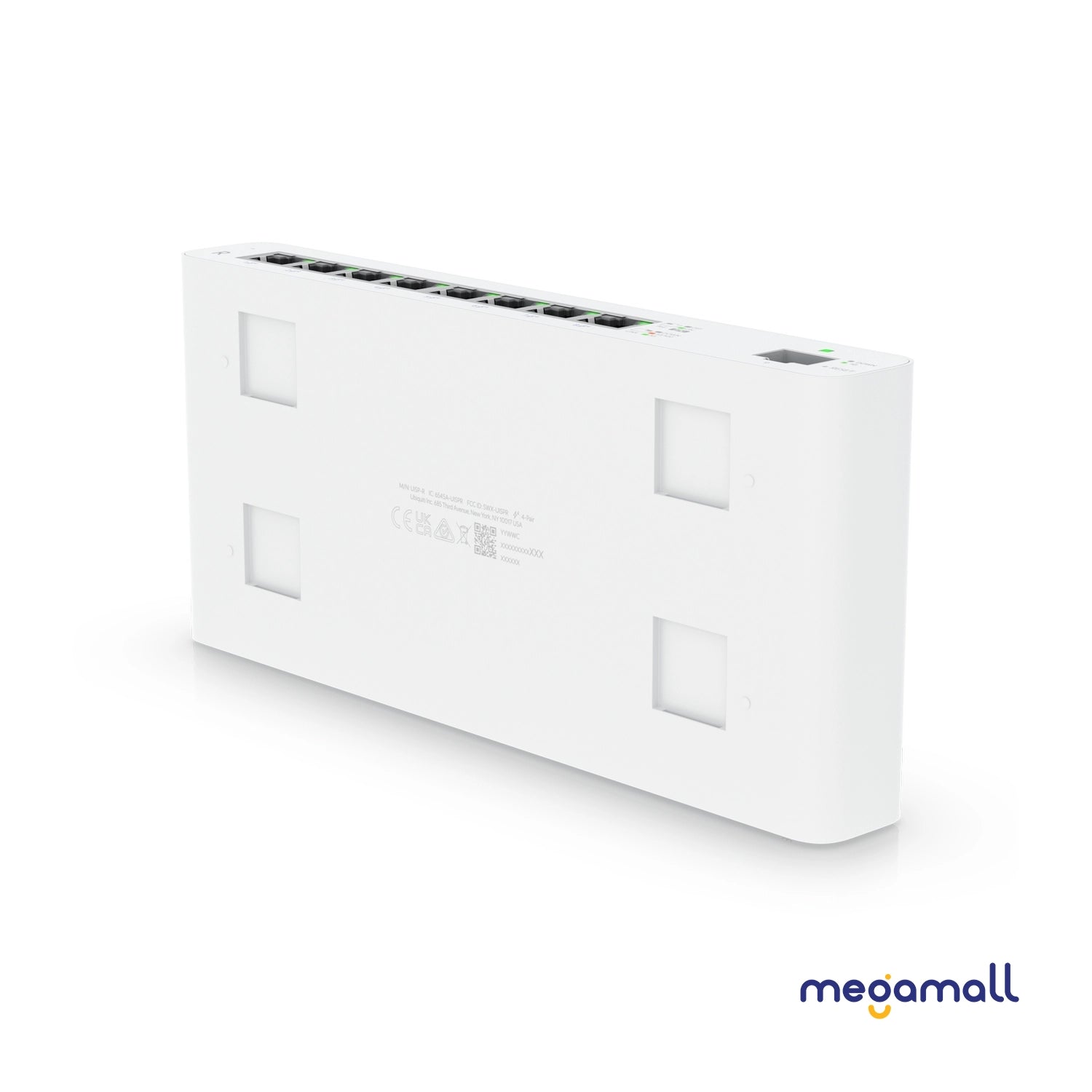

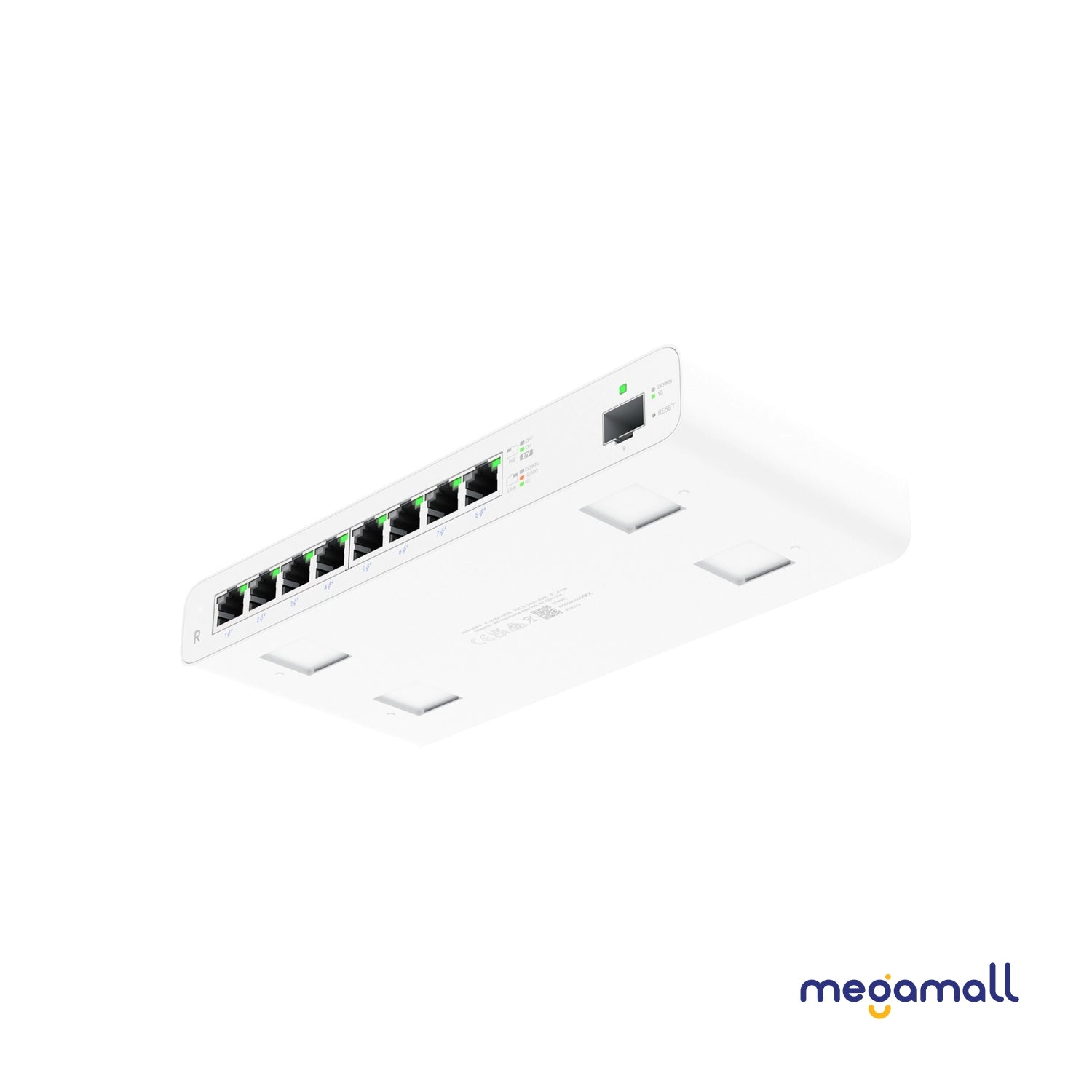

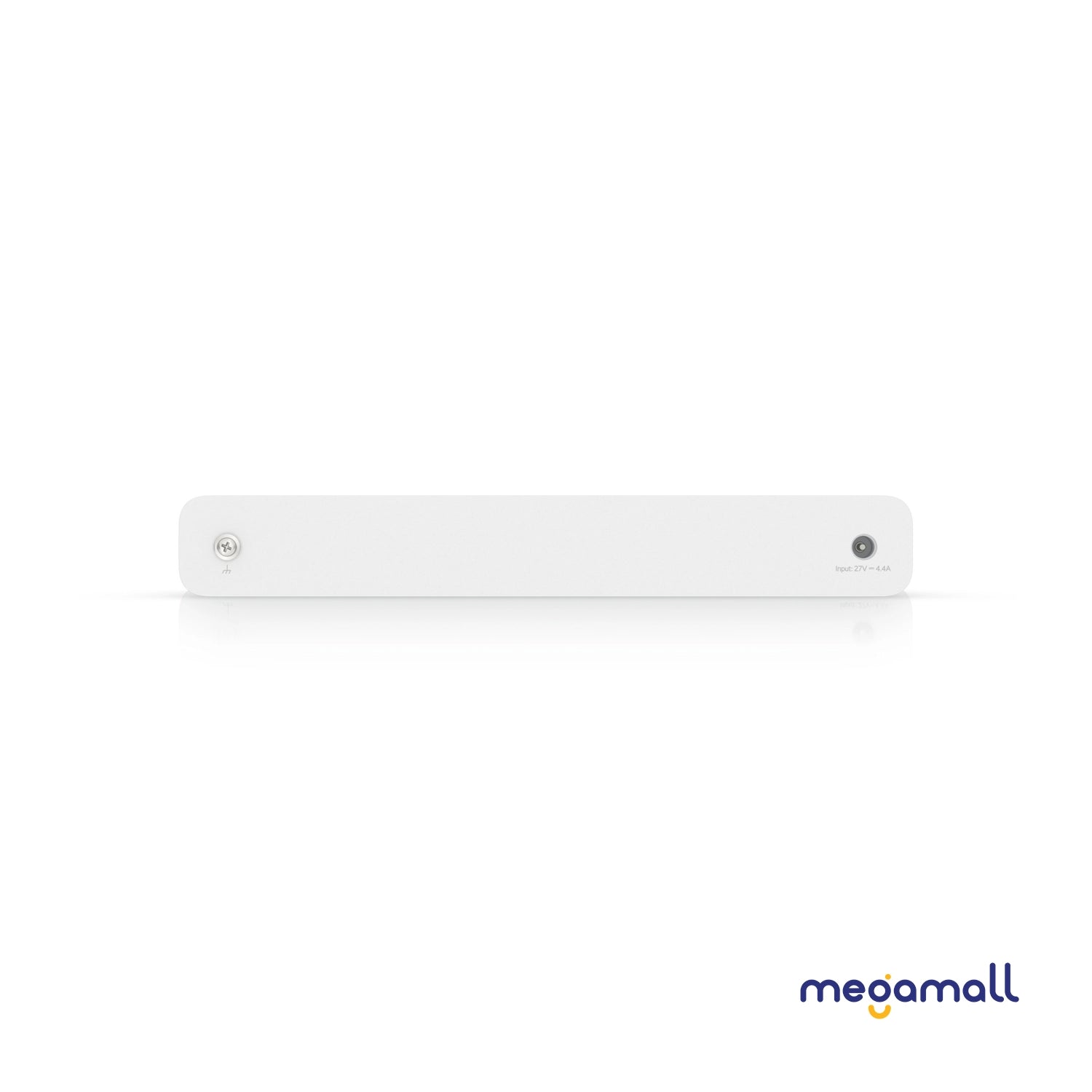

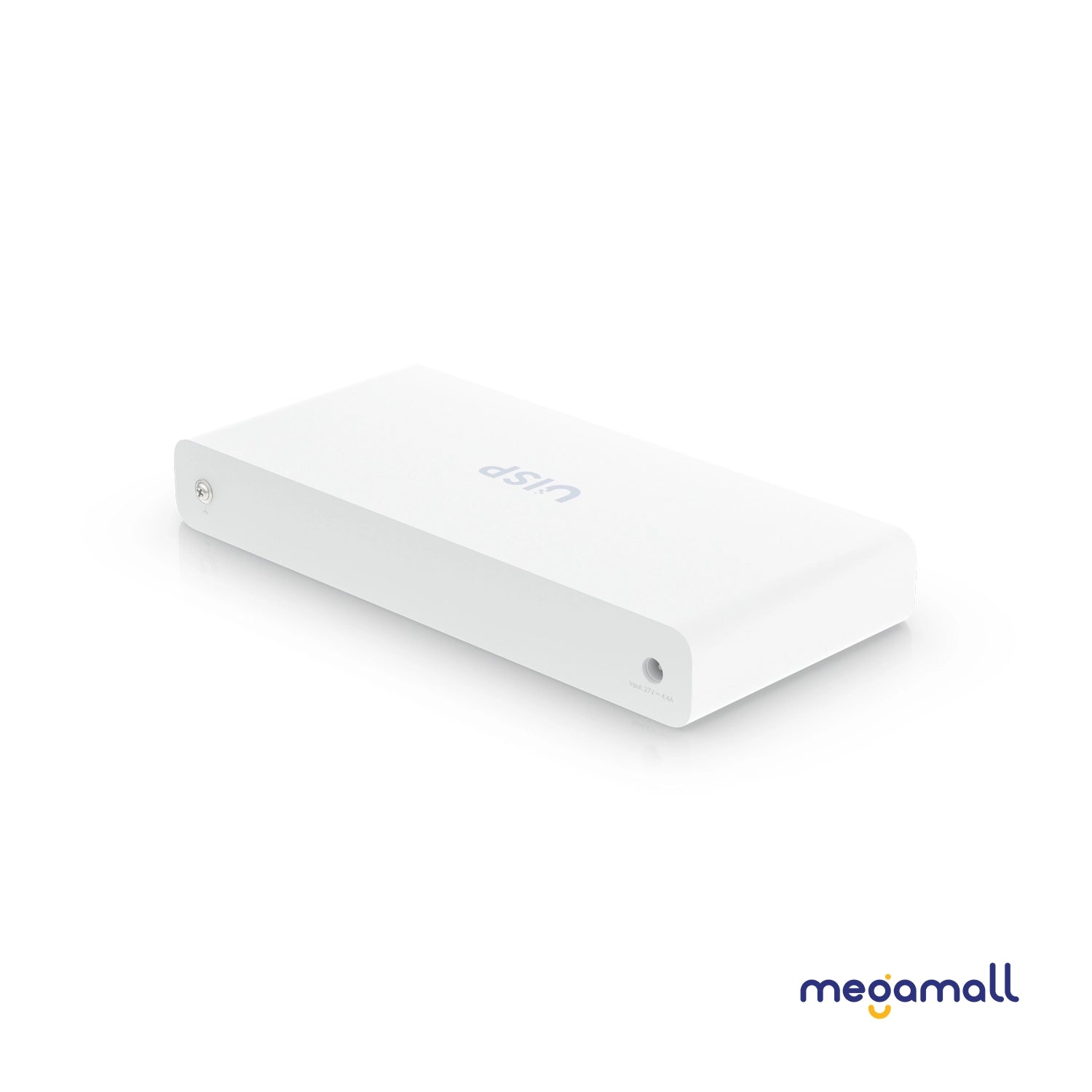

Eight-port, Gigabit PoE router designed for MicroPoP applications and supporting secure, large-scale networks.
|
Mechanical |
|
|
Dimensions |
210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
|
Weight |
600 g (1.3 lb) |
|
Enclosure material |
Polycarbonate |
|
Hardware |
|
|
Processor |
Dual-core 880 MHz, MIPS1004Kc |
|
Memory |
512 MB DDR3 |
|
Onboard flash storage |
512 MB NAND |
|
Networking interface |
(8) GbE RJ45 ports |
|
(1) 1G SFP port |
|
|
Management interface |
Ethernet In-Band |
|
Bluetooth BLE |
|
|
Power method |
External AC/DC adapter |
|
Power supply |
27V DC, 4.4A power adapter (included) |
|
Supported voltage range |
24—28V DC |
|
Max. power consumption |
10W (Excluding PoE output) |
|
ESD/EMP protection |
Air: ± 15kV, contact: ± 8kV |
|
Ambient operating temperature |
-10 to 50° C (14 to 122° F) |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
Yes |
|
PoE |
|
|
PoE interface |
(8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
|
Max. Passive PoE wattage per port |
30W/27V DC |
|
Passive PoE voltage range |
27V DC |
|
LEDs |
|
|
System |
Status |
|
RJ45 data ports |
PoE |
|
Speed/link/activity |
|
|
SFP data port |
Link/activity |
|
Software |
|
|
Management application |
UISP: Version 1.4.0 and later |
