Description

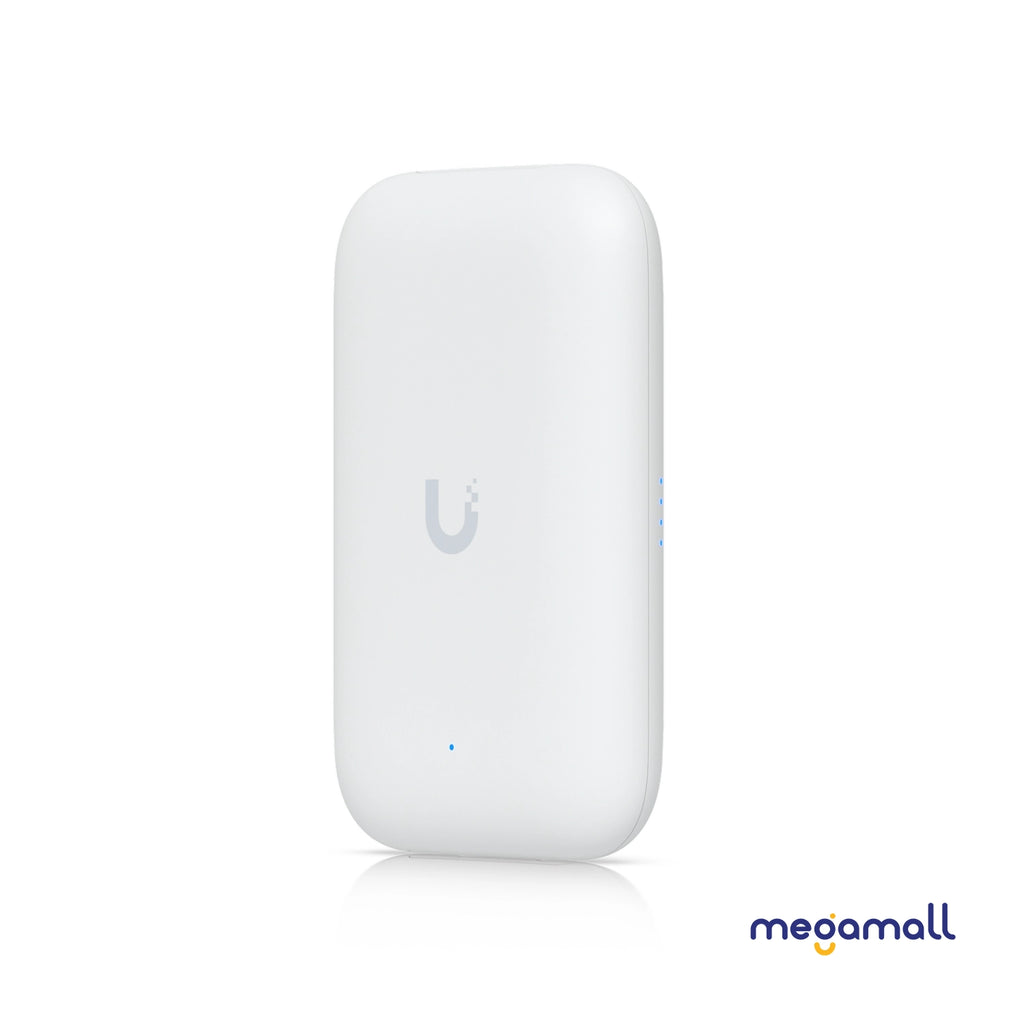

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
|
|
||
|
Dimensions
|
137 x 84 x 34 mm (5.4 x 3.3 x 1.3") | |
|
WiFi Standard
|
WiFi 5 | |
|
Spatial Streams
|
4 | |
|
Coverage Area
|
115 m² (1,250 ft²) | |
|
Max. Client Count
|
200+ | |
|
Uplink
|
GbE | |
|

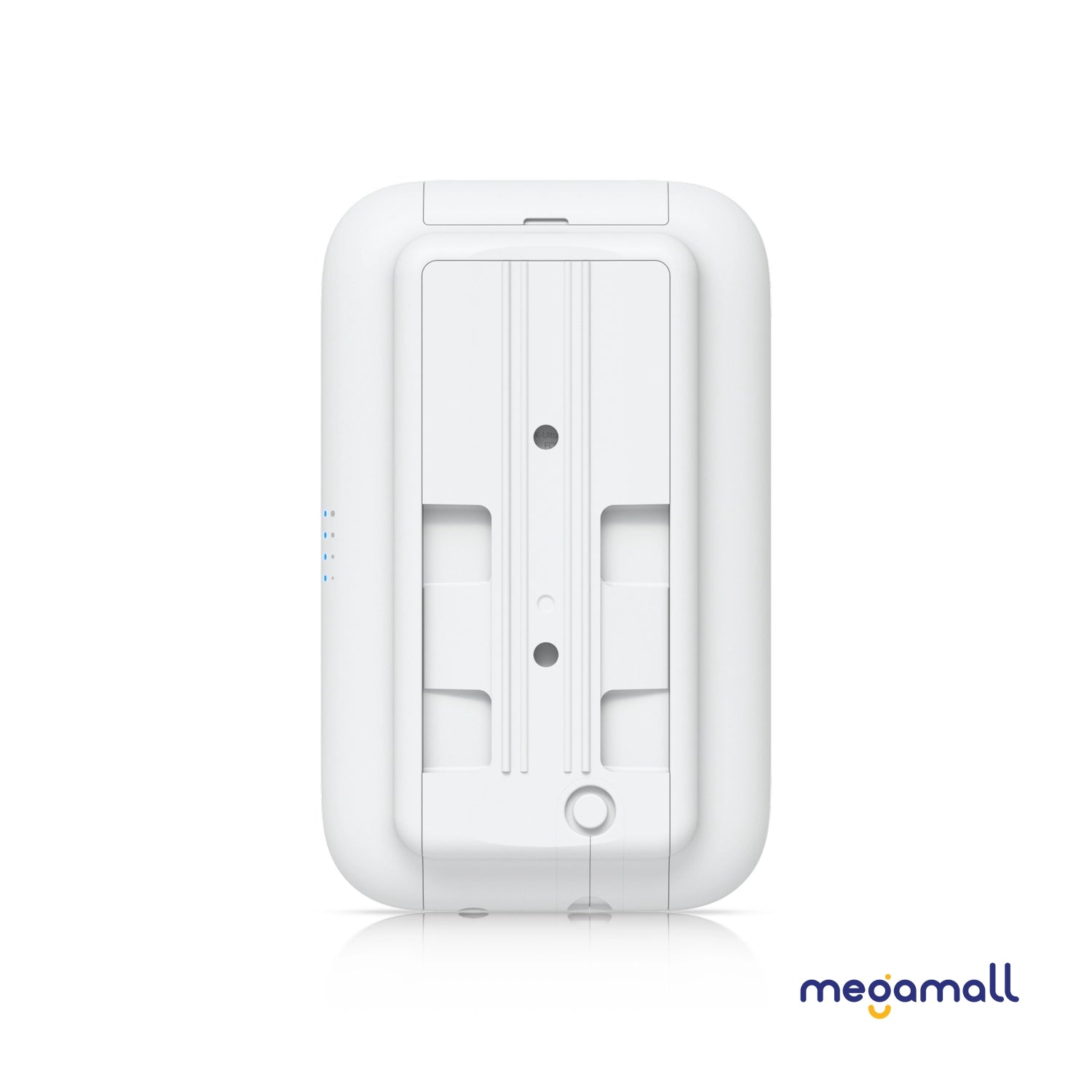

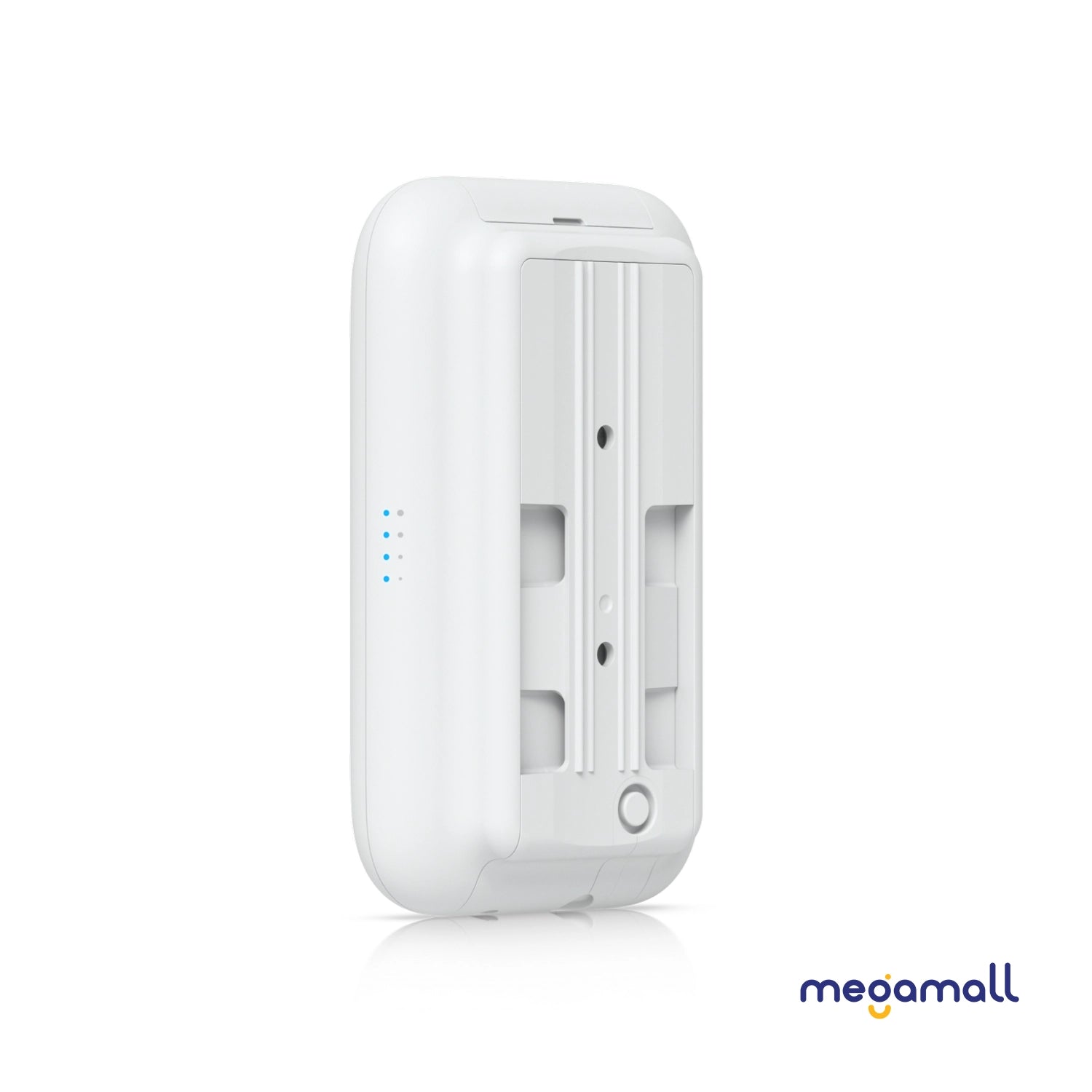

Mounting
|
Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional) | |
|
Weatherproofing
|
IPX6 | |
|
Power Method
|
PoE | |
|
|
||
|
MIMO
|
||
| 5 GHz | 2 x 2 (DL MU-MIMO) | |
| 2.4 GHz | 2 x 2 (DL MU-MIMO) | |
|
Max. Data Rate
|
||
| 5 GHz | 866.7 Mbps (BW80) | |
| 2.4 GHz | 300 Mbps (BW40) | |
|
Antenna Gain
|
||
| 5 GHz | 6.1 dBi | |
| 2.4 GHz | 4.7 dBi | |
|
Max. TX Power
|
||
| 5 GHz | 20 dBm | |
| 2.4 GHz | 20 dBm | |
|
Max. BSSIDs
|
8 per Radio | |
|
Supported Data Rates
|
||
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
|
|
||
|
Wireless Meshing
|
✓ | |
|
Band Steering
|
✓ | |
|
802.11v BSS Transition Management
|
✓ | |
|
802.11r Fast Roaming
|
✓ | |
|
802.11k Radio Resource Management (RRM)
|
✓ | |
|
Advanced Radio Management
|
✓ | |
|
Passpoint (Hotspot 2.0)
|
✓ | |
|
Captive Hotspot Portal
|
||
| Custom Branding Landing Page | ✓ | |
| Voucher Authentication | ✓ | |
| Payment-Based Authentication | ✓ | |
| External Portal Server Support | ✓ | |
| Password Authentication | ✓ | |
| Guest Network Isolation | ✓ | |
|
Private Pre-Shared Key (PPSK)
|
✓ | |
|
WiFi Speed Limiting
|
✓ | |
|
Client Device Isolation
|
✓ | |
|
WiFi Schedules
|
✓ | |
|
RADIUS over TLS (RadSec)
|
✓ | |
|
Dynamic RADIUS-assigned VLAN
|
✓ | |
|
|
||
|
Max. Power Consumption
|
8W | |
|
Supported Voltage Range
|
44—57V DC | |
|
Networking Interface
|

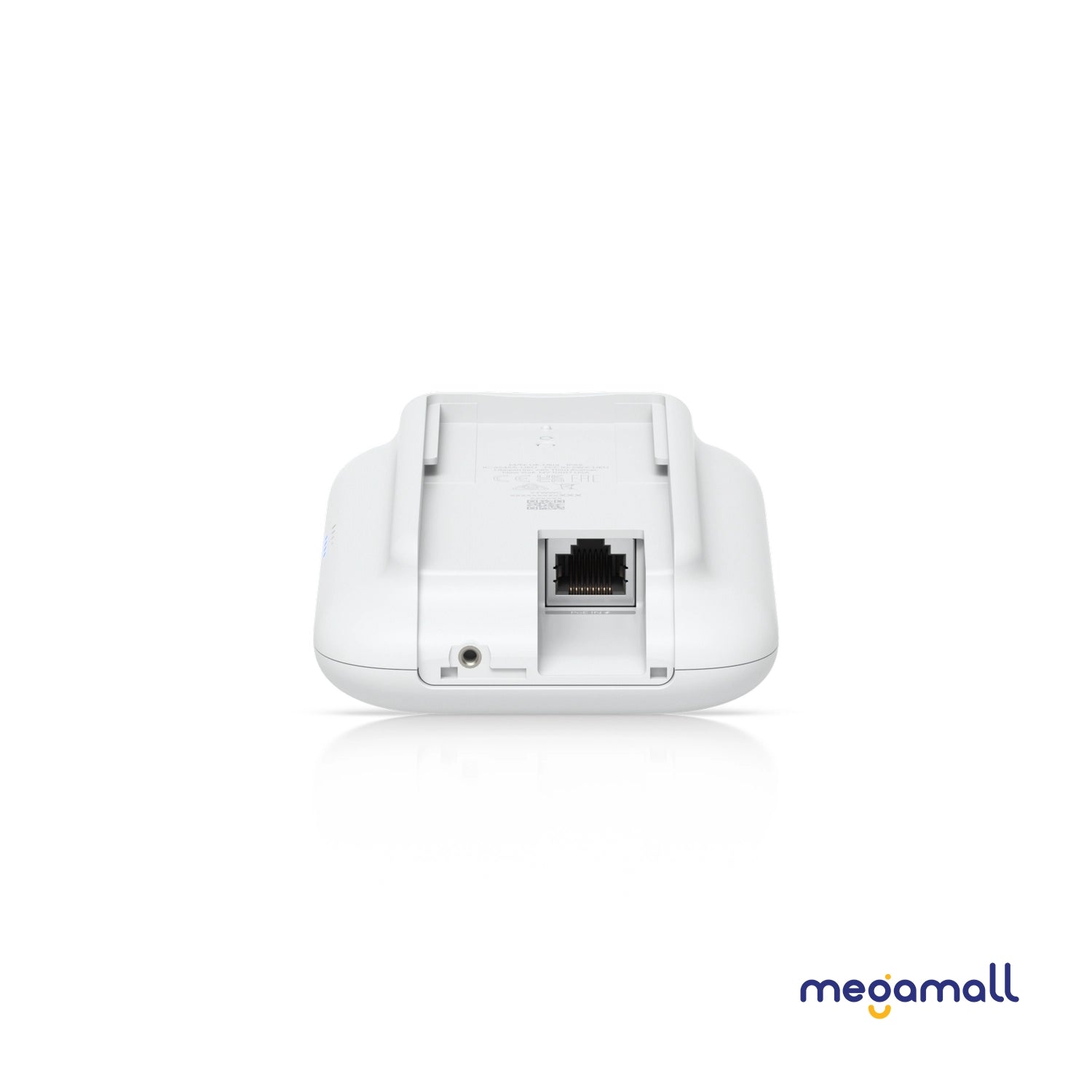

(1) GbE RJ45 port | |
|
Weight
|
173 g (6.1 oz) | |
|
Wind Loading
|
33.2 N at 200 km/h (7.5 lbf at 125 mph) | |
|
Pole Mount Diameter
|
1~2" (25–50 mm) | |
|
Antennas
|

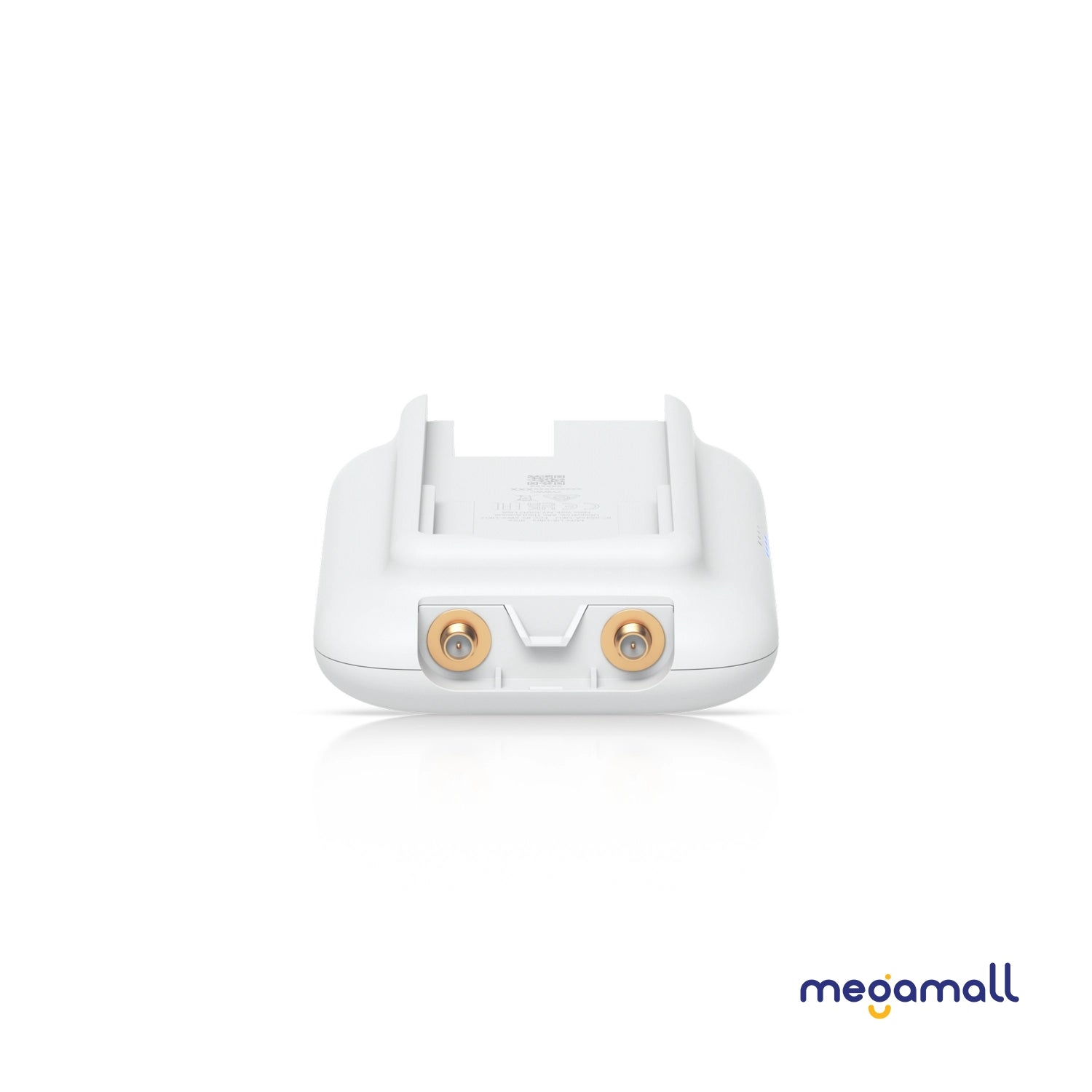

(1) Internal antenna (2) RP-SMA connectors | |
|
Management
|
Ethernet | |
|
Enclosure Material
|
UV-stabilized polycarbonate | |
|
Mount Material
|
Polycarbonate, SGCC steel, plastic | |
|

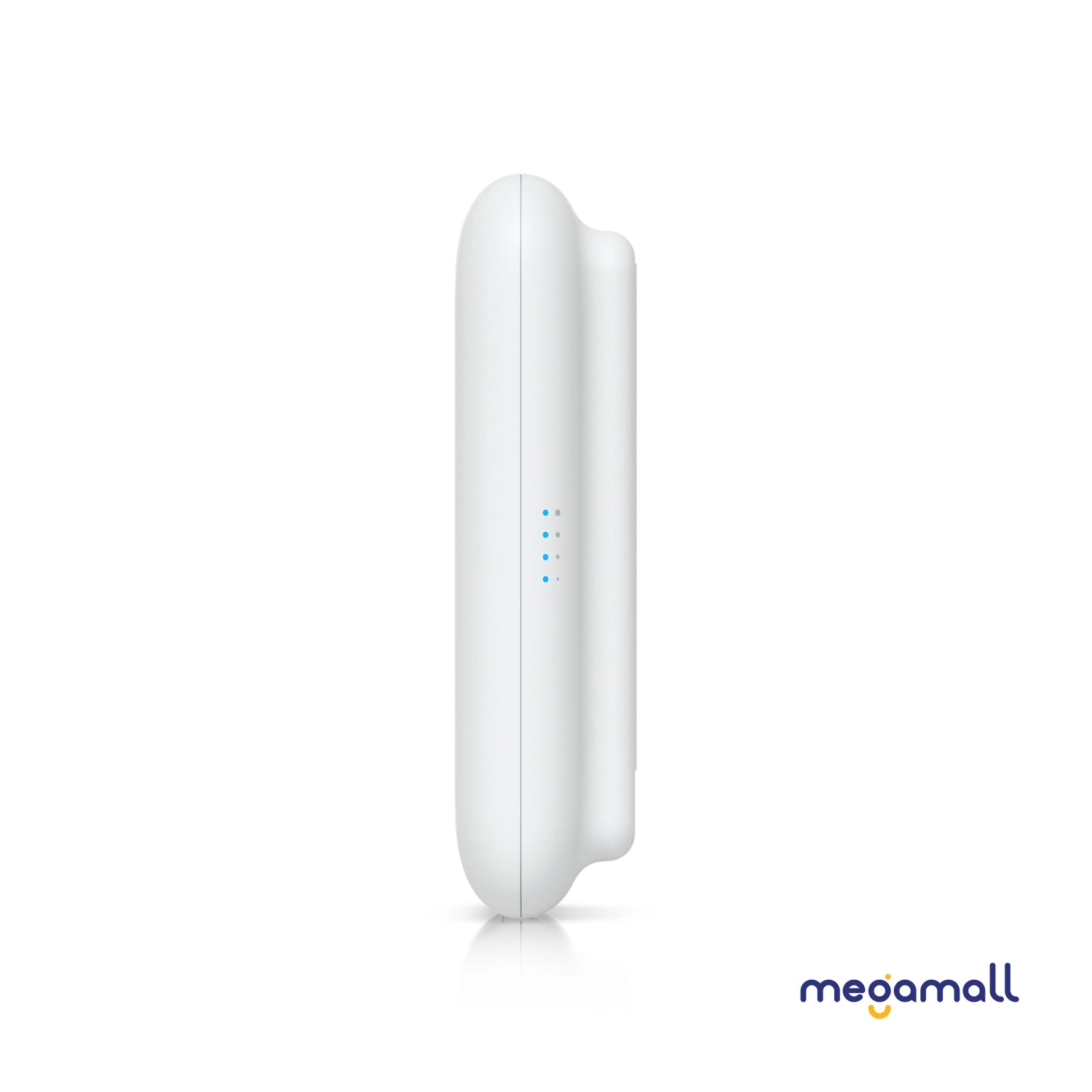

LEDs
|
||
| System | (1) Power: White/Blue (4) Mesh Signal: Blue | |
|
Channel Bandwidth
|
||
|
HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
|
||
| NDAA Compliant | ✓ | |
|
Certifications
|
CE, FCC, IC, Anatel | |
|
Operating Frequency
|
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz | |
|
Ambient Operating Temperature
|
-40 to 60° C (-40 to 140° F) | |
|
Ambient Operating Humidity
|
5 to 95% noncondensing | |
|
|
||
|
Application Requirements
|
||
| UniFi Network | Version 7.5.187 and later | |
