Description

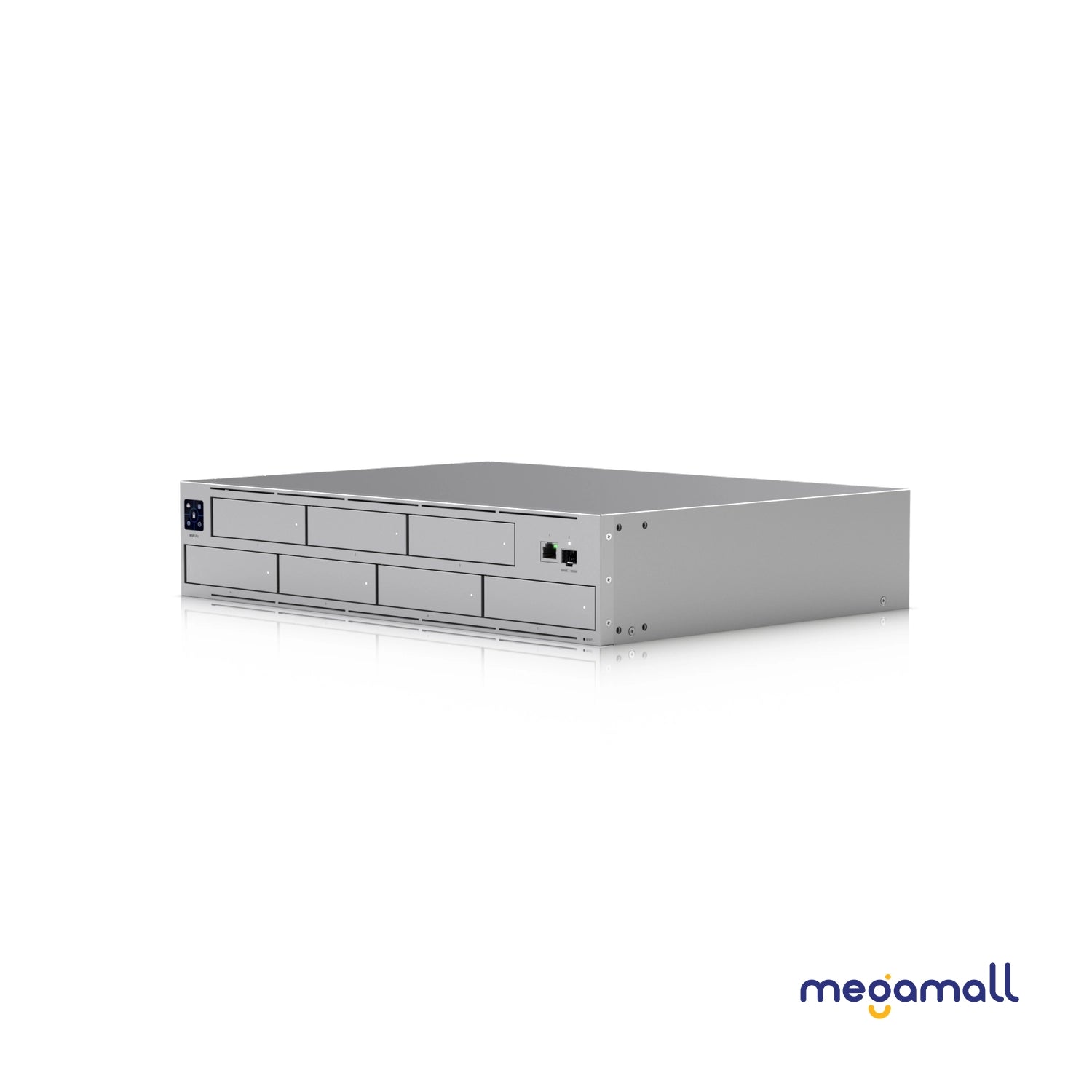

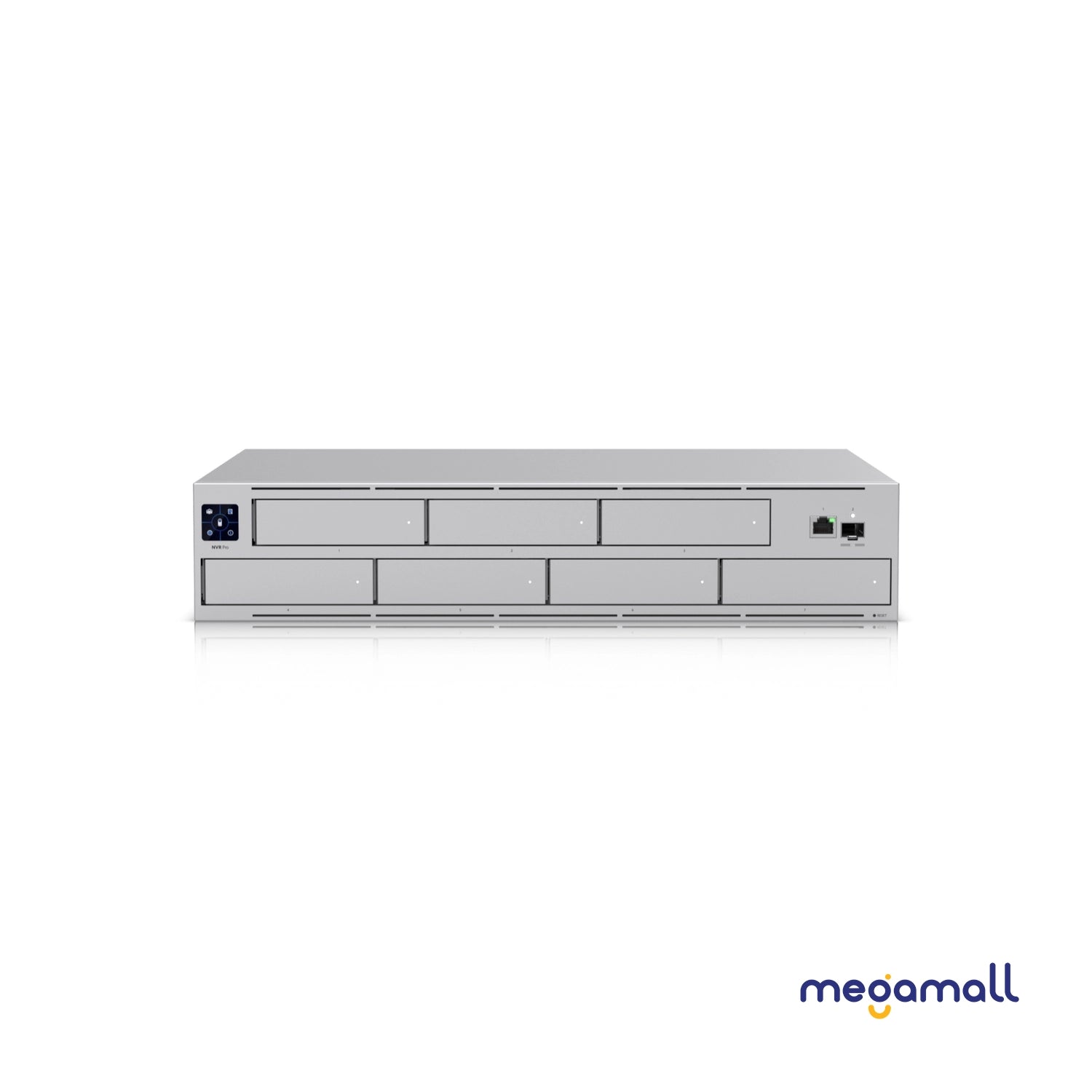

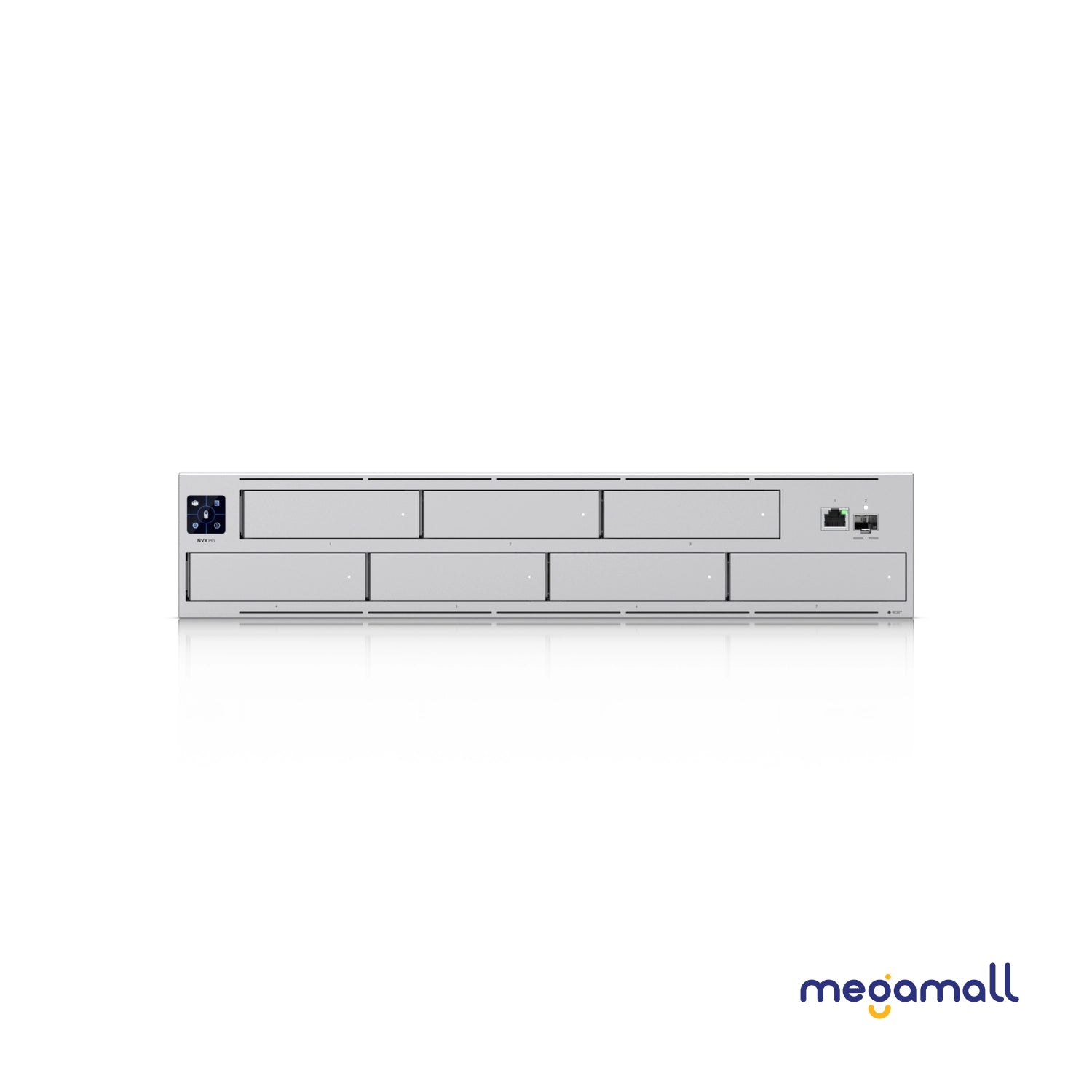

A 2U-sized video recorder with (7) 2.5/3.5" HDD bays that can provide up to 60 days of storage for (24) 4K cameras or (70) Full HD cameras.
|
Overview |
||
|
Dimensions |
442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
|
|
UniFi Application Suite |
||
|
Protect |
✓ |
|
|
Access |
✓ |
|
|
Managed Cameras |
(70) HD (35) 2K (24) 4K |
|
|
Storage Capacity |
(7) 3.5" drive bays |
|
|
Data Protection |
✓ |
|
|
Vantage Point |
✓ |
|
|
Networking Interface |
(1) 10G SFP+ (1) GbE |
|
|
Power Redundancy |
✓ |
|
|
Form Factor |
Rack mount (2U) |
|
|
Door Access Support |
✓ |
|
|
Hardware |
||
|
Hard Drive Capacity |
(7) 2.5/3.5" HDD / SSD support |
|
|
Max. Power Budget for Drives |
135W |
|
|
Max. Power Consumption |
160W |
|
|
Power Method |
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
|
|
Power Supply |
AC/DC, internal, 200W |
|
|
Processor |
Quad ARM® Cortex®-A57 cores at 1.7GHz |
|
|
Memory |
8 GB |
|
|
Management |
Ethernet |
|
|
Display |
1.3" touchscreen |
|
|
Weight |
Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
|
|
Enclosure Material |
SGCC steel |
|
|
Mount Material |
SGCC steel |
|
|
Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
