Mechanical

Dimensions

165 x 268.1 x 31.8 mm (6.5 x 10.6 x 1.3")

Weight

1.3 kg (2.9 lb)

Enclosure material

SGCC steel

Hardware

Management interface

Ethernet In-Band

Networking interface

(4) 1/2.5/5/10 GbE RJ45 ports

(2) 10G SFP+ ports

PoE interface

(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput

60 Gbps

Switching capacity

120 Gbps

Forwarding rate

89.3 Mpps

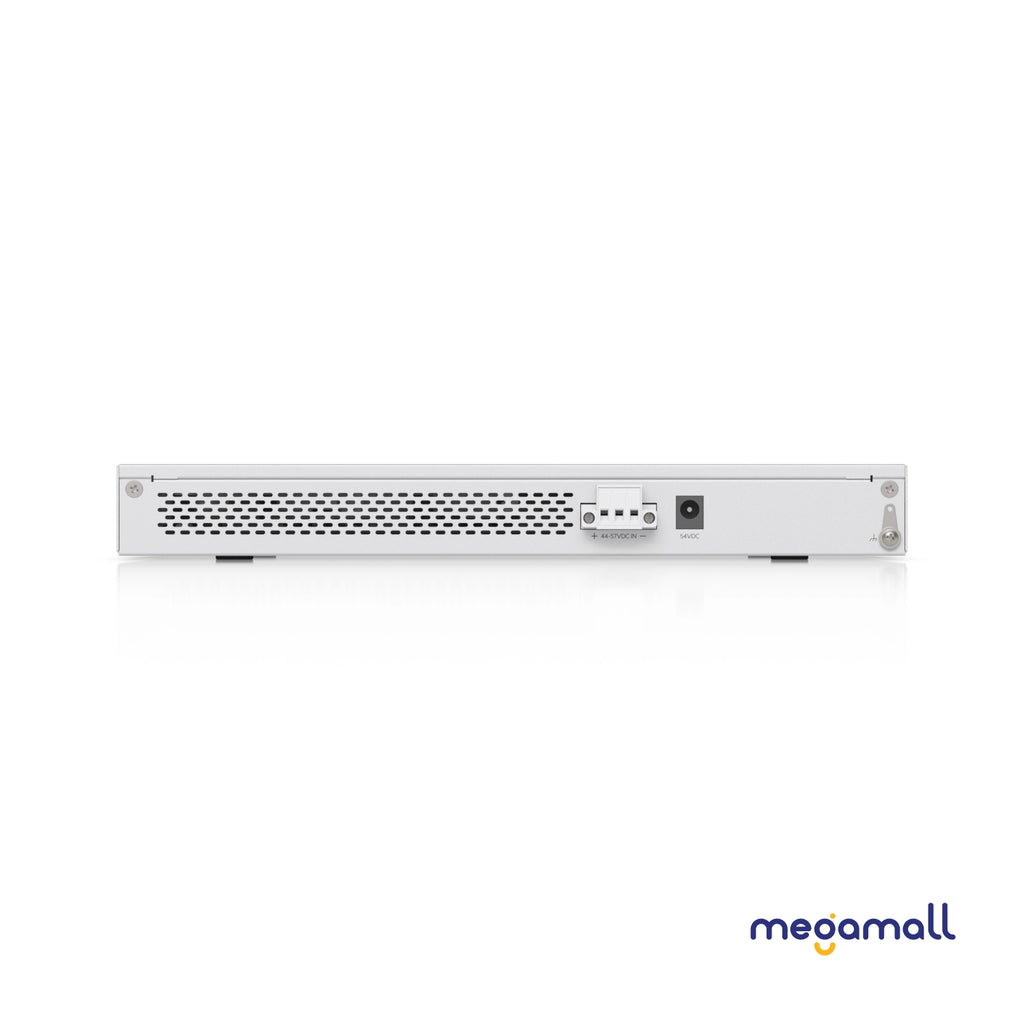

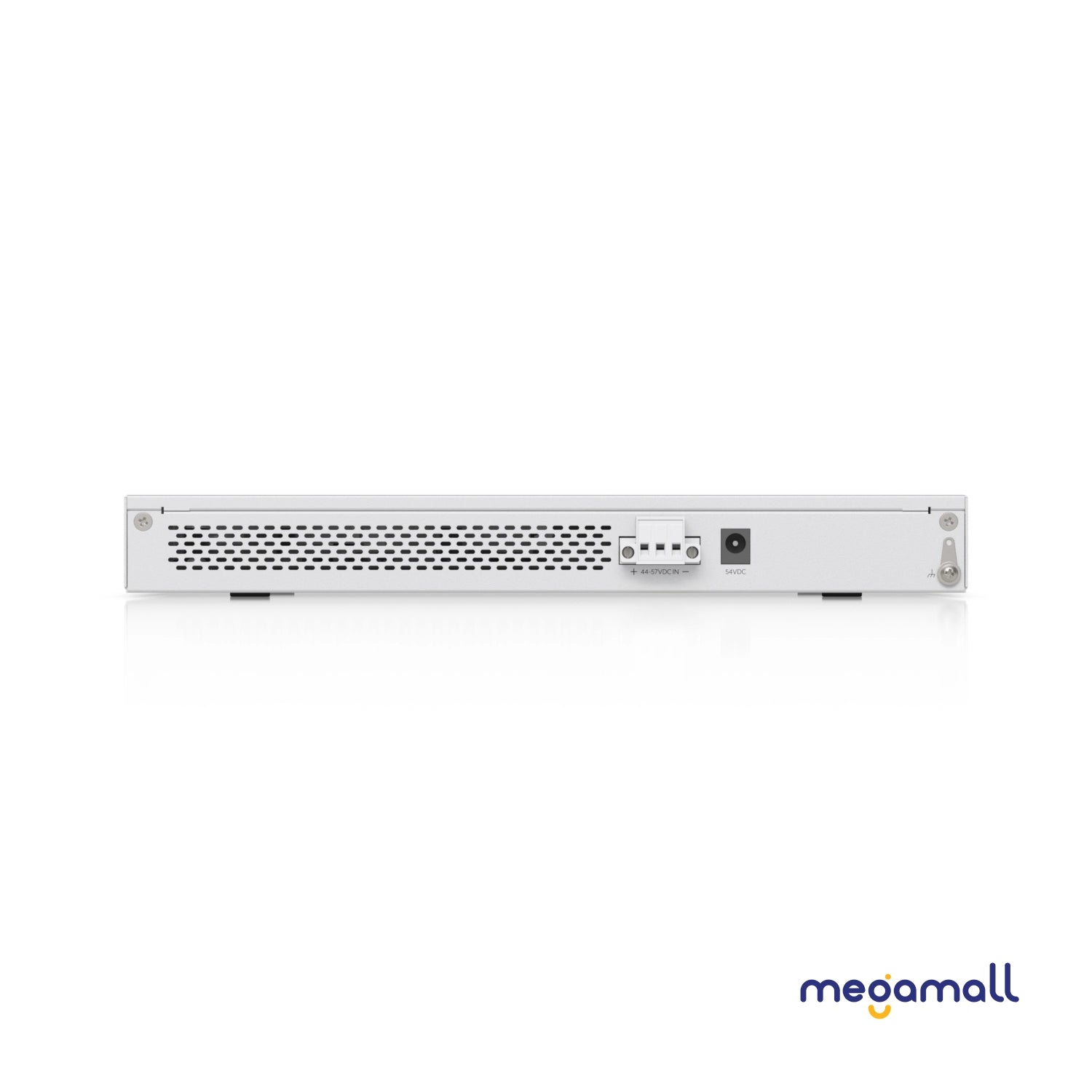

Power method

(1) 54V DC, 3.88A power adapter (Included)

(1) DC input with terminal block

Power supply

External AC/DC adapter (Included)

DC power source

Supported voltage range

44–57V DC

Max. power consumption

40W (Excluding PoE output)

Total available PoE

170W

Max. PoE wattage per port by PSE

PoE++: 60W

Voltage range PoE mode

PoE: 44—57V

PoE+/PoE++: 50—57V

ESD/EMP protection

Air: ± 18kV, contact: ± 12kV

Button

Factory reset

Ambient operating temperature

-5 to 45° C (23 to 113° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

LEDs

System

Status

Ethernet

PoE

Link/speed/activity

SFP+

Link/activity
