Description
A 24-port, Layer 2 PoE switch with a fanless cooling system.
|
|
||
|
Dimensions
|
442 x 200 x 44 mm (17.4 x 7.9 x 1.7") | |
|

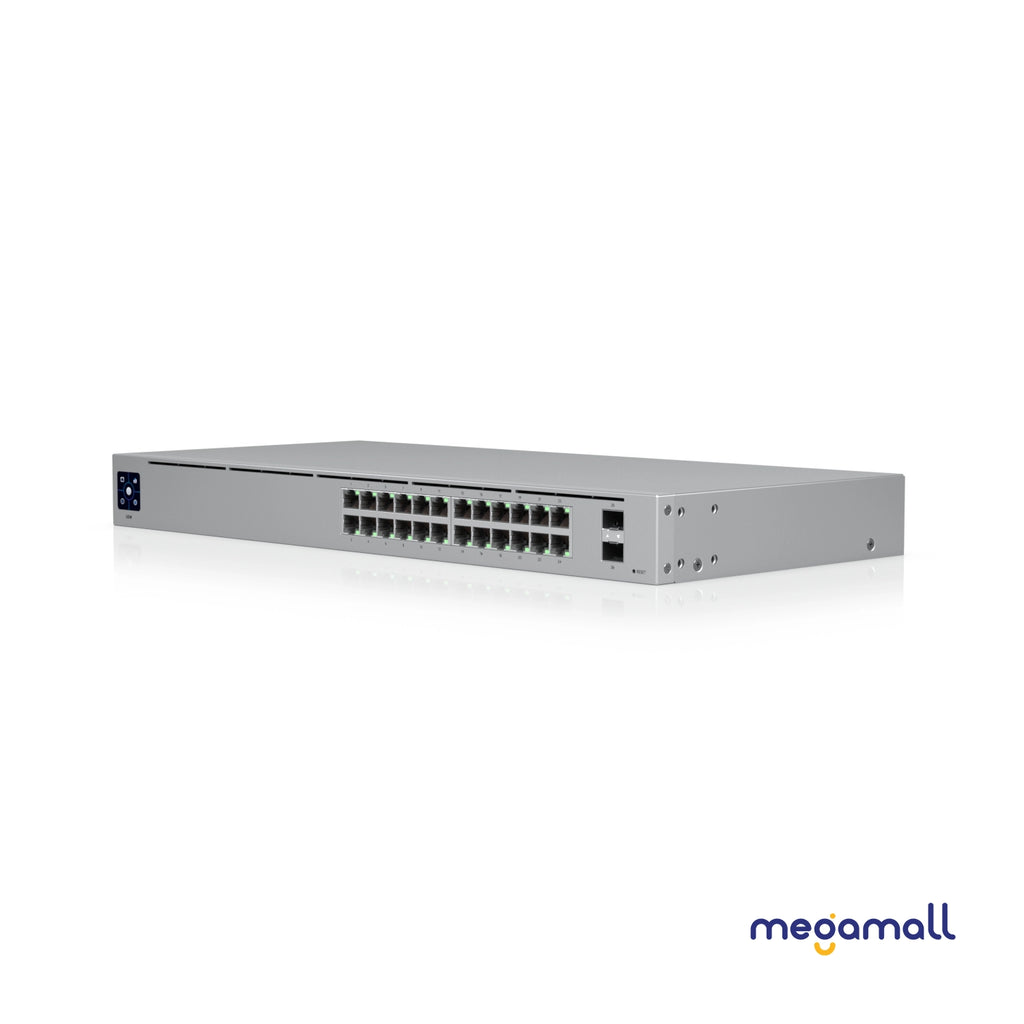

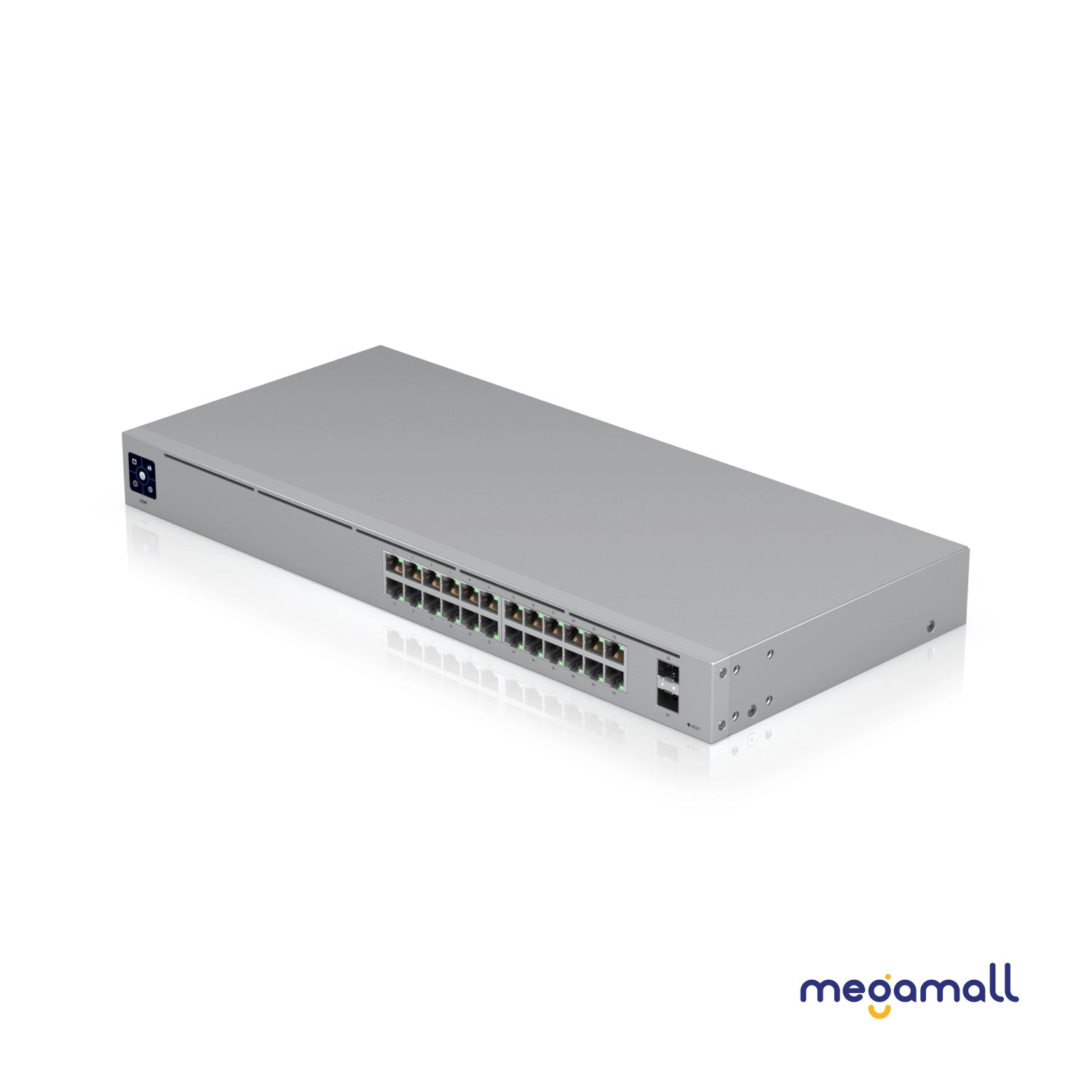

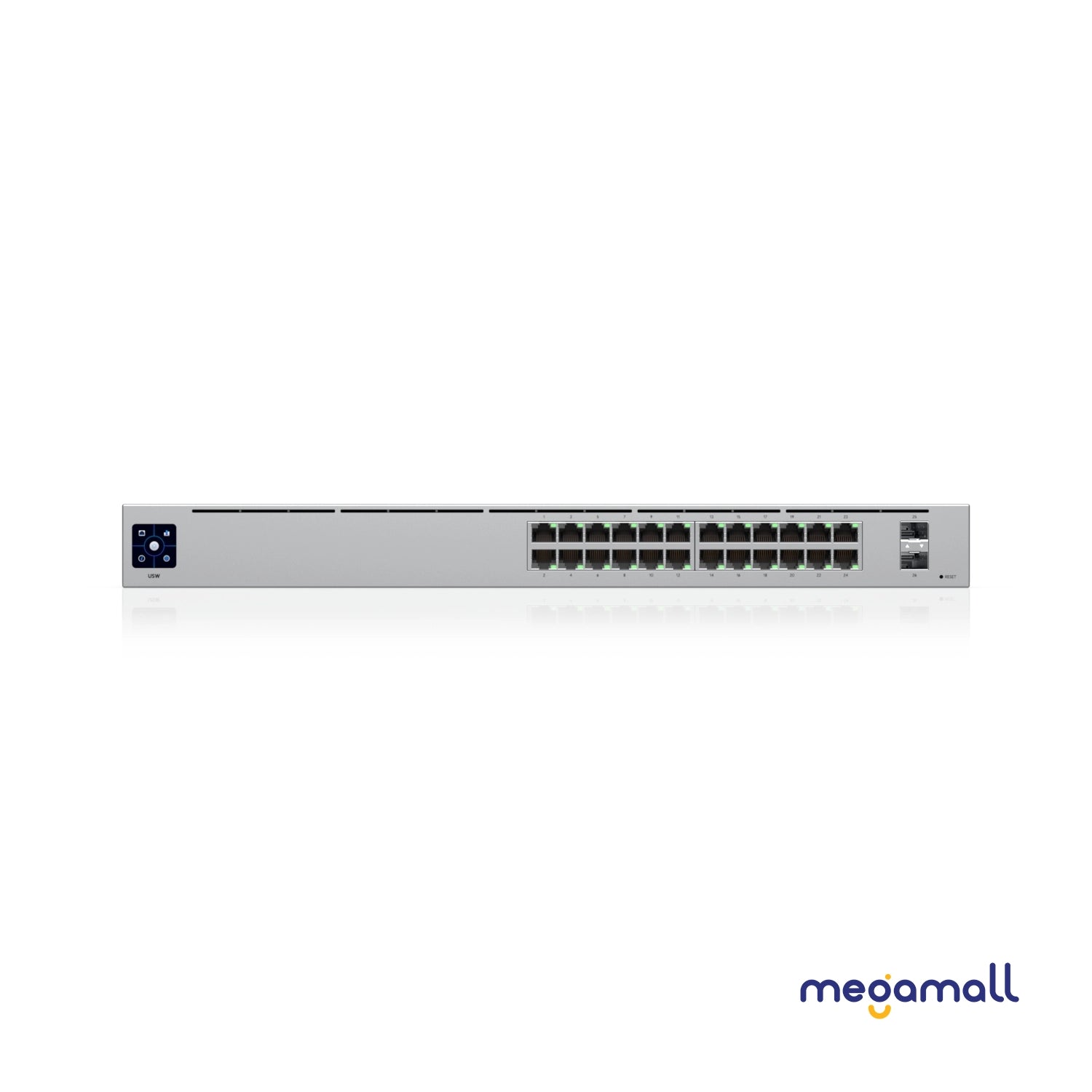

Port Layout
|
||
| 1 GbE RJ45 | 24 (1G/100M/10M) | |
| 1G SFP | 2 | |
|
Form Factor
|
Rack mount (1U) | |
|
|
||
|
Switching Capacity
|
52 Gbps | |
|
Total Non-Blocking Throughput
|
26 Gbps | |
|
Forwarding Rate
|
39 Mpps | |
|
Supported VLANs
|
1000 | |
|
MAC Address Table Size
|
8000 | |
|
Packet Buffer Size
|
0.5 MB | |
|
Access Lists
|
||
| IPv4 | 128 | |
| MAC | 128 | |
|
|
||
|
LACP Port Aggregation
|
✓ | |
|
STP & RSTP
|
✓ | |
|
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
|
✓ | |
|
IGMP Snooping
|
✓ | |
|
802.1X Control
|
✓ | |
|
MAC-Based ACLs & Device Isolation
|
✓ | |
|
DHCP Snooping & Guarding
|
✓ | |
|
Egress Rate Limit
|
✓ | |
|
Flow Control
|
✓ | |
|
Storm Control
|
✓ | |
|
Multicast & Broadcast Rate Limiting
|
✓ | |
|
MAC Address Blocking
|
✓ | |
|
IP-Based ACLs & Network Isolation
|
✓ | |
|
MAC-Based Port Restriction
|
✓ | |
|
Port Isolation
|
✓ | |
|
Port Mirroring
|
✓ | |
|
Jumbo Frames
|
✓ | |
|
LLDP-MED
|
✓ | |
|
Voice VLAN
|
✓ | |
|
Loop Protection
|
✓ | |
|
|
||
|
Max. Power Consumption
|
25W | |
|
Power Method
|
Universal input, 100—240V AC, 50/60 Hz | |
|

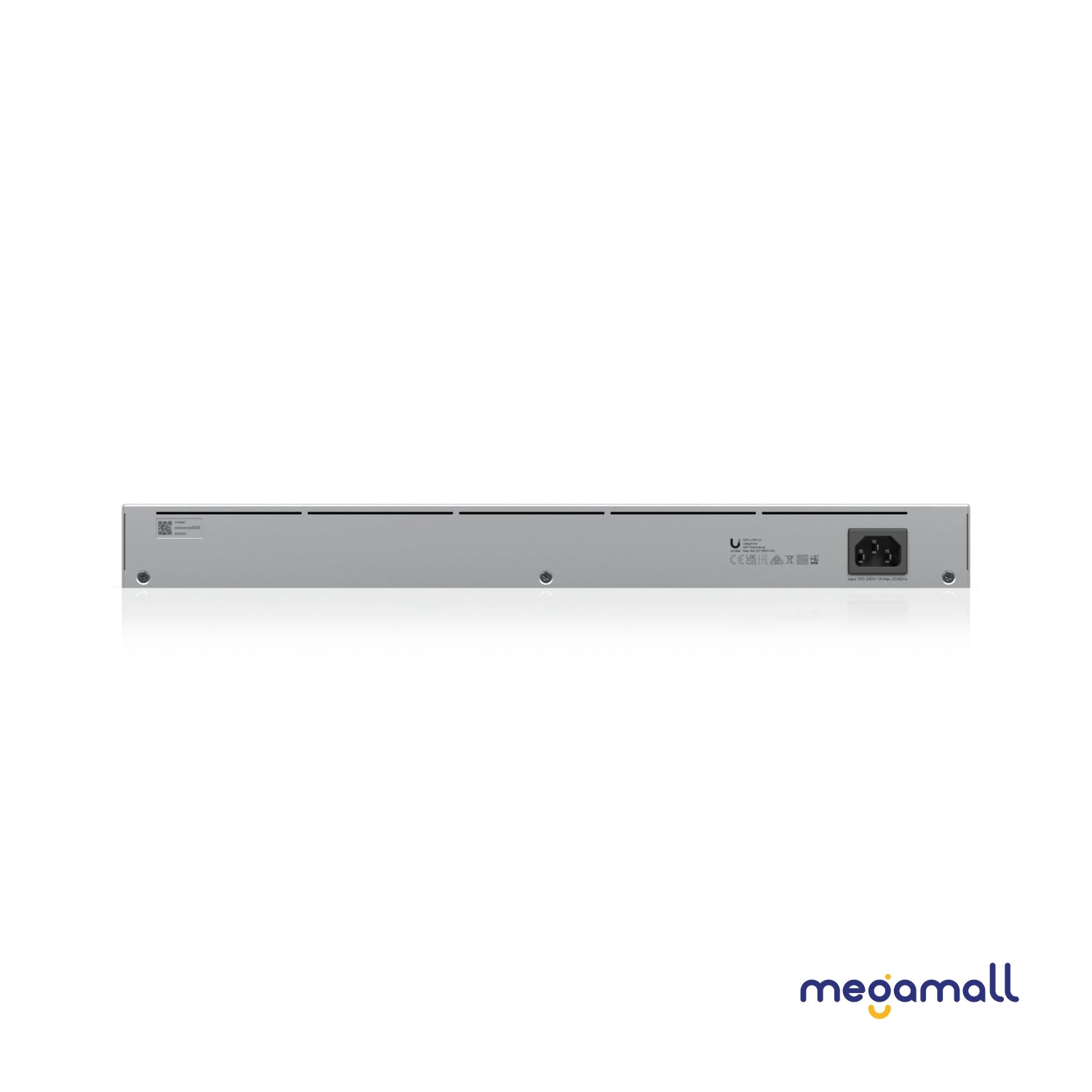

Power Input Method
|
AC input | |
|
Power Supply
|
AC/DC, internal, 36W | |
|
Supported Voltage Range
|
100—240V AC | |
|
Management
|
Ethernet AR | |
|
Heat Dissipation (Excluding PoE Output)
|
85.3 BTU/hr | |
|
Weight
|
Without mounting brackets: 2.7 kg (6 lb) With mounting brackets: 2.8 kg (6.2 lb) | |
|
Enclosure Material
|
SGCC steel | |
|

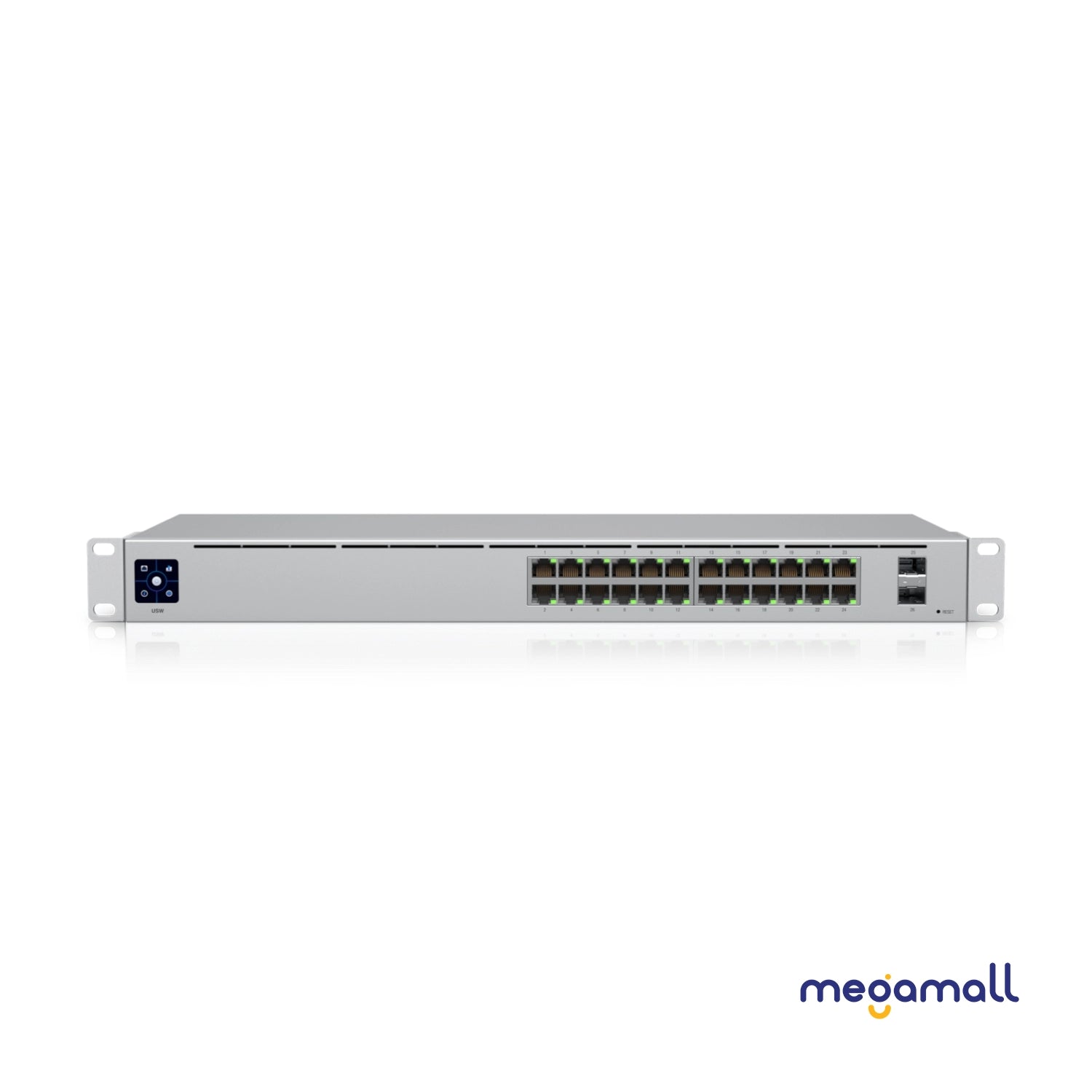

Mount Material
|
SGCC steel | |
|
Supported Rack Depth
|
400~1200 mm (15.7-47.2") | |
|
LCM Display
|
1.3" touchscreen | |
|
Ambient Operating Temperature
|
-5 to 45° C (23 to 113° F) | |
|
Ambient Operating Humidity
|
10 to 90% noncondensing | |
|
NDAA Compliant
|
✓ | |
|
Certifications
|
CE, FCC, IC, Anatel | |
|
|
||
|
Application Requirements
|
||
| UniFi Network | Version 7.2.94 and later | |
