Overview

Dimensions

442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

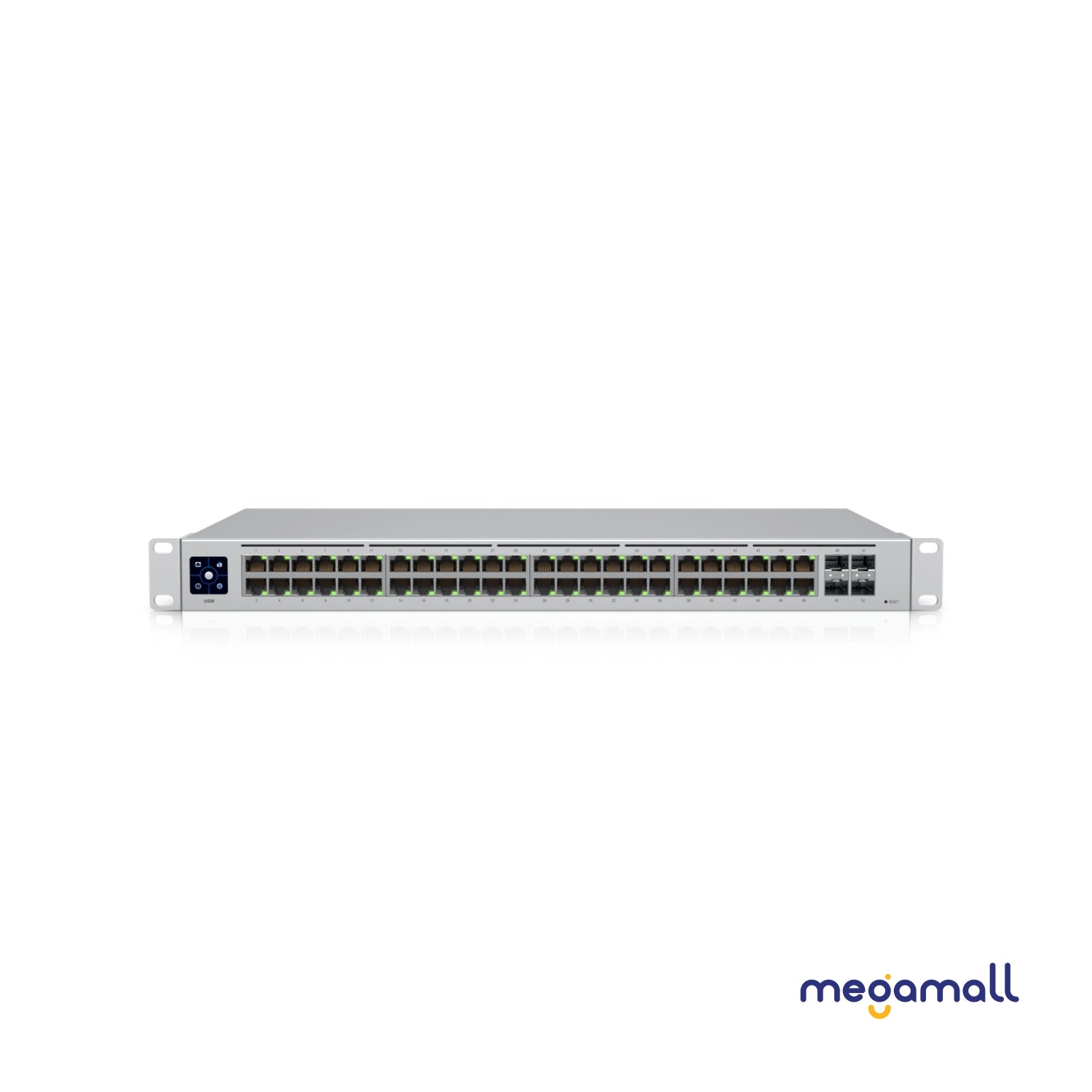

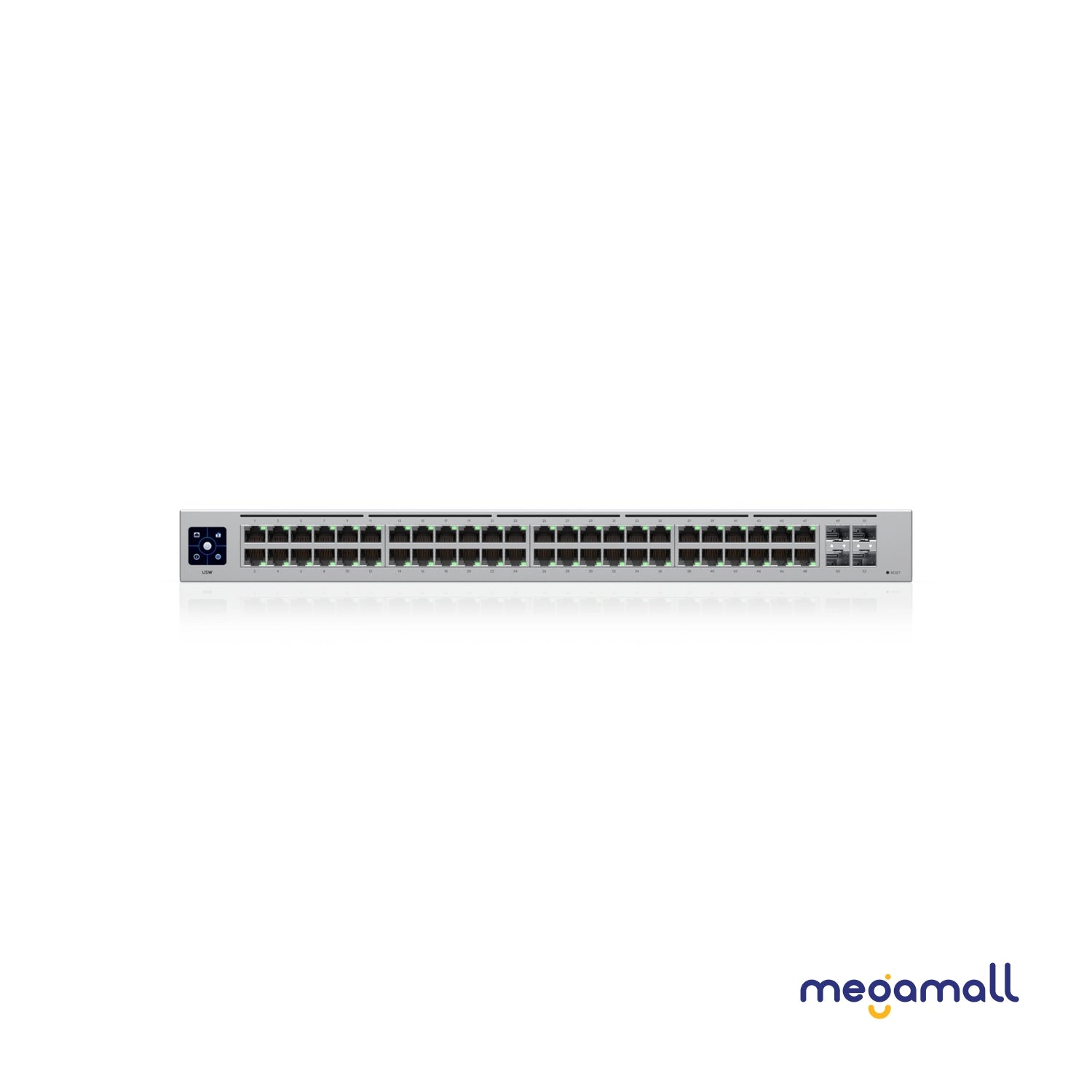

Port Layout

1 GbE RJ45

48 (1G/100M/10M)

1G SFP

4

Form Factor

Rack mount (1U)

Performance

Switching Capacity

104 Gbps

Total Non-Blocking Throughput

52 Gbps

Forwarding Rate

77 Mpps

Supported VLANs

1000

MAC Address Table Size

16000

Packet Buffer Size

1.5 MB

Access Lists

IPv4

128

MAC

128

Layer 2 Features

LACP Port Aggregation

✓

STP & RSTP

✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

✓

IGMP Snooping

✓

802.1X Control

✓

MAC-Based ACLs & Device Isolation

✓

DHCP Snooping & Guarding

✓

Egress Rate Limit

✓

Flow Control

✓

Storm Control

✓

Multicast & Broadcast Rate Limiting

✓

MAC Address Blocking

✓

IP-Based ACLs & Network Isolation

✓

MAC-Based Port Restriction

✓

Port Isolation

✓

Port Mirroring

✓

Jumbo Frames

✓

LLDP-MED

✓

Voice VLAN

✓

Loop Protection

✓

Hardware

Max. Power Consumption

40W

Power Method

Universal input, 100—240V AC, 50/60 Hz

Power Input Method

AC input

Power Supply

AC/DC, internal, 60W

Supported Voltage Range

100—240V AC

Management

Ethernet AR

Heat Dissipation (Excluding PoE Output)

136.48 BTU/hr

Weight

Without mounting brackets: 3.9 kg (8.6 lb) With mounting brackets: 4 kg (8.8 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

400~1200 mm (15.7-47.2")

LCM Display

1.3" touchscreen

Ambient Operating Temperature

-15 to 40° C (5 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel

Software

Application Requirements

UniFi Network

Version 7.2.94 and later
