Description

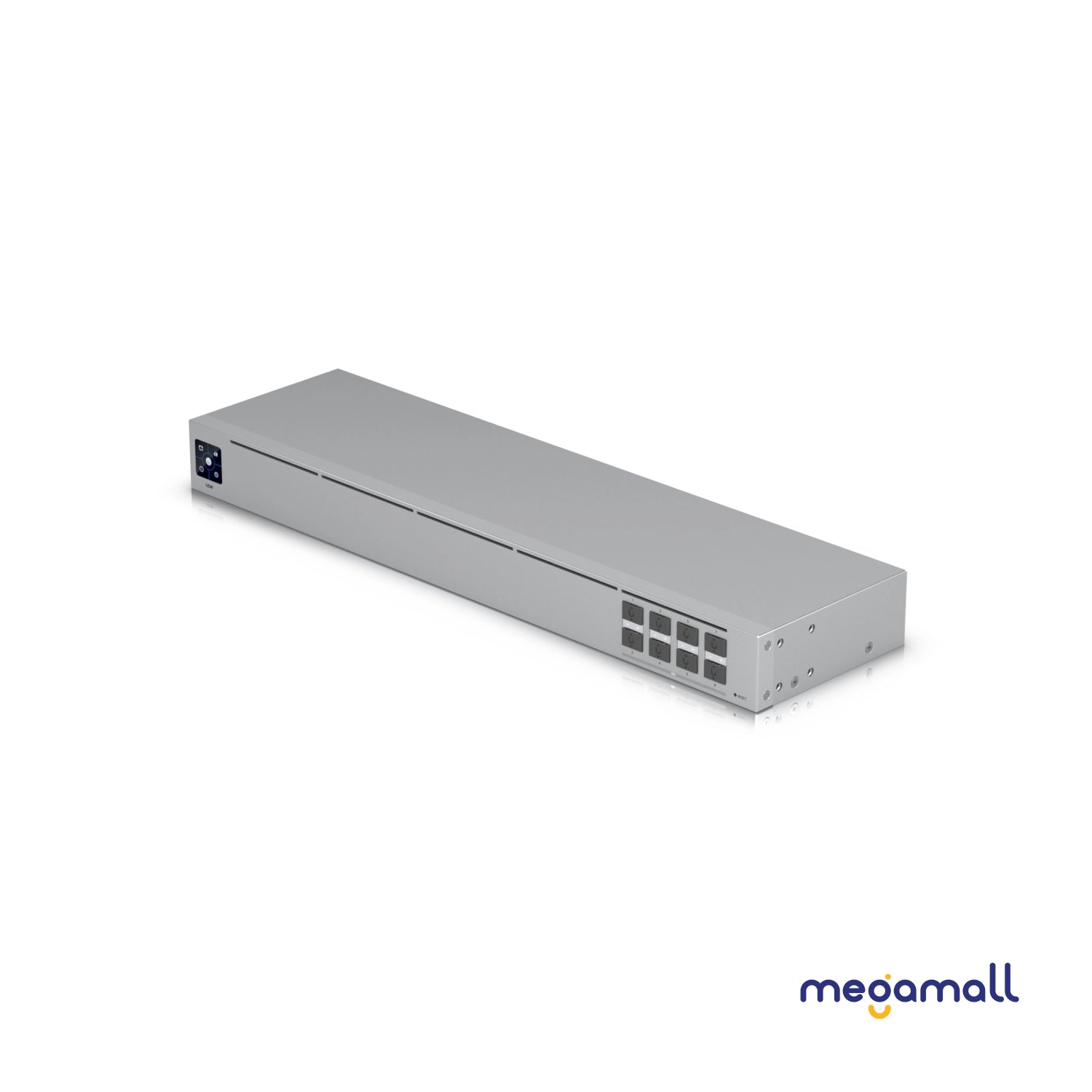

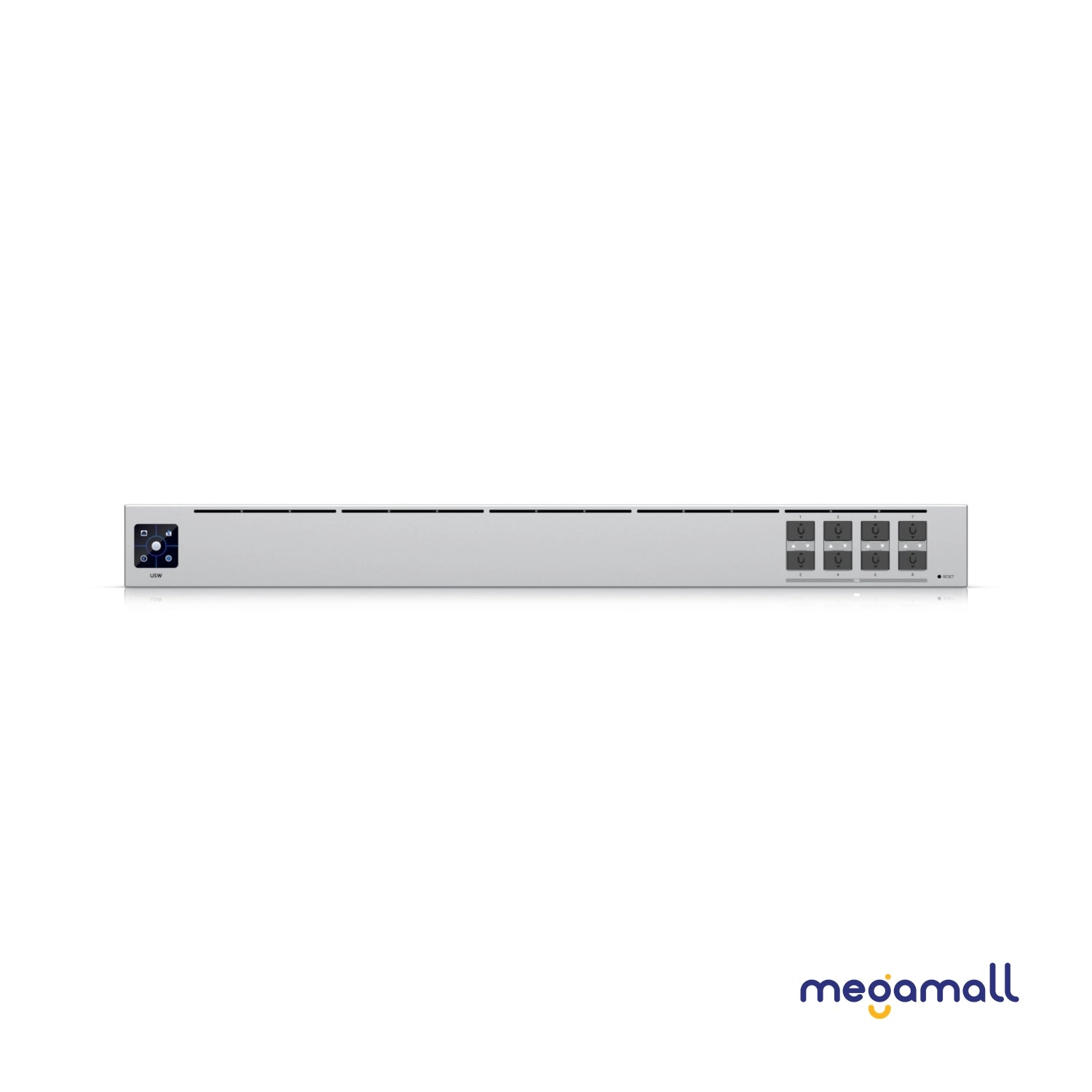

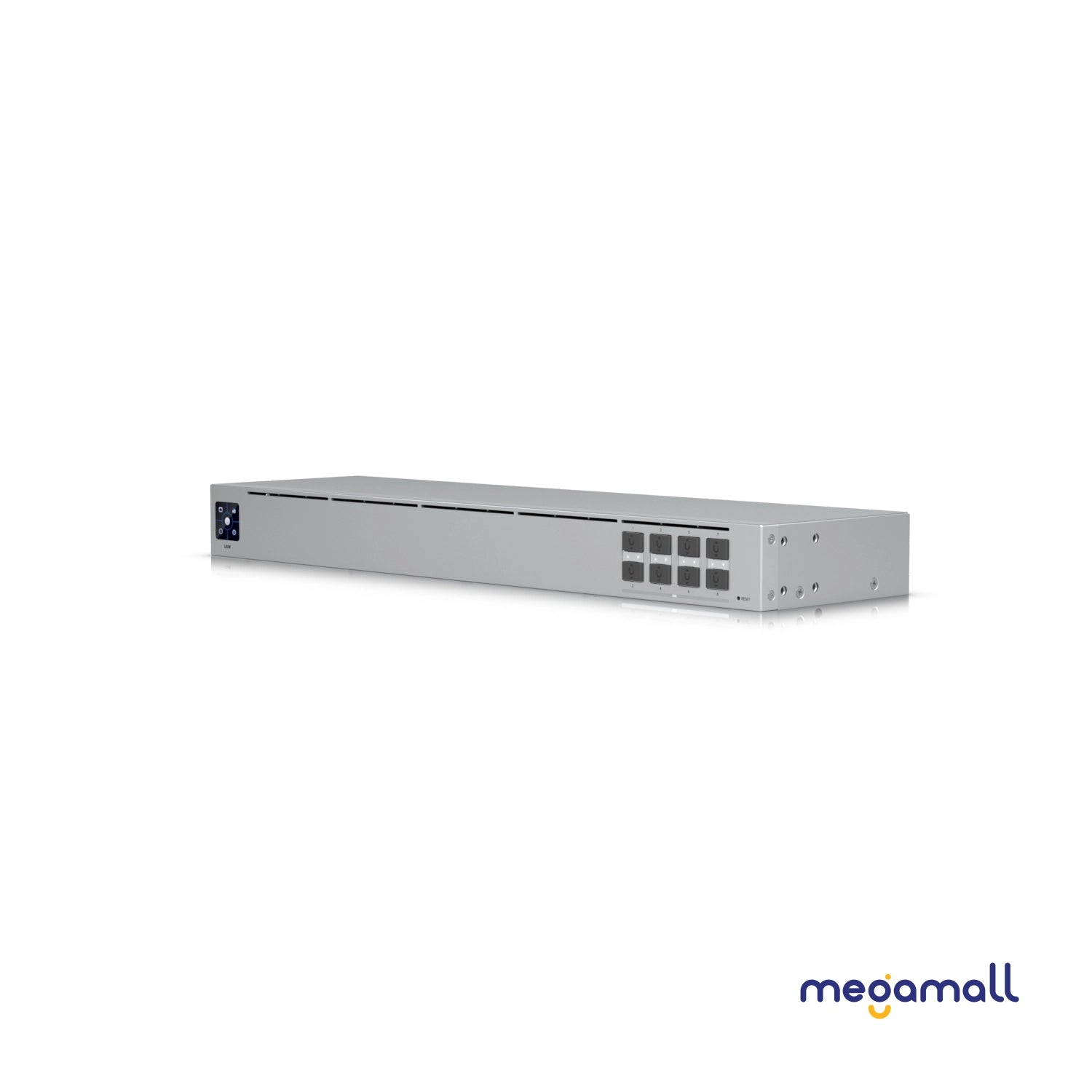

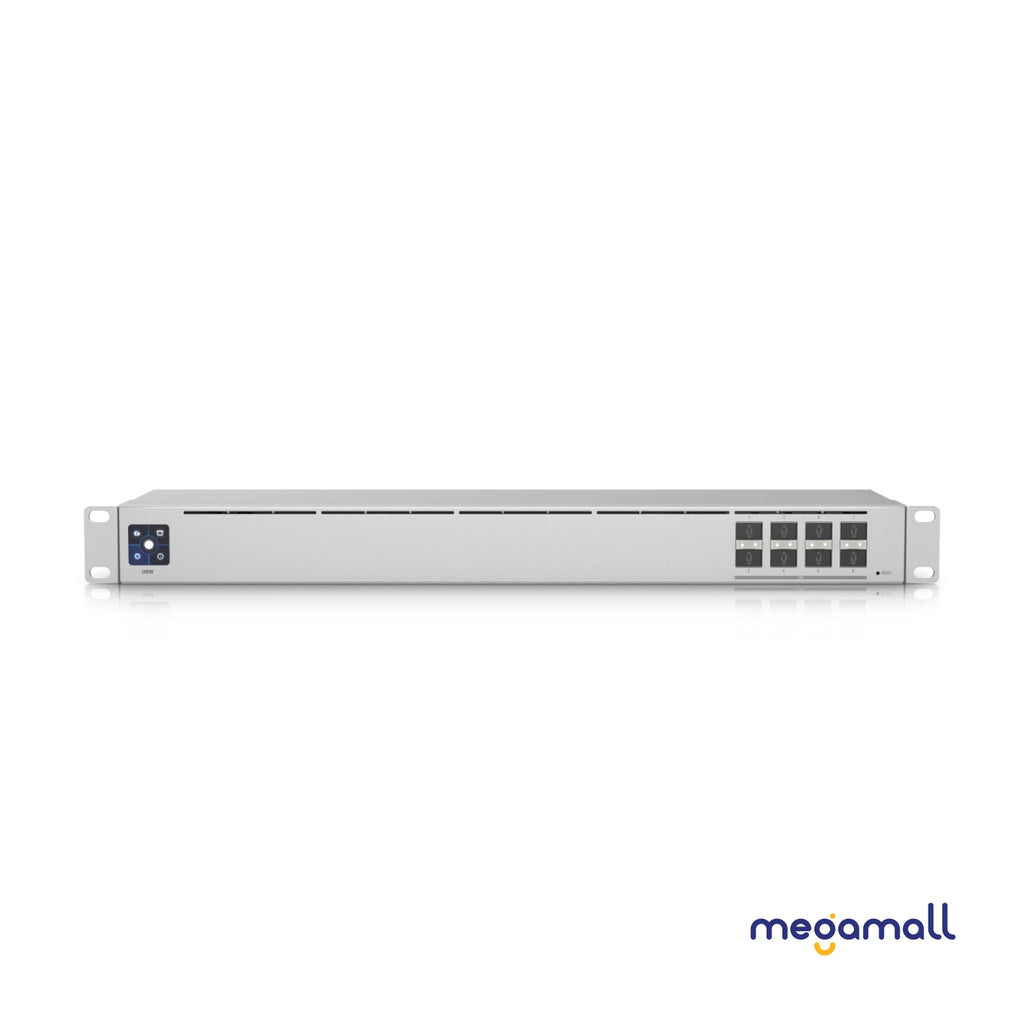

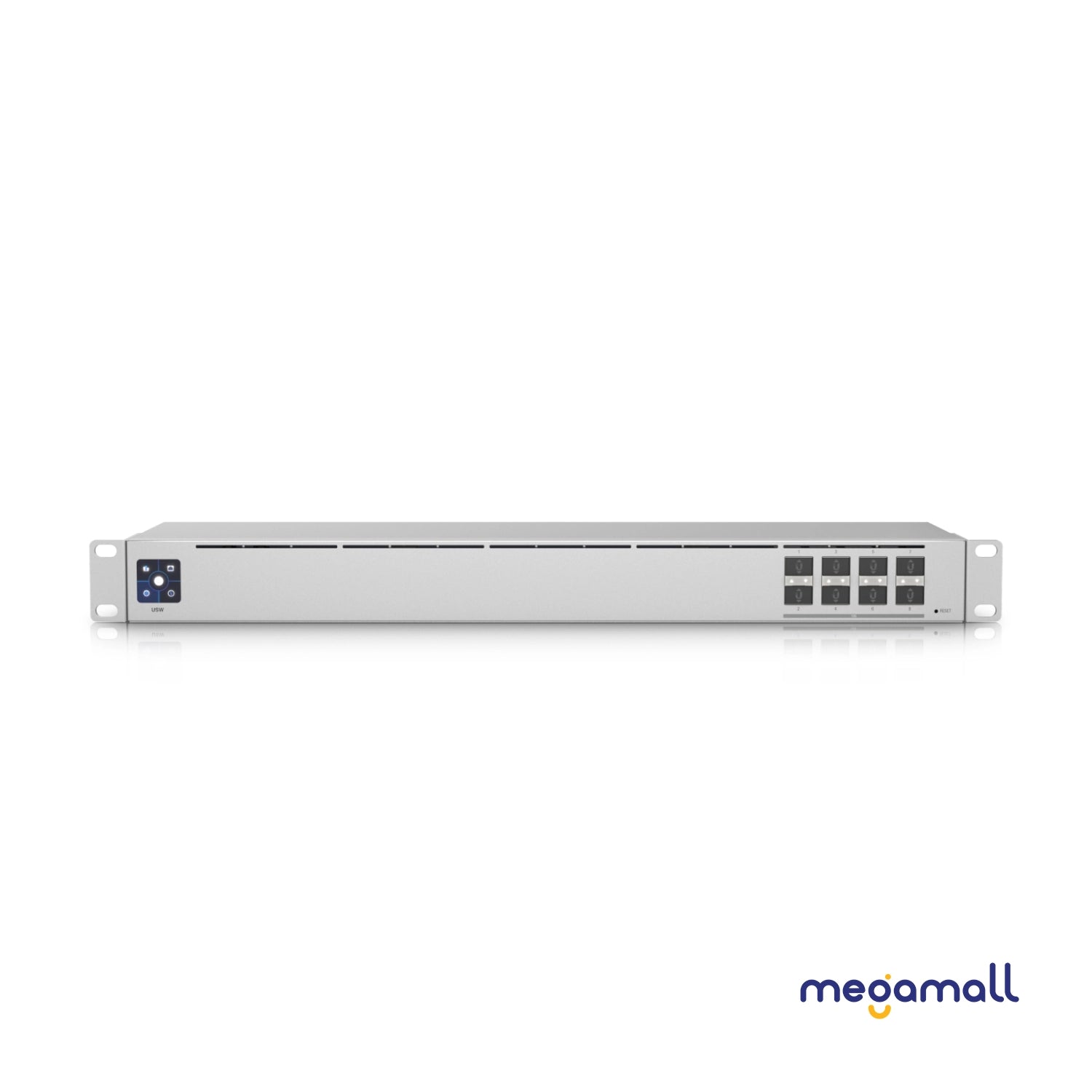

An 8-port, Layer 2 switch made for 10G SFP+ connections.
|
Overview |
||
|
Dimensions |
442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") |
|
|
Port Layout |
||
|
10G SFP+ |
8 |
|
|
Form Factor |
Rack mount (1U) |
|
|
Performance |
||
|
Switching Capacity |
160 Gbps |
|
|
Total Non-Blocking Throughput |
80 Gbps |
|
|
Forwarding Rate |
119 Mpps |
|
|
Supported VLANs |
1000 |
|
|
MAC Address Table Size |
16000 |
|
|
Packet Buffer Size |
1.5 MB |
|
|
Access Lists |
||
|
IPv4 |
128 |
|
|
MAC |
128 |
|
|
Layer 2 Features |
||
|
LACP Port Aggregation |
✓ |
|
|
STP & RSTP |
✓ |
|
|
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
✓ |
|
|
IGMP Snooping |
✓ |
|
|
802.1X Control |
✓ |
|
|
MAC-Based ACLs & Device Isolation |
✓ |
|
|
DHCP Snooping & Guarding |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
MAC Address Blocking |
✓ |
|
|
IP-Based ACLs & Network Isolation |
✓ |
|
|
MAC-Based Port Restriction |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
LLDP-MED |
✓ |
|
|
Voice VLAN |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
36W (Including SFP modules) |
|
|
Power Method |
Universal input, 100—240V AC, 50/60 Hz |
|
|
Power Input Method |
AC input |
|
|
Power Supply |
AC/DC, internal, 36W |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Management |
Ethernet AR |
|
|
Heat Dissipation (Excluding PoE Output) |
102.36 BTU/hr |
|
|
Weight |
Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb) |
|
|
Enclosure Material |
SGCC steel |
|
|
Mount Material |
SGCC steel |
|
|
Supported Rack Depth |
400~1200 mm (15.7-47.2") |
|
|
LCM Display |
1.3" touchscreen |
|
|
ESD/EMP Protection |
Air: ± 16kV, contact: ± 12kV |
|
|
Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 5.14.12 and later |
|
