Description

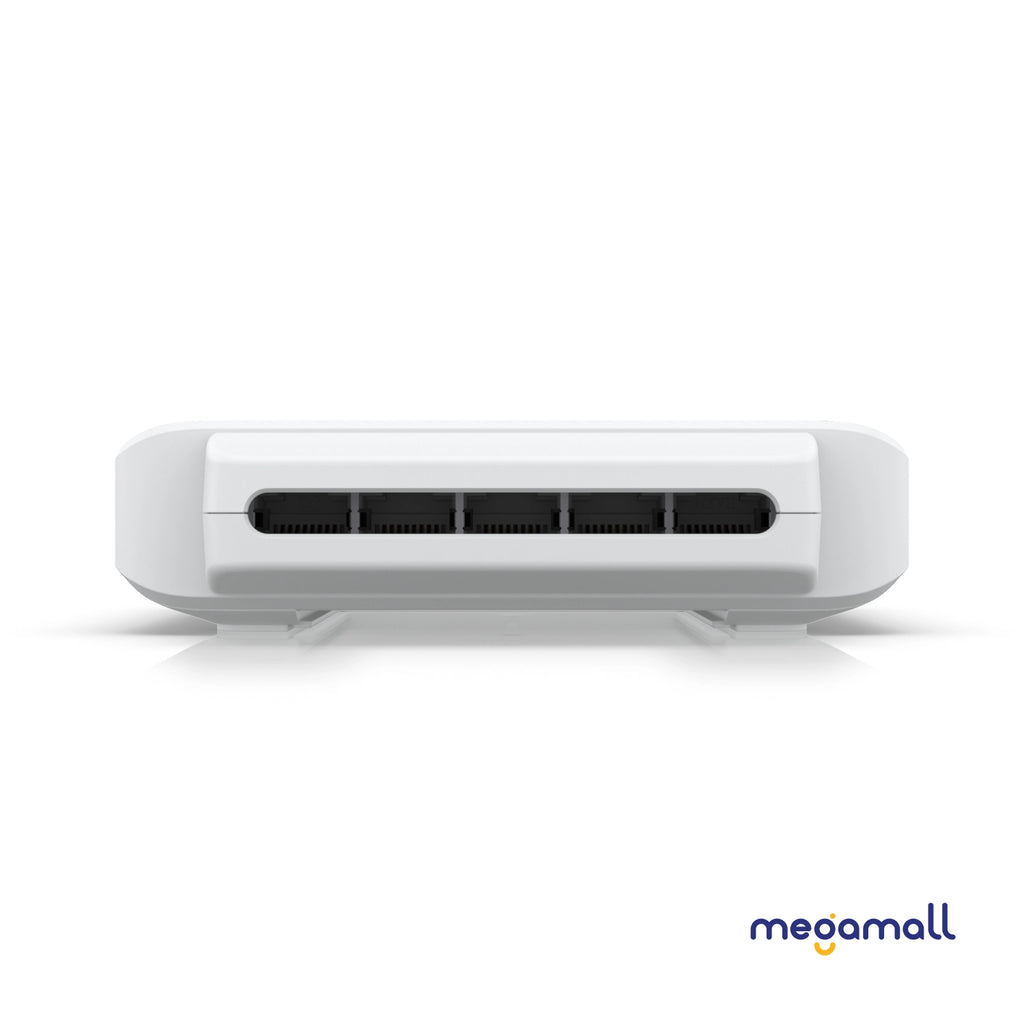

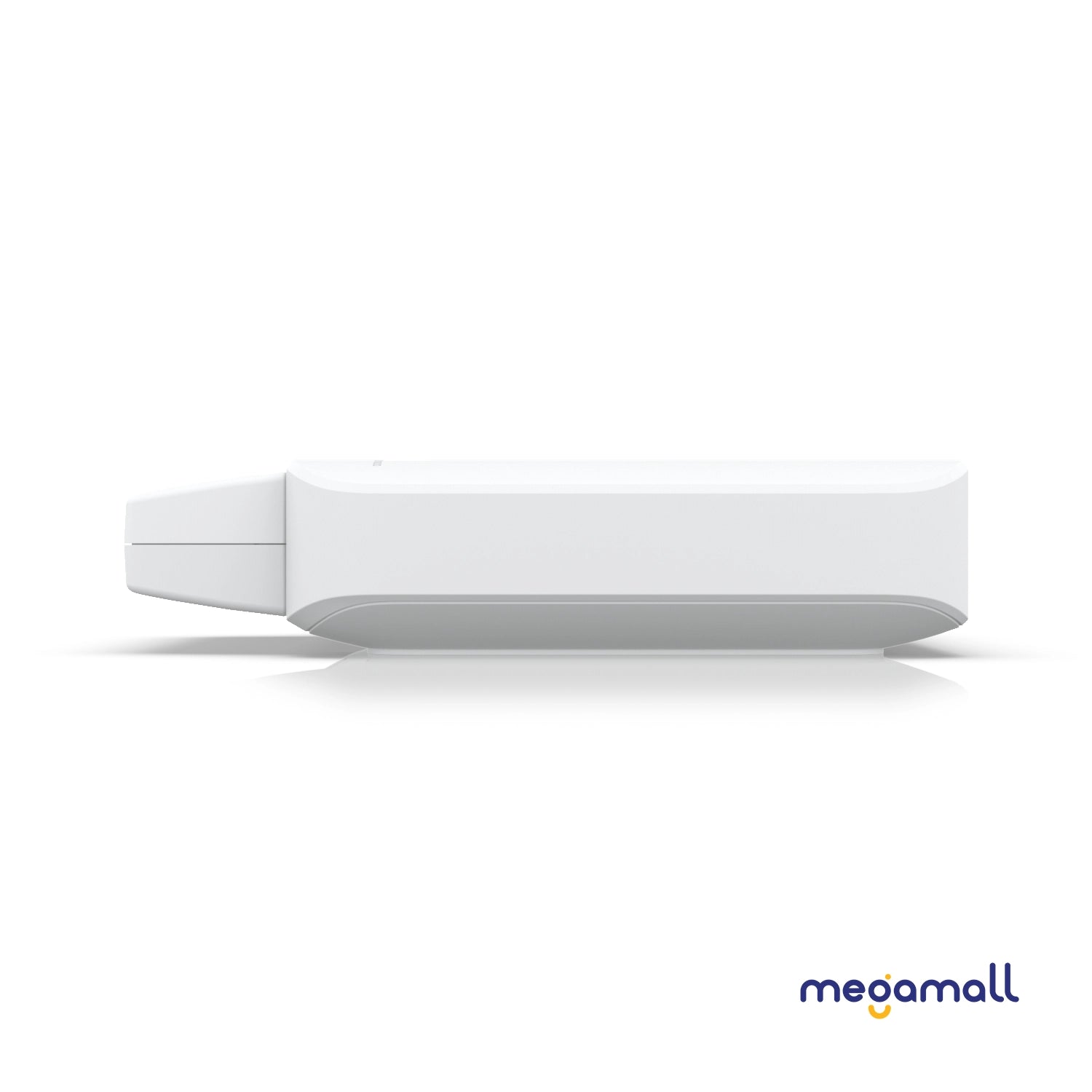

Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Note. 46W total PoE availability when powered with a PoE++ switch or a 60W PoE adapter (sold separately).
|
Overview |
||
|
Dimensions |
122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |
|
|

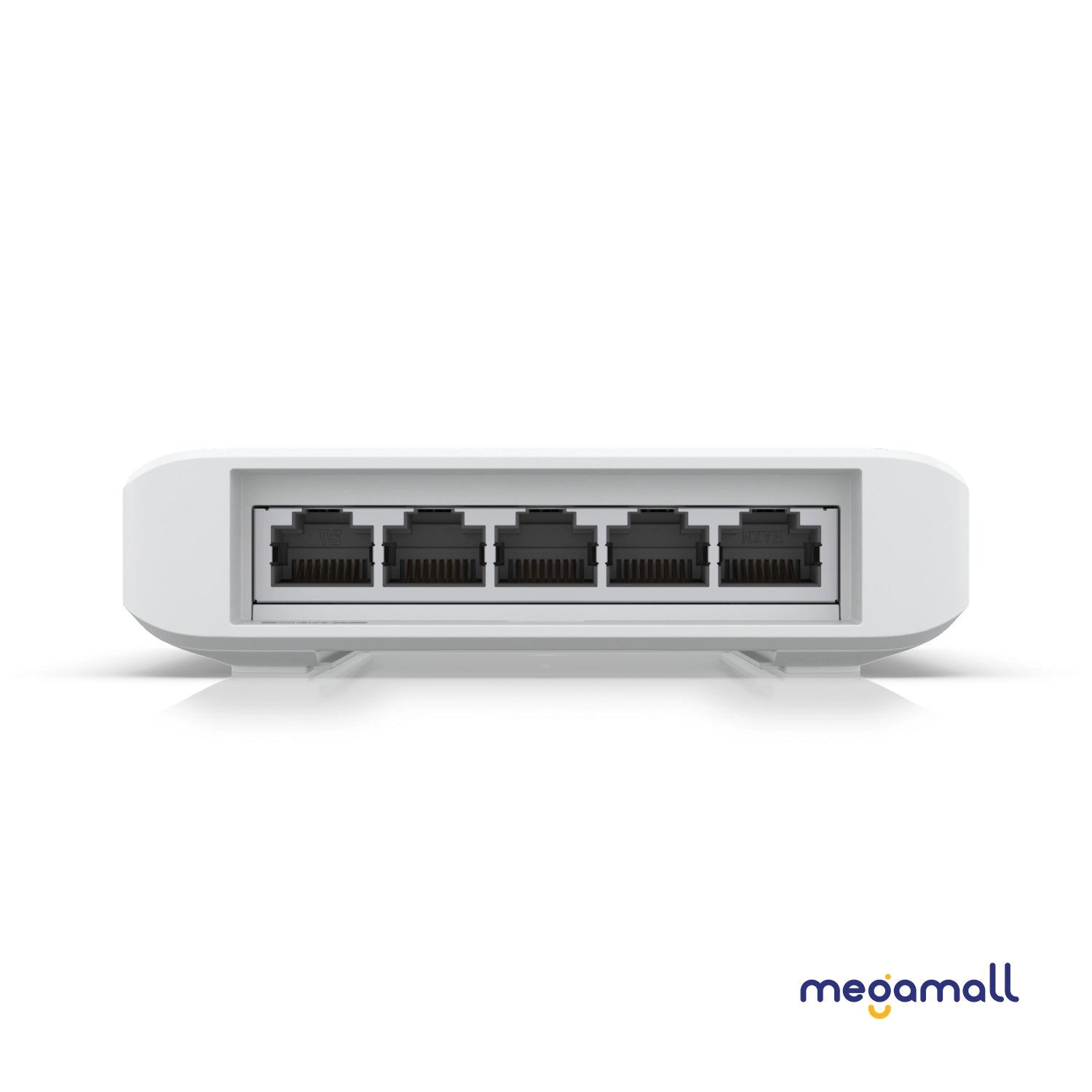

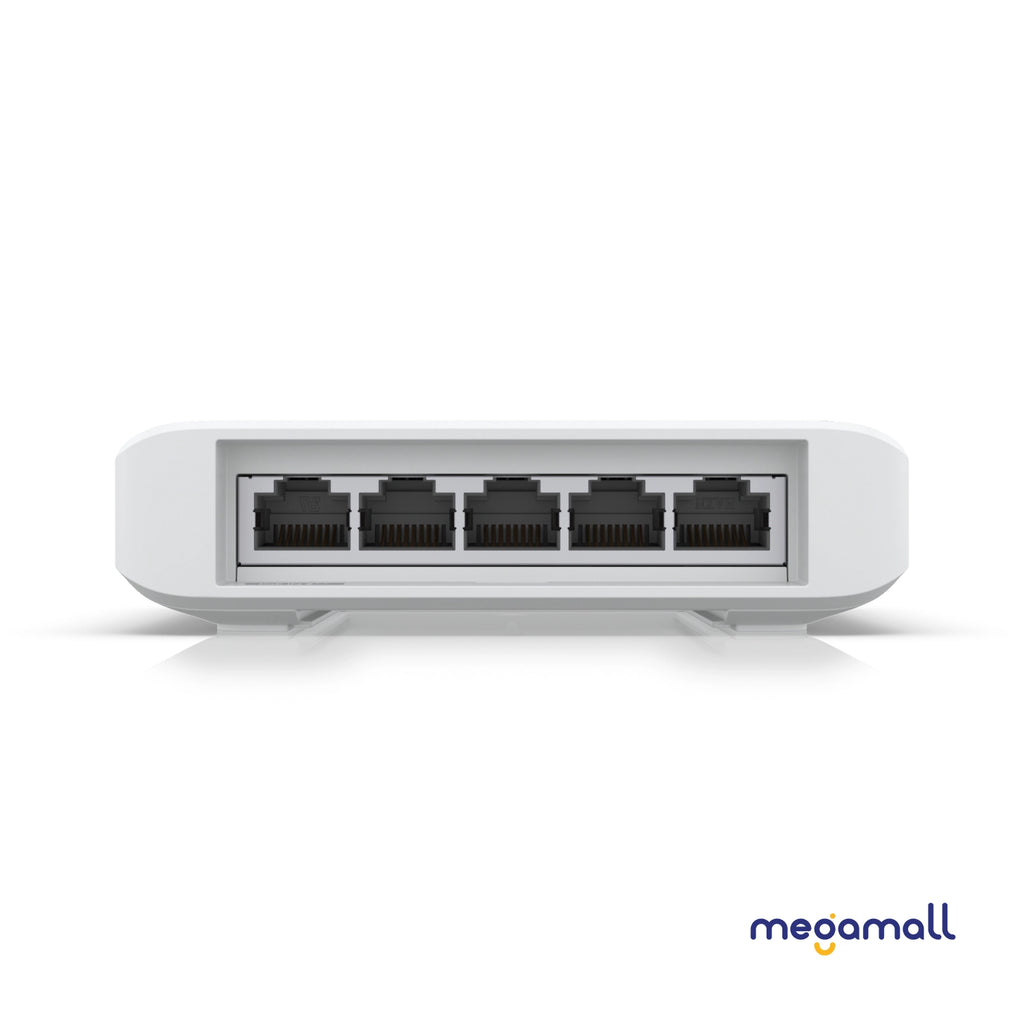

Port Layout |
||
|
1 GbE RJ45 |
5 (4 PoE+; 1 PoE++) (1G/100M/10M) |
|
|
Max. PoE Output |
Up to PoE+ |
|
|
Total PoE Availability |
46W |
|
|
Form Factor |
Compact desktop, wall, pole |
|
|
Performance |
||
|
Switching Capacity |
10 Gbps |
|
|
Total Non-Blocking Throughput |
5 Gbps |
|
|
Forwarding Rate |
7 Mpps |
|
|
Supported VLANs |
1000 |
|
|
MAC Address Table Size |
2000 |
|
|
Layer 2 Features |
||
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
Hardware |
||
|
PoE Ports |
||
|
PoE+ |
4 |
|
|
PoE++ |
1 |
|
|
Max. PoE Wattage per Port by PSE |
||
|
PoE+ |
25W |
|
|
Max. Power Consumption |
5W (Excluding PoE Output) 51W (Including PoE Output) |
|
|
Power Method |
PoE++ |
|
|
Power Input Method |
PoE |
|
|
Supported Voltage Range |
50—57V PoE |
|
|
Management |
Ethernet |
|
|
Heat Dissipation (Excluding PoE Output) |
17.06 BTU/hr |
|
|
Outdoor Ready |
✓ |
|
|
Weight |
230 g (8.1 oz) |
|
|
ESD/EMP Protection |
Air/contact: ± 16kV |
|
|
Ambient Operating Temperature |
46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 5.10.3 and later |
|
