Description

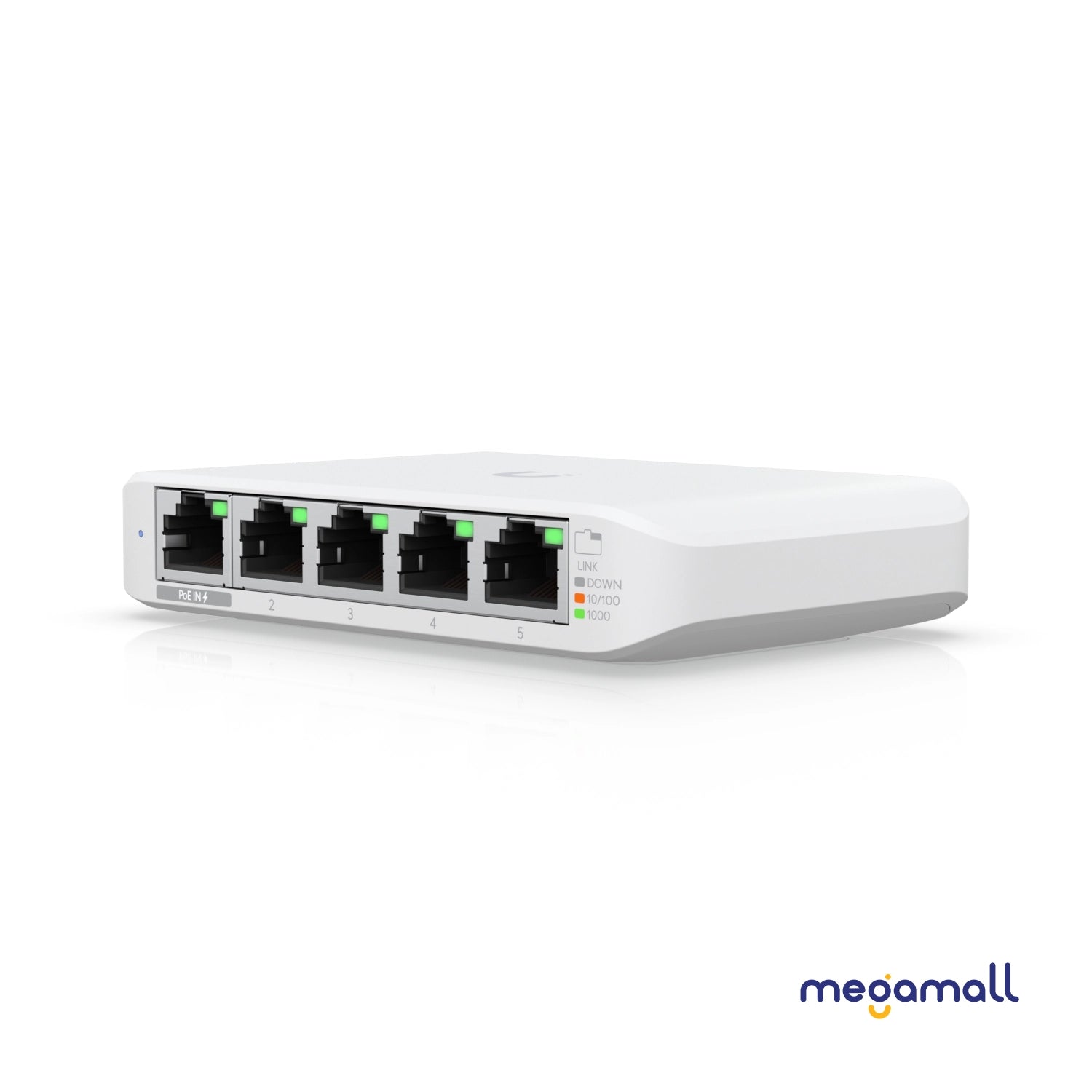

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
|
Overview |
||
|
Dimensions |
107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
|
|

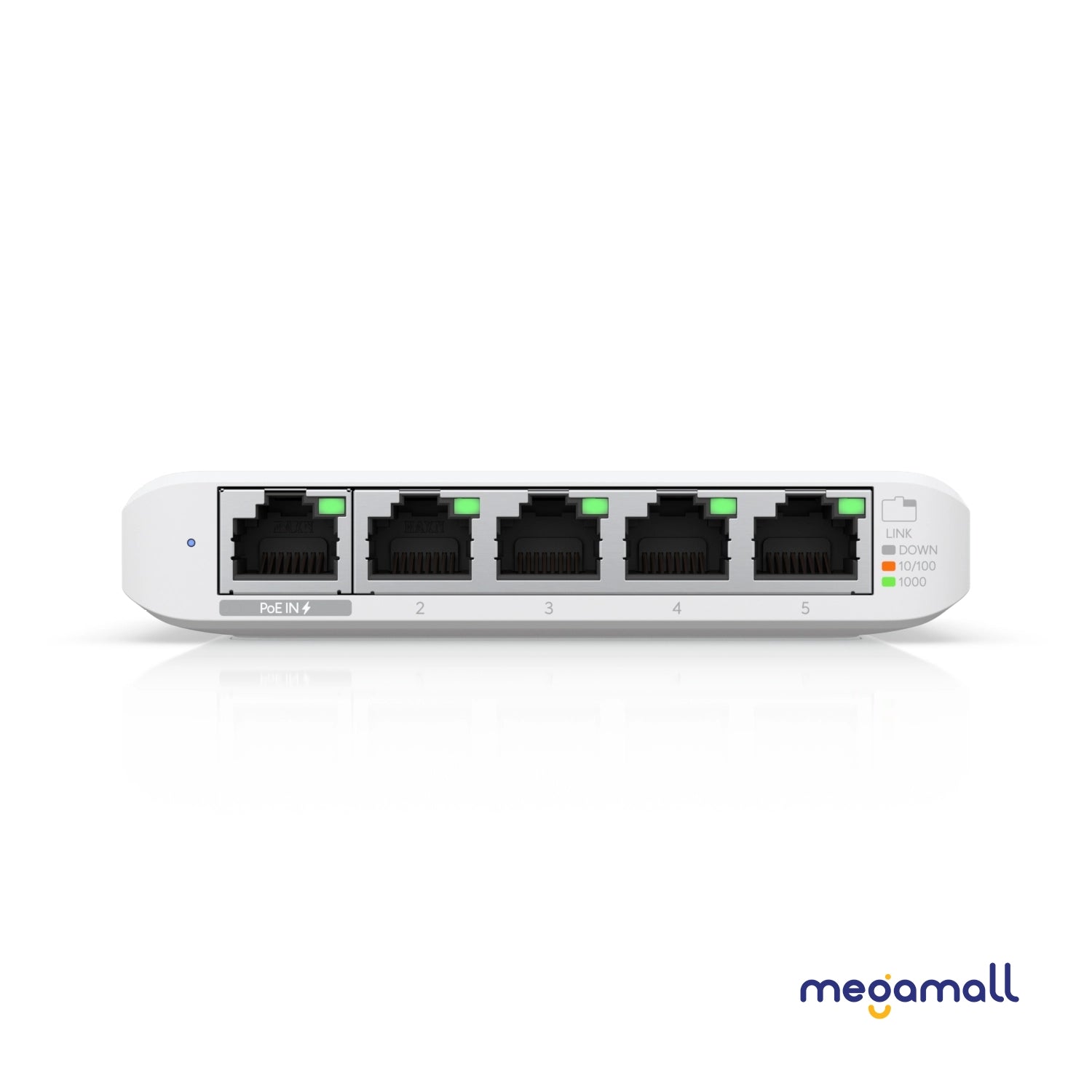

Port Layout |
||
|
1 GbE RJ45 |
5 (1G/100M/10M) |
|
|
Form Factor |
Compact desktop |
|
|
Performance |
||
|
Switching Capacity |
10 Gbps |
|
|
Total Non-Blocking Throughput |
5 Gbps |
|
|
Forwarding Rate |
7 Mpps |
|
|
Supported VLANs |
1000 |
|
|
MAC Address Table Size |
2000 |
|
|
Layer 2 Features |
||
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
Hardware |
||
|
Max. Power Consumption |
2.5W |
|
|
Power Method |

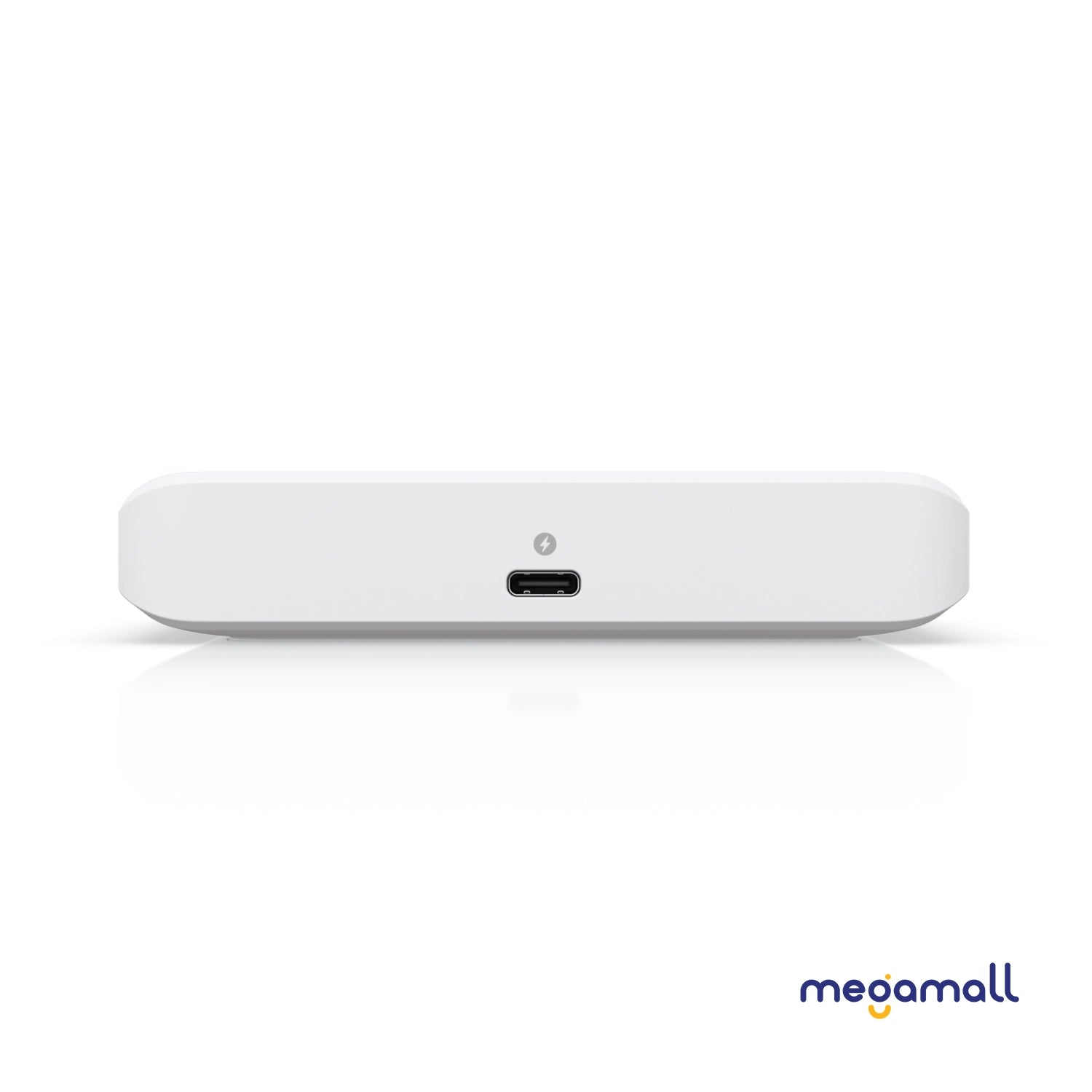

(1) USB Type-C, 5V DC, 1A (1) PoE |
|
|
Power Input Method |
USB Input PoE |
|
|
Power Supply |
AC/DC, external, 5W |
|
|
Supported Voltage Range |
4.8—5.2V DC/USB 44V—57V PoE |
|
|
Management |
Ethernet |
|
|
Heat Dissipation (Excluding PoE Output) |
6.824 BTU/hr |
|
|
Weight |
150 g (5.3 oz) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Mount Material |
Polycarbonate |
|
|
ESD/EMP Protection |
Air: ± 16kV, contact: ± 12kV |
|
|
Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 5.12.5 and later |
|
