Description

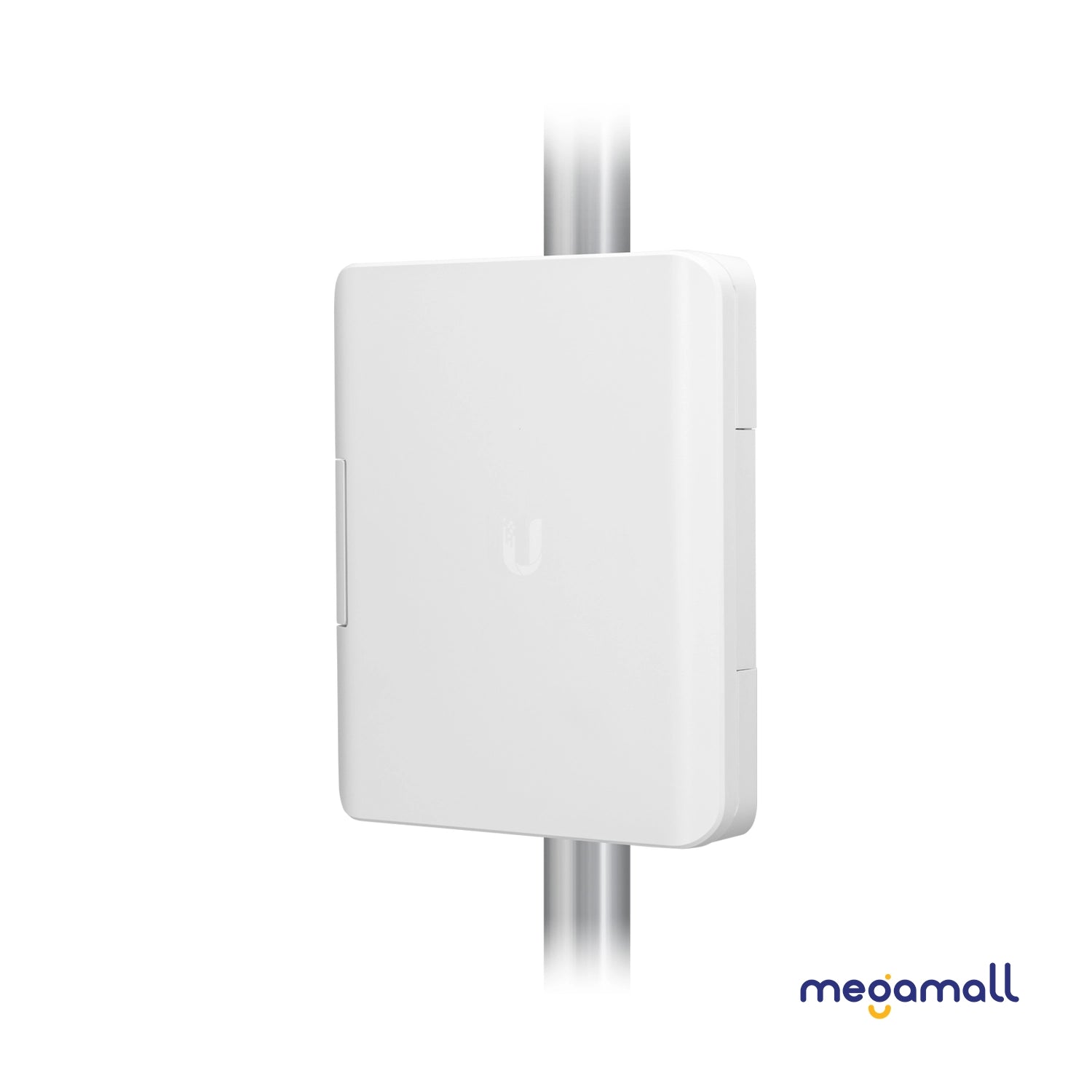

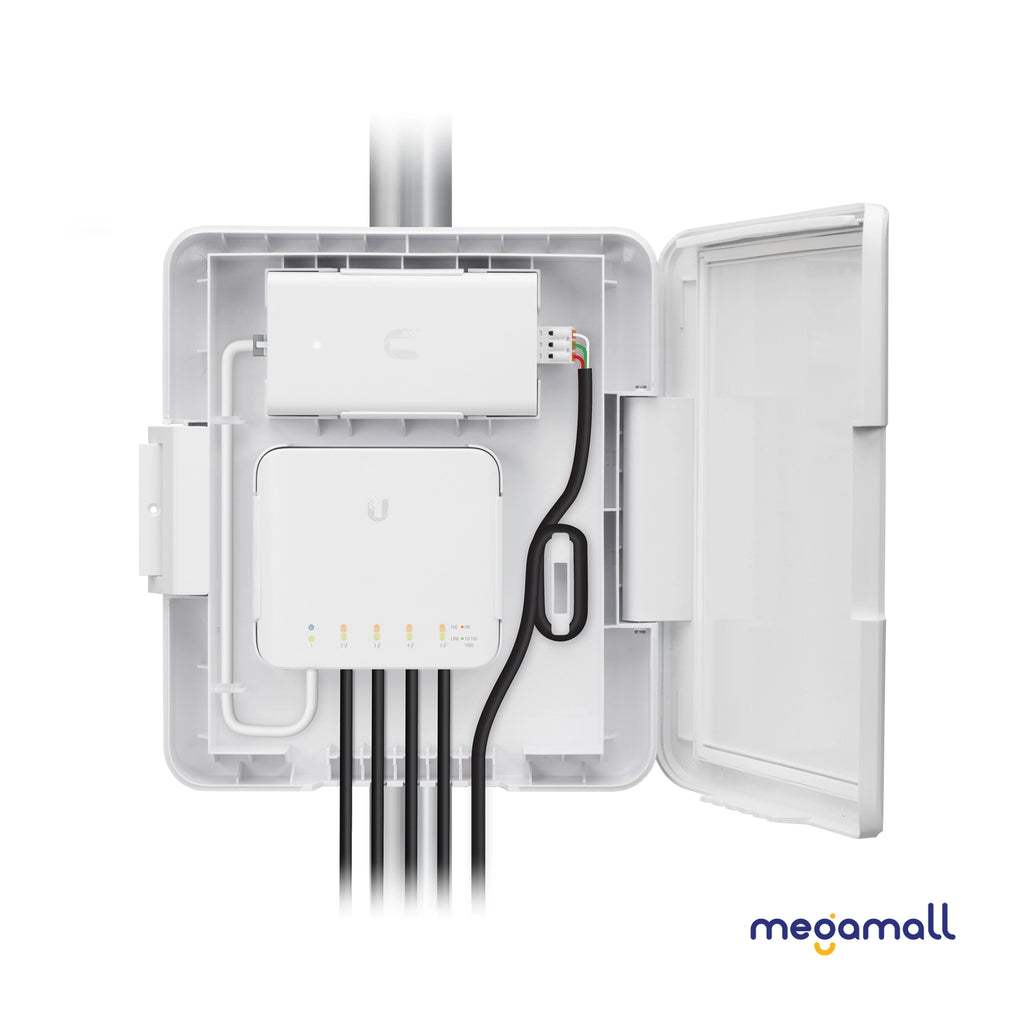

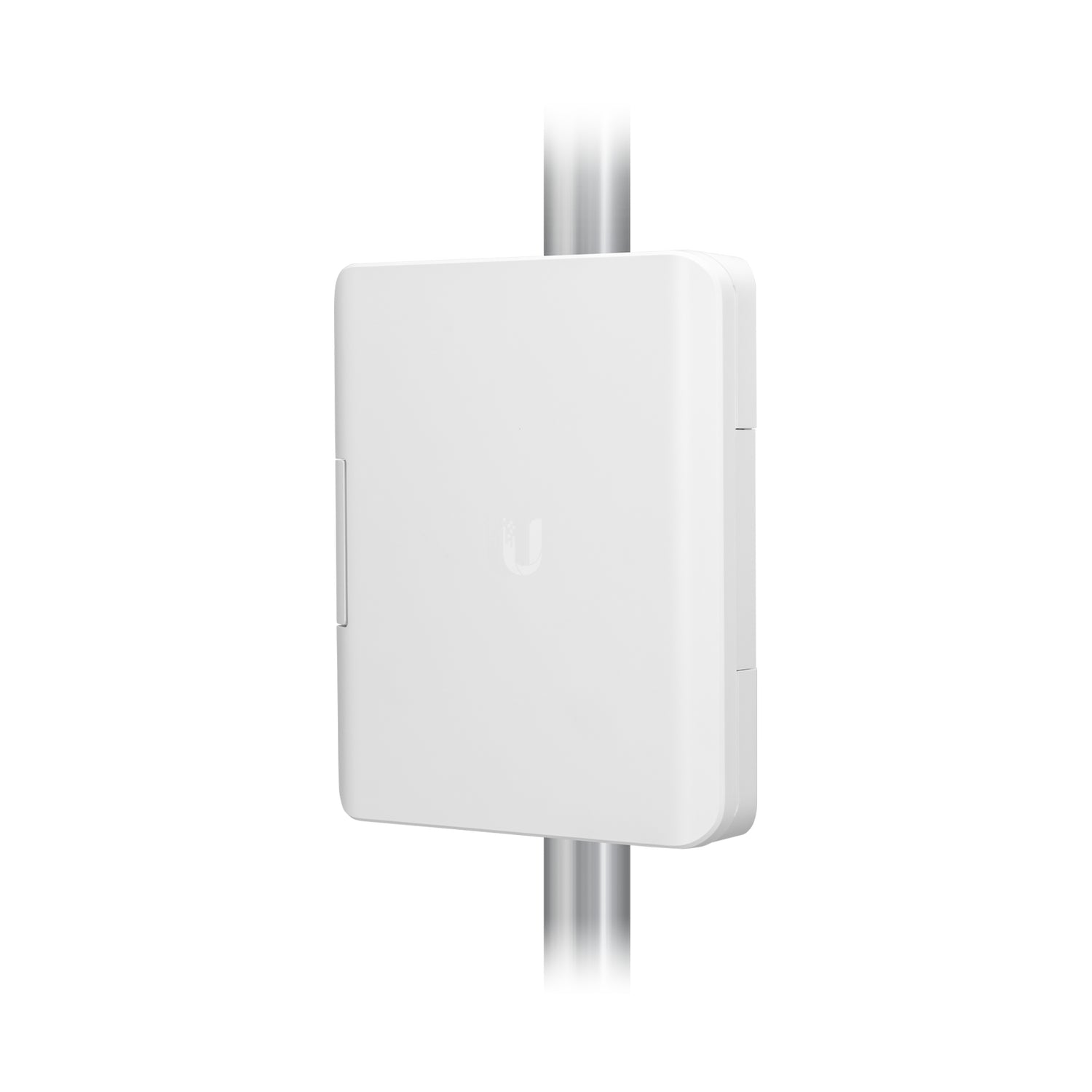

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.
|
Mechanical |
|
|
Dimensions |
Enclosure: 249 x 218 x 60 mm (9.8 x 8.6 x 2.4") |
|
Adapter: 118.5 x 63 x 34.7 mm (4.7 x 2.5 x 1.4") |
|
|
Weight |
Enclosure: 740 g (26.1 oz) |
|
Adapter: 206 g (7.27 oz) |
|
|
60W PoE Adapter |
|
|
Output voltage |
54V, 1.11A |
|
Rated voltage |
100-240V AC |
|
Input current |
Max. 1.5A |
|
Efficiency |
> 86% |
|
Output ripple |
200mVpp |
|
Line regulation |
< 1% |
|
Load regulation |
< 3% |
|
4-pair powering |
Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
|
Ambient operating temperature |
-20 to 60° C (-4 to 140° F) |
|
Storage temperature |
-30 to 70° C (-22 to 158° F) |
|
Ambient operating humidity |
5 to 90%, noncondensing |
|
Surge immunity |
4kV difference and Common mode |
