Description

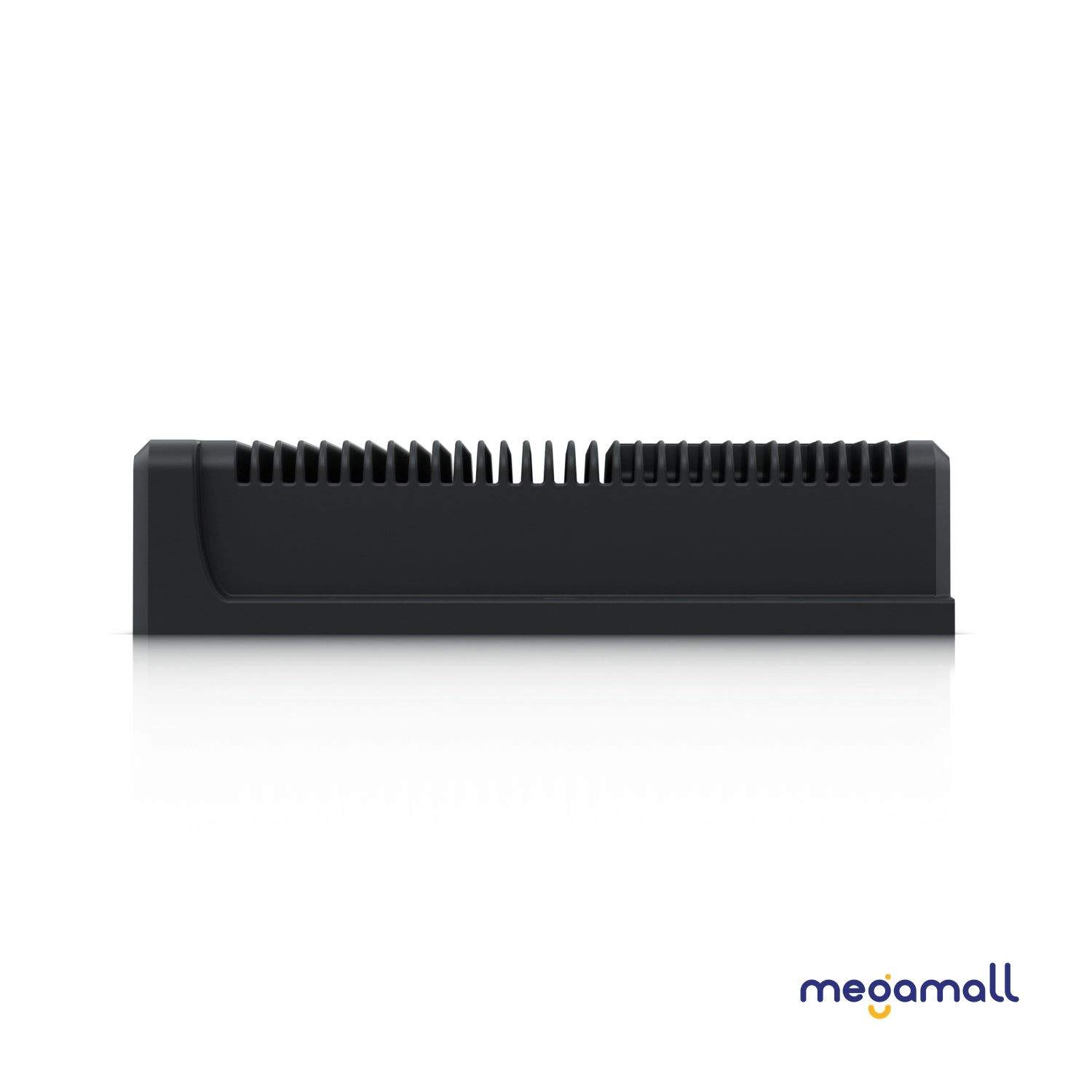

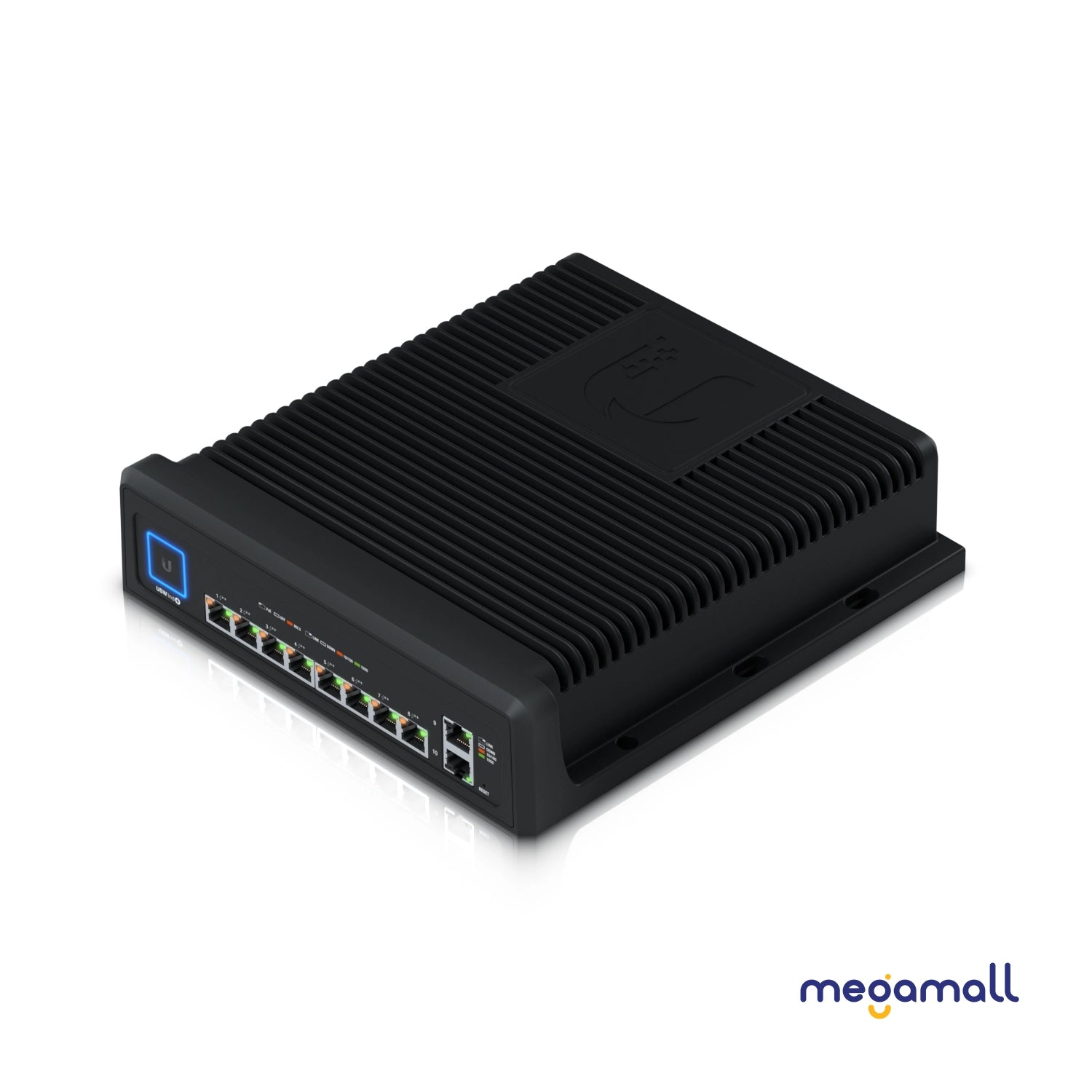

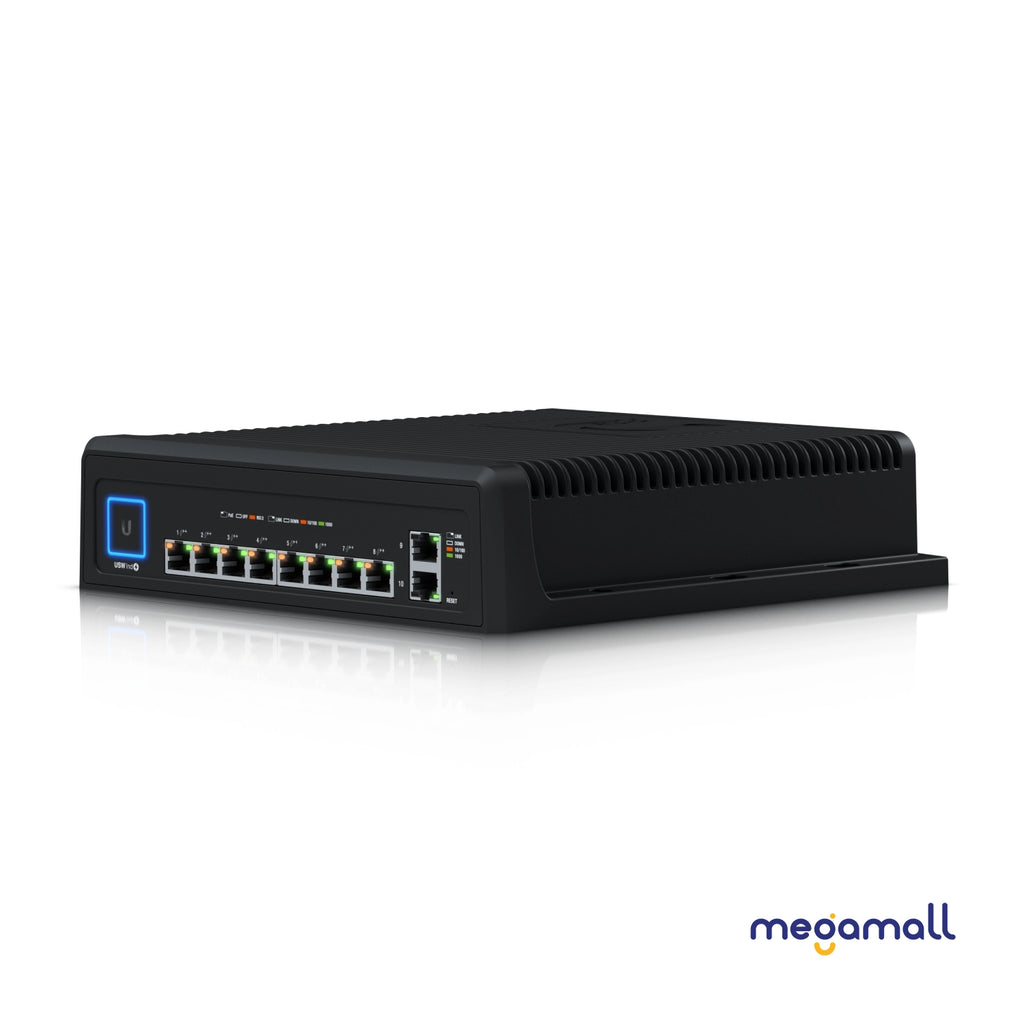

An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.
|
Overview |
||
|
Dimensions |
252.5 x 238 x 60 mm (9.9 x 9.4 x 2.4") |
|
|

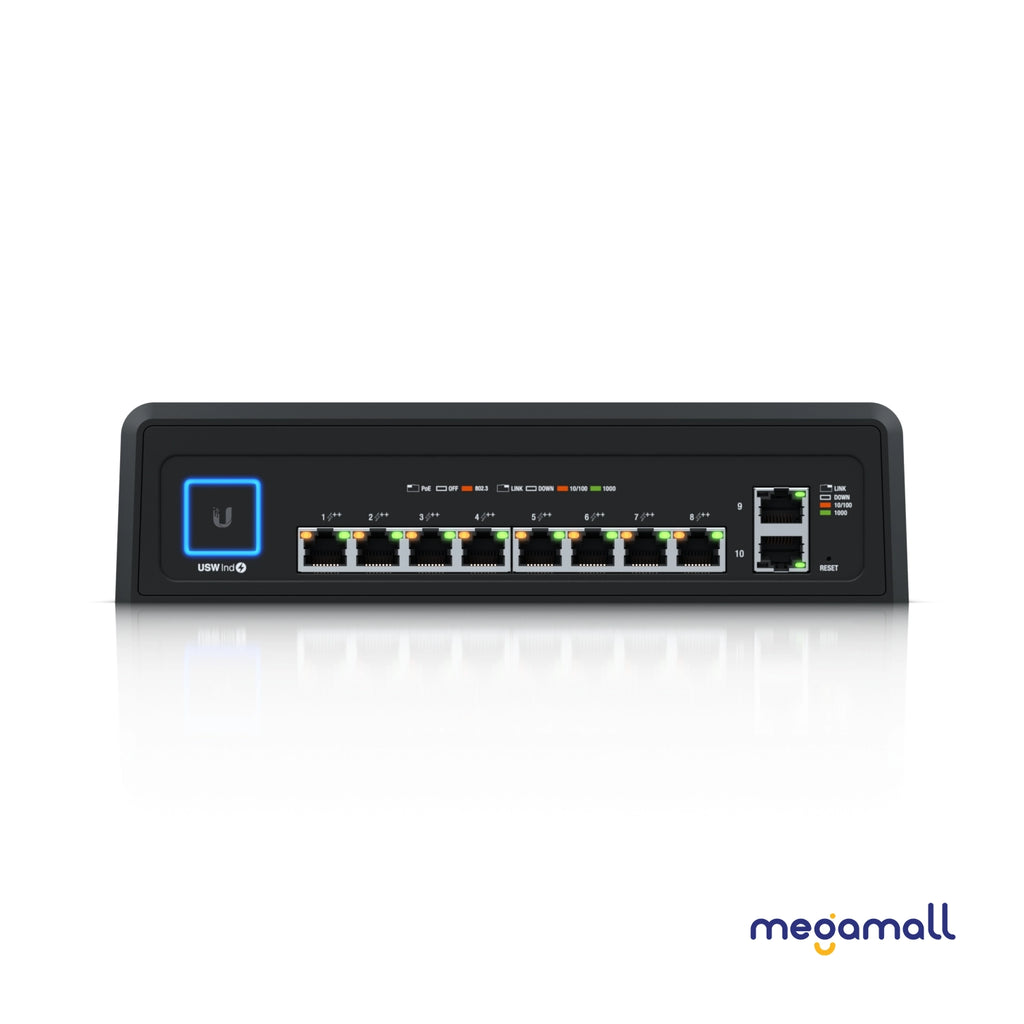

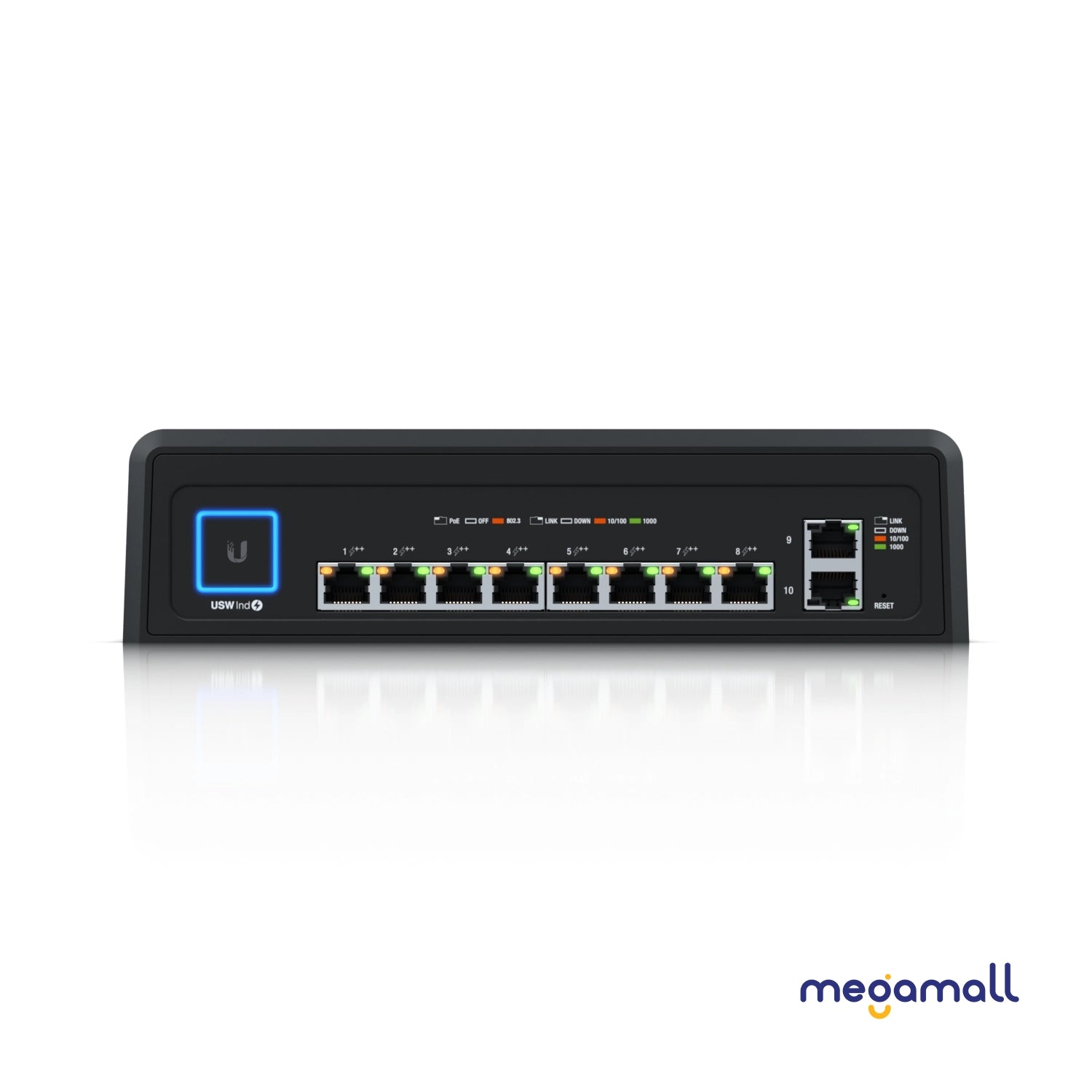

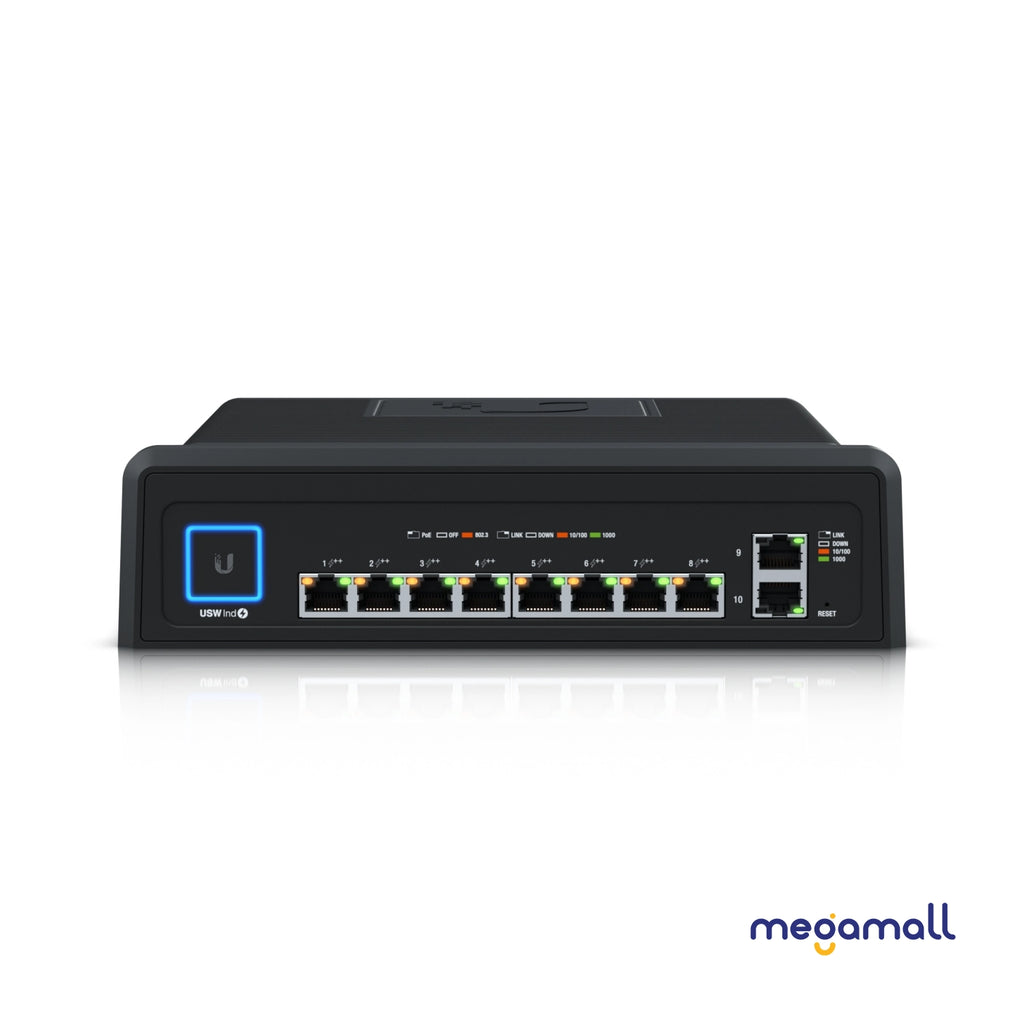

Port Layout |
||
|
1 GbE RJ45 |
10 (8 PoE++) (1G/100M/10M) |
|
|
Max. PoE Output |
Up to PoE++ |
|
|
Total PoE Availability |
430W |
|
|
Form Factor |
Compact desktop, wall |
|
|
Performance |
||
|
Switching Capacity |
20 Gbps |
|
|
Total Non-Blocking Throughput |
10 Gbps |
|
|
Forwarding Rate |
15 Mpps |
|
|
Supported VLANs |
256 |
|
|
MAC Address Table Size |
4000 |
|
|
Layer 2 Features |
||
|
STP & RSTP |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
PoE Ports |
||
|
PoE++ |
8 |
|
|
Max. PoE Wattage per Port by PSE |
||
|
PoE++ |
64W |
|
|
Max. Power Consumption |
20W (Excluding PoE Output) 450W (Including PoE Output) |
|
|
Power Method |
Universal input, 100—240V AC, 50/60 Hz |
|
|

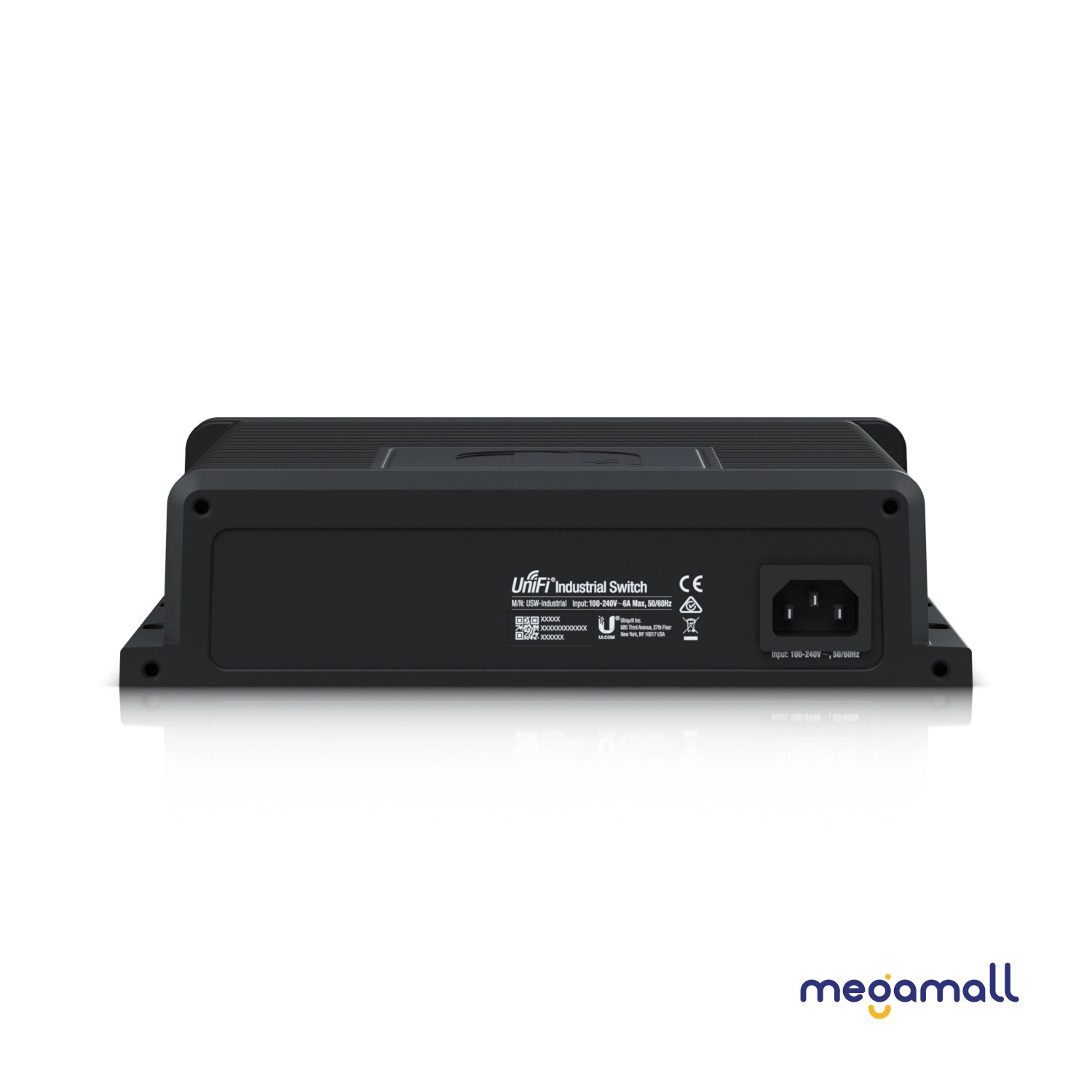

Power Input Method |
AC input |
|
|
Power Supply |
AC/DC, internal, 450W |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Management |
Ethernet |
|
|
Heat Dissipation (Excluding PoE Output) |
68.24 BTU/hr |
|
|
Weight |
3.9 kg (8.5 lb) |
|
|
Enclosure Material |
Die-cast aluminum with black powder coated finish |
|
|
ESD/EMP Protection |
Air: ± 24kV, contact: ± 24kV |
|
|
Ambient Operating Temperature |
Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F) |
|
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 7.2.94 and later |
|
