Description

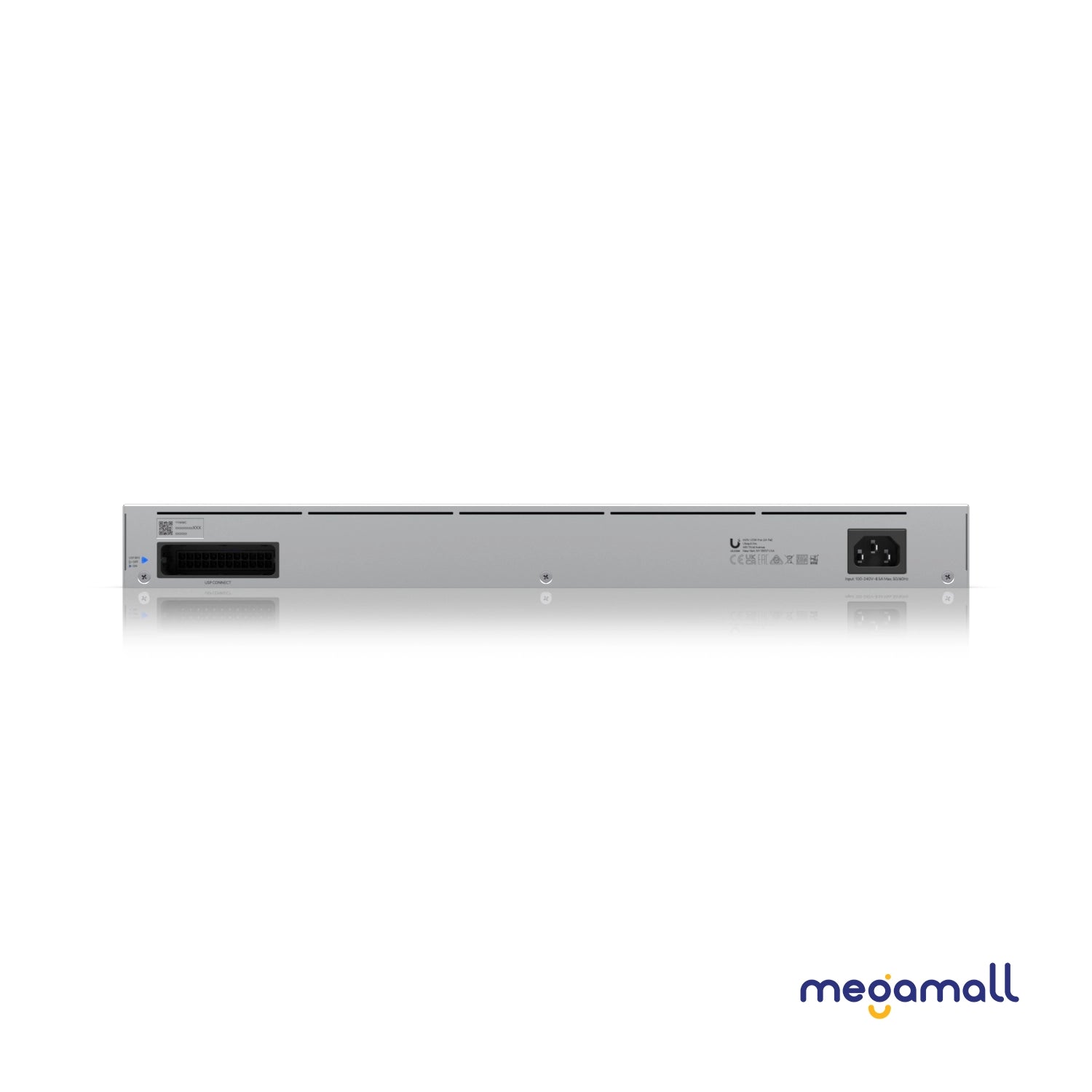

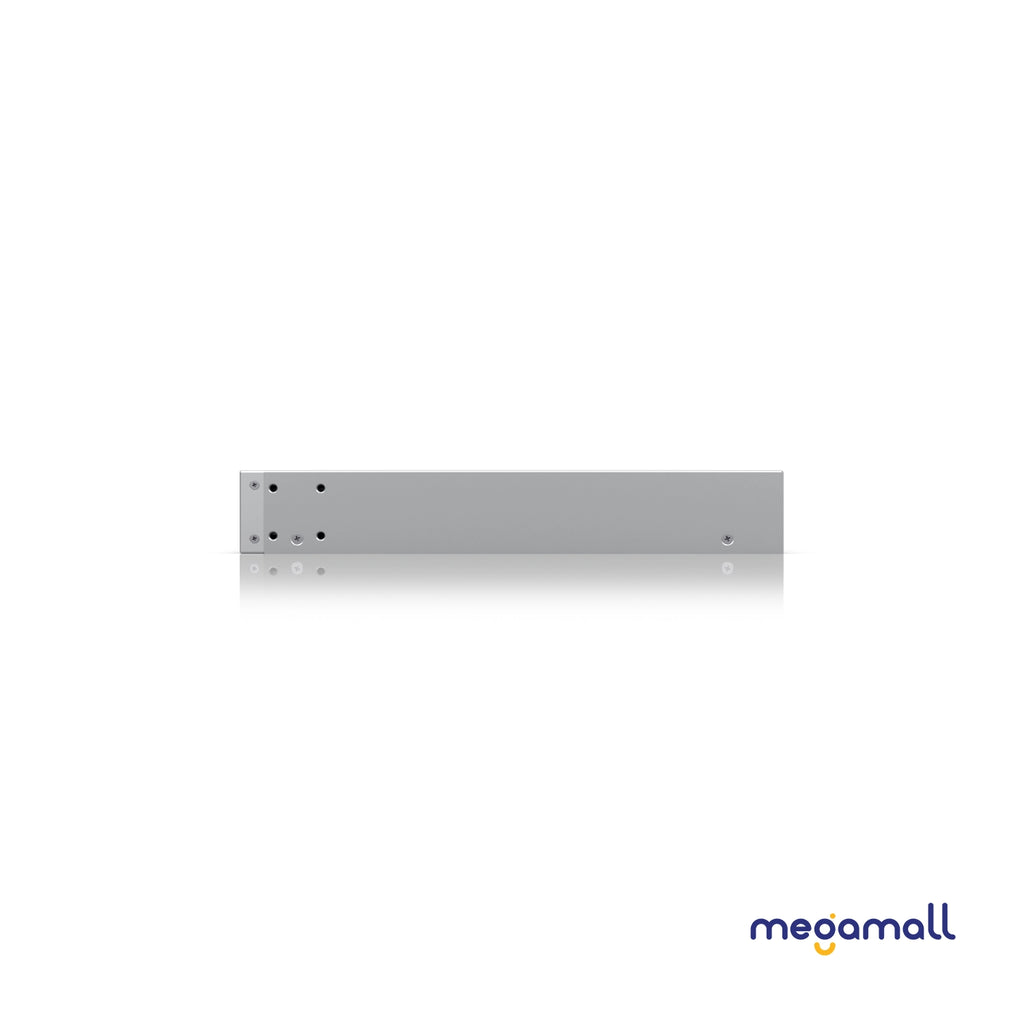

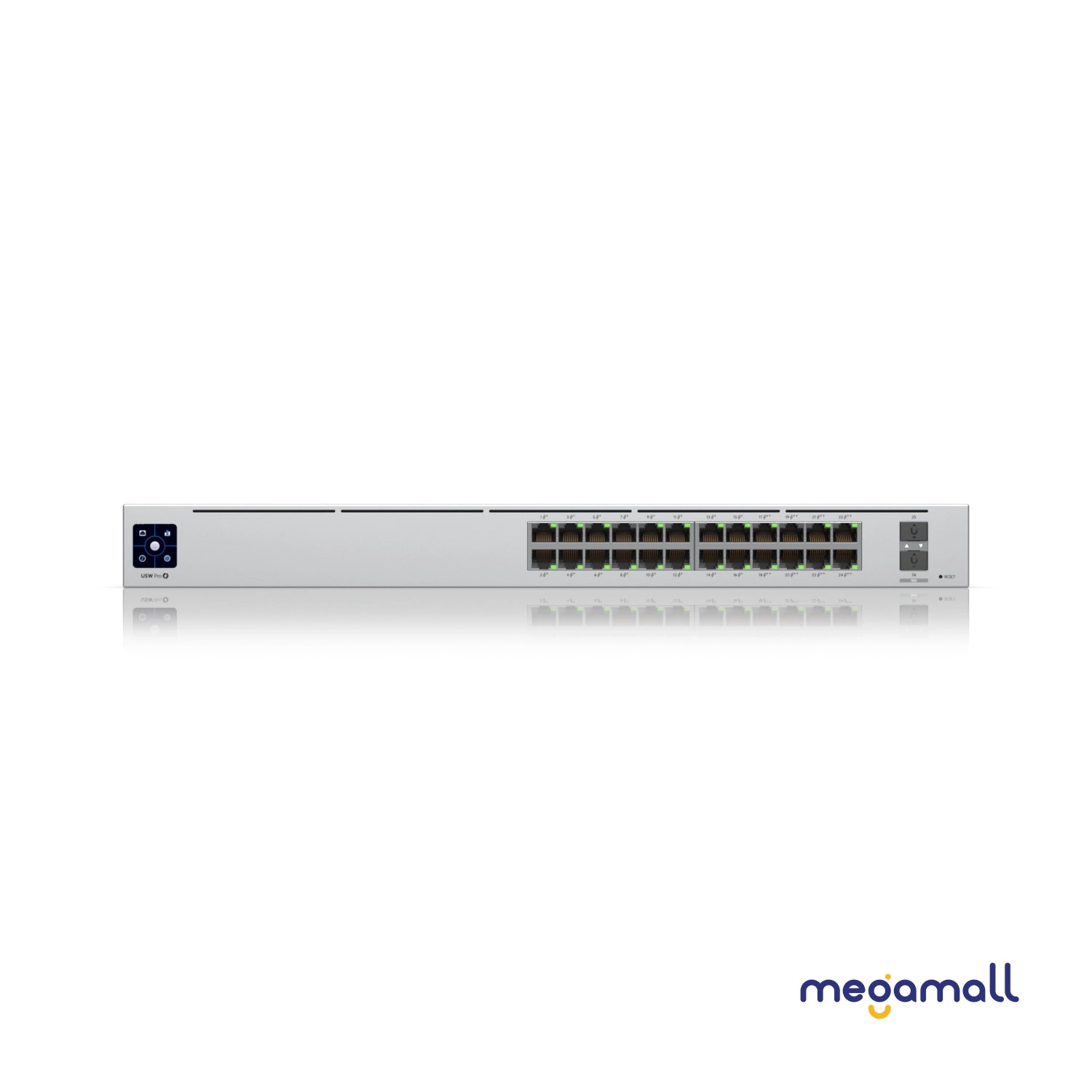

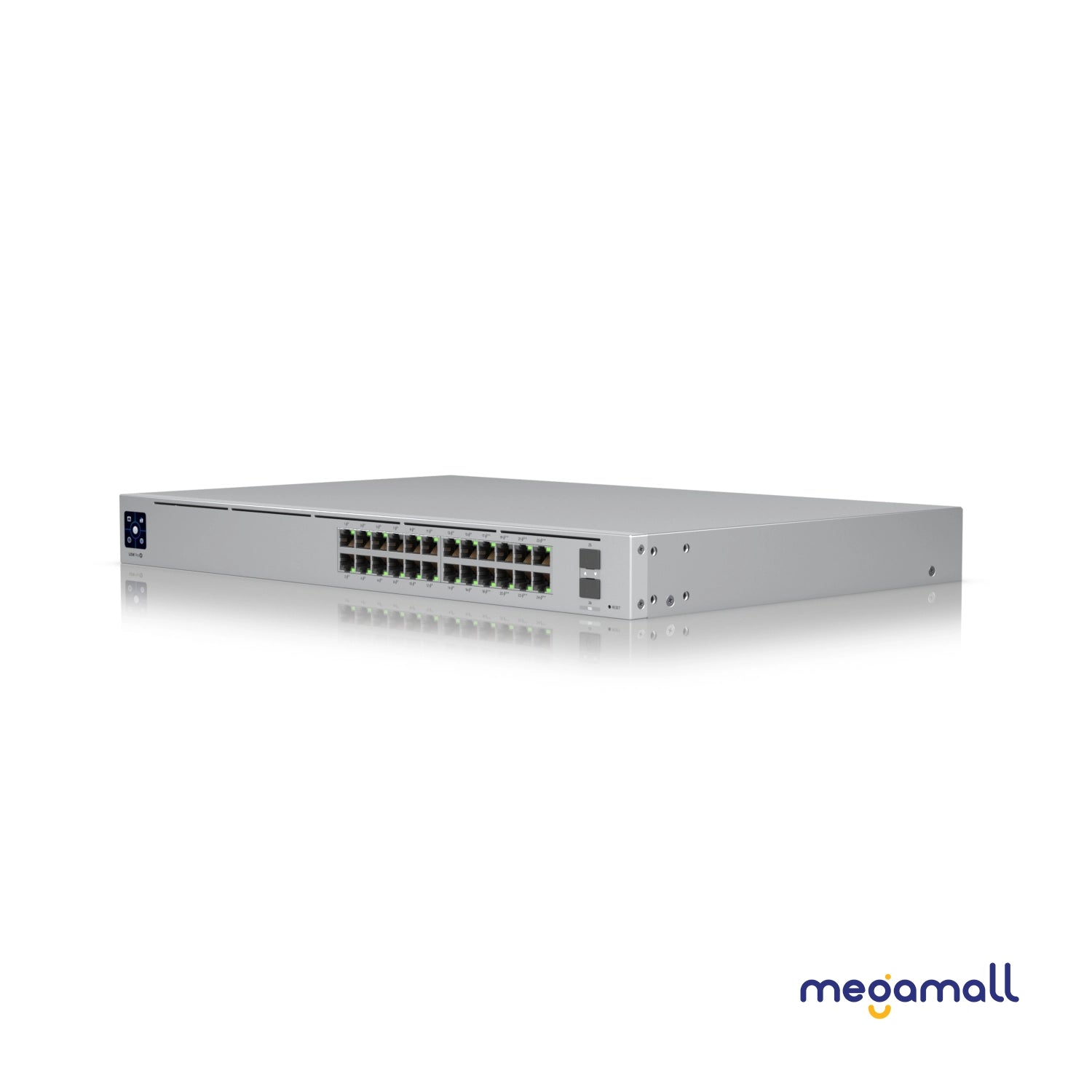

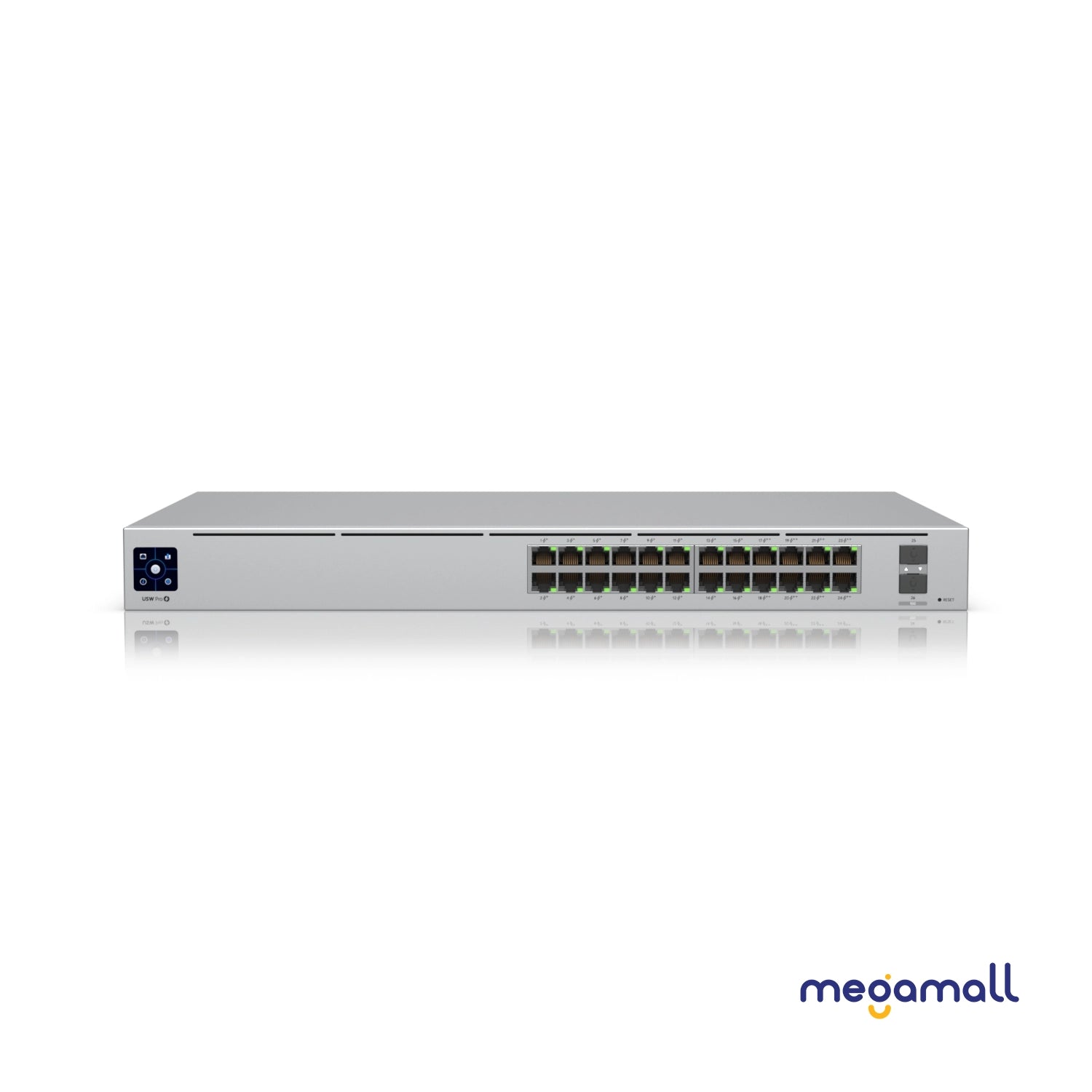

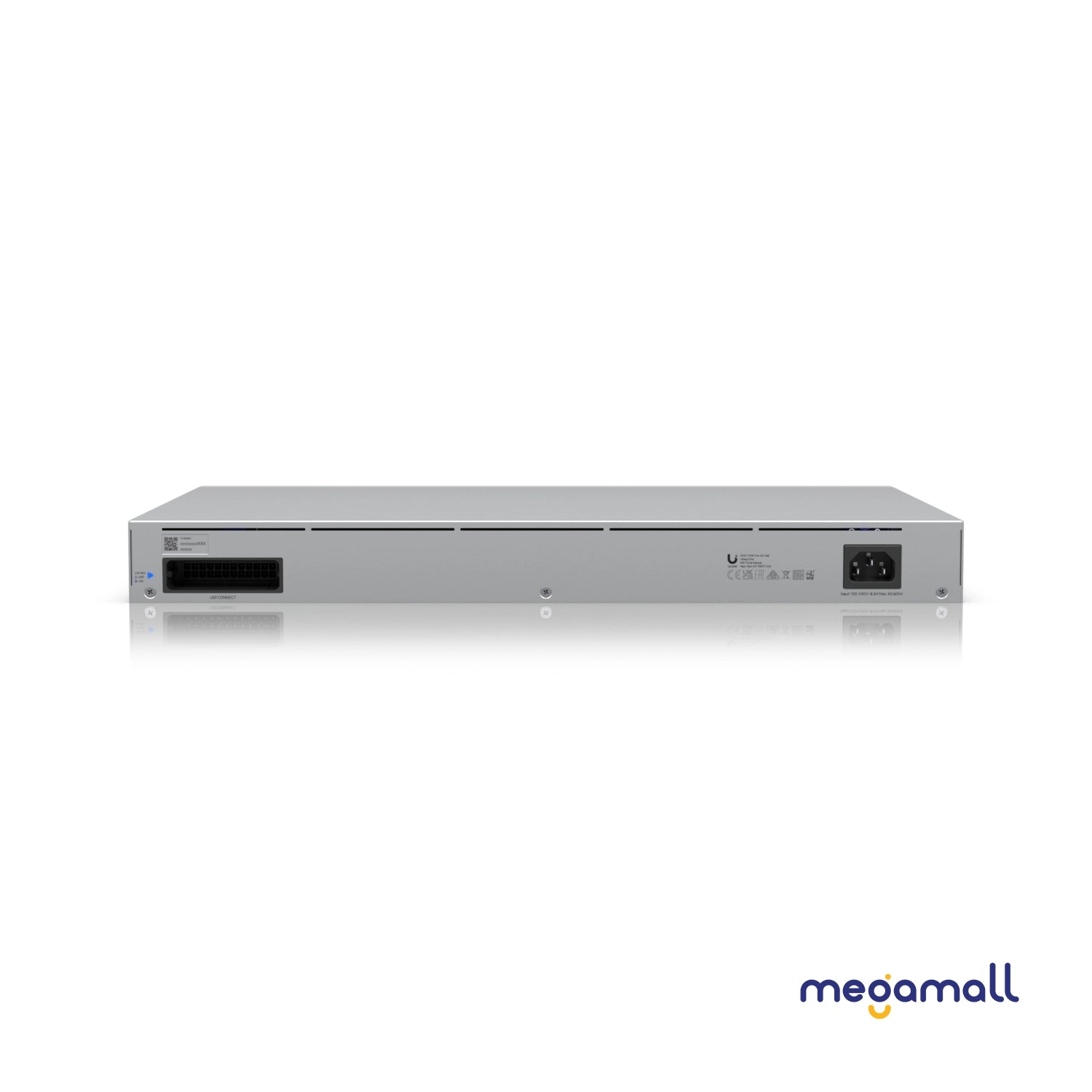

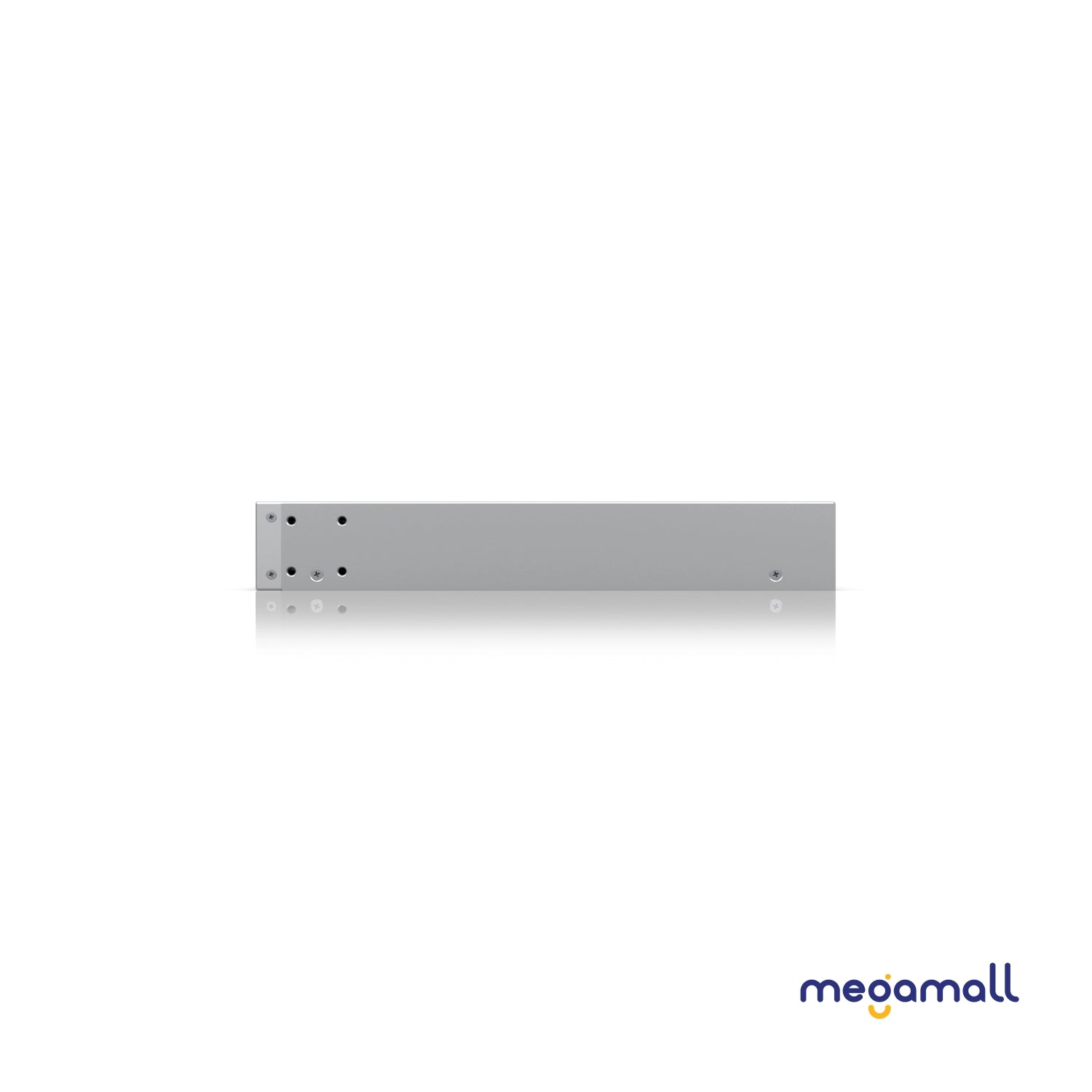

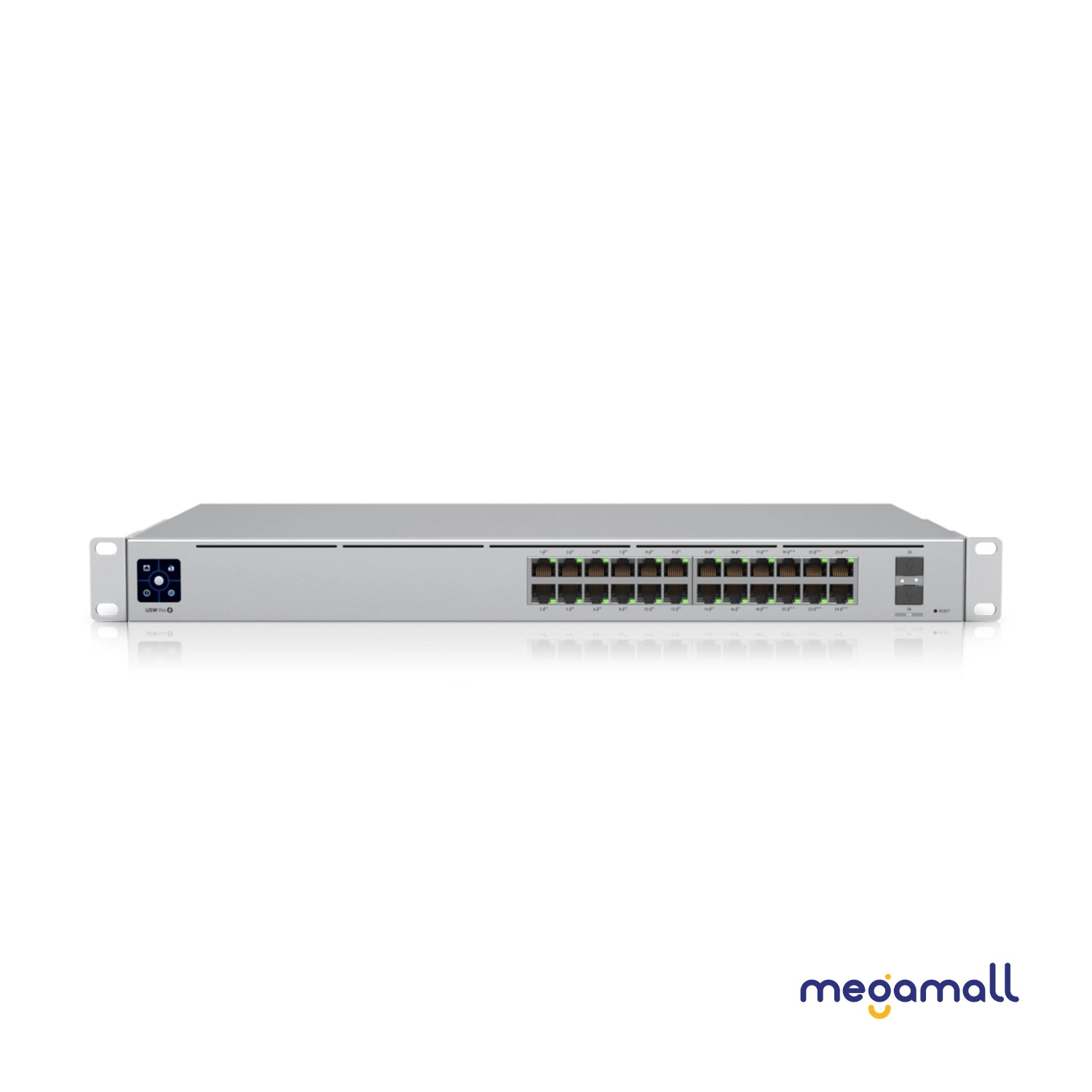

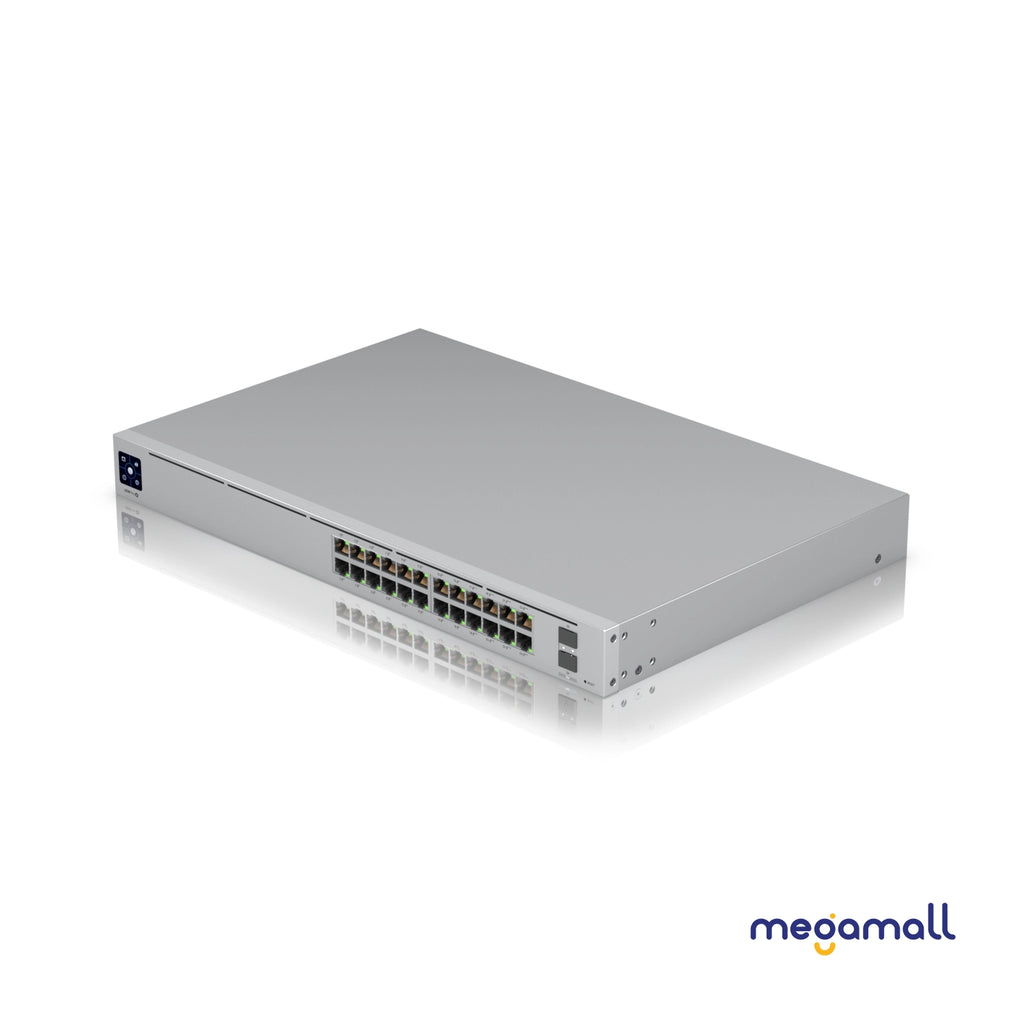

A 24-port, Layer 3 switch capable of high-power PoE++ output.
|
Overview |
||
|
Dimensions |
442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
|
|
Port Layout |
||
|
1 GbE RJ45 |
24 (16 PoE+; 8 PoE++) (1G/100M/10M) |
|
|
10G SFP+ |
2 |
|
|
Max. PoE Output |
Up to PoE++ |
|
|
Total PoE Availability |
400W |
|
|
Redundancy |
DC Power Backup |
|
|
Layer 3 |
✓ |
|
|
Form Factor |
Rack mount (1U) |
|
|
Performance |
||
|
Switching Capacity |
88 Gbps |
|
|
Total Non-Blocking Throughput |
44 Gbps |
|
|
Forwarding Rate |
65 Mpps |
|
|
Supported VLANs |
1000 |
|
|
MAC Address Table Size |
16000 |
|
|
L3 Table Size |
||
|
ARP Entries |
768 |
|
|
IPv4 Routes |
64 |
|
|
Packet Buffer Size |
2 MB |
|
|
Access Lists |
||
|
IPv4 |
128 |
|
|
MAC |
128 |
|
|
Layer 3 Features |
||
|
DHCP Server (Local Networks) |
✓ |
|
|
DHCP Relay |
✓ |
|
|
Inter-VLAN Routing (Local Networks) |
✓ |
|
|
Static Routing (Local Networks) |
✓ |
|
|
Layer 2 Features |
||
|
LACP Port Aggregation |
✓ |
|
|
STP & RSTP |
✓ |
|
|
QoS (DSCP) |
✓ |
|
|
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
✓ |
|
|
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
✓ |
|
|
IGMP Snooping |
✓ |
|
|
802.1X Control |
✓ |
|
|
MAC-Based ACLs & Device Isolation |
✓ |
|
|
DHCP Snooping & Guarding |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
MAC Address Blocking |
✓ |
|
|
IP-Based ACLs & Network Isolation |
✓ |
|
|
MAC-Based Port Restriction |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
LLDP-MED |
✓ |
|
|
Voice VLAN |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
PoE Ports |
||
|
PoE+ |
16 |
|
|
PoE++ |
8 |
|
|
Max. PoE Wattage per Port by PSE |
||
|
PoE |
15.4W |
|
|
PoE+ |
30W |
|
|
PoE++ |
64W |
|
|
Max. Power Consumption |
50W (Excluding PoE Output) 450W (Including PoE Output) |
|
|
Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
|
|
Power Input Method |
AC input |
|
|
Power Supply |
AC/DC, internal, 450W |
|
|
Supported Voltage Range |
100—240V AC |
|
|
Management |
Ethernet AR |
|
|
Heat Dissipation (Excluding PoE Output) |
170.6 BTU/hr |
|
|
Weight |
Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb) |
|
|
Enclosure Material |
SGCC steel |
|
|
Supported Rack Depth |
400~1200 mm (15.7-47.2") |
|
|
LCM Display |
1.3" touchscreen |
|
|
ESD/EMP Protection |
Air: ± 16kV, contact: ± 12kV |
|
|
Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 5.10.5 and later |
|
