Description

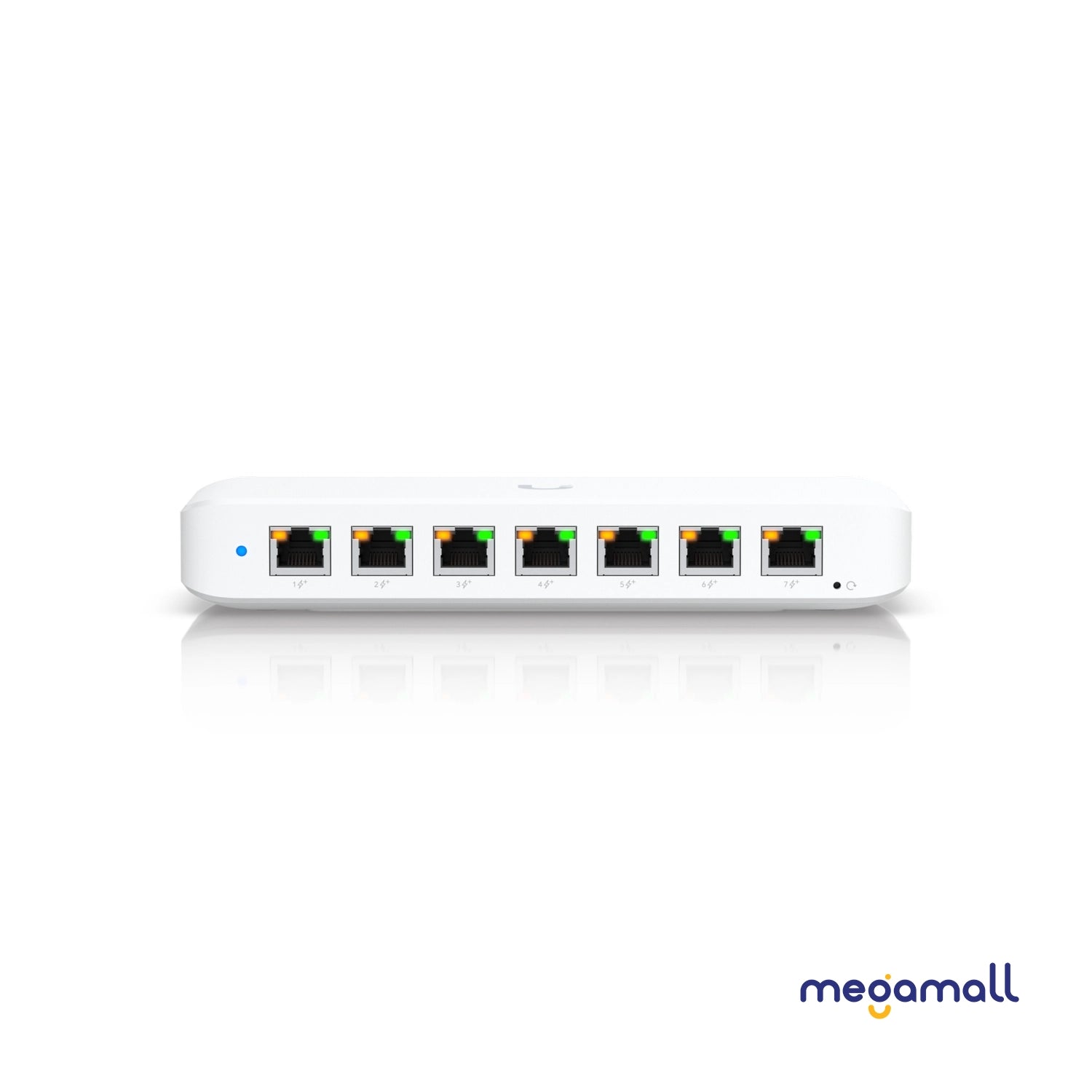

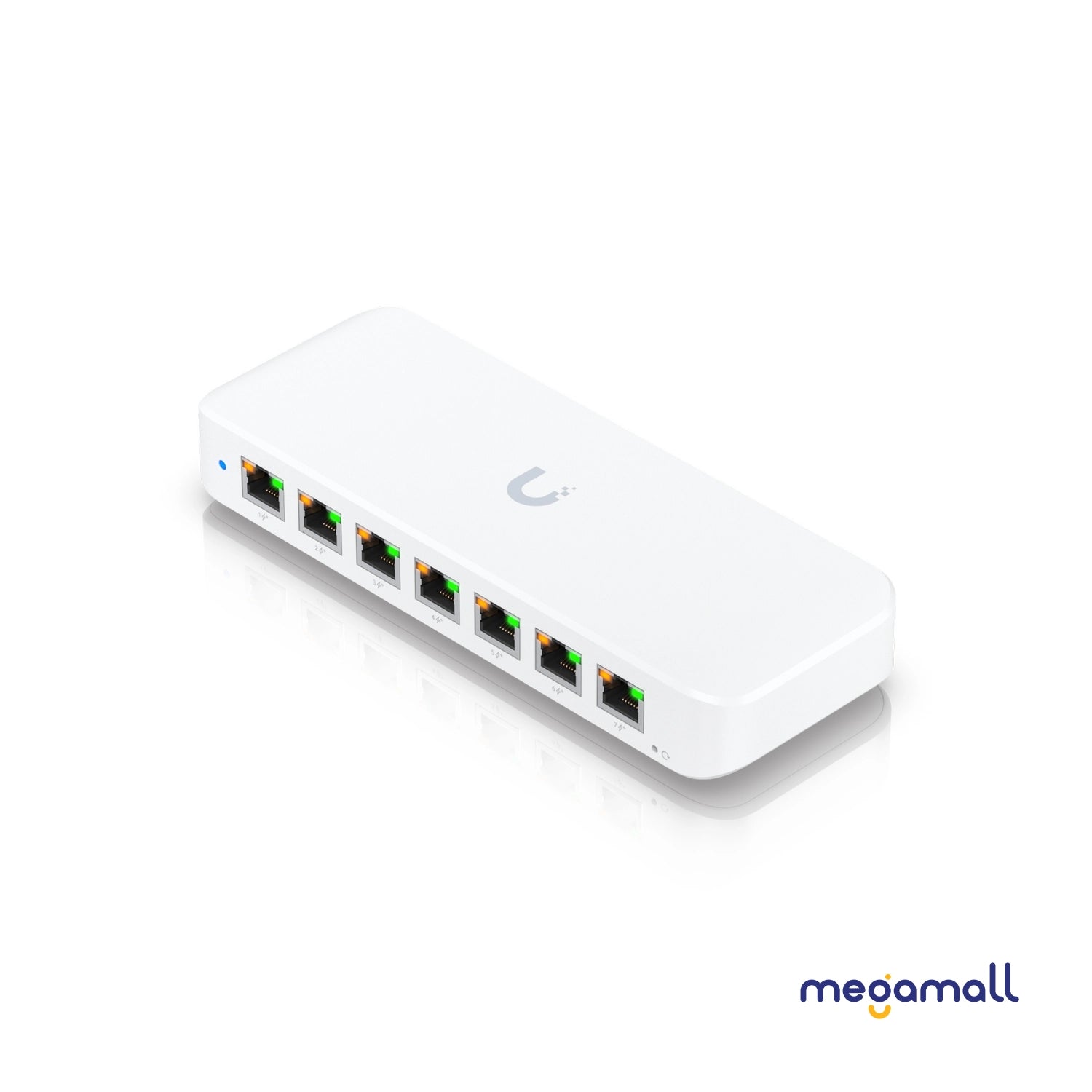

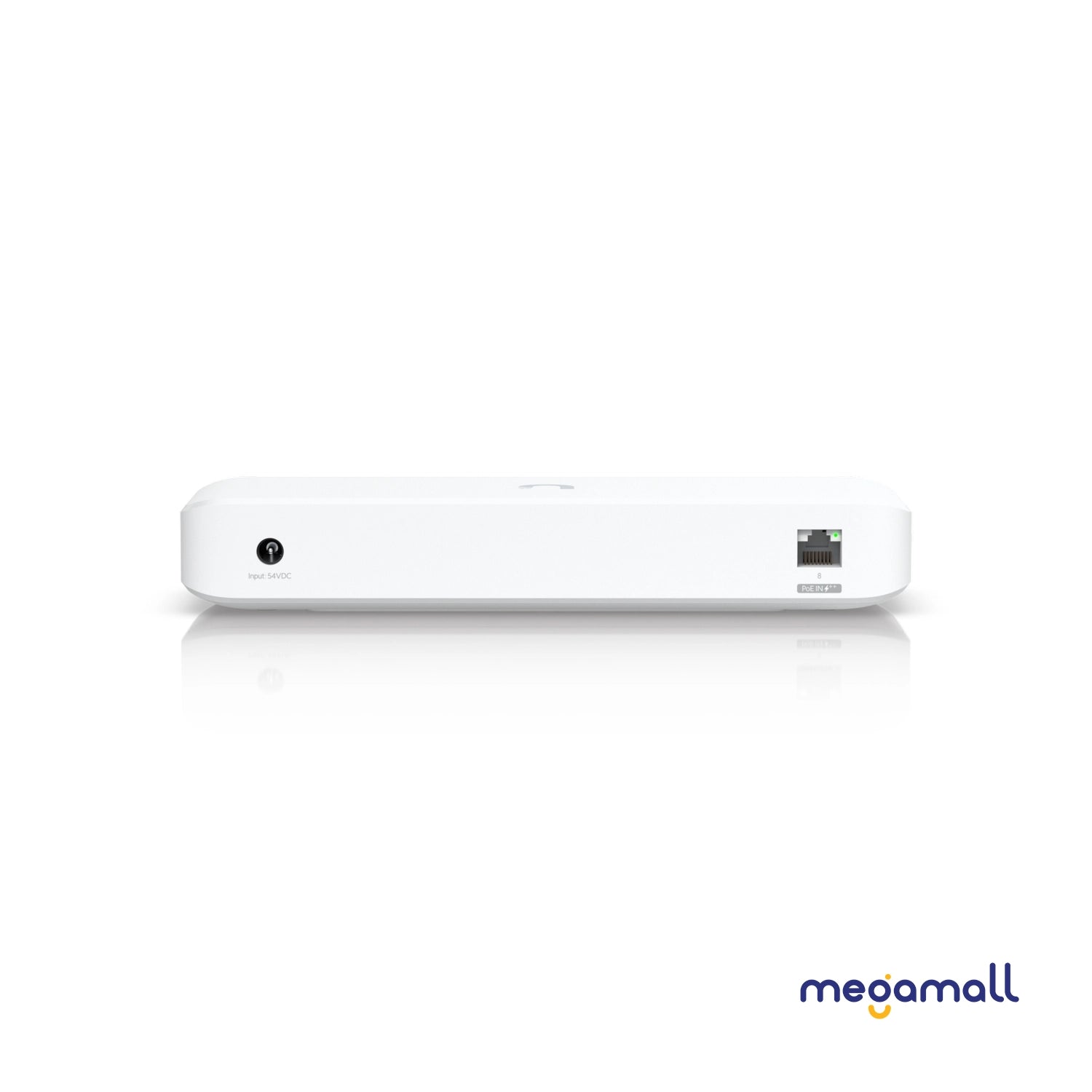

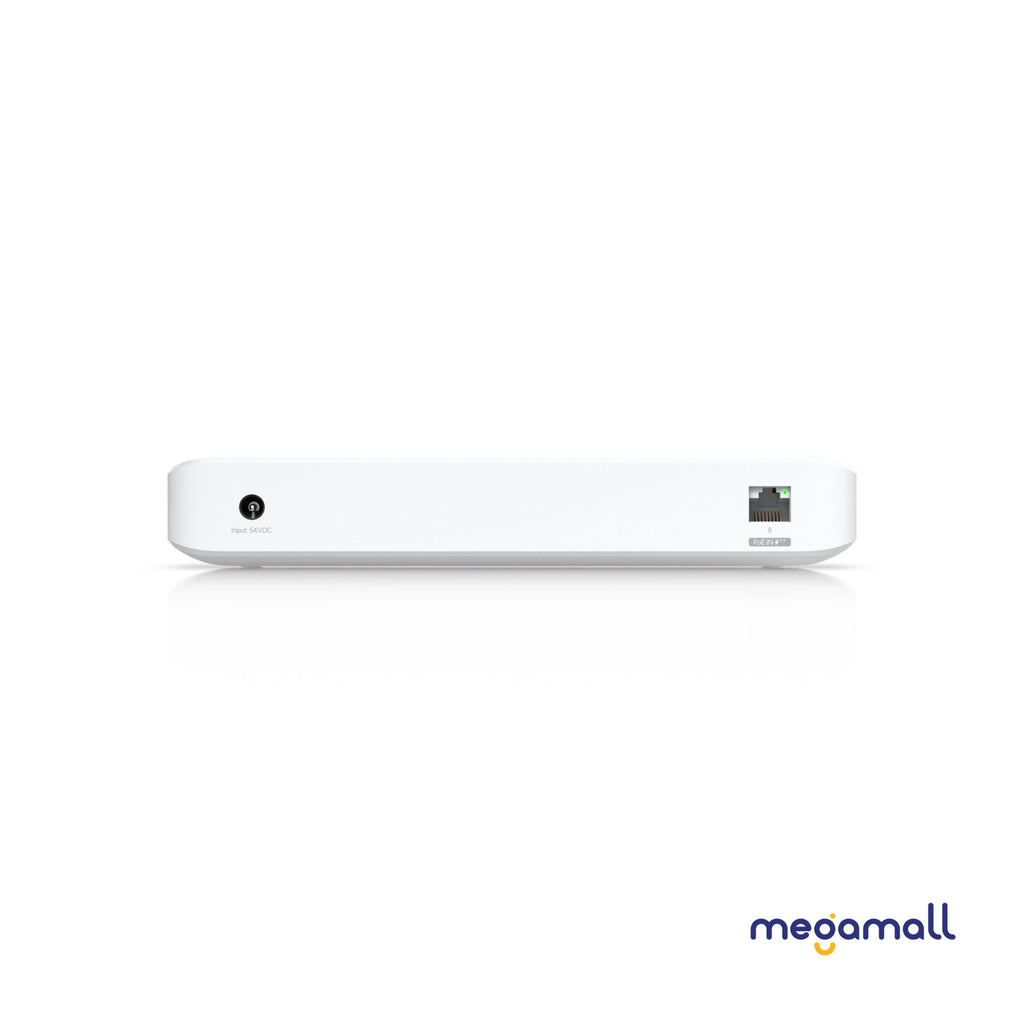

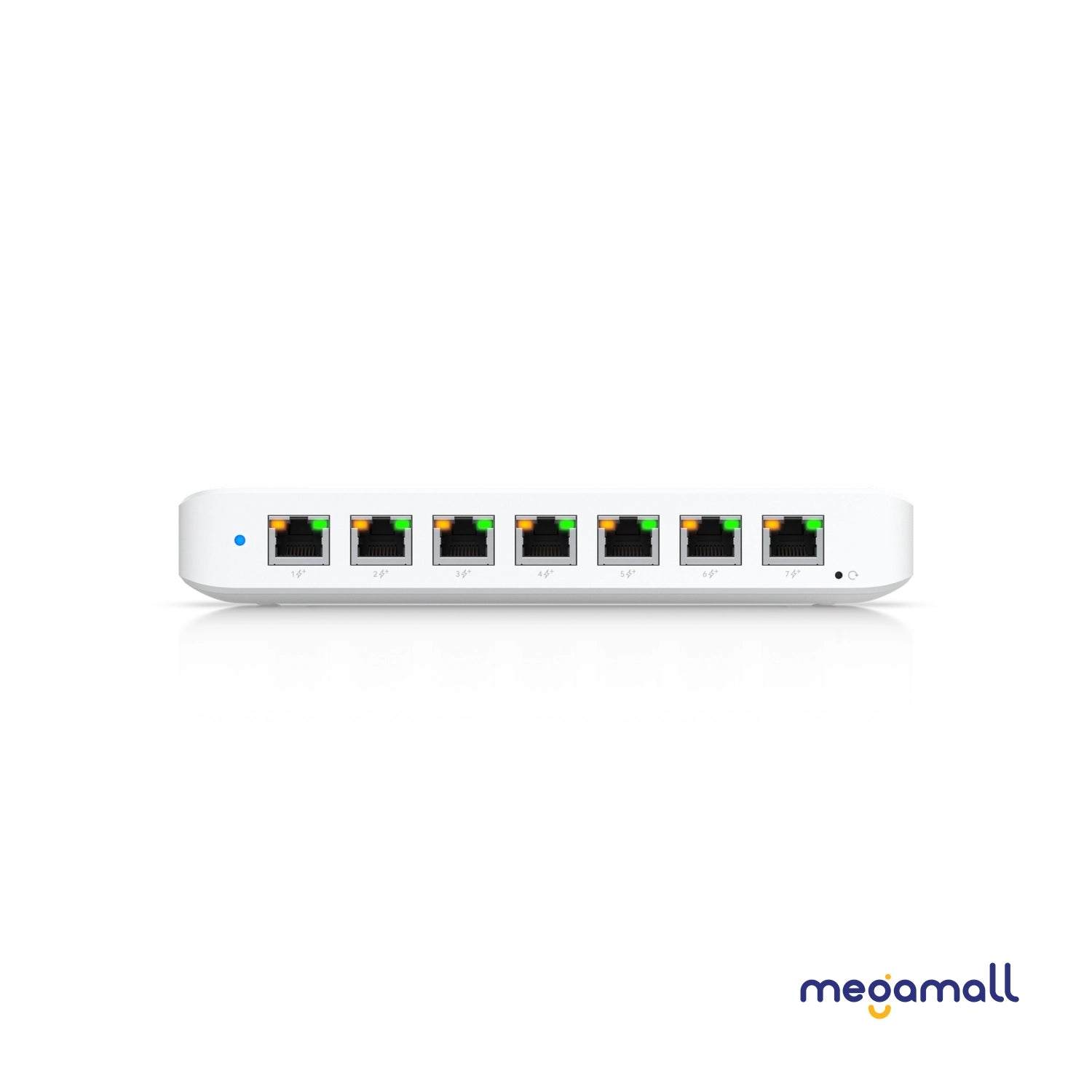

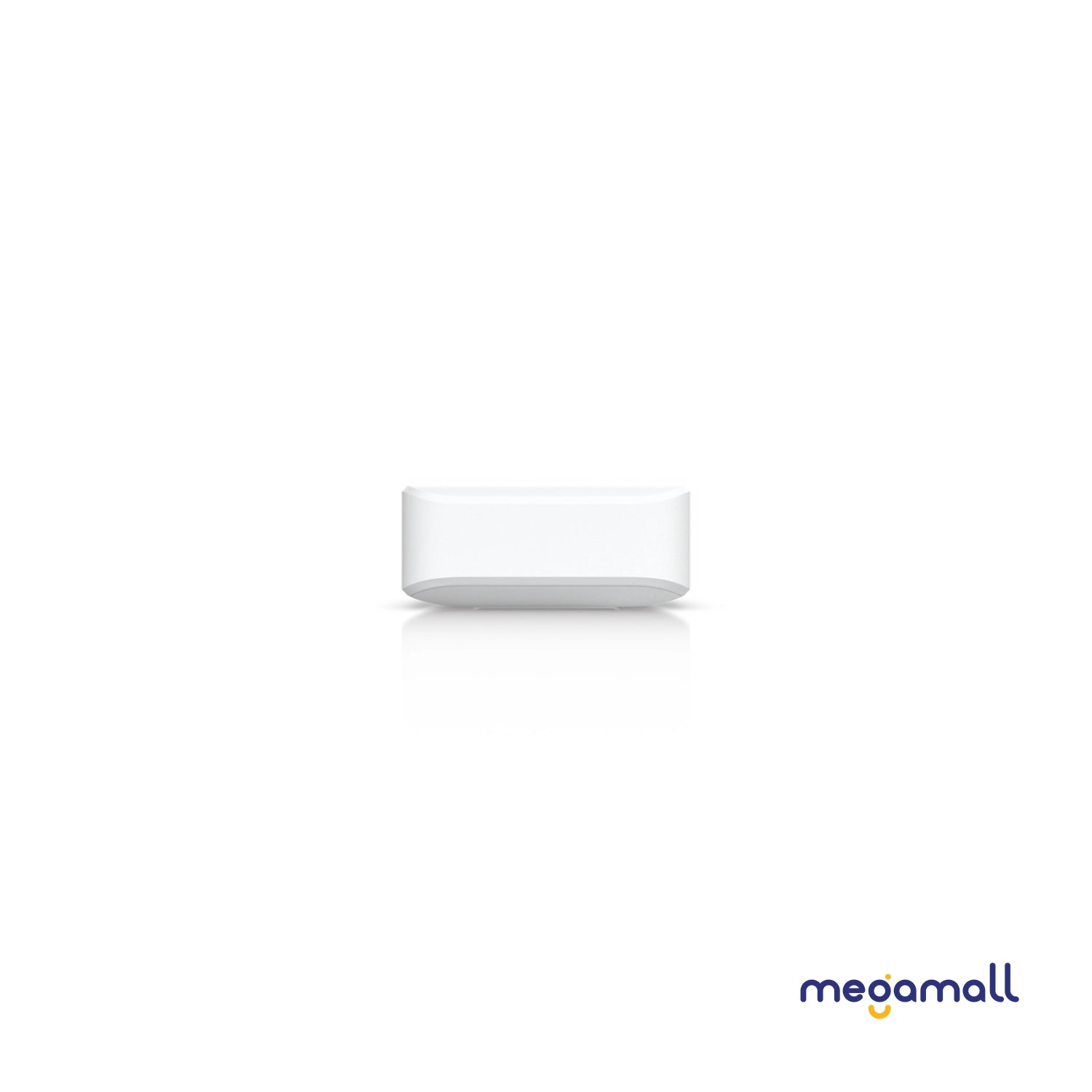

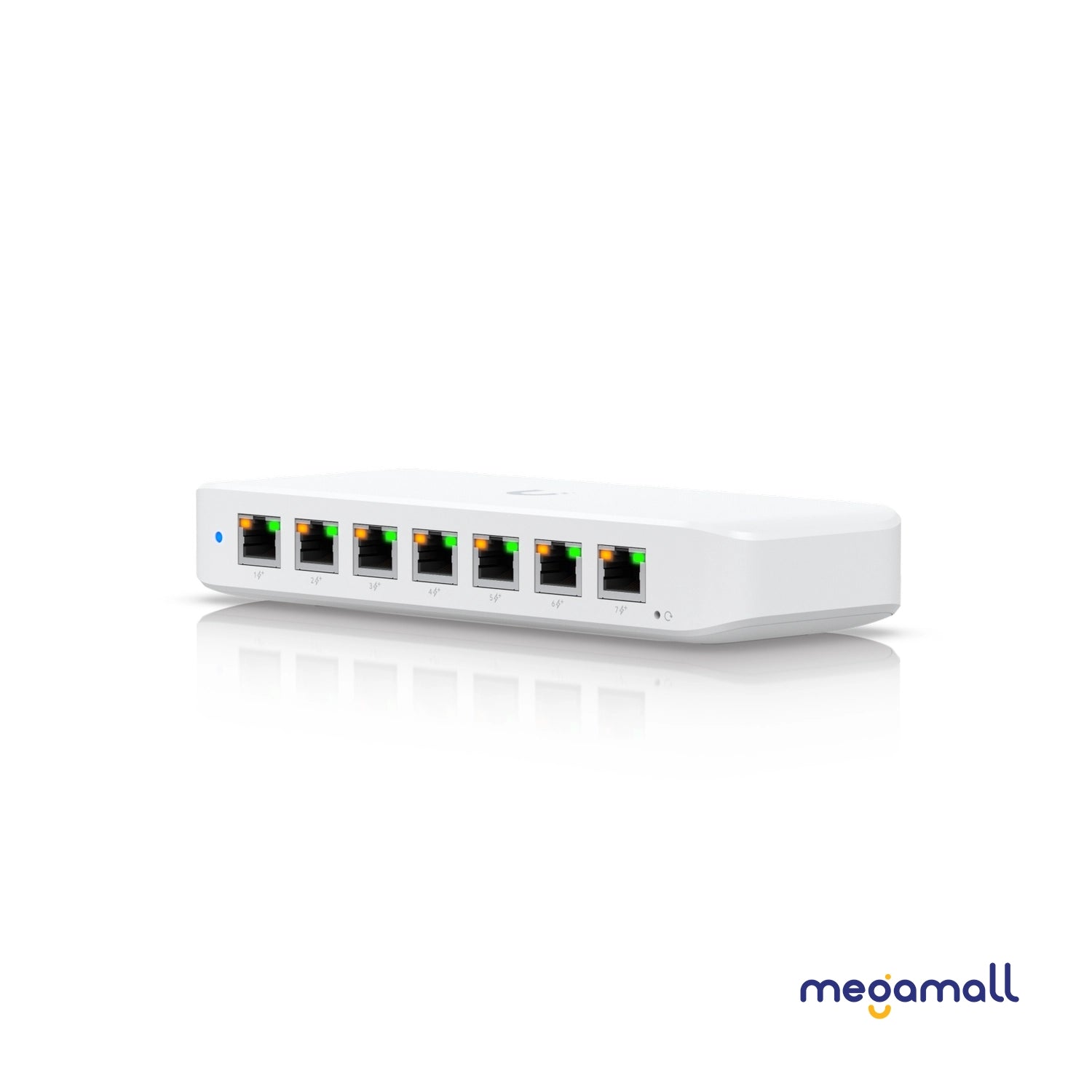

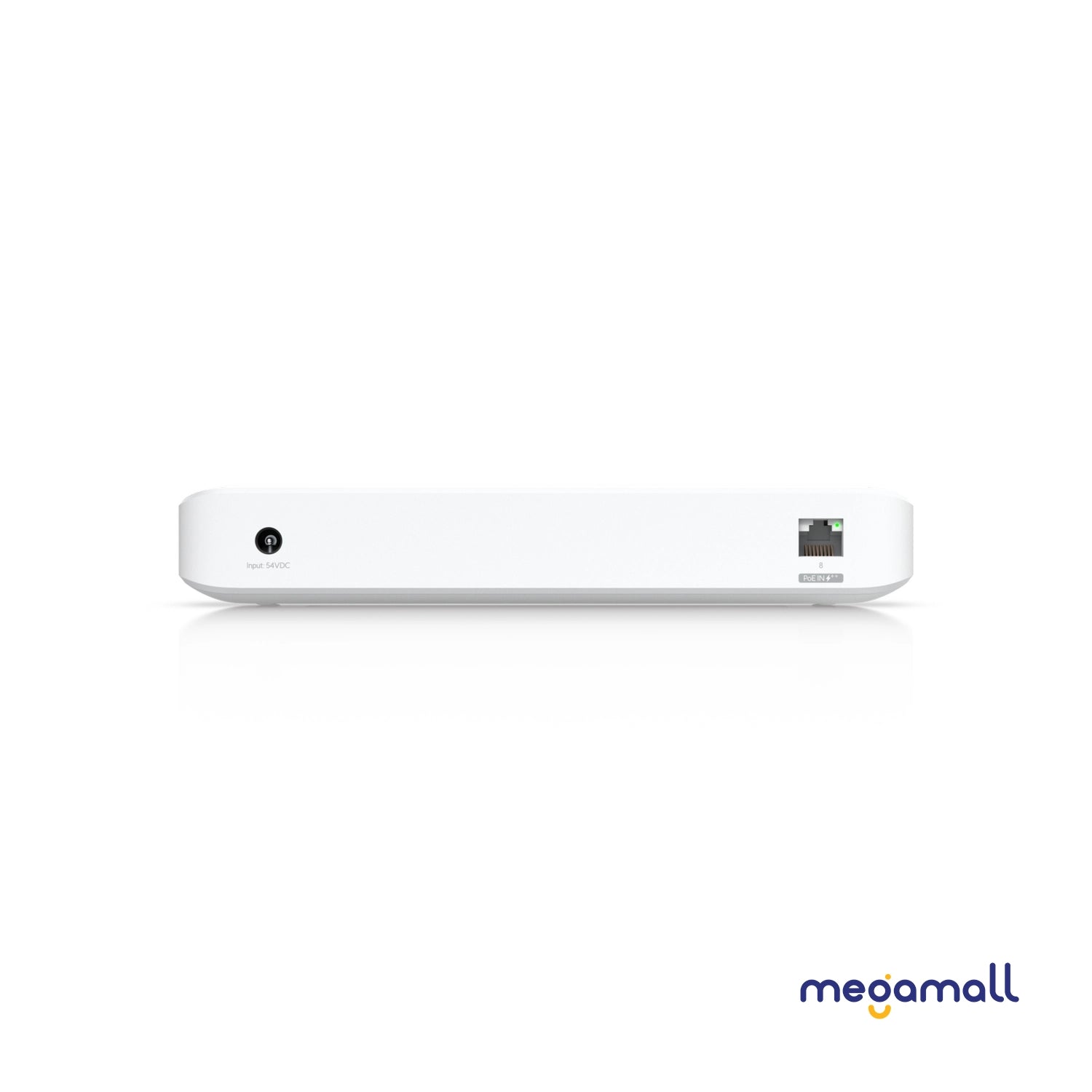

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Note. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
|
Overview |
||
|
Dimensions |
203 x 76 x 33 mm (8 x 3 x 1.3") |
|
|
Port Layout |
||
|
1 GbE RJ45 |
8 (7 PoE+; 1 PoE++ input) (1G/100M/10M) |
|
|
Max. PoE Output |
Up to PoE+ |
|
|
Total PoE Availability |
PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202 |
|
|
Form Factor |
Compact desktop, wall, magnetic |
|
|
Performance |
||
|
Switching Capacity |
16 Gbps |
|
|
Total Non-Blocking Throughput |
8 Gbps |
|
|
Forwarding Rate |
12 Mpps |
|
|
Supported VLANs |
256 |
|
|
MAC Address Table Size |
4000 |
|
|
Layer 2 Features |
||
|
STP & RSTP |
✓ |
|
|
Egress Rate Limit |
✓ |
|
|
Flow Control |
✓ |
|
|
Storm Control |
✓ |
|
|
Multicast & Broadcast Rate Limiting |
✓ |
|
|
Port Isolation |
✓ |
|
|
Port Mirroring |
✓ |
|
|
Jumbo Frames |
✓ |
|
|
Loop Protection |
✓ |
|
|
Hardware |
||
|
PoE Ports |
||
|
PoE+ |
7 |
|
|
PoE++ |
1 |
|
|
Max. PoE Wattage per Port by PSE |
||
|
PoE+ |
30W |
|
|
Max. Power Consumption |
9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input |
|
|
Power Method |
(1) AC/DC adapter (Excluded) (1) PoE++ |
|
|
Power Input Method |
DC Input PoE |
|
|
Supported Voltage Range |
50—57V DC/PoE |
|
|
Management |
Ethernet |
|
|
Heat Dissipation (Excluding PoE Output) |
30.708 BTU/hr 27.296 BTU/hr |
|
|
Weight |
Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Mount Material |
Polycarbonate |
|
|
Ambient Operating Temperature |
PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
|
Software |
||
|
Application Requirements |
||
|
UniFi Network |
Version 8.0.28 and later |
|
