Description

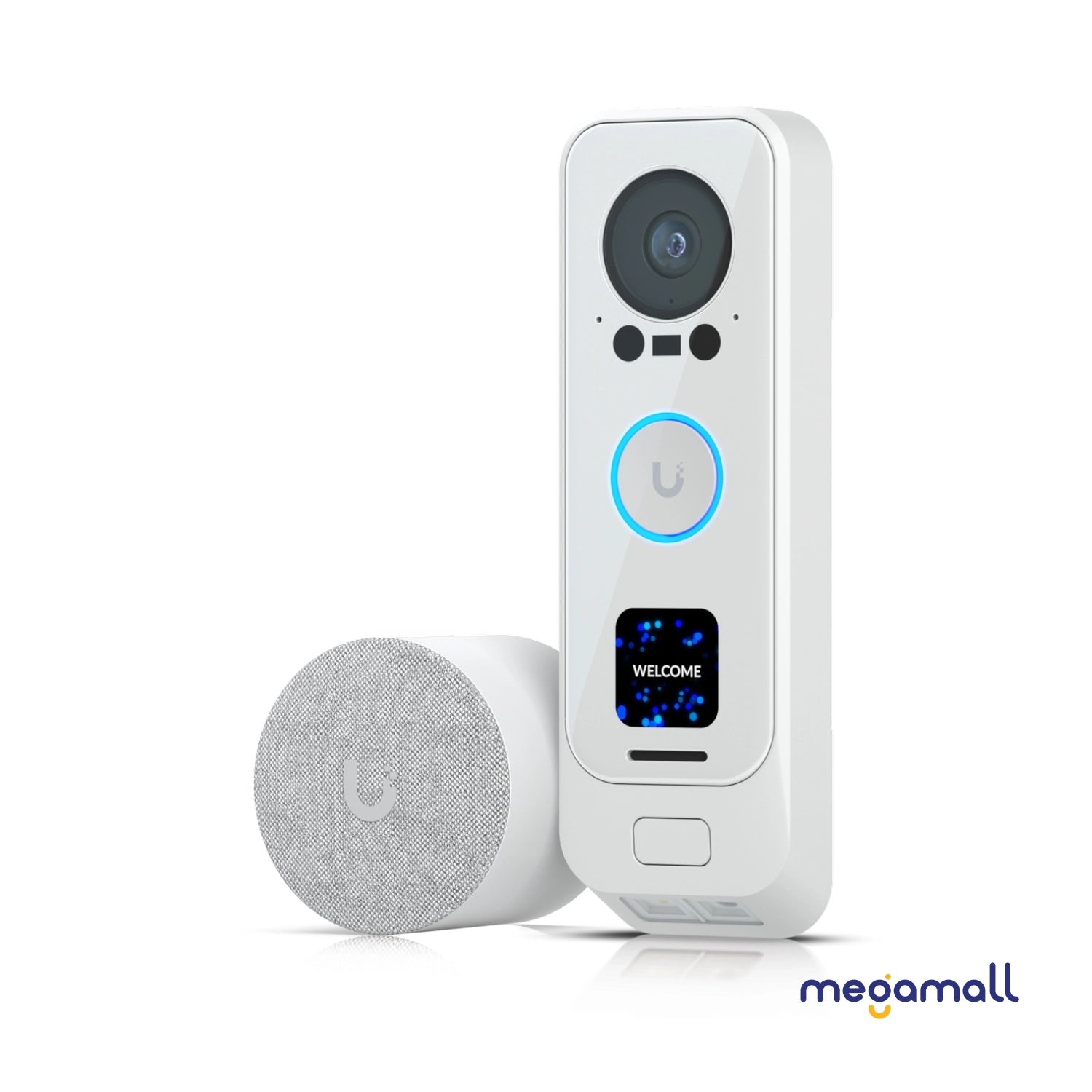

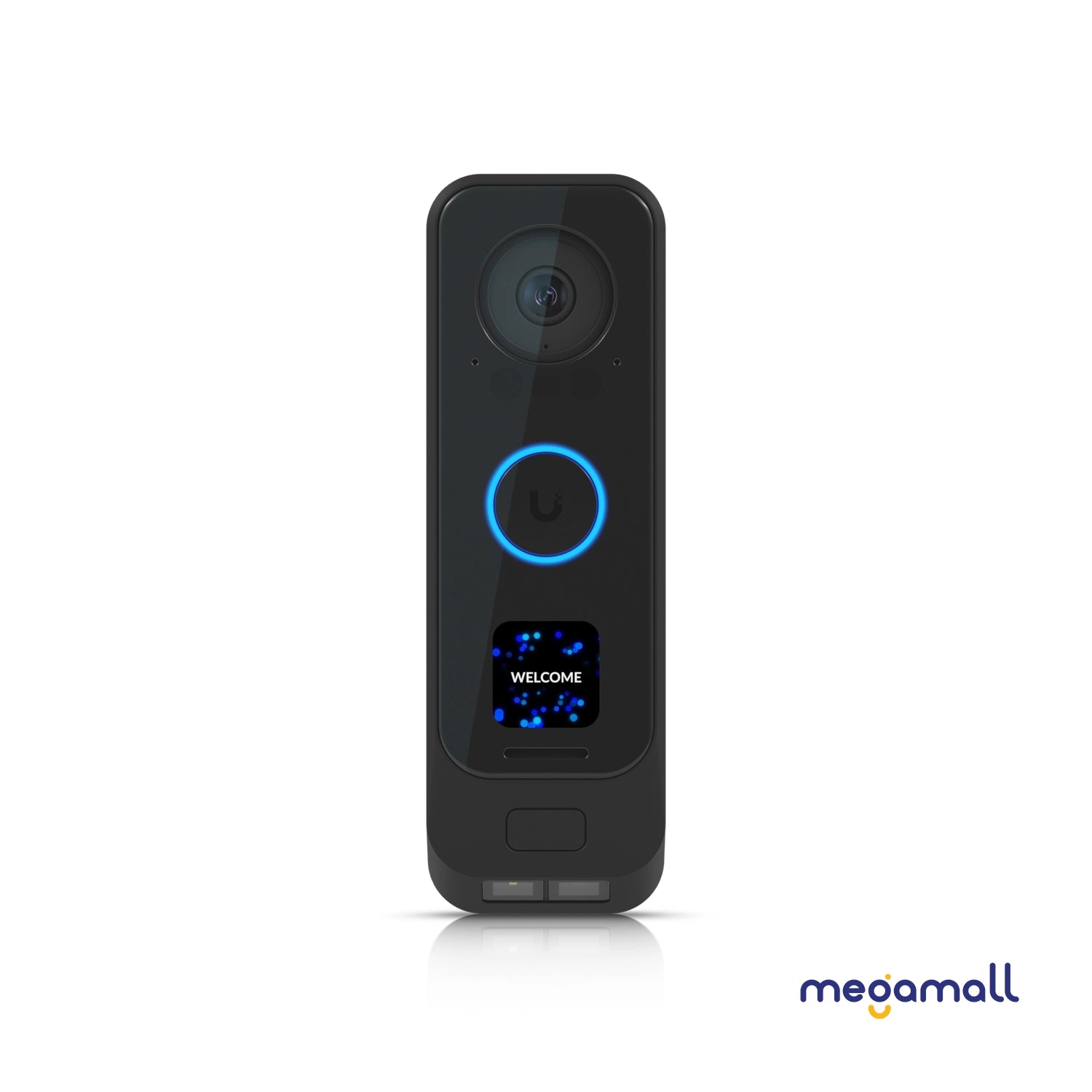

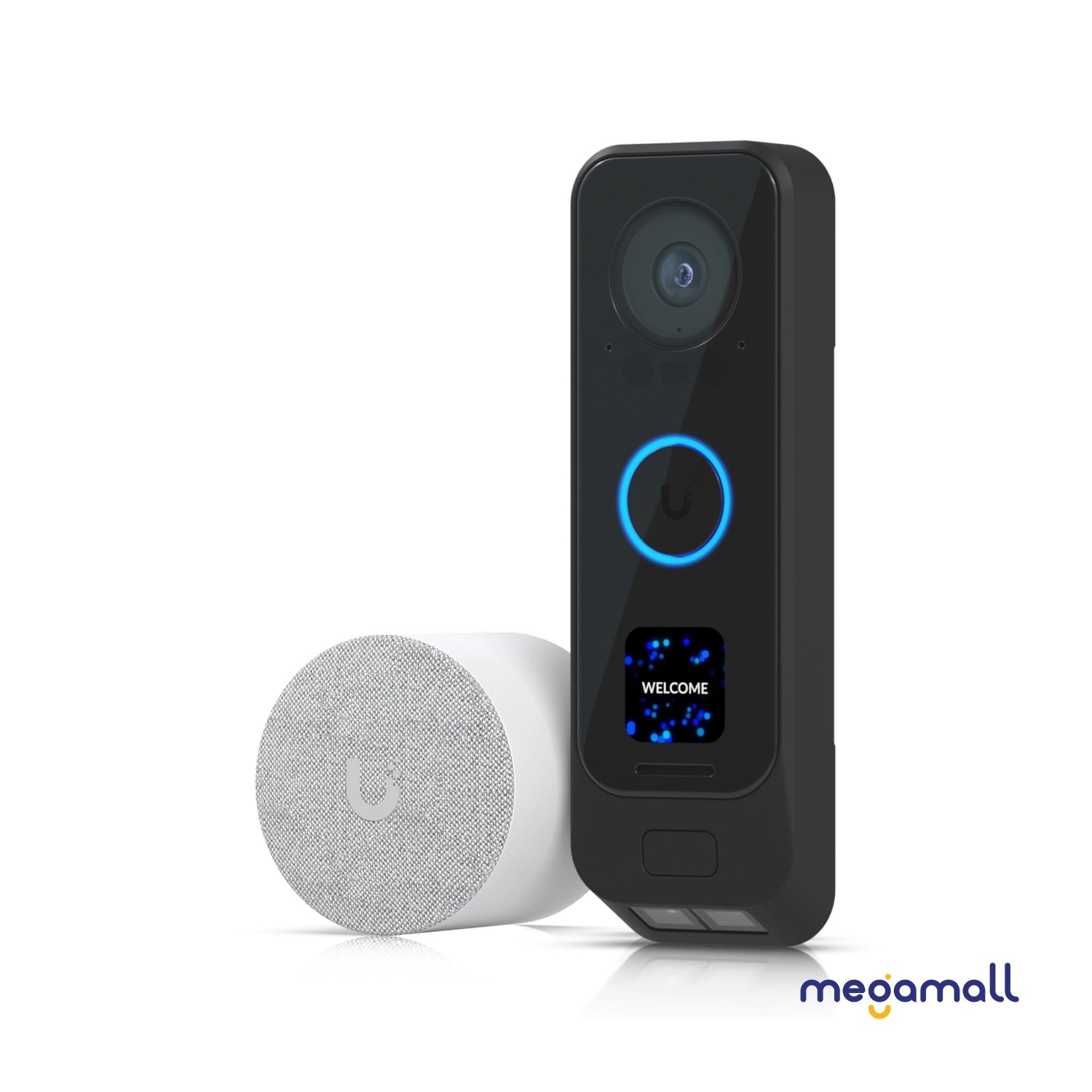

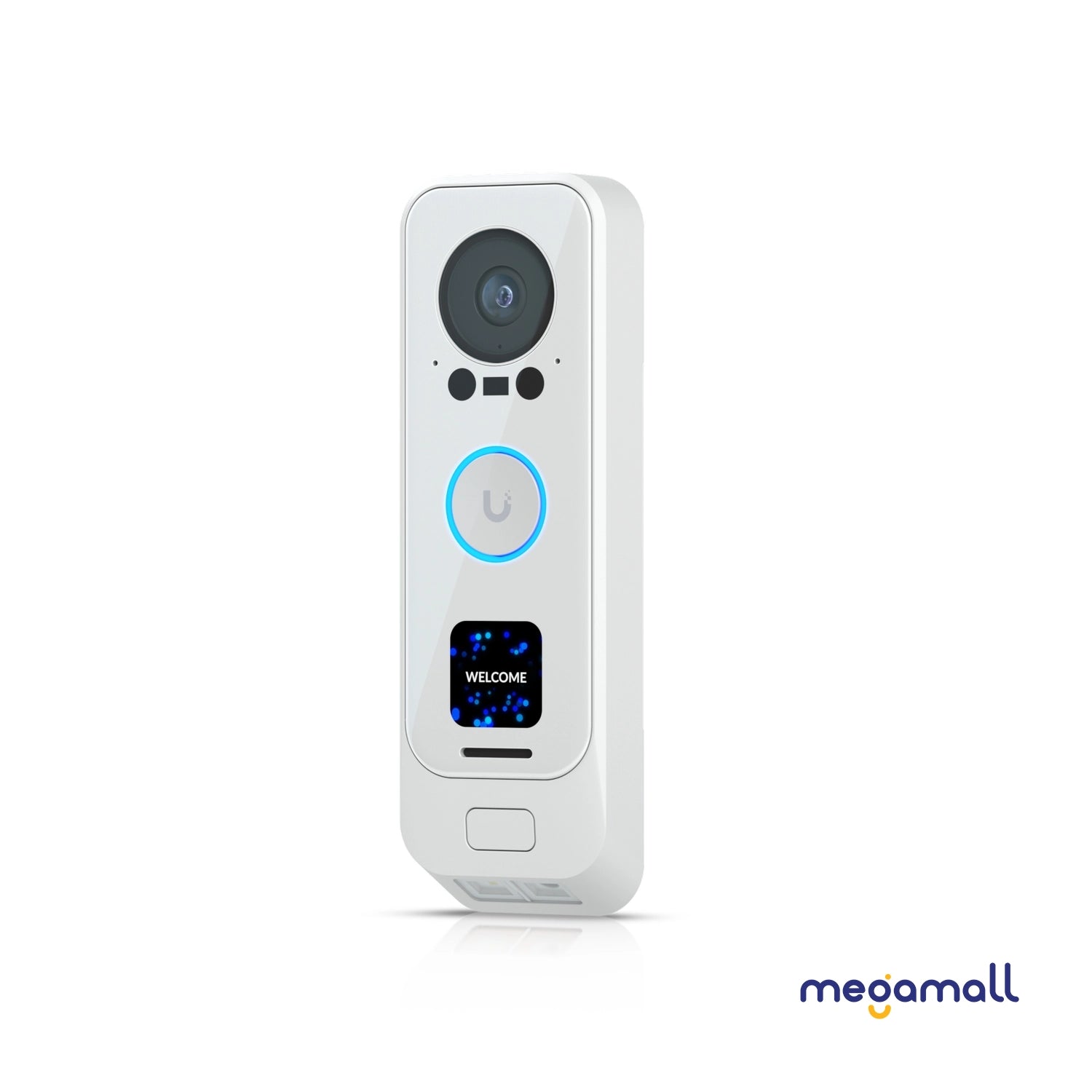

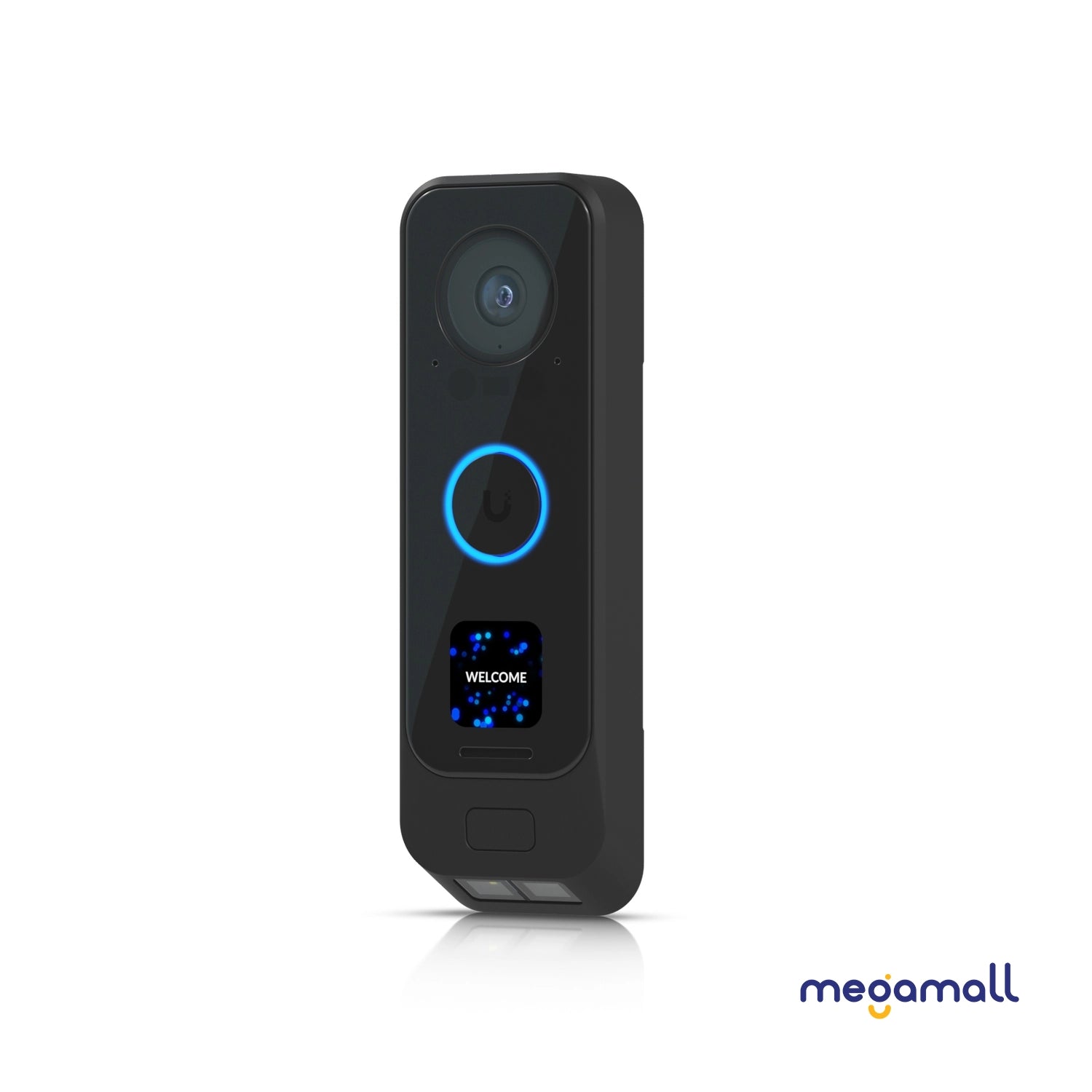

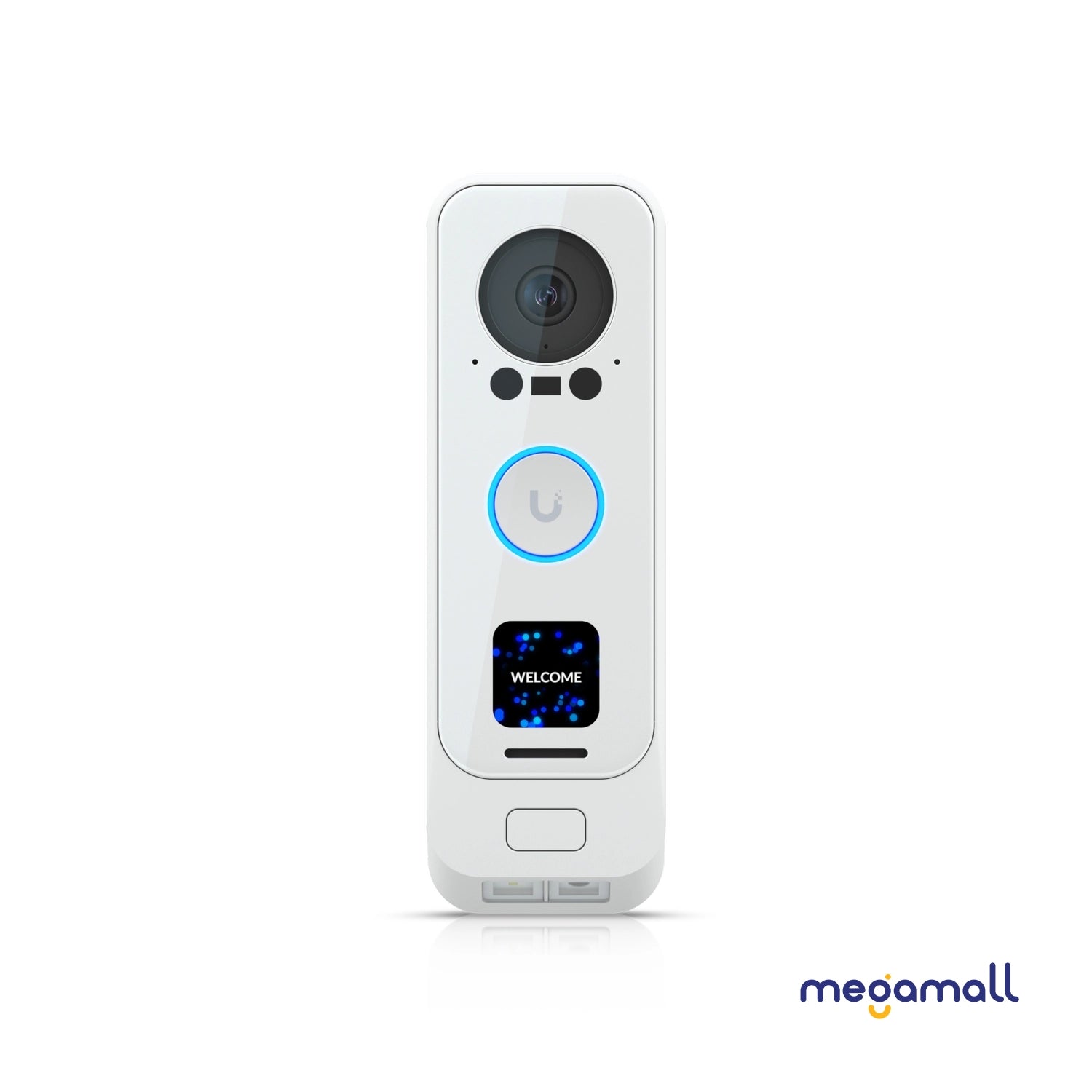

Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
|
Overview |
||
|
Dimensions |
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
|
|
IR Night Vision |
6 m (20 ft) |
|
|
Smart Detections (People, Vehicles, Animals) |
✓ |
|
|
Resolution |
FHD |
|
|
Field of View |
Main camera: H: 138°, V: 114°, D: 155° (LDC On) Main camera: H: 160°, V: 117°, D: 160° (LDC Off) Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
|
|
Audio |
Two-way audio |
|
|
Weatherproofing |
IPX4 |
|
|
Mounting |
Wall, wedge (Included) Gang box, junction box (Optional) |
|
|
Performance |
||
|
Networking Interface |

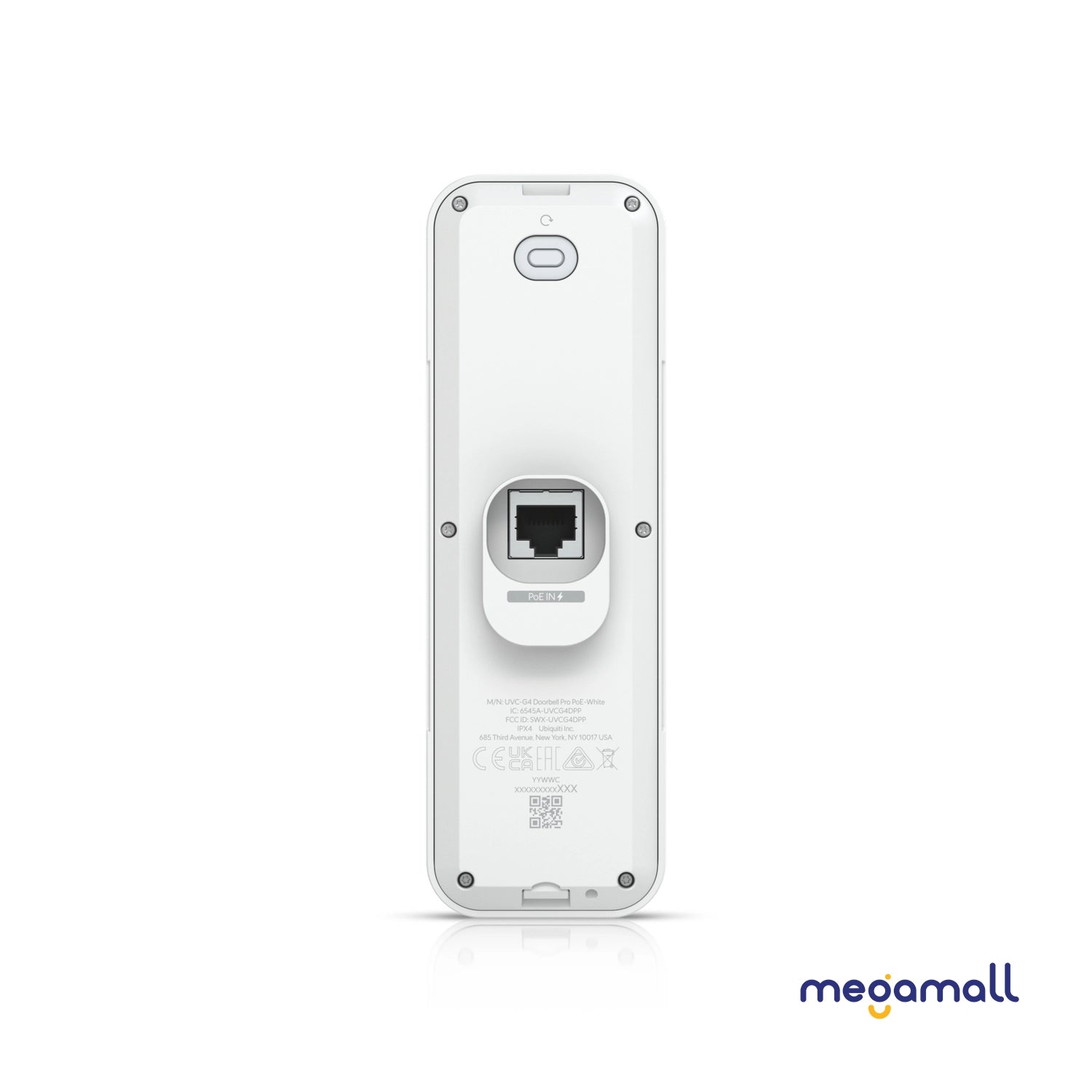

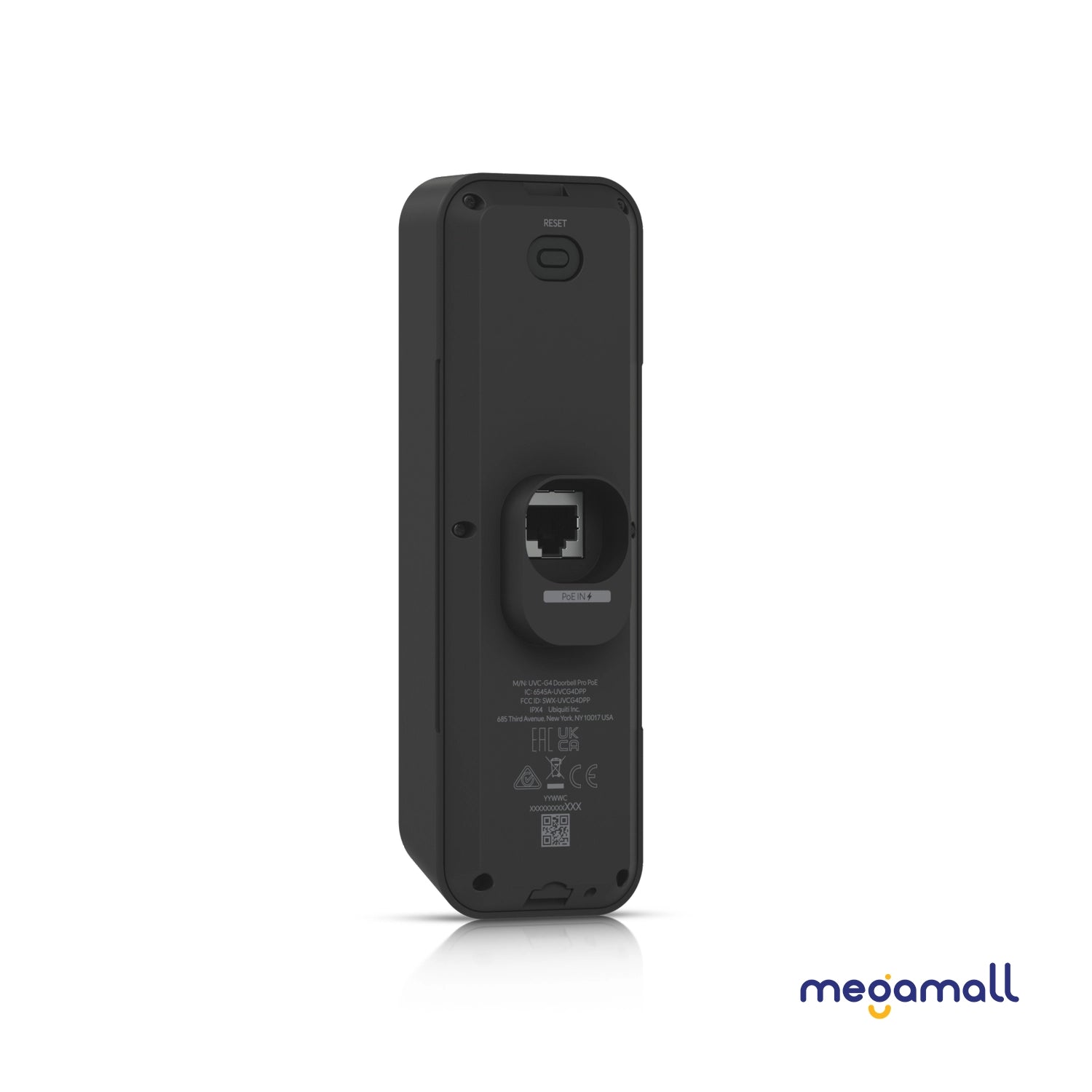

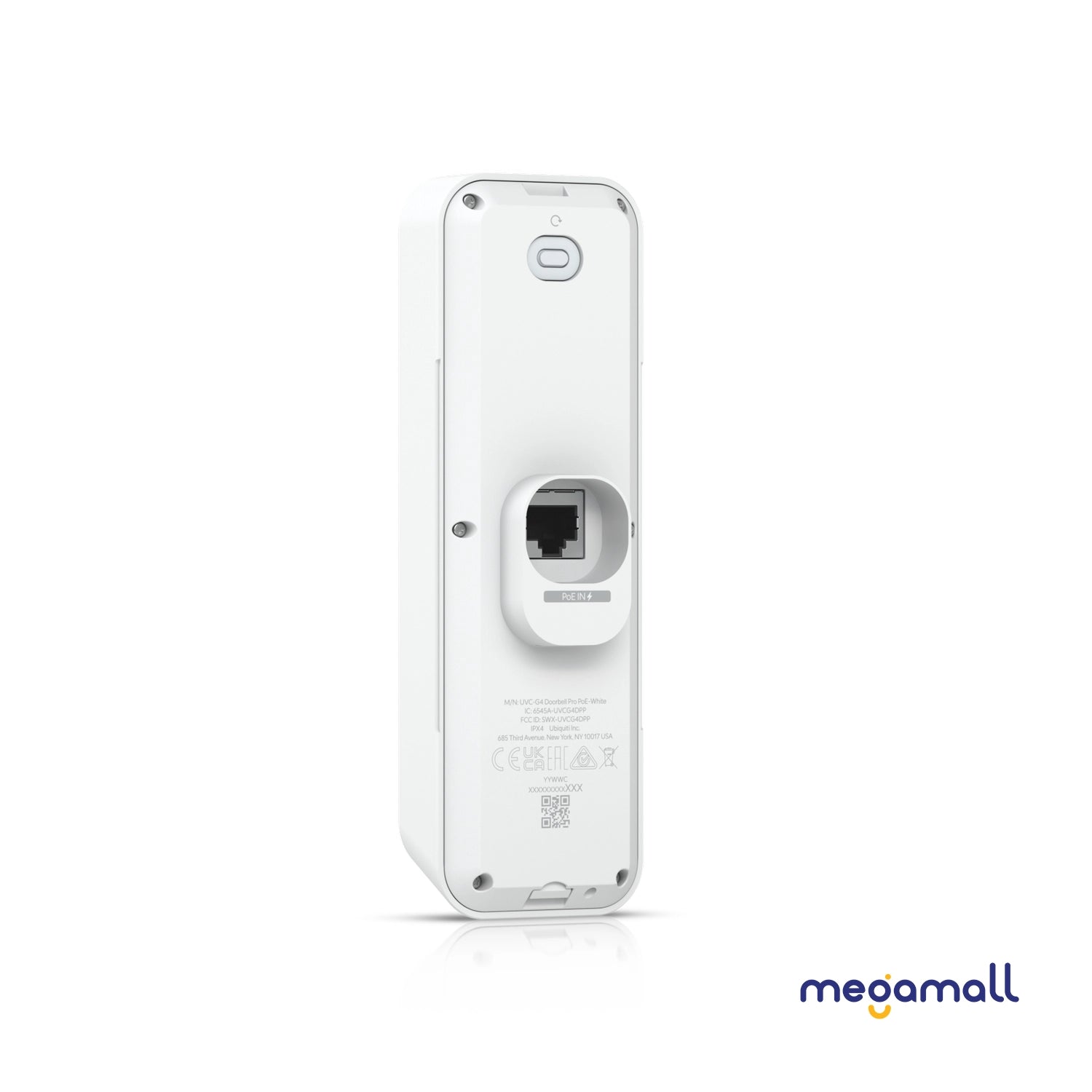

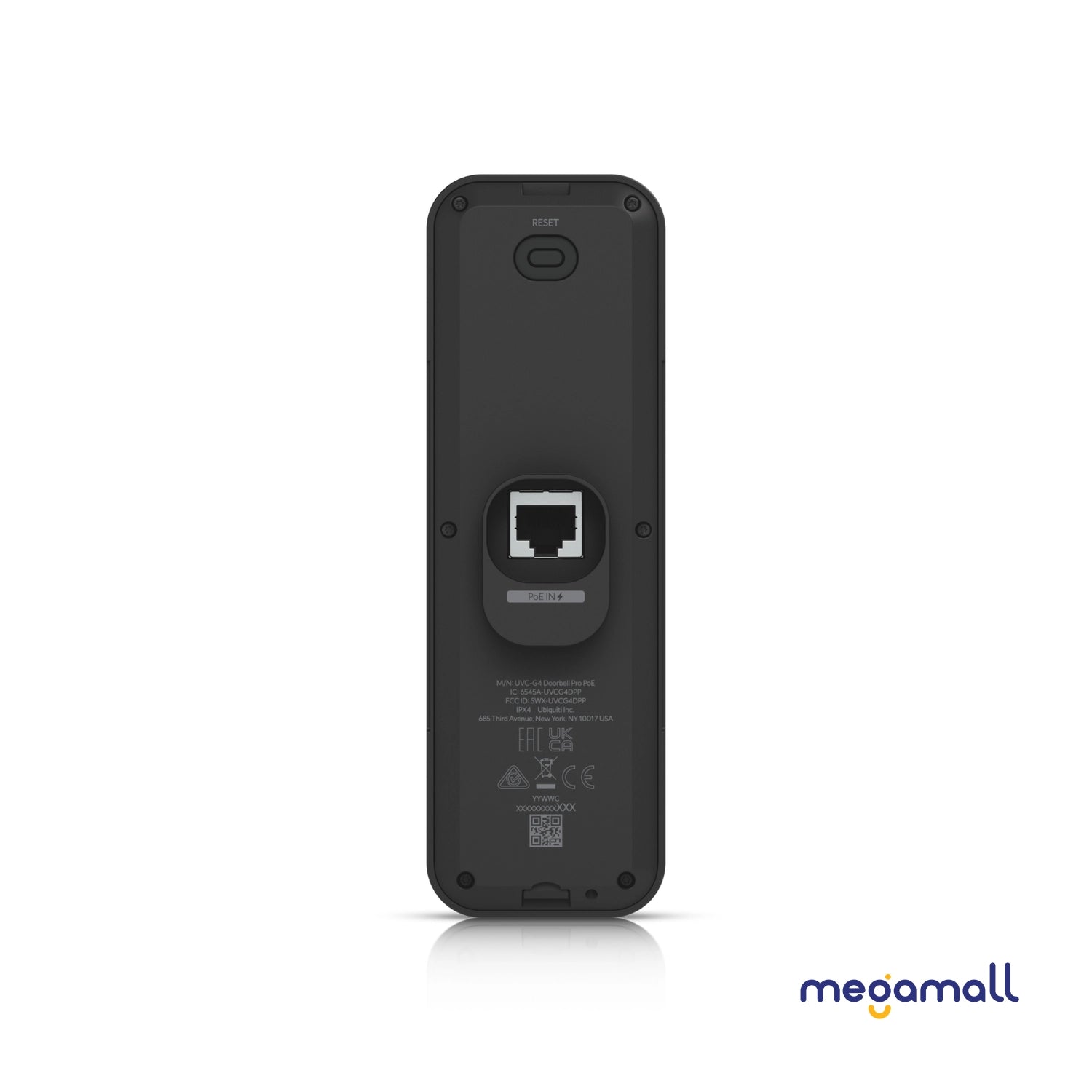

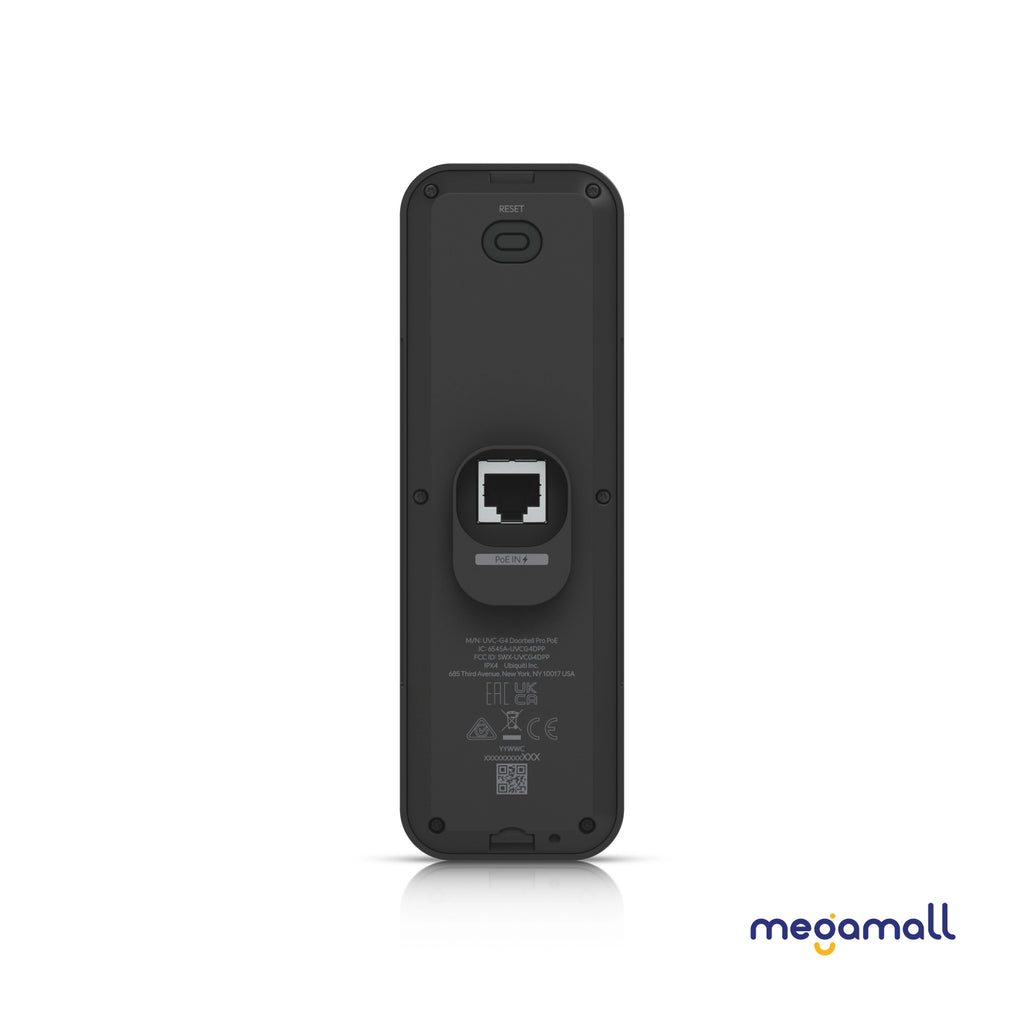

GbE RJ45 port |
|
|
Video |
||
|
Max. Frame Rate |
30 FPS |
|
|
Resolution |
Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
|
|
Optics |
||
|
Sensor |
Main camera: 5MP CMOS Package camera: 8MP CMOS |
|
|
Lens |
Fixed focal length |
|
|
Night Mode |
Built-in IR LED illumination and IR cut filter |
|
|
Hardware |
||
|
Max. Power Consumption |
7W |
|
|
Supported Voltage Range |
37—57V DC |
|
|
Power Method |
PoE |
|
|
Processor |
Quad-core Arm® Cortex®-A53 based chip |
|
|
Weight |
Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) On-wall mount: 53 g (1.9 oz) |
|
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|
|
Mount Material |
Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
|
|
Button |
(1) Ring button (1) Factory-reset |
|
|
Ambient Operating Temperature |
-30 to 40º C (-22 to 104º F) |
|
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, SRRC |
|
|
Software |
||
|
Mobile app |
UniFi Protect iOS™ and Android™ |
|
|

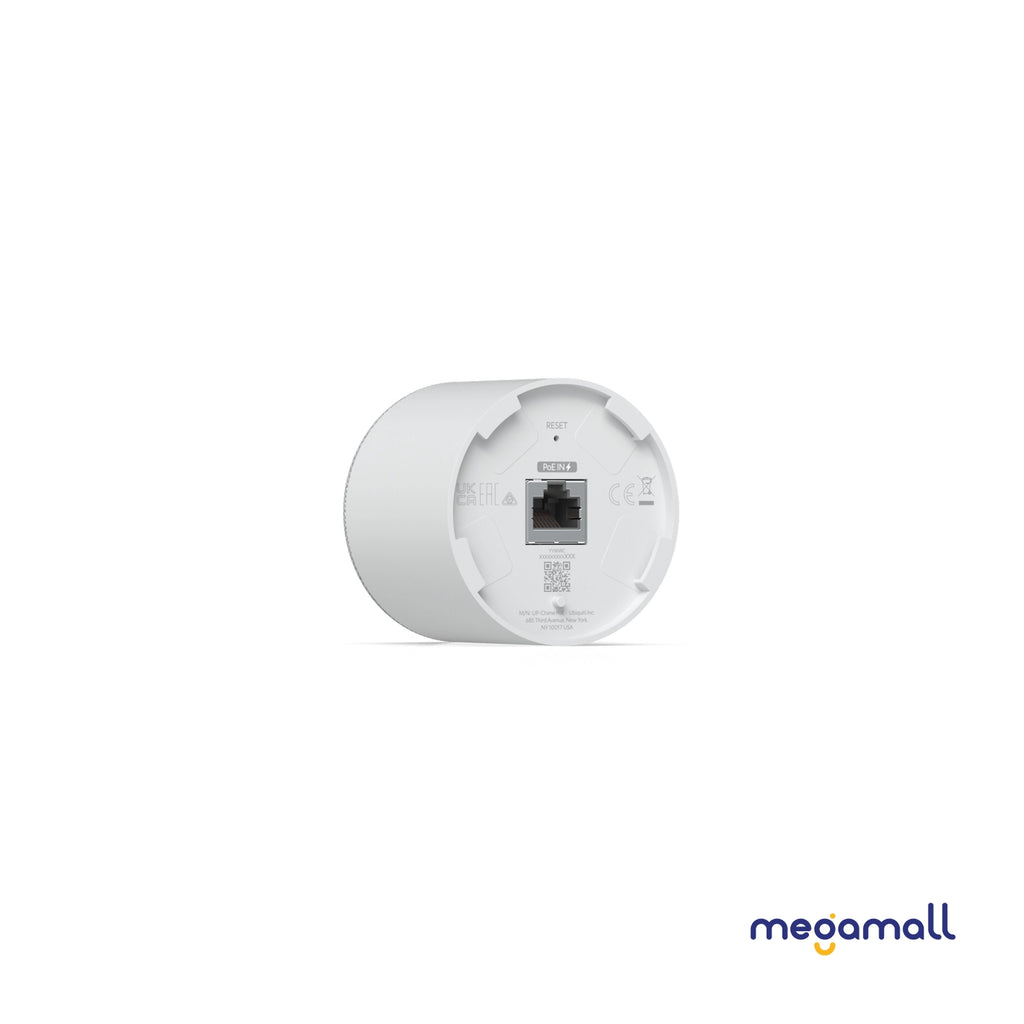

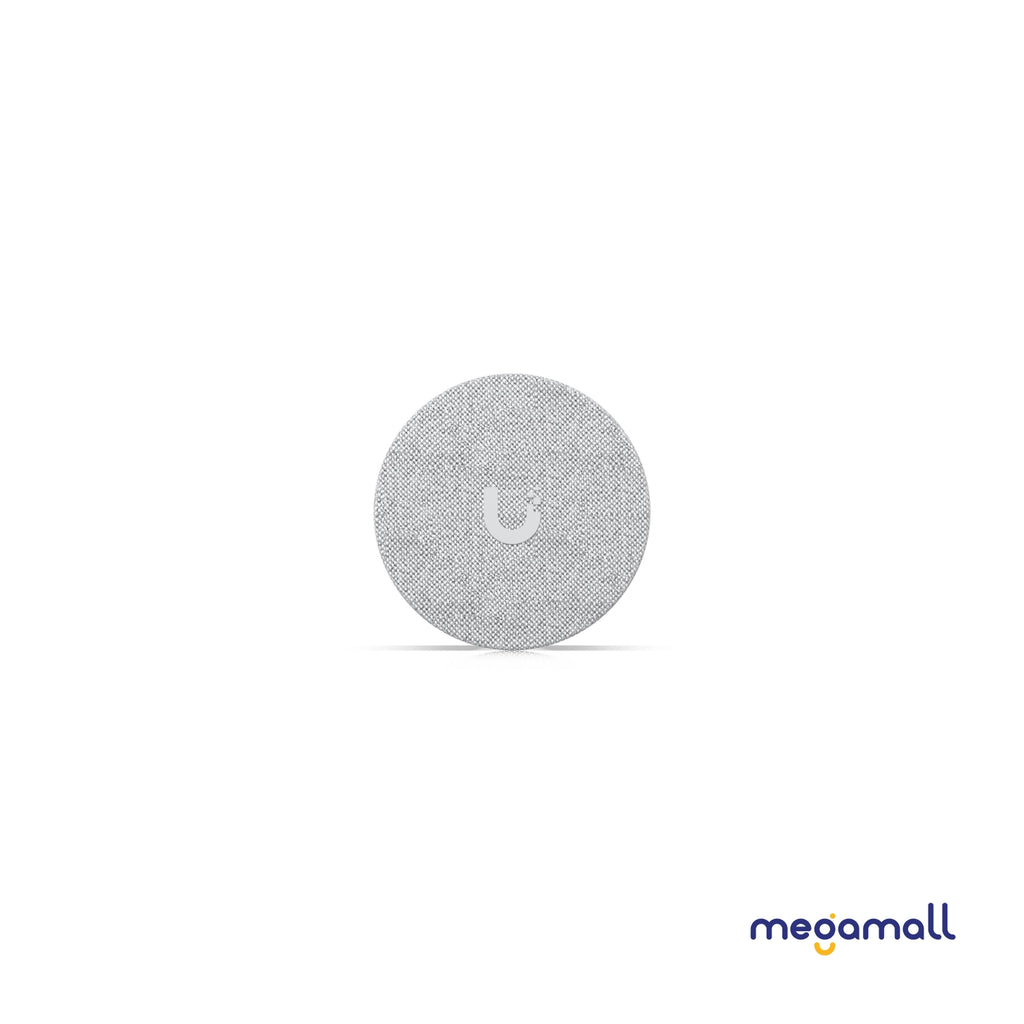

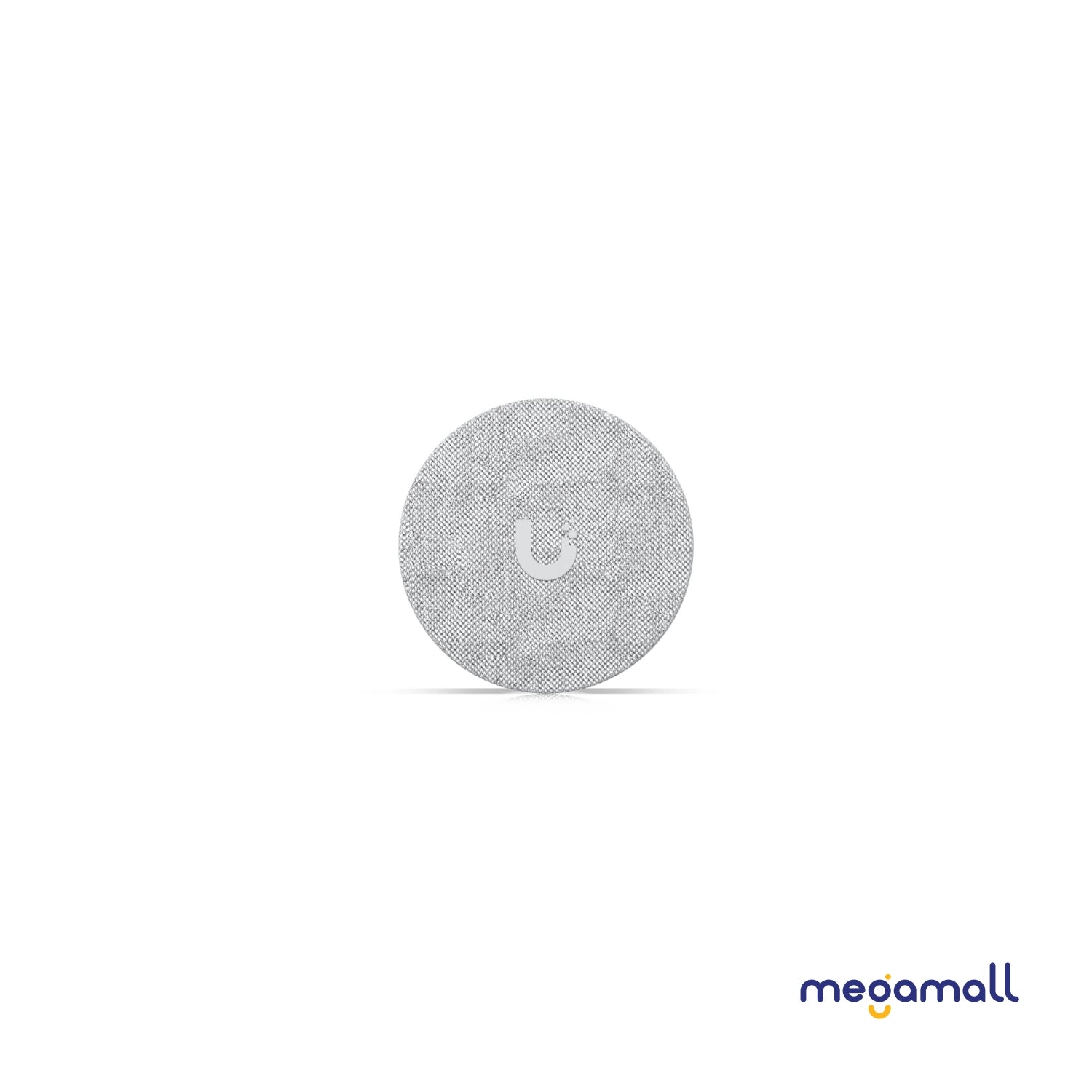

Chime |
||
|
Dimensions |
Device: Ø62 x 54 mm (Ø2.5 x 2.1") In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5") On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8") |
|
|
Weight |
Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz) |
|
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|
|
Mount Material |
Polycarbonate, zinc alloy |
|
|
Networking Interface |
10/100 MbE port |
|
|
Power Method |
PoE |
|
|
Supported Voltage Range |
44—57V DC |
|
|
Max. Power Consumption |
3W |
|
|
LED |
R/G/B/W |
|
|
Buttons |
(1) Factory-reset |
|
|
Speaker |
Yes |
|
|
Buzzer |
Yes |
|
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
|
Certifications |
CE, FCC, IC |
|
|
NDAA Compliant |
✓ |
|
