Description

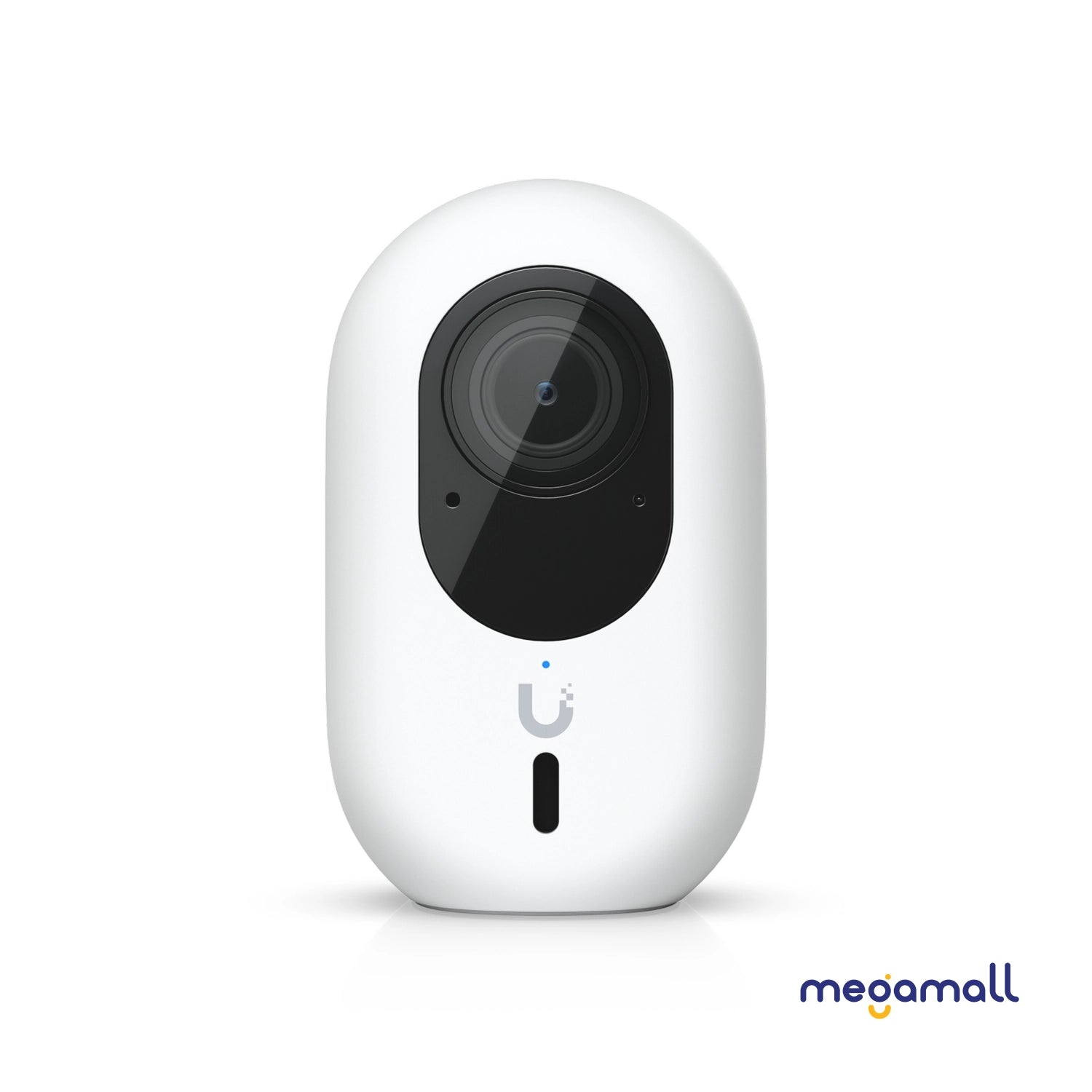

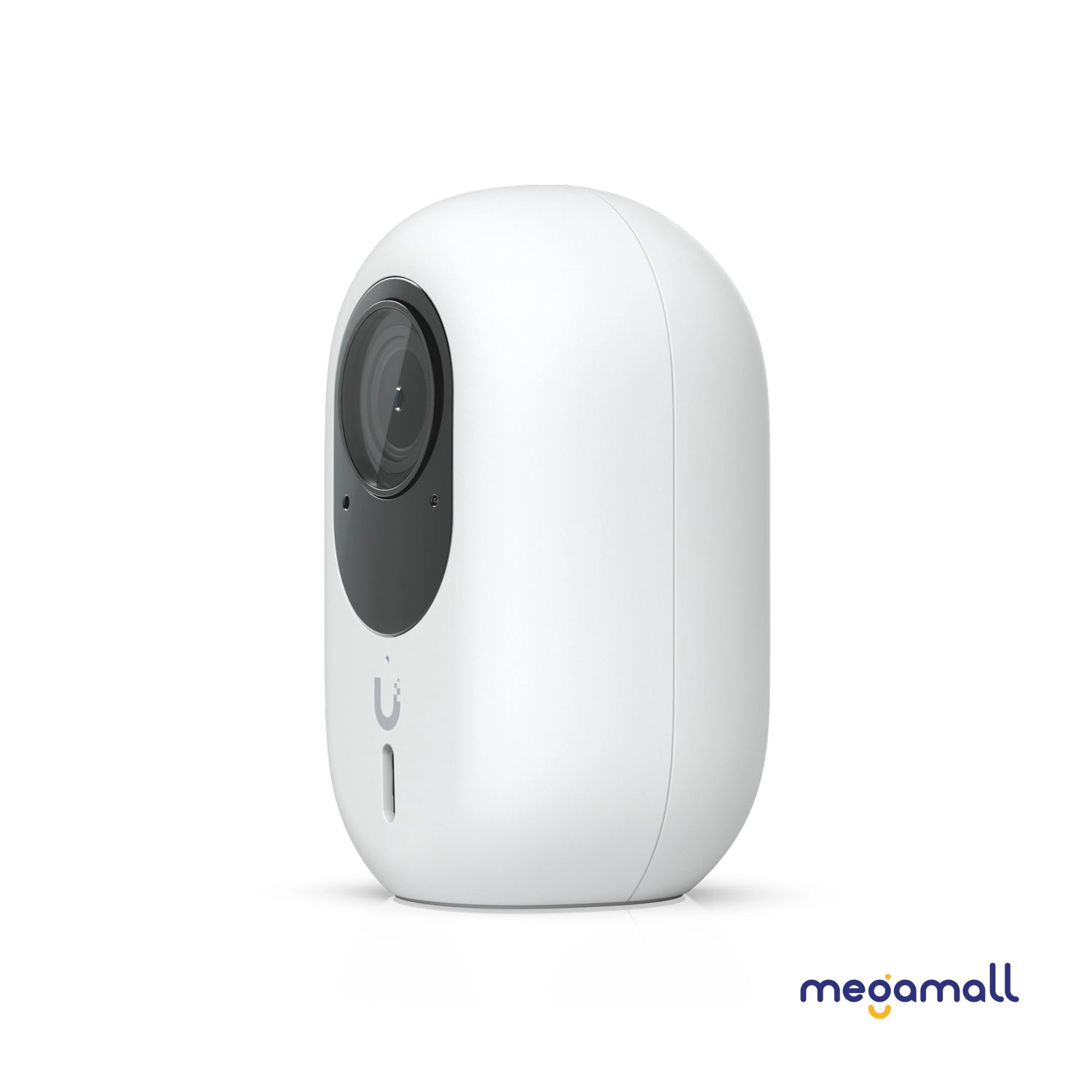

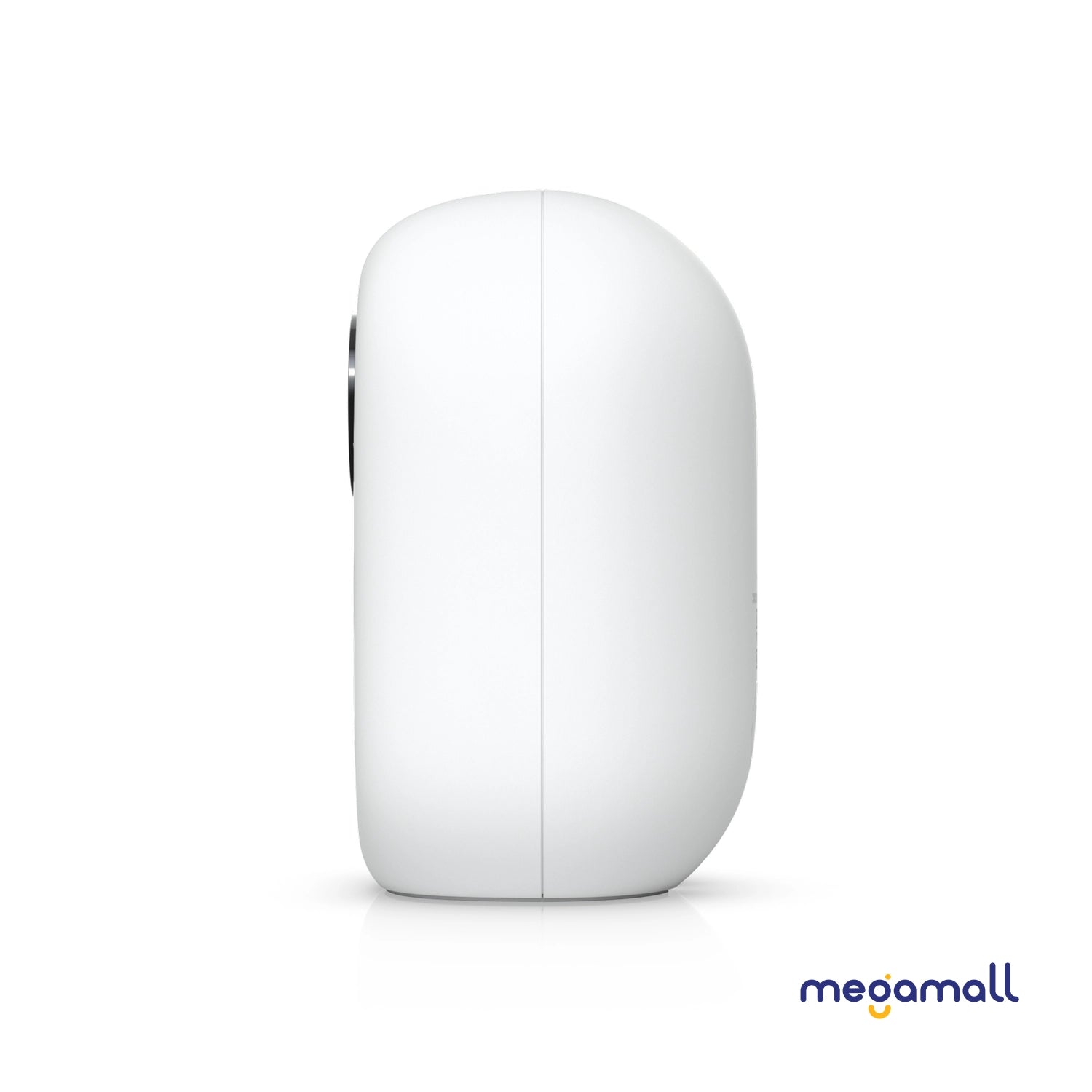

Compact, wide-angle, WiFi-connected camera with two-way audio.
Note. Third-party WiFi configuration available during setup with the UniFi Protect mobile app.
EU version comes with EU power plug only.
|
Overview |
||
|
Dimensions |
81.6 x 50 x 47.2 mm (3.2 x 2 x 1.9") |
|
|
IR Night Vision |
6 m (20 ft) |
|
|
Smart Detections (People, Vehicles, Animals) |
✓ |
|
|
Resolution |
2K |
|
|
Field of View |
H: 102.4°, V: 54.9°, D: 120.6° |
|
|
Audio |
Two-way audio |
|
|
Weatherproofing |
IPX5 |
|
|
Tamper Resistance |
IK04 |
|
|
Mounting |

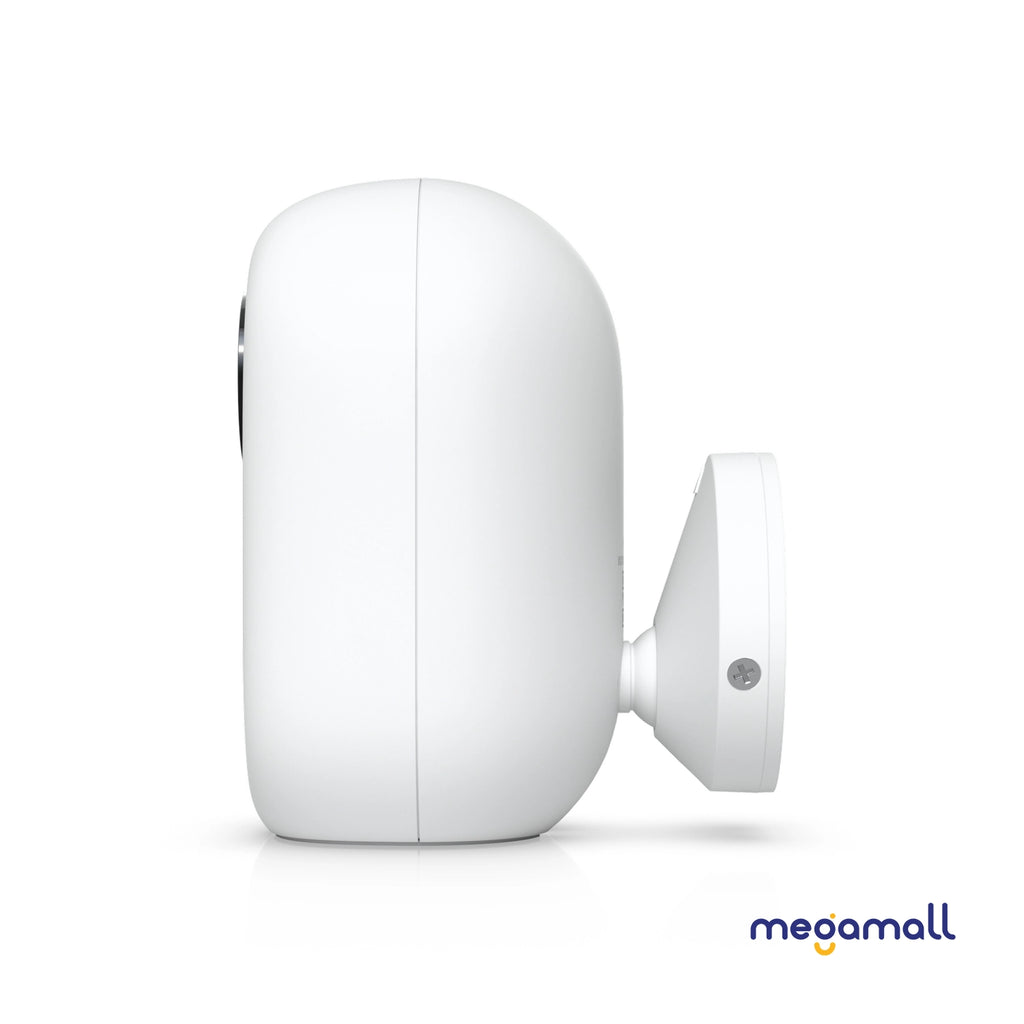

Wall mount accessory (Included) |
|
|
Performance |
||
|
Networking Interface |
802.11 a/b/g/n/ac WiFi Bluetooth |
|
|
Video |
||
|
Image Settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
|
|
Max. Frame Rate |
30 FPS |
|
|
Resolution |
4MP 2688 x 1512 (16:9) |
|
|
Optics |
||
|
Sensor |
5MP CMOS |
|
|
Lens |
Fixed focal length EFL 2.8 mm, ƒ/1.6 |
|
|
Night Mode |
Built-in IR LED illumination and IR cut lter |
|
|
Hardware |
||
|
Max. Power Consumption |
6W |
|
|
Supported Voltage Range |
5V DC, 2A |
|
|
Power Method |
5V, 2A USB power adapter (Included) Instant PoE to USB adapter (Optional) |
|
|
Processor |
Dual-core Arm® Cortex®-A7 based chip |
|
|
Weight |
Without mount: 125 g (4.4 oz) With mount: 163 g (5.8 oz) |
|
|
Enclosure Material |
Polycarbonate |
|
|
Mount Material |
Polycarbonate |
|
|
Button |
(1) Factory-reset |
|
|
Ambient Operating Temperature |
-20 to 40° C (-4 to 104° F) |
|
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC, Anatel |
|
