Description

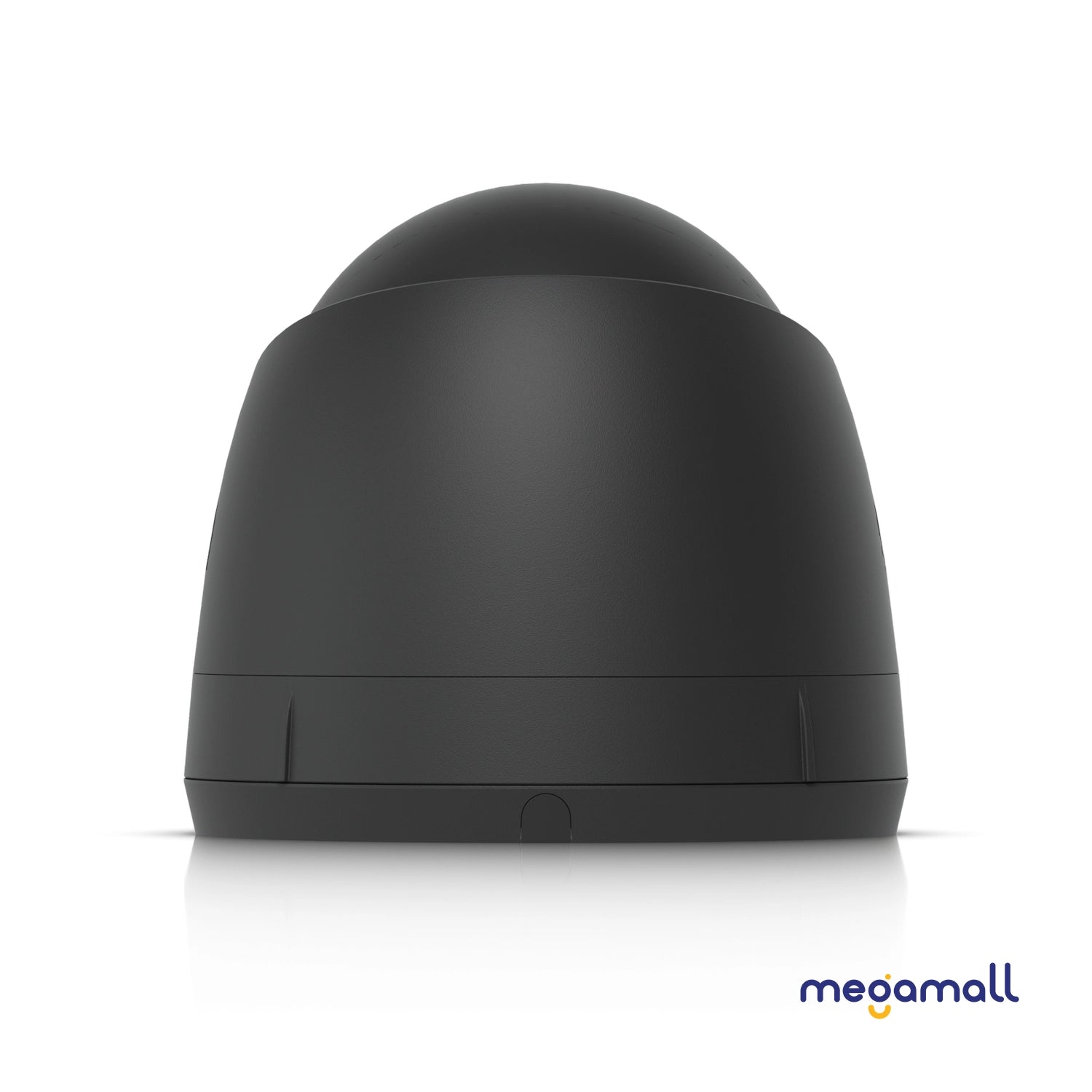

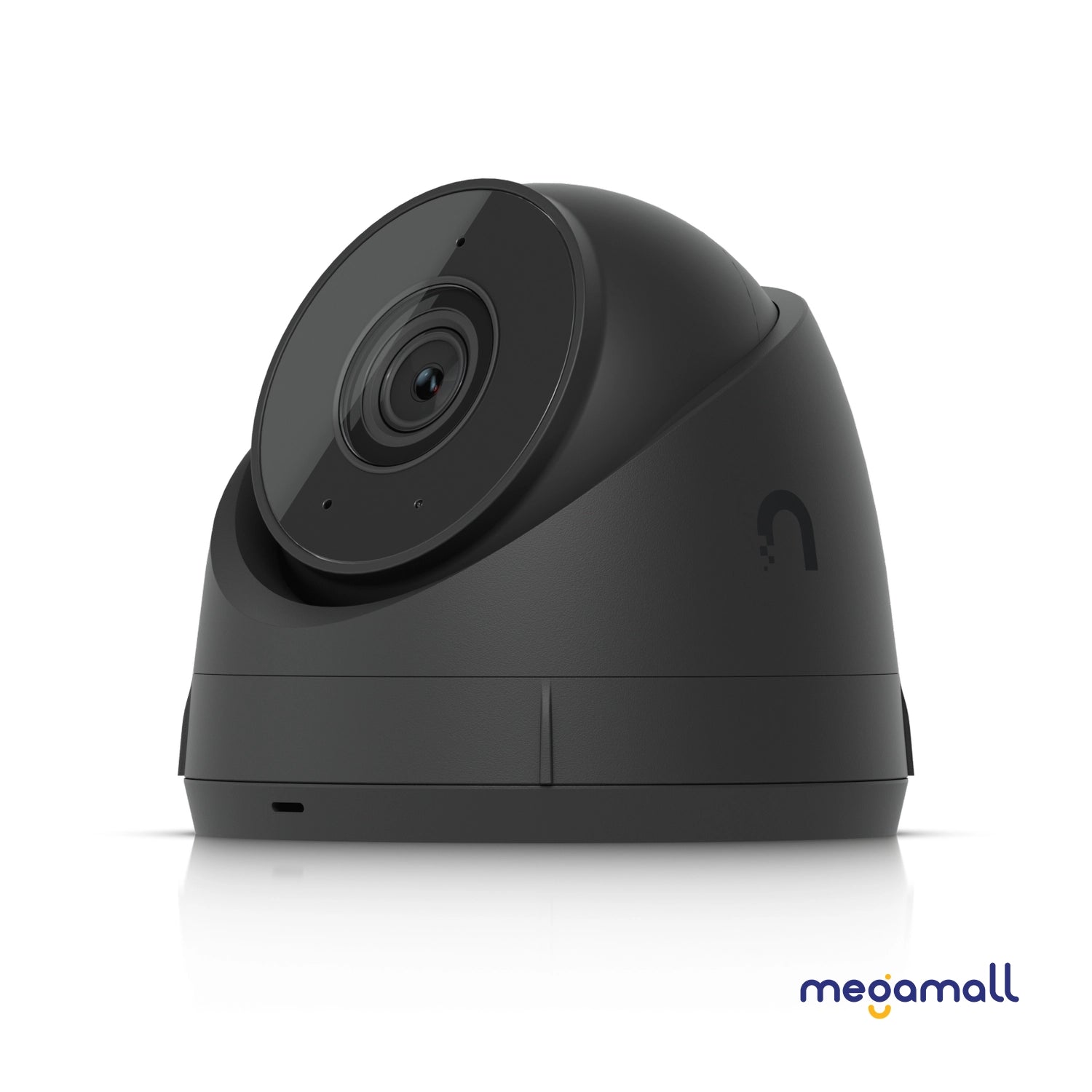

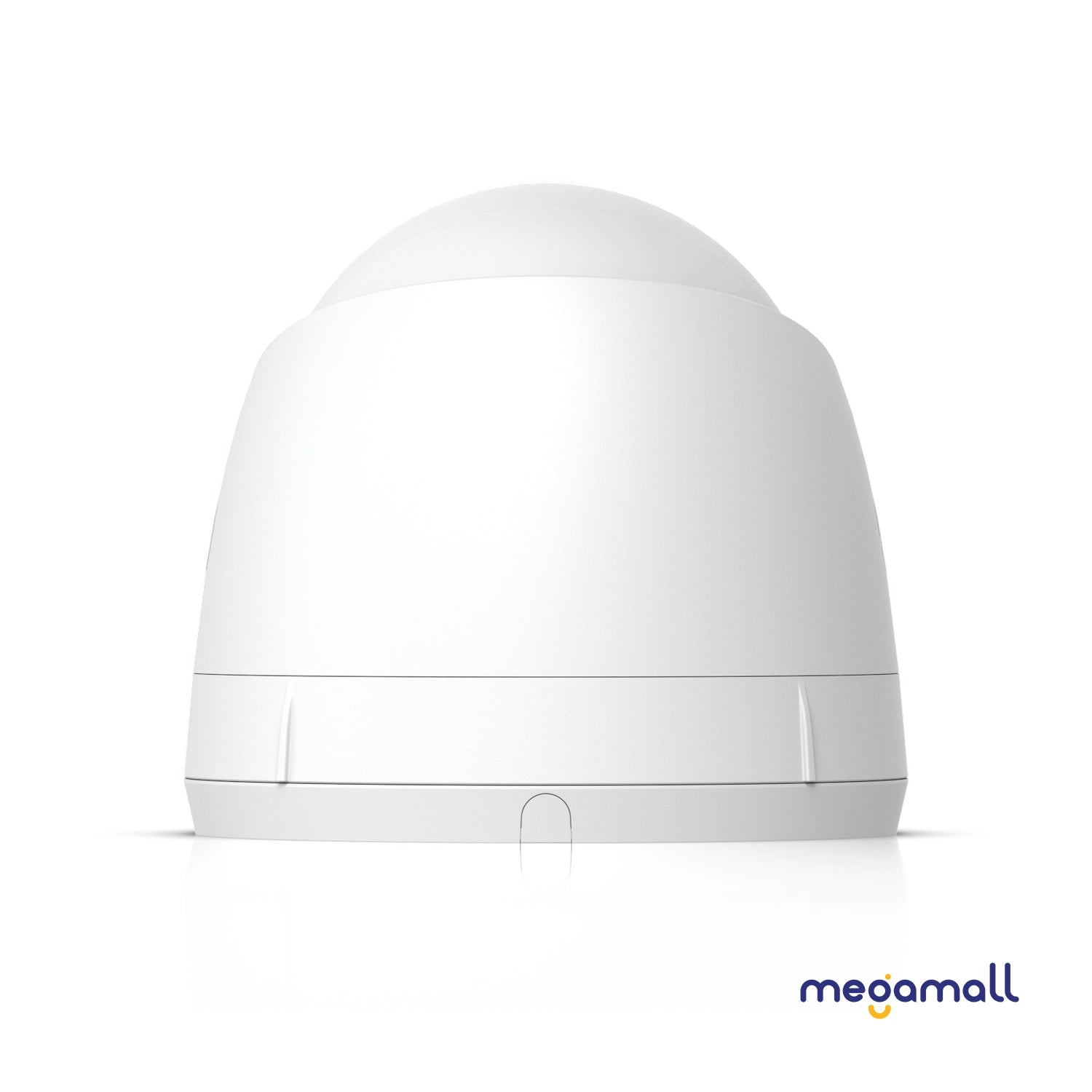

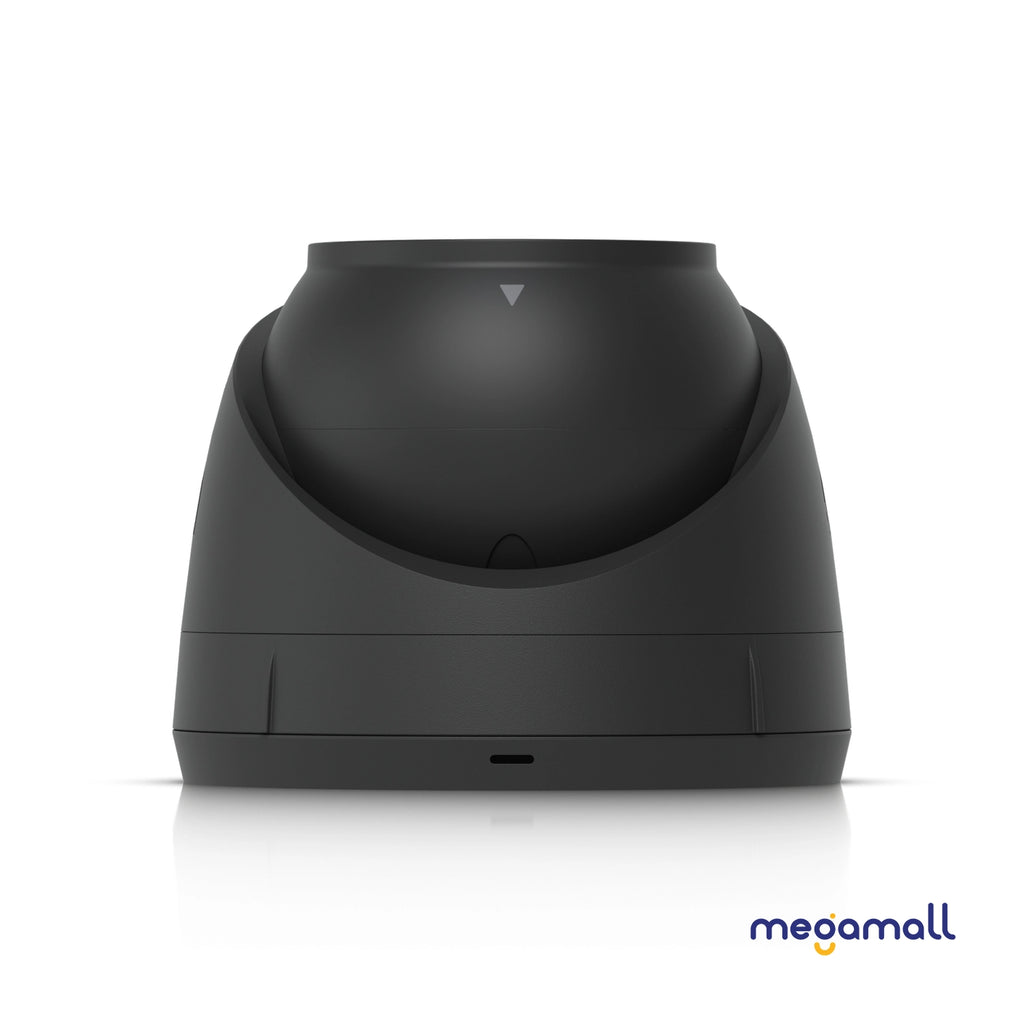

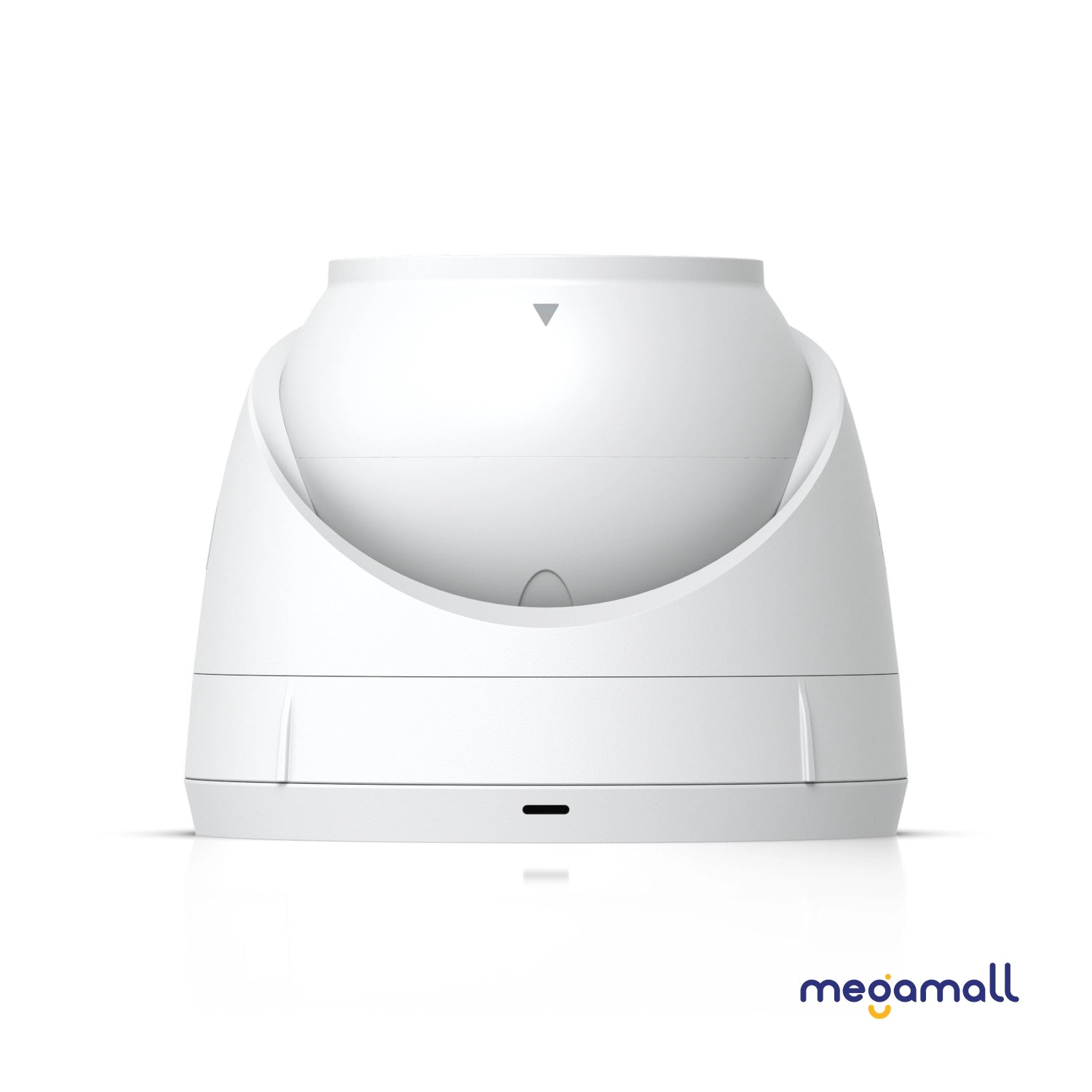

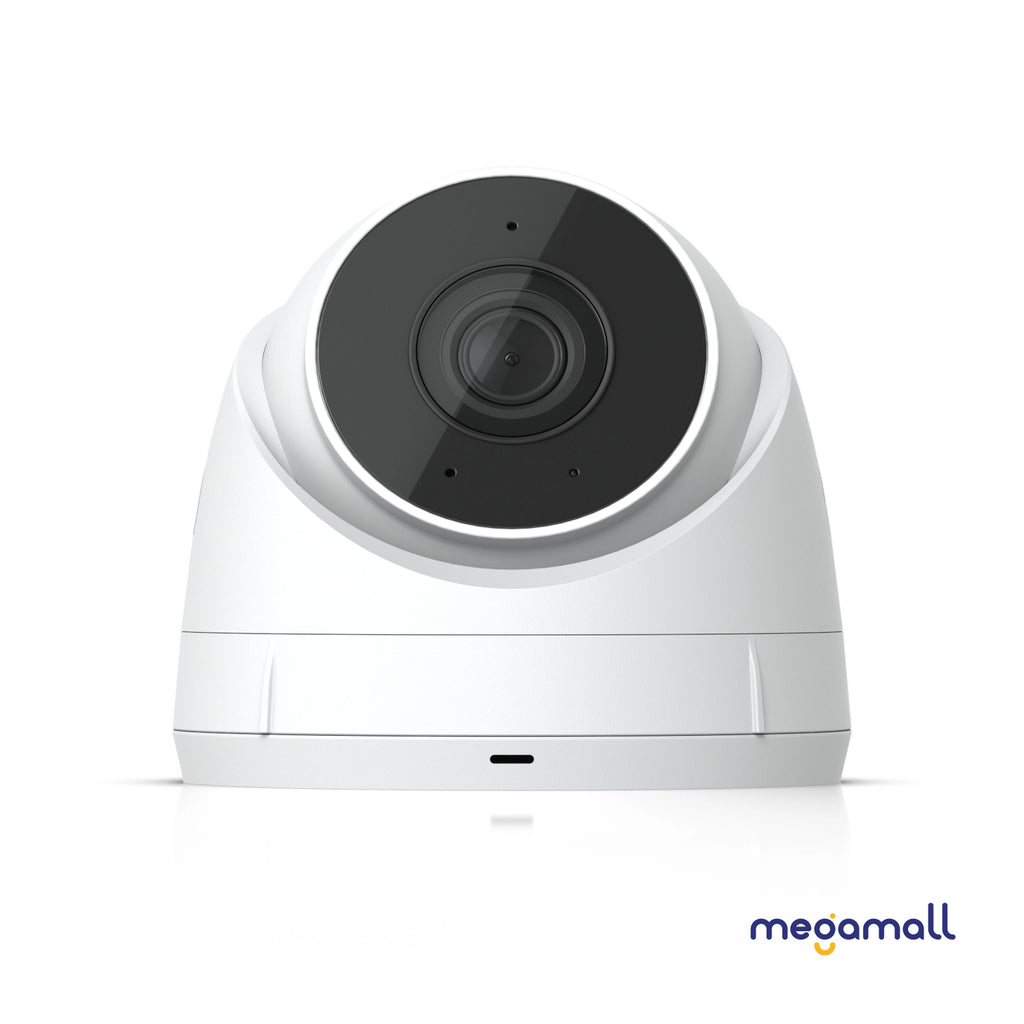

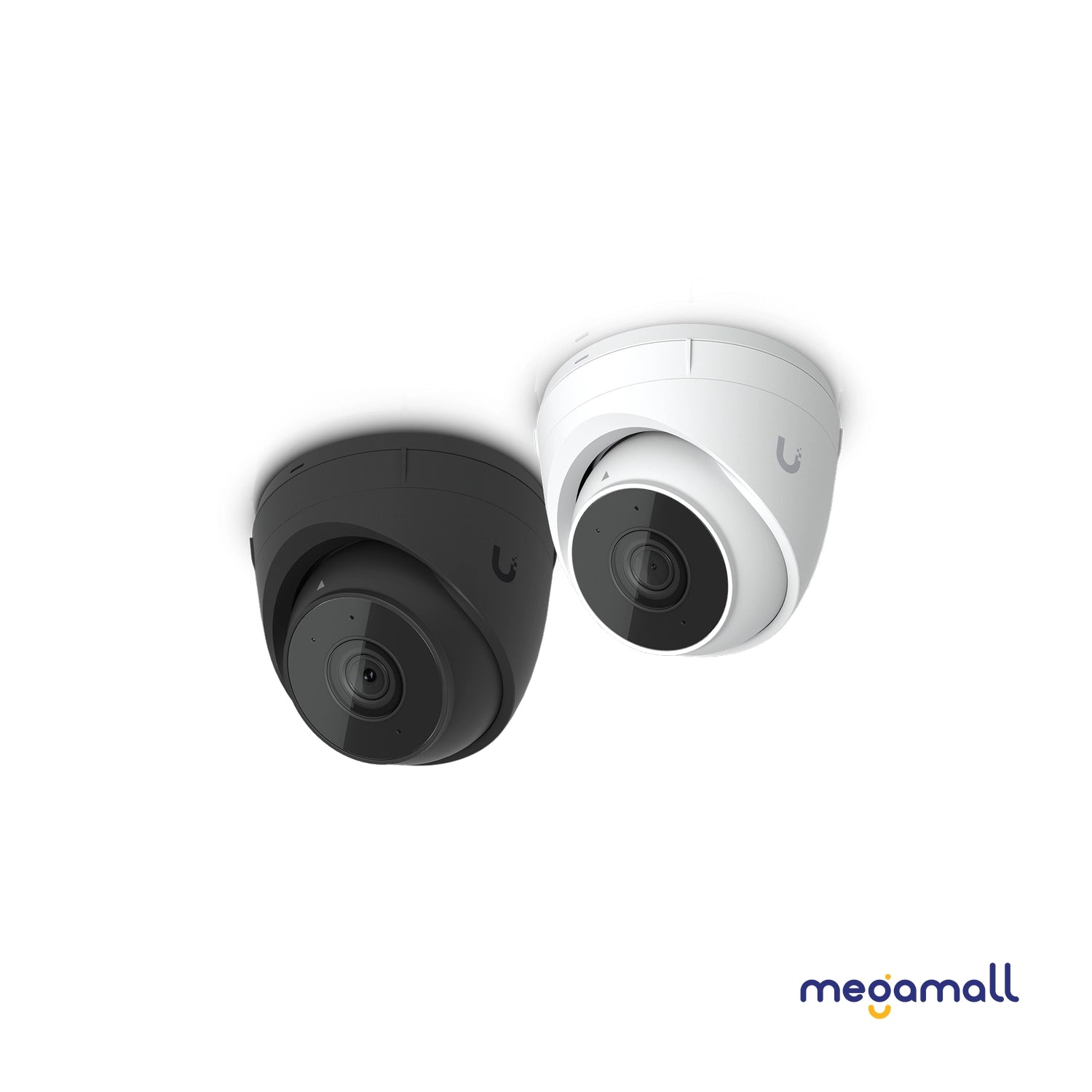

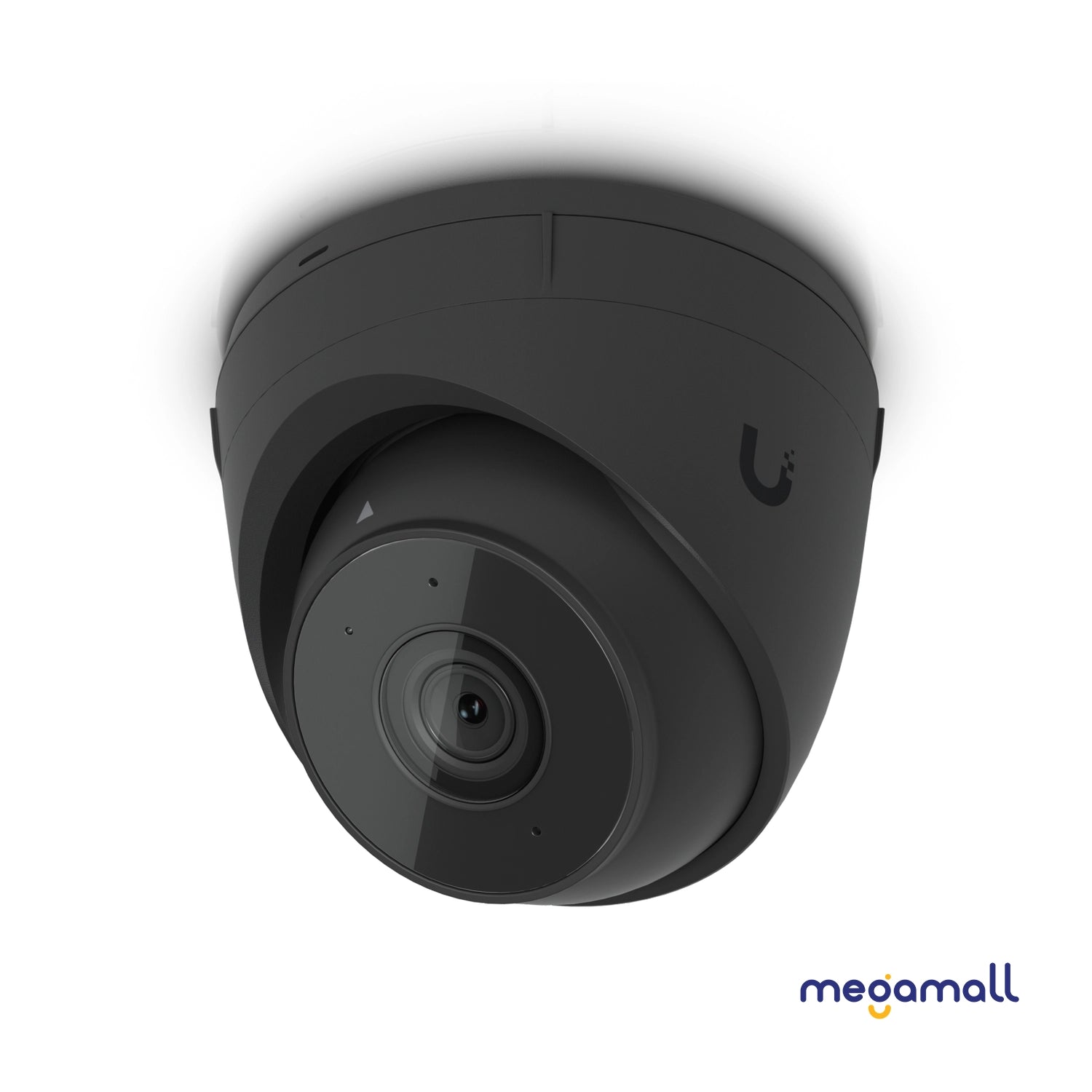

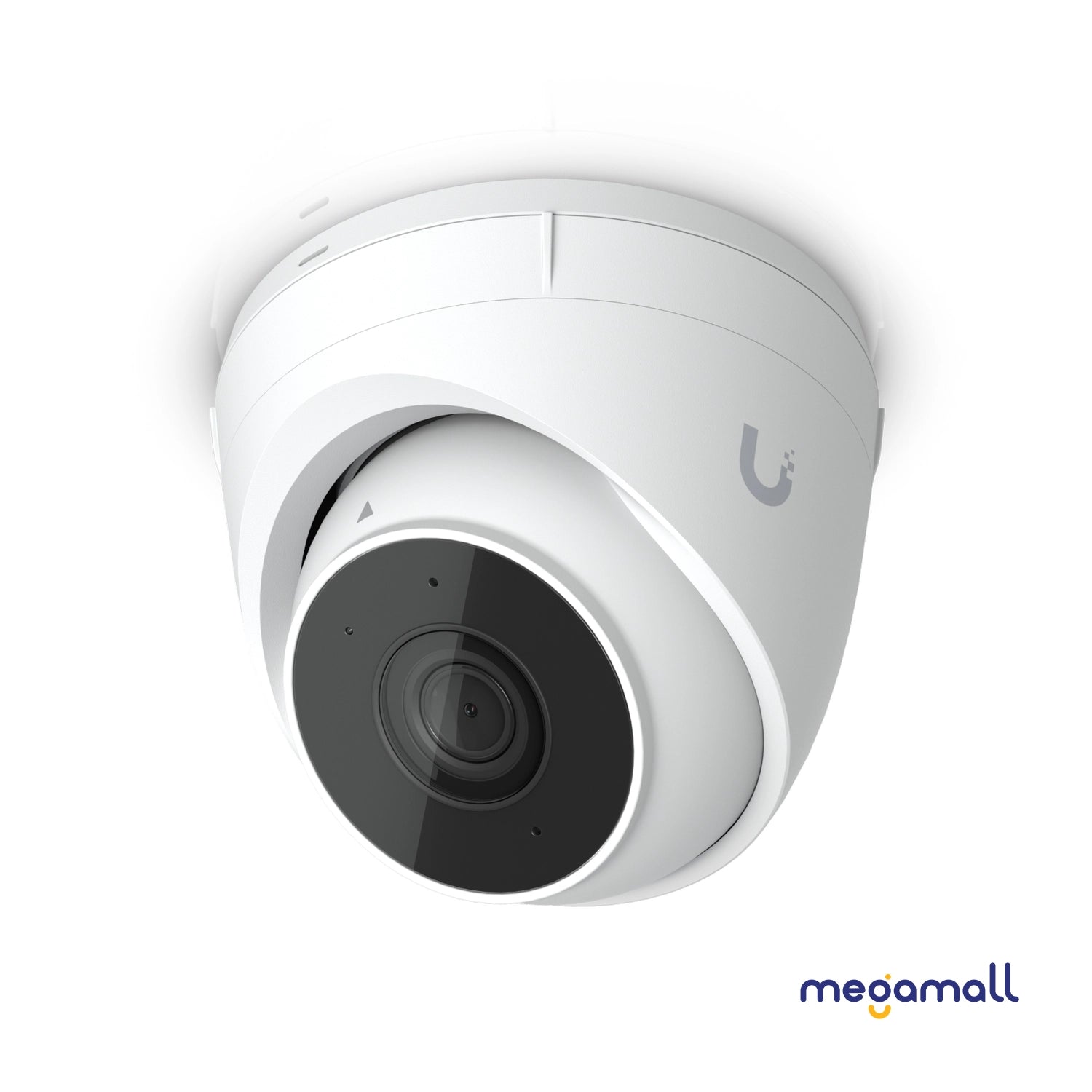

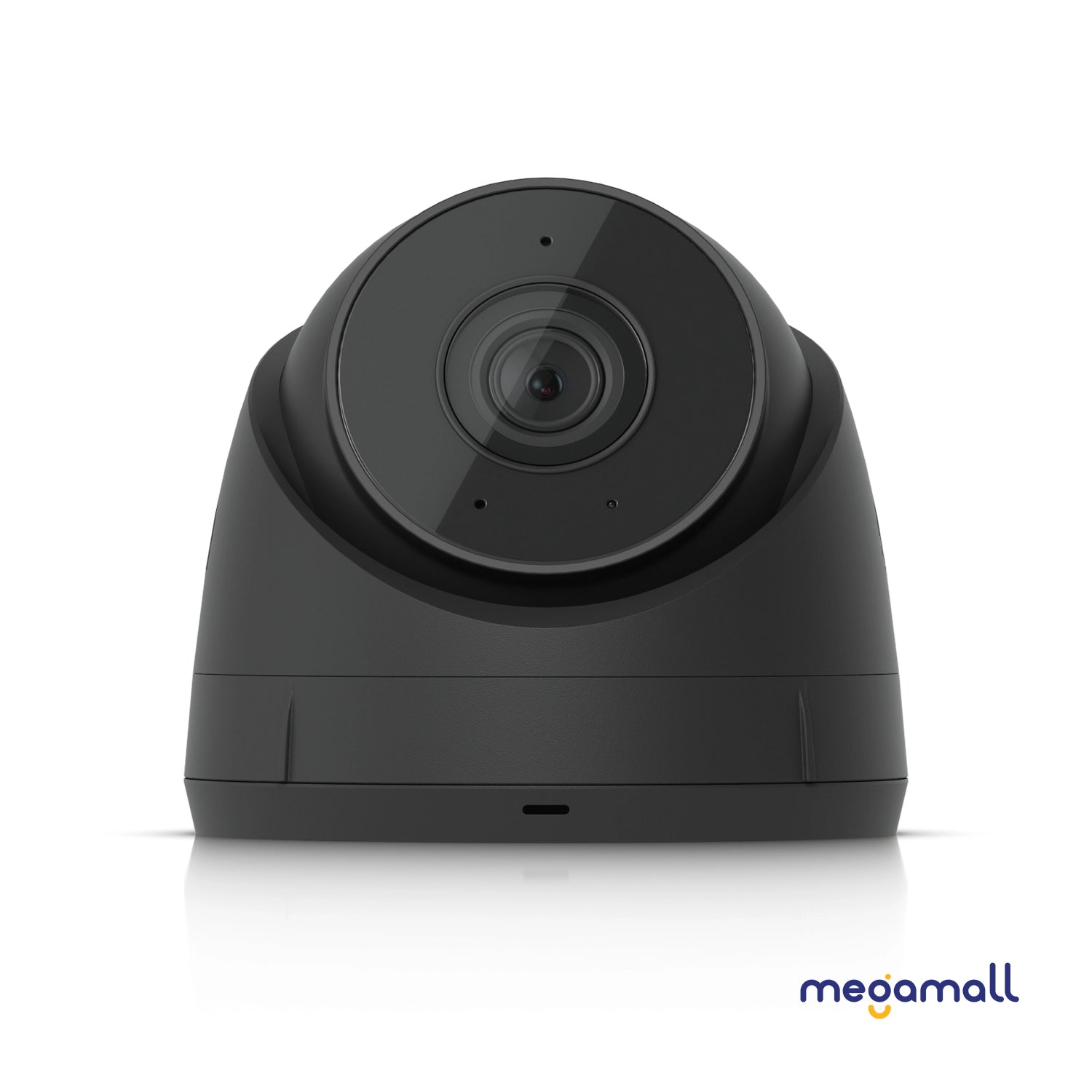

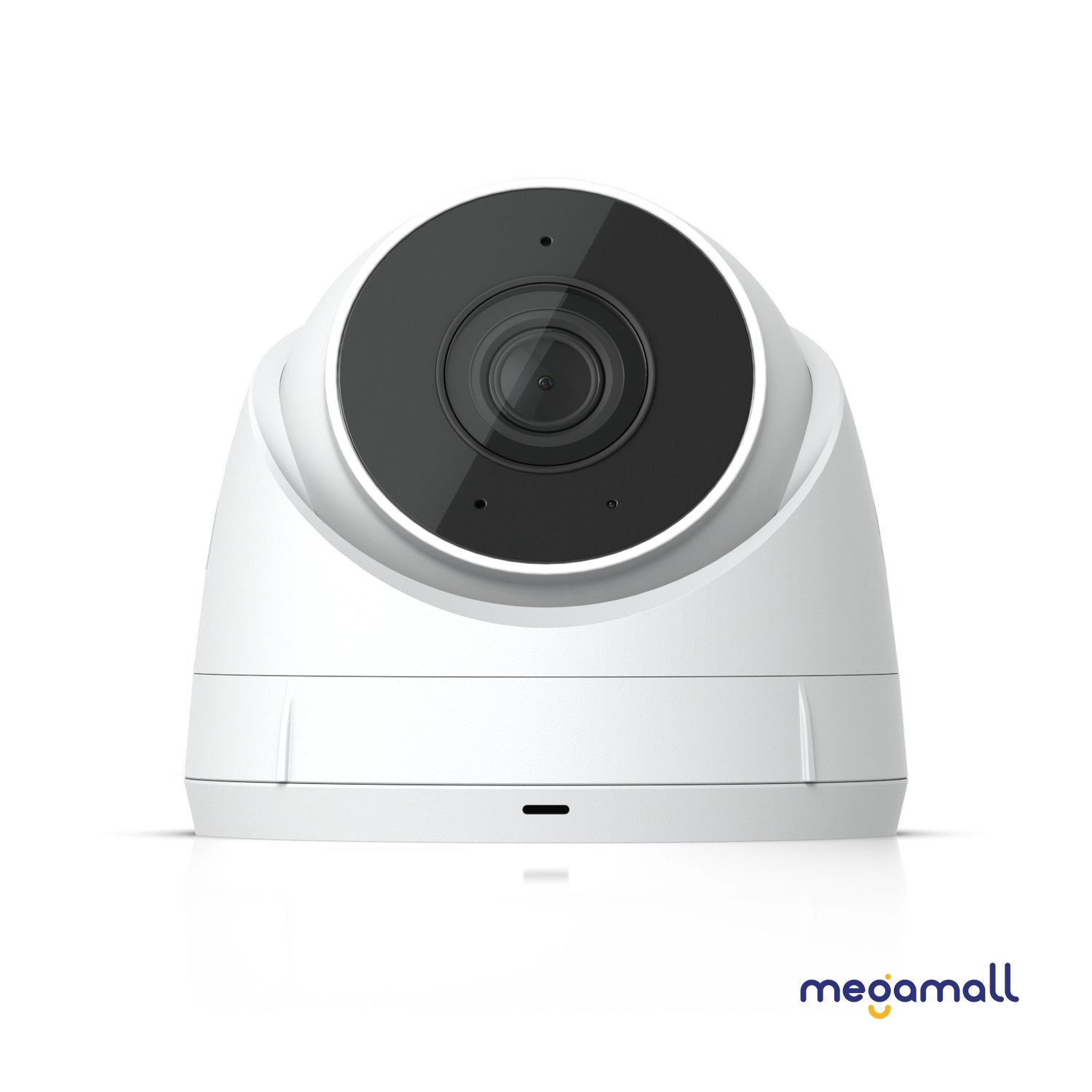

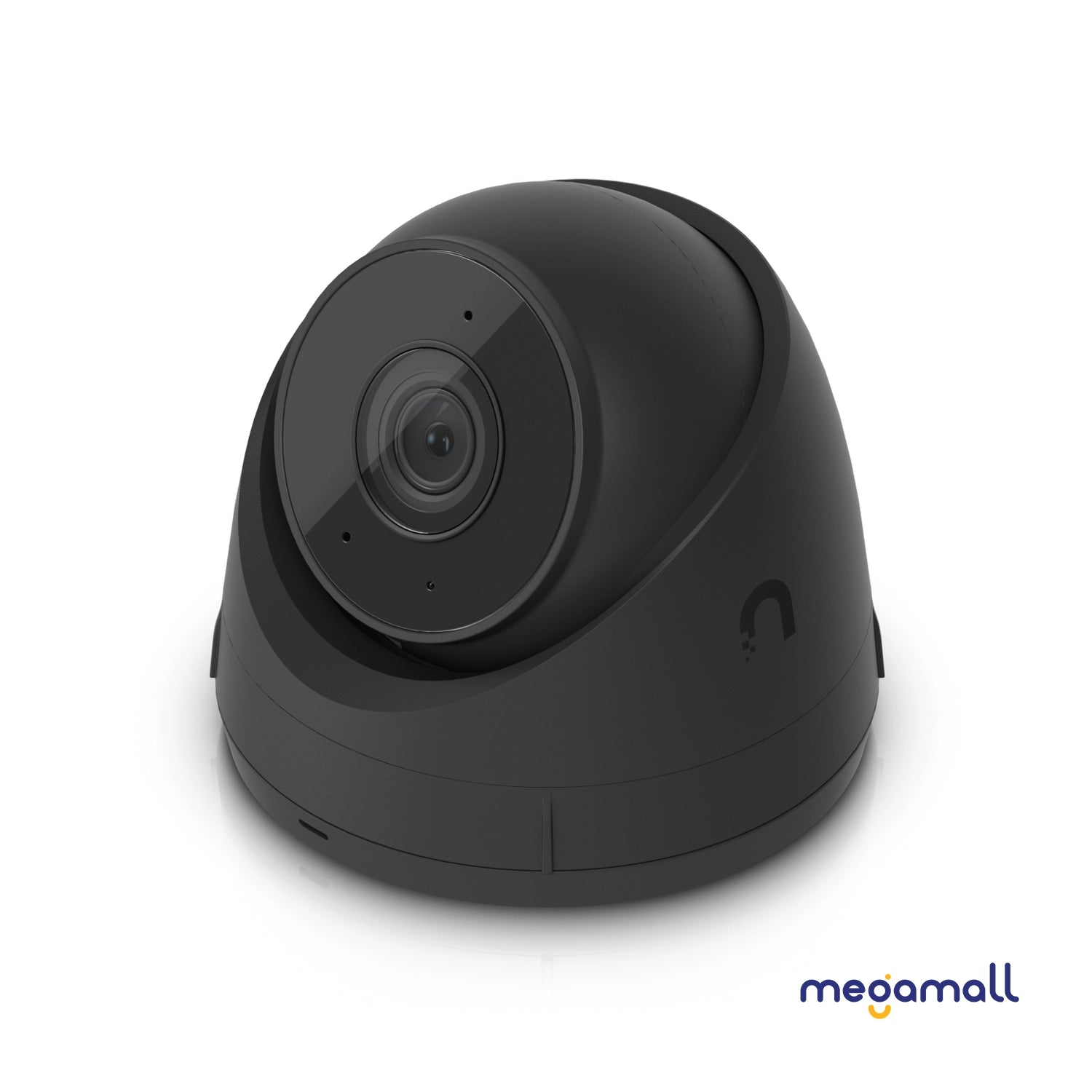

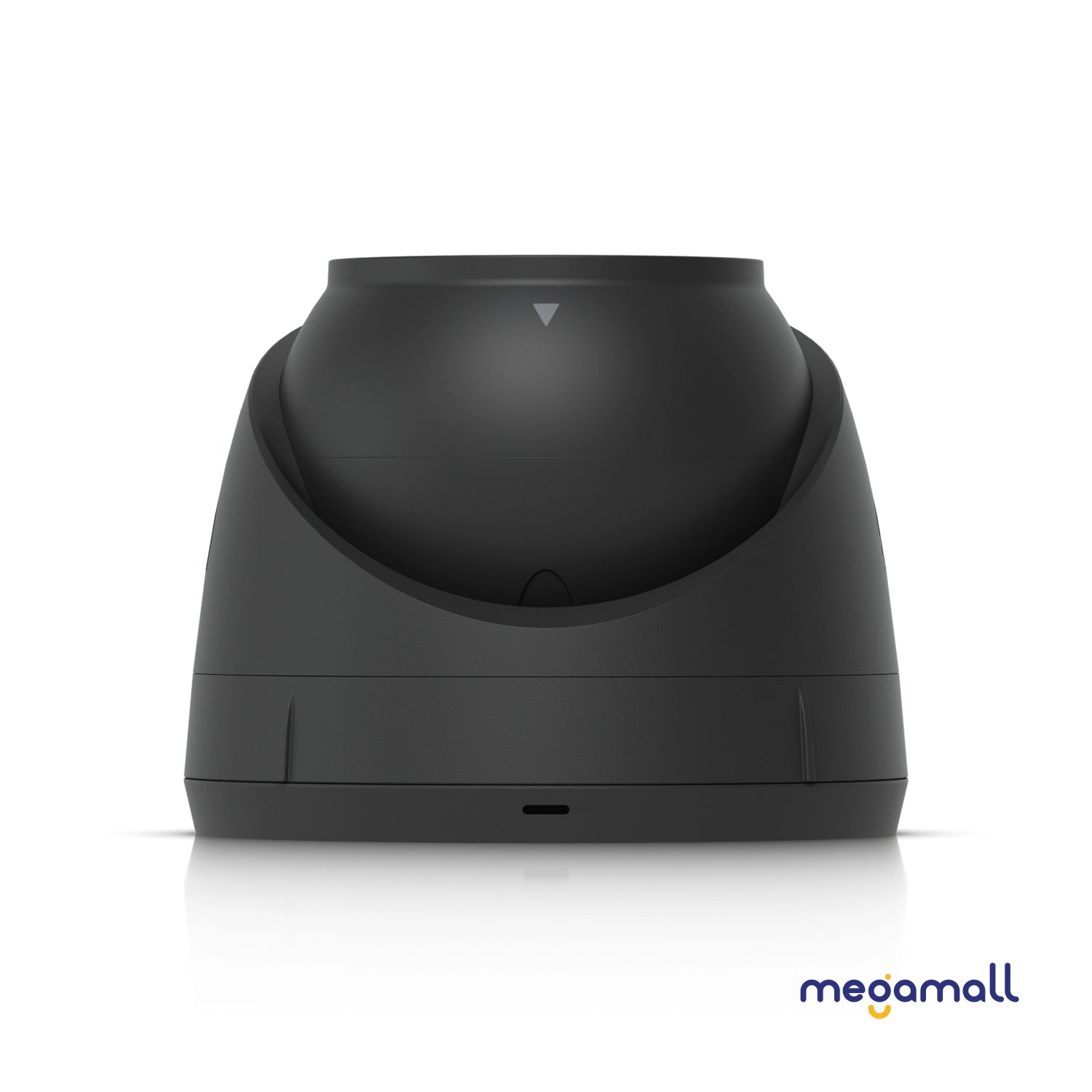

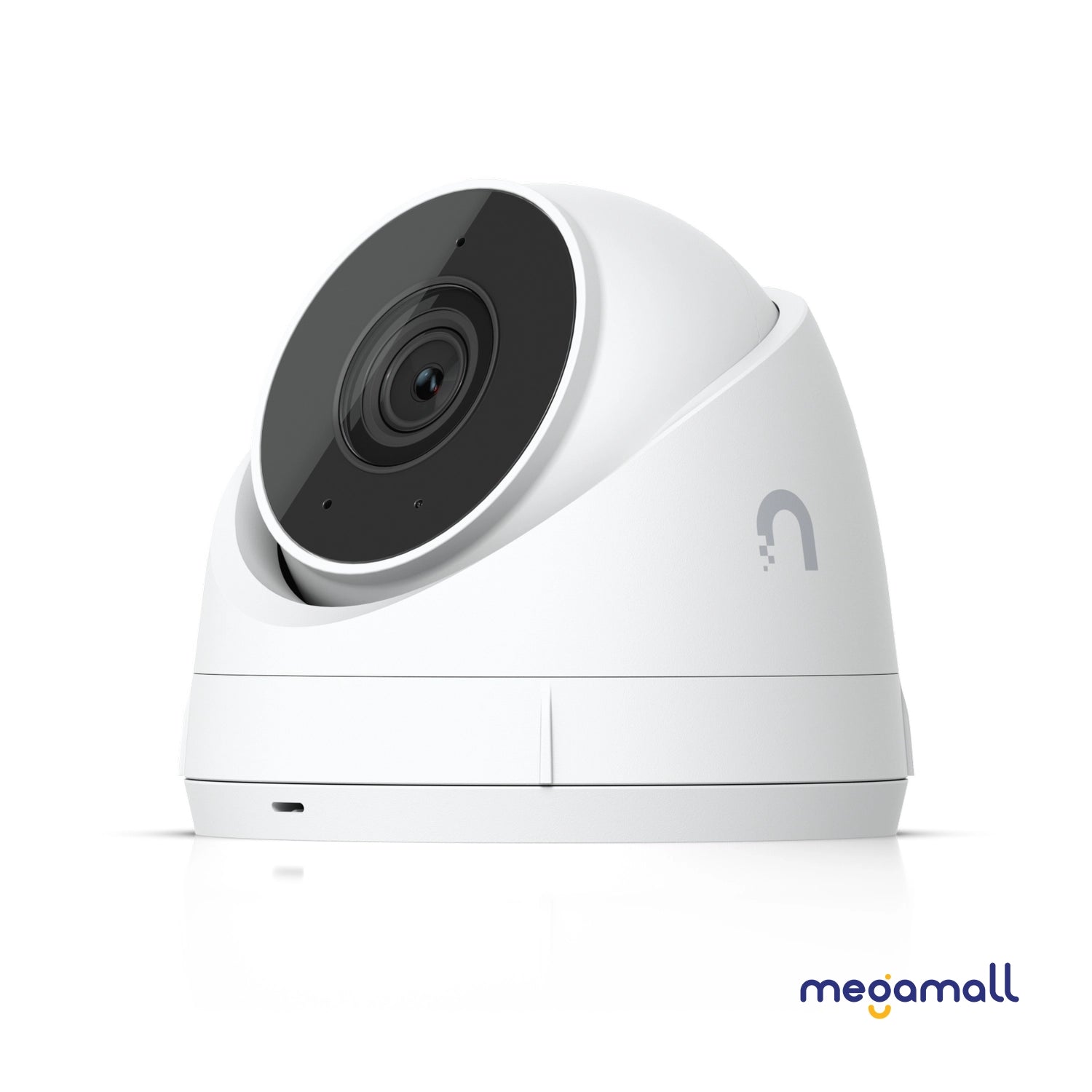

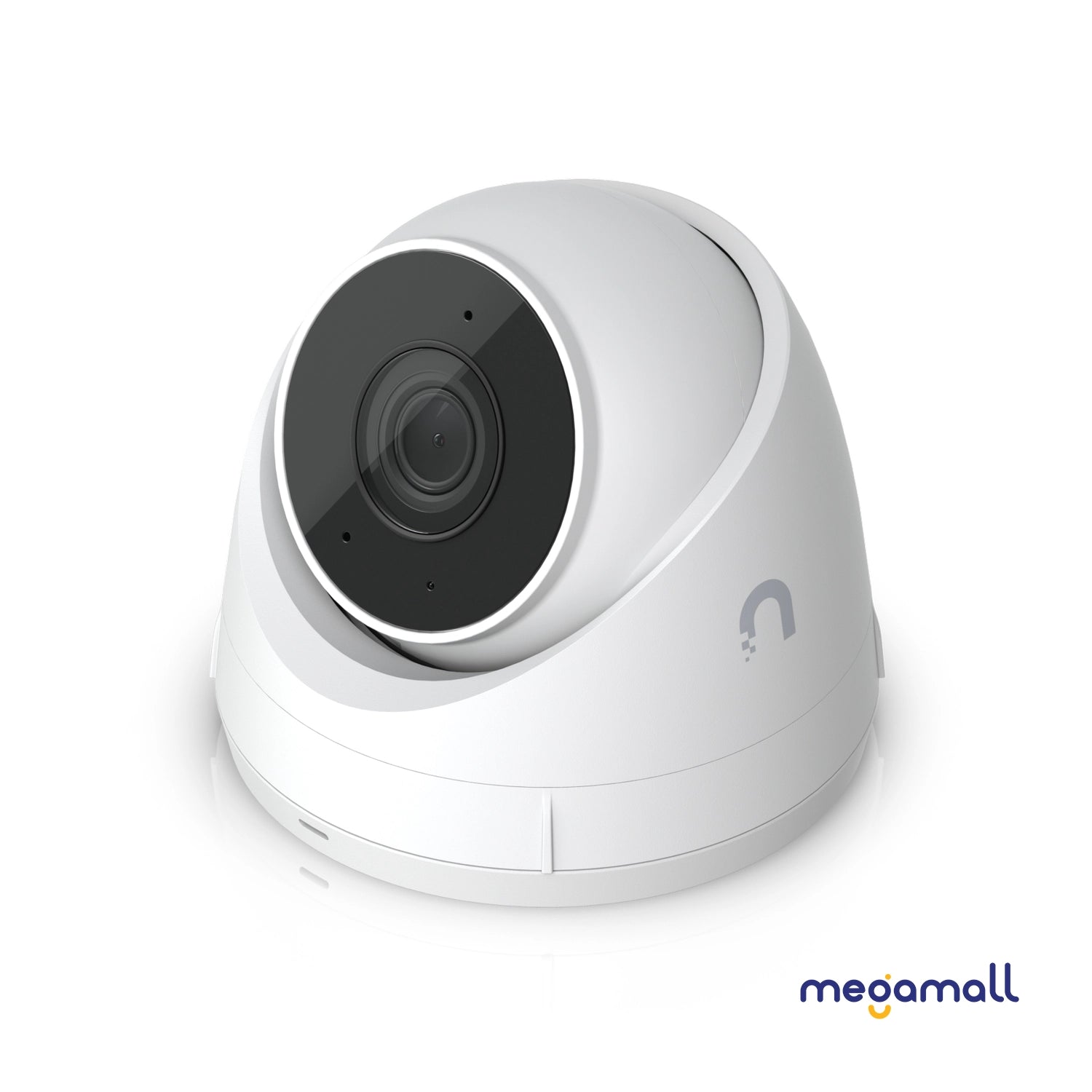

Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
|
Overview |
||
|
Dimensions |
Ø90 x 71.2 mm (Ø3.5 x 2.8") |
|
|
IR Night Vision |
30 m (98 ft) |
|
|
Smart Detections (People, Vehicles, Animals) |
✓ |
|
|
Resolution |
2K |
|
|
Field of View |
H: 102.4°, V: 54.9°, D: 120.6° |
|
|
Audio |
Microphone |
|
|
Weatherproofing |
IP66 |
|
|
Tamper Resistance |
IK04 |
|
|
Mounting |
Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
|
|
Performance |
||
|
Networking Interface |
10/100 MbE RJ45 port |
|
|
Video |
||
|
Image Settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
|
|
Max. Frame Rate |
30 FPS |
|
|
Resolution |
4MP 2688 x 1512 (16:9) |
|
|
Optics |
||
|
Sensor |
1/2.4" CMOS |
|
|
Lens |
Fixed focal length |
|
|
Night Mode |
Built-in IR LED illumination and IR cut filter |
|
|
Hardware |
||
|
Max. Power Consumption |
4W |
|
|
Supported Voltage Range |
37—57V DC |
|
|
Power Method |
PoE |
|
|
Processor |
Dual-core Arm® Cortex®-A7 based chip |
|
|
Weight |
330 g (11.6 oz) |
|
|
Enclosure Material |
Aluminum alloy, UV-stabilized polycarbonate |
|
|
Mount Material |
Polycarbonate |
|
|
Button |
(1) Factory-reset |
|
|

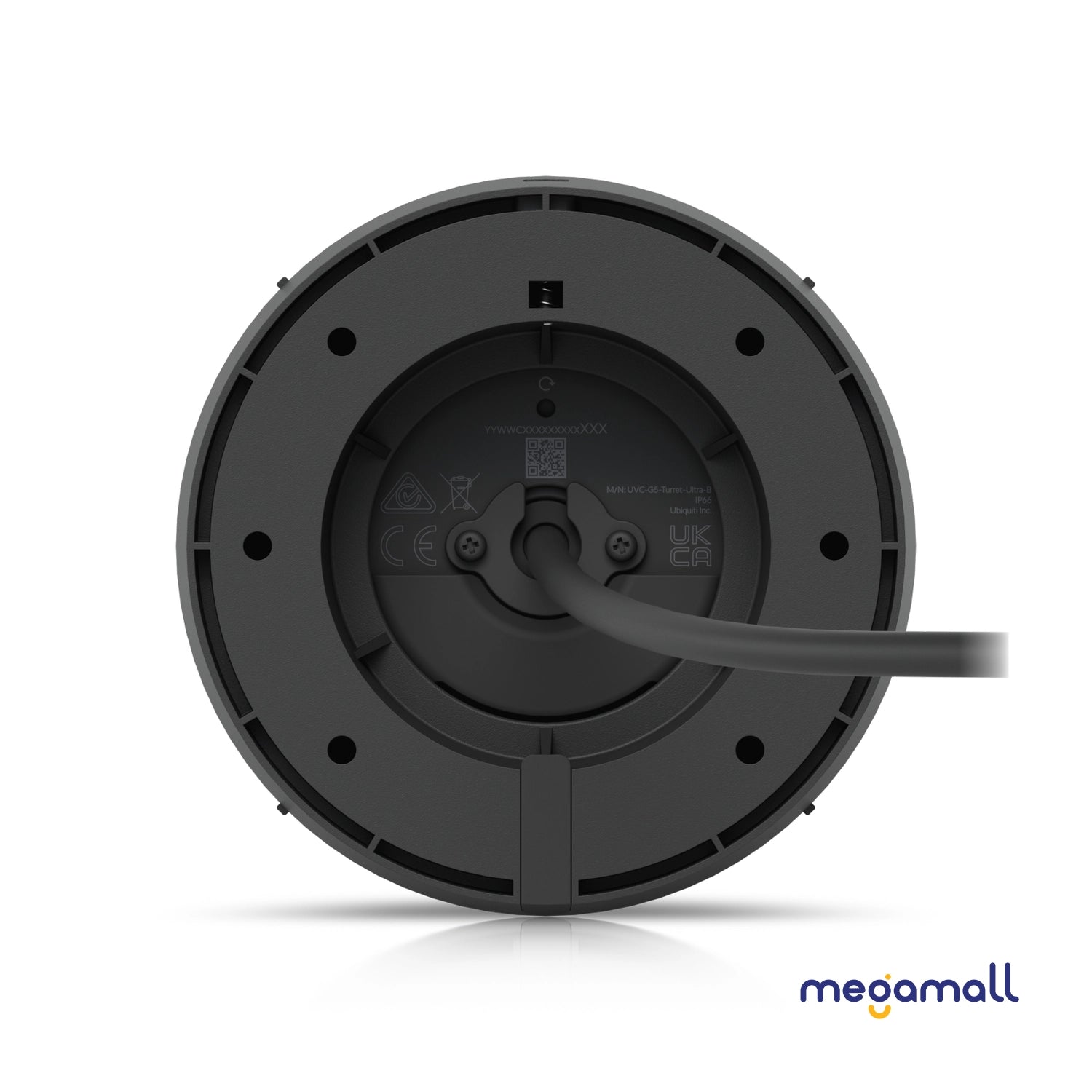

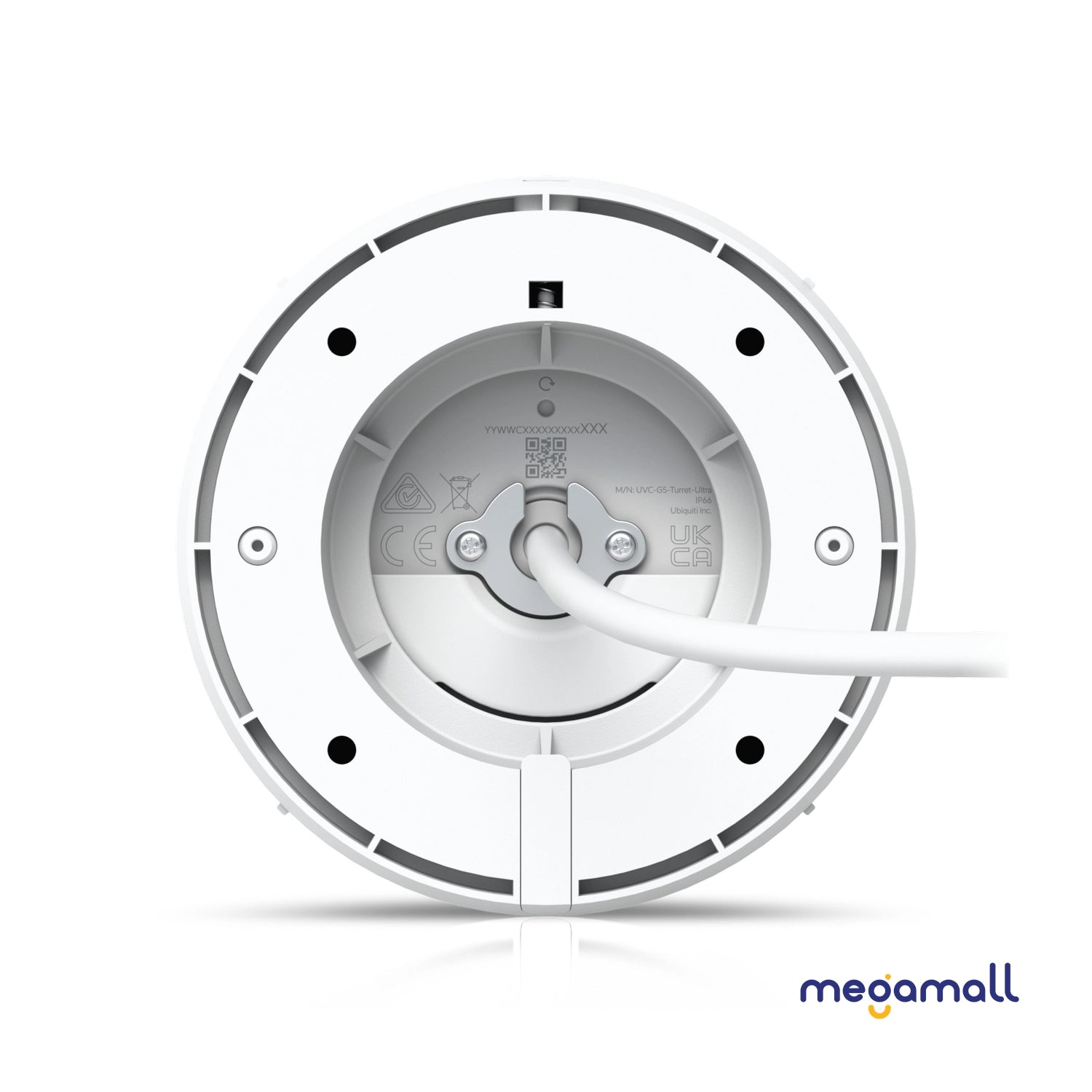

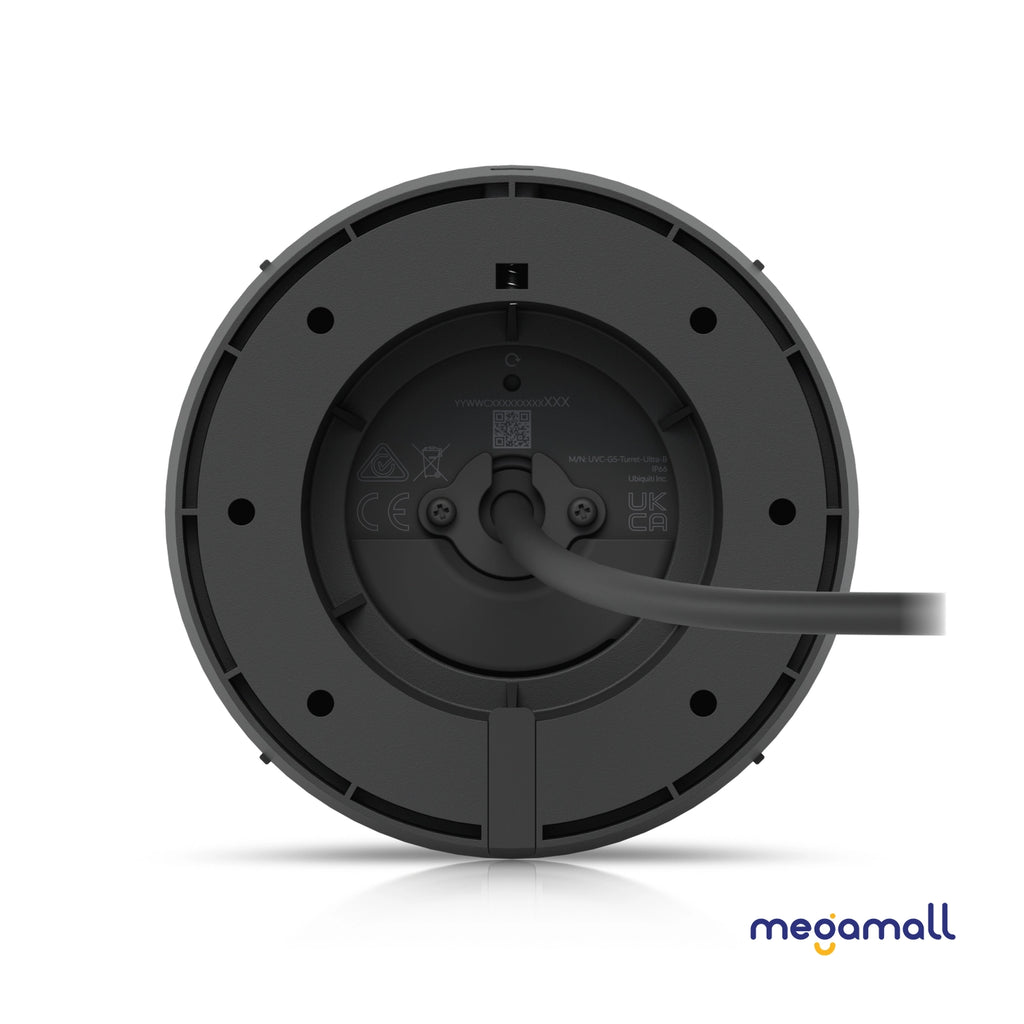

Cable |
||
|
Cable Connector Type |
RJ45 |
|
|
Cable Diameter |
5 mm (0.2") |
|
|
Cable Length |
30 cm (1 ft) |
|
|
Jacket Material |
Polycarbonate |
|
|
Jacket Enclosure Dimensions |
Ø20 x 70.6 mm (0.8 x 2.8") |
|
|
Jacket Enclosure Material |
Thermoplastic elastomer, polycarbonate, silicone rubber |
|
|
Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
|
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
|
NDAA Compliant |
✓ |
|
|
Certifications |
CE, FCC, IC |
|
